Page 3593 of 4264
TRANSFER CASE 7D-5
220R300021

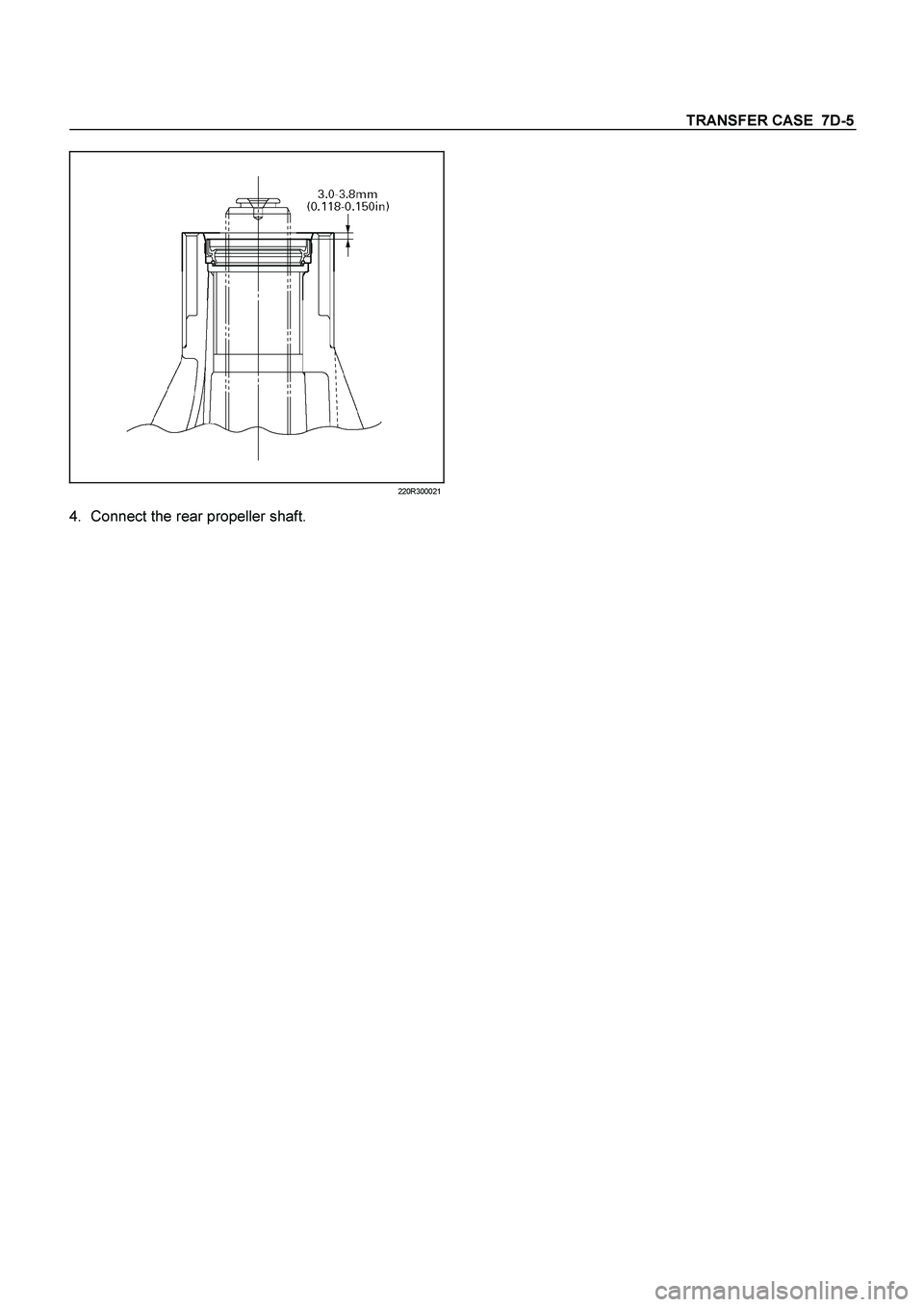

4.
Connect the rear propeller shaft.
Page 3594 of 4264
7D-6 TRANSFER CASE

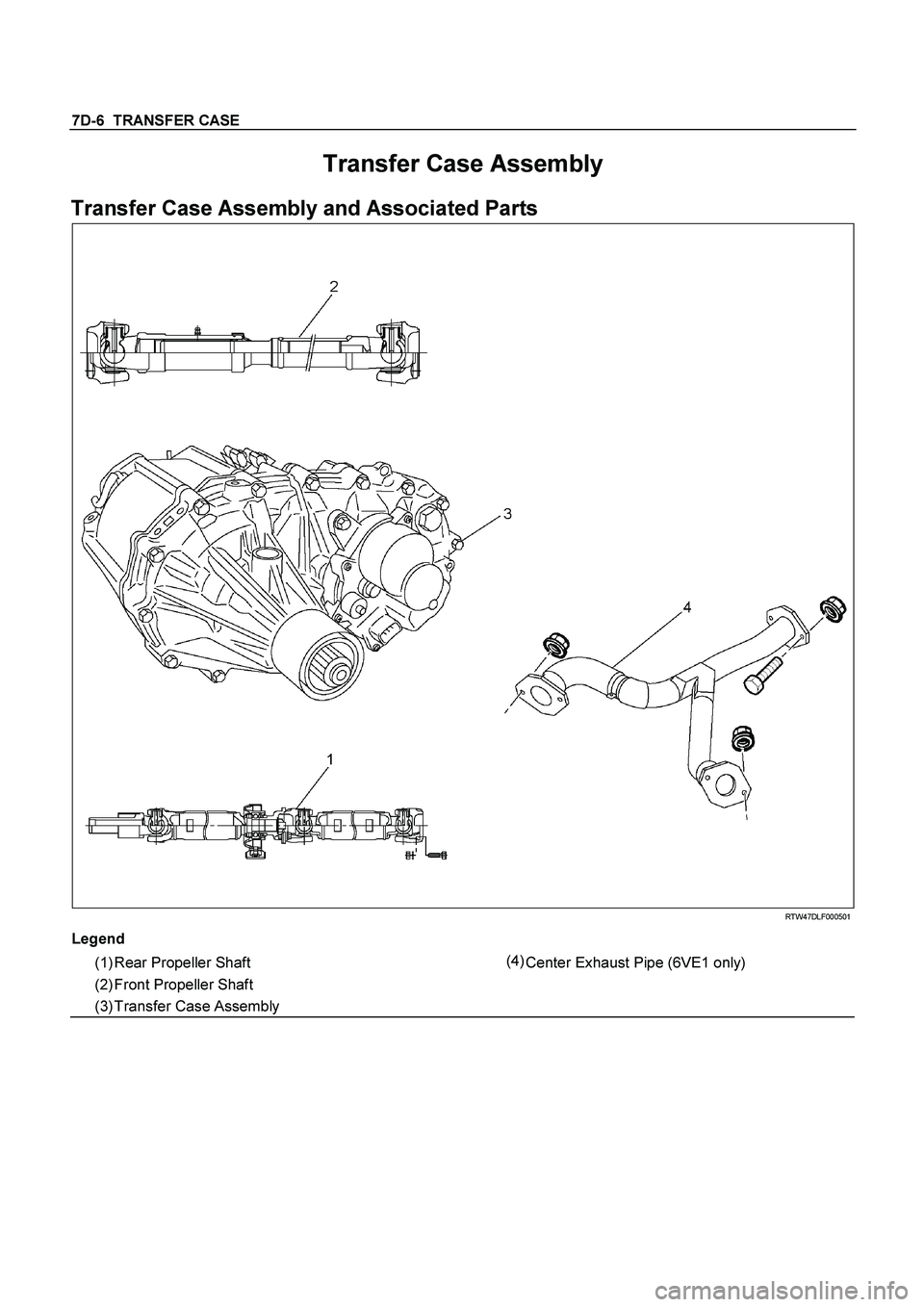

Transfer Case Assembly
Transfer Case Assembly and Associated Parts
RTW47DLF000501
Legend
(1) Rear Propeller Shaft
(4)
Center Exhaust Pipe (6VE1 only)
(2) Front Propeller Shaft
(3) Transfer Case Assembly
Page 3595 of 4264

TRANSFER CASE 7D-7
Removal

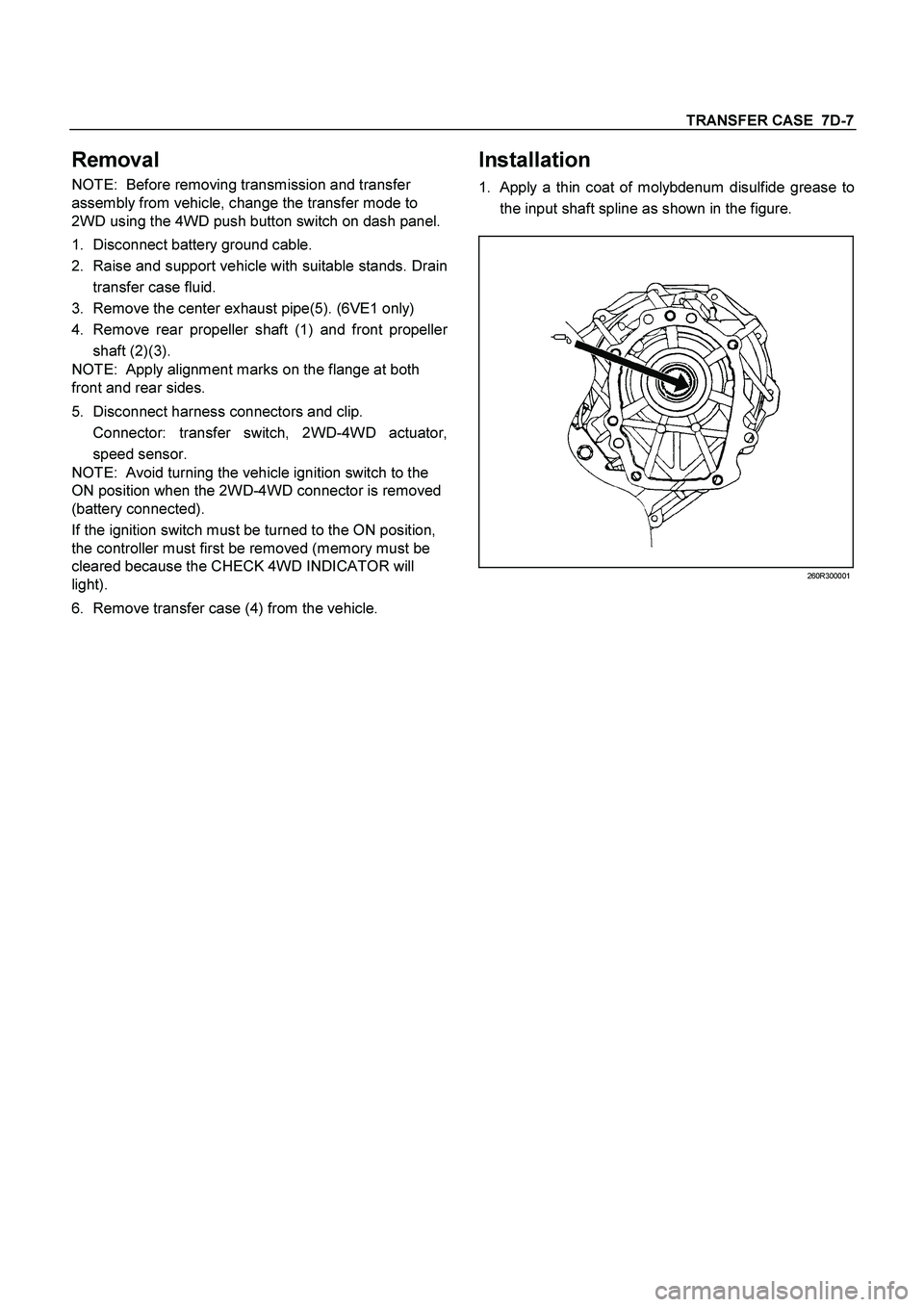

NOTE: Before removing transmission and transfer
assembly from vehicle, change the transfer mode to
2WD using the 4WD push button switch on dash panel.
1.
Disconnect battery ground cable.
2.
Raise and support vehicle with suitable stands. Drain
transfer case fluid.
3. Remove the center exhaust pipe(5). (6VE1 only)
4.
Remove rear propeller shaft (1) and front propelle
r
shaft (2)(3).
NOTE: Apply alignment marks on the flange at both
front and rear sides.
5.
Disconnect harness connectors and clip.
Connector: transfer switch, 2WD-4WD actuator,
speed sensor.
NOTE: Avoid turning the vehicle ignition switch to the
ON position when the 2WD-4WD connector is removed
(battery connected).
If the ignition switch must be turned to the ON position,
the controller must first be removed (memory must be
cleared because the CHECK 4WD INDICATOR will
light).
6.
Remove transfer case (4) from the vehicle.
Installation
1.
Apply a thin coat of molybdenum disulfide grease to
the input shaft spline as shown in the figure.
260R300001
Page 3596 of 4264
7D-8 TRANSFER CASE
2.

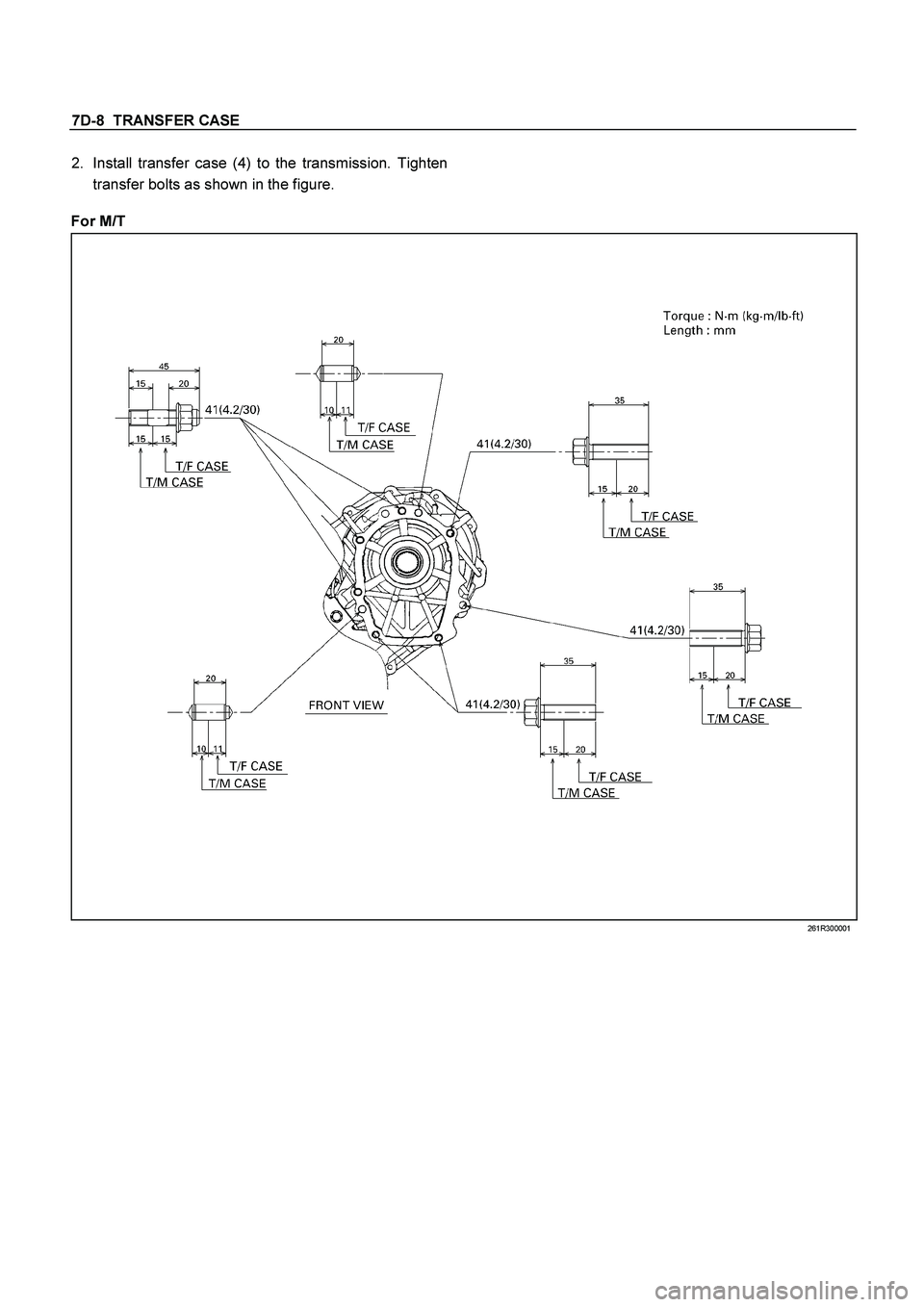

Install transfer case (4) to the transmission. Tighten
transfer bolts as shown in the figure.
For M/T
261R300001
Page 3597 of 4264
TRANSFER CASE 7D-9

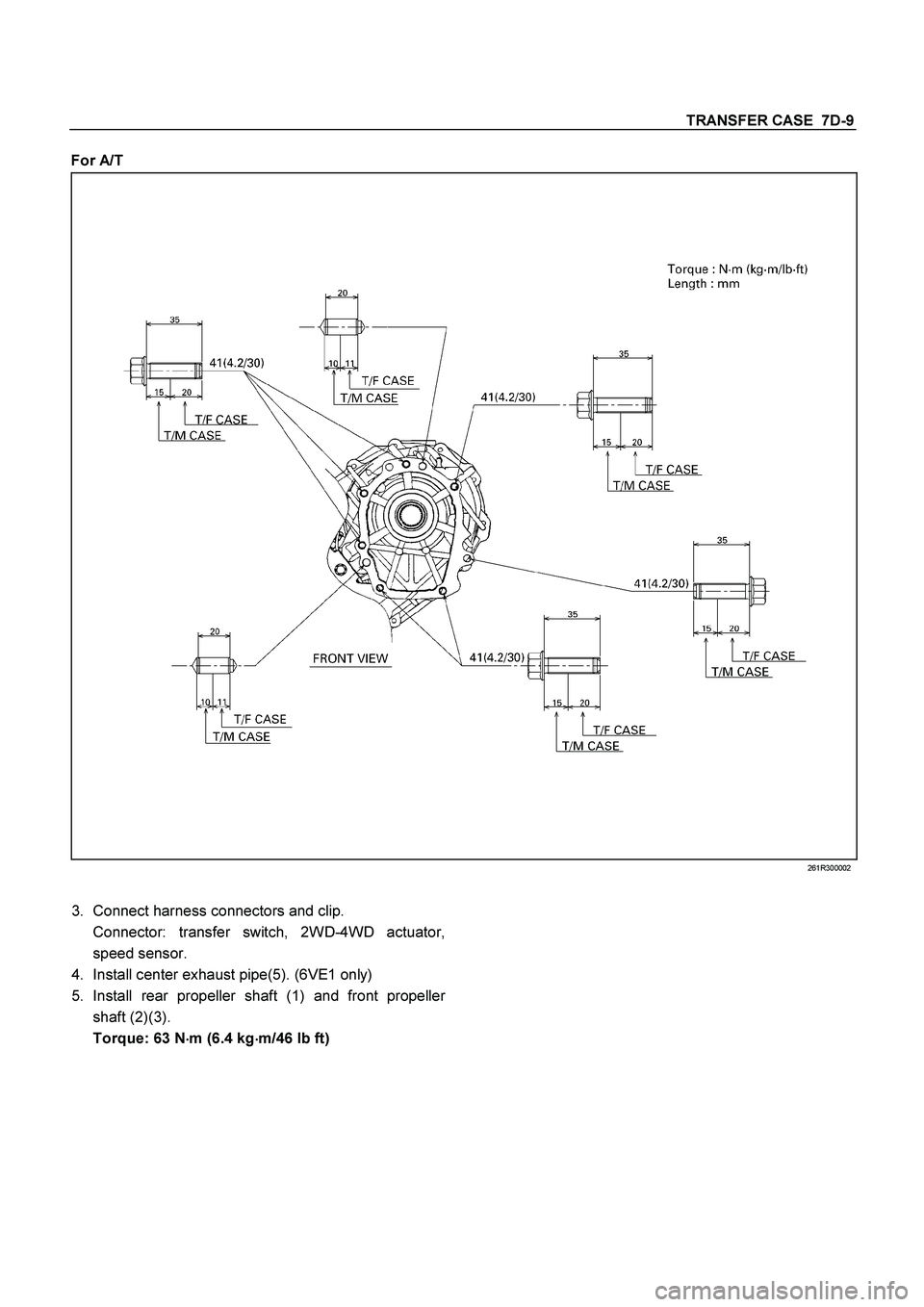

For A/T
261R300002
3.
Connect harness connectors and clip.
Connector: transfer switch, 2WD-4WD actuator,
speed sensor.
4. Install center exhaust pipe(5). (6VE1 only)
5.
Install rear propeller shaft (1) and front propelle
r
shaft (2)(3).
Torque: 63 N
m (6.4 kg
m/46 lb ft)
Page 3598 of 4264
7D-10 TRANSFER CASE

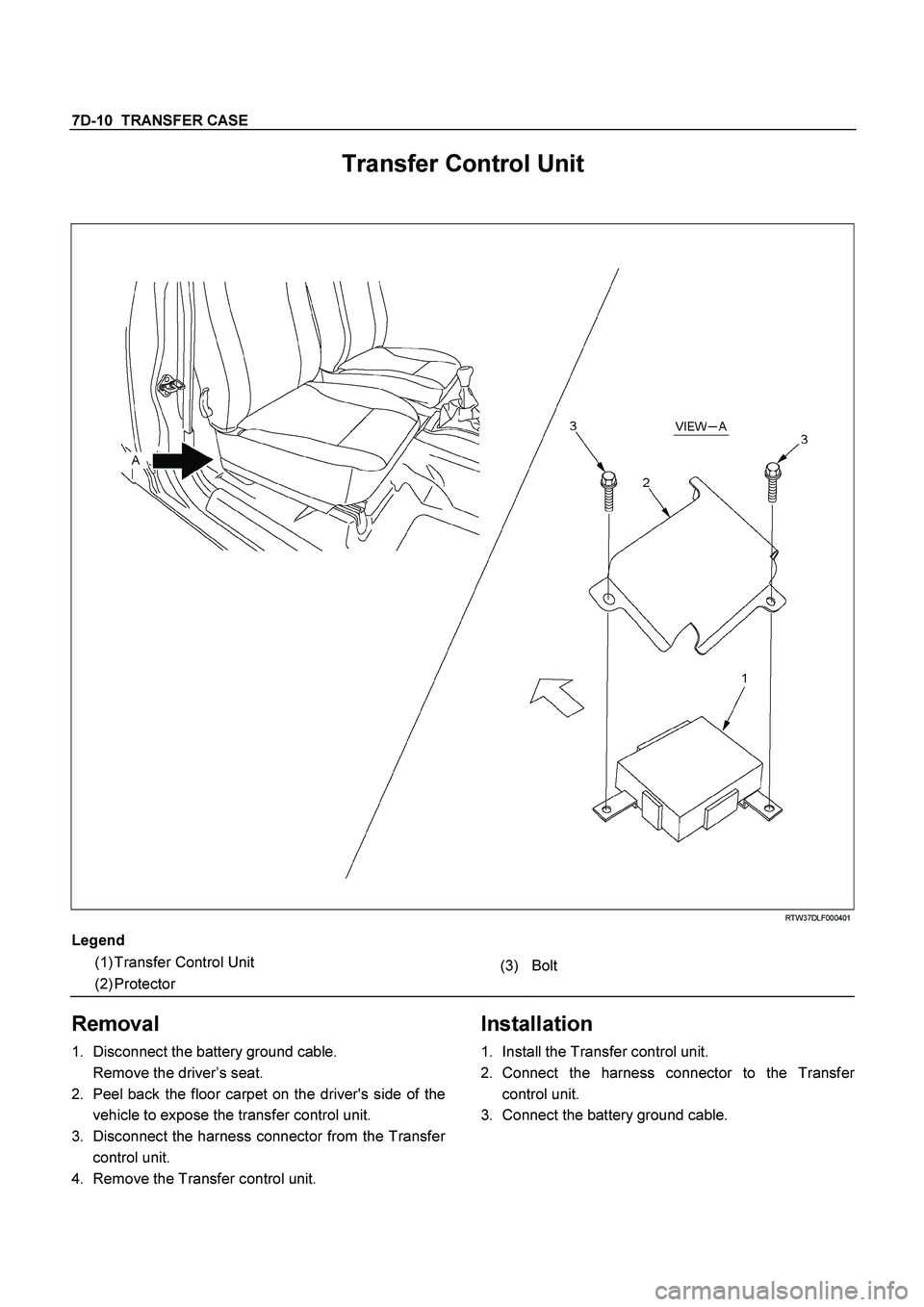

Transfer Control Unit
RTW37DLF000401
Legend
(1) Transfer Control Unit
(3) Bolt
(2) Protector
Removal
1.
Disconnect the battery ground cable.
Remove the driver’s seat.
2.
Peel back the floor carpet on the driver's side of the
vehicle to expose the transfer control unit.
3.
Disconnect the harness connector from the Transfe
r
control unit.
4. Remove the Transfer control unit.
Installation
1.
Install the Transfer control unit.
2.
Connect the harness connector to the Transfe
r
control unit.
3.
Connect the battery ground cable.
Page 3599 of 4264
TRANSFER CASE 7D-11

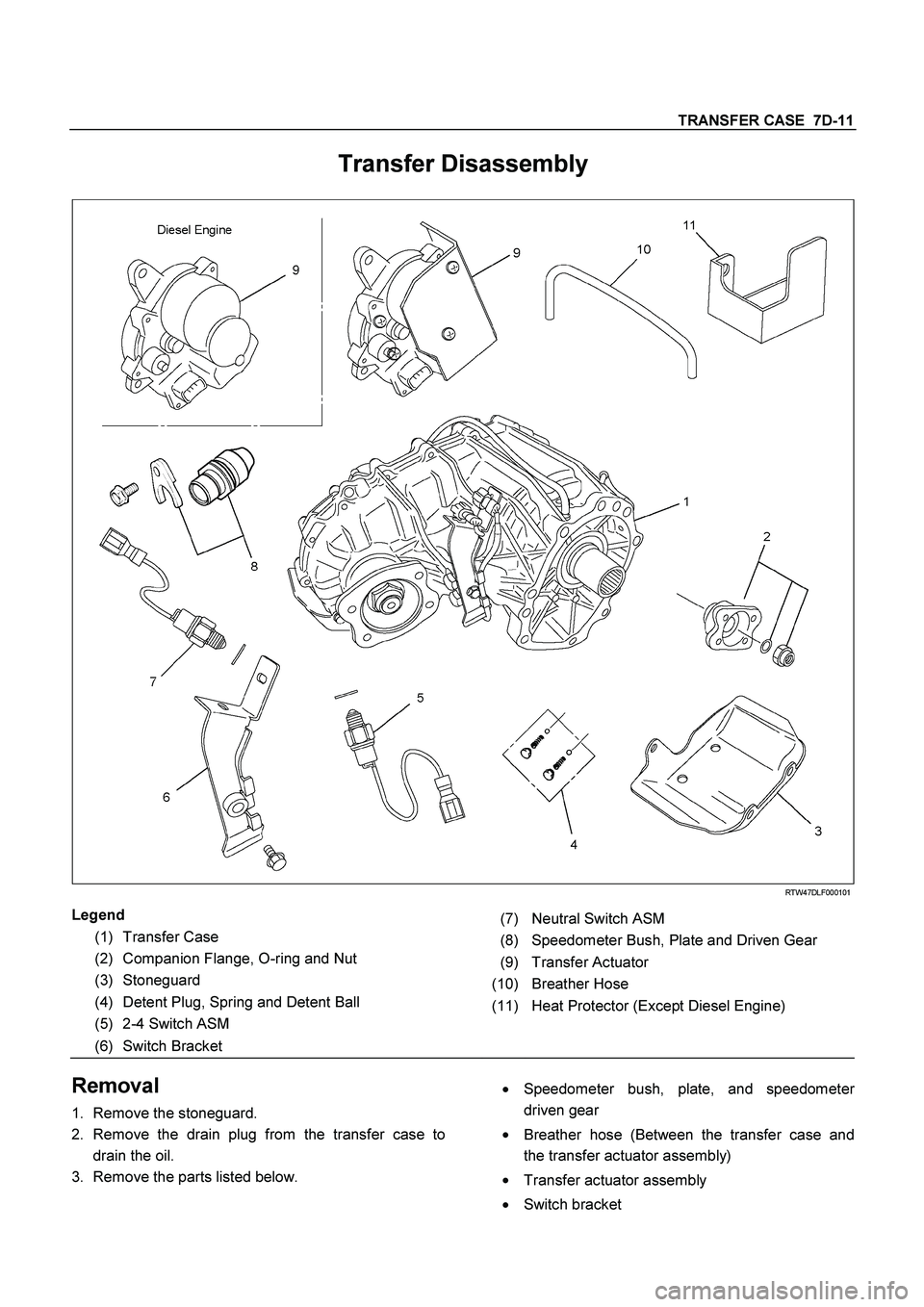

Transfer Disassembly
RTW47DLF000101
Legend
(7) Neutral Switch ASM
(1) Transfer Case
(8) Speedometer Bush, Plate and Driven Gear
(2) Companion Flange, O-ring and Nut
(9)Transfer Actuator
(3) Stoneguard
(10)Breather Hose
(4) Detent Plug, Spring and Detent Ball
(11) Heat Protector (Except Diesel Engine)
(5) 2-4 Switch ASM
(6) Switch Bracket
Removal
1.
Remove the stoneguard.
2.
Remove the drain plug from the transfer case to
drain the oil.
3.
Remove the parts listed below.
Speedometer bush, plate, and speedomete
r
driven gear
Breather hose (Between the transfer case and
the transfer actuator assembly)
Transfer actuator assembly
Switch bracket
Page 3600 of 4264
7D-12 TRANSFER CASE
2-4 switch assembly (Gray harness cover)
Neutral switch assembly (Black harness cover)
Detent plugs, detent springs, and detent balls (2
parts each)
4.
Use the companion flange holder (5-8840-0133-0) to
remove the end nut from the front companion flange.
5.
Remove the bolts attaching the rear cover to the
transfer case.
6.
Strike the area around the front output shaft head
and the rear cover bolt holes with a plastic hamme
r
to remove the rear cover.
220R300022
