Page 2361 of 4264

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-365

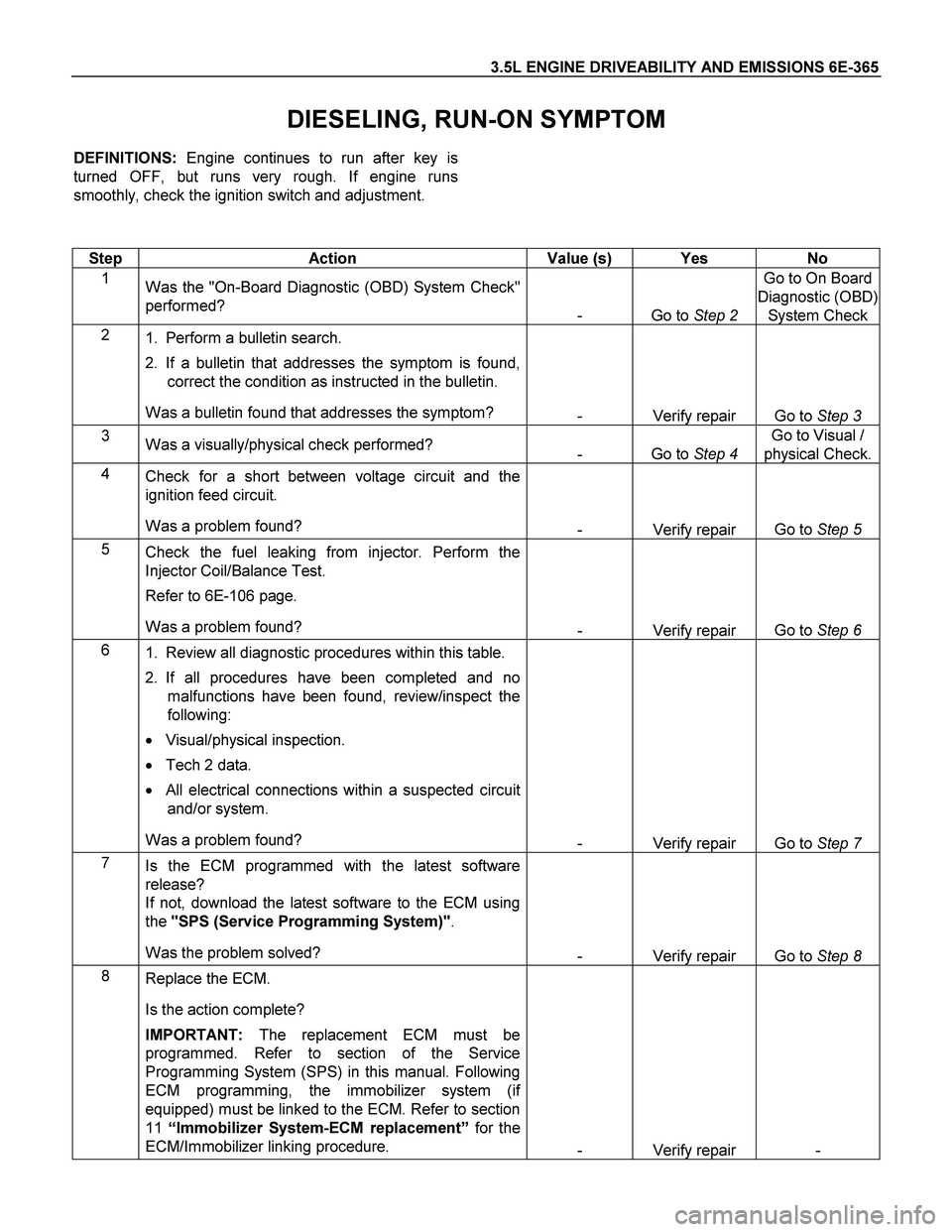

DIESELING, RUN-ON SYMPTOM
DEFINITIONS: Engine continues to run after key is
turned OFF, but runs very rough. If engine runs
smoothly, check the ignition switch and adjustment.
Step Action Value (s) Yes No
1
Was the "On-Board Diagnostic (OBD) System Check"
performed?
- Go to Step 2 Go to On Board
Diagnostic (OBD)
System Check
2
1. Perform a bulletin search.
2. If a bulletin that addresses the symptom is found,
correct the condition as instructed in the bulletin.
Was a bulletin found that addresses the symptom?
- Verify repair Go to Step 3
3
Was a visually/physical check performed?
- Go to Step 4 Go to Visual /
physical Check.
4
Check for a short between voltage circuit and the
ignition feed circuit.
Was a problem found?
- Verify repair Go to Step 5
5
Check the fuel leaking from injector. Perform the
Injector Coil/Balance Test.
Refer to 6E-106 page.
Was a problem found?
- Verify repair Go to Step 6
6
1. Review all diagnostic procedures within this table.
2. If all procedures have been completed and no
malfunctions have been found, review/inspect the
following:
Visual/physical inspection.
Tech 2 data.
All electrical connections within a suspected circuit
and/or system.
Was a problem found?
- Verify repair Go to Step 7
7
Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the "SPS (Service Programming System)".
Was the problem solved?
- Verify repair Go to Step 8
8
Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual. Following
ECM programming, the immobilizer system (if
equipped) must be linked to the ECM. Refer to section
11 “Immobilizer System-ECM replacement” for the
ECM/Immobilizer linking procedure.
- Verify repair -
Page 2362 of 4264

6E-366 3.5L ENGINE DRIVEABILITY AND EMISSIONS

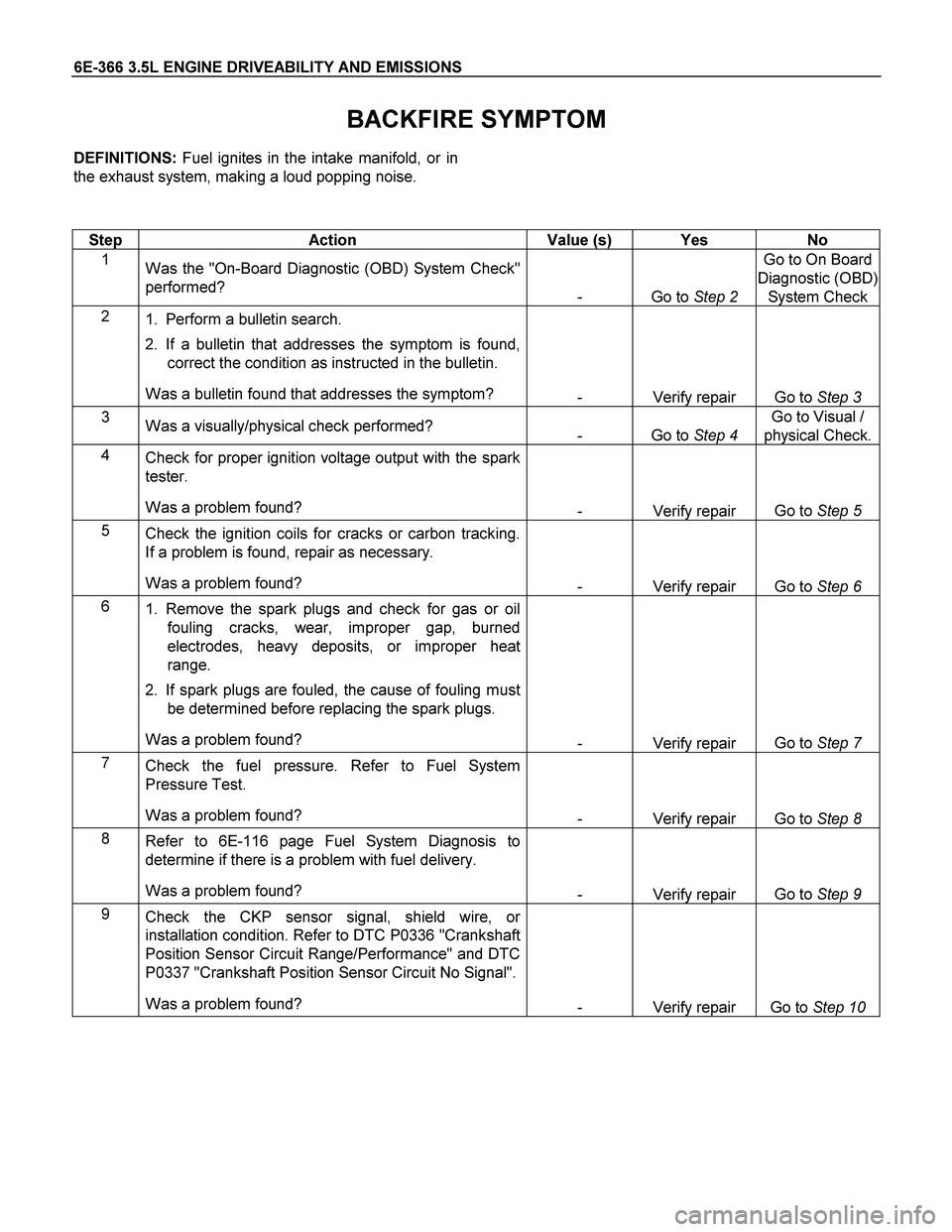

BACKFIRE SYMPTOM
DEFINITIONS: Fuel ignites in the intake manifold, or in
the exhaust system, making a loud popping noise.
Step Action Value (s) Yes No
1
Was the "On-Board Diagnostic (OBD) System Check"
performed?
- Go to Step 2 Go to On Board
Diagnostic (OBD)
System Check
2
1. Perform a bulletin search.
2. If a bulletin that addresses the symptom is found,
correct the condition as instructed in the bulletin.
Was a bulletin found that addresses the symptom?
- Verify repair Go to Step 3
3
Was a visually/physical check performed?
- Go to Step 4 Go to Visual /
physical Check.
4
Check for proper ignition voltage output with the spark
tester.
Was a problem found?
- Verify repair Go to Step 5
5
Check the ignition coils for cracks or carbon tracking.
If a problem is found, repair as necessary.
Was a problem found?
- Verify repair Go to Step 6
6
1. Remove the spark plugs and check for gas or oil
fouling cracks, wear, improper gap, burned
electrodes, heavy deposits, or improper heat
range.
2. If spark plugs are fouled, the cause of fouling must
be determined before replacing the spark plugs.
Was a problem found?
- Verify repair Go to Step 7
7
Check the fuel pressure. Refer to Fuel System
Pressure Test.
Was a problem found?
- Verify repair Go to Step 8
8
Refer to 6E-116 page Fuel System Diagnosis to
determine if there is a problem with fuel delivery.
Was a problem found?
- Verify repair Go to Step 9
9
Check the CKP sensor signal, shield wire, or
installation condition. Refer to DTC P0336 "Crankshaft
Position Sensor Circuit Range/Performance" and DTC
P0337 "Crankshaft Position Sensor Circuit No Signal".
Was a problem found?
- Verify repair Go to Step 10
Page 2363 of 4264

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-367
Step Action Value (s) Yes No
10
Check for the following engine mechanical problems
(refer to Engine Mechanical):
Low compression.
Leaking cylinder head gaskets.
Worn camshaft.
Sticking or leaking valves.
Valve timing.
Broken valve springs.
Camshaft drive belt slipped or stripped.
Was a problem found?
- Verify repair Go to Step 11
11
Check the intake and exhaust manifold for casting
flash. Refer to Engine Mechanical.
Was a problem found?
- Verify repair Go to Step 12
12
1. Review all diagnostic procedures within this table.
2. If all procedures have been completed and no
malfunctions have been found, review/inspect the
following:
Visual/physical inspection.
Tech 2 data.
All electrical connections within a suspected circuit
and/or system.
Was a problem found?
- Verify repair Go to Step 13
13
Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the "SPS (Service Programming System)".
Was the problem solved?
- Verify repair Go to Step 14
14
Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual. Following
ECM programming, the Immobilizer system (if
equipped) must be linked to the ECM. Refer to section
11 “Immobilizer System-ECM replacement” for the
ECM/Immobilizer linking procedure.
- Verify repair -
Page 2364 of 4264

6E-368 3.5L ENGINE DRIVEABILITY AND EMISSIONS

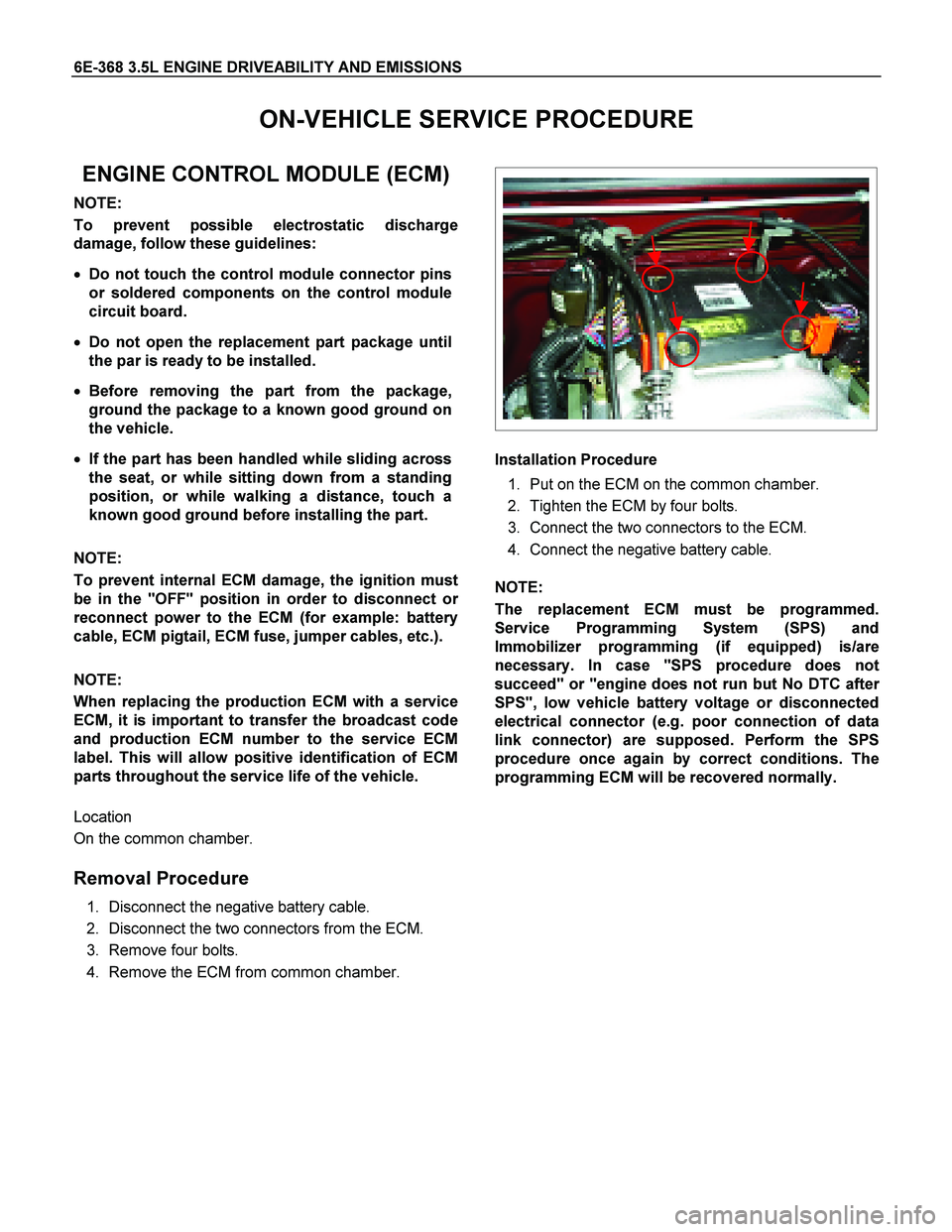

ON-VEHICLE SERVICE PROCEDURE
ENGINE CONTROL MODULE (ECM)
NOTE:
To prevent possible electrostatic discharge
damage, follow these guidelines:
Do not touch the control module connector pins
or soldered components on the control module
circuit board.
Do not open the replacement part package until
the par is ready to be installed.
Before removing the part from the package,
ground the package to a known good ground on
the vehicle.
If the part has been handled while sliding across
the seat, or while sitting down from a standing
position, or while walking a distance, touch a
known good ground before installing the part.
NOTE:
To prevent internal ECM damage, the ignition must
be in the "OFF" position in order to disconnect o
r
reconnect power to the ECM (for example: battery
cable, ECM pigtail, ECM fuse, jumper cables, etc.).
NOTE:
When replacing the production ECM with a service
ECM, it is important to transfer the broadcast code
and production ECM number to the service ECM
label. This will allow positive identification of ECM
parts throughout the service life of the vehicle.
Location
On the common chamber.
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the two connectors from the ECM.
3. Remove four bolts.
4. Remove the ECM from common chamber.
Installation Procedure
1. Put on the ECM on the common chamber.
2. Tighten the ECM by four bolts.
3. Connect the two connectors to the ECM.
4. Connect the negative battery cable.
NOTE:
The replacement ECM must be programmed.
Service Programming System (SPS) and
Immobilizer programming (if equipped) is
/are
necessary. In case "SPS procedure does not
succeed" or "engine does not run but No DTC afte
r
SPS", low vehicle battery voltage or disconnected
electrical connector (e.g. poor connection of data
link connector) are supposed. Perform the SPS
procedure once again by correct conditions. The
programming ECM will be recovered normally.
Page 2365 of 4264

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-369
CRANKSHAFT POSITION (CKP)
SENSOR
Location
Right-hand side of the cylinder block.
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect connector from the CKP sensor.
3. Loosen a bolt and remove the CKP sensor from
the cylinder block.
NOTE:
Use caution to avoid any hot oil that might drip out.
Installation Procedure
1. Install the CKP sensor to the cylinder block.
Before installation, apply small amount of engine
oil to the O-ring.
2. Tighten CKP sensor by a bolt with specified
tightening torque.
Tightening Torque
Bolt: 10N
m (1.0kgf
m).
3. Connect a sensor connector to the CKP sensor.
4. Connect the negative battery cable.
NOTE:
Verify any DTCs (diagnosis Trouble Code) are not
stored after replacement.
CAMSHAFT POSITION (CMP)
SENSOR
Location
The rear of right bank of the cylinder head.
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect connector from the CMP sensor.
3. Loosen a bolt and remove the CMP sensor from
the cylinder head.
Installation Procedure
1. Install the CMP sensor to the cylinder head.
Before installation, apply small amount of engine
oil to the O-ring.
2. Tighten CMP sensor by a bolt with specified
tightening torque.
Tightening Torque
Bolt: 10N
m (1.0kgf
m)
3. Connect a sensor connector to the CMP sensor.
4. Connect the negative battery cable.
NOTE:
Verify any DTCs (diagnosis Trouble Code) are not
stored after replacement.
Page 2366 of 4264

6E-370 3.5L ENGINE DRIVEABILITY AND EMISSIONS

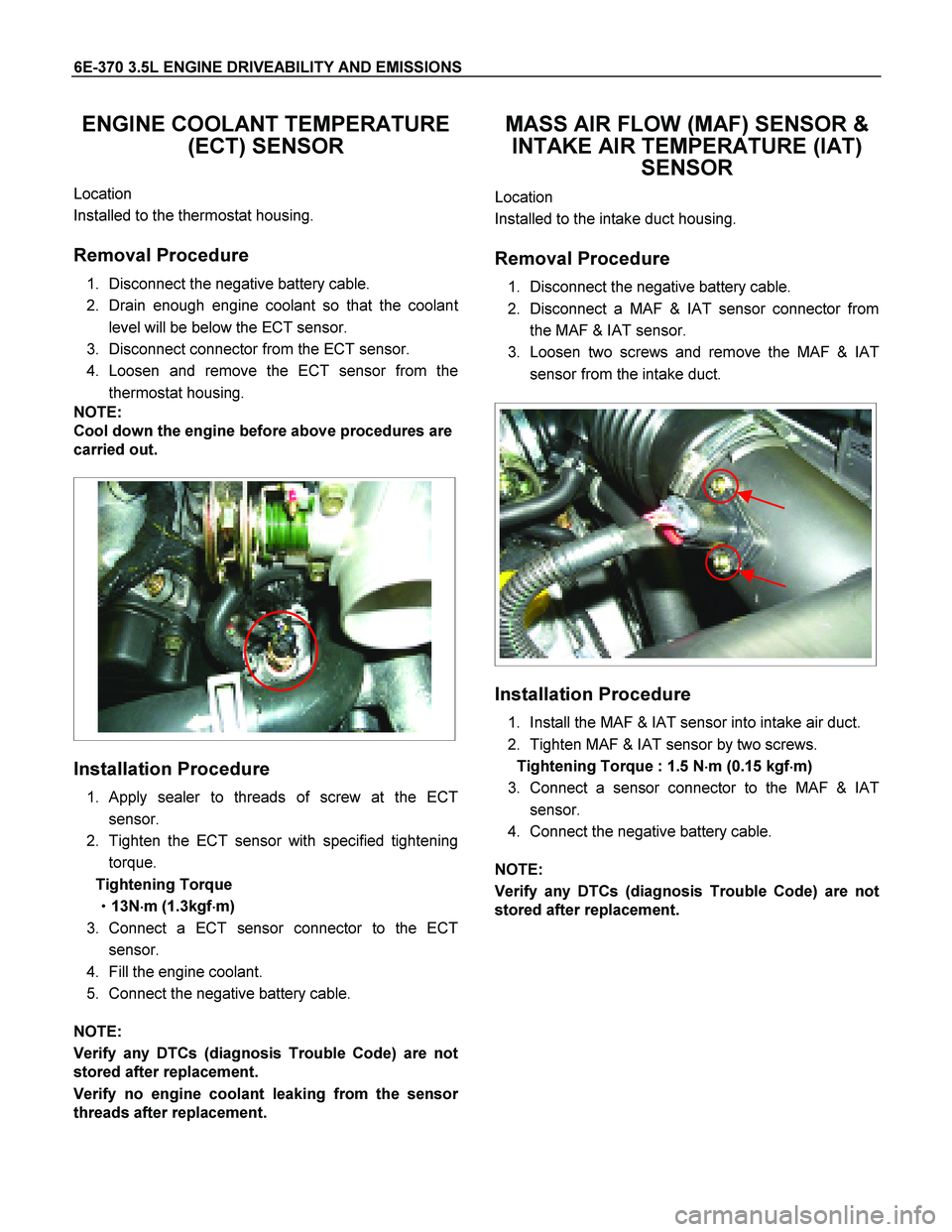

ENGINE COOLANT TEMPERATURE
(ECT) SENSOR
Location
Installed to the thermostat housing.
Removal Procedure
1. Disconnect the negative battery cable.
2. Drain enough engine coolant so that the coolan
t
level will be below the ECT sensor.
3. Disconnect connector from the ECT sensor.
4. Loosen and remove the ECT sensor from the
thermostat housing.
NOTE:
Cool down the engine before above procedures are
carried out.
Installation Procedure
1. Apply sealer to threads of screw at the ECT
sensor.
2. Tighten the ECT sensor with specified tightening
torque.
Tightening Torque
13N
m (1.3kgf
m)
3. Connect a ECT sensor connector to the ECT
sensor.
4. Fill the engine coolant.
5. Connect the negative battery cable.
NOTE:
Verify any DTCs (diagnosis Trouble Code) are not
stored after replacement.
Verify no engine coolant leaking from the senso
r
threads after replacement.
MASS AIR FLOW (MAF) SENSOR &
INTAKE AIR TEMPERATURE (IAT)
SENSOR
Location
Installed to the intake duct housing.
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect a MAF & IAT sensor connector from
the MAF & IAT sensor.
3. Loosen two screws and remove the MAF & IAT
sensor from the intake duct.
Installation Procedure
1. Install the MAF & IAT sensor into intake air duct.
2. Tighten MAF & IAT sensor by two screws.
Tightening Torque : 1.5 N
m (0.15 kgf
m)
3. Connect a sensor connector to the MAF & IAT
sensor.
4. Connect the negative battery cable.
NOTE:
Verify any DTCs (diagnosis Trouble Code) are not
stored after replacement.
Page 2367 of 4264

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-371

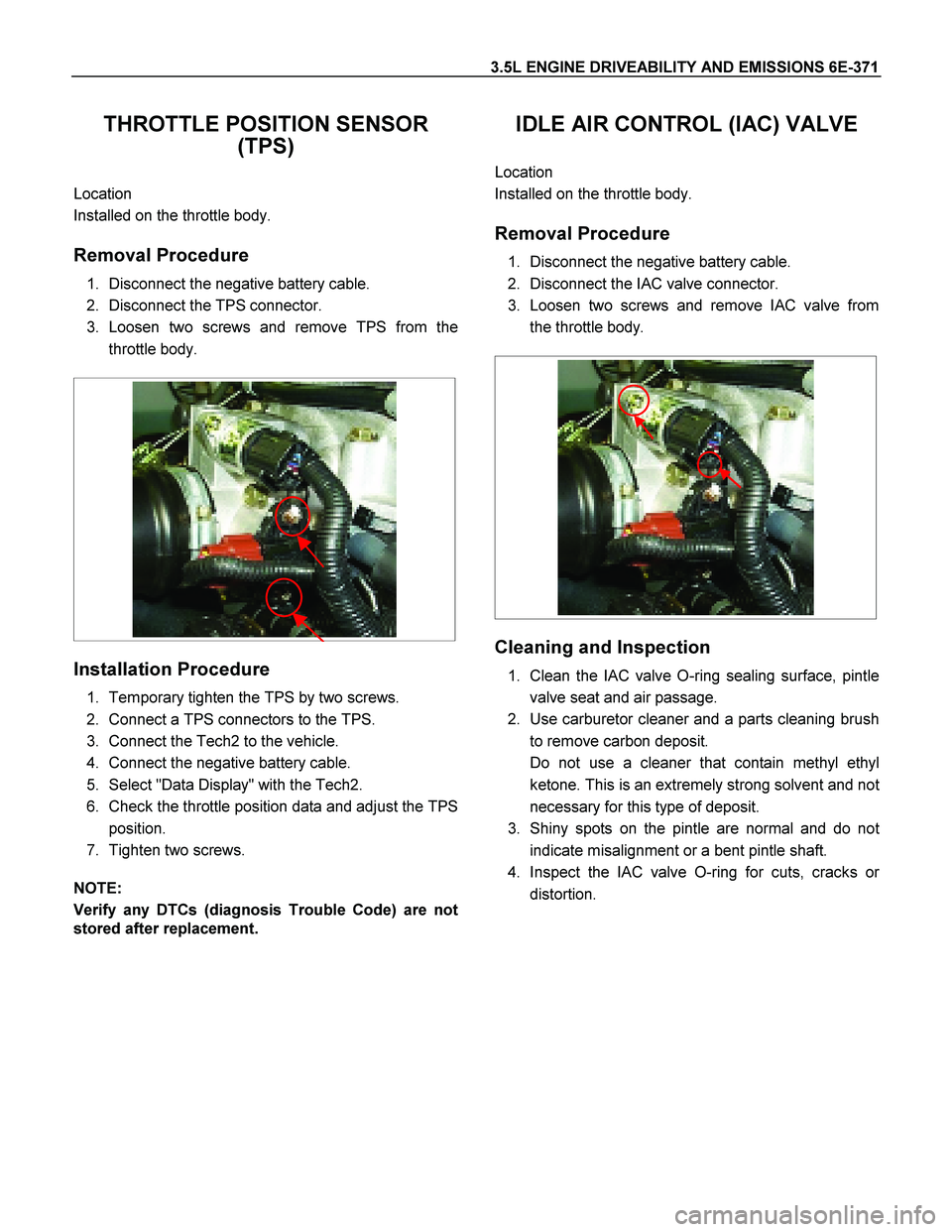

THROTTLE POSITION SENSOR
(TPS)
Location
Installed on the throttle body.
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the TPS connector.
3. Loosen two screws and remove TPS from the
throttle body.
Installation Procedure
1. Temporary tighten the TPS by two screws.
2. Connect a TPS connectors to the TPS.
3. Connect the Tech2 to the vehicle.
4. Connect the negative battery cable.
5. Select "Data Display" with the Tech2.
6. Check the throttle position data and adjust the TPS
position.
7. Tighten two screws.
NOTE:
Verify any DTCs (diagnosis Trouble Code) are not
stored after replacement.
IDLE AIR CONTROL (IAC) VALVE
Location
Installed on the throttle body.
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the IAC valve connector.
3. Loosen two screws and remove IAC valve from
the throttle body.
Cleaning and Inspection
1. Clean the IAC valve O-ring sealing surface, pintle
valve seat and air passage.
2. Use carburetor cleaner and a parts cleaning brush
to remove carbon deposit.
Do not use a cleaner that contain methyl ethyl
ketone. This is an extremely strong solvent and no
t
necessary for this type of deposit.
3. Shiny spots on the pintle are normal and do no
t
indicate misalignment or a bent pintle shaft.
4. Inspect the IAC valve O-ring for cuts, cracks o
r
distortion.
Page 2368 of 4264

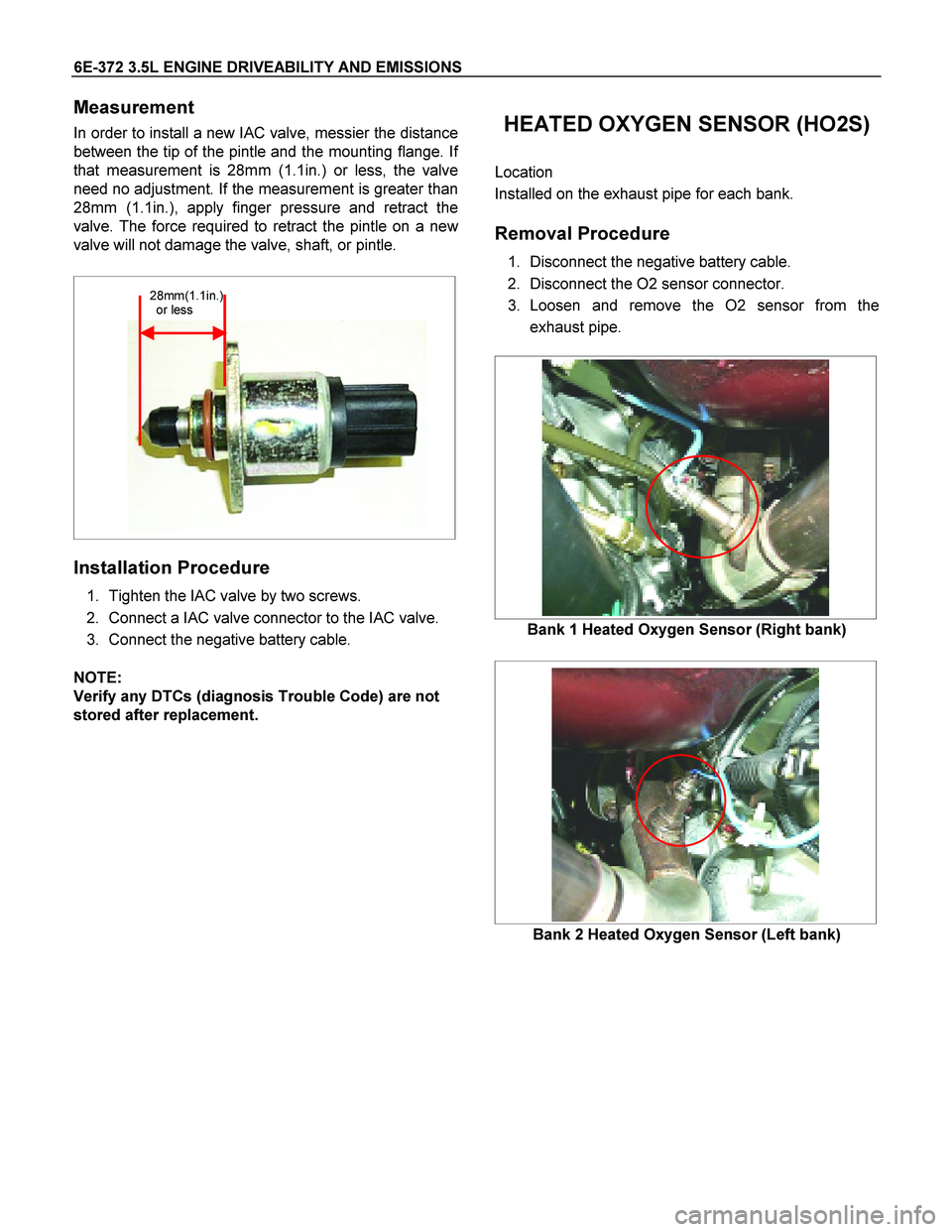

6E-372 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Measurement
In order to install a new IAC valve, messier the distance
between the tip of the pintle and the mounting flange. I
f
that measurement is 28mm (1.1in.) or less, the valve
need no adjustment. If the measurement is greater than
28mm (1.1in.), apply finger pressure and retract the
valve. The force required to retract the pintle on a ne
w
valve will not damage the valve, shaft, or pintle.
28mm(1.1in.)
or less
Installation Procedure
1. Tighten the IAC valve by two screws.
2. Connect a IAC valve connector to the IAC valve.
3. Connect the negative battery cable.
NOTE:
Verify any DTCs (diagnosis Trouble Code) are not
stored after replacement.
HEATED OXYGEN SENSOR (HO2S)
Location
Installed on the exhaust pipe for each bank.
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the O2 sensor connector.
3. Loosen and remove the O2 sensor from the
exhaust pipe.
Bank 1 Heated Oxygen Sensor (Right bank)
Bank 2 Heated Oxygen Sensor (Left bank)
