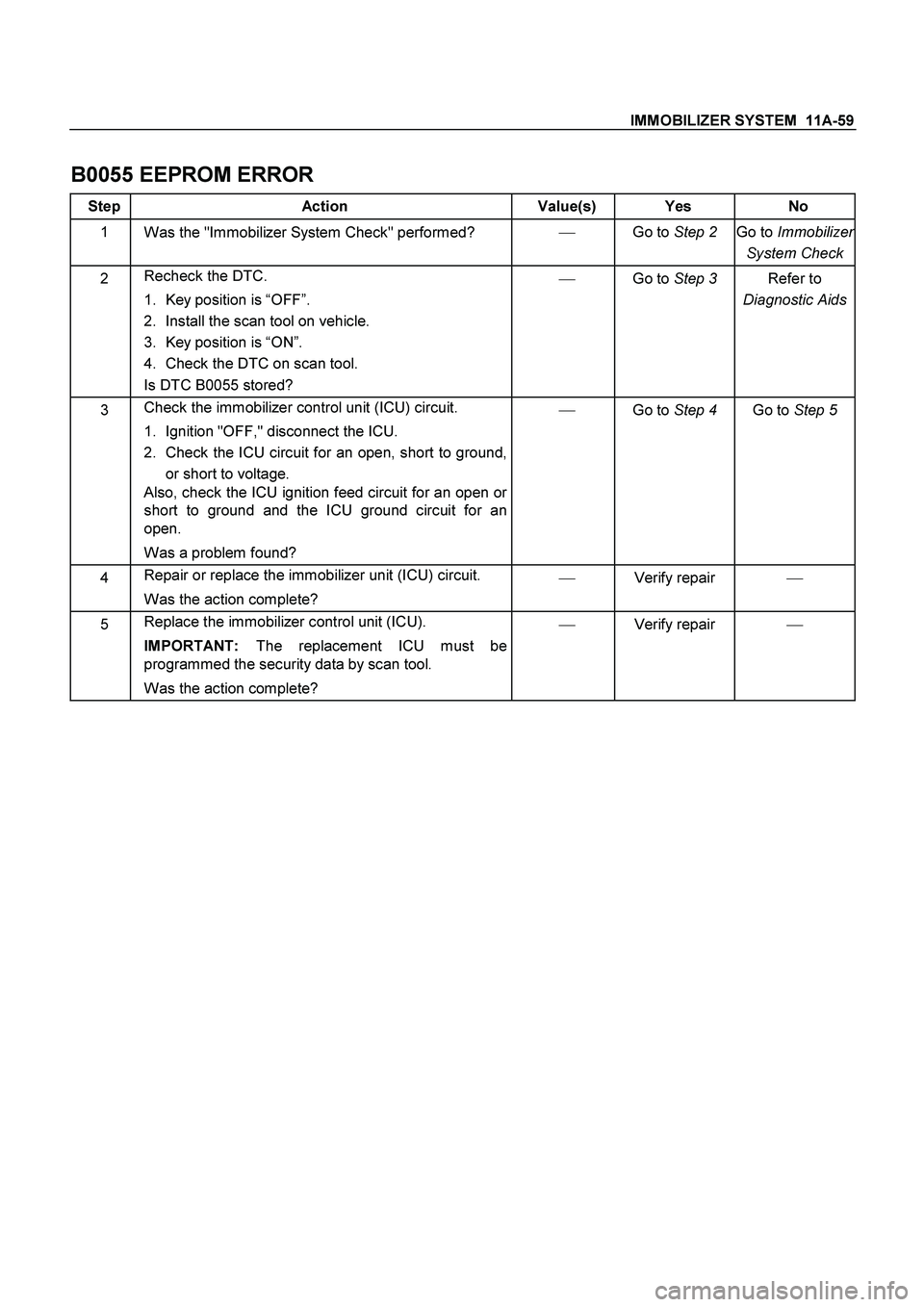

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-59

B0055 EEPROM ERROR
Step Action Value(s) Yes No
1
Was the "Immobilizer System Check" performed?
Go to Step 2
Go to Immobilizer
System Check
2 Recheck the DTC.
1. K

Page 3346 of 4264

ISUZU TF SERIES 2004 Workshop Manual 11A-60 IMMOBILIZER SYSTEM

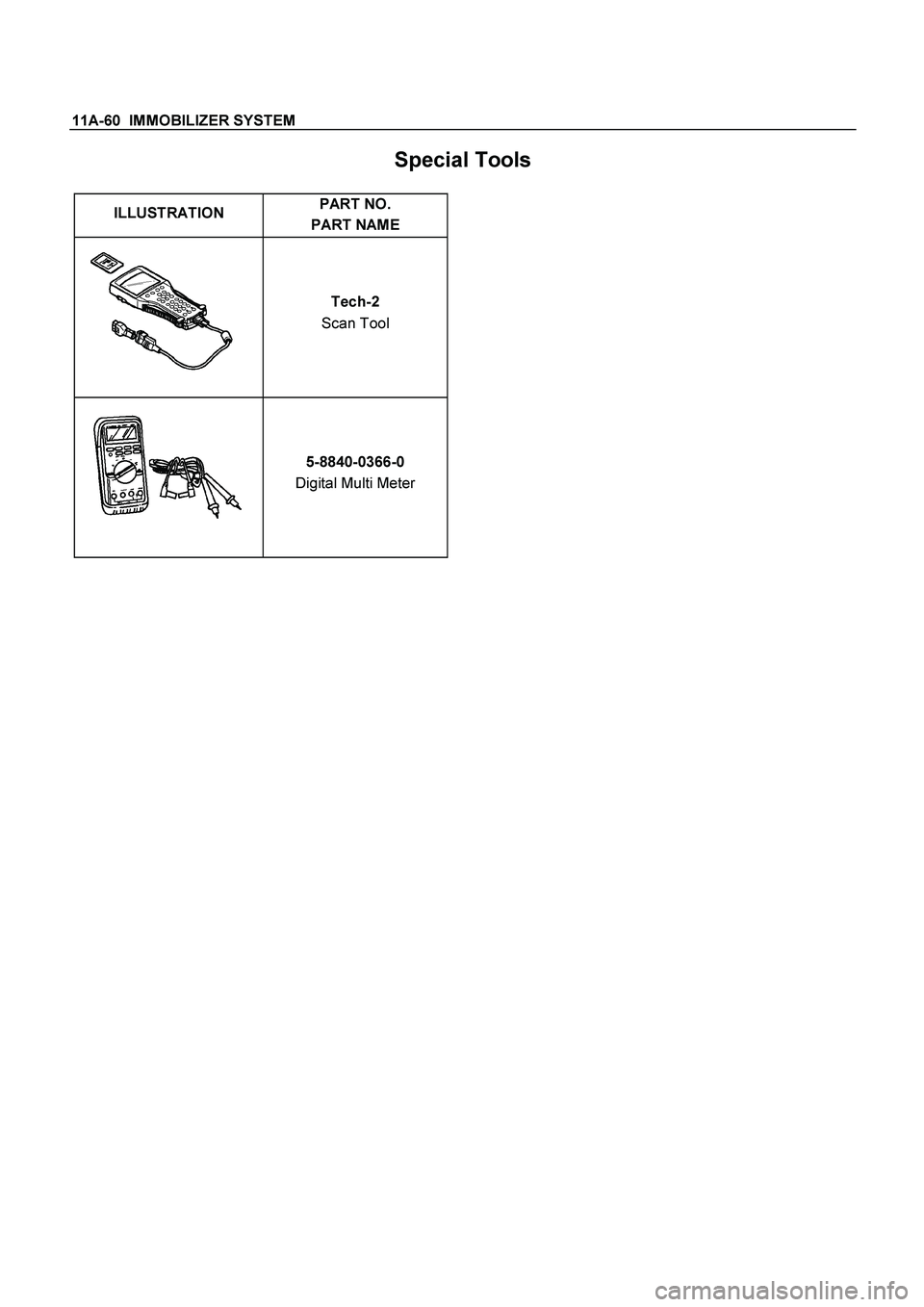

Special Tools

ILLUSTRATION PART NO.
PART NAME

Tech-2
Scan Tool
5-8840-0366-0

Digital Multi Meter

Page 3347 of 4264

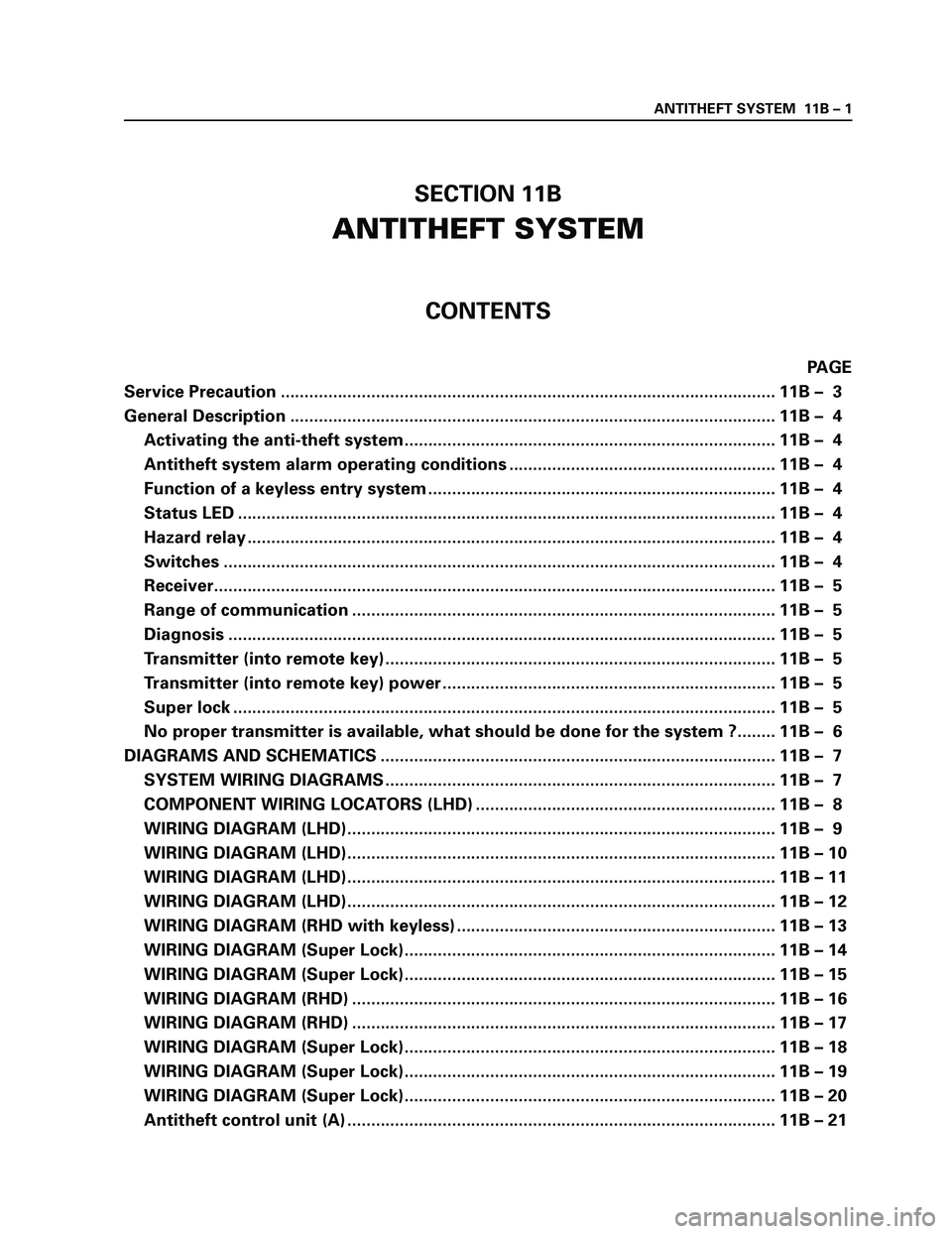

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B – 1
SECTION 11B
ANTITHEFT SYSTEM
CONTENTS
PAGE
Service Precaution ........................................................................................................ 11B �

ANTITHEFT SYSTEM 11B – 1
SECTION 11B
ANTITHEFT SYSTEM
CONTENTS
PAGE
Service Precaution ........................................................................................................ 11B – 3
General Description ...................................................................................................... 11B – 4
Activating the anti-theft system.............................................................................. 11B – 4
Antitheft system alarm operating conditions ........................................................ 11B – 4
Function of a keyless entry system ......................................................................... 11B – 4
Status LED ................................................................................................................. 11B – 4
Hazard relay ............................................................................................................... 11B – 4
Switches .................................................................................................................... 11B – 4
Receiver......................................................................................................................11B – 5
Range of communication ......................................................................................... 11B – 5
Diagnosis ................................................................................................................... 11B – 5
Transmitter (into remote key) .................................................................................. 11B – 5
Transmitter (into remote key) power ...................................................................... 11B – 5
Super lock .................................................................................................................. 11B – 5
No proper transmitter is available, what should be done for the system ?........ 11B – 6
DIAGRAMS AND SCHEMATICS ................................................................................... 11B – 7
SYSTEM WIRING DIAGRAMS .................................................................................. 11B – 7
COMPONENT WIRING LOCATORS (LHD) ............................................................... 11B – 8
WIRING DIAGRAM (LHD).......................................................................................... 11B – 9
WIRING DIAGRAM (LHD).......................................................................................... 11B – 10
WIRING DIAGRAM (LHD).......................................................................................... 11B – 11
WIRING DIAGRAM (LHD).......................................................................................... 11B – 12
WIRING DIAGRAM (RHD with keyless) ................................................................... 11B – 13
WIRING DIAGRAM (Super Lock).............................................................................. 11B – 14
WIRING DIAGRAM (Super Lock).............................................................................. 11B – 15
WIRING DIAGRAM (RHD) ......................................................................................... 11B – 16
WIRING DIAGRAM (RHD) ......................................................................................... 11B – 17
WIRING DIAGRAM (Super Lock).............................................................................. 11B – 18
WIRING DIAGRAM (Super Lock).............................................................................. 11B – 19
WIRING DIAGRAM (Super Lock).............................................................................. 11B – 20
Antitheft control unit (A) .......................................................................................... 11B – 21

Page 3348 of 4264

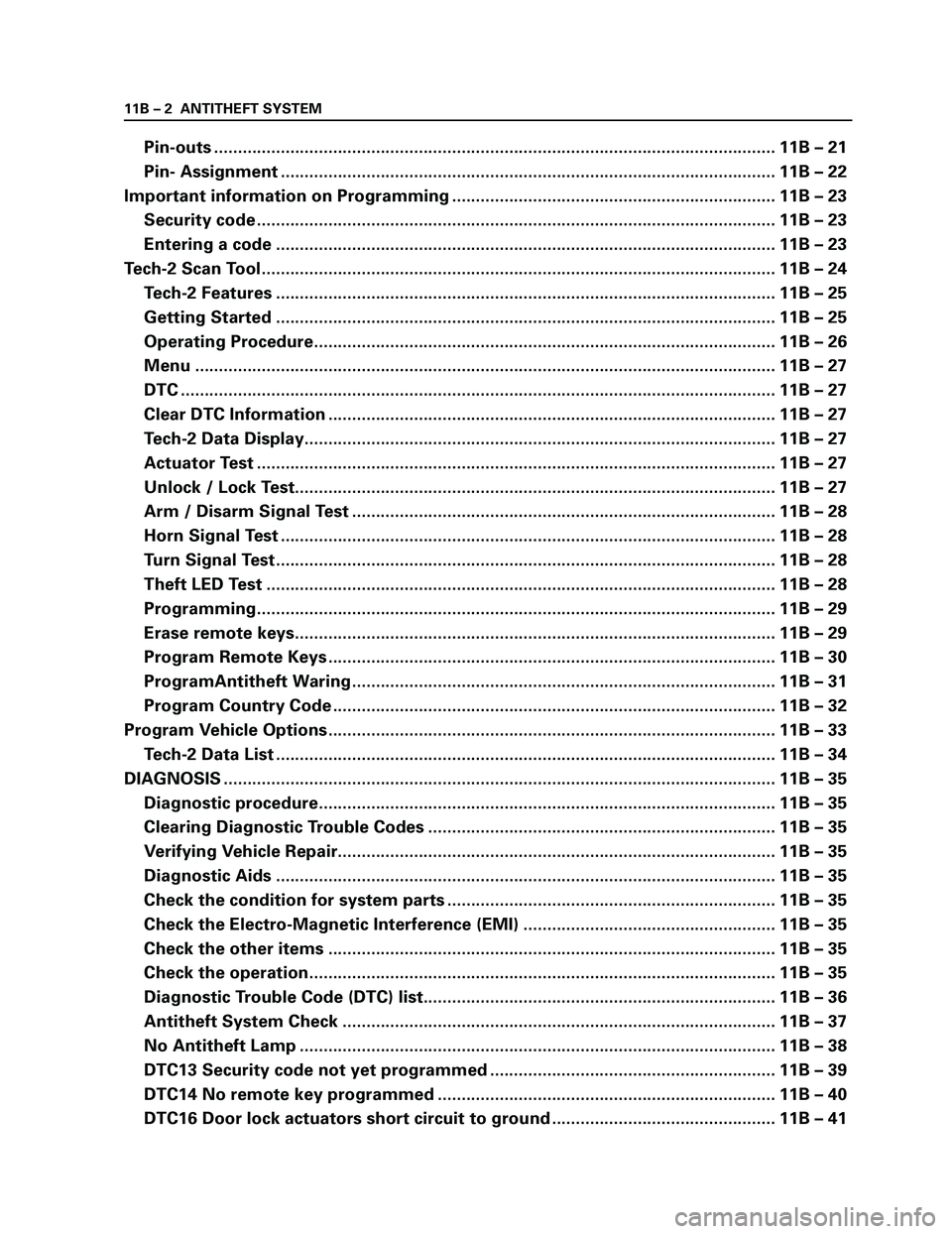

ISUZU TF SERIES 2004 Workshop Manual 11B – 2 ANTITHEFT SYSTEM
Pin-outs ......................................................................................................................11B – 21
Pin- Assignment ...................

11B – 2 ANTITHEFT SYSTEM
Pin-outs ......................................................................................................................11B – 21
Pin- Assignment ........................................................................................................ 11B – 22
lmportant information on Programming .................................................................... 11B – 23
Security code ............................................................................................................. 11B – 23
Entering a code ......................................................................................................... 11B – 23
Tech-2 Scan Tool............................................................................................................ 11B – 24
Tech-2 Features ......................................................................................................... 11B – 25
Getting Started ......................................................................................................... 11B – 25
Operating Procedure................................................................................................. 11B – 26
Menu ..........................................................................................................................11B – 27
DTC ............................................................................................................................. 11B – 27
Clear DTC Information .............................................................................................. 11B – 27
Tech-2 Data Display................................................................................................... 11B – 27
Actuator Test ............................................................................................................. 11B – 27
Unlock / Lock Test..................................................................................................... 11B – 27
Arm / Disarm Signal Test ......................................................................................... 11B – 28
Horn Signal Test ........................................................................................................ 11B – 28
Turn Signal Test......................................................................................................... 11B – 28
Theft LED Test ........................................................................................................... 11B – 28
Programming............................................................................................................. 11B – 29
Erase remote keys..................................................................................................... 11B – 29
Program Remote Keys .............................................................................................. 11B – 30
ProgramAntitheft Waring......................................................................................... 11B – 31
Program Country Code ............................................................................................. 11B – 32
Program Vehicle Options.............................................................................................. 11B – 33
Tech-2 Data List ......................................................................................................... 11B – 34
DIAGNOSIS .................................................................................................................... 11B – 35
Diagnostic procedure................................................................................................ 11B – 35
Clearing Diagnostic Trouble Codes ......................................................................... 11B – 35
Verifying Vehicle Repair............................................................................................ 11B – 35
Diagnostic Aids ......................................................................................................... 11B – 35
Check the condition for system parts ..................................................................... 11B – 35
Check the Electro-Magnetic Interference (EMI) ..................................................... 11B – 35
Check the other items .............................................................................................. 11B – 35
Check the operation.................................................................................................. 11B – 35
Diagnostic Trouble Code (DTC) list.......................................................................... 11B – 36
Antitheft System Check ........................................................................................... 11B – 37
No Antitheft Lamp .................................................................................................... 11B – 38
DTC13 Security code not yet programmed ............................................................ 11B – 39
DTC14 No remote key programmed ....................................................................... 11B – 40
DTC16 Door lock actuators short circuit to ground ............................................... 11B – 41

Page 3349 of 4264

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B – 3

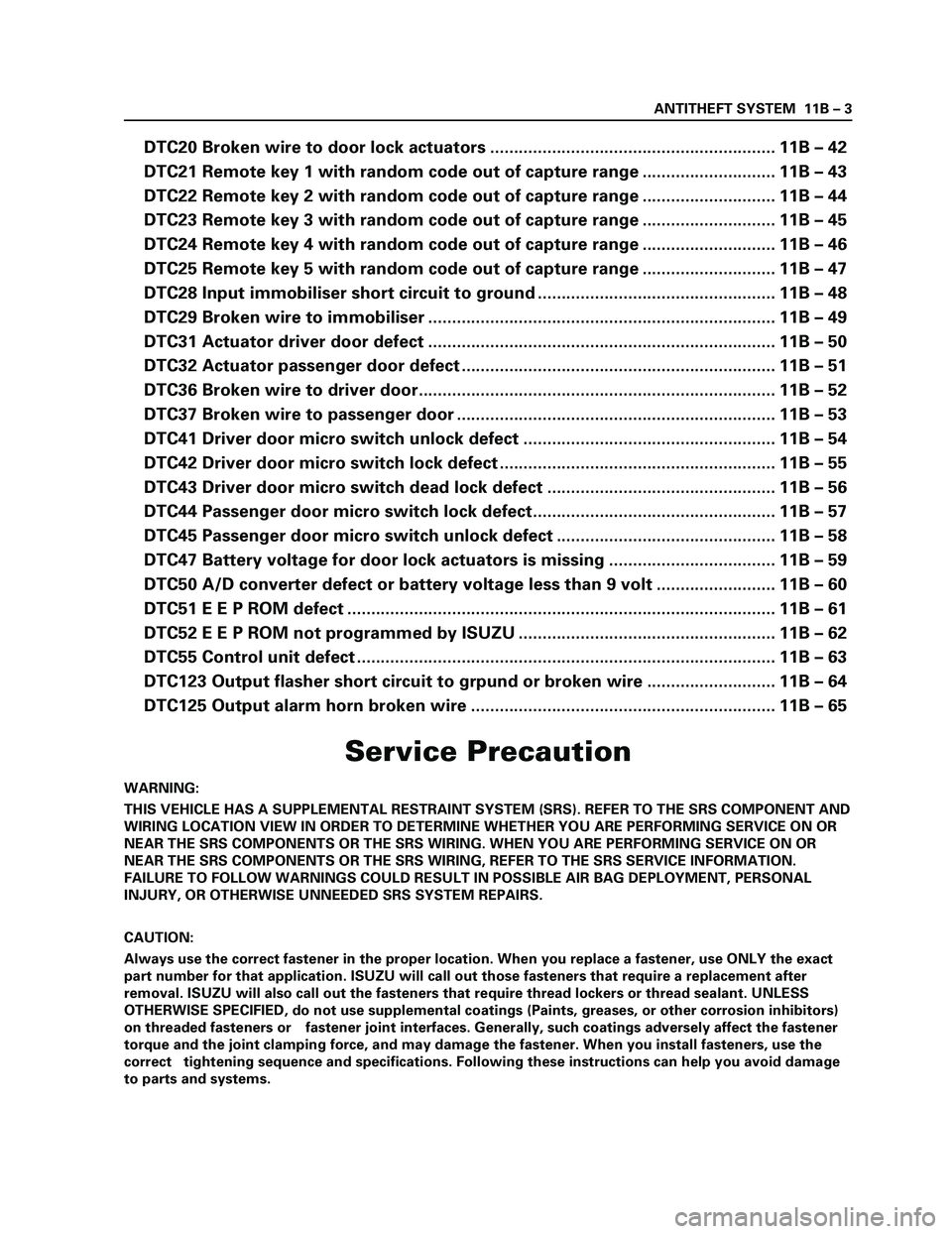

Service Precaution
WARNING:
THIS VEHICLE HAS A SUPPLEMENTAL RESTRAINT SYSTEM (SRS). REFER TO THE SRS COMPONENT AND
WIRING LOCATION VIEW IN ORDER TO DETERMINE WHETHER YOU A

ANTITHEFT SYSTEM 11B – 3
Service Precaution
WARNING:
THIS VEHICLE HAS A SUPPLEMENTAL RESTRAINT SYSTEM (SRS). REFER TO THE SRS COMPONENT AND
WIRING LOCATION VIEW IN ORDER TO DETERMINE WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS WIRING. WHEN YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS WIRING, REFER TO THE SRS SERVICE INFORMATION.
FAILURE TO FOLLOW WARNINGS COULD RESULT IN POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION:
Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact
part number for that application. ISUZU will call out those fasteners that require a replacement after
removal. ISUZU will also call out the fasteners that require thread lockers or thread sealant. UNLESS
OTHERWISE SPECIFIED, do not use supplemental coatings (Paints, greases, or other corrosion inhibitors)
on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener
torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the
correct tightening sequence and specifications. Following these instructions can help you avoid damage
to parts and systems.
DTC20 Broken wire to door lock actuators ............................................................ 11B – 42
DTC21 Remote key 1 with random code out of capture range ............................ 11B – 43
DTC22 Remote key 2 with random code out of capture range ............................ 11B – 44
DTC23 Remote key 3 with random code out of capture range ............................ 11B – 45
DTC24 Remote key 4 with random code out of capture range ............................ 11B – 46
DTC25 Remote key 5 with random code out of capture range ............................ 11B – 47
DTC28 Input immobiliser short circuit to ground .................................................. 11B – 48
DTC29 Broken wire to immobiliser ......................................................................... 11B – 49
DTC31 Actuator driver door defect ......................................................................... 11B – 50
DTC32 Actuator passenger door defect .................................................................. 11B – 51
DTC36 Broken wire to driver door........................................................................... 11B – 52
DTC37 Broken wire to passenger door ................................................................... 11B – 53
DTC41 Driver door micro switch unlock defect ..................................................... 11B – 54
DTC42 Driver door micro switch lock defect .......................................................... 11B – 55
DTC43 Driver door micro switch dead lock defect ................................................ 11B – 56
DTC44 Passenger door micro switch lock defect................................................... 11B – 57
DTC45 Passenger door micro switch unlock defect .............................................. 11B – 58
DTC47 Battery voltage for door lock actuators is missing ................................... 11B – 59
DTC50 A/D converter defect or battery voltage less than 9 volt ......................... 11B – 60
DTC51 E E P ROM defect .......................................................................................... 11B – 61
DTC52 E E P ROM not programmed by ISUZU ...................................................... 11B – 62
DTC55 Control unit defect ........................................................................................ 11B – 63
DTC123 Output flasher short circuit to grpund or broken wire ........................... 11B – 64
DTC125 Output alarm horn broken wire ................................................................ 11B – 65

Page 3350 of 4264

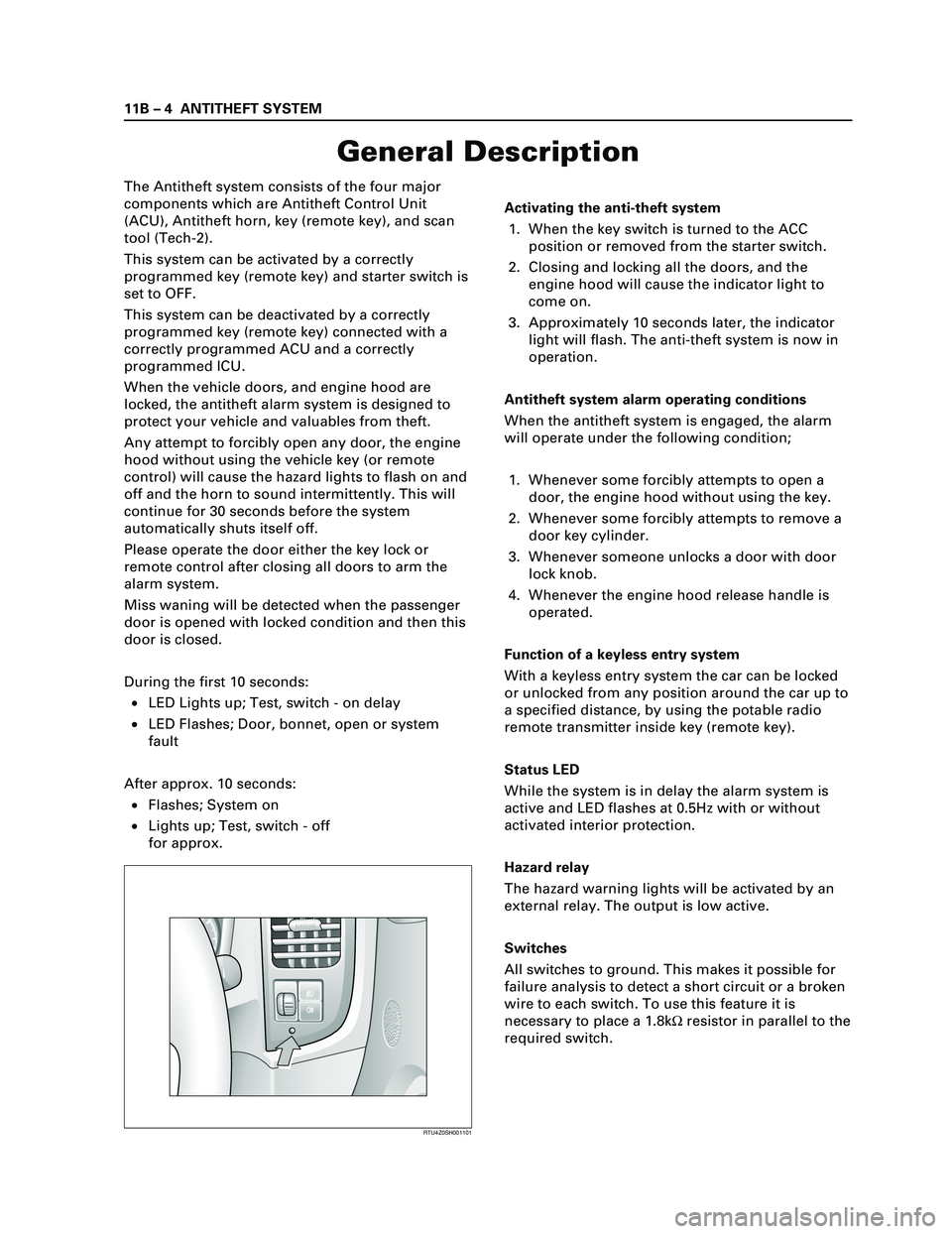

ISUZU TF SERIES 2004 Workshop Manual 11B

Page 3351 of 4264

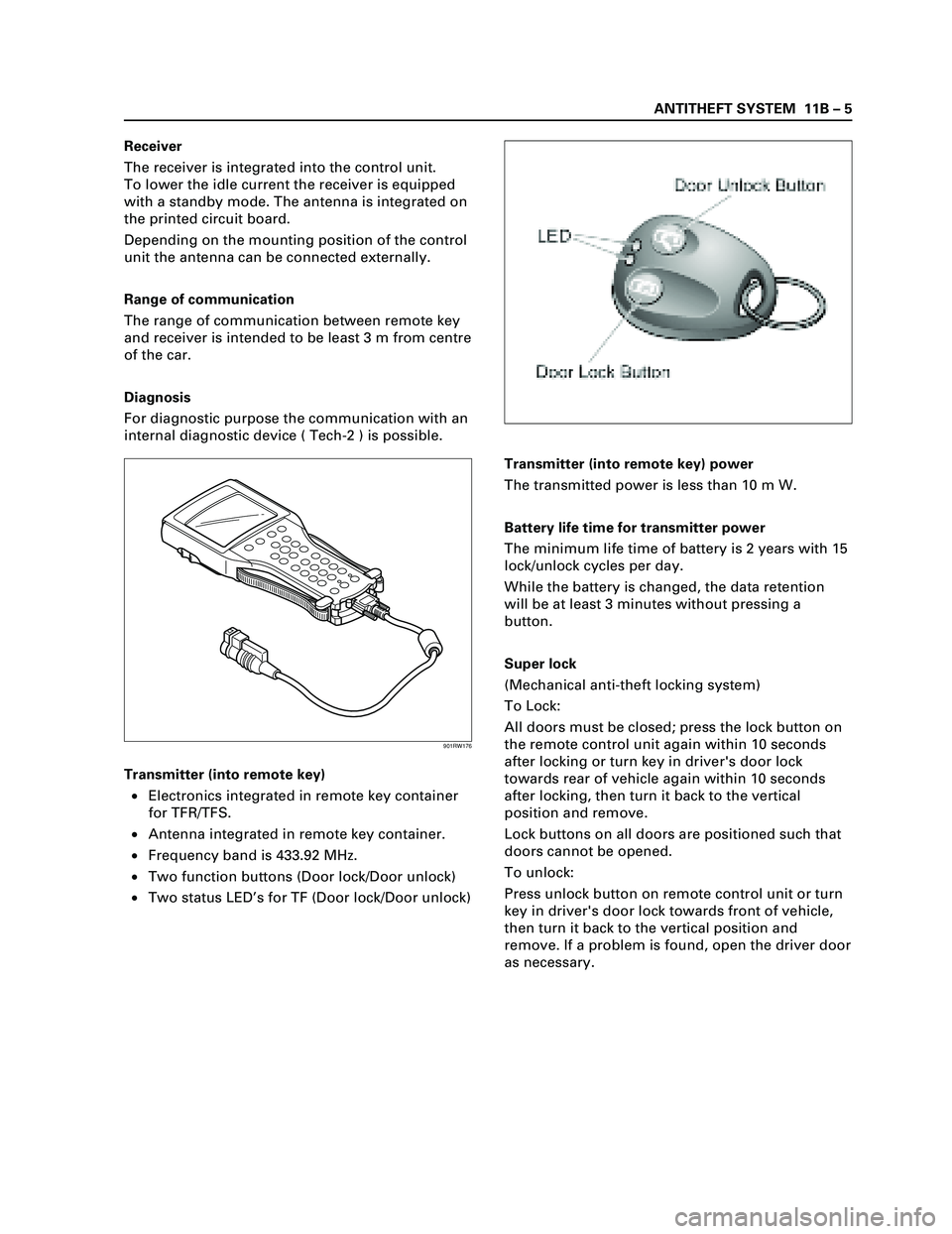

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B

Page 3352 of 4264
