Page 3665 of 4264

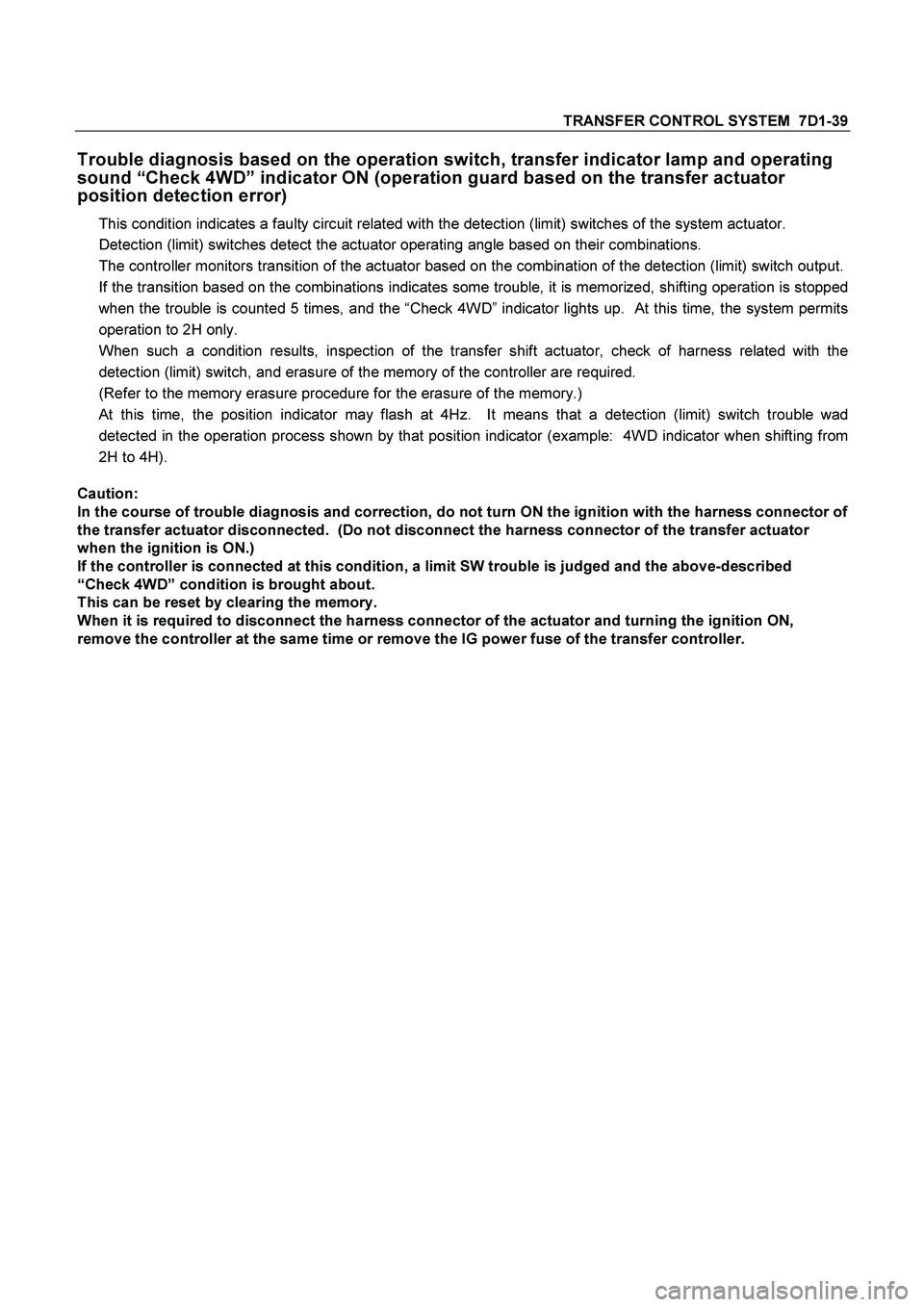

ISUZU TF SERIES 2004 Workshop Manual TRANSFER CONTROL SYSTEM 7D1-39
Trouble diagnosis based on the operation switch, transfer indicator lamp and operating
sound “Check 4WD” indicator ON (operation guard based on the transfer actua

Page 3666 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7D1-40 TRANSFER CONTROL SYSTEM

Memory erasing procedure
1. Prepare two pieces of short harness with the end sharped
like a needle (bout 20cm(7.9 in) long).
2. Turn OFF the ignition.
3. Rem

Page 3667 of 4264

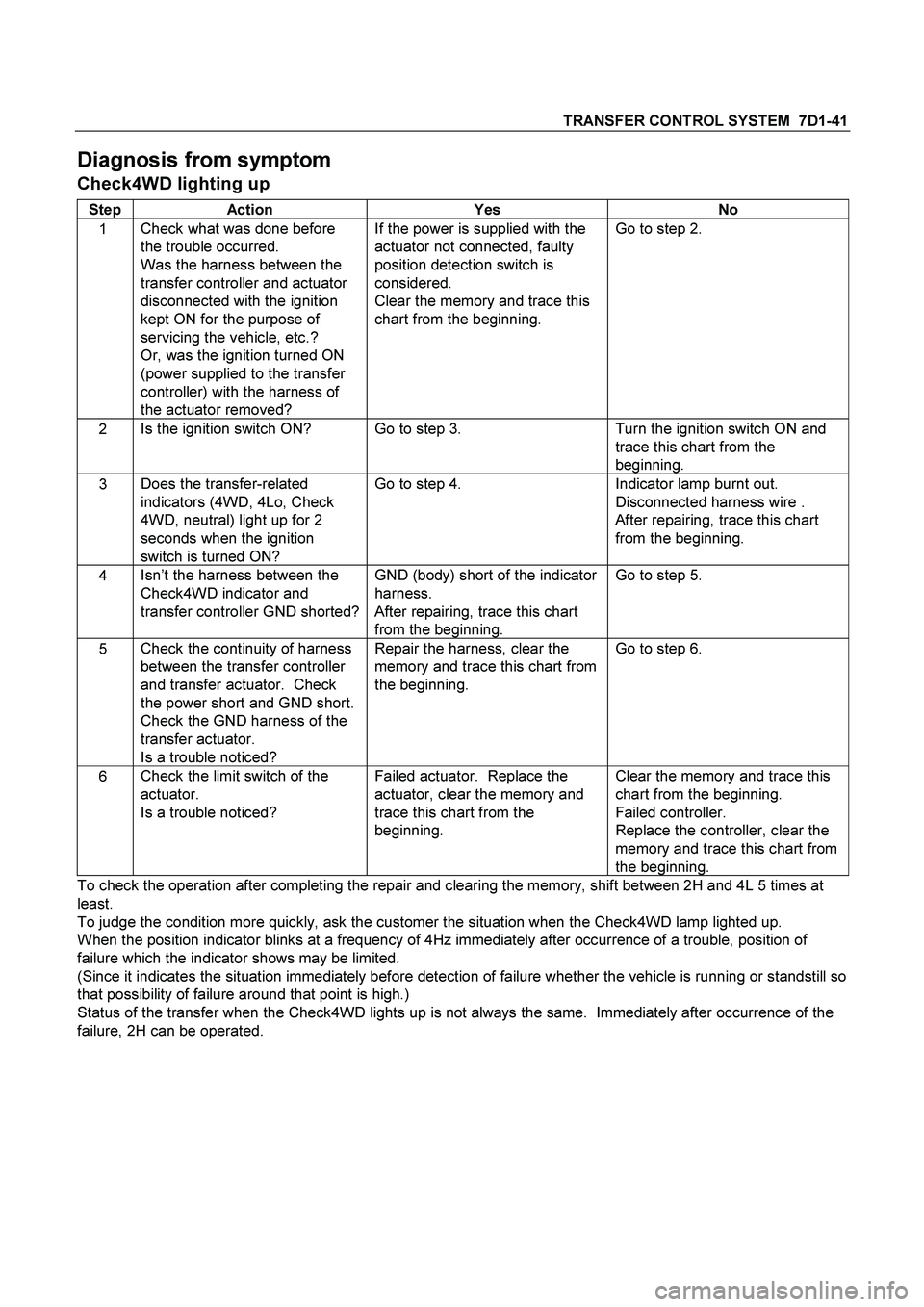

ISUZU TF SERIES 2004 Workshop Manual TRANSFER CONTROL SYSTEM 7D1-41
Diagnosis from symptom
Check4WD lighting up
Step Action Yes No
1 Check what was done before
the trouble occurred.
Was the harness between the
transfer controll

TRANSFER CONTROL SYSTEM 7D1-41
Diagnosis from symptom
Check4WD lighting up
Step Action Yes No
1 Check what was done before
the trouble occurred.
Was the harness between the
transfer controller and actuator
disconnected with the ignition
kept ON for the purpose of
servicing the vehicle, etc.?
Or, was the ignition turned ON
(power supplied to the transfer
controller) with the harness of
the actuator removed? If the power is supplied with the
actuator not connected, faulty
position detection switch is
considered.
Clear the memory and trace this
chart from the beginning. Go to step 2.
2 Is the ignition switch ON? Go to step 3. Turn the ignition switch ON and
trace this chart from the
beginning.
3 Does the transfer-related
indicators (4WD, 4Lo, Check
4WD, neutral) light up for 2
seconds when the ignition
switch is turned ON? Go to step 4. Indicator lamp burnt out.
Disconnected harness wire .
After repairing, trace this chart
from the beginning.
4 Isn’t the harness between the
Check4WD indicator and
transfer controller GND shorted? GND (body) short of the indicator
harness.
After repairing, trace this chart
from the beginning. Go to step 5.
5 Check the continuity of harness
between the transfer controller
and transfer actuator. Check
the power short and GND short.
Check the GND harness of the
transfer actuator.
Is a trouble noticed? Repair the harness, clear the
memory and trace this chart from
the beginning. Go to step 6.
6 Check the limit switch of the
actuator.
Is a trouble noticed? Failed actuator. Replace the
actuator, clear the memory and
trace this chart from the
beginning. Clear the memory and trace this
chart from the beginning.
Failed controller.
Replace the controller, clear the
memory and trace this chart from
the beginning.
To check the operation after completing the repair and clearing the memory, shift between 2H and 4L 5 times at
least.
To judge the condition more quickly, ask the customer the situation when the Check4WD lamp lighted up.
When the position indicator blinks at a frequency of 4Hz immediately after occurrence of a trouble, position of
failure which the indicator shows may be limited.
(Since it indicates the situation immediately before detection of failure whether the vehicle is running or standstill so
that possibility of failure around that point is high.)
Status of the transfer when the Check4WD lights up is not always the same. Immediately after occurrence of the
failure, 2H can be operated.

Page 3668 of 4264

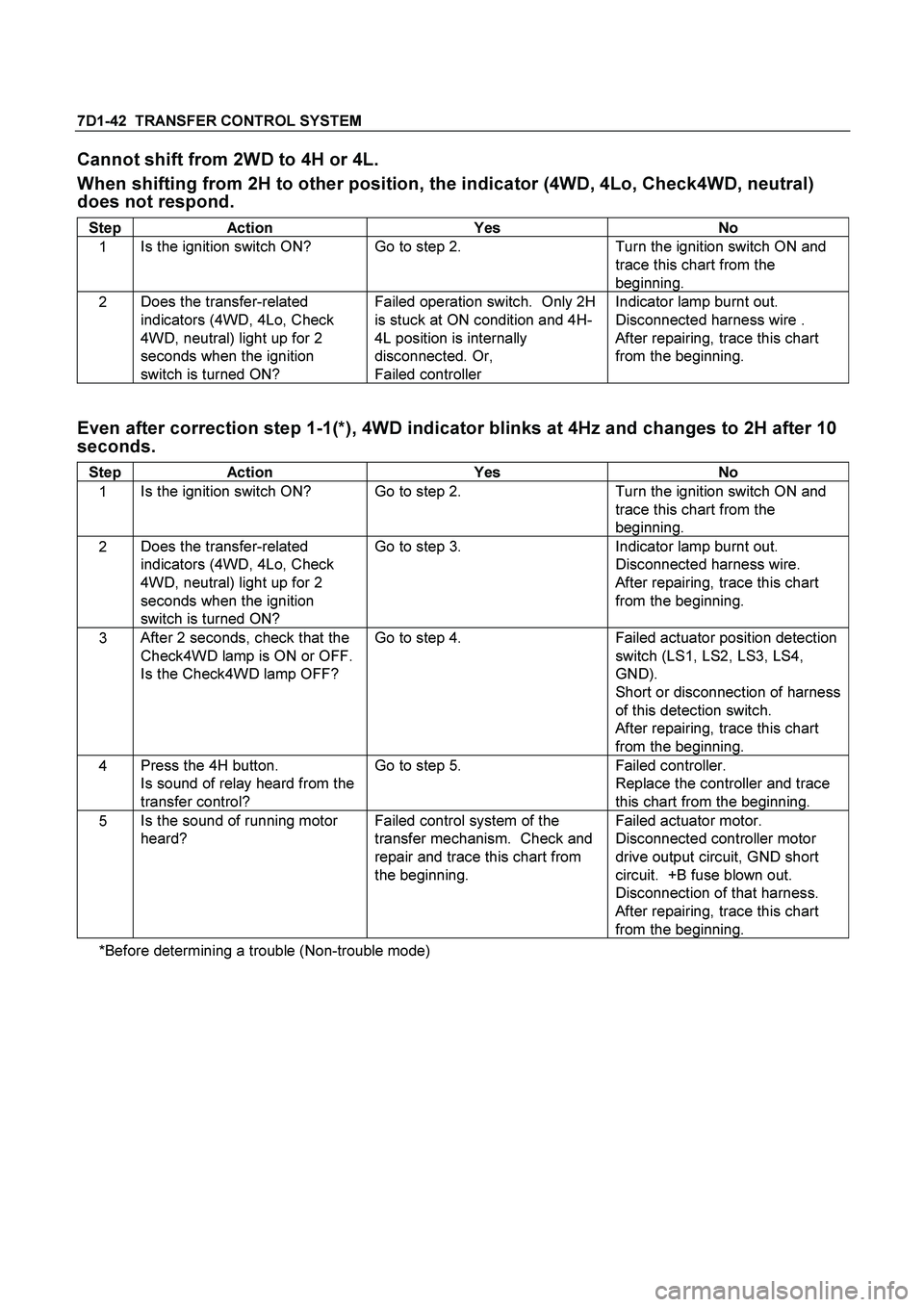

ISUZU TF SERIES 2004 Workshop Manual 7D1-42 TRANSFER CONTROL SYSTEM
Cannot shift from 2WD to 4H or 4L.

When shifting from 2H to other position, the indicator (4WD, 4Lo, Check4WD, neutral)
does not respond.
Step Action Yes No
1 I

7D1-42 TRANSFER CONTROL SYSTEM
Cannot shift from 2WD to 4H or 4L.

When shifting from 2H to other position, the indicator (4WD, 4Lo, Check4WD, neutral)
does not respond.
Step Action Yes No
1 Is the ignition switch ON? Go to step 2. Turn the ignition switch ON and
trace this chart from the
beginning.
2 Does the transfer-related
indicators (4WD, 4Lo, Check
4WD, neutral) light up for 2
seconds when the ignition
switch is turned ON? Failed operation switch. Only 2H
is stuck at ON condition and 4H-
4L position is internally
disconnected. Or,
Failed controller Indicator lamp burnt out.
Disconnected harness wire .
After repairing, trace this chart
from the beginning.

Even after correction step 1-1(*), 4WD indicator blinks at 4Hz and changes to 2H after 10
seconds.
Step Action Yes No
1 Is the ignition switch ON? Go to step 2. Turn the ignition switch ON and
trace this chart from the
beginning.
2 Does the transfer-related
indicators (4WD, 4Lo, Check
4WD, neutral) light up for 2
seconds when the ignition
switch is turned ON? Go to step 3. Indicator lamp burnt out.
Disconnected harness wire.
After repairing, trace this chart
from the beginning.
3 After 2 seconds, check that the
Check4WD lamp is ON or OFF.
Is the Check4WD lamp OFF? Go to step 4. Failed actuator position detection
switch (LS1, LS2, LS3, LS4,
GND).
Short or disconnection of harness
of this detection switch.
After repairing, trace this chart
from the beginning.
4 Press the 4H button.
Is sound of relay heard from the
transfer control? Go to step 5. Failed controller.
Replace the controller and trace
this chart from the beginning.
5 Is the sound of running motor
heard? Failed control system of the
transfer mechanism. Check and
repair and trace this chart from
the beginning. Failed actuator motor.
Disconnected controller motor
drive output circuit, GND short
circuit. +B fuse blown out.
Disconnection of that harness.
After repairing, trace this chart
from the beginning.
*Before determining a trouble (Non-trouble mode)

Page 3669 of 4264

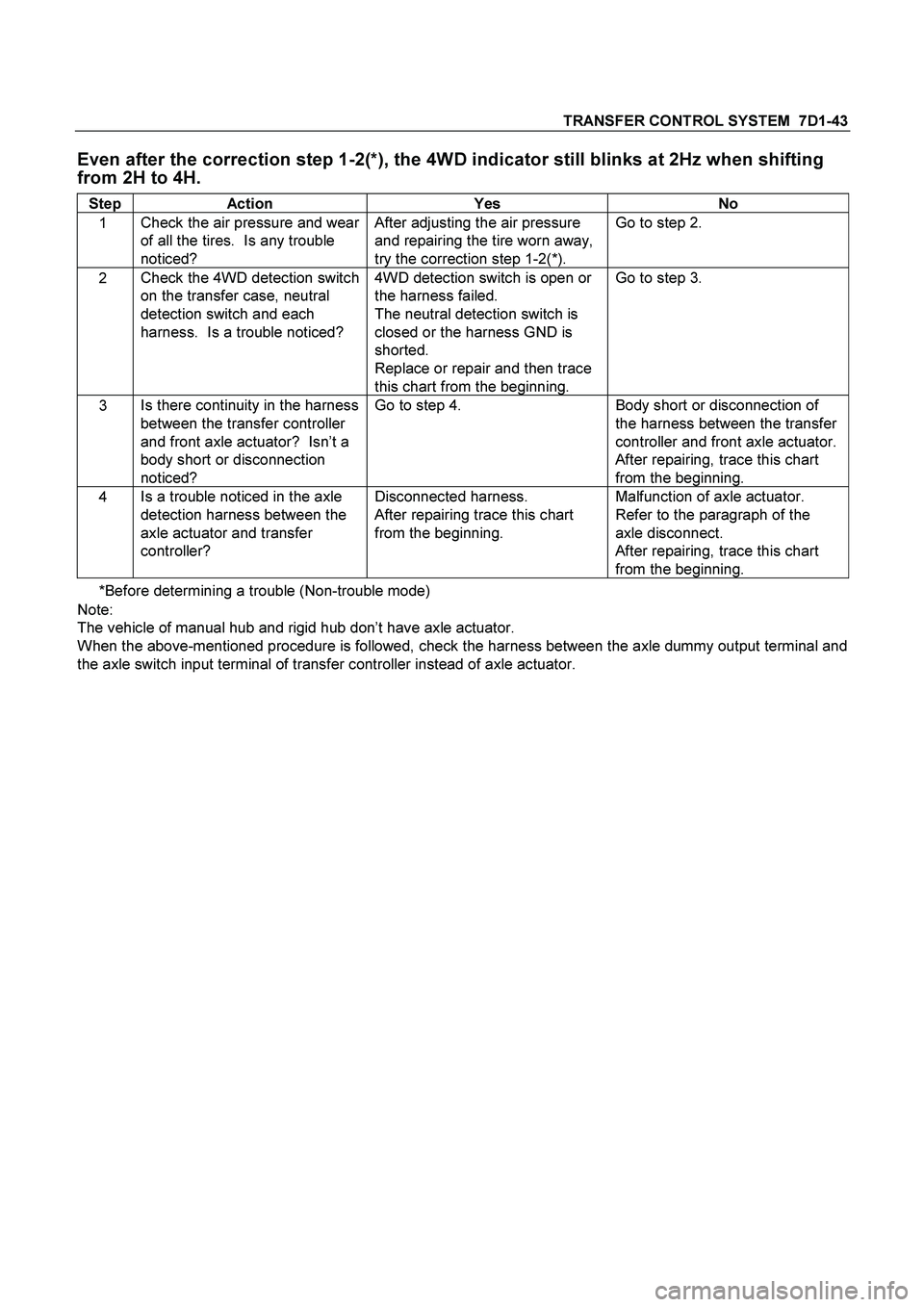

ISUZU TF SERIES 2004 Workshop Manual TRANSFER CONTROL SYSTEM 7D1-43
Even after the correction step 1-2(*), the 4WD indicator still blinks at 2Hz when shifting
from 2H to 4H.
Step Action Yes No
1 Check the air pressure and wear
of

Page 3670 of 4264

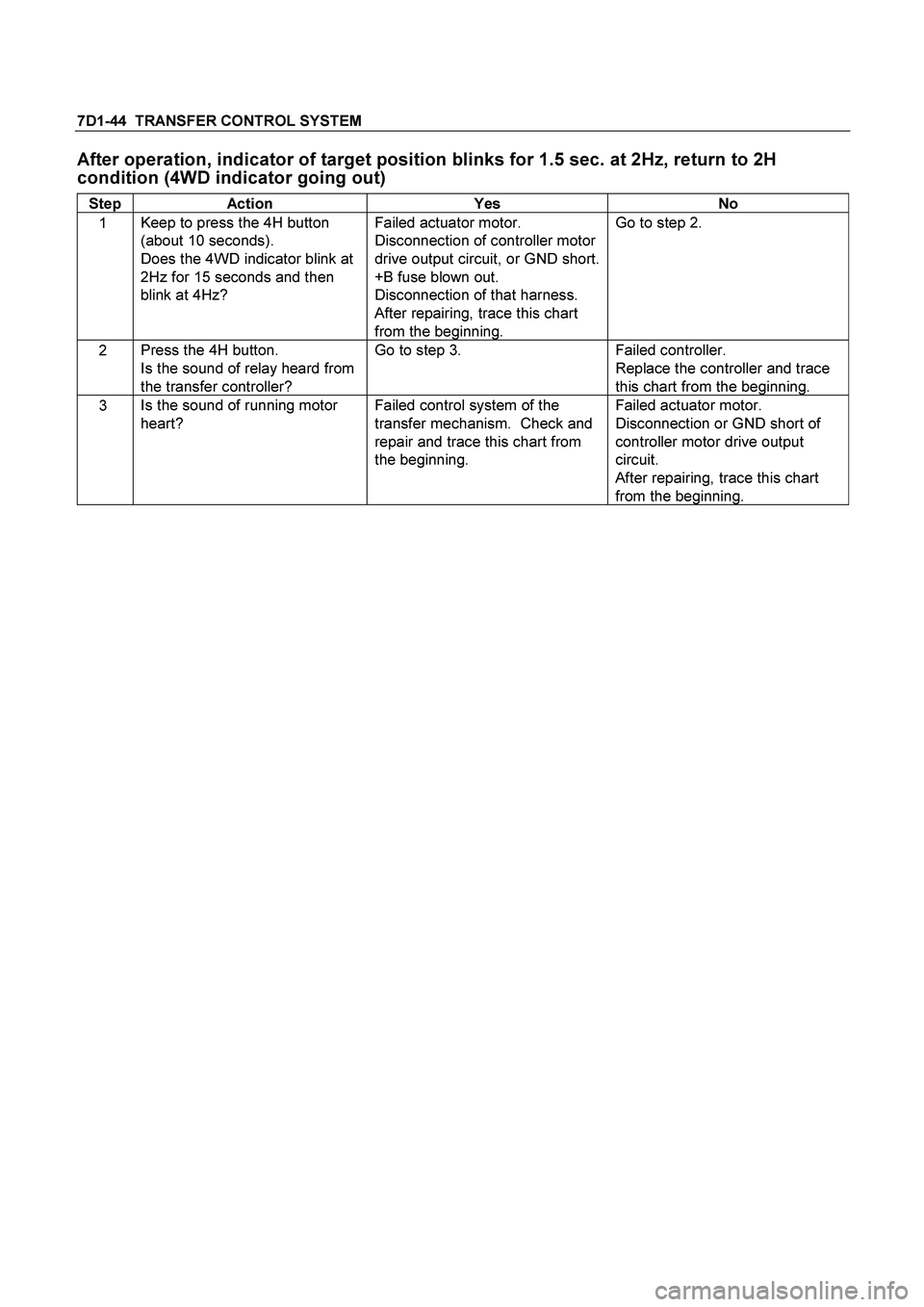

ISUZU TF SERIES 2004 Workshop Manual 7D1-44 TRANSFER CONTROL SYSTEM
After operation, indicator of target position blinks for 1.5 sec. at 2Hz, return to 2H
condition (4WD indicator going out)

Step Action Yes No
1 Keep to press the

Page 3671 of 4264

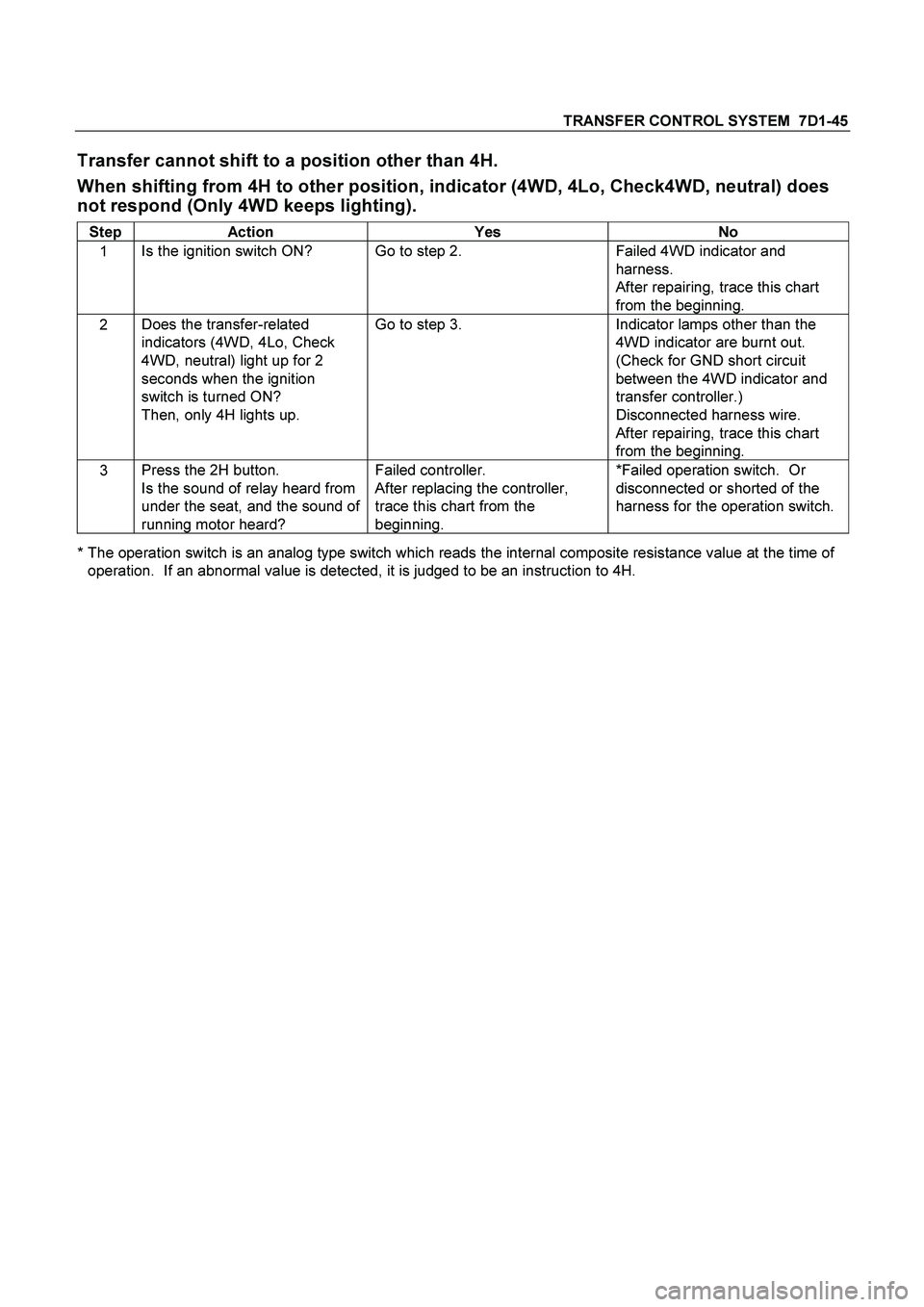

ISUZU TF SERIES 2004 Workshop Manual TRANSFER CONTROL SYSTEM 7D1-45
Transfer cannot shift to a position other than 4H.
When shifting from 4H to other position, indicator (4WD, 4Lo, Check4WD, neutral) does
not respond (Only 4WD keeps

Page 3672 of 4264

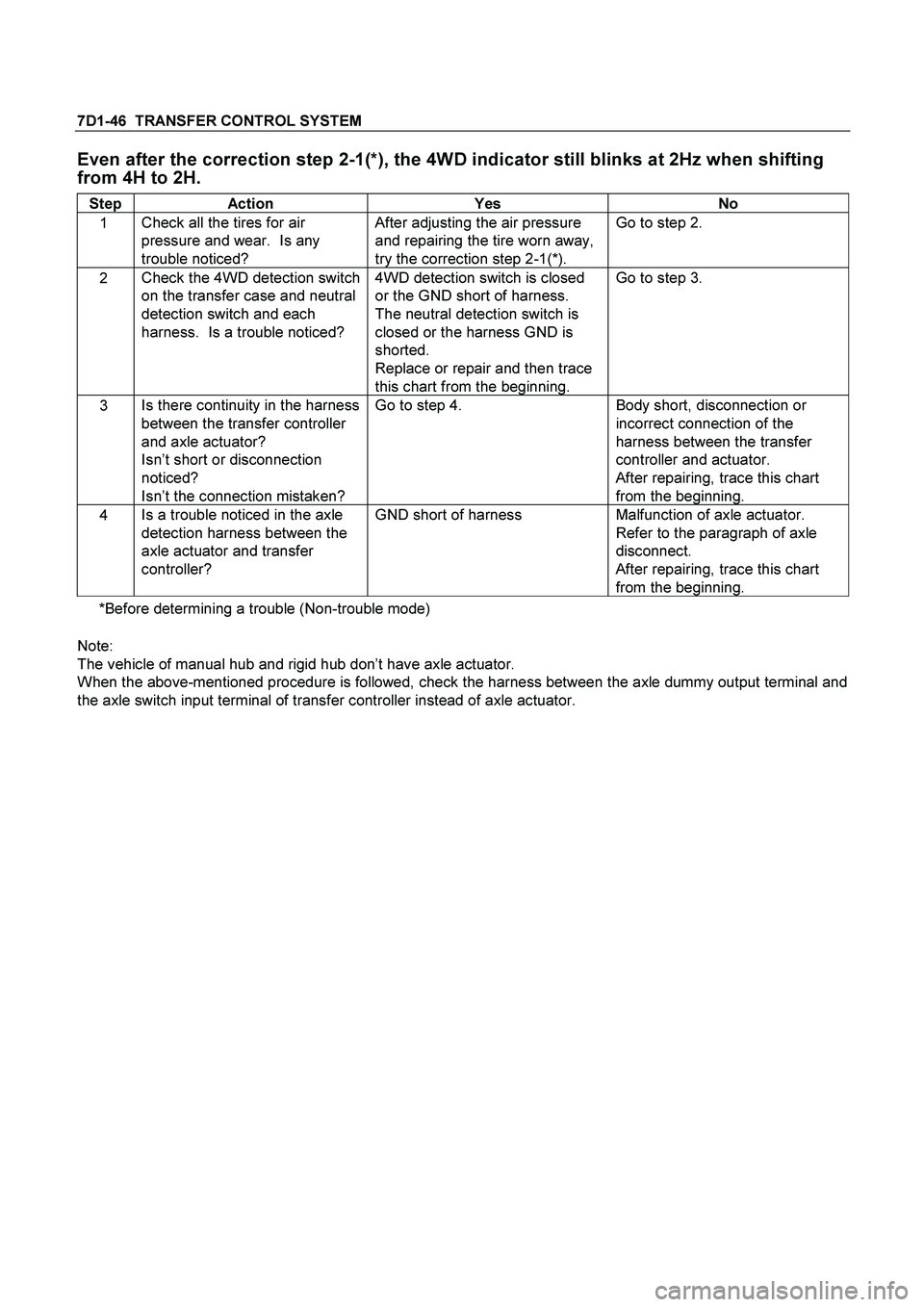

ISUZU TF SERIES 2004 Workshop Manual 7D1-46 TRANSFER CONTROL SYSTEM
Even after the correction step 2-1(*), the 4WD indicator still blinks at 2Hz when shifting
from 4H to 2H.
Step Action Yes No
1 Check all the tires for air
pressu
