Page 1993 of 4264

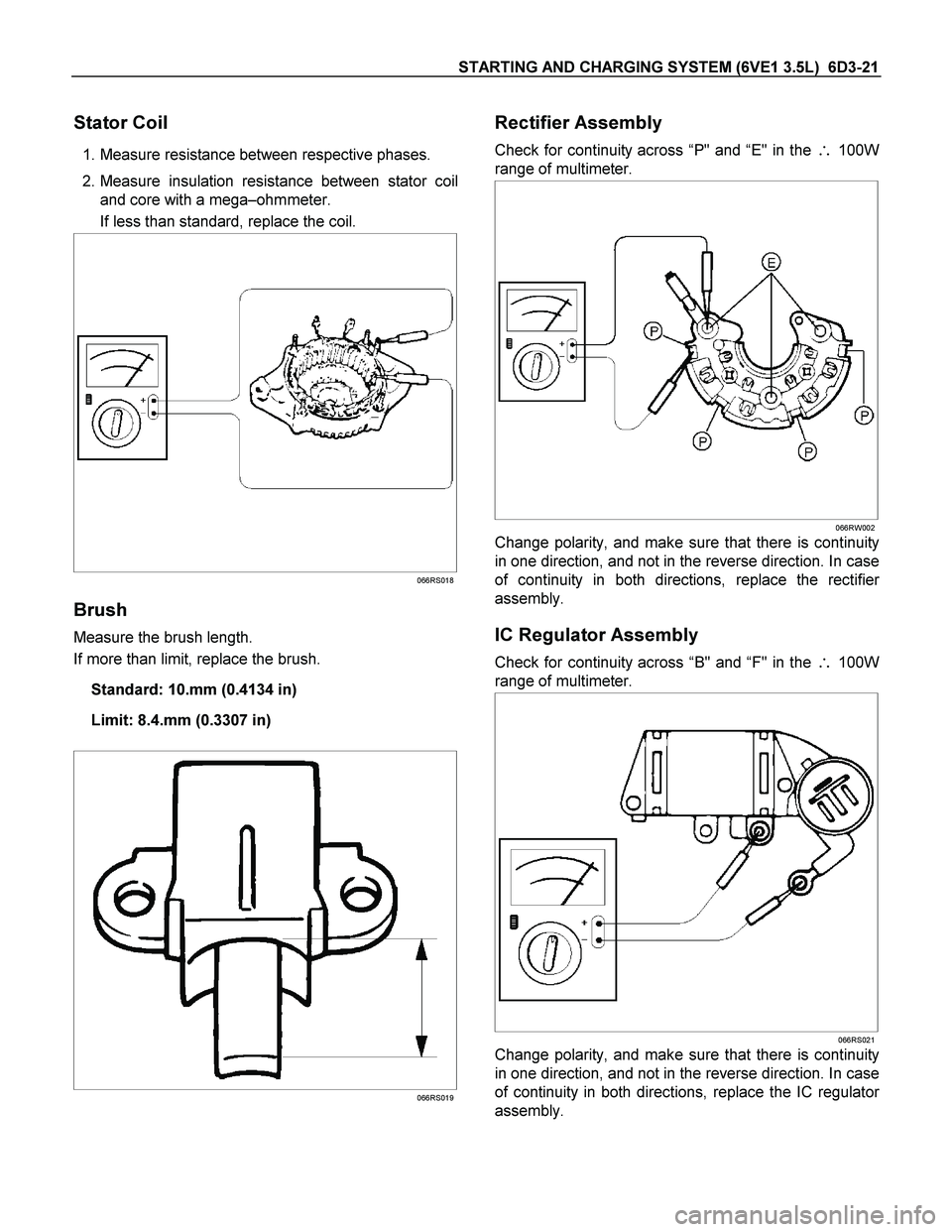

ISUZU TF SERIES 2004 Workshop Manual STARTING AND CHARGING SYSTEM (6VE1 3.5L) 6D3-21
Stator Coil
1. Measure resistance between respective phases.
2. Measure insulation resistance between stator coil
and core with a mega–ohmmeter.

Page 1994 of 4264

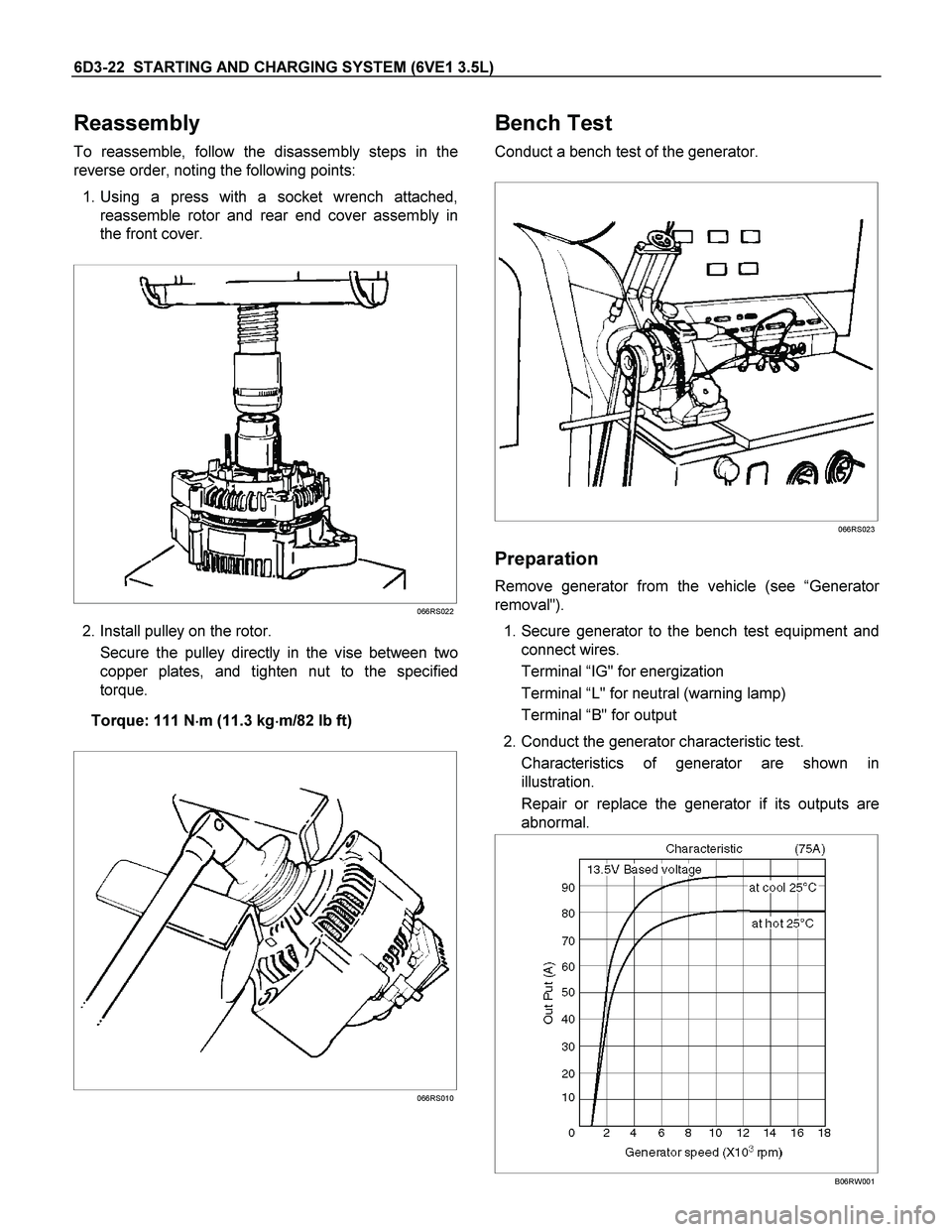

ISUZU TF SERIES 2004 Workshop Manual 6D3-22 STARTING AND CHARGING SYSTEM (6VE1 3.5L)
Reassembly
To reassemble, follow the disassembly steps in the
reverse order, noting the following points:
1. Using a press with a socket wrench att

Page 1995 of 4264

ISUZU TF SERIES 2004 Workshop Manual STARTING AND CHARGING SYSTEM (6VE1 3.5L) 6D3-23

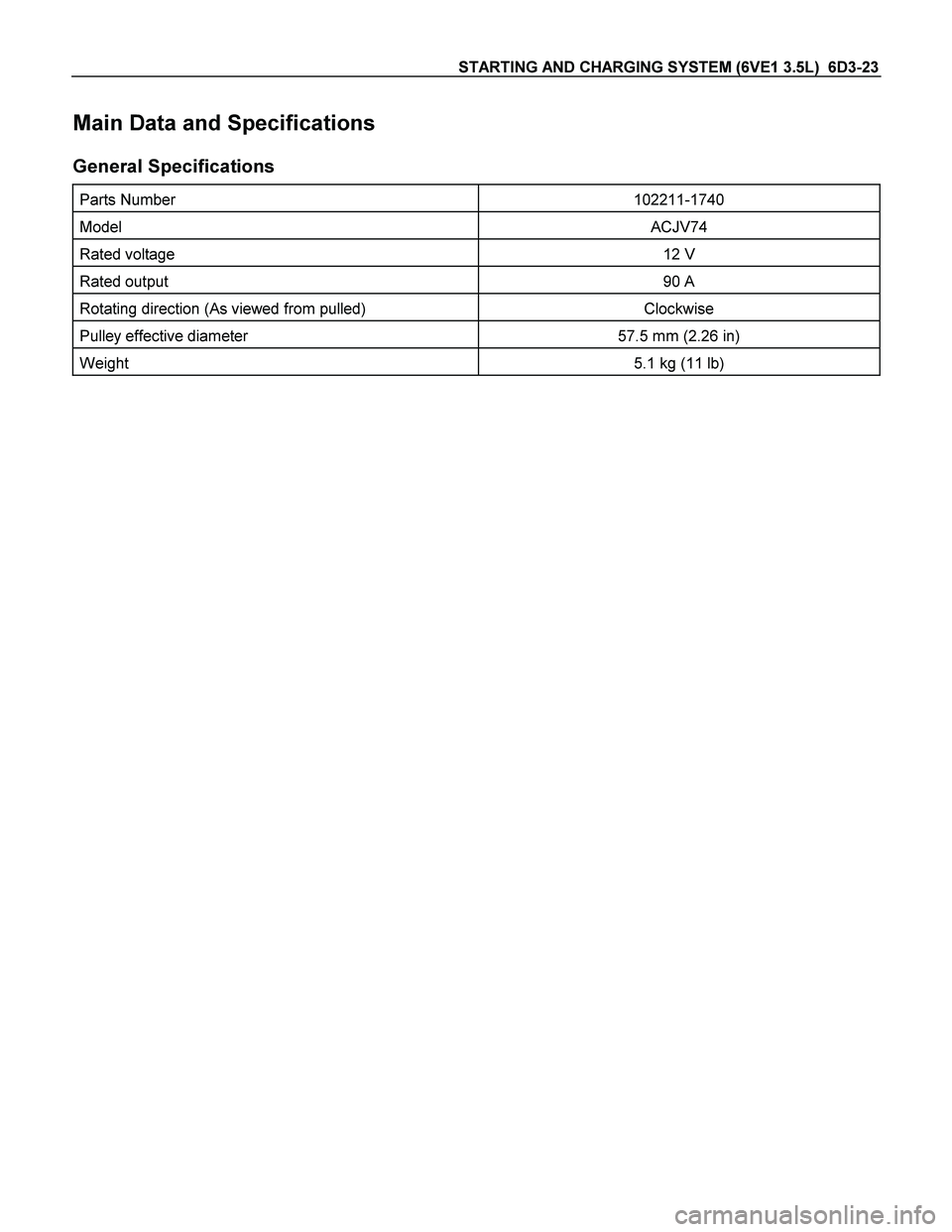

Main Data and Specifications
General Specifications
Parts Number 102211-1740
Model ACJV74
Rated voltage 12 V
Rated output 90 A
Rotating direc

Page 1996 of 4264

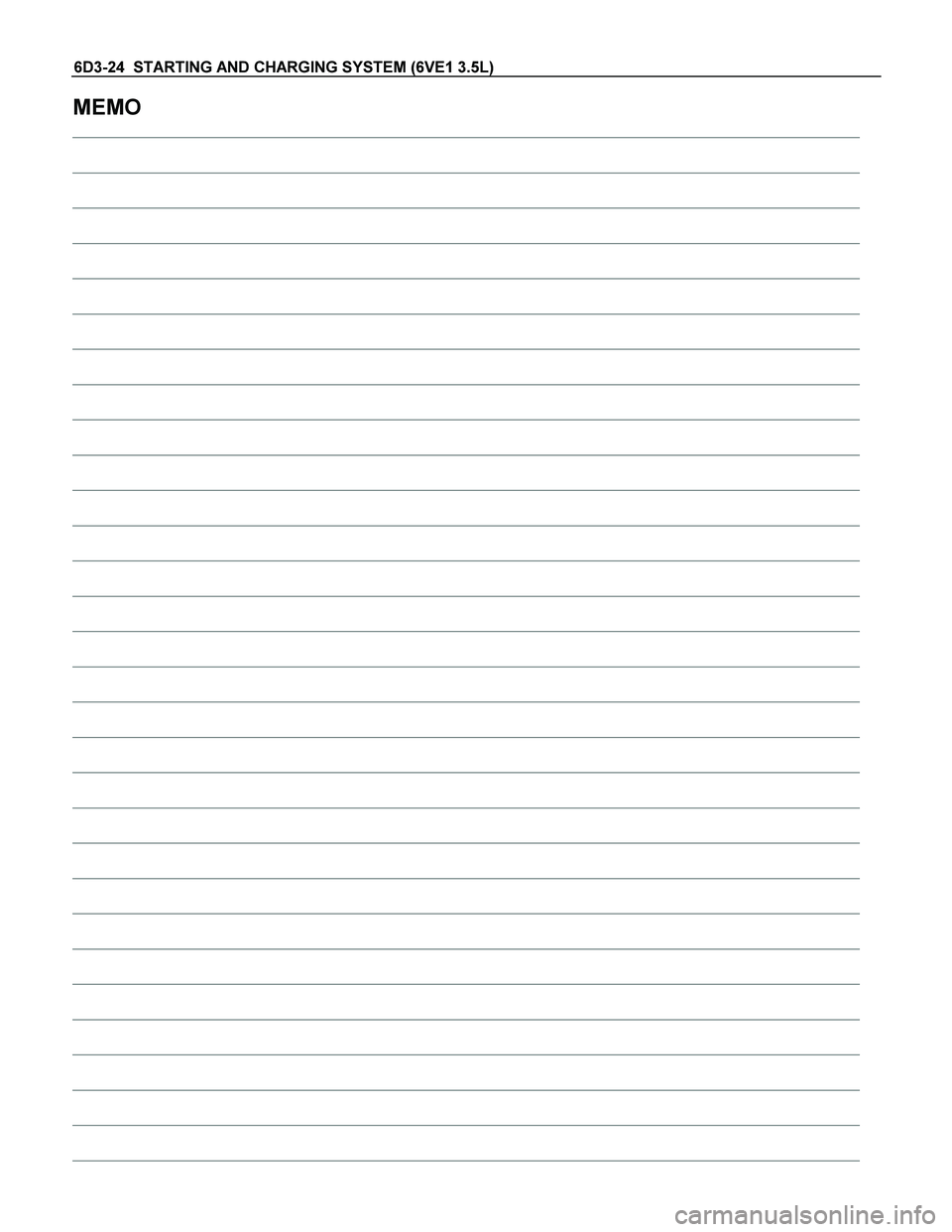

ISUZU TF SERIES 2004 Workshop Manual 6D3-24 STARTING AND CHARGING SYSTEM (6VE1 3.5L)
MEMO

Page 1997 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-1
ENGINE
3.5L ENGINE DRIVEABILITY AND EMISSIONS
CONTENTS

ABBREVIATION CHARTS ................................ 6E-5
COMPONENT LOCATOR ..............

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-1
ENGINE
3.5L ENGINE DRIVEABILITY AND EMISSIONS
CONTENTS

ABBREVIATION CHARTS ................................ 6E-5
COMPONENT LOCATOR ................................. 6E-6
ENGINE COMPONENT LOCATOR TABLE .. 6E-6
ECM CIRCUIT DIAGRAM ................................. 6E-10
GROUND POINT CHART G.EXP (LHD)
WITHOUT EUROPE, ISRAEL, TURKEY (1/4). 6E-13
GROUND POINT CHART G.EXP (LHD) (2/4) .. 6E-14
GROUND POINT CHART G.EXP (LHD) (3/4) .. 6E-15
GROUND POINT CHART G.EXP (LHD) (4/4) .. 6E-16
GROUND POINT CHART G.EXP (RHD) (1/4) . 6E-17
GROUND POINT CHART G.EXP (RHD) (2/4) . 6E-18
GROUND POINT CHART G.EXP (RHD) (3/4) . 6E-19
GROUND POINT CHART G.EXP (RHD) (4/4) . 6E-20
LOCATION ........................................................ 6E-21
CABLE HARNESS & CONNECTOR
LOCATION ....................................................... 6E-22
CONNECTOR LIST ........................................... 6E-27
RELAY AND FUSE ............................................ 6E-30
RELAY AND FUSE BOX LOCATION
(LHD&RHD) ................................................... 6E-30
RELAY AND FUSE BOX LOCATION
(LHD&RHD) ................................................... 6E-31
FUSE AND RELAY LOCATION
(LHD&RHD) ................................................... 6E-32
ECM WIRING DIAGRAM (1/10) ........................ 6E-33
ECM WIRING DIAGRAM (2/10) ........................ 6E-34
ECM WIRING DIAGRAM (3/10) ........................ 6E-35
ECM WIRING DIAGRAM (4/10) ........................ 6E-36
ECM WIRING DIAGRAM (5/10) ........................ 6E-37
ECM WIRING DIAGRAM (6/10) ........................ 6E-38
ECM WIRING DIAGRAM (7/10) ........................ 6E-39
ECM WIRING DIAGRAM (8/10) ........................ 6E-40
ECM WIRING DIAGRAM (9/10) ........................ 6E-41
ECM WIRING DIAGRAM (10/10) ...................... 6E-42
ECM CONNECTOR PIN ASSIGNMENT
& OUTPUT SIGNAL ......................................... 6E-43
GENERAL DESCRIPTION FOR ECM AND
SENSORS ........................................................ 6E-51

Mass Air Flow (MAF) Sensor & Intake Air
Temperature (IAT) Sensor ............................. 6E-52
Throttle Position Sensor (TPS)....................... 6E-52
Idle Air Control (IAC) Valve ............................ 6E-53
Camshaft Position (CMP) Sensor .................. 6E-53
Crankshaft Position (CKP) Sensor ................. 6E-54
Engine Coolant Temperature (ECT) Sensor .. 6E-54
Vehicle Speed Sensor (VSS) ......................... 6E-55
Heated Oxygen (O
2) Sensor........................... 6E-55
GENERAL DESCRIPTION FOR FUEL
METERING....................................................... 6E-56
GENERAL DESCRIPTION FOR ELECTRONIC
IGNITION SYSTEM IGNITION
COILS & CONTROL ......................................... 6E-58
GENERAL DESCRIPTION FOR EVAPORATIVE
EMISSION SYSTEM ........................................ 6E-61
GENERAL DESCRIPRION FOR EXHAUST
GAS RECIRCULATION (EGR) SYSTEM......... 6E-62
ISUZU STRATEGY BASED DIAGNOSTICS .... 6E-63
Diagnostic Thought Process .......................... 6E-64
1. Verify the Complaint ................................... 6E-64
2. Perform Preliminary Checks....................... 6E-64
3. Check Bulletins and Troubleshooting
Hints ........................................................... 6E-65
4. Perform Service Manual Diagnostic
Checks ....................................................... 6E-65
5a and 5b. Perform Service Manual
Diagnostic Procedures ............................... 6E-65
5c. Technician Self Diagnoses ....................... 6E-65
5d. Intermittent Diagnosis............................ 6E-66
Symptom Simulation Tests.......................... 6E-67
5e. Vehicle Operates as Designed ................. 6E-68
6. Re-Examine the Complaint ........................ 6E-68
7. Repair and Verify Fix .................................. 6E-68
GENERAL SERVICE INFORMATION .............. 6E-69
Aftermarket Electrical and Vacuum
Equipment ..................................................... 6E-69
Electrostatic Discharge Damage .................... 6E-69

Page 1998 of 4264

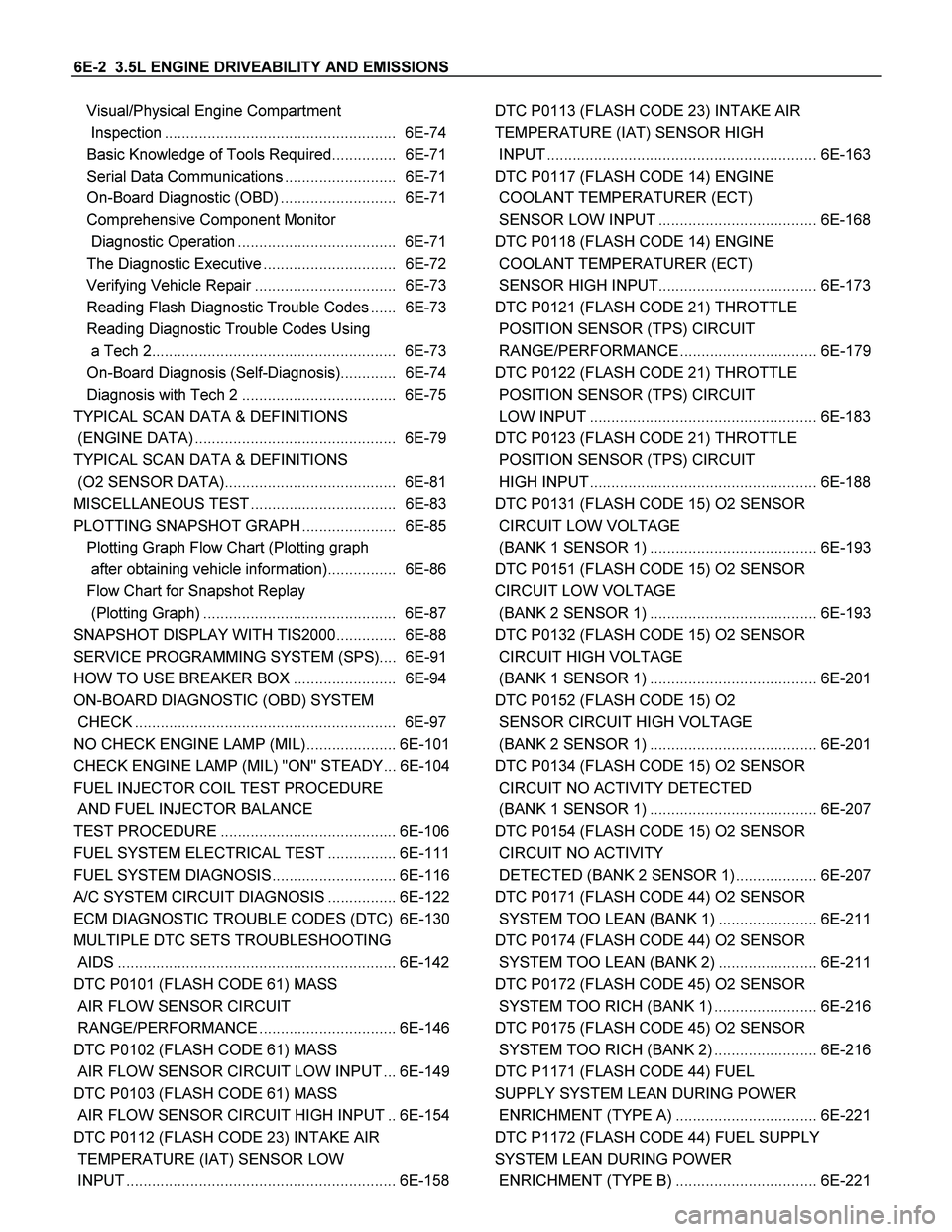

ISUZU TF SERIES 2004 Workshop Manual 6E-2 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Visual/Physical Engine Compartment
Inspection ...................................................... 6E-74
Basic Knowledge of Tools Required..........

6E-2 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Visual/Physical Engine Compartment
Inspection ...................................................... 6E-74
Basic Knowledge of Tools Required............... 6E-71
Serial Data Communications .......................... 6E-71
On-Board Diagnostic (OBD) ........................... 6E-71
Comprehensive Component Monitor
Diagnostic Operation ..................................... 6E-71
The Diagnostic Executive ............................... 6E-72
Verifying Vehicle Repair ................................. 6E-73
Reading Flash Diagnostic Trouble Codes ...... 6E-73
Reading Diagnostic Trouble Codes Using
a Tech 2......................................................... 6E-73
On-Board Diagnosis (Self-Diagnosis)............. 6E-74
Diagnosis with Tech 2 .................................... 6E-75
TYPICAL SCAN DATA & DEFINITIONS
(ENGINE DATA) ............................................... 6E-79
TYPICAL SCAN DATA & DEFINITIONS
(O2 SENSOR DATA)........................................ 6E-81
MISCELLANEOUS TEST .................................. 6E-83
PLOTTING SNAPSHOT GRAPH ...................... 6E-85
Plotting Graph Flow Chart (Plotting graph
after obtaining vehicle information)................ 6E-86
Flow Chart for Snapshot Replay
(Plotting Graph) ............................................. 6E-87
SNAPSHOT DISPLAY WITH TIS2000.............. 6E-88
SERVICE PROGRAMMING SYSTEM (SPS).... 6E-91
HOW TO USE BREAKER BOX ........................ 6E-94
ON-BOARD DIAGNOSTIC (OBD) SYSTEM
CHECK ............................................................. 6E-97
NO CHECK ENGINE LAMP (MIL)..................... 6E-101
CHECK ENGINE LAMP (MIL) "ON" STEADY ... 6E-104
FUEL INJECTOR COIL TEST PROCEDURE
AND FUEL INJECTOR BALANCE
TEST PROCEDURE ......................................... 6E-106
FUEL SYSTEM ELECTRICAL TEST ................ 6E-111
FUEL SYSTEM DIAGNOSIS ............................. 6E-116
A/C SYSTEM CIRCUIT DIAGNOSIS ................ 6E-122
ECM DIAGNOSTIC TROUBLE CODES (DTC) 6E-130
MULTIPLE DTC SETS TROUBLESHOOTING
AIDS ................................................................. 6E-142
DTC P0101 (FLASH CODE 61) MASS
AIR FLOW SENSOR CIRCUIT
RANGE/PERFORMANCE ................................ 6E-146
DTC P0102 (FLASH CODE 61) MASS
AIR FLOW SENSOR CIRCUIT LOW INPUT ... 6E-149
DTC P0103 (FLASH CODE 61) MASS
AIR FLOW SENSOR CIRCUIT HIGH INPUT .. 6E-154
DTC P0112 (FLASH CODE 23) INTAKE AIR
TEMPERATURE (IAT) SENSOR LOW
INPUT ............................................................... 6E-158 DTC P0113 (FLASH CODE 23) INTAKE AIR
TEMPERATURE (IAT) SENSOR HIGH
INPUT ............................................................... 6E-163
DTC P0117 (FLASH CODE 14) ENGINE
COOLANT TEMPERATURER (ECT)
SENSOR LOW INPUT ..................................... 6E-168
DTC P0118 (FLASH CODE 14) ENGINE
COOLANT TEMPERATURER (ECT)
SENSOR HIGH INPUT..................................... 6E-173
DTC P0121 (FLASH CODE 21) THROTTLE
POSITION SENSOR (TPS) CIRCUIT
RANGE/PERFORMANCE ................................ 6E-179
DTC P0122 (FLASH CODE 21) THROTTLE
POSITION SENSOR (TPS) CIRCUIT
LOW INPUT ..................................................... 6E-183
DTC P0123 (FLASH CODE 21) THROTTLE
POSITION SENSOR (TPS) CIRCUIT
HIGH INPUT ..................................................... 6E-188
DTC P0131 (FLASH CODE 15) O2 SENSOR
CIRCUIT LOW VOLTAGE
(BANK 1 SENSOR 1) ....................................... 6E-193
DTC P0151 (FLASH CODE 15) O2 SENSOR
CIRCUIT LOW VOLTAGE
(BANK 2 SENSOR 1) ....................................... 6E-193
DTC P0132 (FLASH CODE 15) O2 SENSOR
CIRCUIT HIGH VOLTAGE
(BANK 1 SENSOR 1) ....................................... 6E-201
DTC P0152 (FLASH CODE 15) O2
SENSOR CIRCUIT HIGH VOLTAGE
(BANK 2 SENSOR 1) ....................................... 6E-201
DTC P0134 (FLASH CODE 15) O2 SENSOR
CIRCUIT NO ACTIVITY DETECTED
(BANK 1 SENSOR 1) ....................................... 6E-207
DTC P0154 (FLASH CODE 15) O2 SENSOR
CIRCUIT NO ACTIVITY
DETECTED (BANK 2 SENSOR 1) ................... 6E-207
DTC P0171 (FLASH CODE 44) O2 SENSOR
SYSTEM TOO LEAN (BANK 1) ....................... 6E-211
DTC P0174 (FLASH CODE 44) O2 SENSOR
SYSTEM TOO LEAN (BANK 2) ....................... 6E-211
DTC P0172 (FLASH CODE 45) O2 SENSOR
SYSTEM TOO RICH (BANK 1) ........................ 6E-216
DTC P0175 (FLASH CODE 45) O2 SENSOR
SYSTEM TOO RICH (BANK 2) ........................ 6E-216
DTC P1171 (FLASH CODE 44) FUEL
SUPPLY SYSTEM LEAN DURING POWER
ENRICHMENT (TYPE A) ................................. 6E-221
DTC P1172 (FLASH CODE 44) FUEL SUPPLY
SYSTEM LEAN DURING POWER
ENRICHMENT (TYPE B) ................................. 6E-221

Page 1999 of 4264

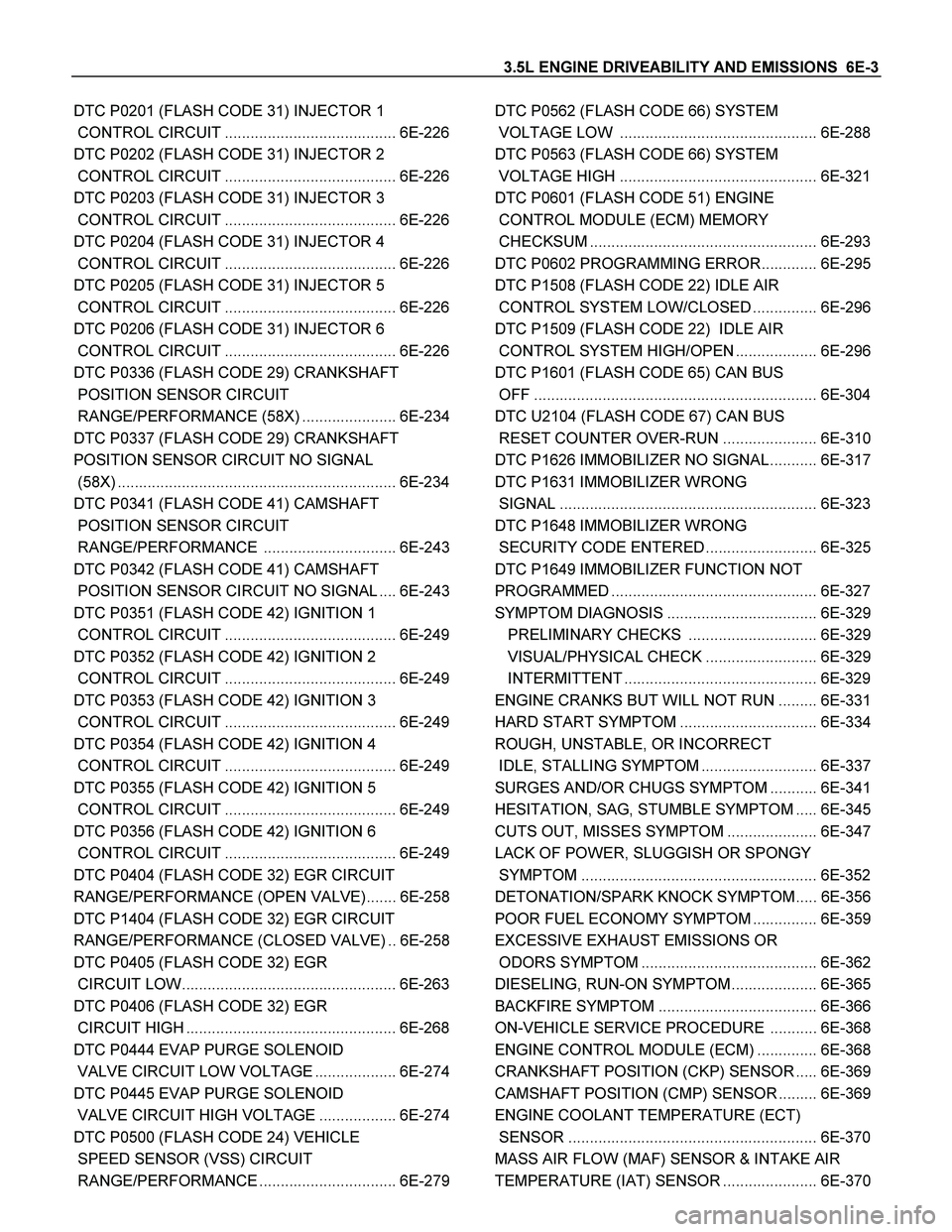

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-3
DTC P0201 (FLASH CODE 31) INJECTOR 1
CONTROL CIRCUIT ........................................ 6E-226
DTC P0202 (FLASH CODE 31) INJECTOR 2
CONTROL CIRC

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-3
DTC P0201 (FLASH CODE 31) INJECTOR 1
CONTROL CIRCUIT ........................................ 6E-226
DTC P0202 (FLASH CODE 31) INJECTOR 2
CONTROL CIRCUIT ........................................ 6E-226
DTC P0203 (FLASH CODE 31) INJECTOR 3
CONTROL CIRCUIT ........................................ 6E-226
DTC P0204 (FLASH CODE 31) INJECTOR 4
CONTROL CIRCUIT ........................................ 6E-226
DTC P0205 (FLASH CODE 31) INJECTOR 5
CONTROL CIRCUIT ........................................ 6E-226
DTC P0206 (FLASH CODE 31) INJECTOR 6
CONTROL CIRCUIT ........................................ 6E-226
DTC P0336 (FLASH CODE 29) CRANKSHAFT
POSITION SENSOR CIRCUIT
RANGE/PERFORMANCE (58X) ...................... 6E-234
DTC P0337 (FLASH CODE 29) CRANKSHAFT
POSITION SENSOR CIRCUIT NO SIGNAL
(58X) ................................................................. 6E-234
DTC P0341 (FLASH CODE 41) CAMSHAFT
POSITION SENSOR CIRCUIT
RANGE/PERFORMANCE ............................... 6E-243
DTC P0342 (FLASH CODE 41) CAMSHAFT
POSITION SENSOR CIRCUIT NO SIGNAL .... 6E-243
DTC P0351 (FLASH CODE 42) IGNITION 1
CONTROL CIRCUIT ........................................ 6E-249
DTC P0352 (FLASH CODE 42) IGNITION 2
CONTROL CIRCUIT ........................................ 6E-249
DTC P0353 (FLASH CODE 42) IGNITION 3
CONTROL CIRCUIT ........................................ 6E-249
DTC P0354 (FLASH CODE 42) IGNITION 4
CONTROL CIRCUIT ........................................ 6E-249
DTC P0355 (FLASH CODE 42) IGNITION 5
CONTROL CIRCUIT ........................................ 6E-249
DTC P0356 (FLASH CODE 42) IGNITION 6
CONTROL CIRCUIT ........................................ 6E-249
DTC P0404 (FLASH CODE 32) EGR CIRCUIT
RANGE/PERFORMANCE (OPEN VALVE)....... 6E-258
DTC P1404 (FLASH CODE 32) EGR CIRCUIT
RANGE/PERFORMANCE (CLOSED VALVE) .. 6E-258
DTC P0405 (FLASH CODE 32) EGR
CIRCUIT LOW.................................................. 6E-263
DTC P0406 (FLASH CODE 32) EGR
CIRCUIT HIGH ................................................. 6E-268
DTC P0444 EVAP PURGE SOLENOID
VALVE CIRCUIT LOW VOLTAGE ................... 6E-274
DTC P0445 EVAP PURGE SOLENOID
VALVE CIRCUIT HIGH VOLTAGE .................. 6E-274
DTC P0500 (FLASH CODE 24) VEHICLE
SPEED SENSOR (VSS) CIRCUIT
RANGE/PERFORMANCE ................................ 6E-279 DTC P0562 (FLASH CODE 66) SYSTEM
VOLTAGE LOW .............................................. 6E-288
DTC P0563 (FLASH CODE 66) SYSTEM
VOLTAGE HIGH .............................................. 6E-321
DTC P0601 (FLASH CODE 51) ENGINE
CONTROL MODULE (ECM) MEMORY
CHECKSUM ..................................................... 6E-293
DTC P0602 PROGRAMMING ERROR............. 6E-295
DTC P1508 (FLASH CODE 22) IDLE AIR
CONTROL SYSTEM LOW/CLOSED ............... 6E-296
DTC P1509 (FLASH CODE 22) IDLE AIR
CONTROL SYSTEM HIGH/OPEN ................... 6E-296
DTC P1601 (FLASH CODE 65) CAN BUS
OFF .................................................................. 6E-304
DTC U2104 (FLASH CODE 67) CAN BUS
RESET COUNTER OVER-RUN ...................... 6E-310
DTC P1626 IMMOBILIZER NO SIGNAL ........... 6E-317
DTC P1631 IMMOBILIZER WRONG
SIGNAL ............................................................ 6E-323
DTC P1648 IMMOBILIZER WRONG
SECURITY CODE ENTERED .......................... 6E-325
DTC P1649 IMMOBILIZER FUNCTION NOT
PROGRAMMED ................................................ 6E-327
SYMPTOM DIAGNOSIS ................................... 6E-329
PRELIMINARY CHECKS .............................. 6E-329
VISUAL/PHYSICAL CHECK .......................... 6E-329
INTERMITTENT ............................................. 6E-329
ENGINE CRANKS BUT WILL NOT RUN ......... 6E-331
HARD START SYMPTOM ................................ 6E-334
ROUGH, UNSTABLE, OR INCORRECT
IDLE, STALLING SYMPTOM ........................... 6E-337
SURGES AND/OR CHUGS SYMPTOM ........... 6E-341
HESITATION, SAG, STUMBLE SYMPTOM ..... 6E-345
CUTS OUT, MISSES SYMPTOM ..................... 6E-347
LACK OF POWER, SLUGGISH OR SPONGY
SYMPTOM ....................................................... 6E-352
DETONATION/SPARK KNOCK SYMPTOM..... 6E-356
POOR FUEL ECONOMY SYMPTOM ............... 6E-359
EXCESSIVE EXHAUST EMISSIONS OR
ODORS SYMPTOM ......................................... 6E-362
DIESELING, RUN-ON SYMPTOM .................... 6E-365
BACKFIRE SYMPTOM ..................................... 6E-366
ON-VEHICLE SERVICE PROCEDURE ........... 6E-368
ENGINE CONTROL MODULE (ECM) .............. 6E-368
CRANKSHAFT POSITION (CKP) SENSOR ..... 6E-369
CAMSHAFT POSITION (CMP) SENSOR ......... 6E-369
ENGINE COOLANT TEMPERATURE (ECT)
SENSOR .......................................................... 6E-370
MASS AIR FLOW (MAF) SENSOR & INTAKE AIR
TEMPERATURE (IAT) SENSOR ...................... 6E-370

Page 2000 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-4 3.5L ENGINE DRIVEABILITY AND EMISSIONS
THROTTLE POSITION SENSOR (TPS)........... 6E-371
IDLE AIR CONTROL (IAC) VALVE ................... 6E-371
HEATED OXYGEN SENSOR (HO2S) .............. 6E-372

Load next 8 pages

Page: < prev 1-10 ... 1961-1968 1969-1976 1977-1984 1985-1992 1993-2000 2001-2008 2009-2016 2017-2024 2025-2032 ... 4264 next >

radio controls bulb light TPMS reset brake light garage door opener
