ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-119 CIRCUIT DIAGRAM (LHD) EUROPE RTW48AXF014301

Page 778 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-120 ELECTRICAL-BODY AND CHASSIS TROUBLE SHOOTING HEADLIGHT 1. Both the headlights (high and low beam) do not light Checkpoint Trouble Cause Countermeasure Repair the wiring Poor

Page 779 of 4264

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-121 2. High or low beam does not light on both headlights Checkpoint Trouble Cause Countermeasure Repair or replace the combination switch Dimmerpass

Page 780 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-122 ELECTRICAL-BODY AND CHASSIS 5. Headlight does not go out Checkpoint Trouble Cause Countermeasure Replace the lighting relay Lighting relay continuity between connector 1 X-12

Page 781 of 4264

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-123 7. Passing light does not function when dimmer switch is operated Checkpoint Trouble Cause Countermeasure Repair or replace the dimmer switch Dimm

Page 782 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-124 ELECTRICAL-BODY AND CHASSIS TAIL LIGHT, LICENSE PLATE LIGHT, CLEARANCE LIGHT 1. All lights do not light Checkpoint Trouble Cause Countermeasure Repair or replace the combinat

Page 783 of 4264

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-125 TAIL LIGHT-LH, LICENSE PLATE LIGHT, CLEARANCE LIGHT 1. All lights do not light (EC-LHD) Checkpoint Trouble Cause Countermeasure Repair or replace t

Page 784 of 4264

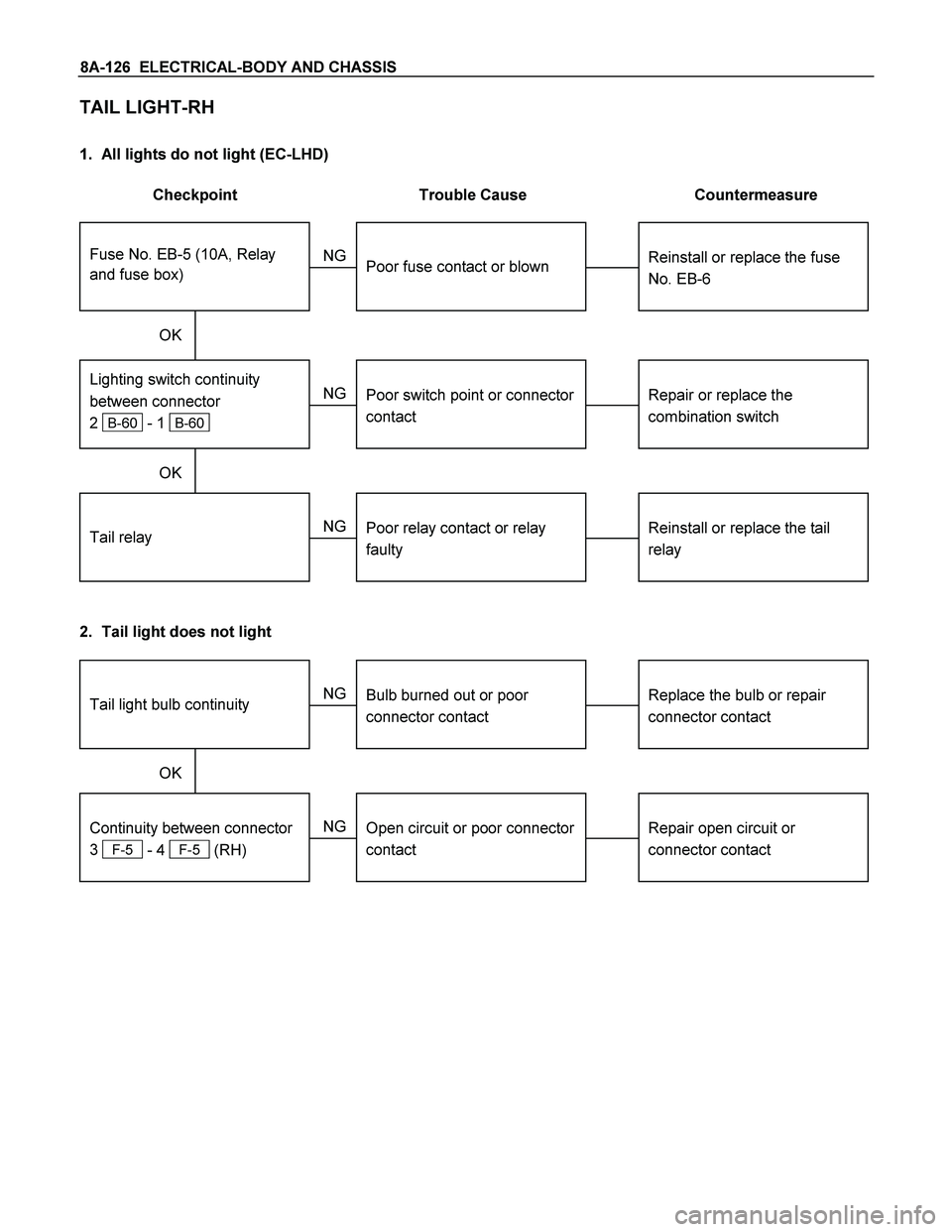

ISUZU TF SERIES 2004 Workshop Manual 8A-126 ELECTRICAL-BODY AND CHASSIS TAIL LIGHT-RH 1. All lights do not light (EC-LHD) Checkpoint Trouble Cause Countermeasure Repair or replace the combination switch Lighting swit
