Page 2313 of 4264

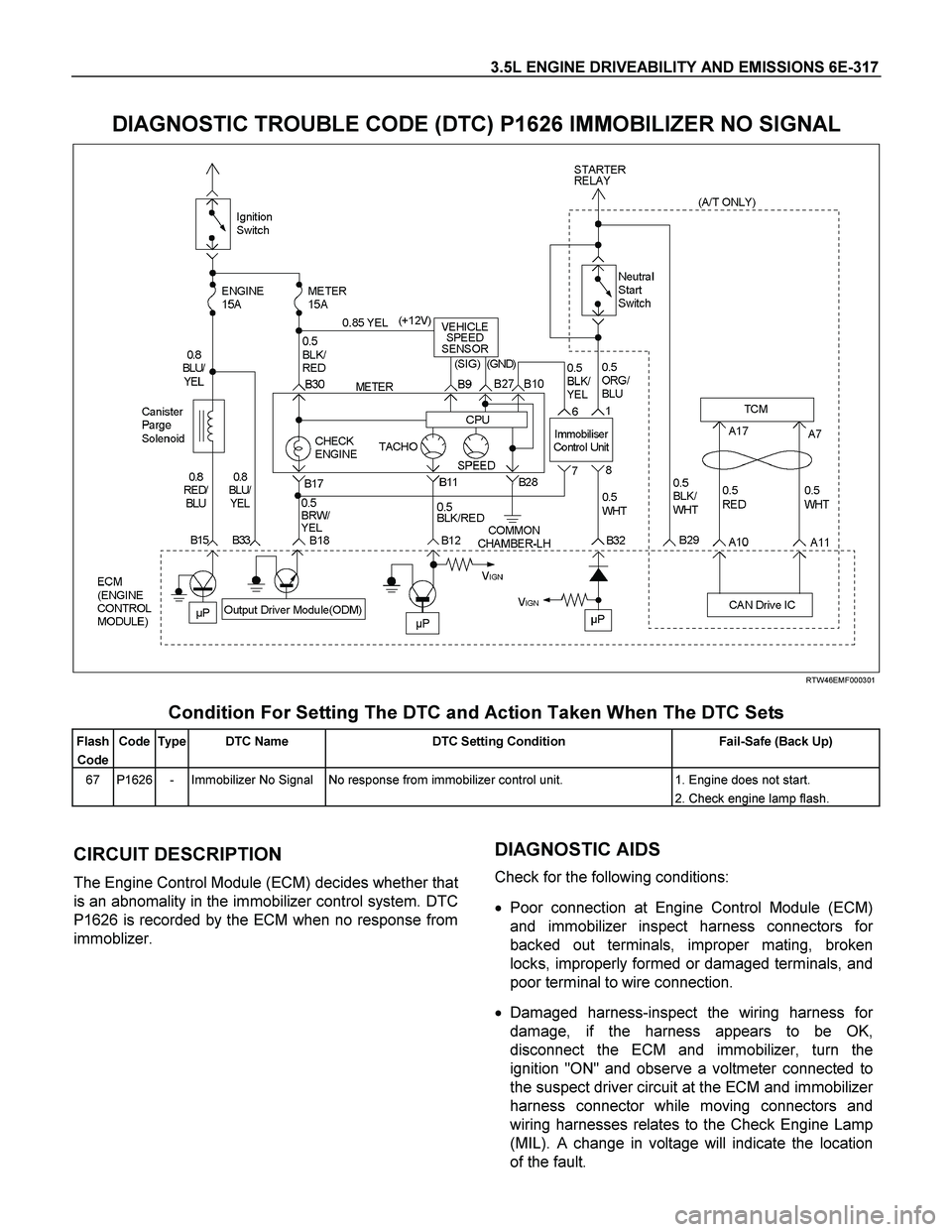

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-317 DIAGNOSTIC TROUBLE CODE (DTC) P1626 IMMOBILIZER NO SIGNAL RTW46EMF000301 Condition For Setting The DTC and Action Taken When The DTC Sets Fla

Page 2314 of 4264

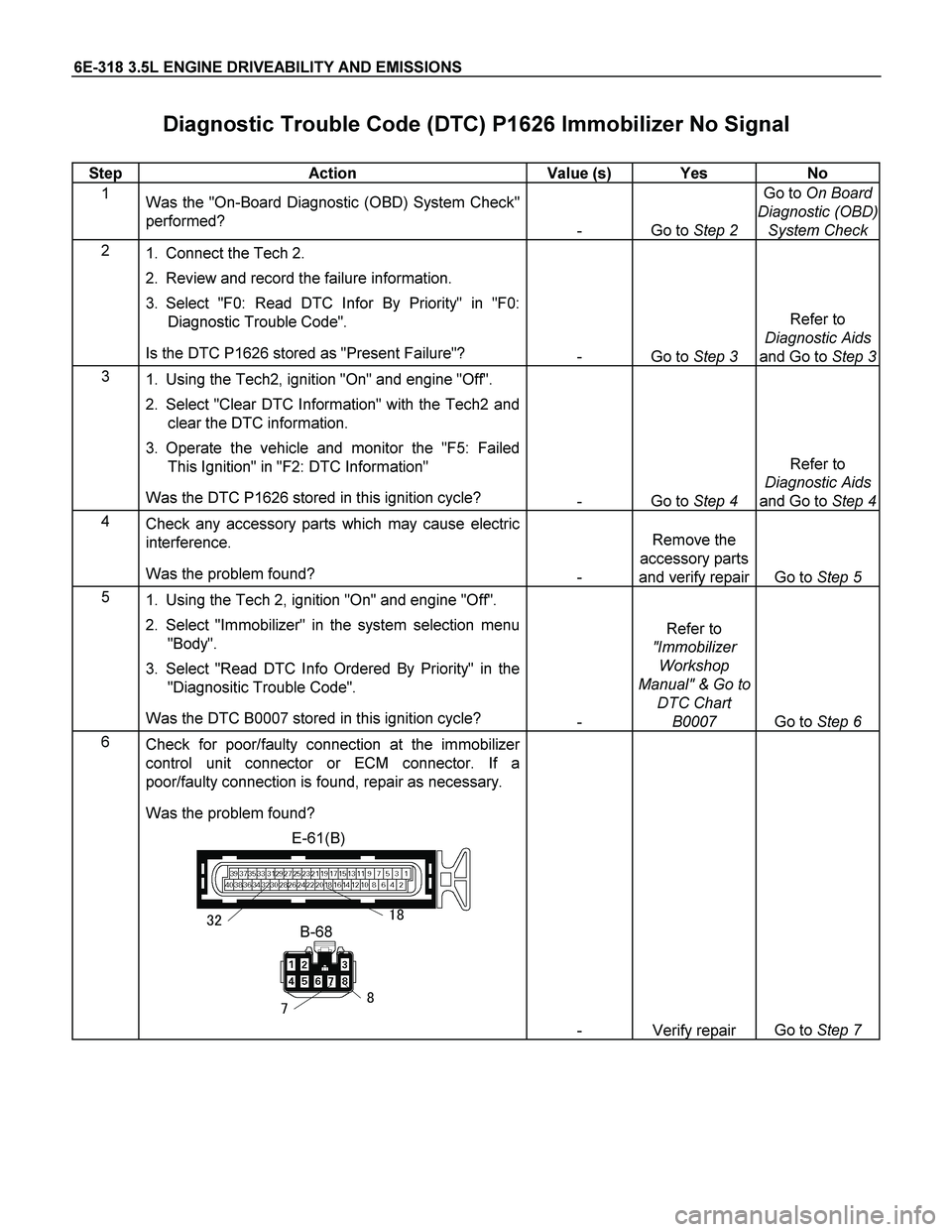

ISUZU TF SERIES 2004 Workshop Manual 6E-318 3.5L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1626 Immobilizer No Signal Step Action Value (s) Yes No 1 Was the "On-Board Diagnostic (OBD) System Check" perf

Page 2315 of 4264

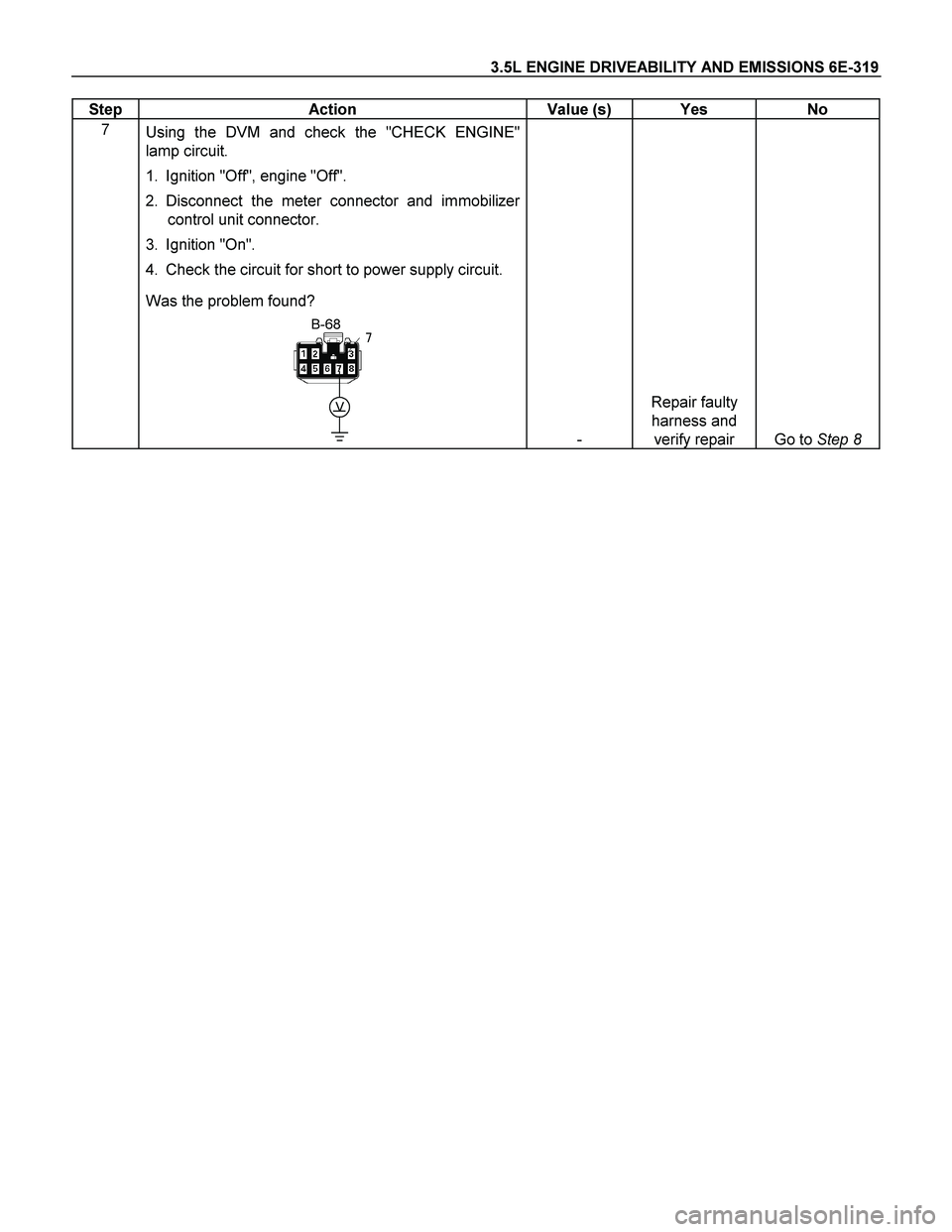

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-319 Step Action Value (s) Yes No 7 Using the DVM and check the "CHECK ENGINE" lamp circuit. 1. Ignition "Off", engine "Off". 2. Disconnect the m

Page 2316 of 4264

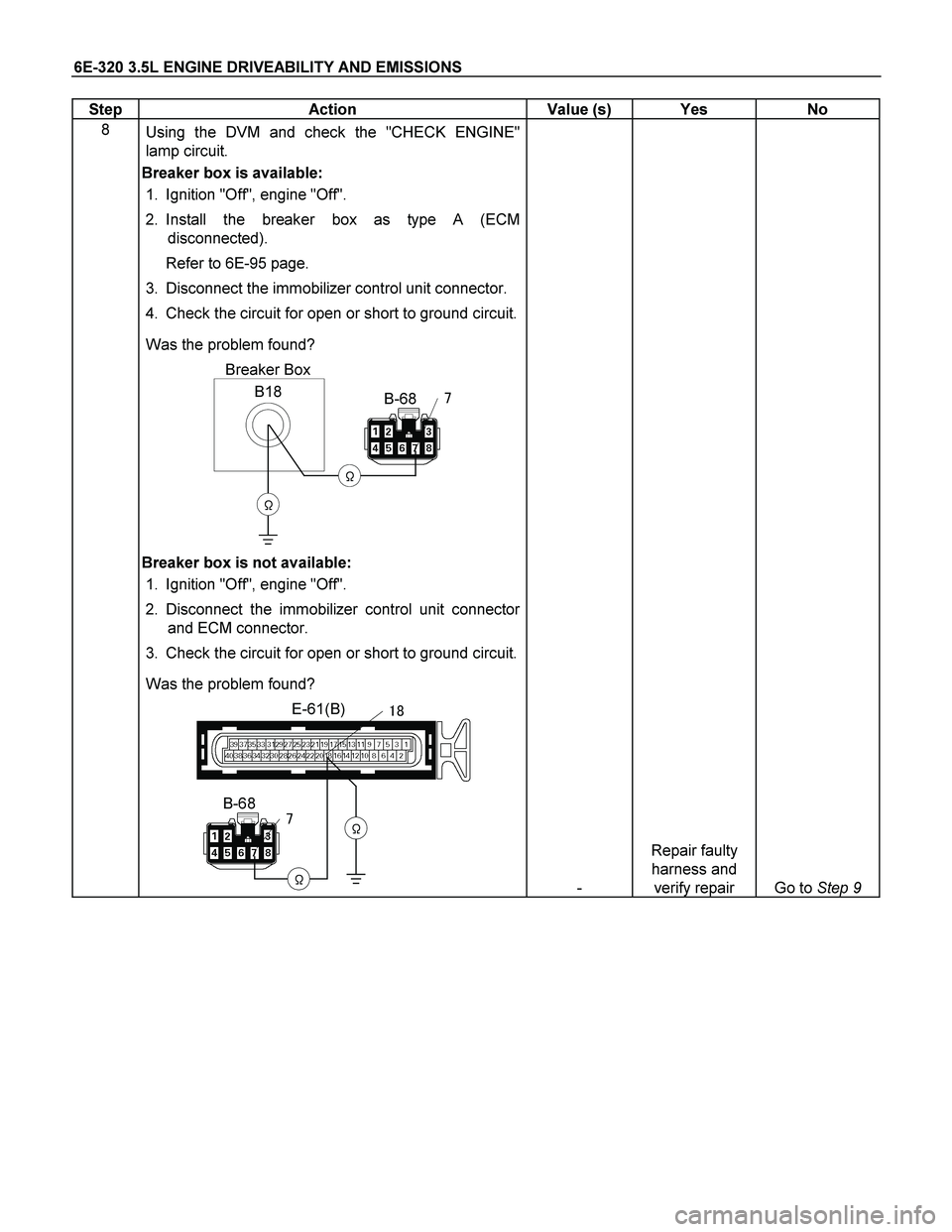

ISUZU TF SERIES 2004 Workshop Manual 6E-320 3.5L ENGINE DRIVEABILITY AND EMISSIONS Step Action Value (s) Yes No 8 Using the DVM and check the "CHECK ENGINE" lamp circuit. Breaker box is available: 1. Ignition "Off", engin

Page 2317 of 4264

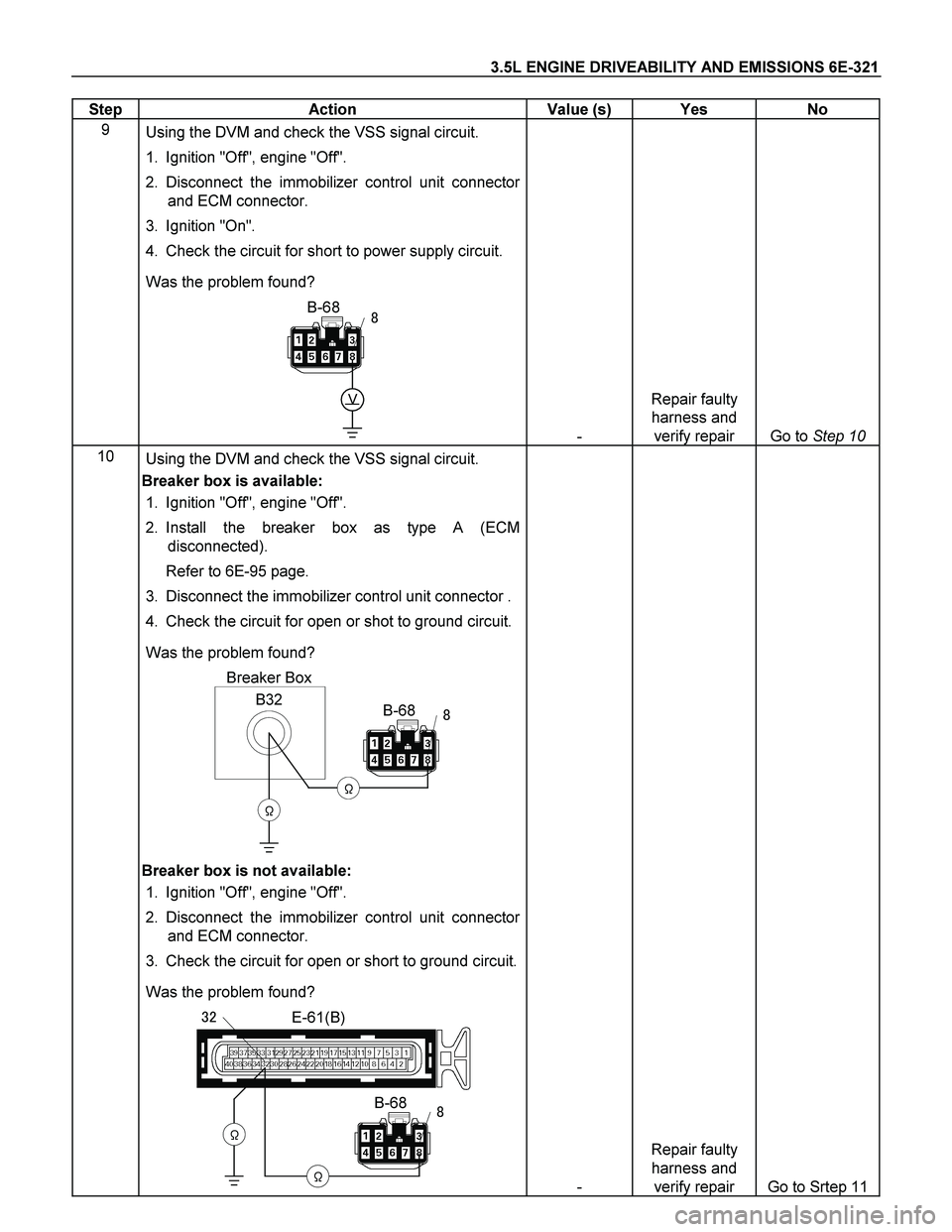

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-321 Step Action Value (s) Yes No 9 Using the DVM and check the VSS signal circuit. 1. Ignition "Off", engine "Off". 2. Disconnect the immobilizer

Page 2318 of 4264

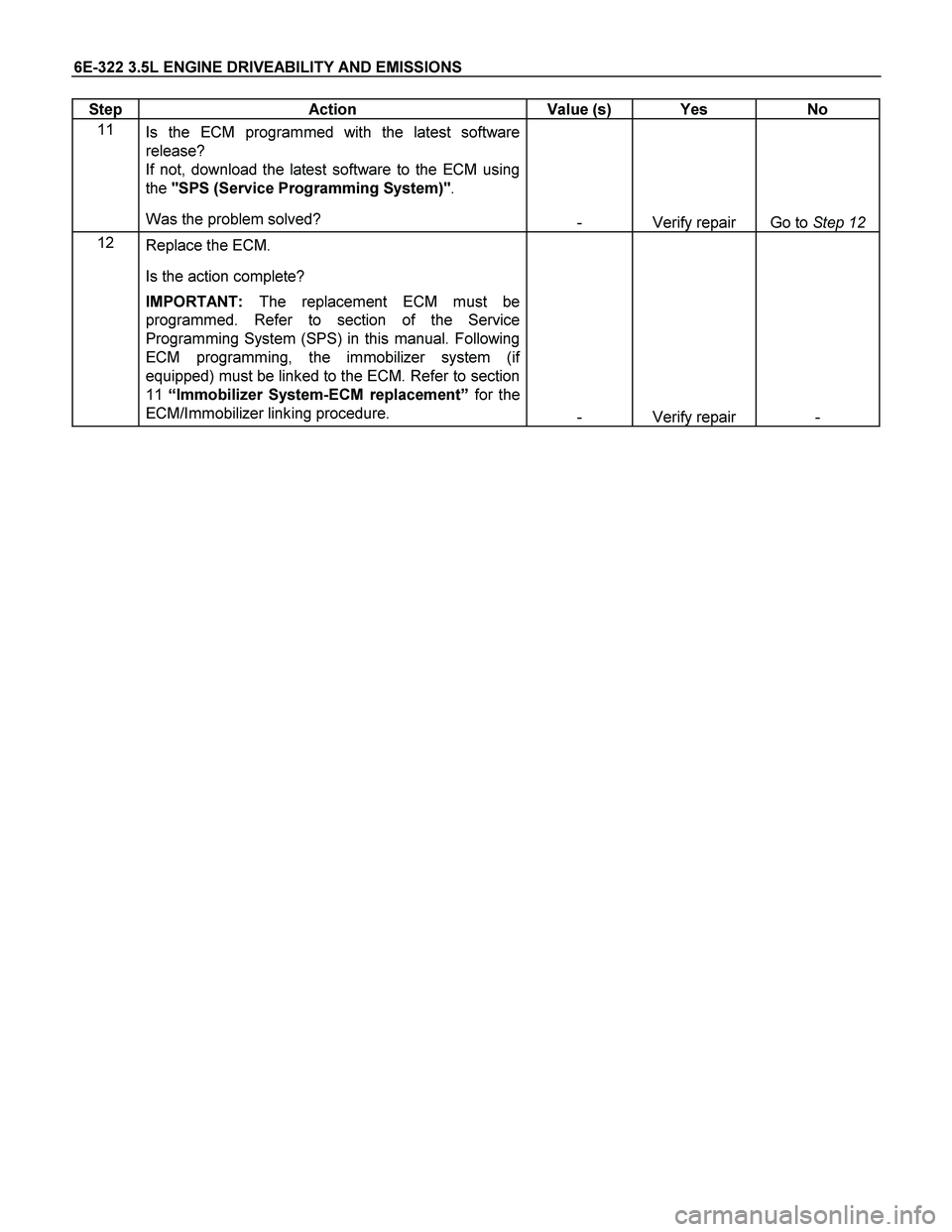

ISUZU TF SERIES 2004 Workshop Manual 6E-322 3.5L ENGINE DRIVEABILITY AND EMISSIONS Step Action Value (s) Yes No 11 Is the ECM programmed with the latest software release? If not, download the latest software to the ECM using

Page 2319 of 4264

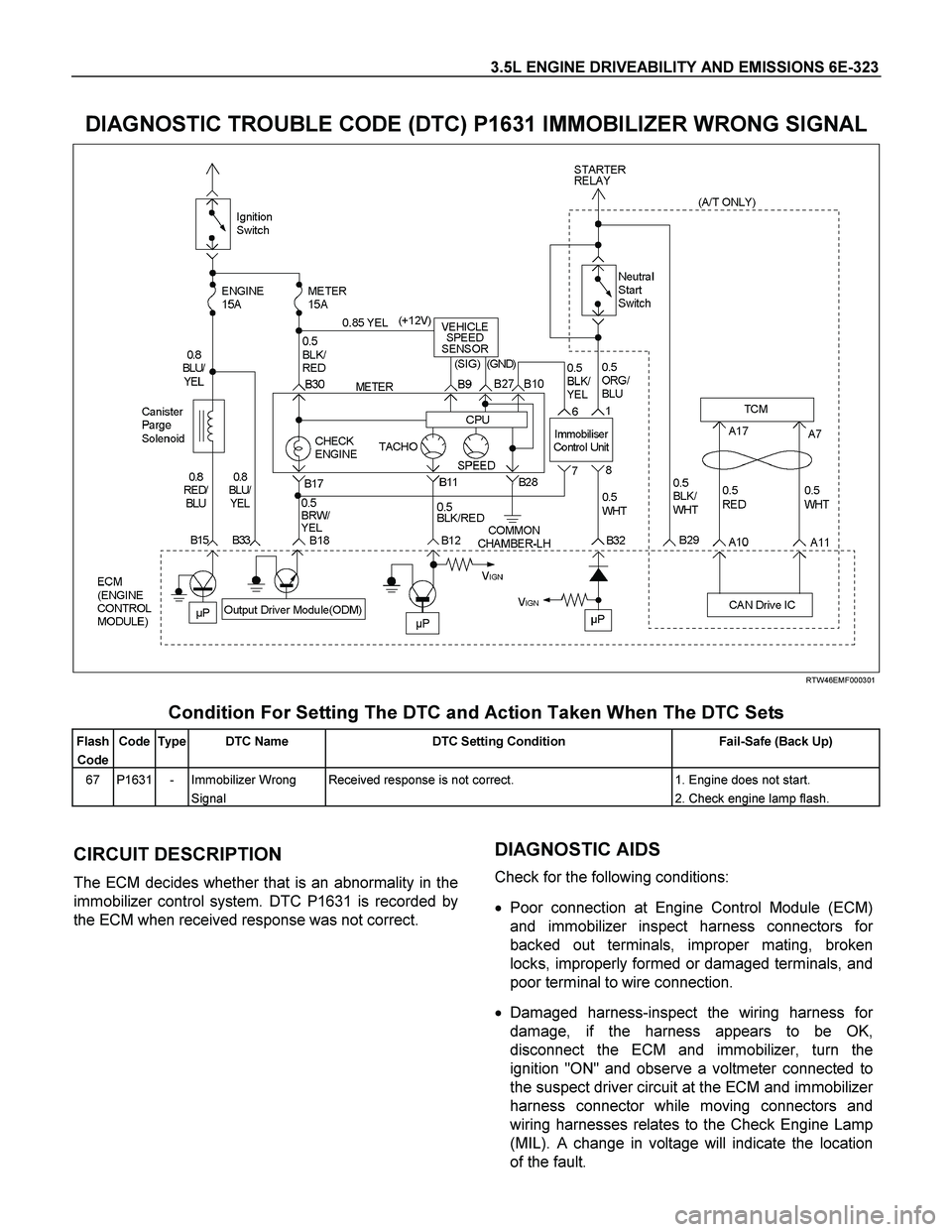

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-323 DIAGNOSTIC TROUBLE CODE (DTC) P1631 IMMOBILIZER WRONG SIGNAL RTW46EMF000301 Condition For Setting The DTC and Action Taken When The DTC Sets

Page 2320 of 4264

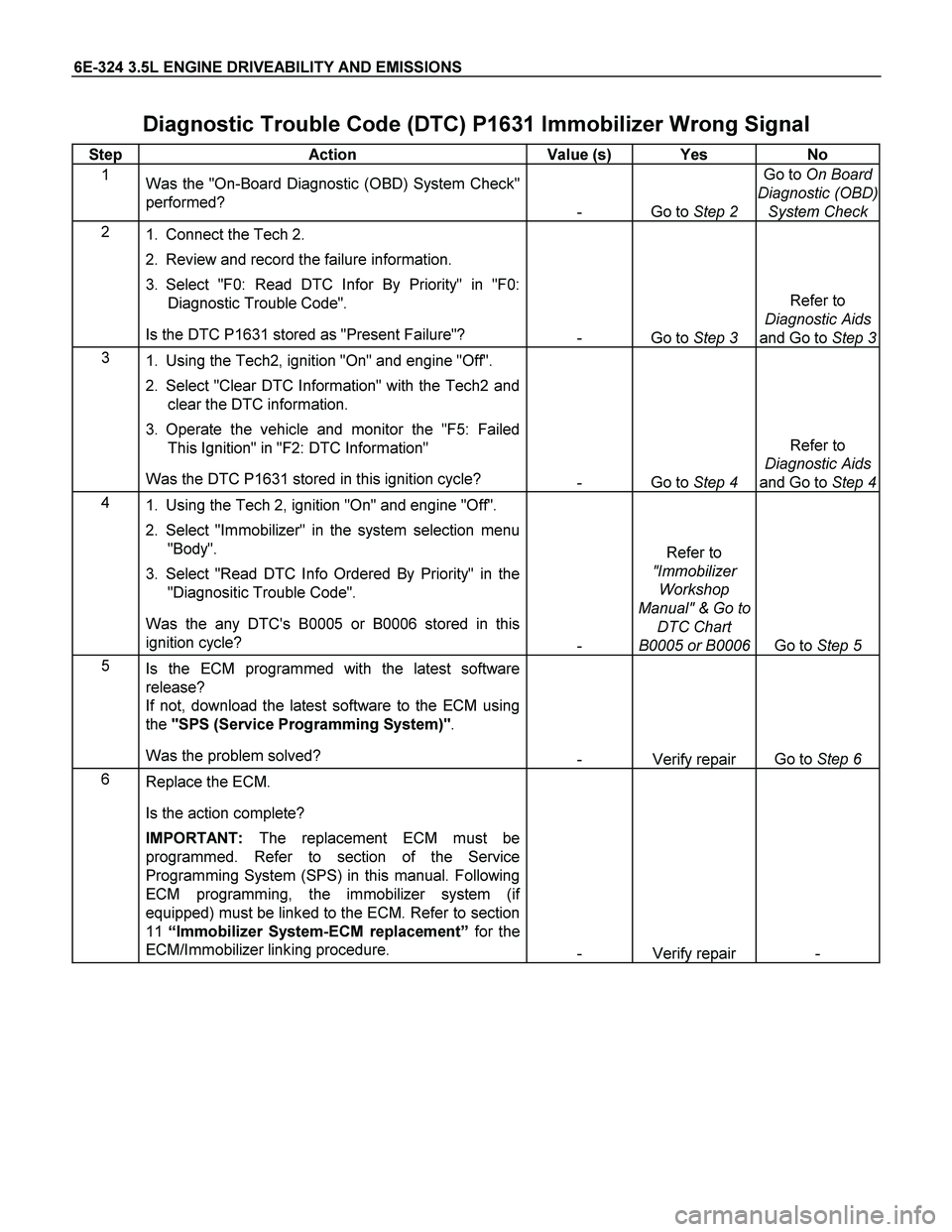

ISUZU TF SERIES 2004 Workshop Manual 6E-324 3.5L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1631 Immobilizer Wrong Signal Step Action Value (s) Yes No 1 Was the "On-Board Diagnostic (OBD) System Check" per
