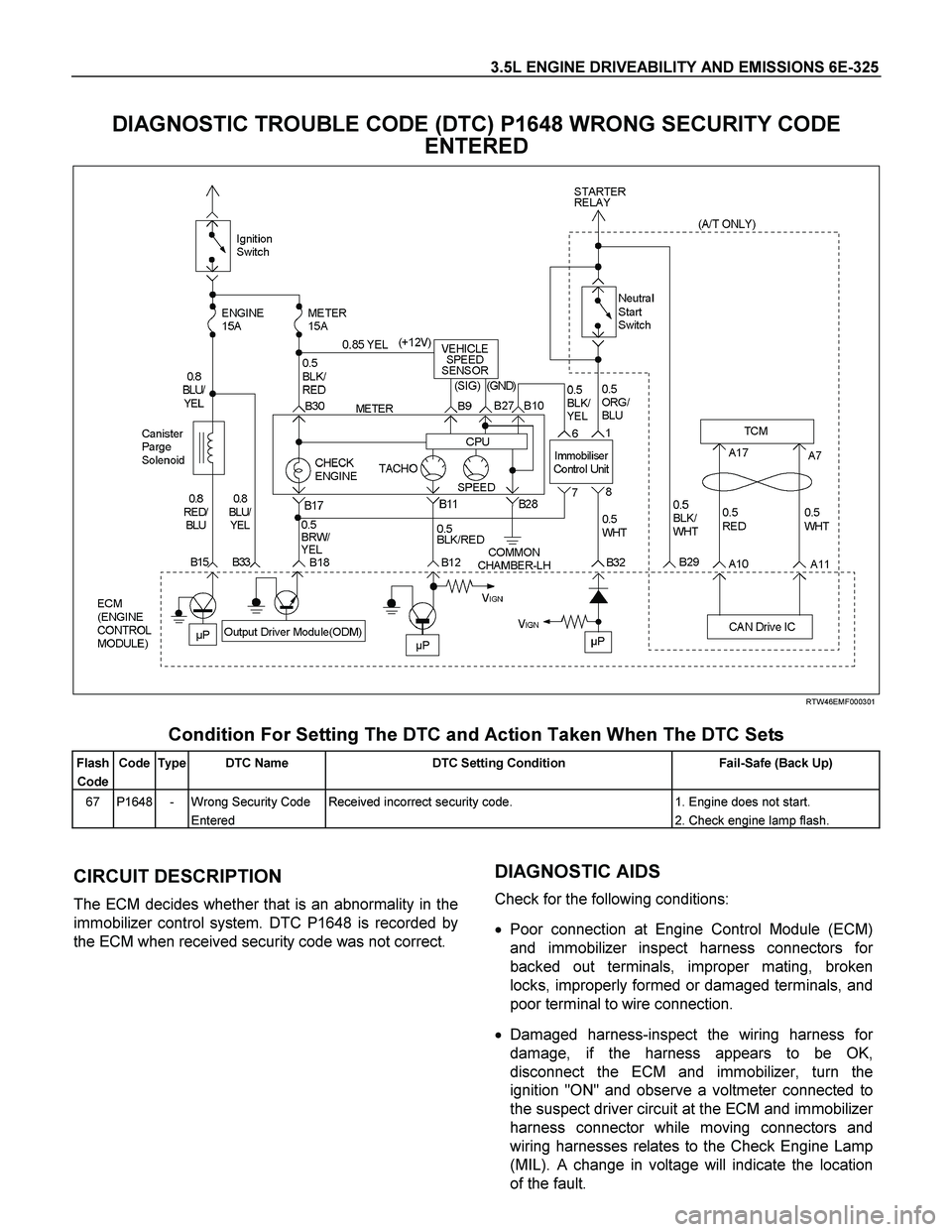

Page 2321 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-325
DIAGNOSTIC TROUBLE CODE (DTC) P1648 WRONG SECURITY CODE
ENTERED

RTW46EMF000301

Condition For Setting The DTC and Action Taken When The DTC Se

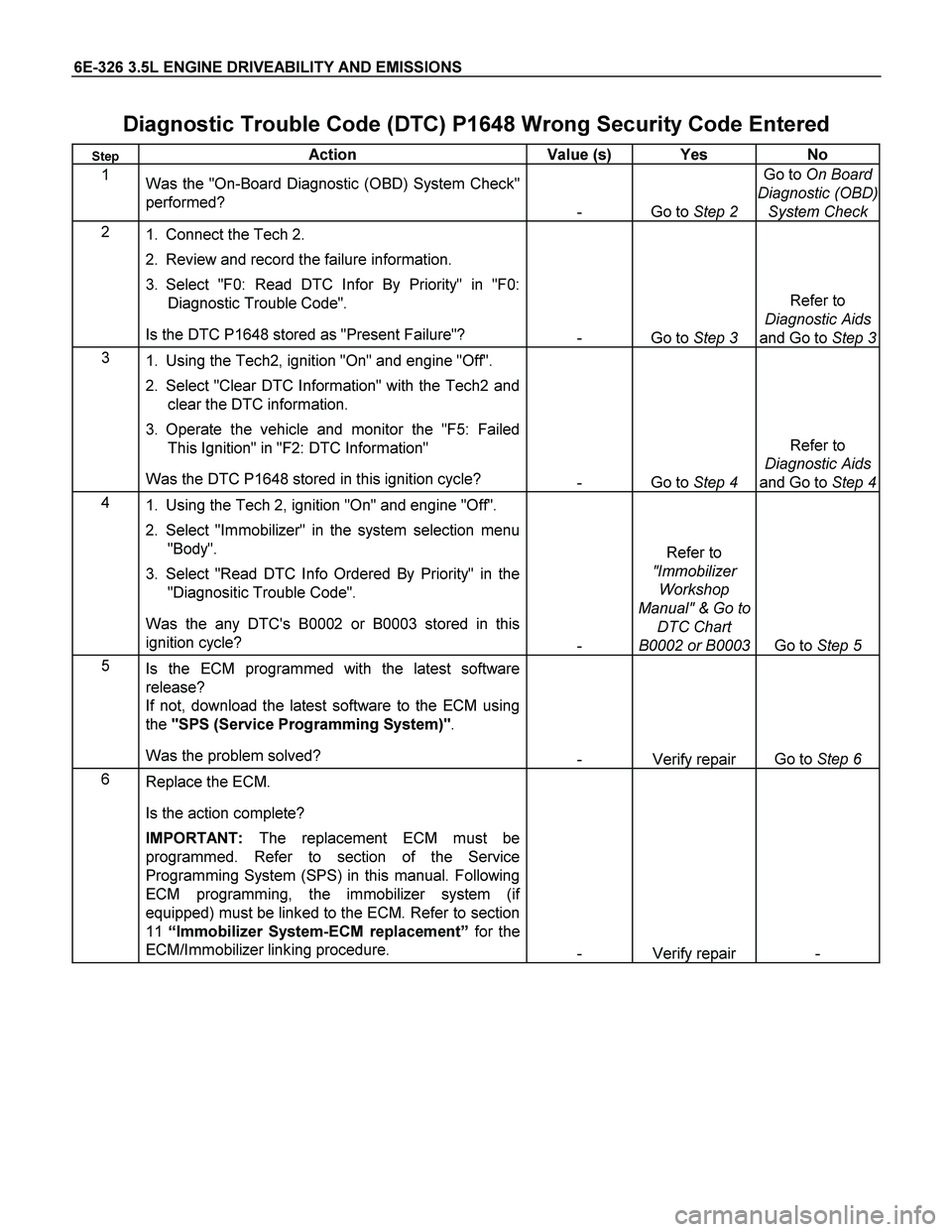

Page 2322 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-326 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P1648 Wrong Security Code Entered
Step Action Value (s) Yes No
1
Was the "On-Board Diagnostic (OBD) System Check"
perf

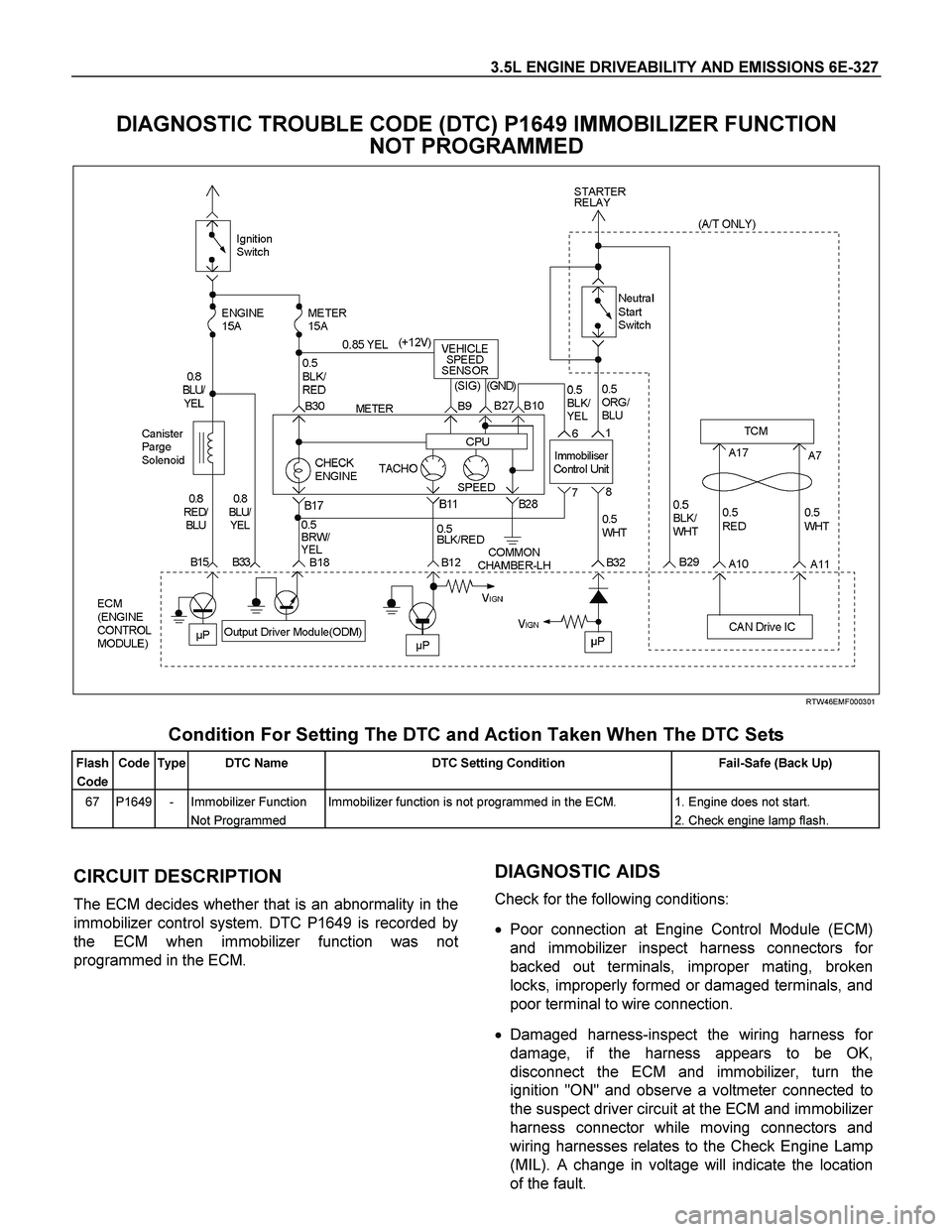

Page 2323 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-327
DIAGNOSTIC TROUBLE CODE (DTC) P1649 IMMOBILIZER FUNCTION
NOT PROGRAMMED

RTW46EMF000301

Condition For Setting The DTC and Action Taken When T

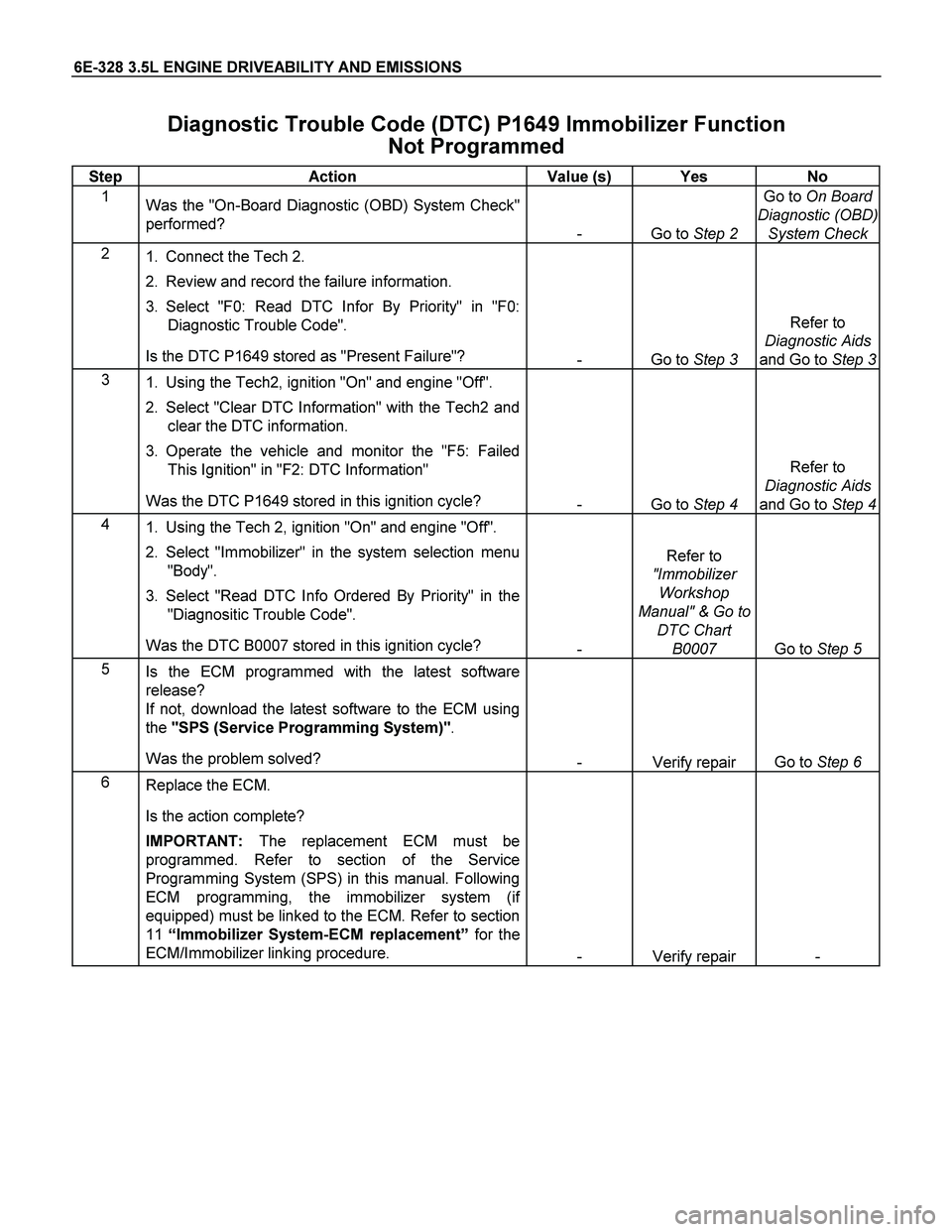

Page 2324 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-328 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P1649 Immobilizer Function
Not Programmed
Step Action Value (s) Yes No
1
Was the "On-Board Diagnostic (OBD) Syste

Page 2325 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-329
SYMPTOM DIAGNOSIS
PRELIMINARY CHECKS
Before using this section, perform the "On-Board
Diagnostic (OBD) System Check" and verify all of the
following i

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-329
SYMPTOM DIAGNOSIS
PRELIMINARY CHECKS
Before using this section, perform the "On-Board
Diagnostic (OBD) System Check" and verify all of the
following items:
The engine control module (ECM) and check engine
lamp (MIL=malfunction indicator lamp) are operating
correctly.
There are no Diagnostic Trouble Code(s) stored.
Tech 2 data is within normal operating range. Refer
to Typical Scan Data Values.
Verify the customer complaint and locate the correct
symptom in the table of contents. Perform the
procedure included in the symptom chart.

VISUAL/PHYSICAL CHECK
Several of the symptom procedures call for a careful
visual/physical check. This can lead to correcting a
problem without further checks and can save valuable
time. This check should include the following items:
ECM grounds for cleanliness, tightness and proper
location.
Vacuum hoses for splits, kinks, and proper
connection. Check thoroughly for any type of leak or
restriction.
Air intake ducts for collapsed or damaged areas.
Air leaks at throttle body mounting area, manifold
absolute pressure (MAP) sensor and intake manifold
sealing surfaces.
Ignition wires for cracking, harness, and carbon
tracking.
Wiring for proper connections, pinches and cuts.

INTERMITTENT
Important: An intermittent problem may or may not turn
on the check engine lamp (MIL=malfunction indicato
r
lamp) or store a Diagnostic Trouble Code. Do NOT use
the Diagnostic Trouble Code (DTC) charts fo
r
intermittent problems.
The fault must be present to locate the problem.
Most intermittent problems are cased by faulty electrical
connections or wiring. Perform a careful visual/physical
check for the following conditions.
Poor mating of the connector halves or a terminal
not fully seated in the connector (backed out).
Improperly formed or damaged terminal.

All connector terminals in the problem circuit should
be carefully checked for proper contact tension.
Poor terminal-to-wire connection. This requires
removing the terminal form the connector body to
check.
Ignition coils shorted to ground and arcing at ignition
wires or plugs.
Check engine lamp (MIL=malfunction indicator lamp)
wire to ECM shorted to ground.
Poor ECM grounds. Refer to the ECM wiring
diagrams.

Road test the vehicle with a Digital Multimete
r
connected to a suspected circuit. An abnormal voltage
when the malfunction occurs is a good indication tha
t
there is a fault in the circuit being monitored.
Using Tech 2 to help detect intermittent conditions. The
Tech 2 have several features that can be used to
located an intermittent condition. Use the following
features to find intermittent faults:
To check for loss of diagnostic code memory,
disconnect the mass air flow (MAF) sensor and idle the
engine until the check engine lamp (MIL=malfunction
indicator lamp) comes on. Diagnostic Trouble Code
P0102 should be stored and kept in memory when the
ignition is turned OFF.
If not, the ECM is faulty. When this test is completed,
make sure that you clear the Diagnostic Trouble Code
P0102 from memory.

An intermittent check engine lamp (MIL=malfunction
indicator lamp) with no stored Diagnostic Trouble Code
may be caused by the following:
Ignition coil shorted to ground and arcing at ignition
wires or plugs.
Check engine lamp (MIL=malfunction indicator lamp)
wire to ECM short to ground.
Poor ECM grounds. Refer to the ECM wiring
diagrams.

Check for improper installation of electrical options such
as light, cellular phones, etc. Check all wires from ECM
to the ignition control module for poor connections.
Check for an open diode across the A/C compresso
r
clutch and check for other open diodes (refer to wiring
diagrams in Electrical Diagnosis).

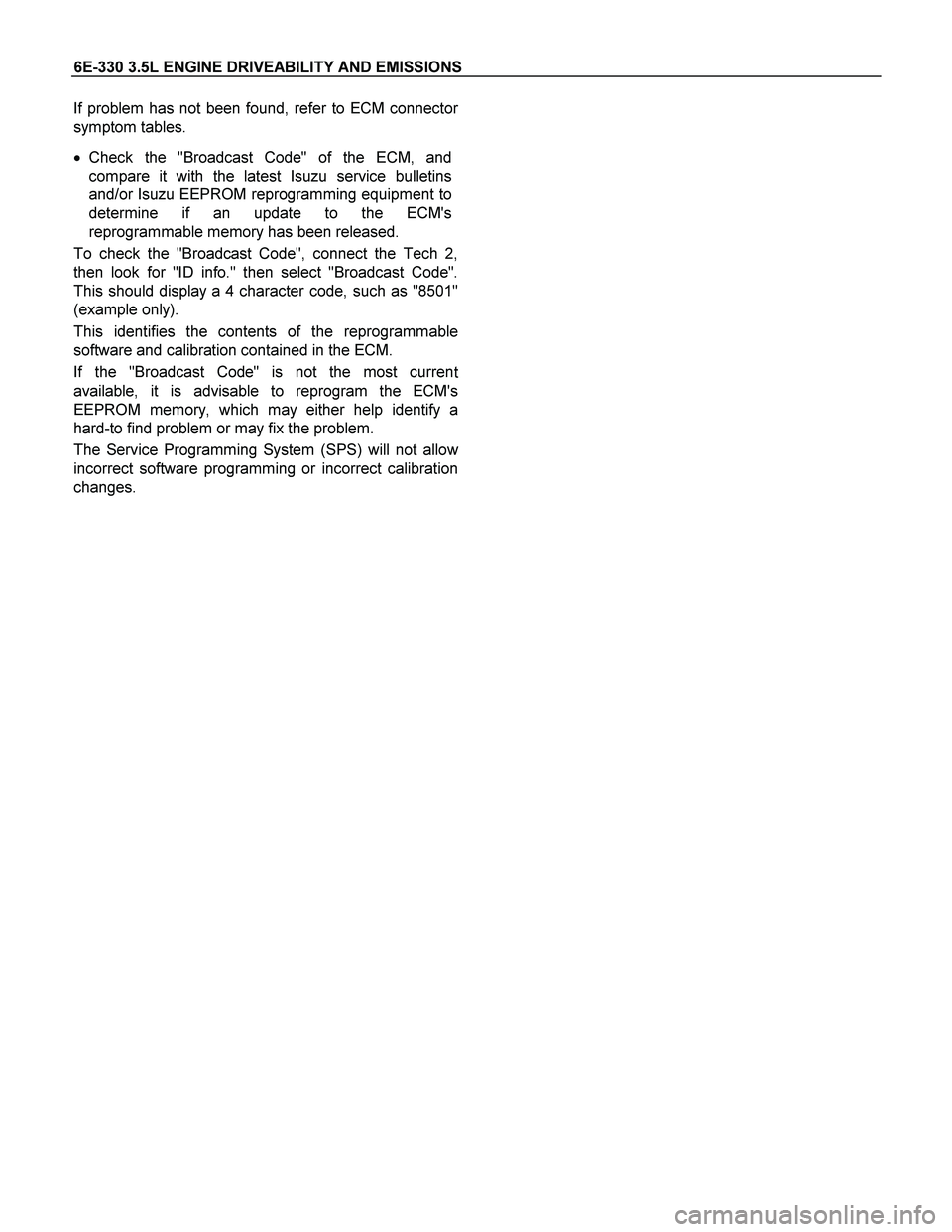

Page 2326 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-330 3.5L ENGINE DRIVEABILITY AND EMISSIONS
If problem has not been found, refer to ECM connector
symptom tables.
Check the "Broadcast Code" of the ECM, and
compare it with the latest Isuzu ser

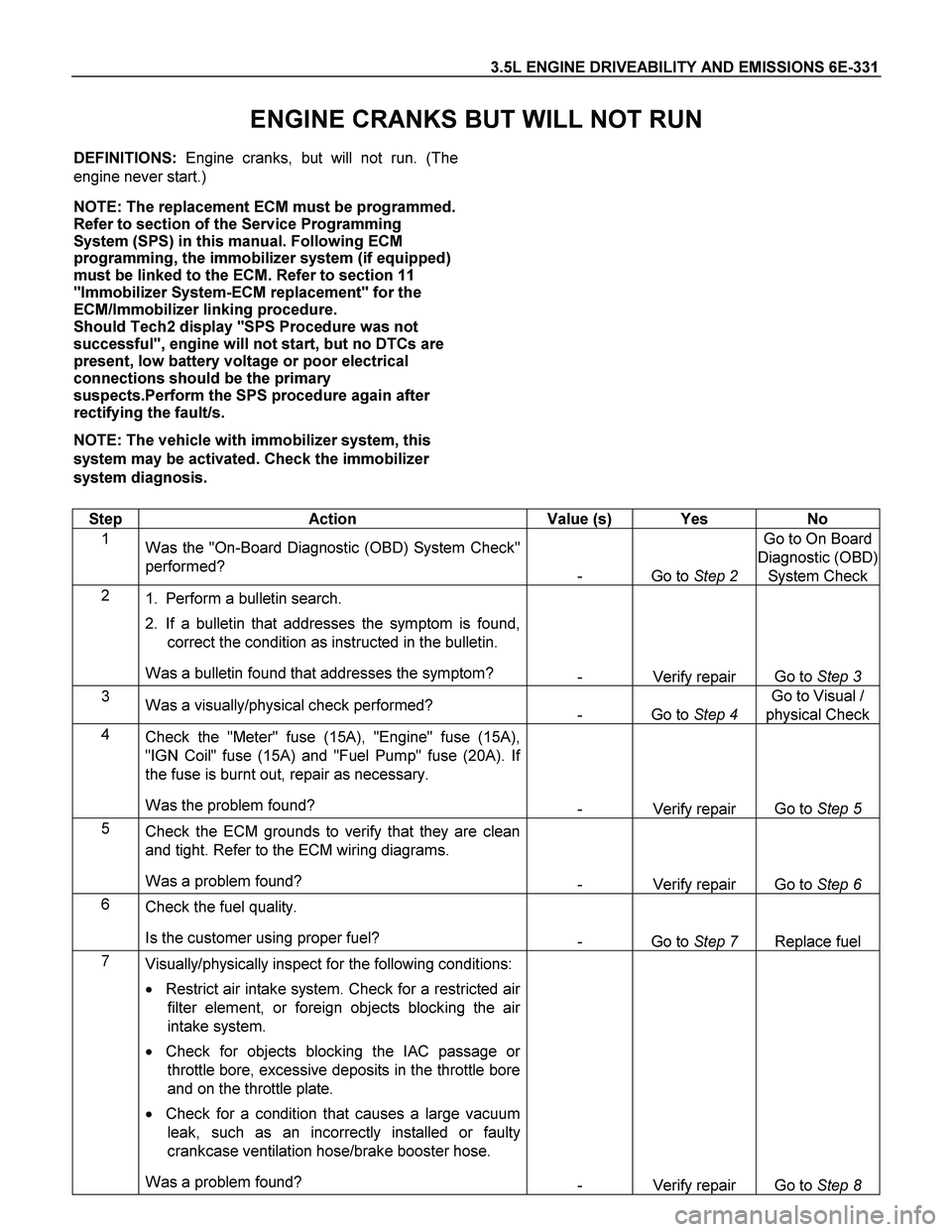

Page 2327 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-331
ENGINE CRANKS BUT WILL NOT RUN
DEFINITIONS: Engine cranks, but will not run. (The
engine never start.)
NOTE: The replacement ECM must be programmed.
R

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-331
ENGINE CRANKS BUT WILL NOT RUN
DEFINITIONS: Engine cranks, but will not run. (The
engine never start.)
NOTE: The replacement ECM must be programmed.
Refer to section of the Service Programming
System (SPS) in this manual. Following ECM
programming, the immobilizer system (if equipped)
must be linked to the ECM. Refer to section 11
"Immobilizer System-ECM replacement" for the
ECM/Immobilizer linking procedure.
Should Tech2 display "SPS Procedure was not
successful", engine will not start, but no DTCs are
present, low battery voltage or poor electrical
connections should be the primary
suspects.Perform the SPS procedure again after
rectifying the fault/s.
NOTE: The vehicle with immobilizer system, this
system may be activated. Check the immobilizer
system diagnosis.

Step Action Value (s) Yes No
1
Was the "On-Board Diagnostic (OBD) System Check"
performed?
- Go to Step 2 Go to On Board
Diagnostic (OBD)
System Check
2
1. Perform a bulletin search.
2. If a bulletin that addresses the symptom is found,
correct the condition as instructed in the bulletin.
Was a bulletin found that addresses the symptom?
- Verify repair Go to Step 3
3
Was a visually/physical check performed?
- Go to Step 4 Go to Visual /
physical Check
4
Check the "Meter" fuse (15A), "Engine" fuse (15A),
"IGN Coil" fuse (15A) and "Fuel Pump" fuse (20A). If
the fuse is burnt out, repair as necessary.
Was the problem found?
- Verify repair Go to Step 5
5
Check the ECM grounds to verify that they are clean
and tight. Refer to the ECM wiring diagrams.
Was a problem found?
- Verify repair Go to Step 6
6
Check the fuel quality.
Is the customer using proper fuel?
- Go to Step 7
Replace fuel
7
Visually/physically inspect for the following conditions:
Restrict air intake system. Check for a restricted air
filter element, or foreign objects blocking the air
intake system.
Check for objects blocking the IAC passage or
throttle bore, excessive deposits in the throttle bore
and on the throttle plate.
Check for a condition that causes a large vacuum
leak, such as an incorrectly installed or faulty
crankcase ventilation hose/brake booster hose.
Was a problem found?
- Verify repair Go to Step 8

Page 2328 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-332 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Step Action Value (s) Yes No
8
1. Using a Tech 2, display the IAC value.
2. Check for a faulty, plugged, or sticking IAC
operation.
Was the
