Page 2913 of 4264

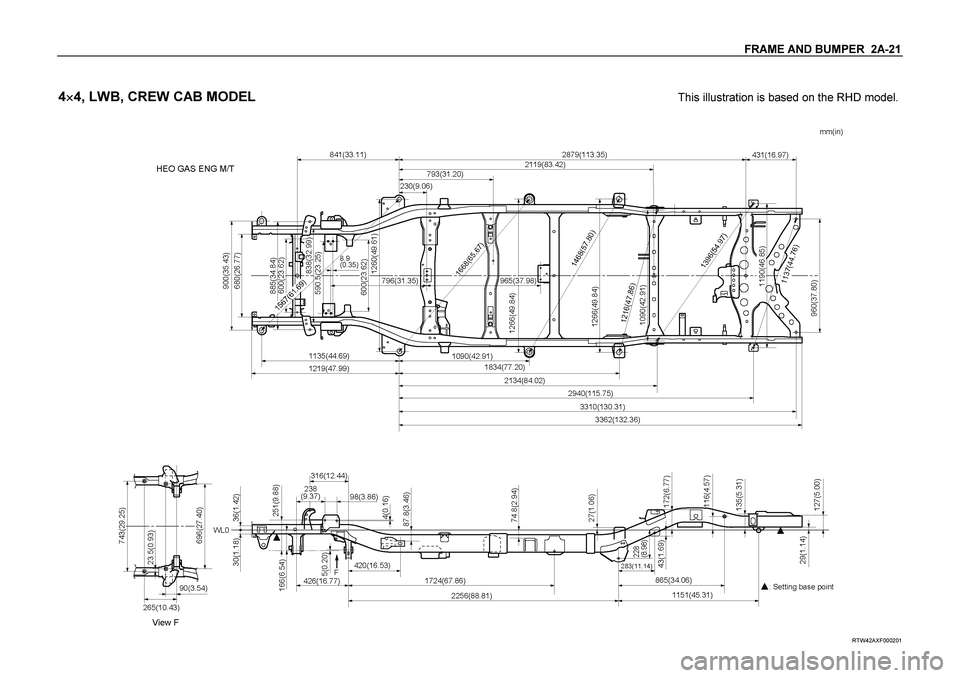

ISUZU TF SERIES 2004 Workshop Manual FRAME AND BUMPER 2A-21 4  4, LWB, CREW CAB MODEL This illustration is based on the RHD model. RTW42AXF000201

Page 2914 of 4264

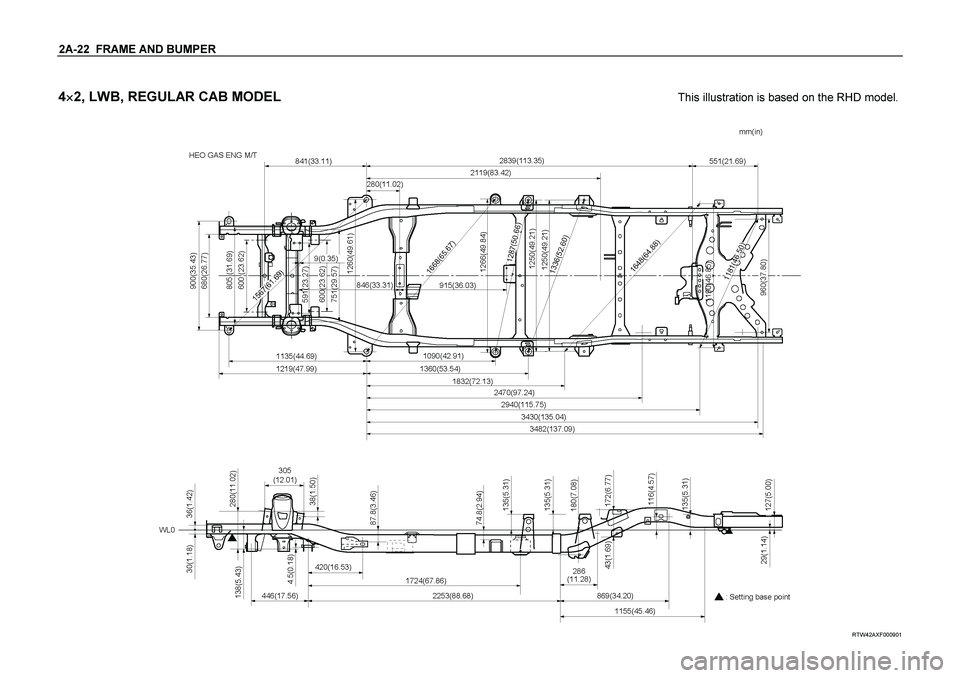

ISUZU TF SERIES 2004 Workshop Manual 2A-22 FRAME AND BUMPER 4  2, LWB, REGULAR CAB MODEL This illustration is based on the RHD model. RTW42AXF000901

Page 2915 of 4264

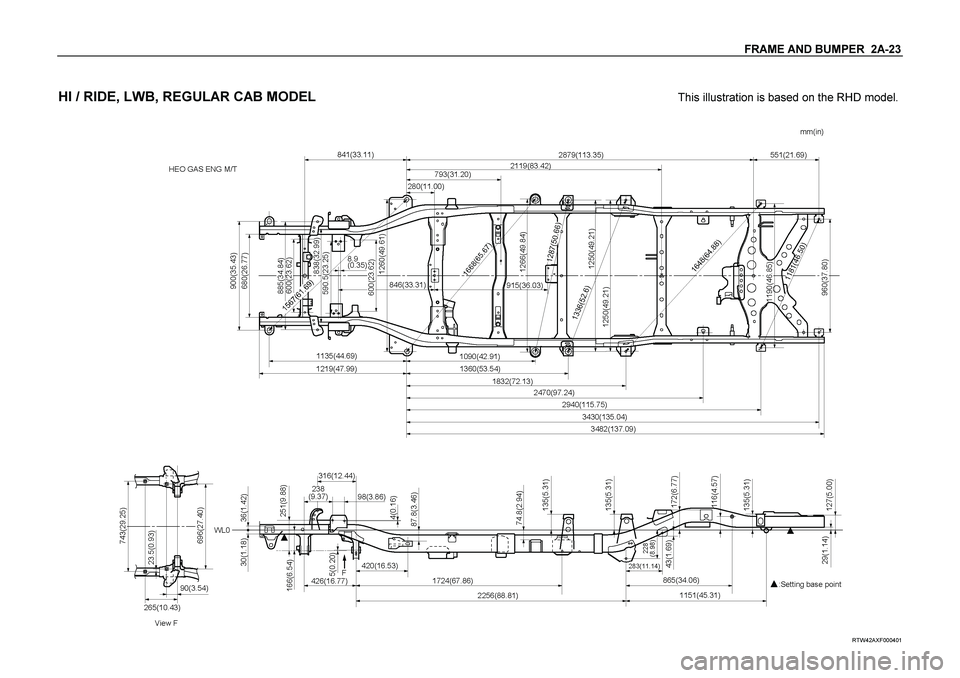

ISUZU TF SERIES 2004 Workshop Manual FRAME AND BUMPER 2A-23 HI / RIDE, LWB, REGULAR CAB MODEL This illustration is based on the RHD model. RTW42AXF000401

Page 2916 of 4264

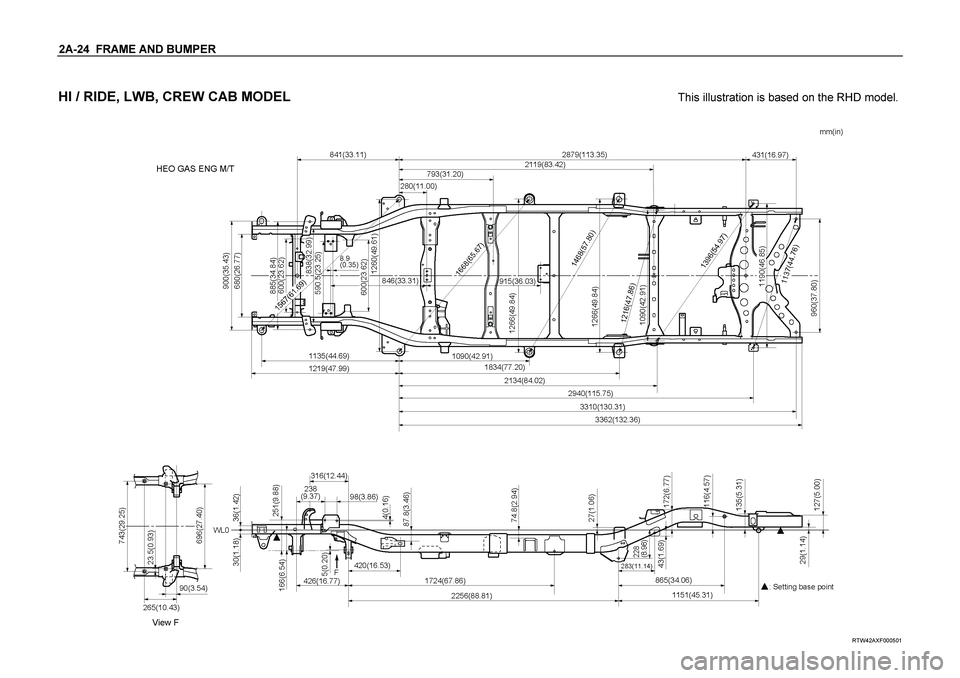

ISUZU TF SERIES 2004 Workshop Manual 2A-24 FRAME AND BUMPER HI / RIDE, LWB, CREW CAB MODEL This illustration is based on the RHD model. RTW42AXF000501

Page 2917 of 4264

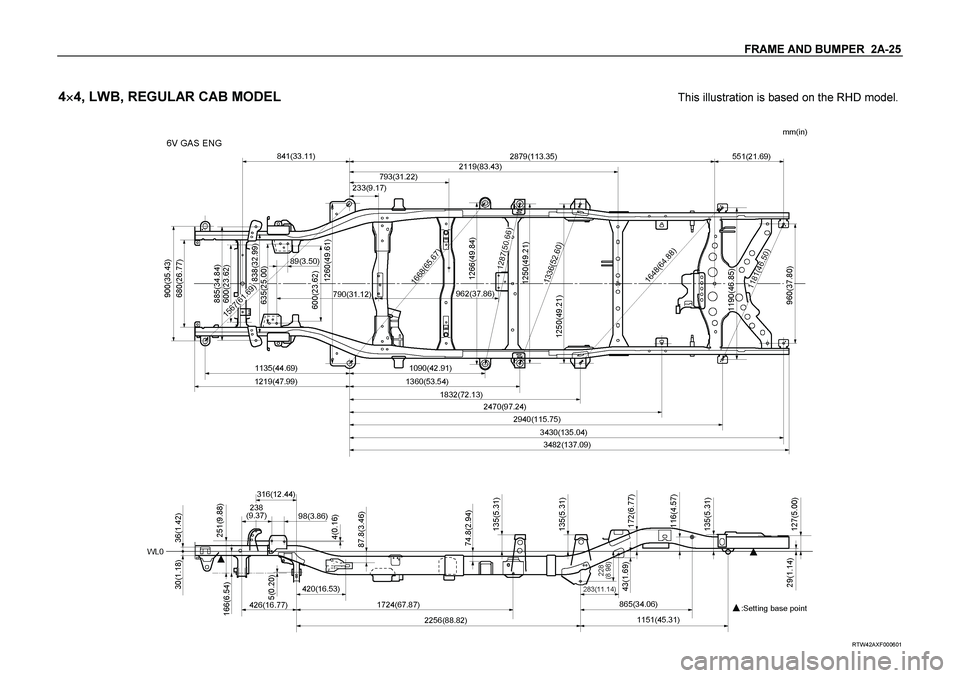

ISUZU TF SERIES 2004 Workshop Manual FRAME AND BUMPER 2A-25 4  4, LWB, REGULAR CAB MODEL This illustration is based on the RHD model. RTW42AXF000601

Page 2918 of 4264

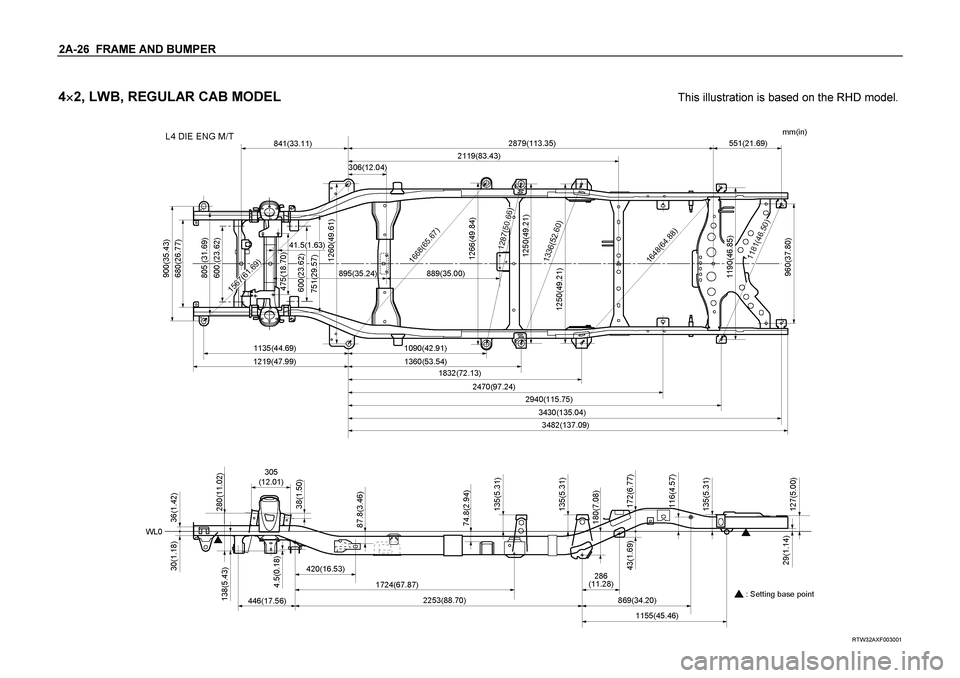

ISUZU TF SERIES 2004 Workshop Manual 2A-26 FRAME AND BUMPER 4  2, LWB, REGULAR CAB MODEL This illustration is based on the RHD model. RTW32AXF003001

Page 2919 of 4264

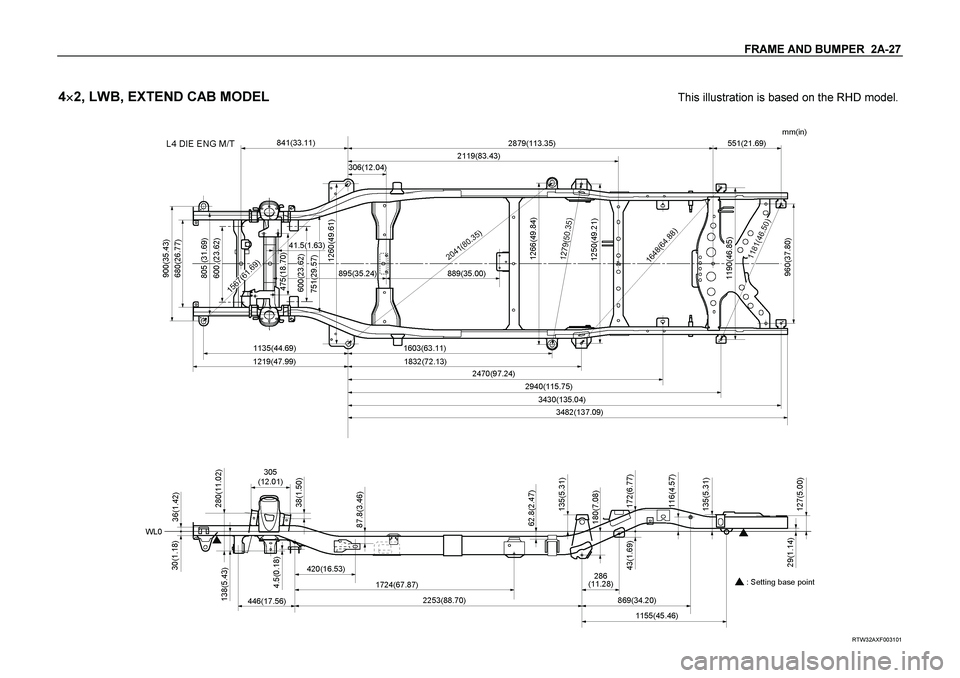

ISUZU TF SERIES 2004 Workshop Manual FRAME AND BUMPER 2A-27 4  2, LWB, EXTEND CAB MODEL This illustration is based on the RHD model. RTW32AXF003101

Page 2920 of 4264

ISUZU TF SERIES 2004 Workshop Manual 2A-28 FRAME AND BUMPER 4  2, LWB, CREW CAB MODEL This illustration is based on the RHD model. RTW32AXF003201
