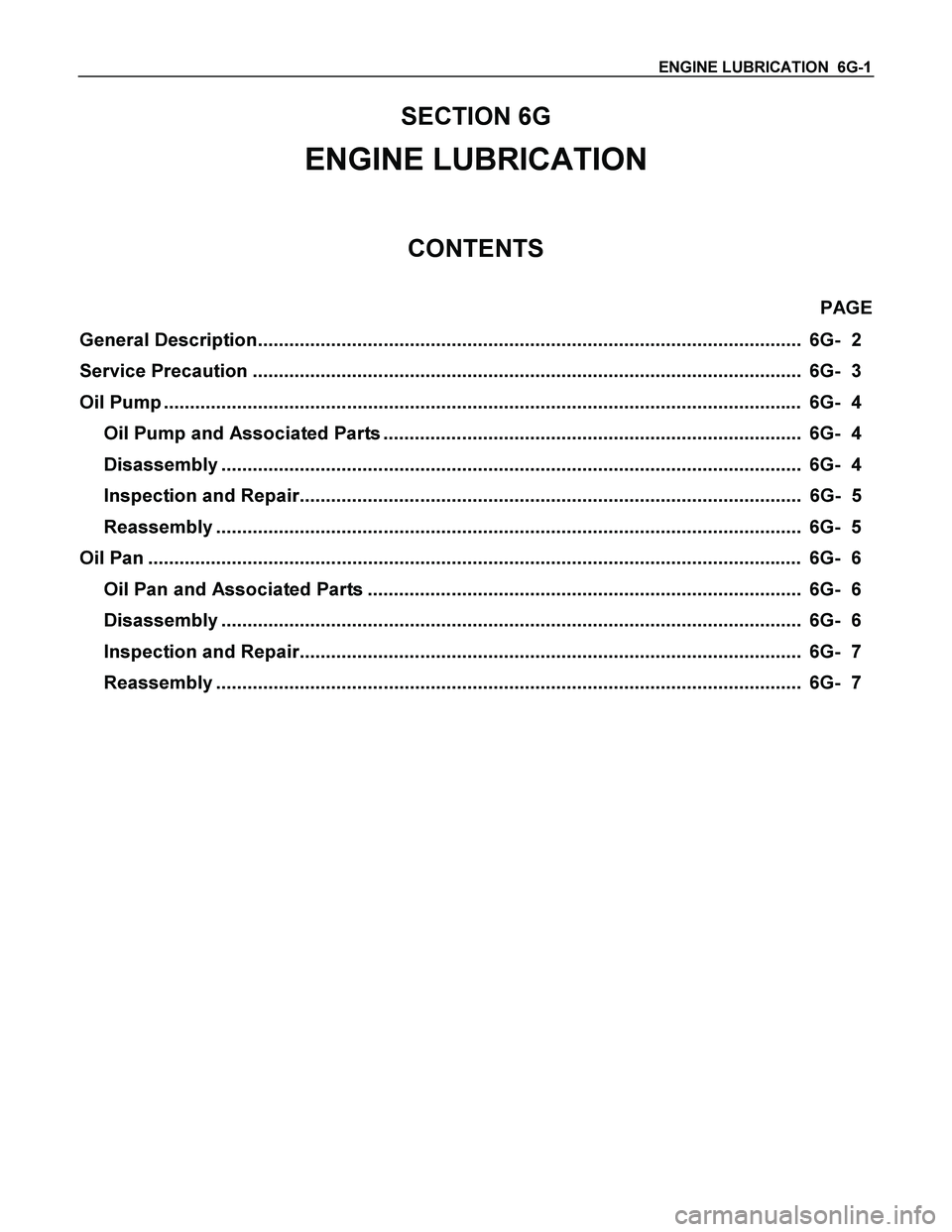

ISUZU TF SERIES 2004 Workshop Manual ENGINE LUBRICATION 6G-1 SECTION 6G ENGINE LUBRICATION CONTENTS PAGE General Description........................................................................................................ 6G

Page 2874 of 4264

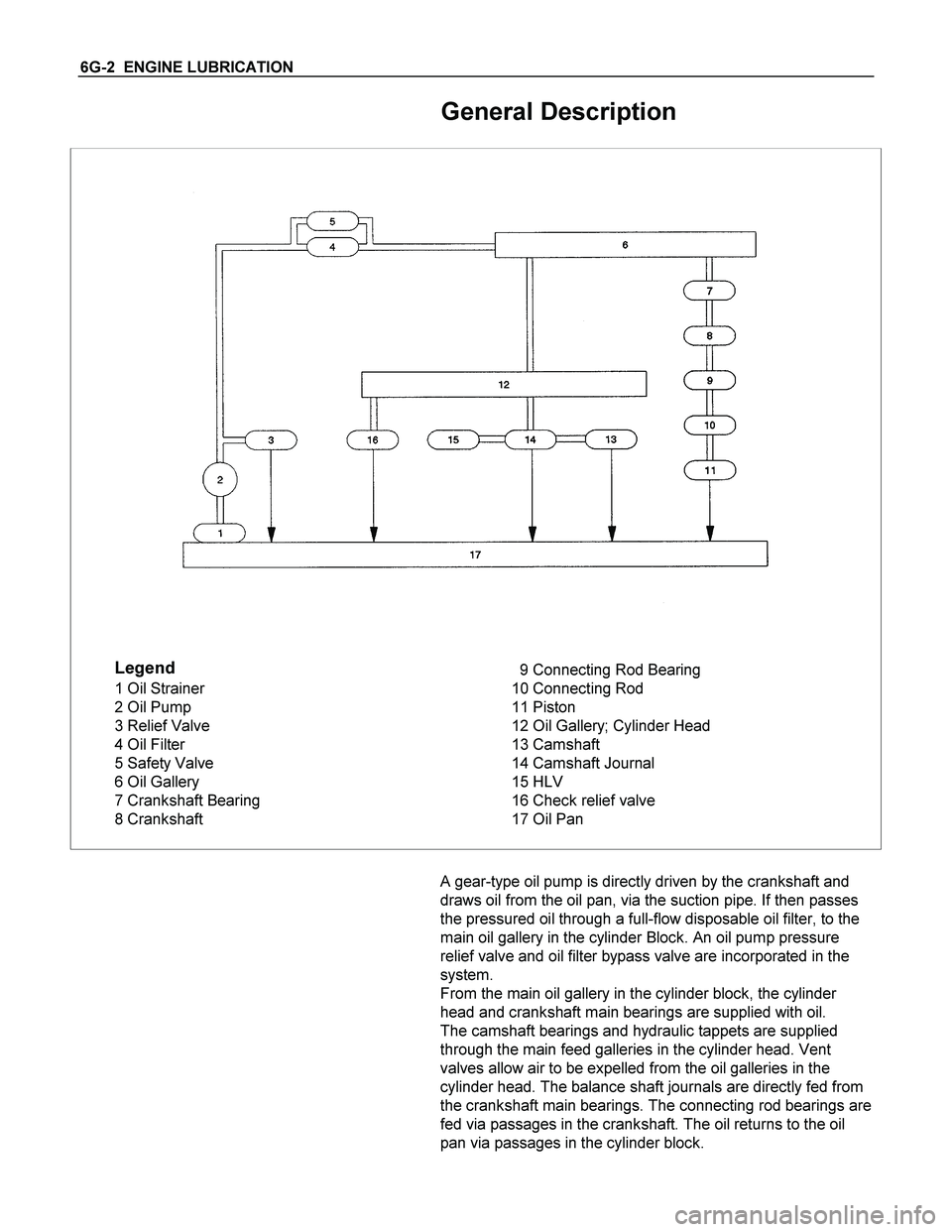

ISUZU TF SERIES 2004 Workshop Manual 6G-2 ENGINE LUBRICATION General Description Legend 1 Oil Strainer 2 Oil Pump 3 Relief Valve 4 Oil Filter 5 Safety Valve 6 Oil Gallery 7 Crankshaft Bearing 8 Crankshaft9 Connecting Rod Bearing 10 Co

Page 2875 of 4264

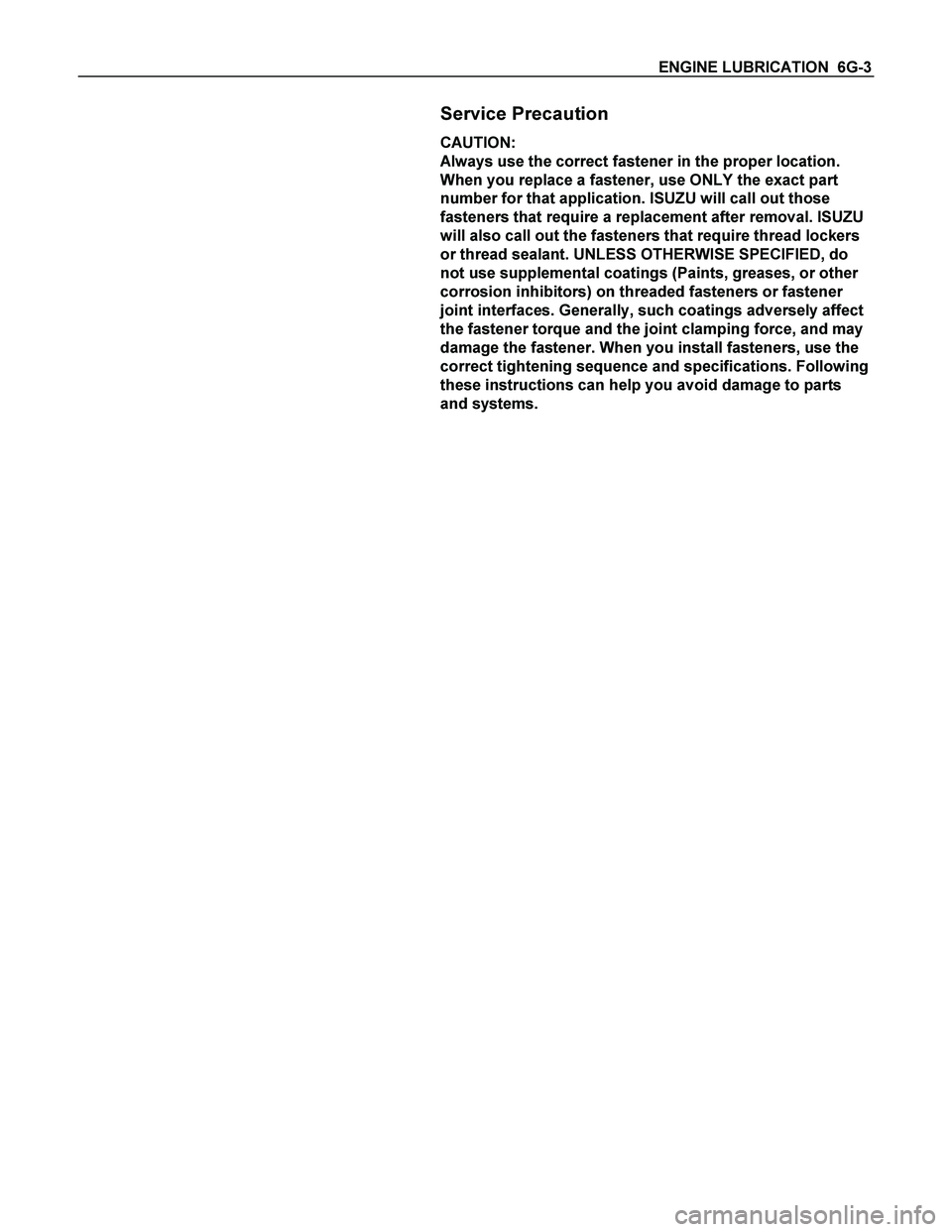

ISUZU TF SERIES 2004 Workshop Manual ENGINE LUBRICATION 6G-3 Service Precaution CAUTION: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application.

Page 2876 of 4264

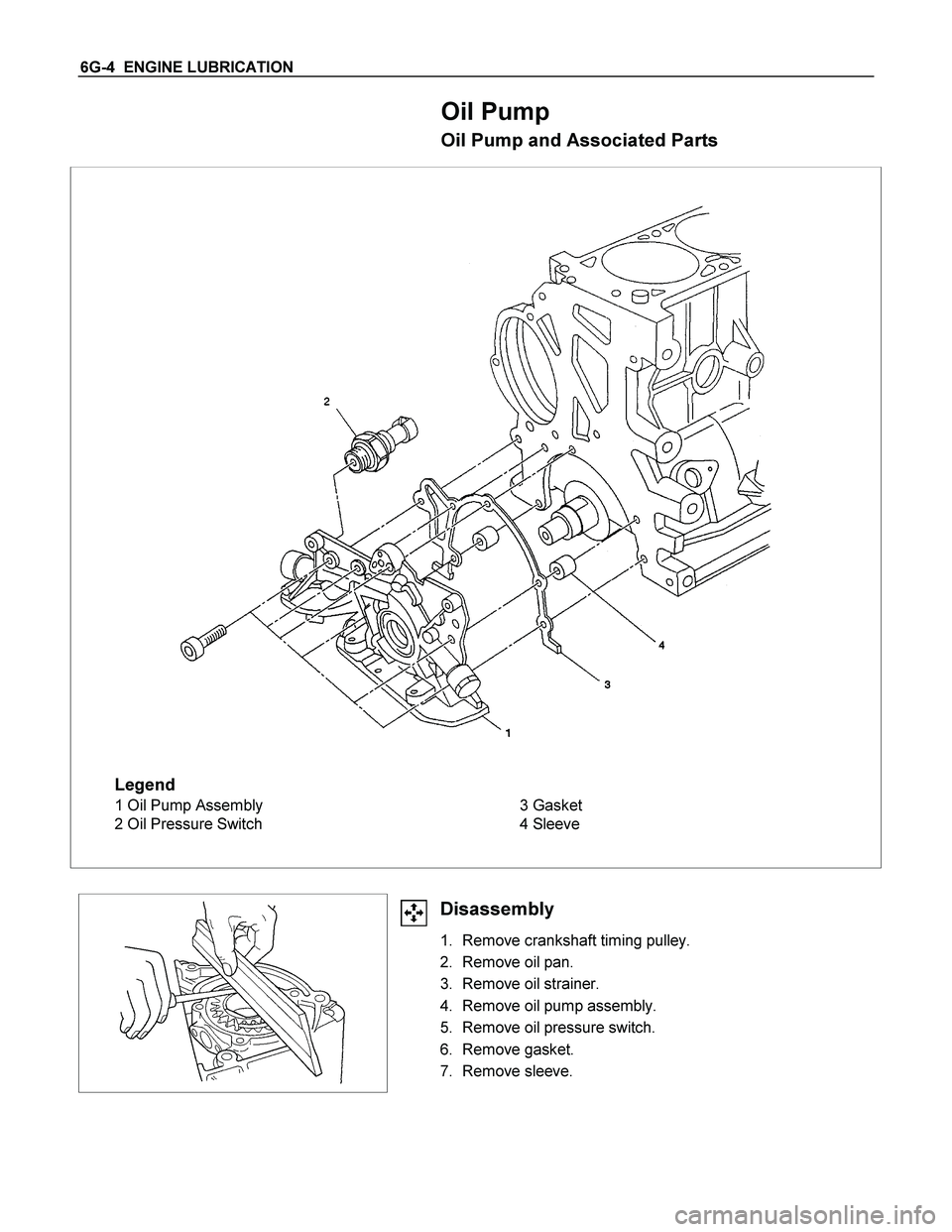

ISUZU TF SERIES 2004 Workshop Manual 6G-4 ENGINE LUBRICATION Oil Pump Oil Pump and Associated Parts Legend 1 Oil Pump Assembly 2 Oil Pressure Switch3 Gasket 4 Sleeve Disassembly 1. Remove crankshaft timing pulley. 2. Remove

Page 2877 of 4264

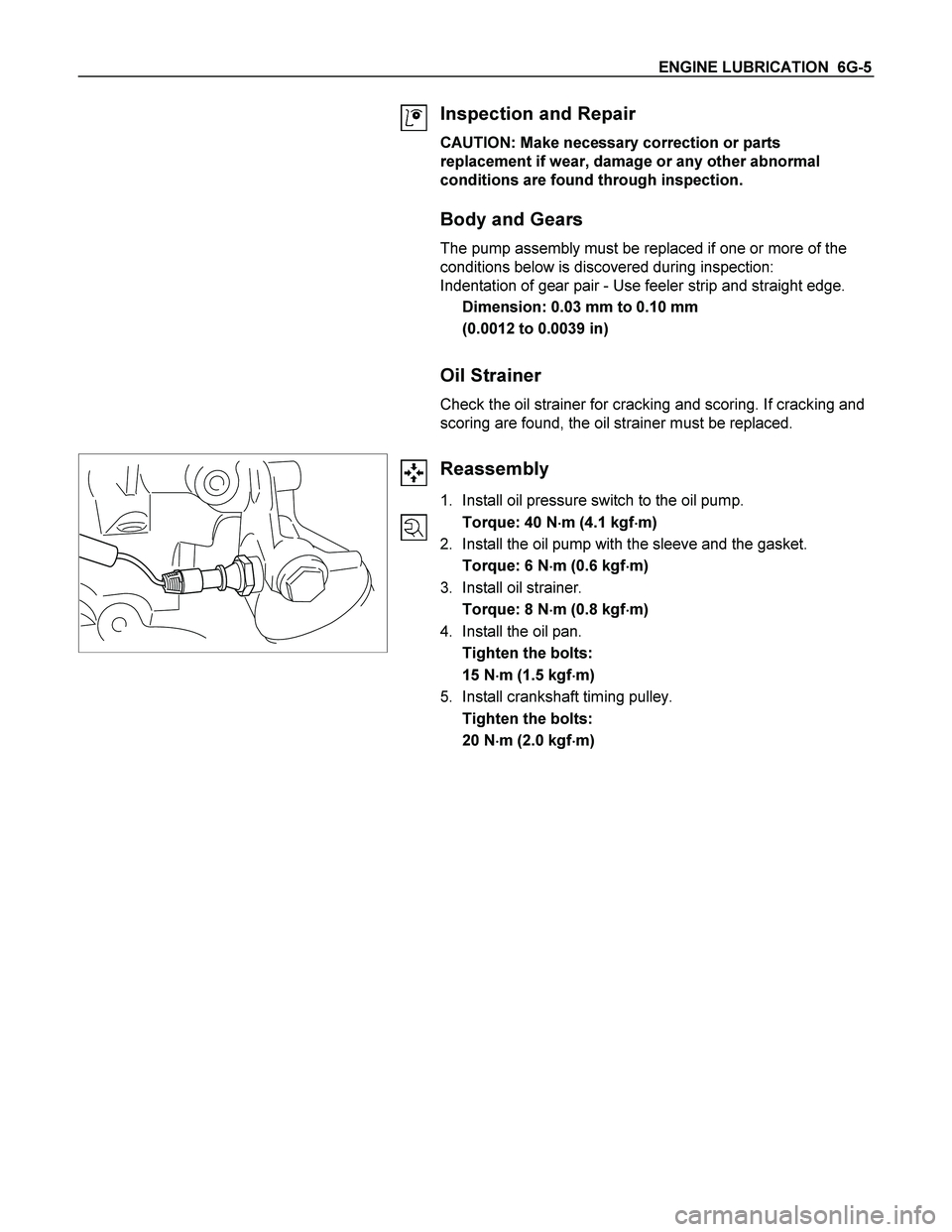

ISUZU TF SERIES 2004 Workshop Manual ENGINE LUBRICATION 6G-5 Inspection and Repair CAUTION: Make necessary correction or parts replacement if wear, damage or any other abnormal conditions are found through inspection. Body and Ge

Page 2878 of 4264

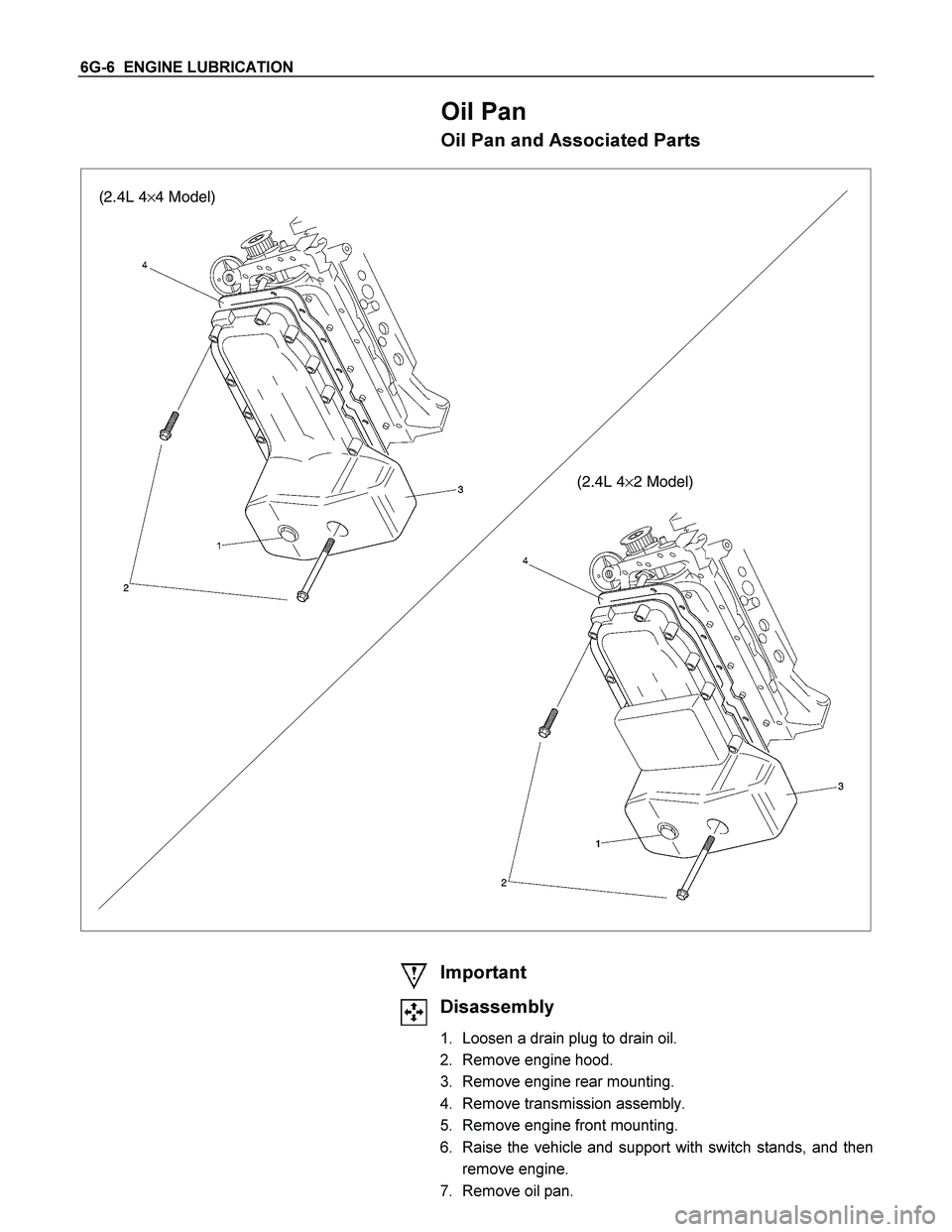

ISUZU TF SERIES 2004 Workshop Manual 6G-6 ENGINE LUBRICATION Oil Pan Oil Pan and Associated Parts (2.4L 4 ×4 Model) (2.4L 4 ×2 Model) Important Disassembly 1. Loosen a drain plug to drain oil. 2. Remove engin

Page 2879 of 4264

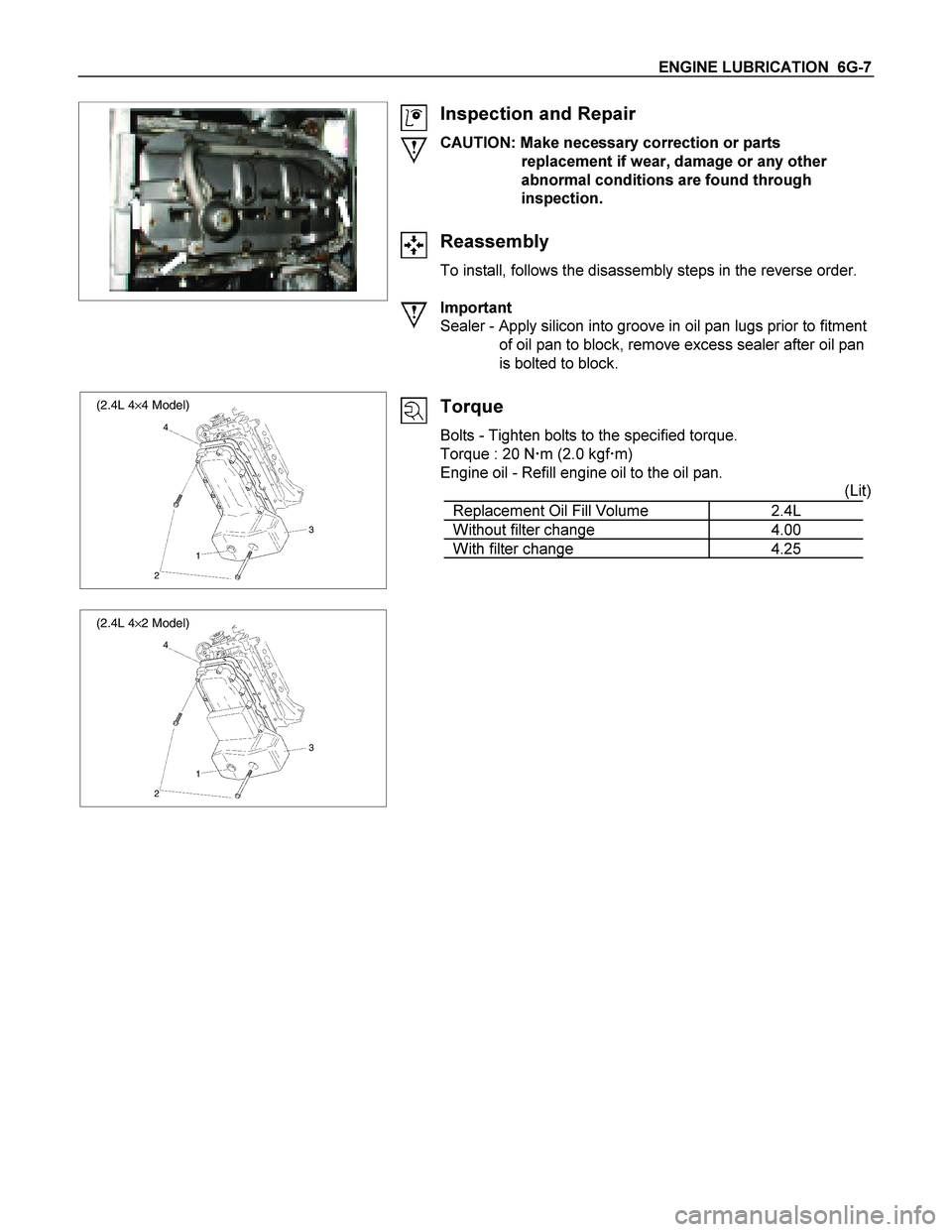

ISUZU TF SERIES 2004 Workshop Manual ENGINE LUBRICATION 6G-7 Inspection and Repair CAUTION: Make necessary correction or parts replacement if wear, damage or any other abnormal conditions are found through

Page 2880 of 4264

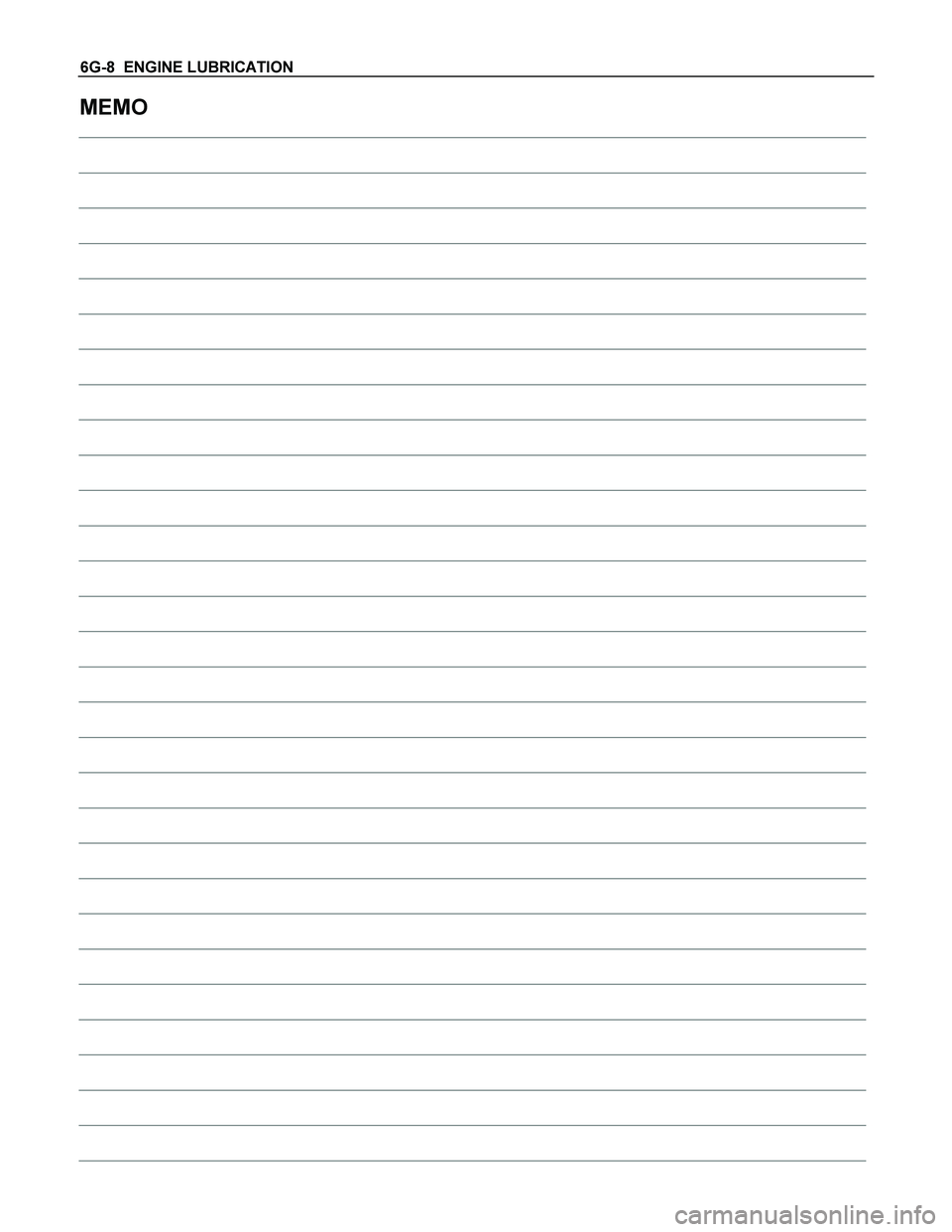

ISUZU TF SERIES 2004 Workshop Manual 6G-8 ENGINE LUBRICATION MEMO
