Page 3321 of 4264

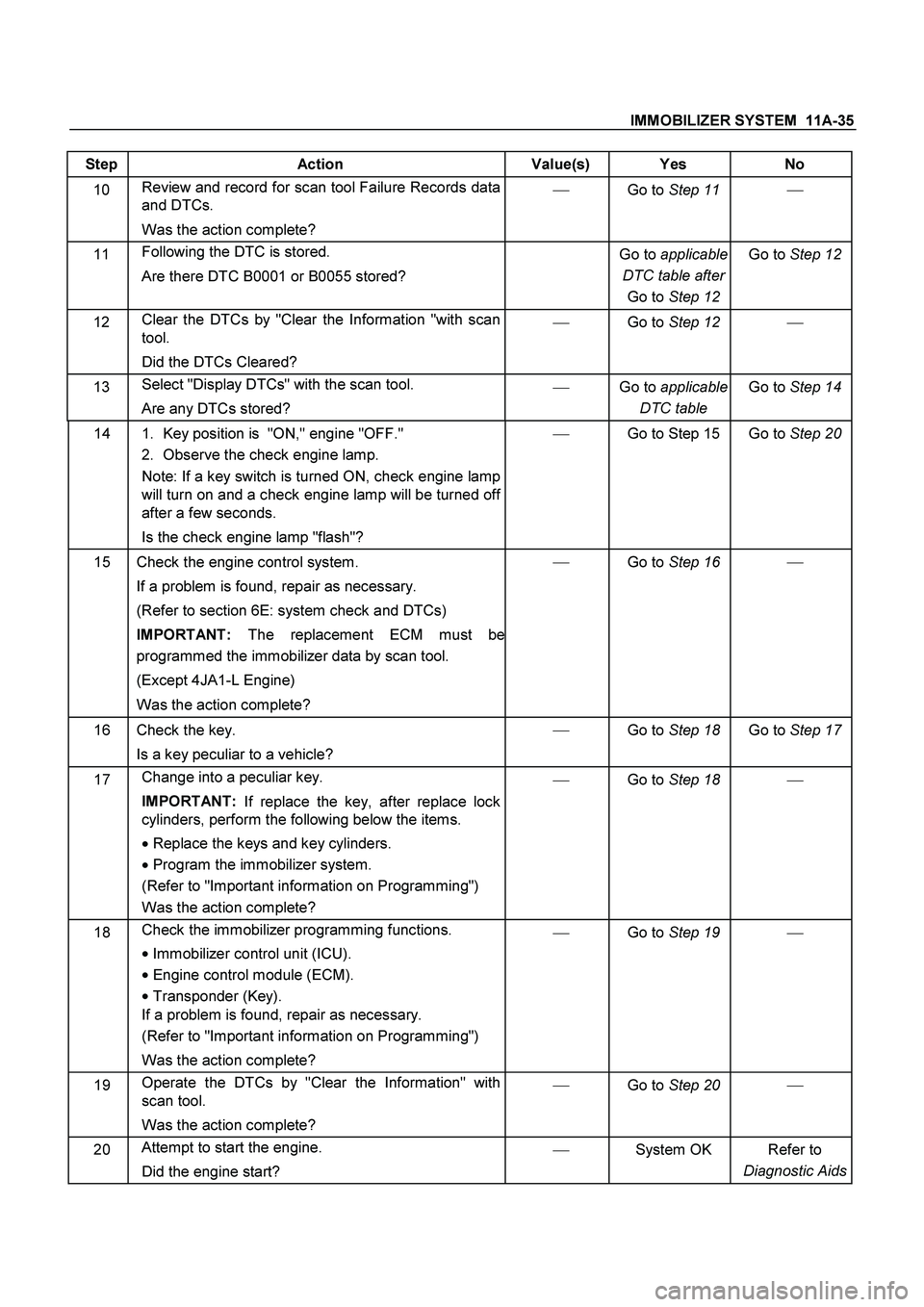

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-35 Step Action Value(s) Yes No 10 Review and record for scan tool Failure Records data and DTCs. Was the action complete?  Go to Step 11  11 Following the DTC is stor

Page 3322 of 4264

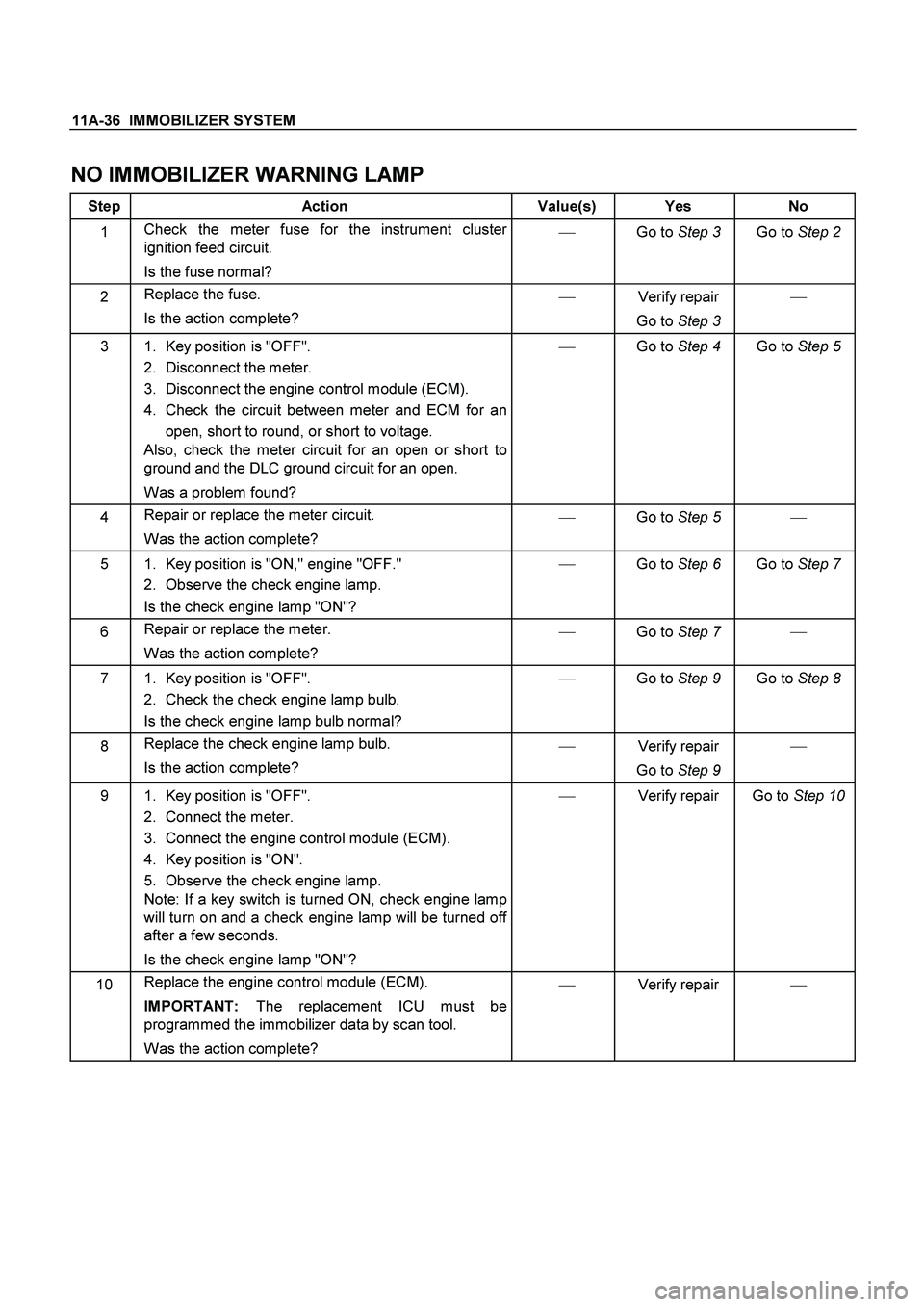

ISUZU TF SERIES 2004 Workshop Manual 11A-36 IMMOBILIZER SYSTEM NO IMMOBILIZER WARNING LAMP Step Action Value(s) Yes No 1 Check the meter fuse for the instrument cluster ignition feed circuit. Is the fuse normal?  Go to Step 3

Page 3323 of 4264

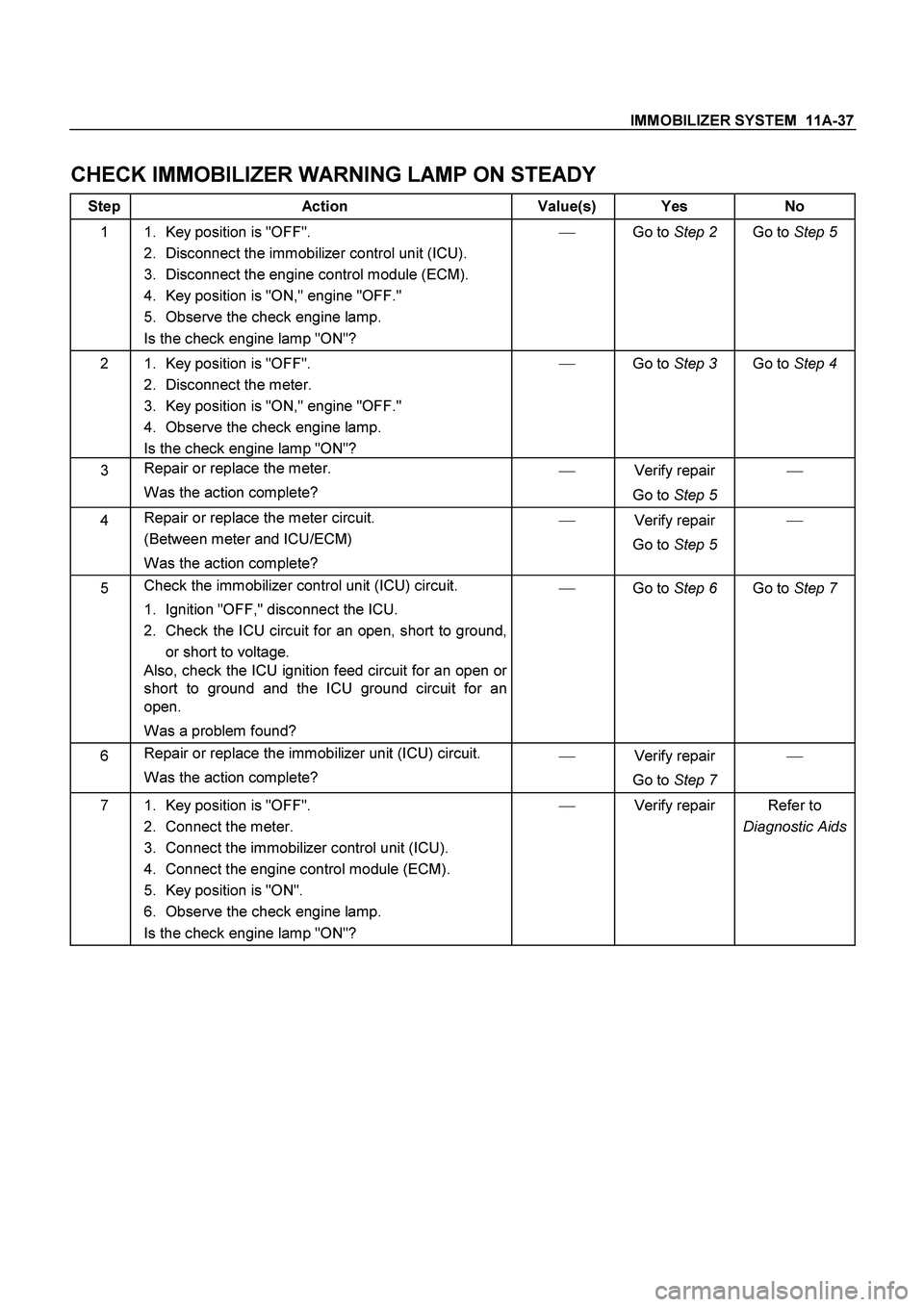

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-37 CHECK IMMOBILIZER WARNING LAMP ON STEADY Step Action Value(s) Yes No 1 1. Key position is "OFF". 2. Disconnect the immobilizer control unit (ICU). 3. Disconnect t

Page 3324 of 4264

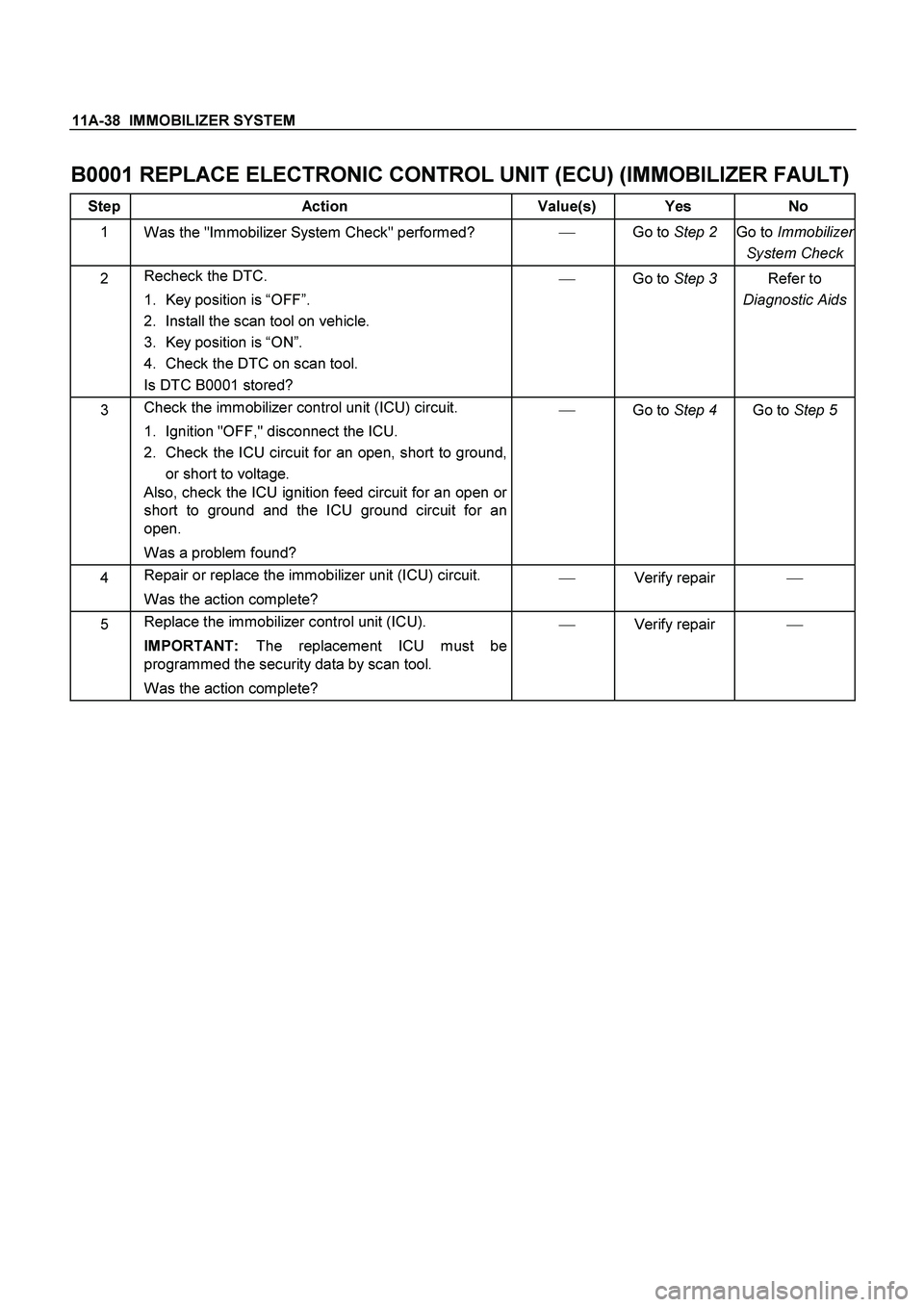

ISUZU TF SERIES 2004 Workshop Manual 11A-38 IMMOBILIZER SYSTEM B0001 REPLACE ELECTRONIC CONTROL UNIT (ECU) (IMMOBILIZER FAULT) Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immo

Page 3325 of 4264

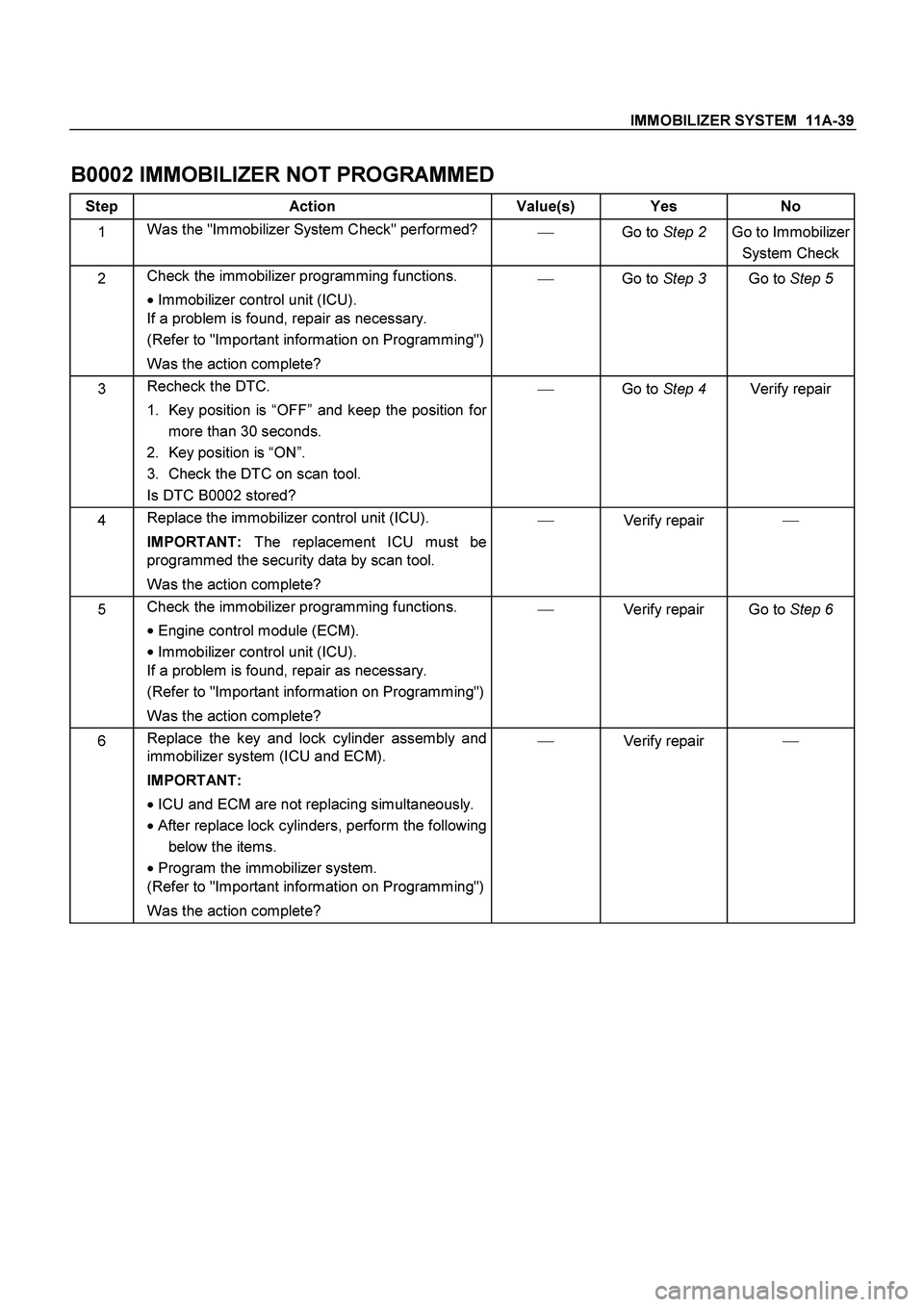

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-39 B0002 IMMOBILIZER NOT PROGRAMMED Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer System Check 2 Check th

Page 3326 of 4264

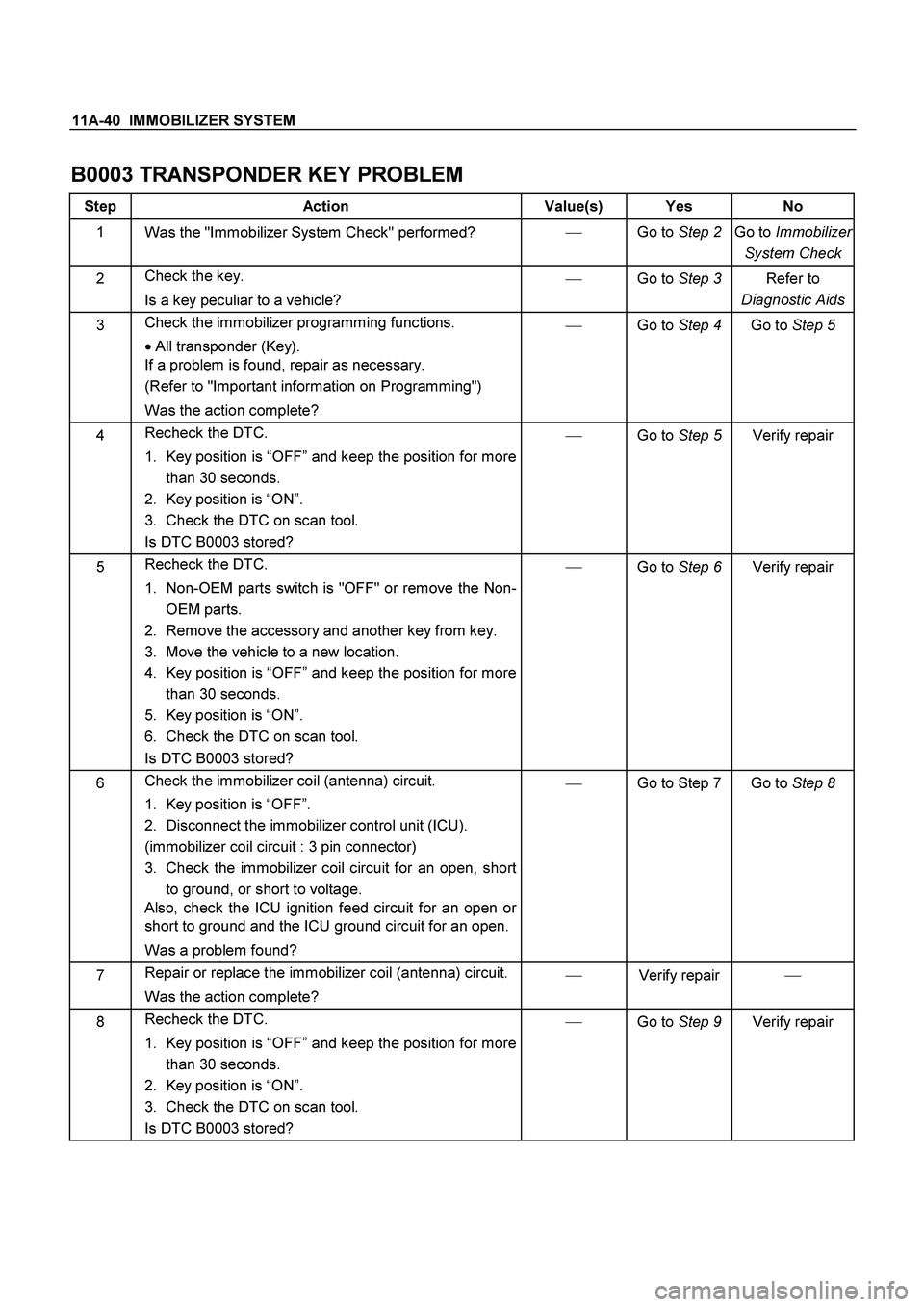

ISUZU TF SERIES 2004 Workshop Manual 11A-40 IMMOBILIZER SYSTEM B0003 TRANSPONDER KEY PROBLEM Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer System Check 2 Check the k

Page 3327 of 4264

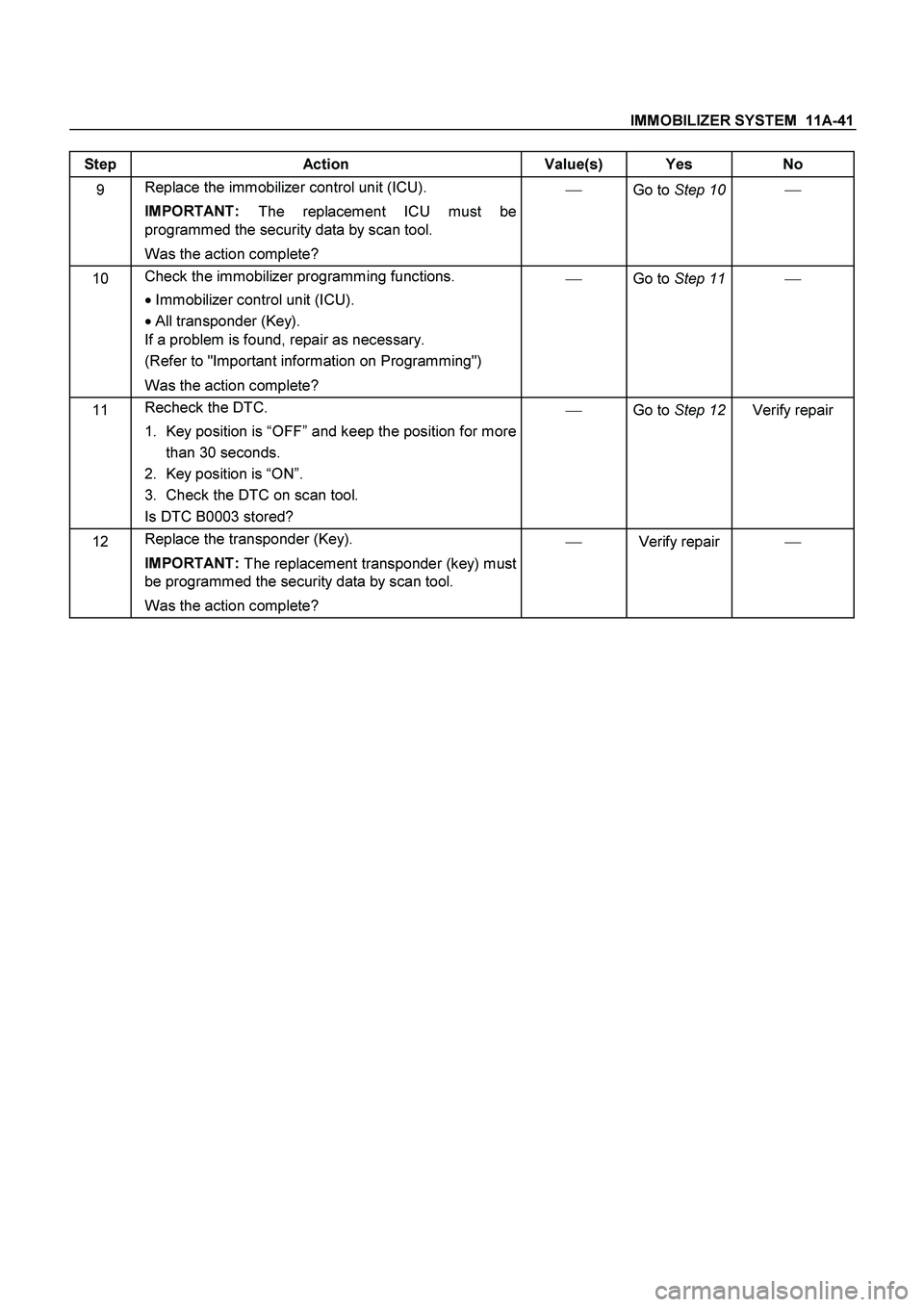

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-41 Step Action Value(s) Yes No 9 Replace the immobilizer control unit (ICU). IMPORTANT: The replacement ICU must be programmed the security data by scan tool. Was the a

Page 3328 of 4264

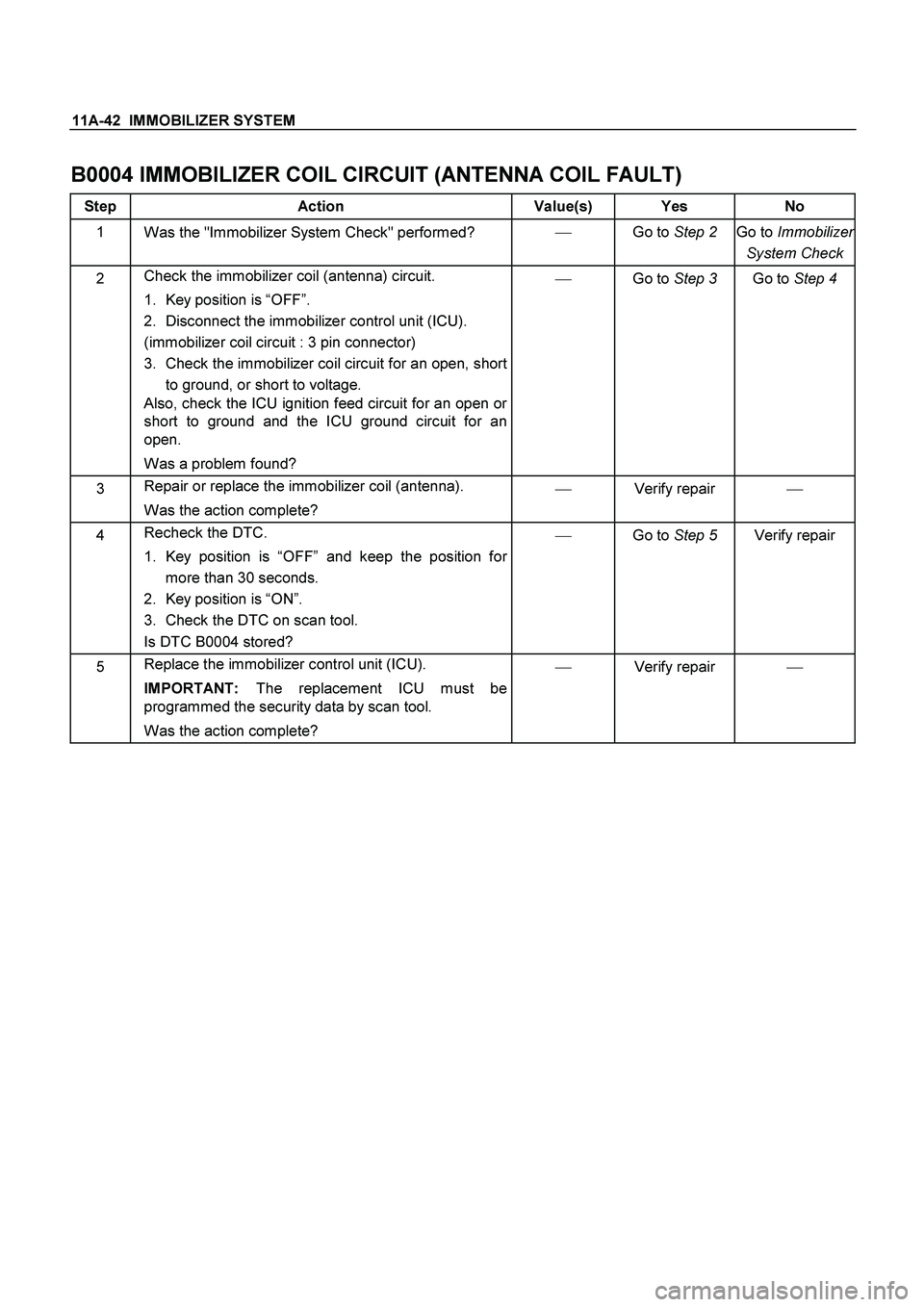

ISUZU TF SERIES 2004 Workshop Manual 11A-42 IMMOBILIZER SYSTEM B0004 IMMOBILIZER COIL CIRCUIT (ANTENNA COIL FAULT) Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer Syst
