Page 1385 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–13 (1) Engine Control Module (ECM) (1) Engine Coolant Temperature (ECT) Sensor (2) Thermo Unit for Water Temperature Gauge (1) Vehicle Speed Sensor (VS

Page 1386 of 4264

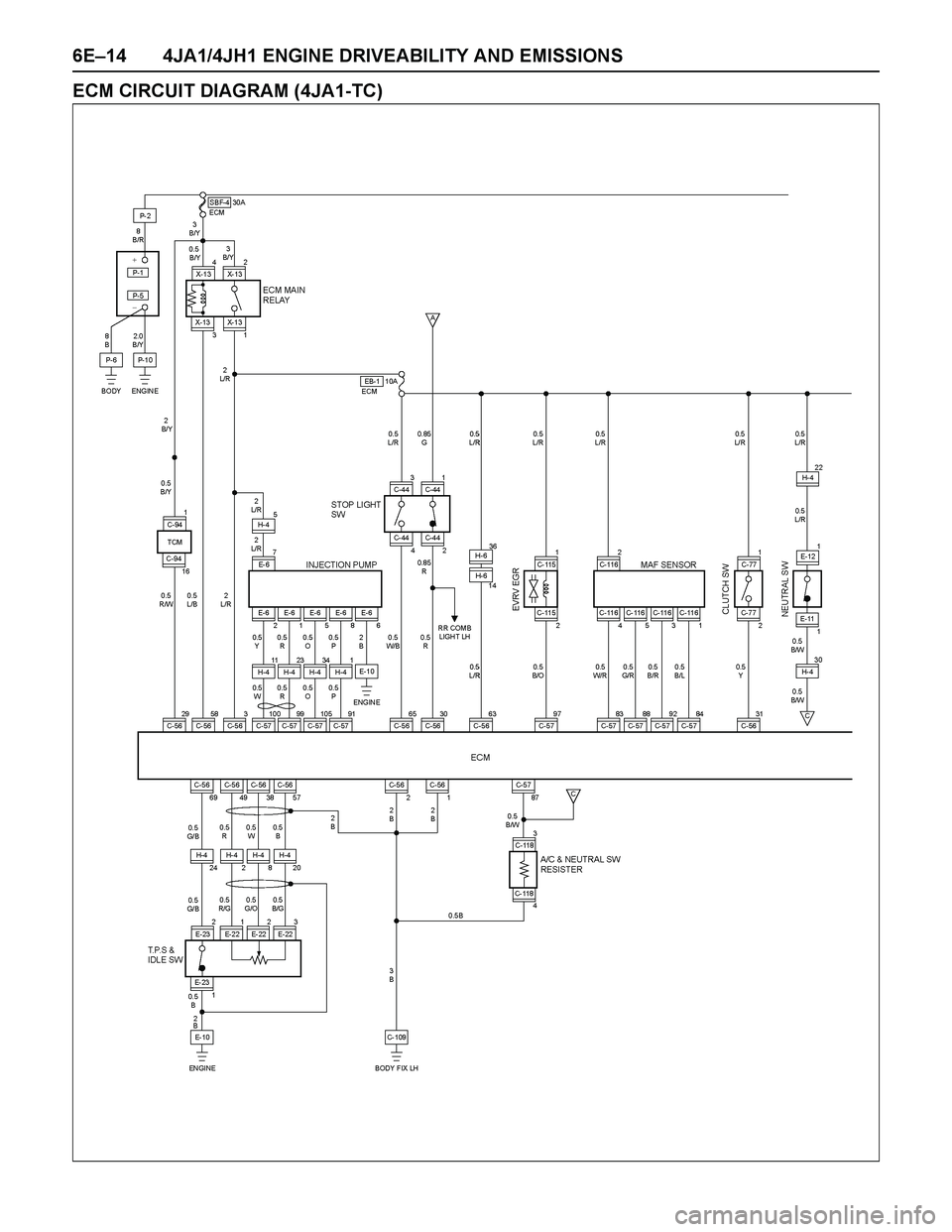

ISUZU TF SERIES 2004 Workshop Manual 6E–14 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS ECM CIRCUIT DIAGRAM (4JA1-TC)

Page 1387 of 4264

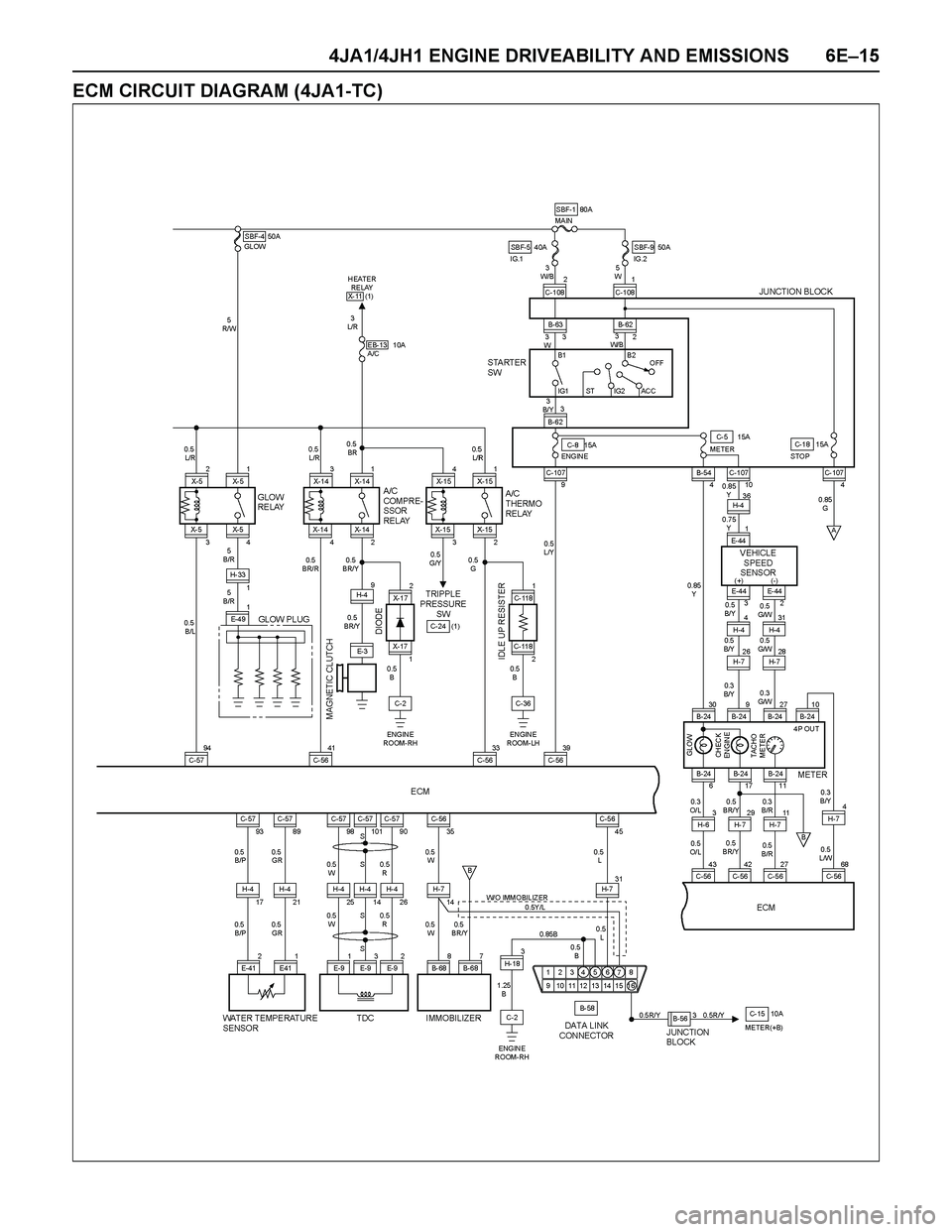

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–15 ECM CIRCUIT DIAGRAM (4JA1-TC)

Page 1388 of 4264

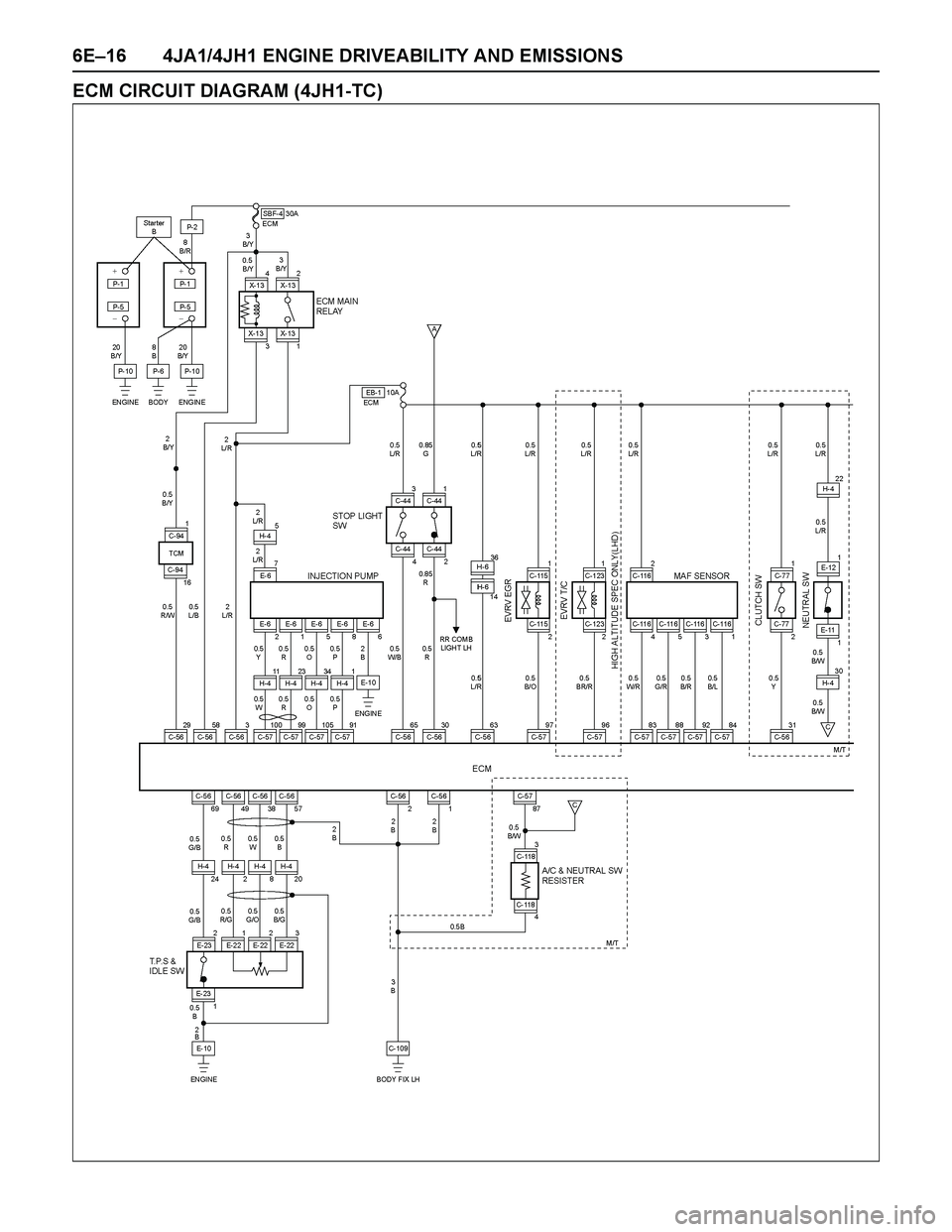

ISUZU TF SERIES 2004 Workshop Manual 6E–16 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS ECM CIRCUIT DIAGRAM (4JH1-TC)

Page 1389 of 4264

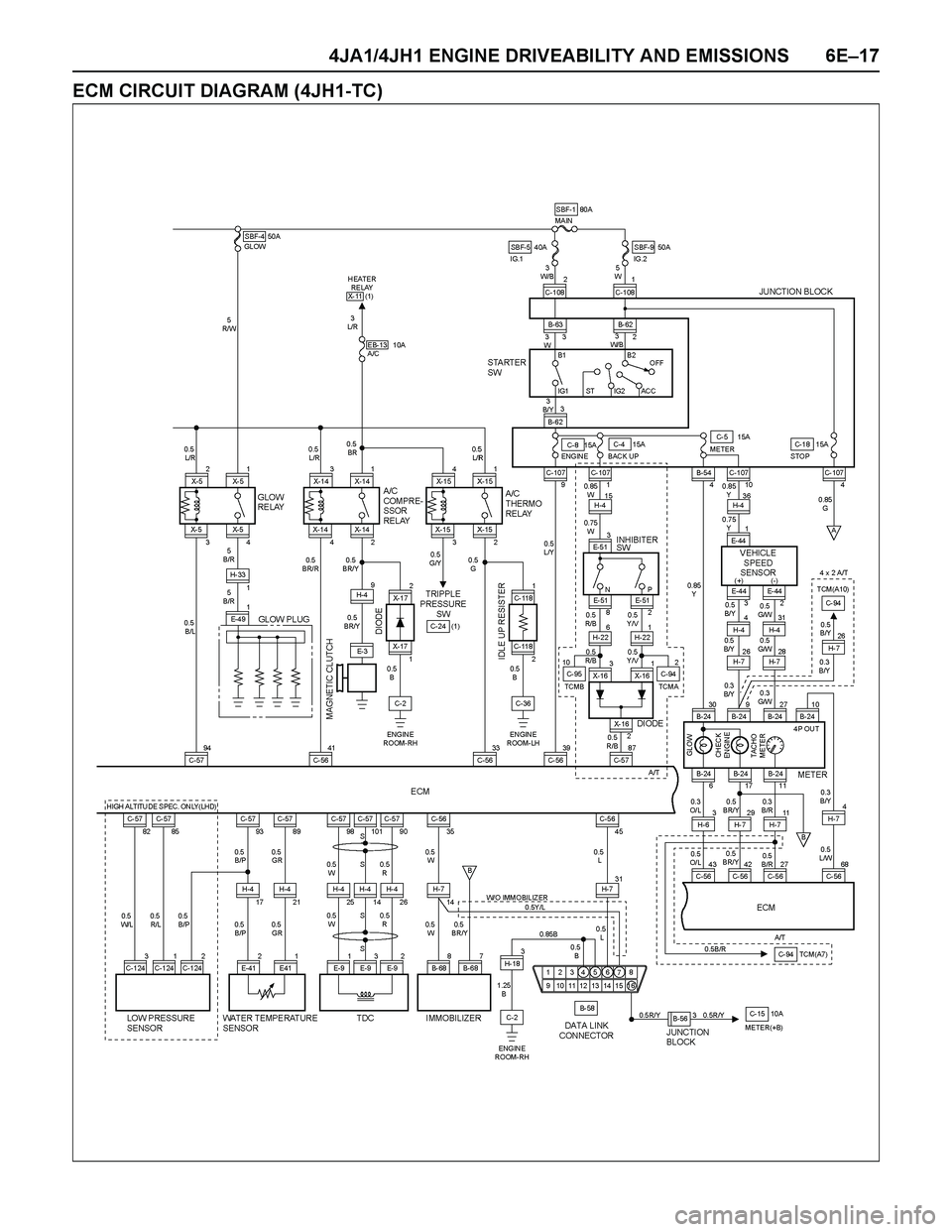

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–17 ECM CIRCUIT DIAGRAM (4JH1-TC)

Page 1390 of 4264

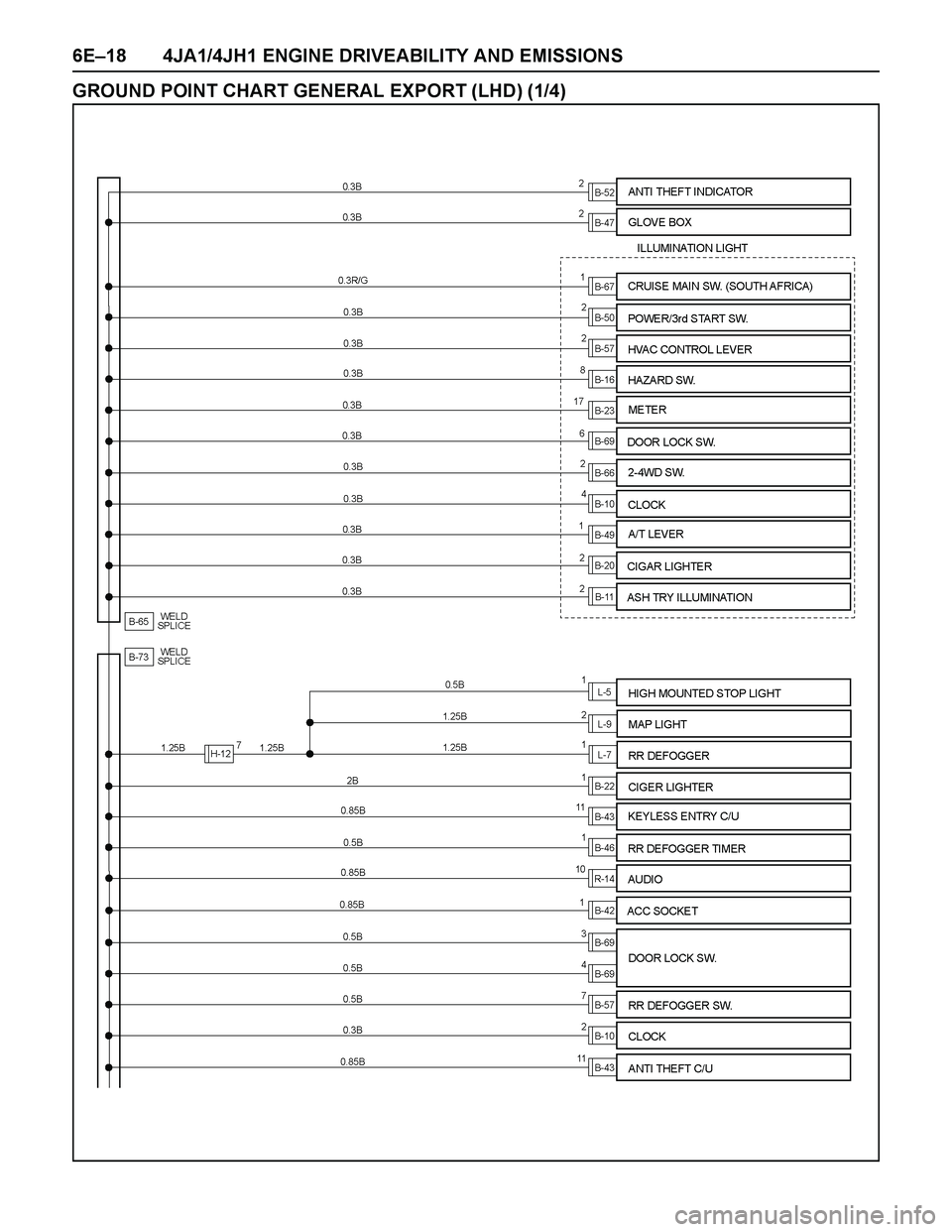

ISUZU TF SERIES 2004 Workshop Manual 6E–18 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS GROUND POINT CHART GENERAL EXPORT (LHD) (1/4)

Page 1391 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–19 GROUND POINT CHART GENERAL EXPORT (LHD) (2/4)

Page 1392 of 4264

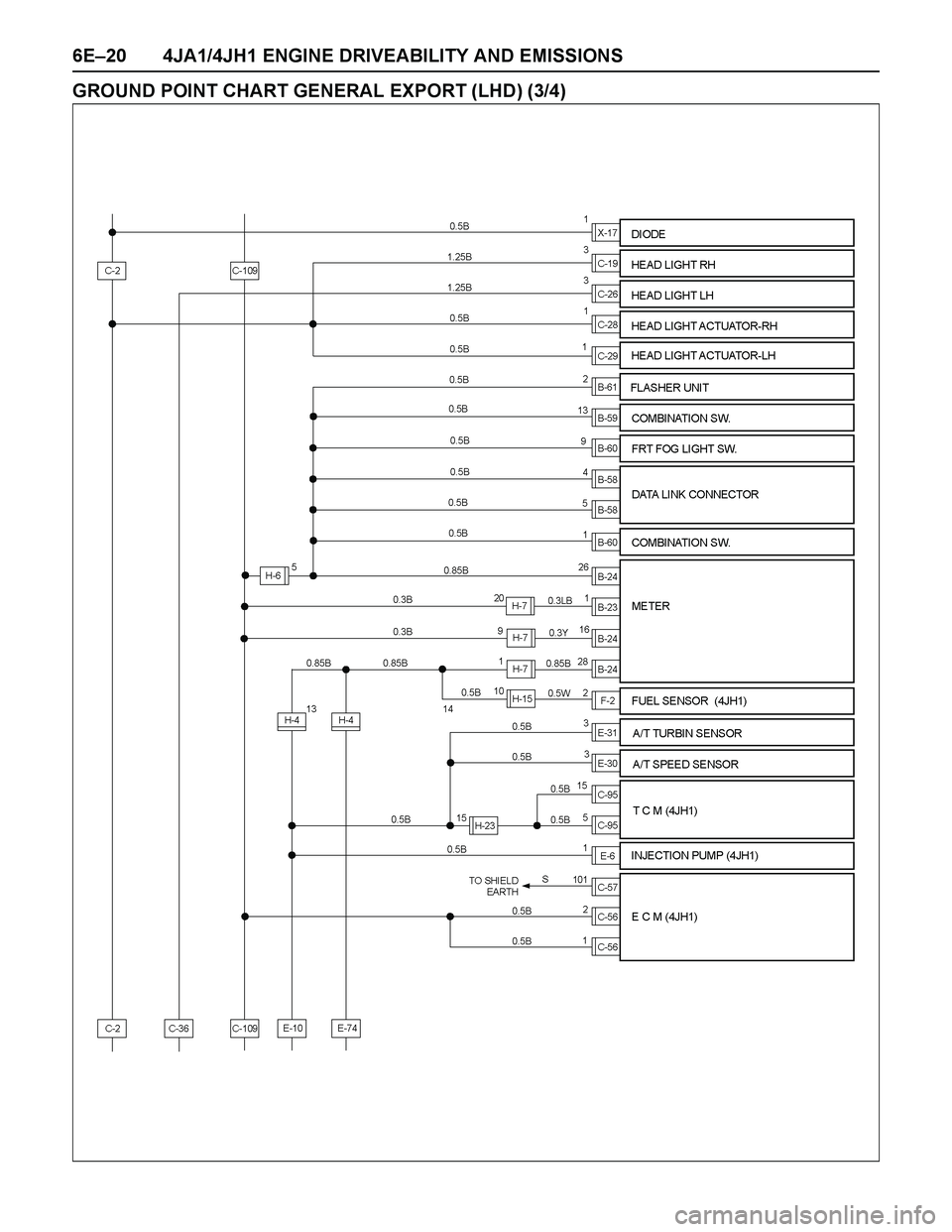

ISUZU TF SERIES 2004 Workshop Manual 6E–20 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS GROUND POINT CHART GENERAL EXPORT (LHD) (3/4)
