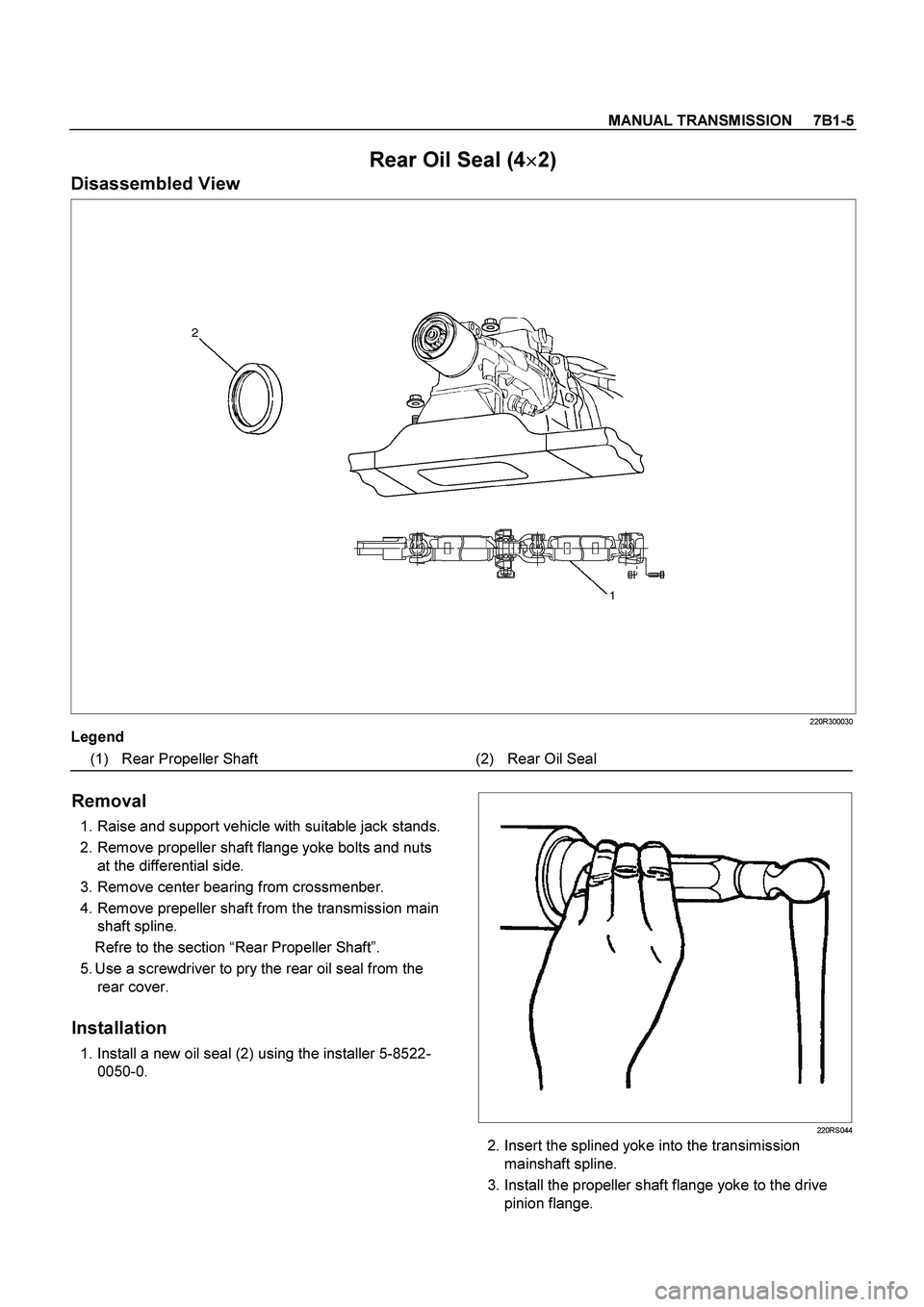

Page 3169 of 4264

ISUZU TF SERIES 2004 Workshop Manual MANUAL TRANSMISSION 7B1-5 Rear Oil Seal (4   2) Disassembled View 220R300030 Legend (1) Rear Propeller Shaft (2) Rear Oil Seal Removal 1. Raise and support vehicle with suitabl

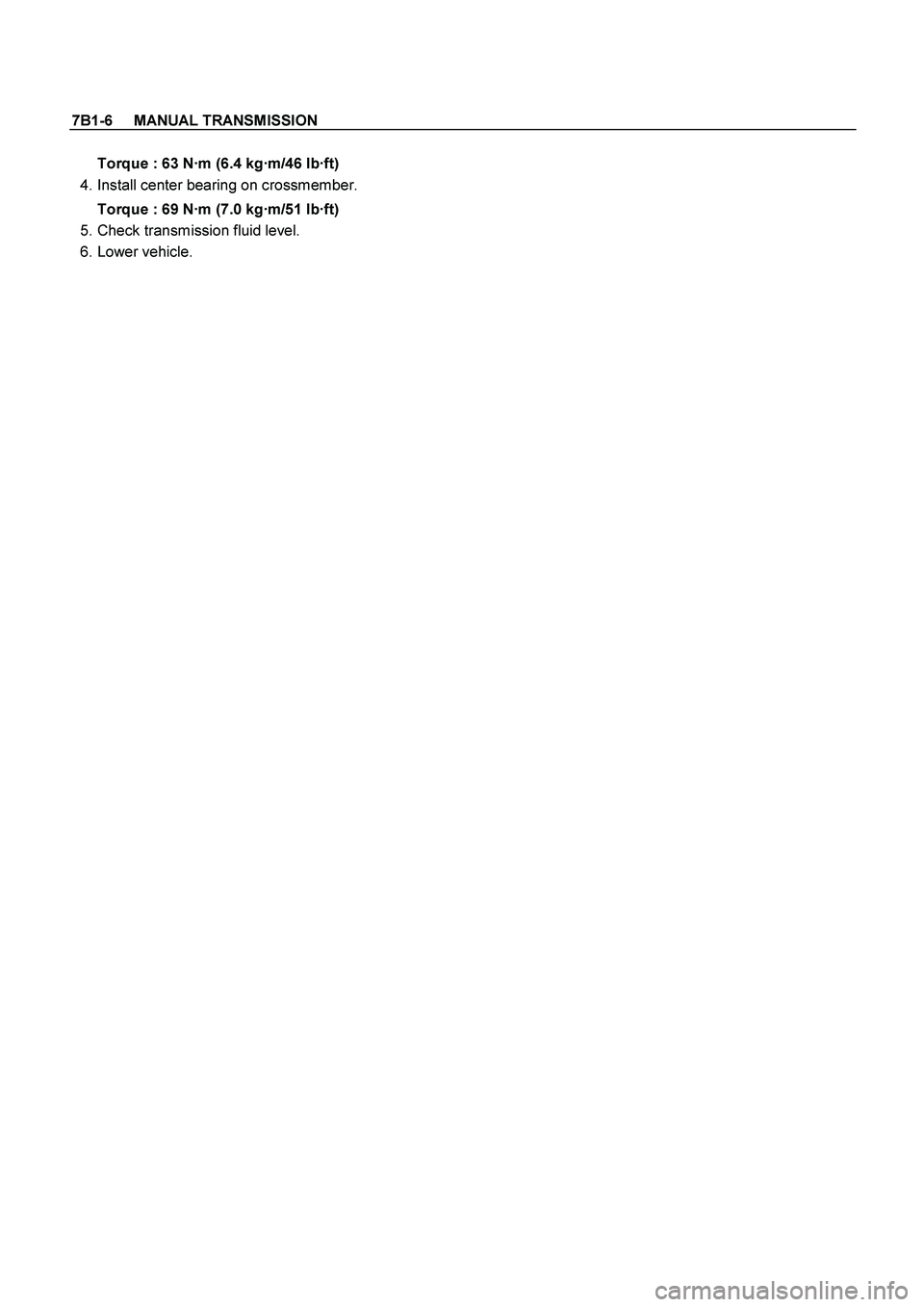

Page 3170 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7B1-6 MANUAL TRANSMISSION Torque : 63 N·m (6.4 kg·m/46 lb·ft) 4. Install center bearing on crossmember. Torque : 69 N·m (7.0 kg·m/51 lb·ft) 5. Check transmission fluid level. 6. L

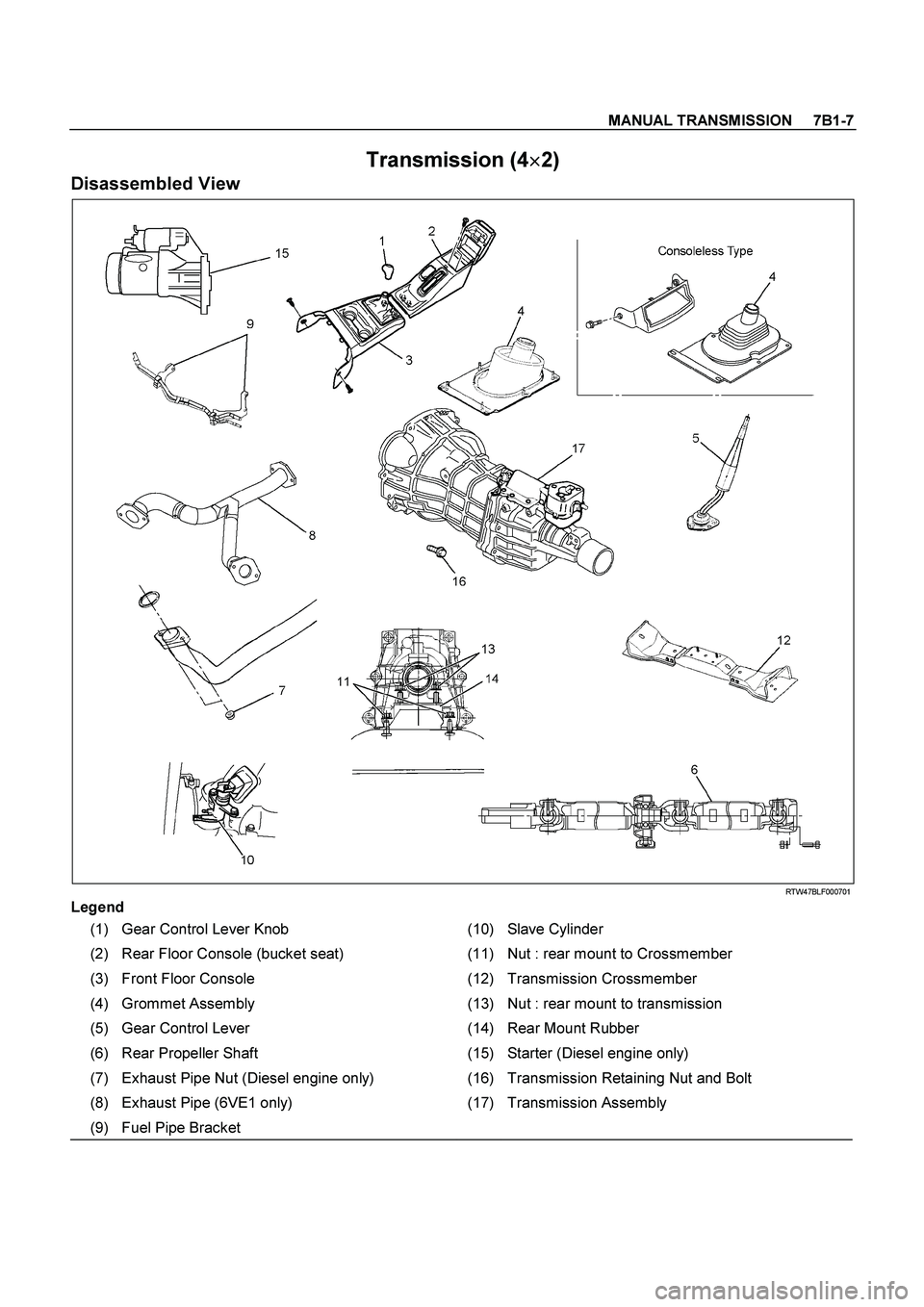

Page 3171 of 4264

ISUZU TF SERIES 2004 Workshop Manual MANUAL TRANSMISSION 7B1-7 Transmission (4   2) Disassembled View RTW47BLF000701 Legend (1) Gear Control Lever Knob (10) Slave Cylinder (2) Rear Floor Console (bucket seat) (1

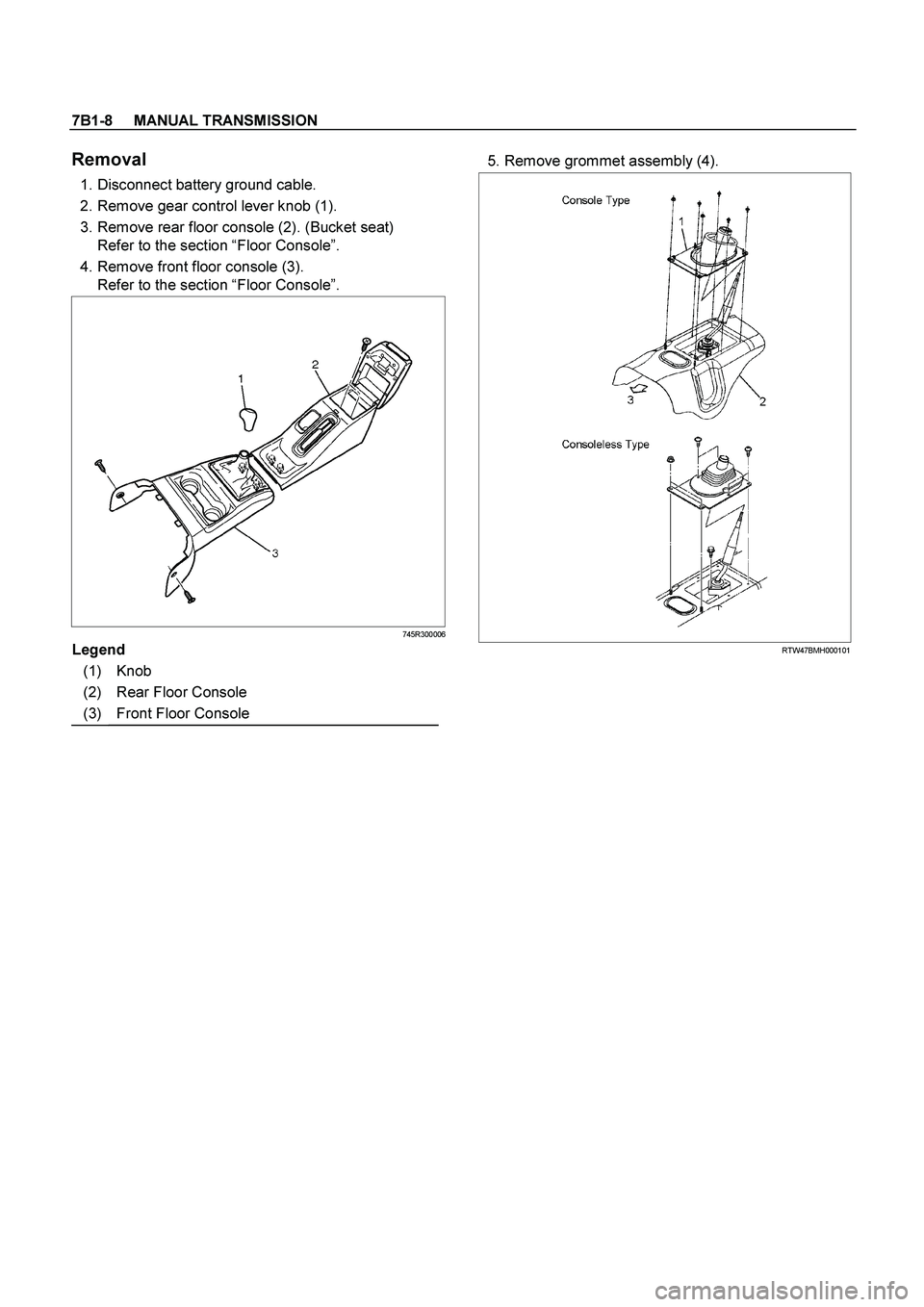

Page 3172 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7B1-8 MANUAL TRANSMISSION Removal 1. Disconnect battery ground cable. 2. Remove gear control lever knob (1). 3. Remove rear floor console (2). (Bucket seat) Refer to the section “Flo

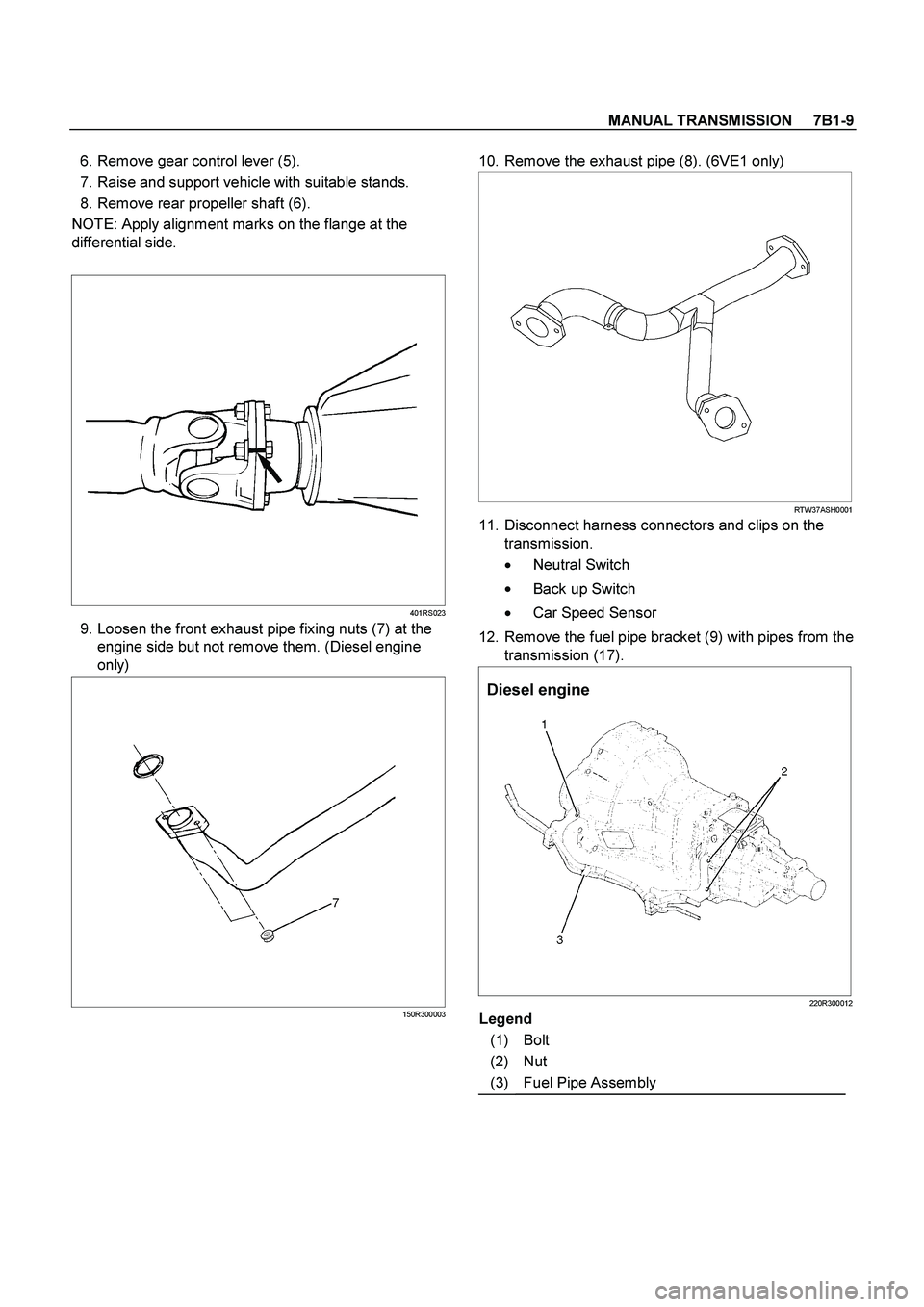

Page 3173 of 4264

ISUZU TF SERIES 2004 Workshop Manual MANUAL TRANSMISSION 7B1-9 6. Remove gear control lever (5). 7. Raise and support vehicle with suitable stands. 8. Remove rear propeller shaft (6). NOTE: Apply alignment marks on the fla

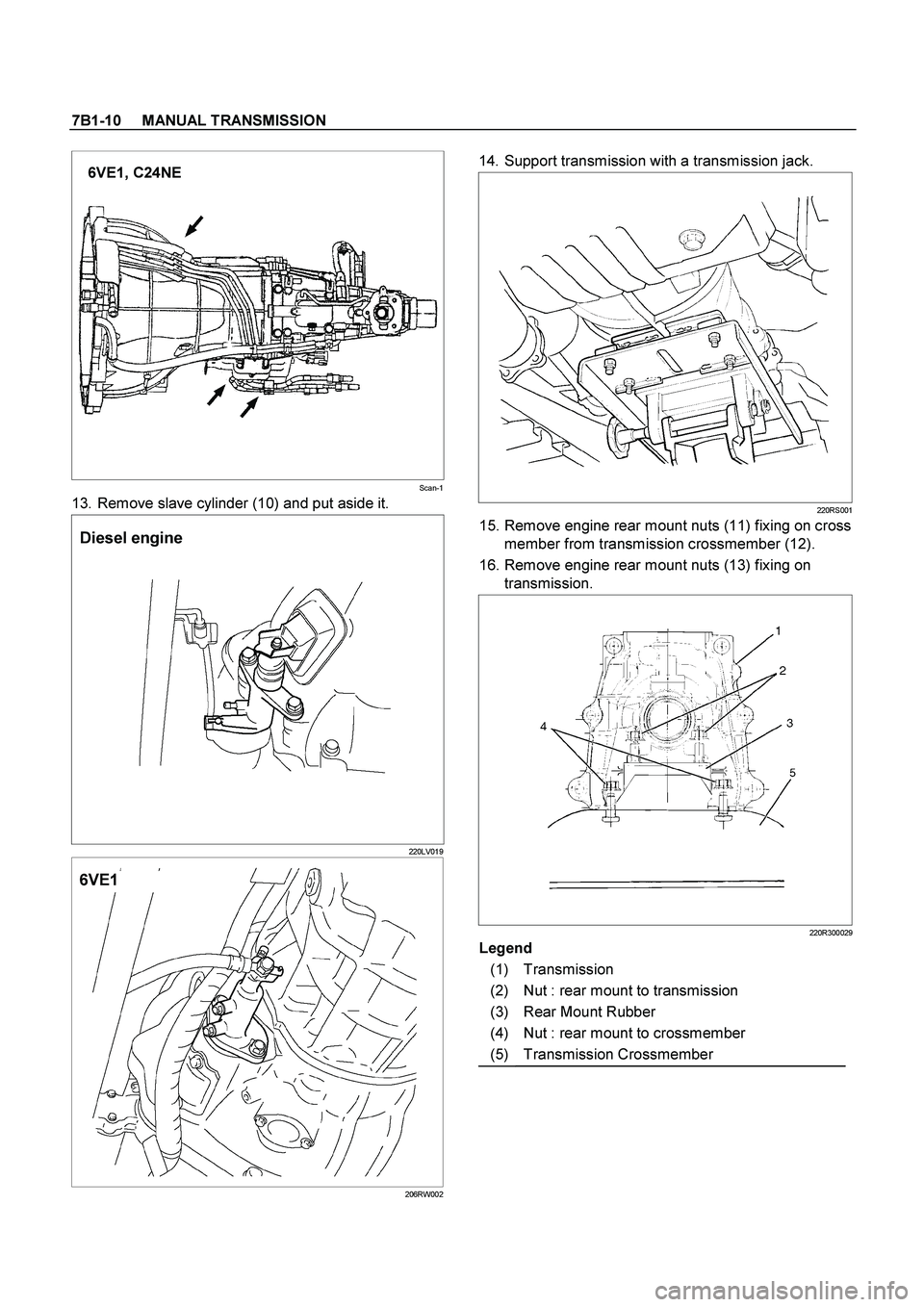

Page 3174 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7B1-10 MANUAL TRANSMISSION 6VE1, C24NE Scan-1 13. Remove slave cylinder (10) and put aside it. Diesel engine 220LV019 6VE1 206RW002 14. Support transmission with a transmission ja

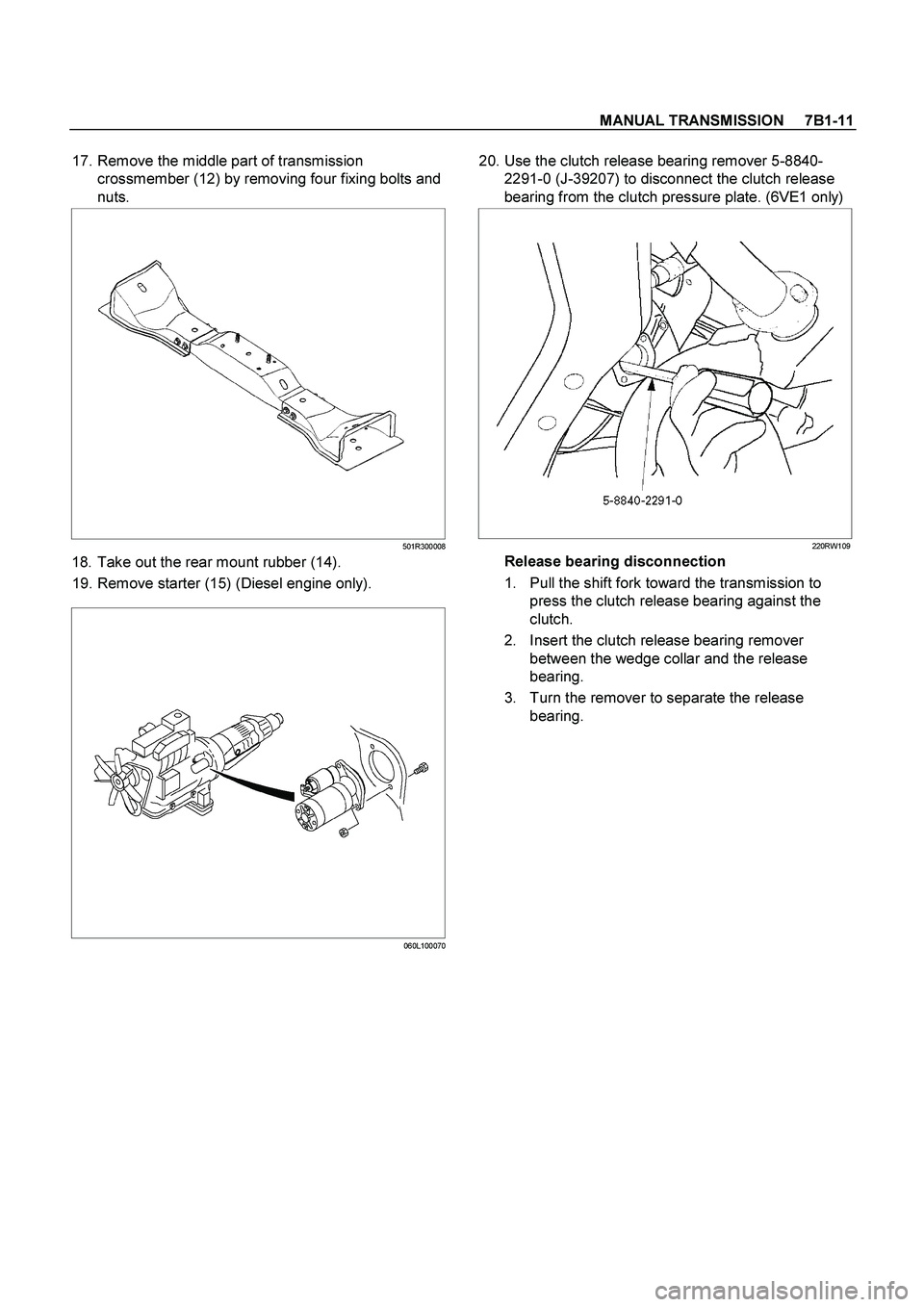

Page 3175 of 4264

ISUZU TF SERIES 2004 Workshop Manual MANUAL TRANSMISSION 7B1-11 17. Remove the middle part of transmission crossmember (12) by removing four fixing bolts and nuts. 501R300008 18. Take out the rear mount rubber (14). 19. Remov

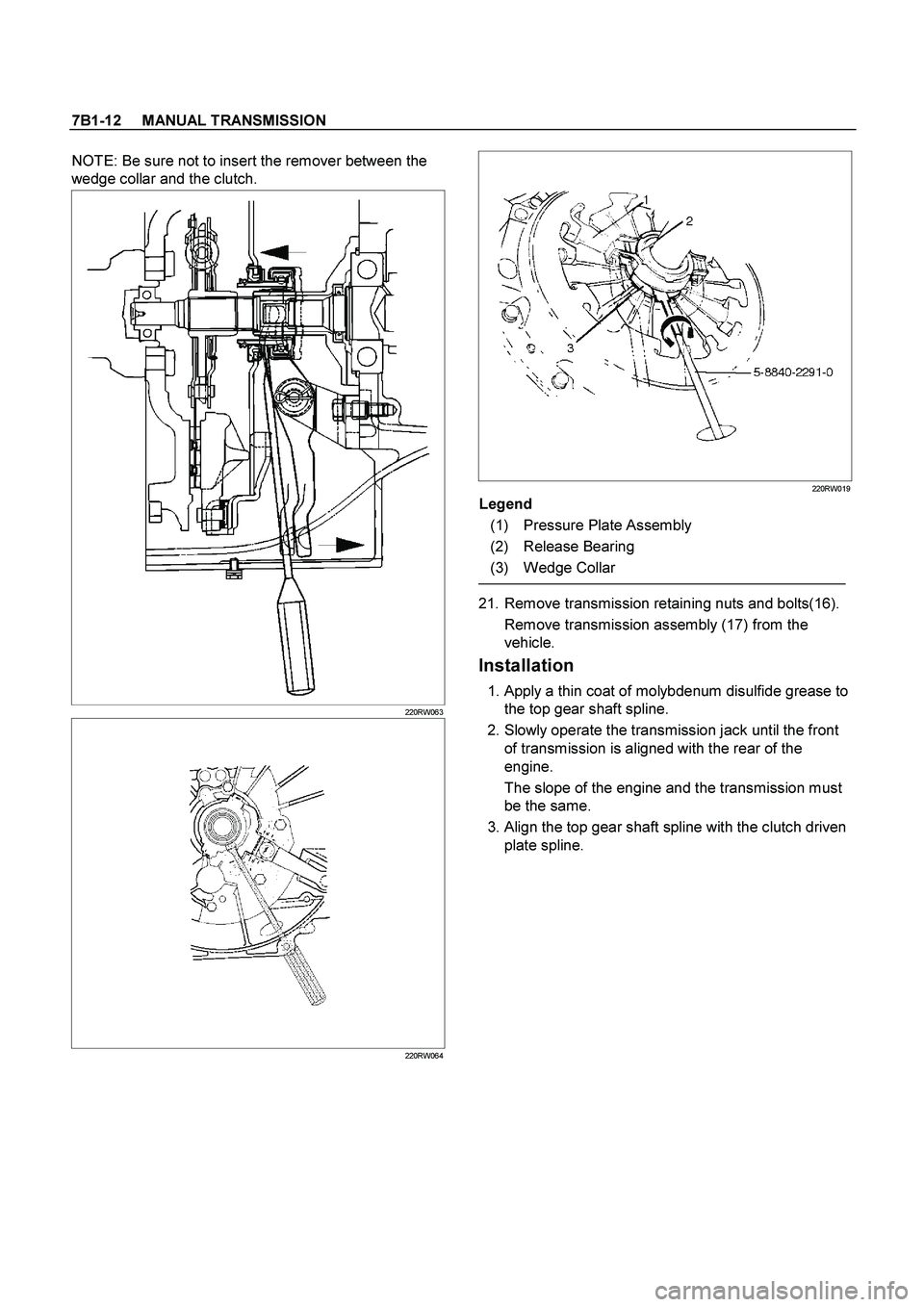

Page 3176 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7B1-12 MANUAL TRANSMISSION NOTE: Be sure not to insert the remover between the wedge collar and the clutch. 220RW063 220RW064 220RW019 Legend (1) Pressure Plate Assembly (2) Release Bea
