Page 169 of 4264
REAR AXLE 4B-5
Differential
Nm (kgfm/lbft)
RTW34BLF000201
Page 170 of 4264

4B-6 REAR AXLE
RECOMMENDED LIQUID GASKET
Type Brand Name Manufacture Remarks
RTV*
Silicon Base ThreeBond 1207B
ThreeBond 1207C
ThreeBond 1215
Three Bond
Three Bond
Three Bond
For Engine Repairs
For Axle Case
Repairs, T/M
Water Base ThreeBond 1141E Three Bond For Engine Repairs
Solvent ThreeBond 1104
BelcoBond 4
BelcoBond 401
BelcoBond 402 Three bond
Isuzu
Isuzu
Isuzu
For Engine Repairs
Anaerobic LOCTITE 515
LOCTITE 518 Loctite
Loctite All
* RTV : Room Temperature Vulcanizer
Note :
1. It is very important that the liquid gaskets listed
above or their exact equivalent be used on the
vehicle.
2. Be careful to use the specified amount of liquid
gasket.
Follow the manufacture's instructions at all
times.
3. Be absolutely sure to remove all lubricants and
moisture from the connecting surfaces before
applying the liquid gasket.
The connecting surfaces must be perfectly dry.
4. LOCTITE 515 and LOCTITE 518 harden upon
contact with a metal surface.
Do not apply LOCTITE 515 or LOCTITE 518
between two metal surfaces having a clearance
of greater than 0.25 mm (0.01 in). Poor
adhesion will result.
RECOMMENDED THREAD LOCKING AGENTS
LOCTITE Type LOCTITE Color Application Steps
LOCTITE 242
Blue 1. Completely remove all lubricant and moisture from the bolts and
the female threaded surfaces of the parts to be joined.
The surfaces must be perfectly dry.
LOCTITE 262
Red 2. Apply LOCTITE to the bolts.
LOCTITE 270
Green
LOCTITE 271
Red
3. Tighten the bolts to the specified torque.
4. Wait at least one hour before continuing the installation procedure.
Page 171 of 4264

REAR AXLE 4B-7
REAR AXLE ASSEMBLY
General Description
A03R300001
The rear axle assembly is of the semi–floating type in
which the vehicle weight is carried on the axle
housing .
The center line of the pinion gear is below the center
line of the ring gear (hypoid drive).
All parts necessary to transmit power from the
propeller shaft to the rear wheels are enclosed in a
banjo type axle housing.
The 220 mm (8.6 in) ring gear rear axle uses a
conventional ring and pinion gear set to transmit the
driving force of the engine to the rear wheels. This
gear set transfers this driving force at a 90 degree
angle from the propeller shaft to the drive shafts.
The axle shafts are supported at the wheel end of the
shaft by a double tapered roller bearing.
The pinion gear is supported by two tapered roller
bearings. The pinion depth is set by a shim pack
located between the gear end of the pinion and the
roller bearing that is pressed onto the pinion. The
pinion bearing preload is set by crushing a collapsible
spacer between the bearings in the axle housing.
The ring gear is bolted onto the differential cage with
12 bolts.
The differential cage is supported in the axle housing
by two tapered roller bearings. The differential and ring
gear are located in relationship to the pinion by using
selective shims and spacers between the bearing and
the differential cage. To move the ring gear, shims are
deleted from one side and an equal amount are added
to the other side. These shims are also used to
preload the bearings which are pressed onto the
differential cage. Two bearing caps are used to hold
the differential into the rear axle housing.
The differential is used to allow the wheels to turn at
different rates of speed while the rear axle continues
to transmit the driving force. This prevents tire
scuffing when going around corners and prevents
premature wear on internal axle parts.
The rear axle is sealed with a pinion seal, a seal at
each axle shaft end, and by a liquid gasket between
the differential carrier and the axle housing
Page 172 of 4264
4B-8 REAR AXLE
SERVICING
Rear Axle Oil Replacement
Oil Capacity liters (US/UK gal.)
2.4 (0.63/0.53)
Specified gear oil GL5 (API grade)(STD)
GL5LSD (LSD)
Filler Plug and Drain Plug Torque Nm (kgfm/lbft)
78 (8.0/58)
Axle Shaft Roller Bearing Endplay
Inspection
1.
Raise and suitably support vehicle.
2.
Remove the wheel and brake drum.
3.
Inspect the axle shaft roller bearing endplay using
dial gauge.
Endplay mm (in
)
Standard 0
0.2 (0
0.008)
If the endplay exceeds 0.2mm (0.008 in), replace the
axle shaft roller bearings.
Refer to Rear Axle Reassembly.
RTW34BSH000101
Page 173 of 4264
REAR AXLE 4B-9
REAR AXLE
1.
Refer to Section 3E "WHEEL and TIRE" for road
wheel Disassembly procedure.
2.
Refer to Section 5 "BRAKE" for rear brake
removal procedure.
RTW34BLF000401
Legend
1. Brake Drum
2. Bolt and Nut
3. Axle Shaft Assembly with Brake
4.
Shim
5. Snap Ring
6. Axle Shaft
7. Sensor Rotor (with ABS)
Spacer (without ABS)
8.
Double Taper Roller Bearing
9. Oil Seal
10.
Bearing Holder
11. Rear Brake
12. Bolt and Nut
13. Differential Assembly
14. Rear Axle Case Assembly
15. Wheel Pin
16. Axle Case Oil Seal
17.
Front
Page 174 of 4264

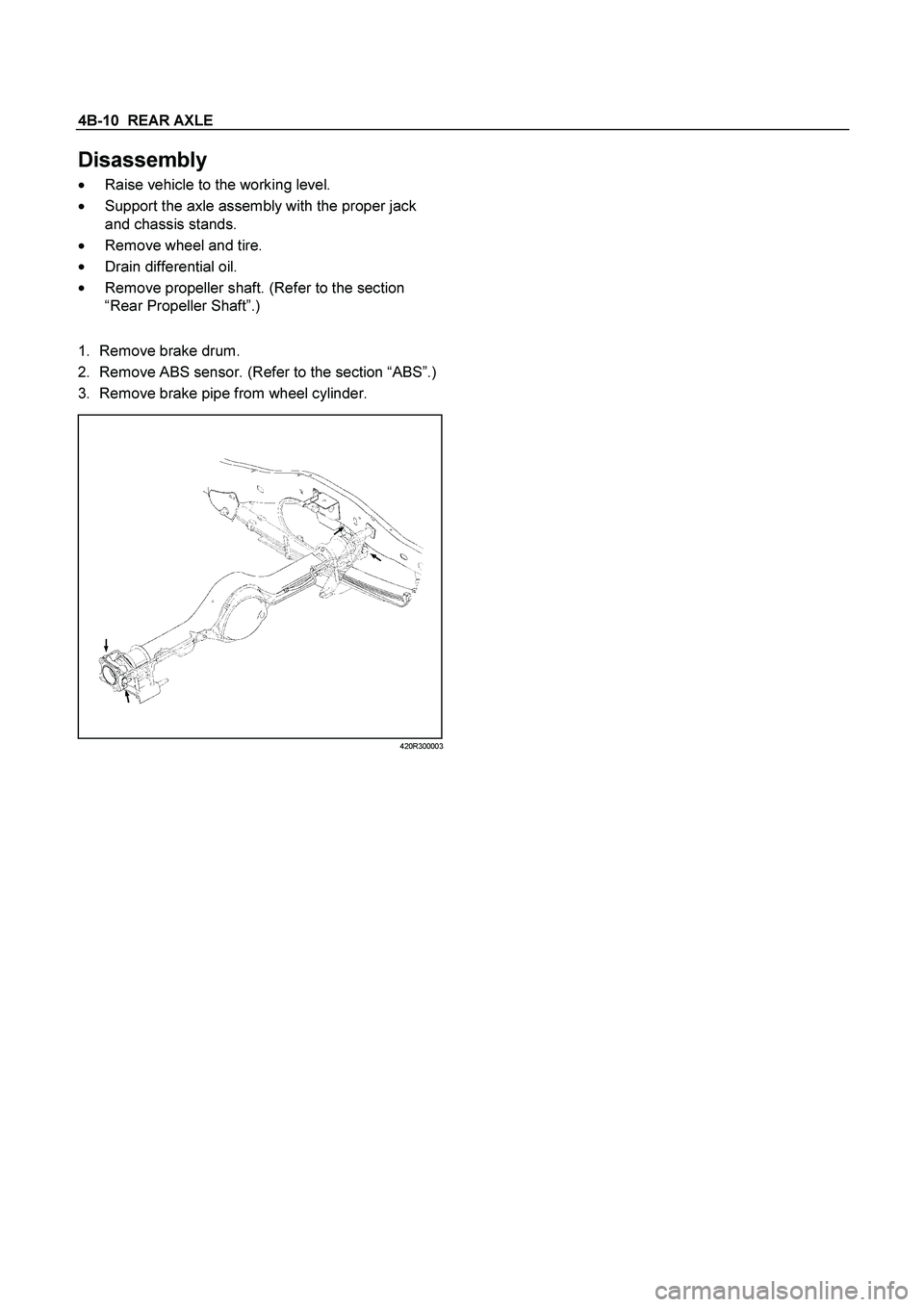

4B-10 REAR AXLE
Disassembly
Raise vehicle to the working level.
Support the axle assembly with the proper jack
and chassis stands.
Remove wheel and tire.
Drain differential oil.
Remove propeller shaft. (Refer to the section
“Rear Propeller Shaft”.)
1.
Remove brake drum.
2. Remove ABS sensor. (Refer to the section “ABS”.)
3. Remove brake pipe from wheel cylinder.
420R300003
Page 175 of 4264
REAR AXLE 4B-11
305R30000
Legend
1.
Tension Pin
2.
Shoe Clamp Spring
3.
Return Spring
4.
Shoe Assembly with Parking Brake Lever
5.
Shoe Assembly with Adjuster Lever
6.
Spring
7.
Parking Brake Cable
8.
Adjuster
9.
Parking Brake Lever
10.
Adjuster Spring
11.
Adjuster Lever
12.
Wheel Cylinder
13.
Back plate
4.
Remove tension pin and shoe clamp spring.
5.
Remove return spring.
6.
Remove shoe assembly with parking brake lever.
7. Remove shoe assembly with adjuster lever and
spring.
8.
Remove parking brake inner cable from parking
brake lever.
9.
Use offset box wrench to compress locking lugs
on the cable, then remove parking brake outer
cable from back plate.
311RS012
Page 176 of 4264

4B-12 REAR AXLE
Legend
1.
Offset Box Wrench
10.
Remove wheel cylinder.
11.
Remove bearing holder fixing nuts.
12.
Take out axle shaft assembly with back plate and
set it on a bench press as following illustration.
Put bolt head on thick steel plate.
When axle shaft is extracted, since axle case oil
seal is damaged, axle case oil seal.
13.
Remove snap ring. Use snap ring pliers to
remove. Snap ring is prohibition of reuse.
14.
Remove shim (If so equipped)
15.
Remove sensor rotor (or spacer), double tape
r
roller bearing, oil seal, bearing holder, and back
plate from axle shaft by means of a press.
Discard used oil seal, double taper roller
bearing, snap ring, ABS sensor rotor and
spacer.
A03R300002
Legend
1.
Bench Press Fitting
2. Steel Plate (25-30 mm thickness)
3. Axle Shaft
16. Remove differential assembly fixing bolts and
nuts and take out differential assembly.
17.
Remove wheel pin from axle shaft, using the
remover 5-8840-0079-0.
420L100009
18.
Remove axle case oil seal.
Discard used oil seal.
