Page 3801 of 4264

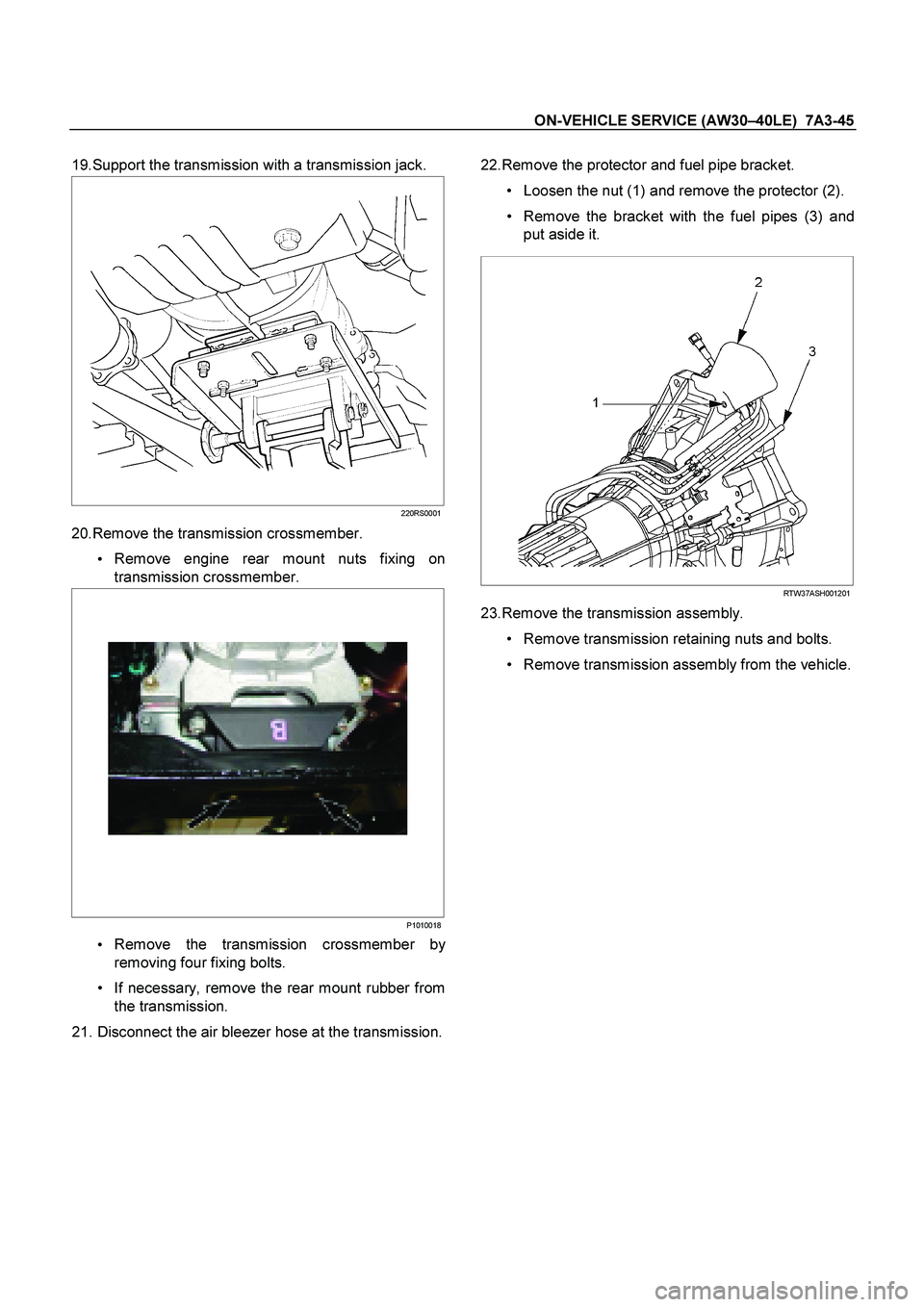

ISUZU TF SERIES 2004 Workshop Manual ON-VEHICLE SERVICE (AW30 –40LE) 7A3-45 19.Support the transmission with a transmission jack. 220RS0001 20.Remove the transmission crossmember.  Remove engine rear mount nuts fixin

Page 3802 of 4264

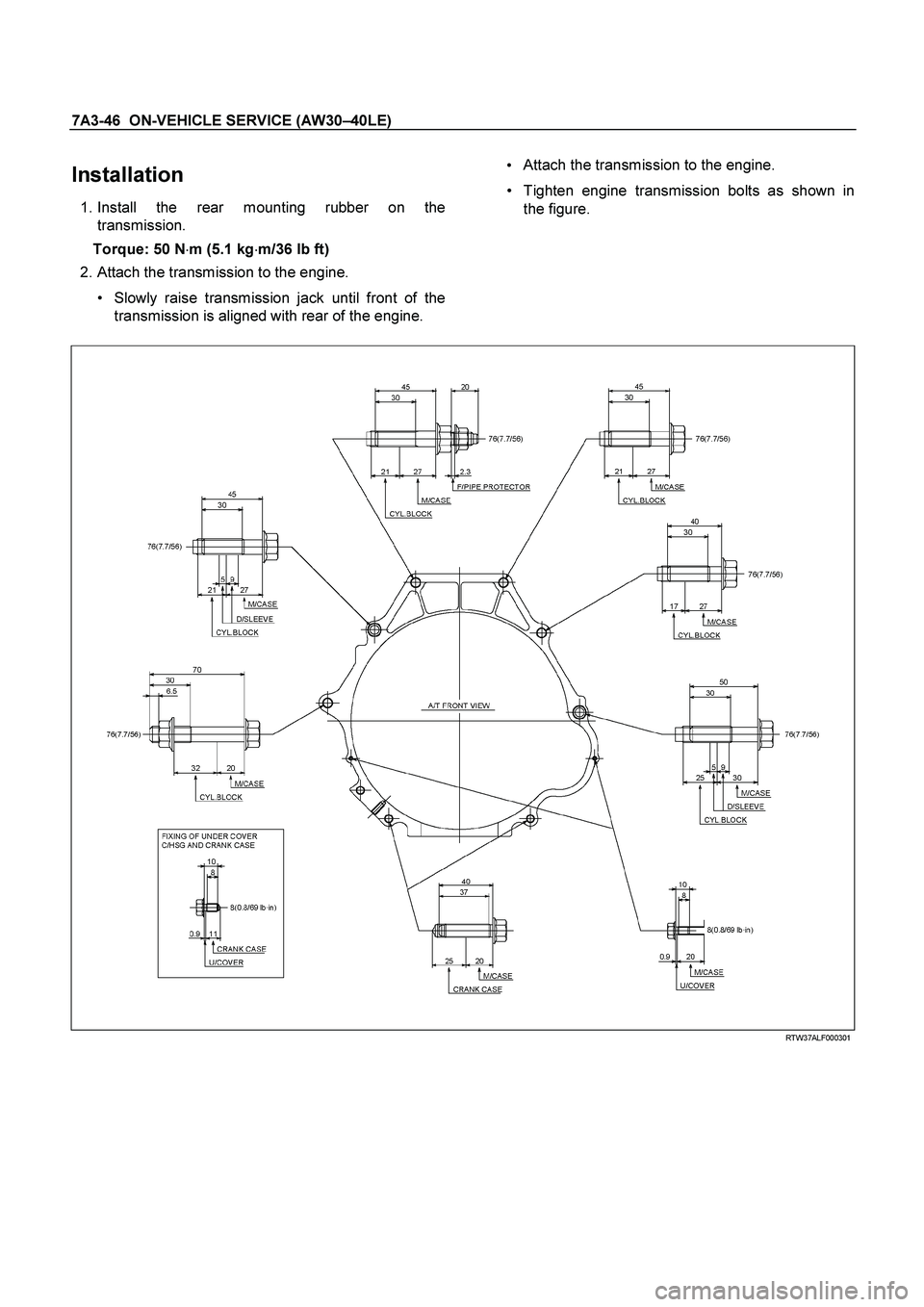

ISUZU TF SERIES 2004 Workshop Manual 7A3-46 ON-VEHICLE SERVICE (AW30 –40LE) Installation 1. Install the rear mounting rubber on the transmission. Torque: 50 N m (5.1 kg m/36 lb ft) 2. Attach the transmission to the en

Page 3803 of 4264

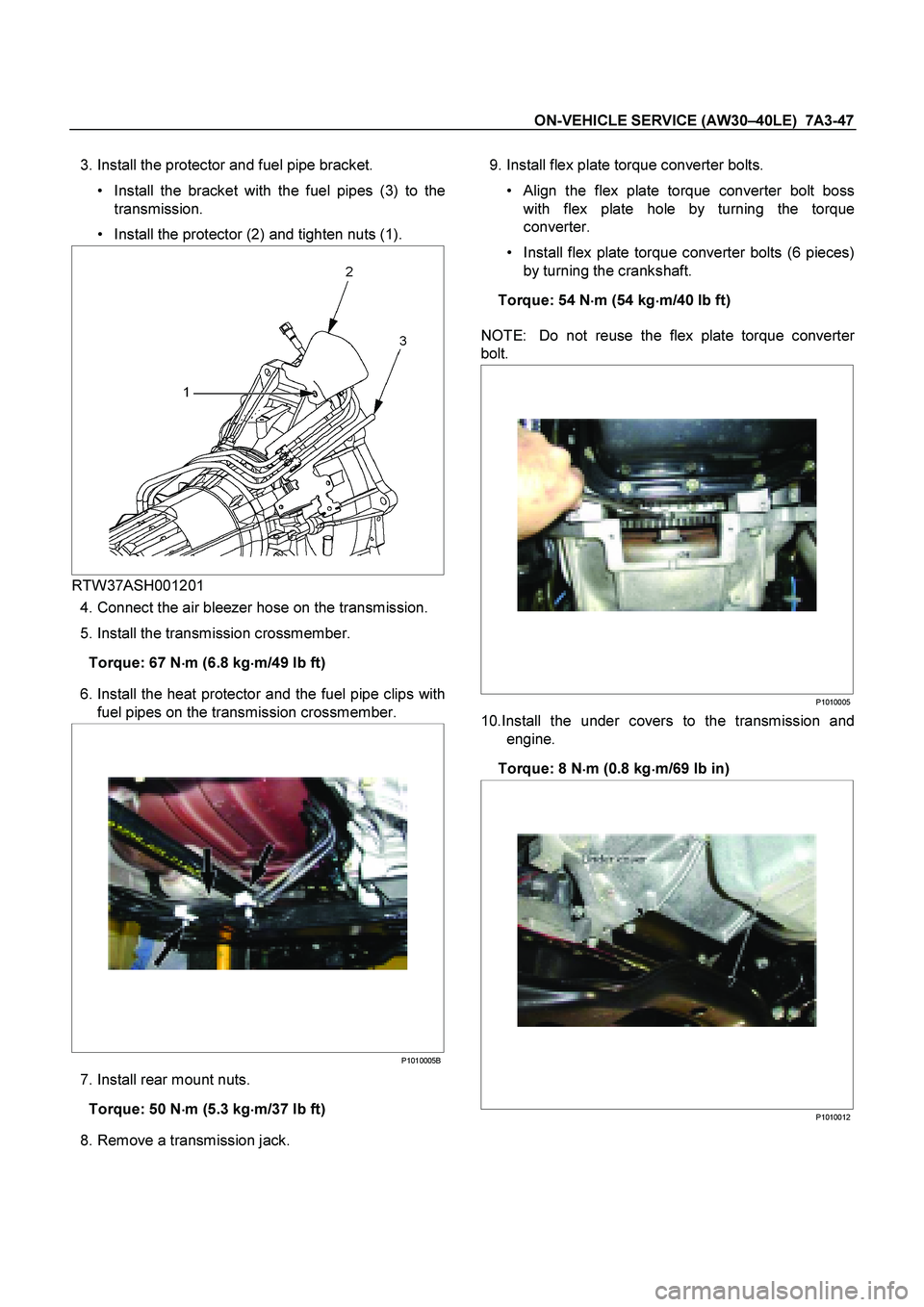

ISUZU TF SERIES 2004 Workshop Manual ON-VEHICLE SERVICE (AW30 –40LE) 7A3-47 3. Install the protector and fuel pipe bracket.  Install the bracket with the fuel pipes (3) to the transmission.  Install the protector (2)

Page 3804 of 4264

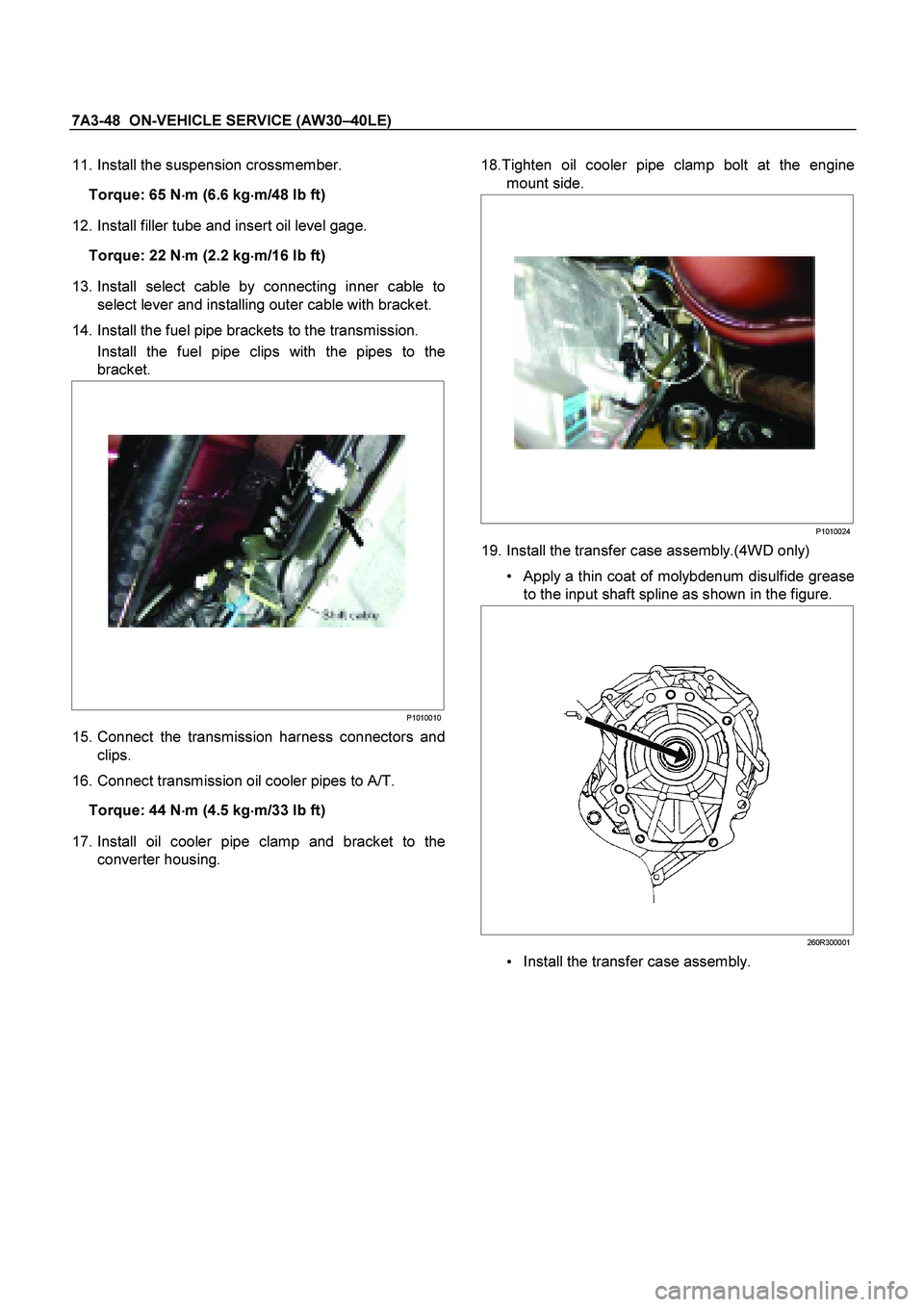

ISUZU TF SERIES 2004 Workshop Manual 7A3-48 ON-VEHICLE SERVICE (AW30 –40LE) 11. Install the suspension crossmember. Torque: 65 N    m (6.6 kg    m/48 lb ft) 12. Install filler tube and insert oil level gage.

Page 3805 of 4264

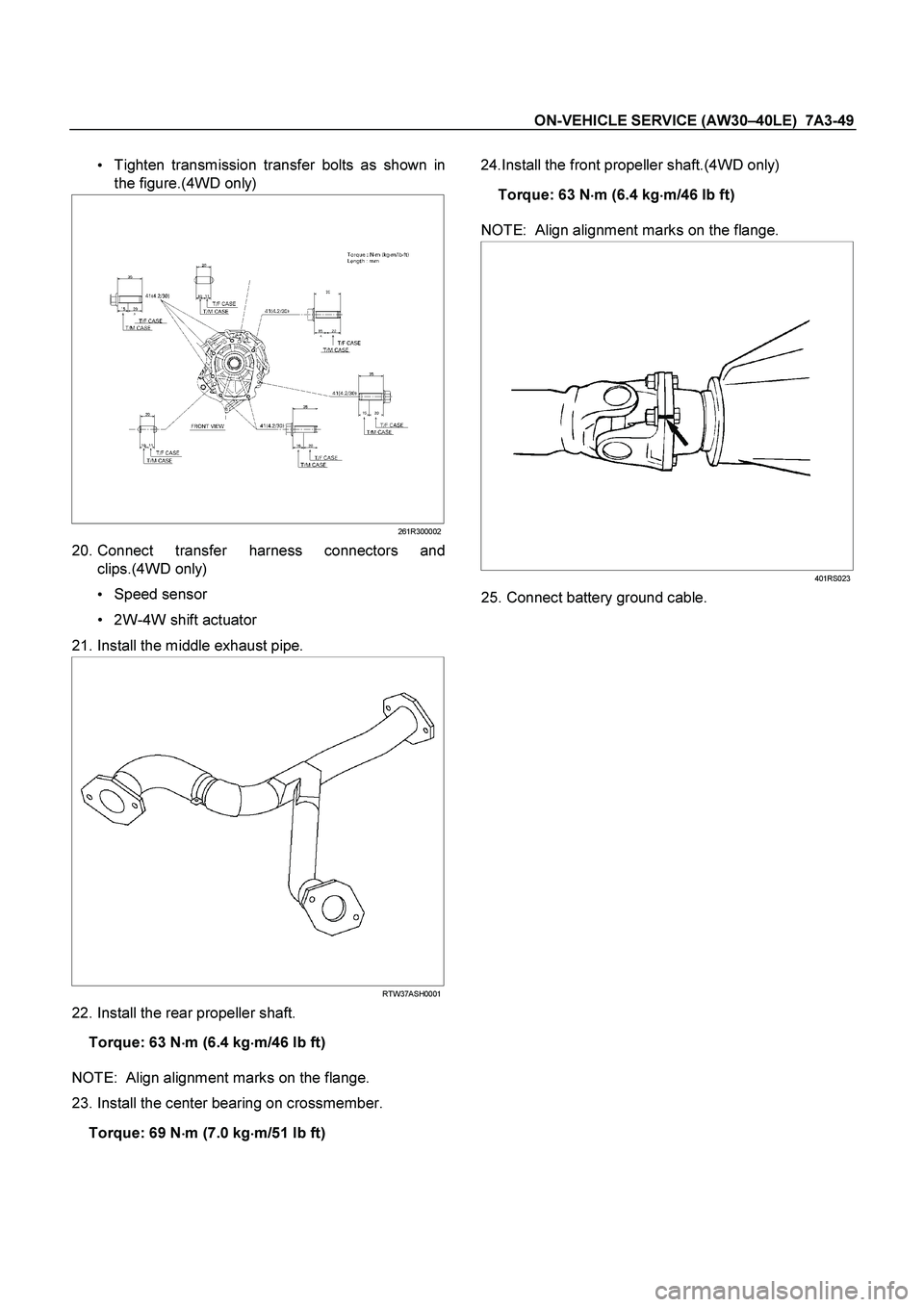

ISUZU TF SERIES 2004 Workshop Manual ON-VEHICLE SERVICE (AW30 –40LE) 7A3-49  Tighten transmission transfer bolts as shown in the figure.(4WD only) 261R300002 20. Connect transfer harness connectors and clips.(4WD only)

Page 3806 of 4264

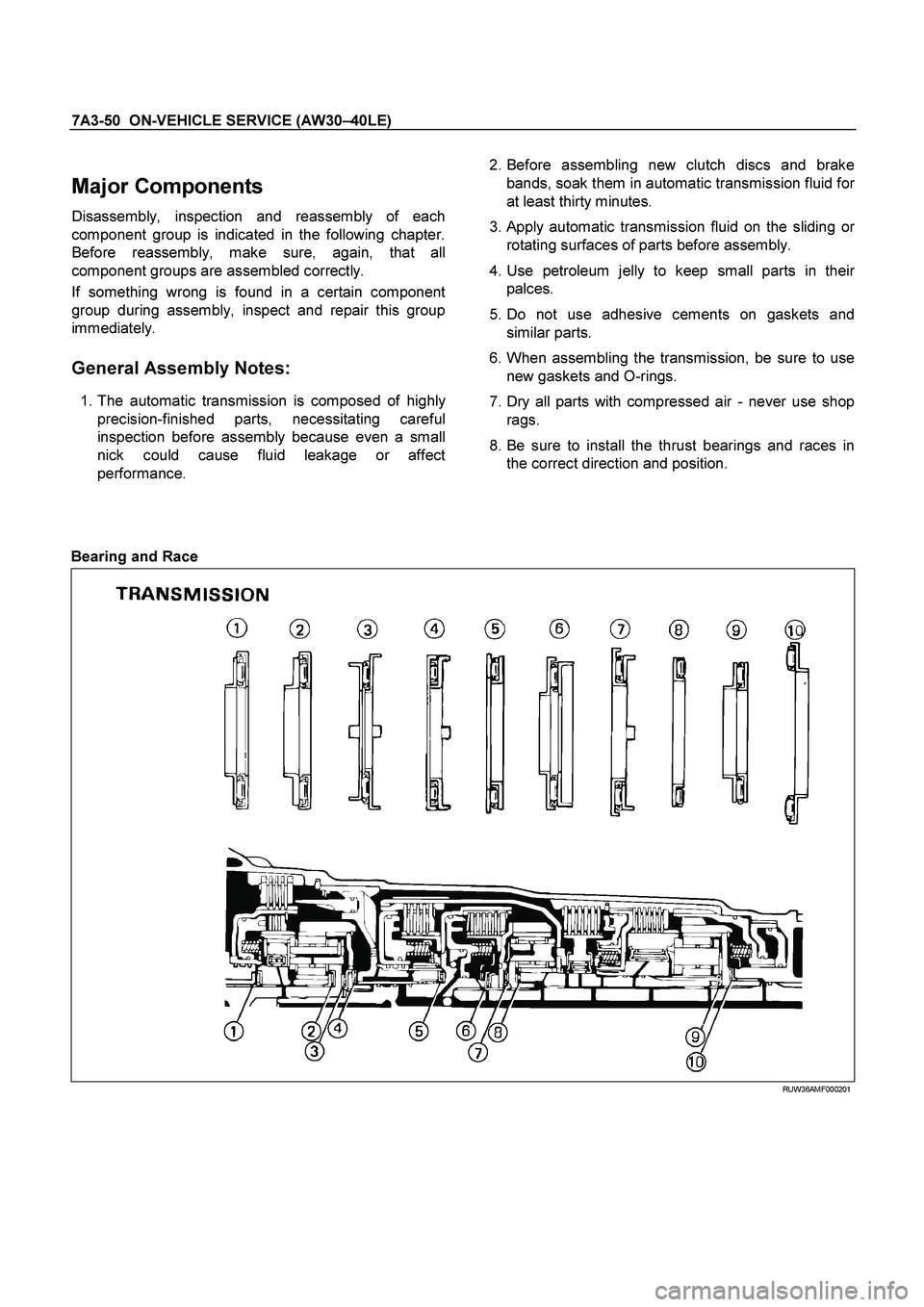

ISUZU TF SERIES 2004 Workshop Manual 7A3-50 ON-VEHICLE SERVICE (AW30 –40LE) Major Components Disassembly, inspection and reassembly of each component group is indicated in the following chapter. Before reassembly, make sure, agai

Page 3807 of 4264

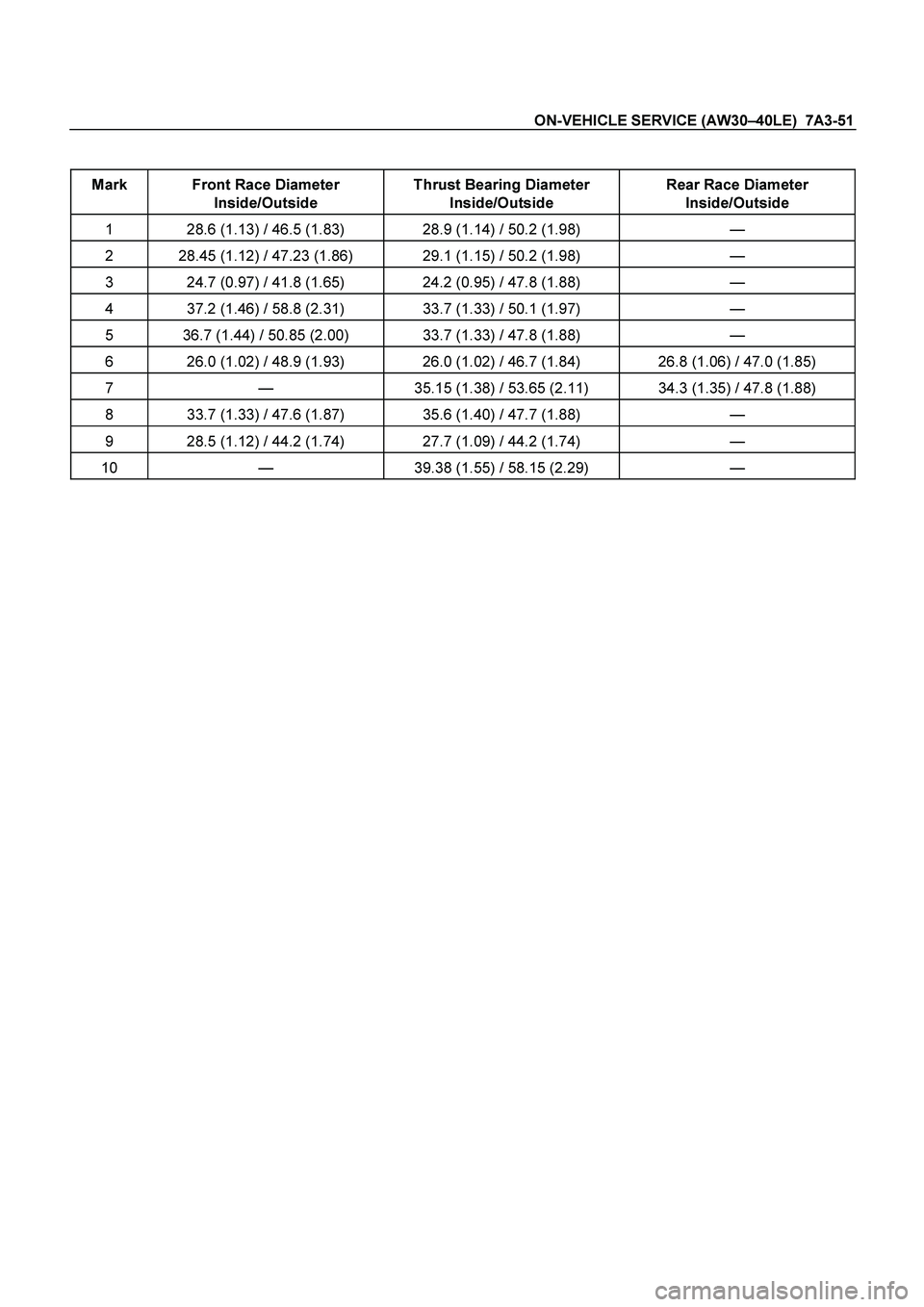

ISUZU TF SERIES 2004 Workshop Manual ON-VEHICLE SERVICE (AW30 –40LE) 7A3-51 Mark Front Race Diameter Inside/Outside Thrust Bearing Diameter Inside/Outside Rear Race Diameter Inside/Outside 1 28.6 (1.13) / 46.5 (1.83

Page 3808 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A3-52 ON-VEHICLE SERVICE (AW30 –40LE) MEMO
