Page 1641 of 4264

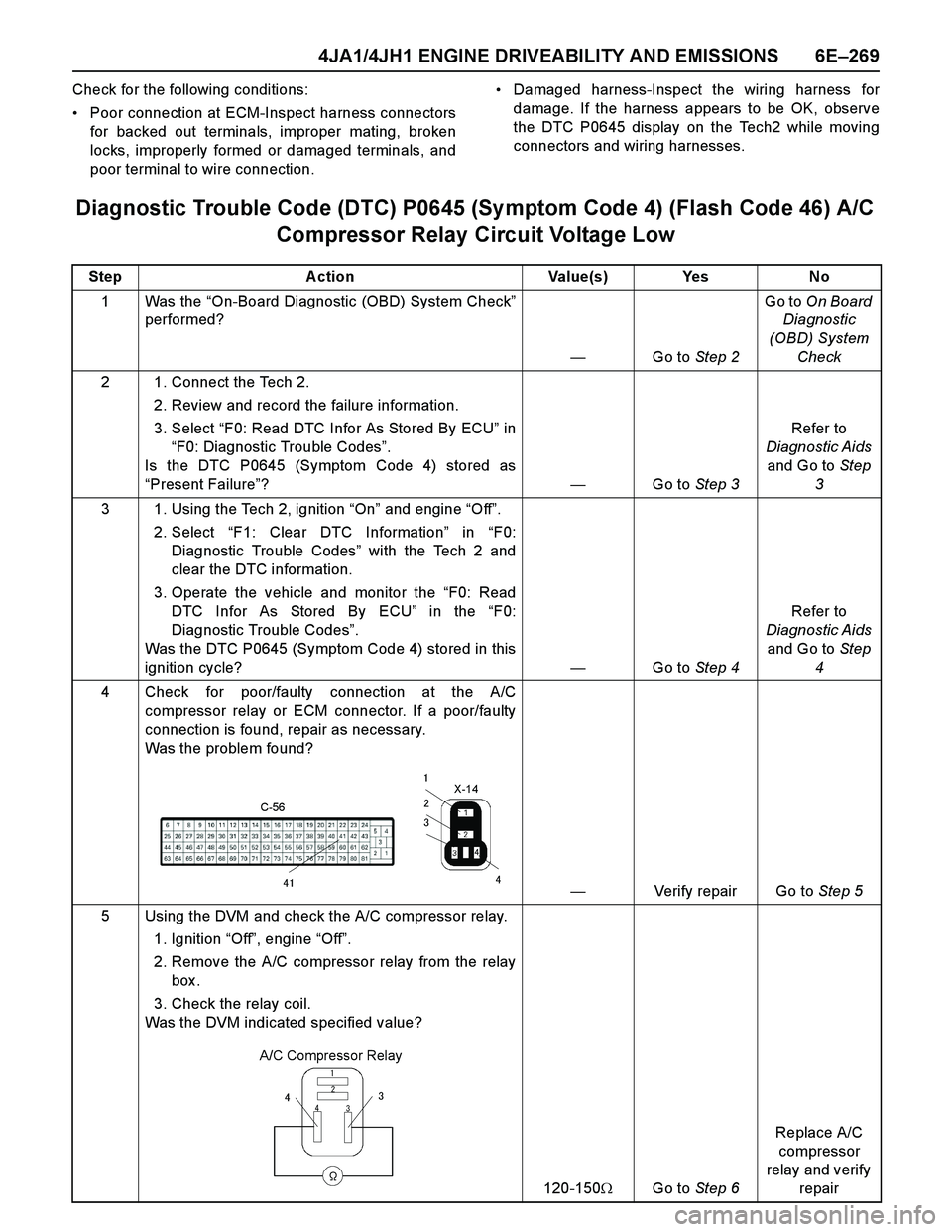

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–269
Check for the following conditions:
Poor connection at ECM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, imp

Page 1642 of 4264

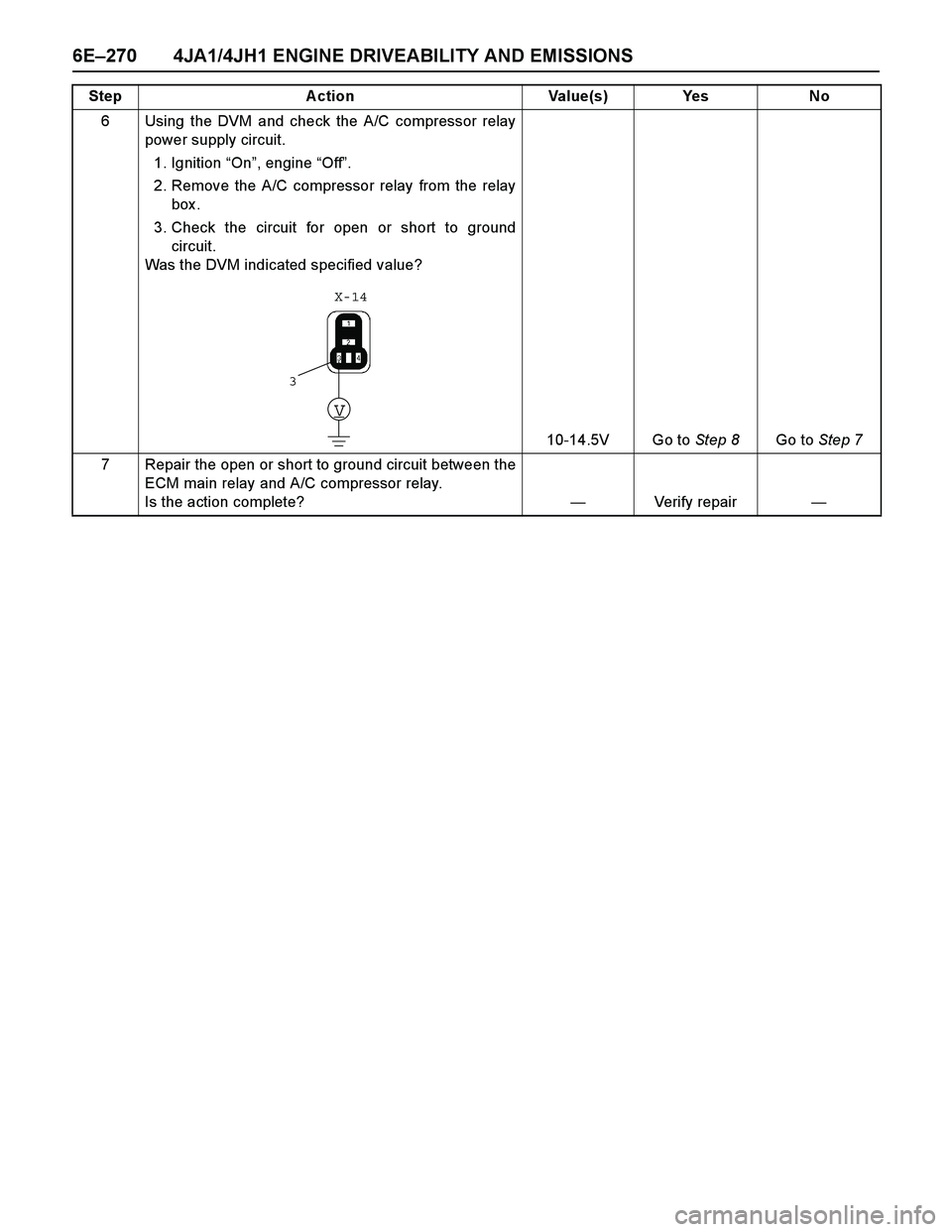

ISUZU TF SERIES 2004 Workshop Manual 6E–270 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
6 Using the DVM and check the A/C compressor relay
power supply circuit.
1. Ignition “On”, engine “Off”.
2. Remove the A/C compressor rel

Page 1643 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–271
8 Using the DVM and check the A/C compressor relay
ground circuit.
Breaker box is available:
1. Ignition “Off”, engine “Off”.
2. Install

Page 1644 of 4264

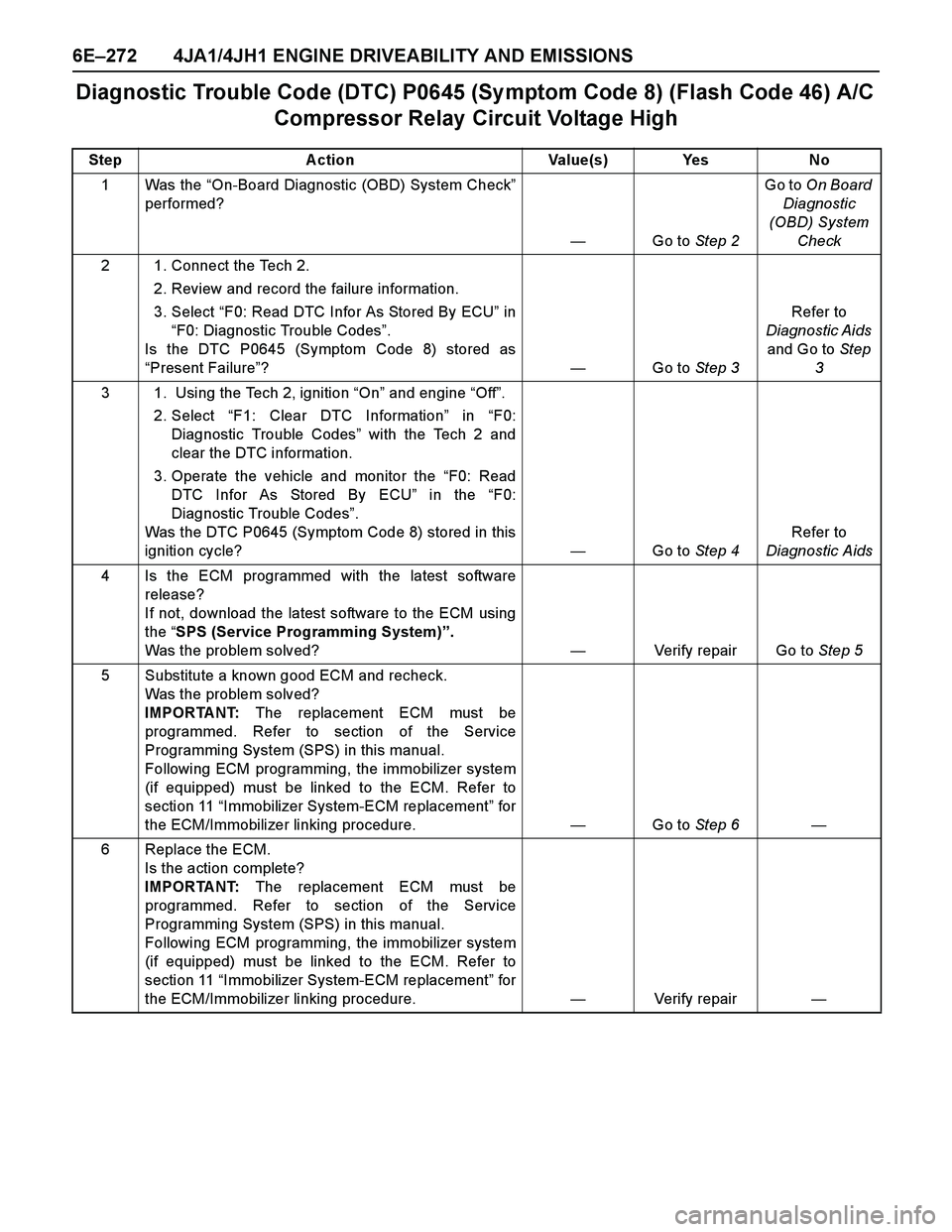

ISUZU TF SERIES 2004 Workshop Manual 6E–272 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0645 (Sy mptom Code 8) (Flash Code 46) A/C
Compressor Relay Circuit Voltage High
Step Action Value(s) Yes No
1Was

6E–272 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0645 (Sy mptom Code 8) (Flash Code 46) A/C
Compressor Relay Circuit Voltage High
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P0645 (Symptom Code 8) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P0645 (Symptom Code 8) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
4 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 5
5 Substitute a known good ECM and recheck.
Was the problem solved?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure. —Go to Step 6—
6 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair—

Page 1645 of 4264

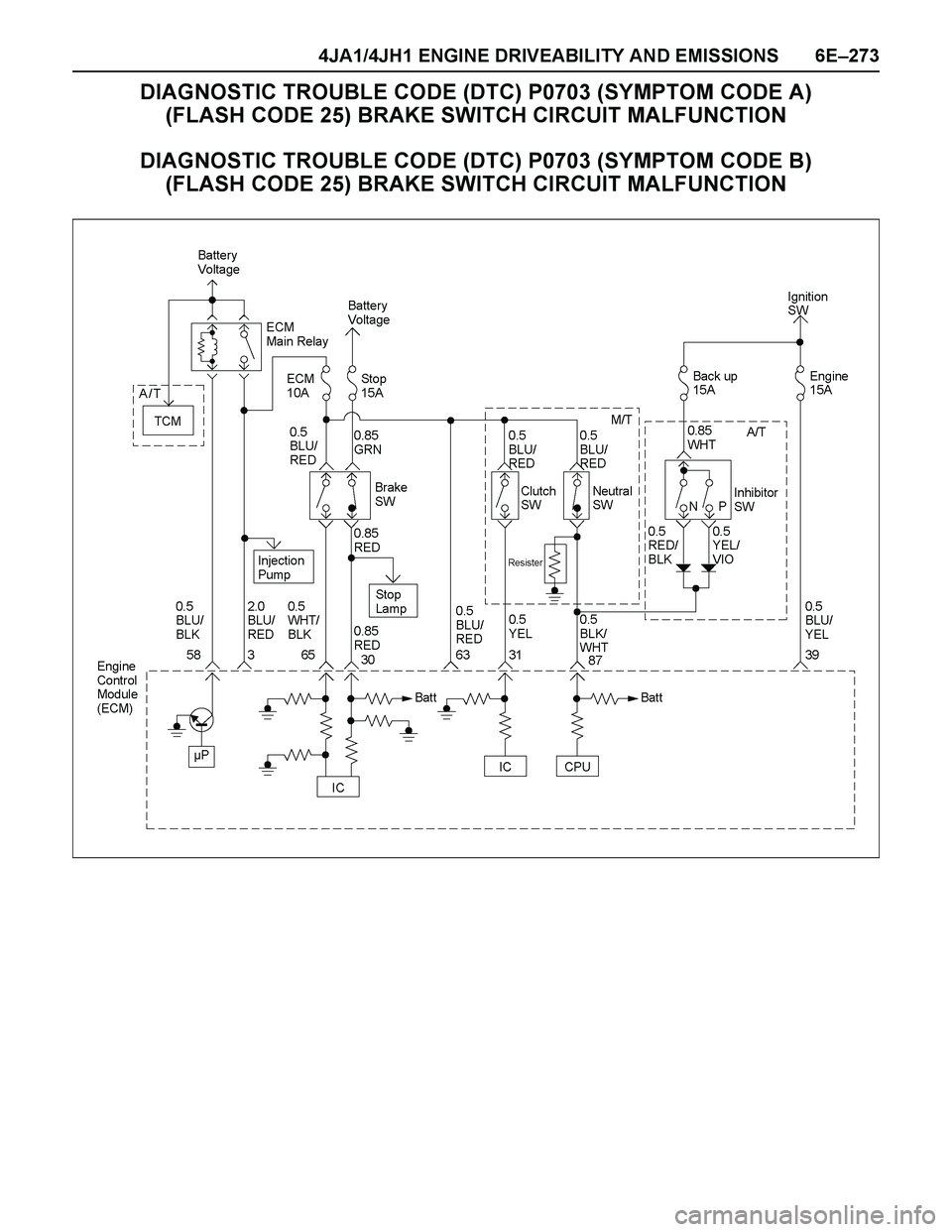

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–273
DIAGNOSTIC TROUBLE CODE (DTC) P0703 (SYMPTOM CODE A)
(FLASH CODE 25) BRAKE SWITCH CIRCUIT MALFUNCTION
DIAGNOSTIC TROUBLE CODE (DTC) P0703 (SYMPTOM

Page 1646 of 4264

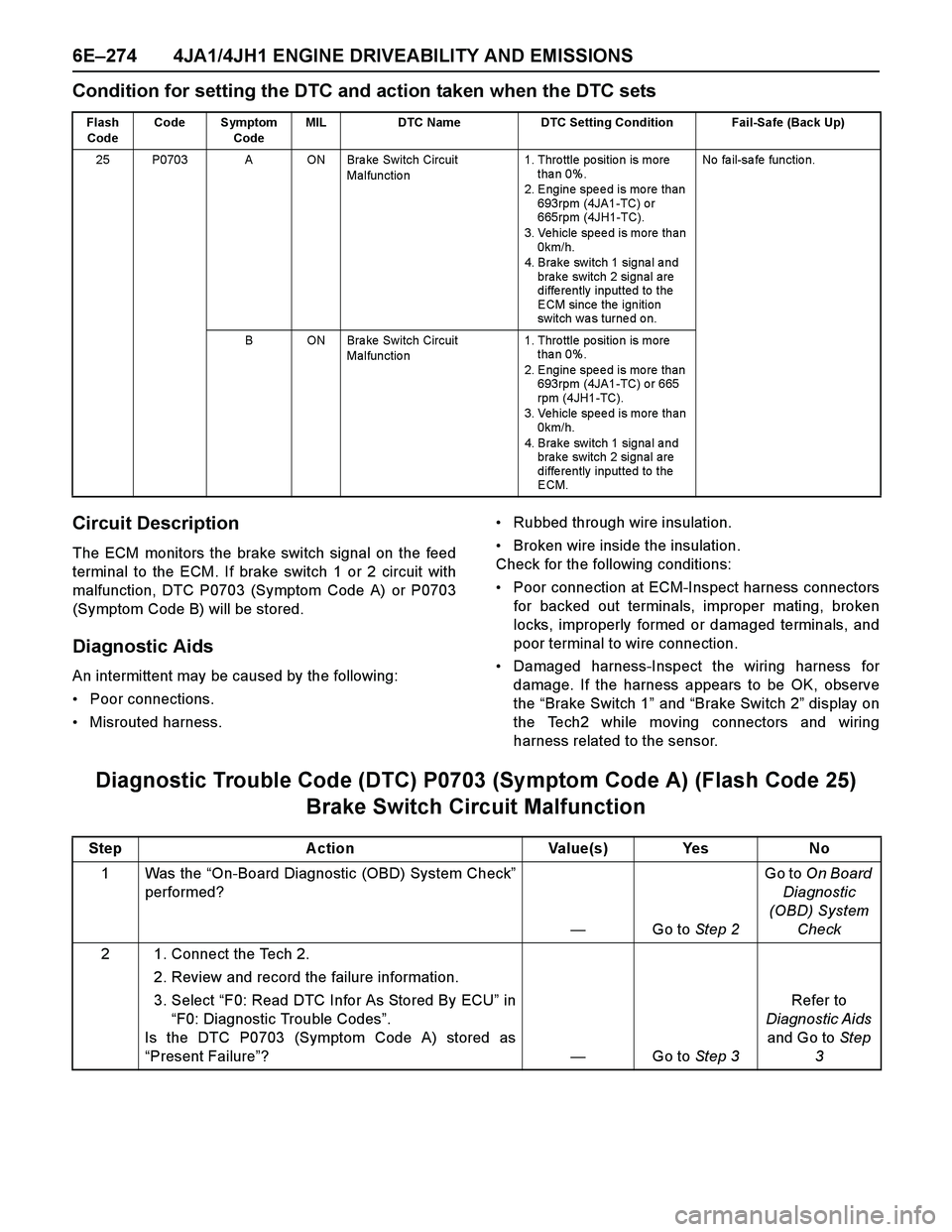

ISUZU TF SERIES 2004 Workshop Manual 6E–274 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
The ECM monitors the brake switch signal on the feed
terminal

6E–274 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
The ECM monitors the brake switch signal on the feed
terminal to the ECM. If brake switch 1 or 2 circuit with
malfunction, DTC P0703 (Symptom Code A) or P0703
(Symptom Code B) will be stored.
Diagnostic Aids
An intermittent may be caused by the following:
Poor connections.
Misrouted harness.Rubbed through wire insulation.
Broken wire inside the insulation.
Check for the following conditions:
Poor connection at ECM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal to wire connection.
Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe
the “Brake Switch 1” and “Brake Switch 2” display on
the Tech2 while moving connectors and wiring
harness related to the sensor.
Diagnostic Trouble Code (DTC) P0703 (Symptom Code A) (Flash Code 25)
Brake Switch Circuit Malfunction
Flash
CodeCode Symptom
CodeMIL DTC Name DTC Setting Condition Fail-Safe (Back Up)
25 P0703 A ON Bra ke Switch Circuit
Malfunctio n1. Thro ttle po sitio n is more
tha n 0%.
2. Engine speed is more than
693rpm (4JA1-TC) or
665rpm (4JH1-TC).
3. Vehicle speed is more than
0km/h.
4. Brake switch 1 signal and
brake switch 2 signal are
differently inputted to the
ECM since the ignition
sw it ch w a s tur ne d o n.No fa il-sa fe fun ctio n.
B ON Bra ke Switch Circuit
Malfunctio n1. Thro ttle po sitio n is more
tha n 0%.
2. Engine speed is more than
693rpm (4JA1-TC) or 665
rpm (4JH1-TC).
3. Vehicle speed is more than
0km/h.
4. Brake switch 1 signal and
brake switch 2 signal are
differently inputted to the
ECM.
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P0703 (Symptom Code A) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3

Page 1647 of 4264

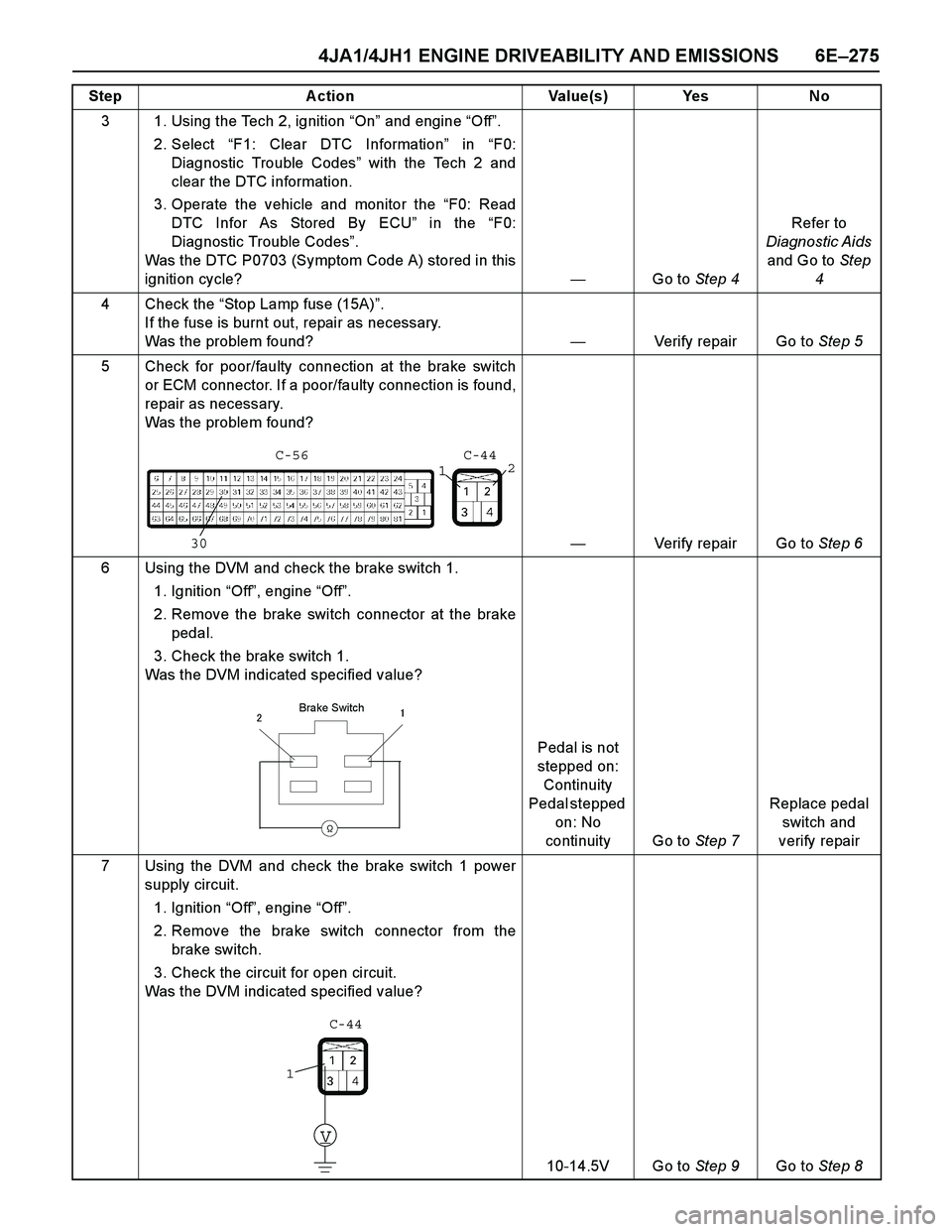

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–275
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” wit

Page 1648 of 4264

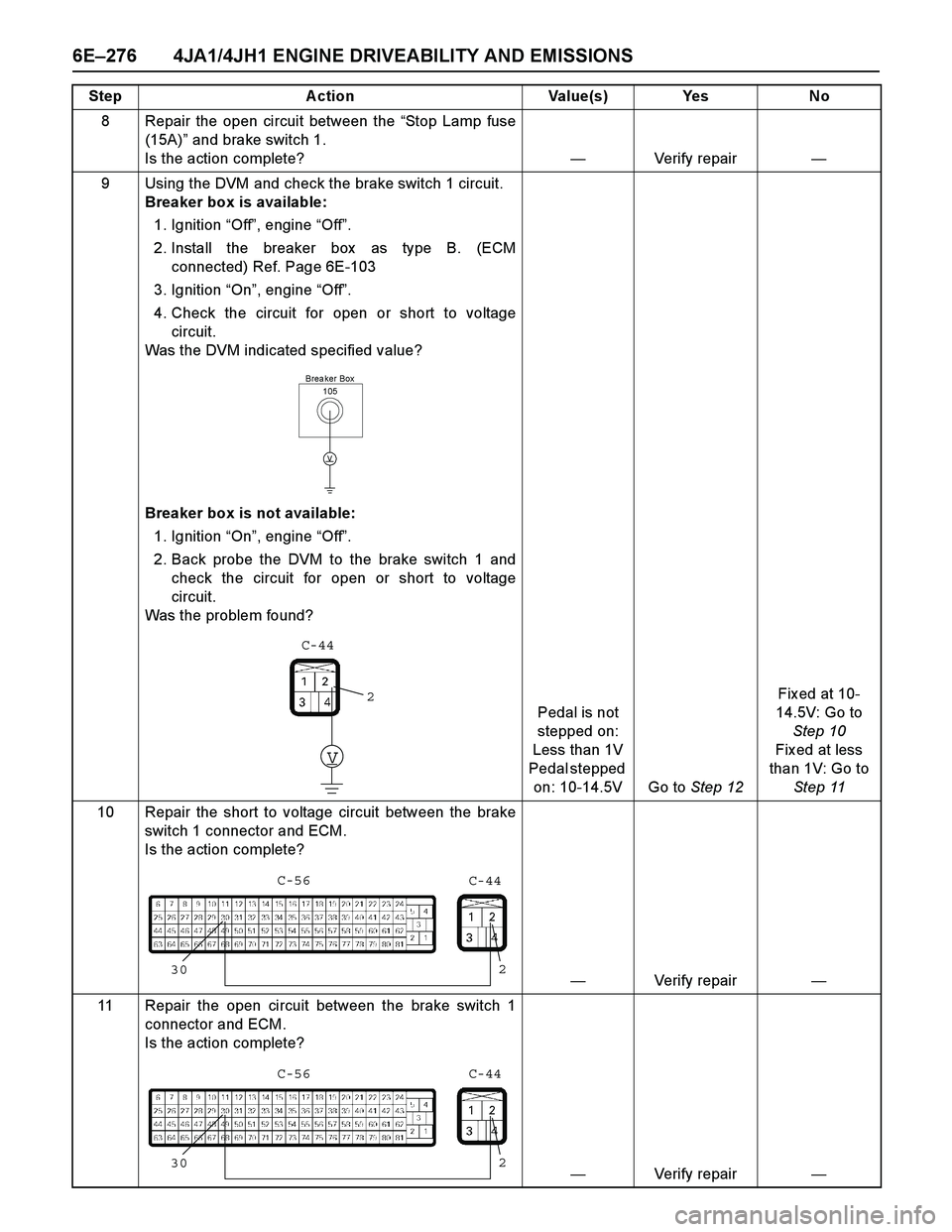

ISUZU TF SERIES 2004 Workshop Manual 6E–276 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
8 Repair the open circuit between the “Stop Lamp fuse
(15A)” and brake switch 1.
Is the action complete?—Verify repair—
9 Using the DVM an
