Page 1969 of 4264

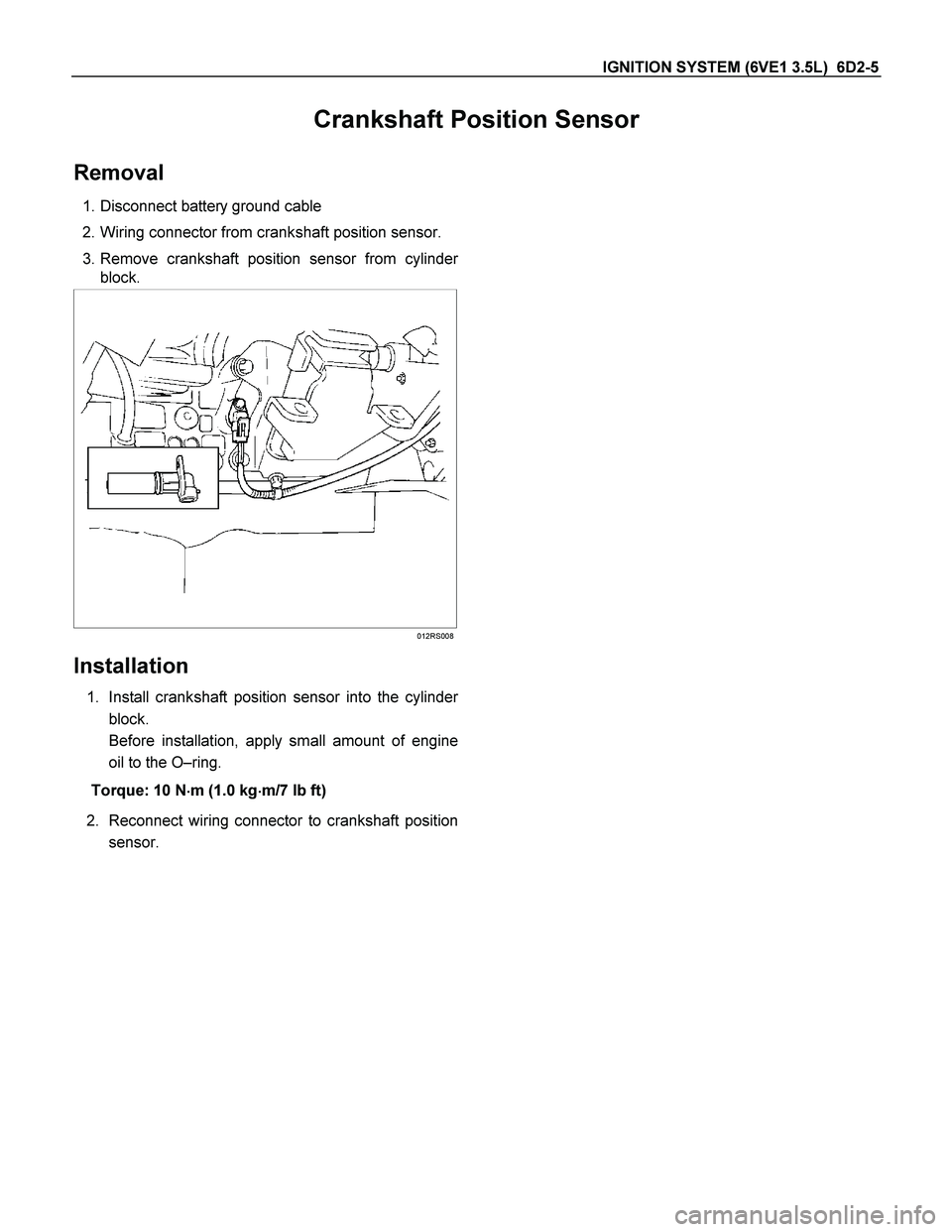

ISUZU TF SERIES 2004 Workshop Manual IGNITION SYSTEM (6VE1 3.5L) 6D2-5
Crankshaft Position Sensor
Removal
1. Disconnect battery ground cable
2. Wiring connector from crankshaft position sensor.
3. Remove crankshaft position sen

Page 1970 of 4264

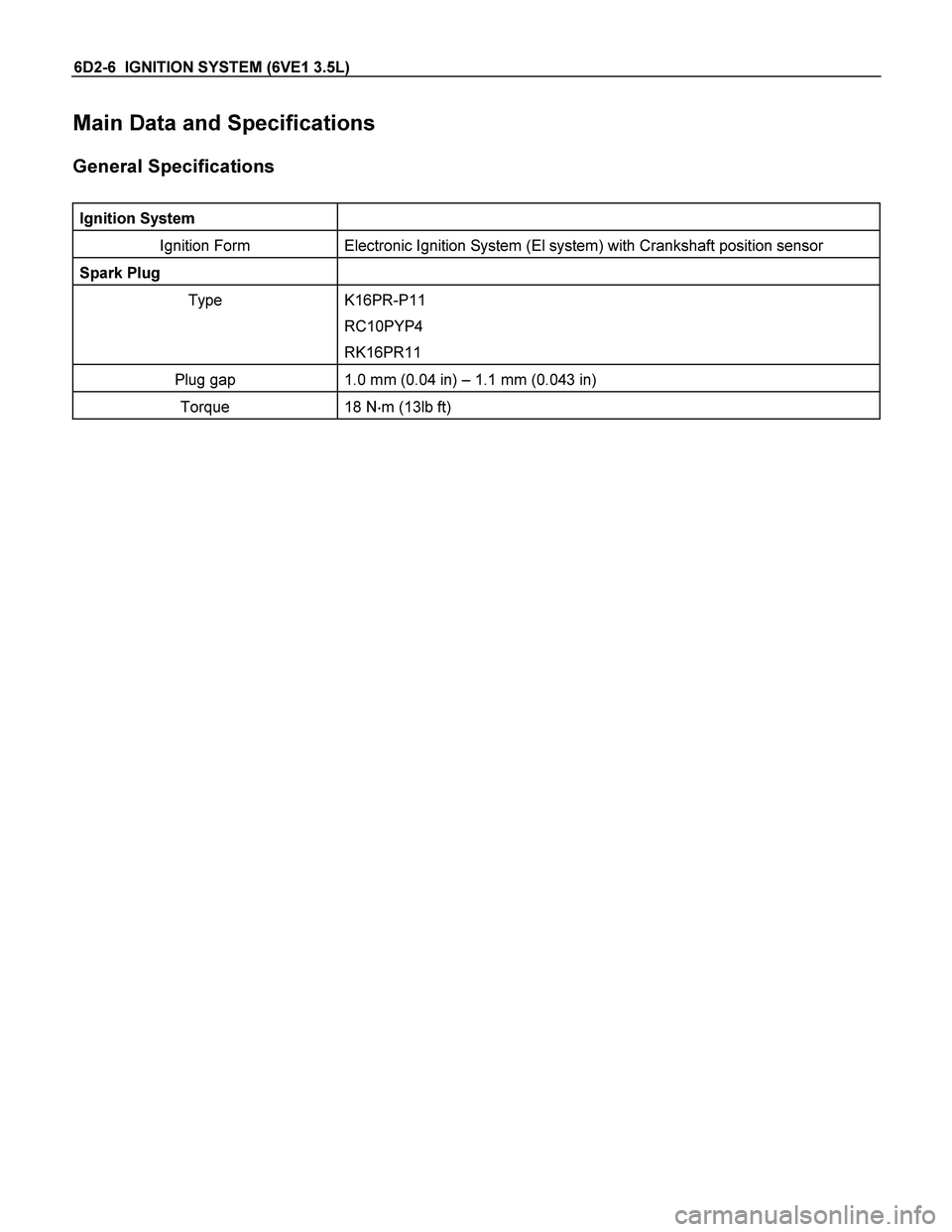

ISUZU TF SERIES 2004 Workshop Manual 6D2-6 IGNITION SYSTEM (6VE1 3.5L)
Main Data and Specifications
General Specifications

Ignition System
Ignition Form Electronic Ignition System (El system) with Crankshaft position sensor
Spa

Page 1971 of 4264

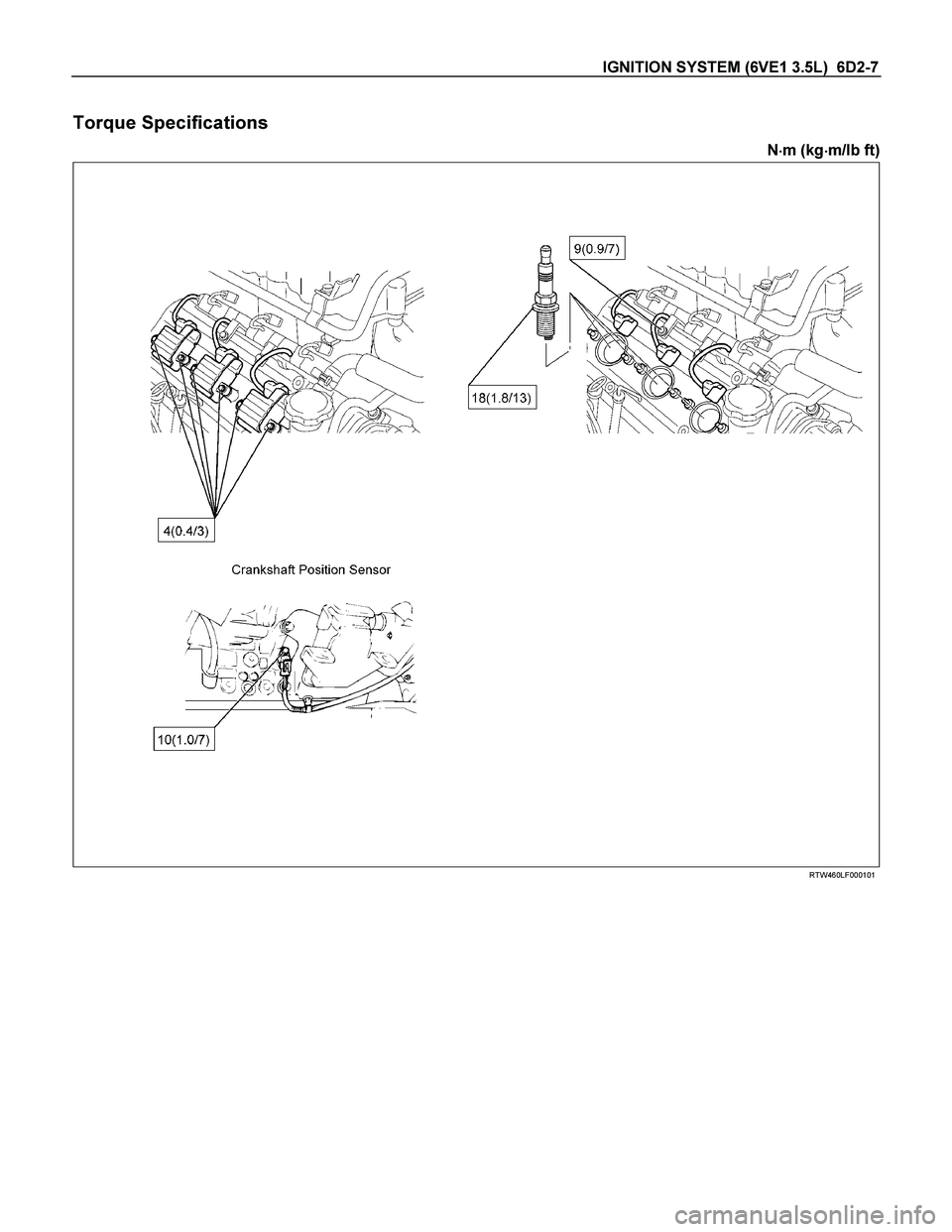

ISUZU TF SERIES 2004 Workshop Manual IGNITION SYSTEM (6VE1 3.5L) 6D2-7
Torque Specifications
N
m (kg
m/lb ft)

RTW460LF000101

Page 1972 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6D2-8 IGNITION SYSTEM (6VE1 3.5L)
MEMO

Page 1973 of 4264

ISUZU TF SERIES 2004 Workshop Manual STARTING AND CHARGING SYSTEM (6VE1 3.5L) 6D3-1
ENGINE
STARTING AND CHARGING SYSTEM (6VE1 3.5L)
CONTENTS

Service Precaution................................................. 6D3-1
Starting Syste

STARTING AND CHARGING SYSTEM (6VE1 3.5L) 6D3-1
ENGINE
STARTING AND CHARGING SYSTEM (6VE1 3.5L)
CONTENTS

Service Precaution................................................. 6D3-1
Starting System...................................................... 6D3-2
General Description............................................... 6D3-2
Diagnosis................................................................. 6D3-4
Starter...................................................................... 6D3-5
Removal............................................................... 6D3-5
Installation............................................................ 6D3-5
Disassembled View............................................ 6D3-6
Disassembly........................................................ 6D3-7
Inspection and Repair........................................ 6D3-9
Reassembly.........................................................6D3-12
Main Data and Specifications............................6D3-13
Charging System....................................................6D3-15
General Description................................................6D3-15
General On-Vehicle Inspection.............................6D3-15
Generator.................................................................6D3-16
Removal................................................................6D3-16
Inspection.............................................................6D3-16
Installation.............................................................6D3-16
Disassembled View.............................................6D3-17
Disassembly.........................................................6D3-17
Inspection and Repair.........................................6D3-20
Reassembly..........................................................6D3-22
Bench Test...........................................................6D3-22
Main Data and Specifications................................6D3-23

Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFE
R
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, o
r
other corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

Page 1974 of 4264

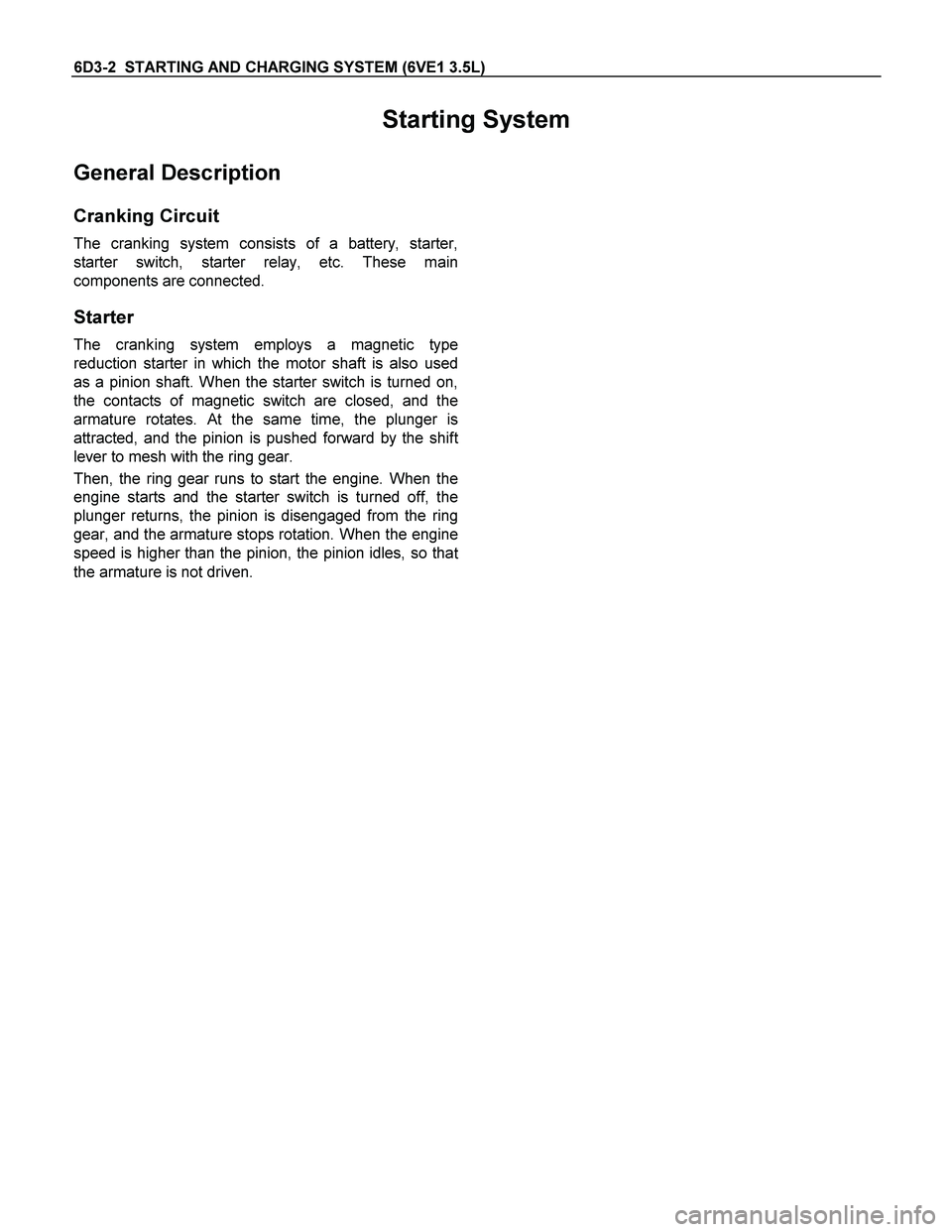

ISUZU TF SERIES 2004 Workshop Manual 6D3-2 STARTING AND CHARGING SYSTEM (6VE1 3.5L)
Starting System
General Description
Cranking Circuit
The cranking system consists of a battery, starter,
starter switch, starter relay, etc. These m

Page 1975 of 4264

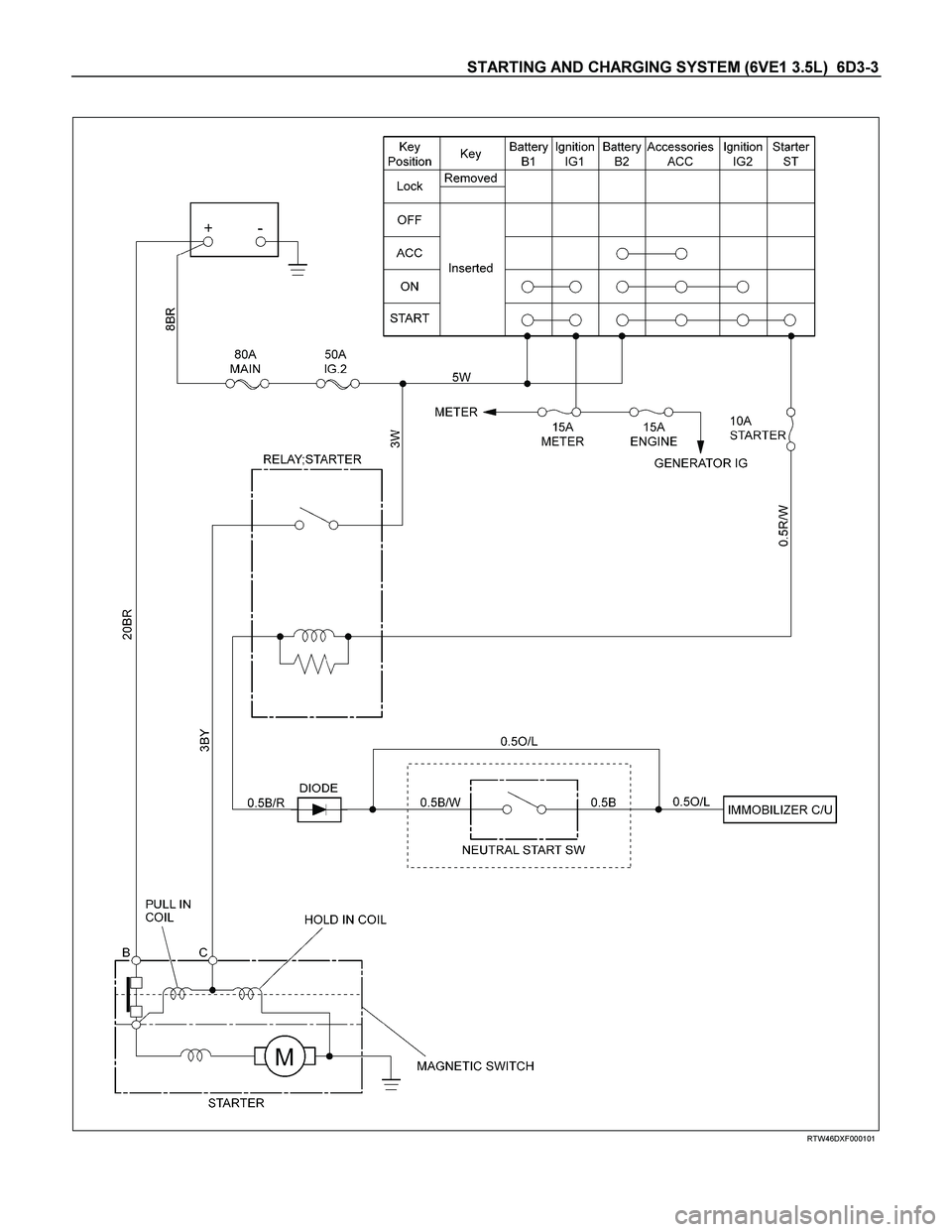

ISUZU TF SERIES 2004 Workshop Manual STARTING AND CHARGING SYSTEM (6VE1 3.5L) 6D3-3

RTW46DXF000101

Page 1976 of 4264

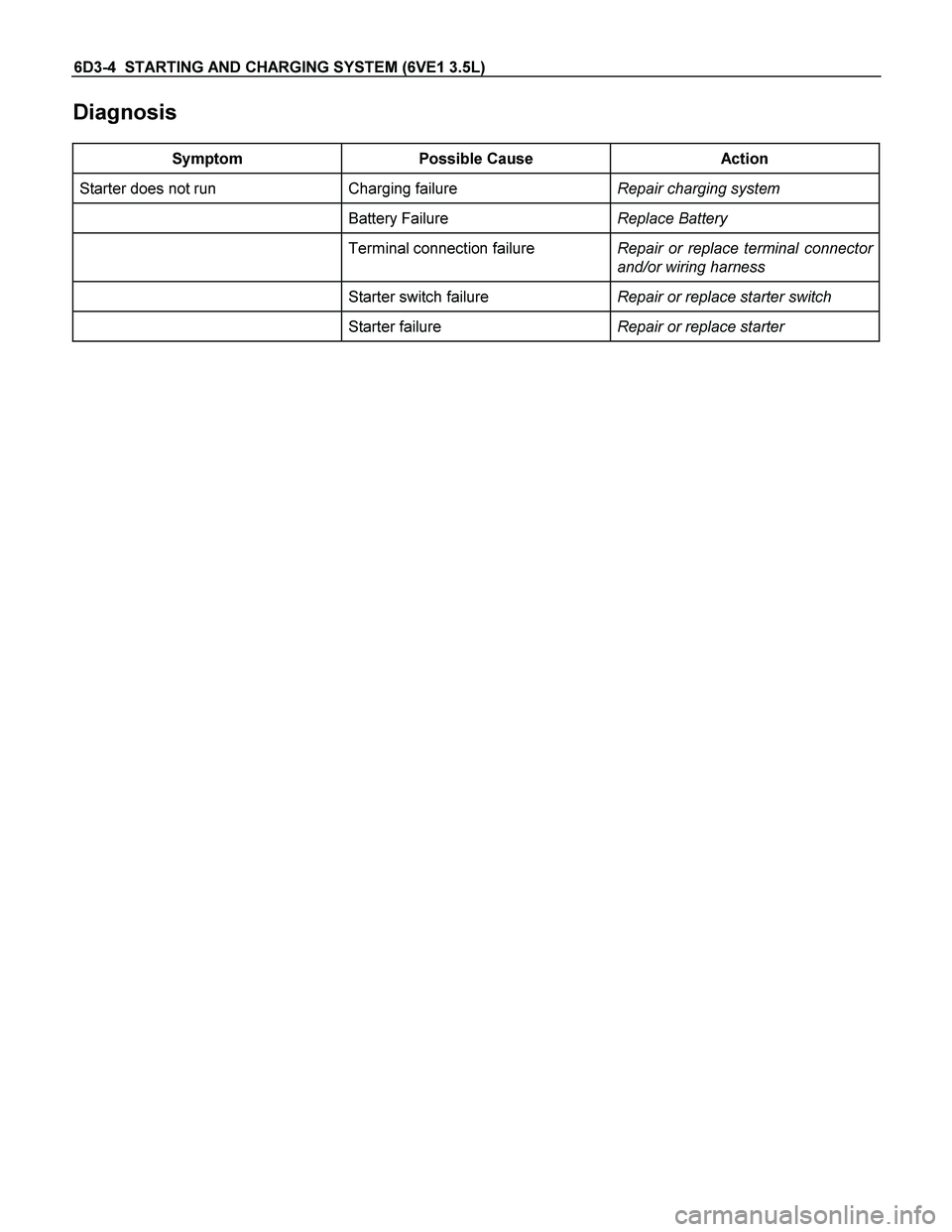

ISUZU TF SERIES 2004 Workshop Manual 6D3-4 STARTING AND CHARGING SYSTEM (6VE1 3.5L)
Diagnosis

Symptom Possible Cause Action
Starter does not run Charging failure Repair charging system
Battery Failure Replace Battery
Terminal
