Page 1913 of 4264

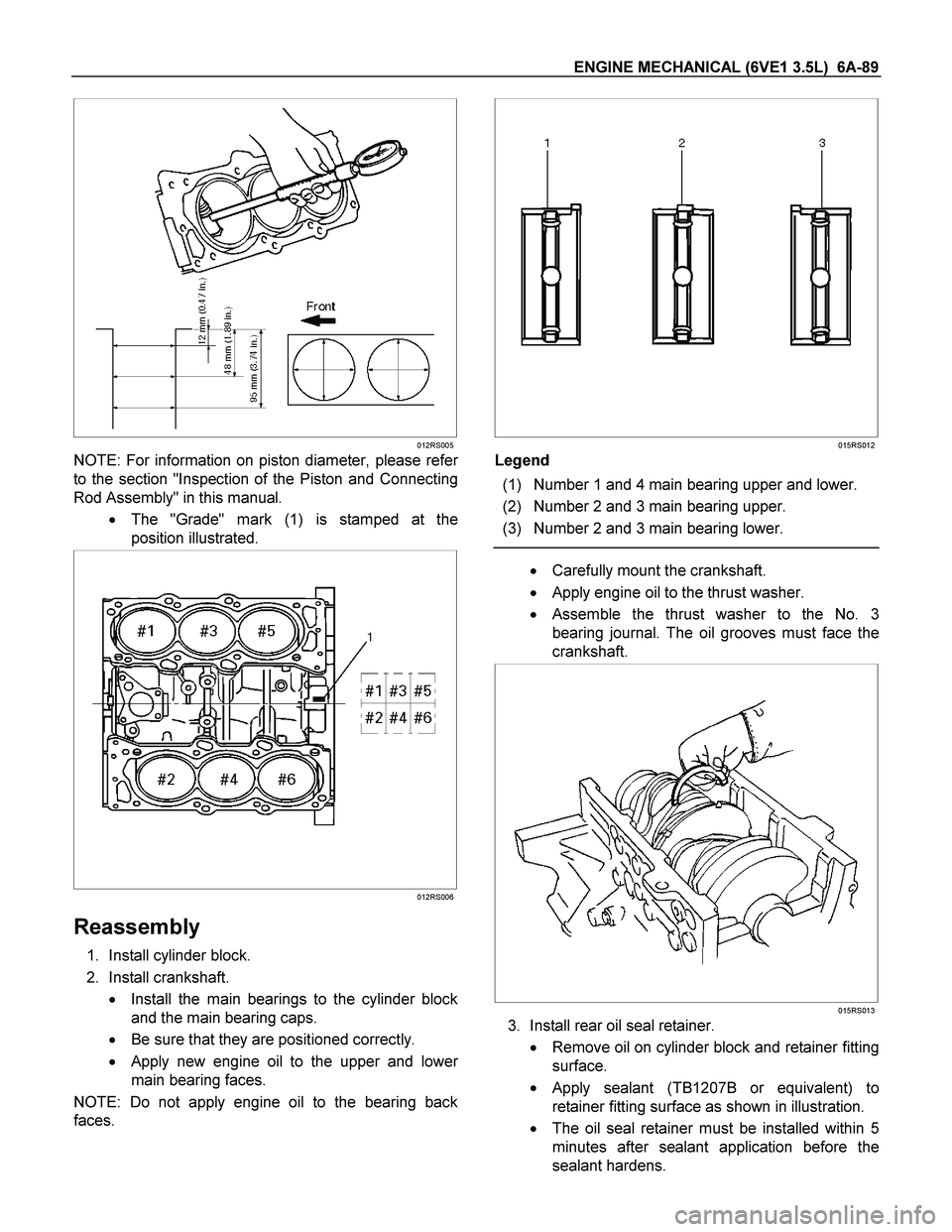

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-89 012RS005 NOTE: For information on piston diameter, please refer to the section "Inspection of the Piston and Connecting Rod Assembly" in this manual.  The

Page 1914 of 4264

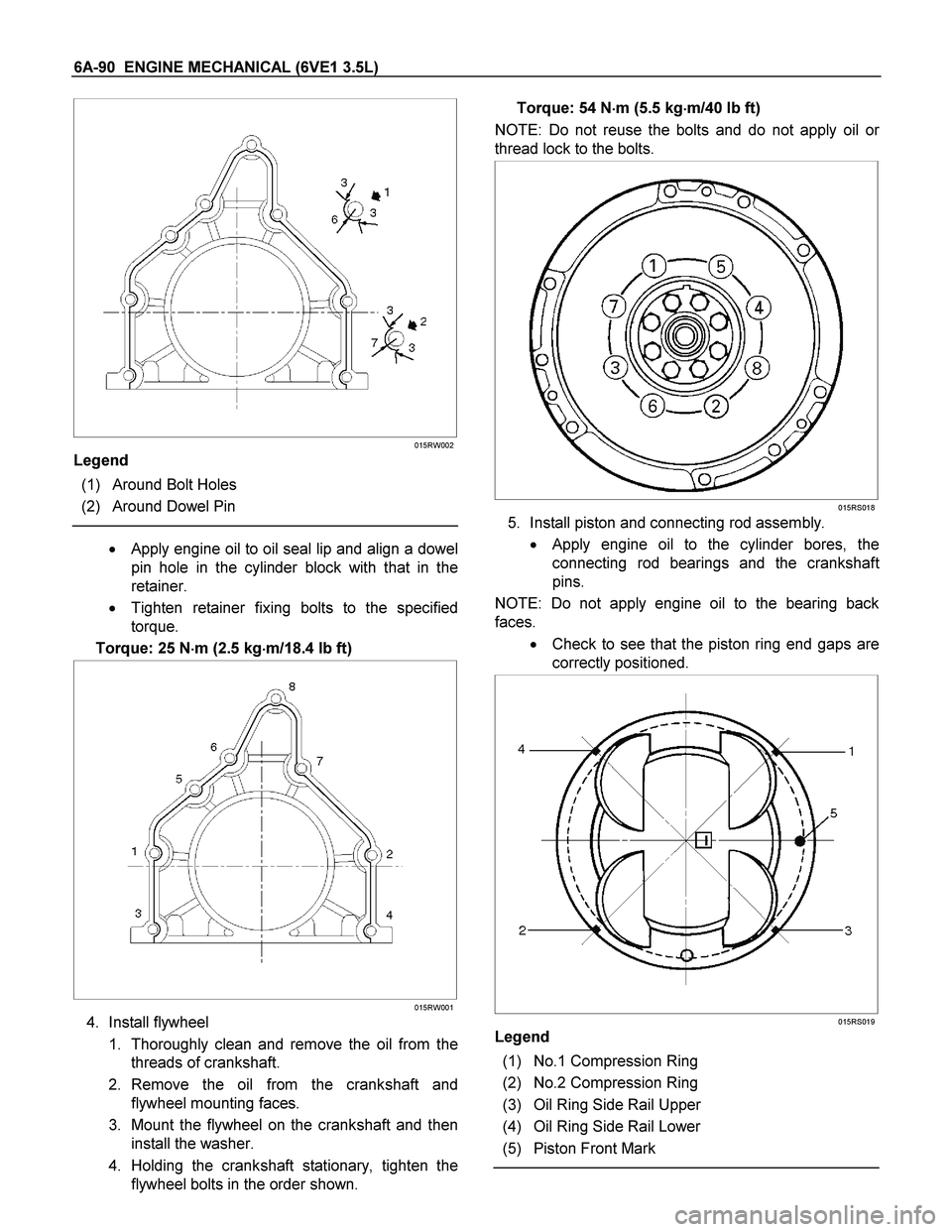

ISUZU TF SERIES 2004 Workshop Manual 6A-90 ENGINE MECHANICAL (6VE1 3.5L) 015RW002 Legend (1) Around Bolt Holes (2) Around Dowel Pin  Apply engine oil to oil seal lip and align a dowel pin hole in the cylinder block wit

Page 1915 of 4264

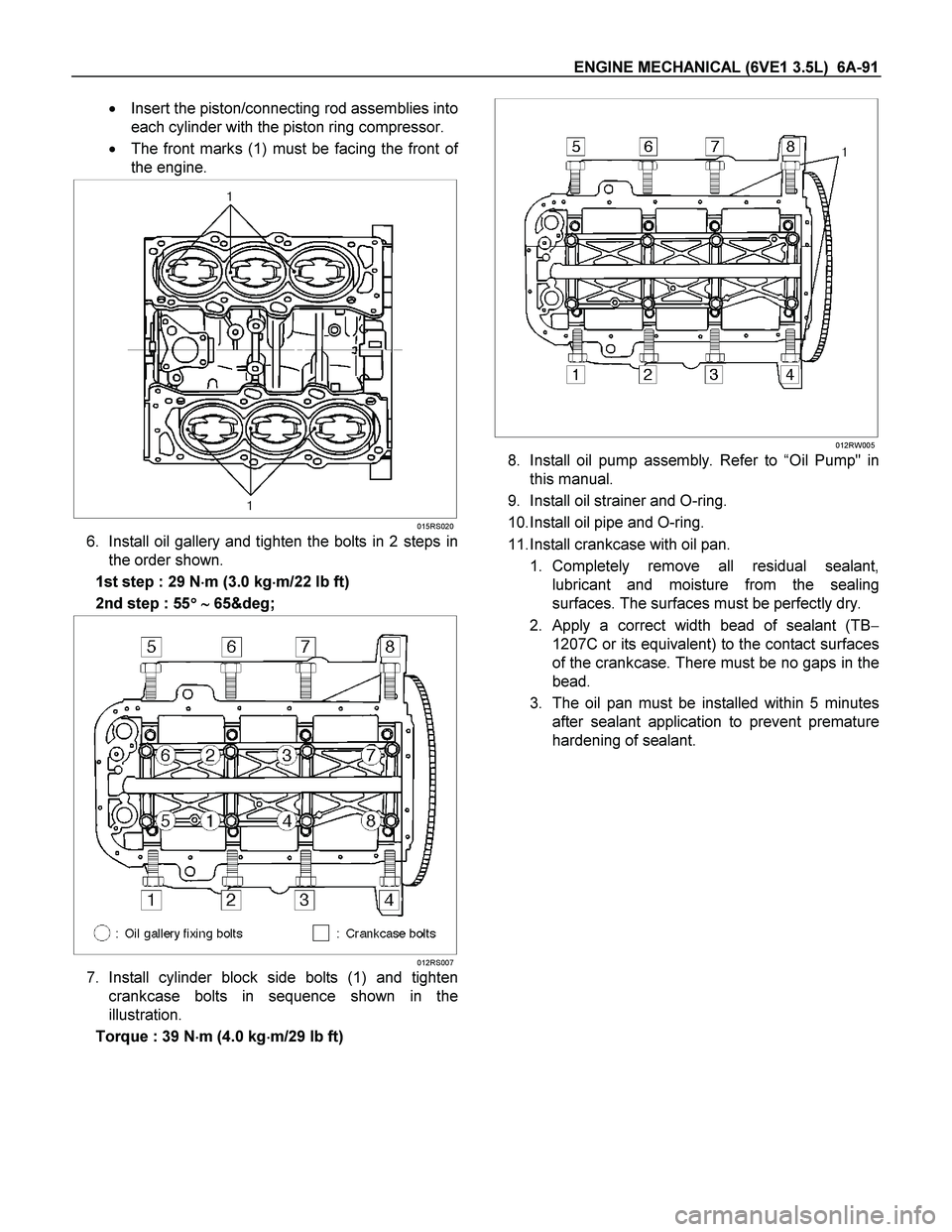

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-91  Insert the piston/connecting rod assemblies into each cylinder with the piston ring compressor.  The front marks (1) must be facing the front o f the engine.

Page 1916 of 4264

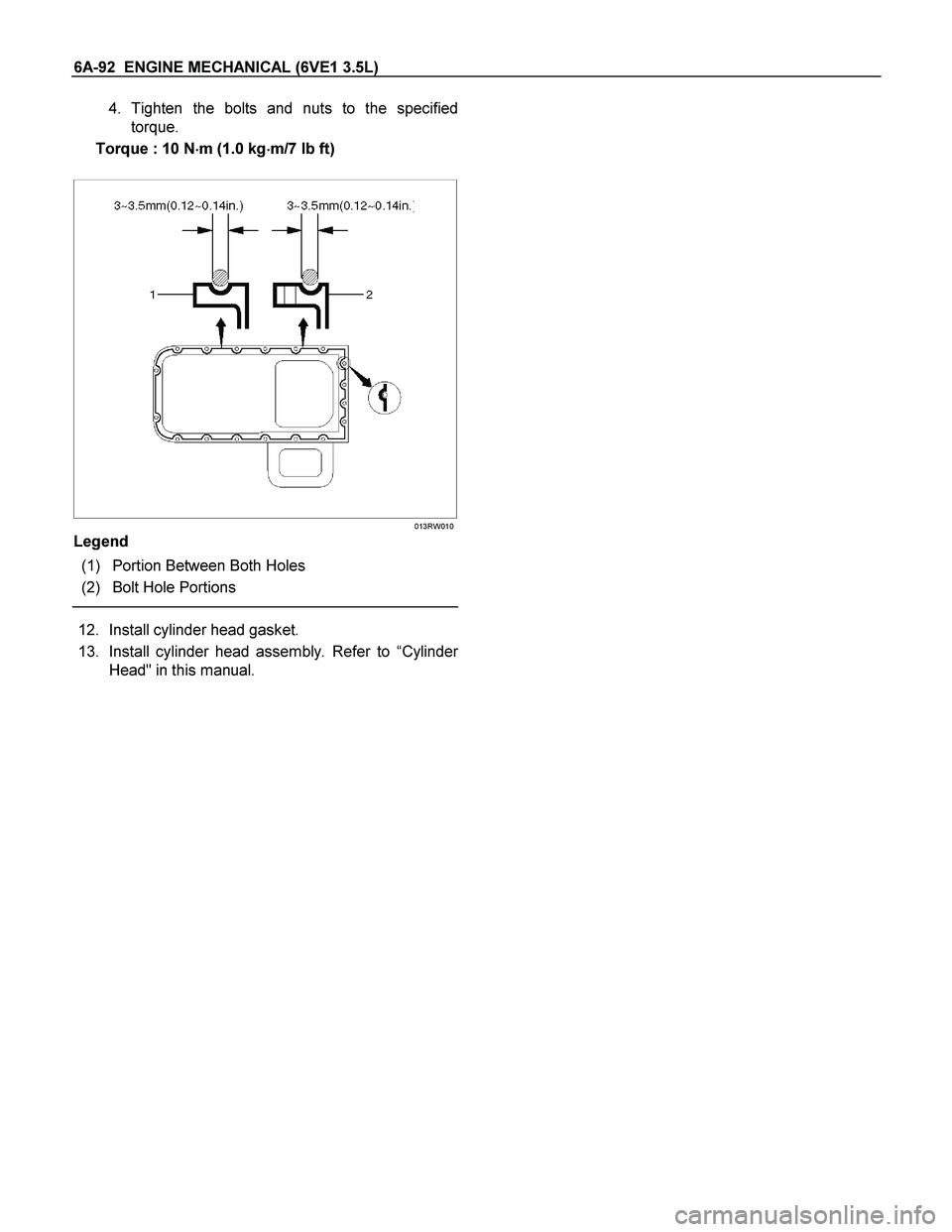

ISUZU TF SERIES 2004 Workshop Manual 6A-92 ENGINE MECHANICAL (6VE1 3.5L) 4. Tighten the bolts and nuts to the specified torque. Torque : 10 N  m (1.0 kg  m/7 lb ft) 013RW010 Legend (1) Portion Between Both Holes

Page 1917 of 4264

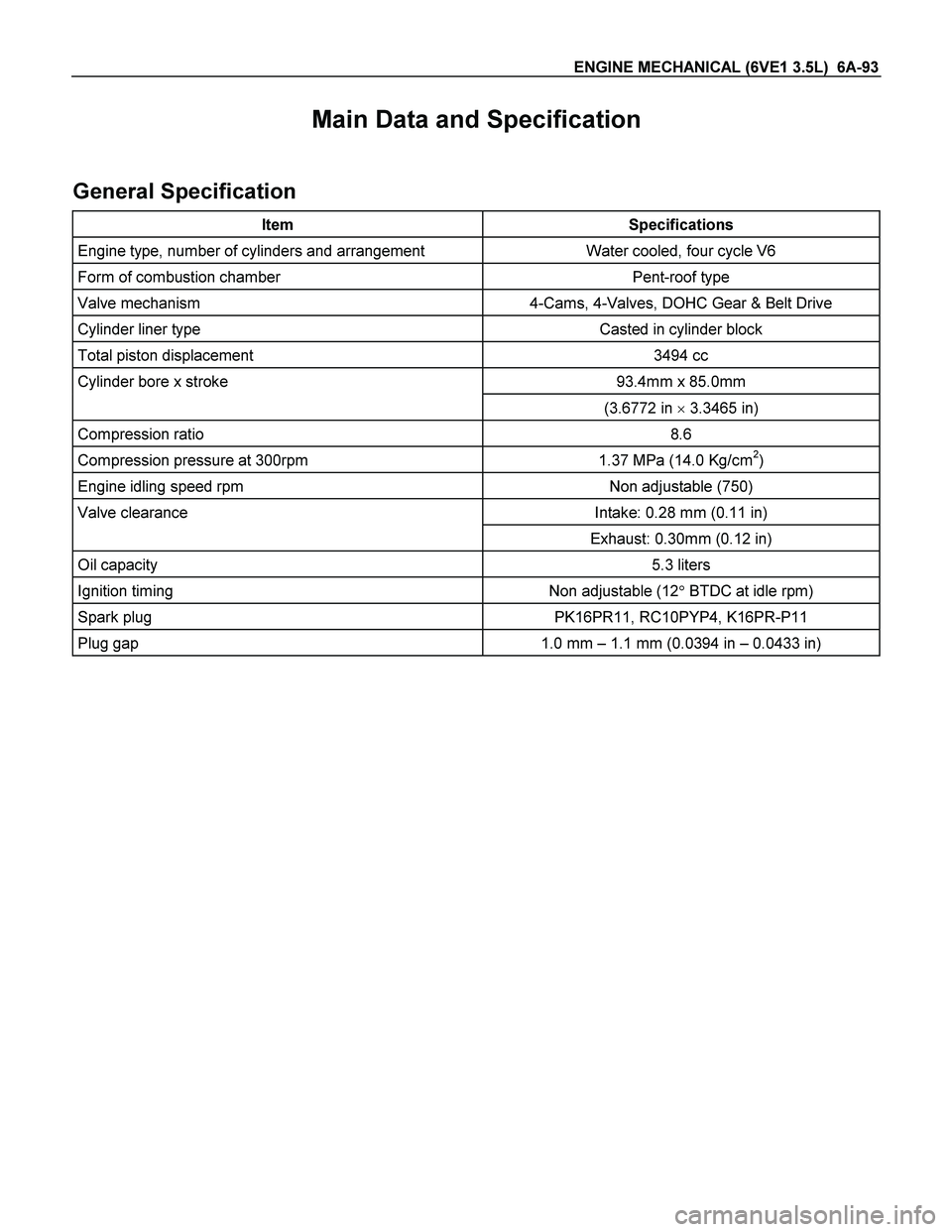

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-93 Main Data and Specification General Specification Item Specifications Engine type, number of cylinders and arrangement Water cooled, four cycle V6 Form of

Page 1918 of 4264

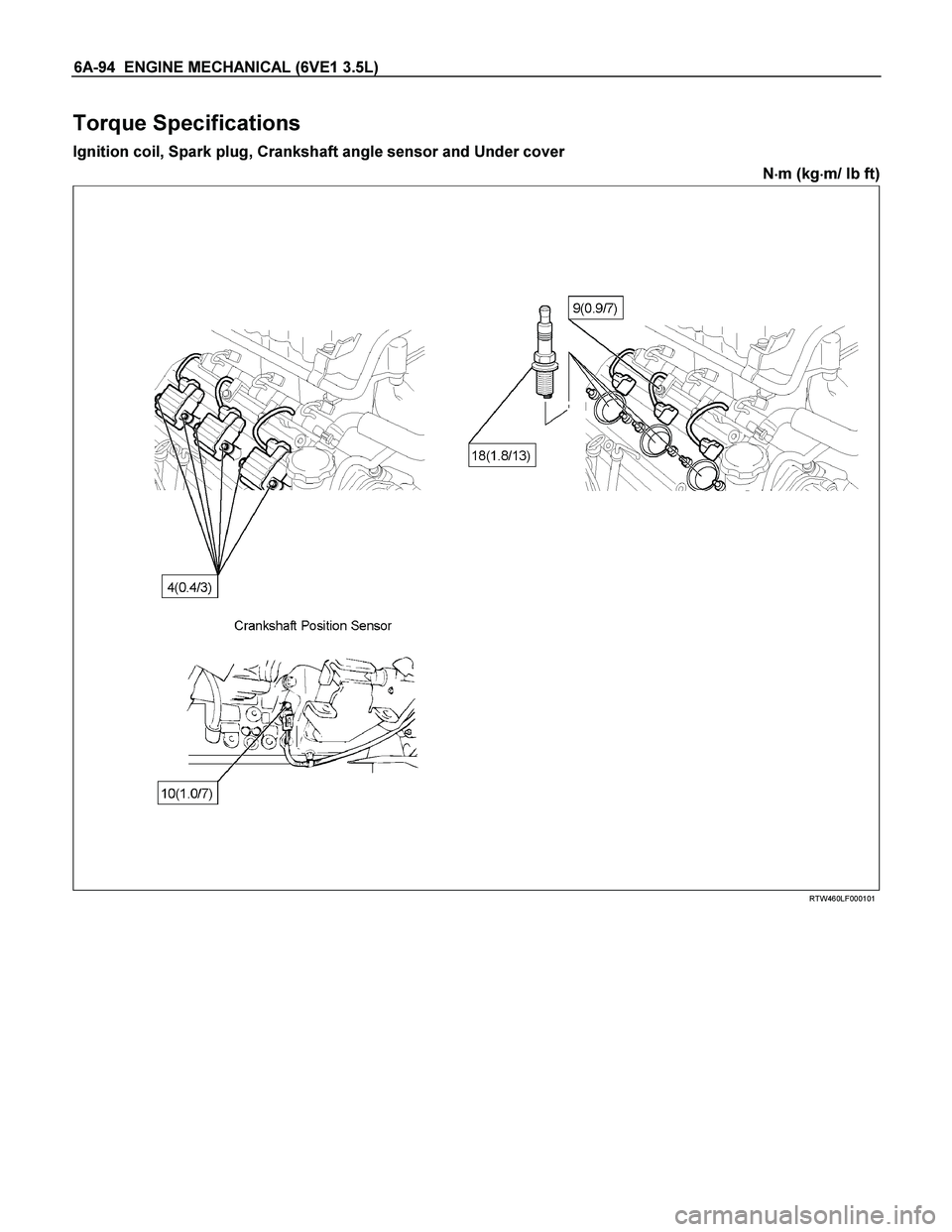

ISUZU TF SERIES 2004 Workshop Manual 6A-94 ENGINE MECHANICAL (6VE1 3.5L) Torque Specifications Ignition coil, Spark plug, Crankshaft angle sensor and Under cover N  m (kg  m/ lb ft) RTW460LF000101

Page 1919 of 4264

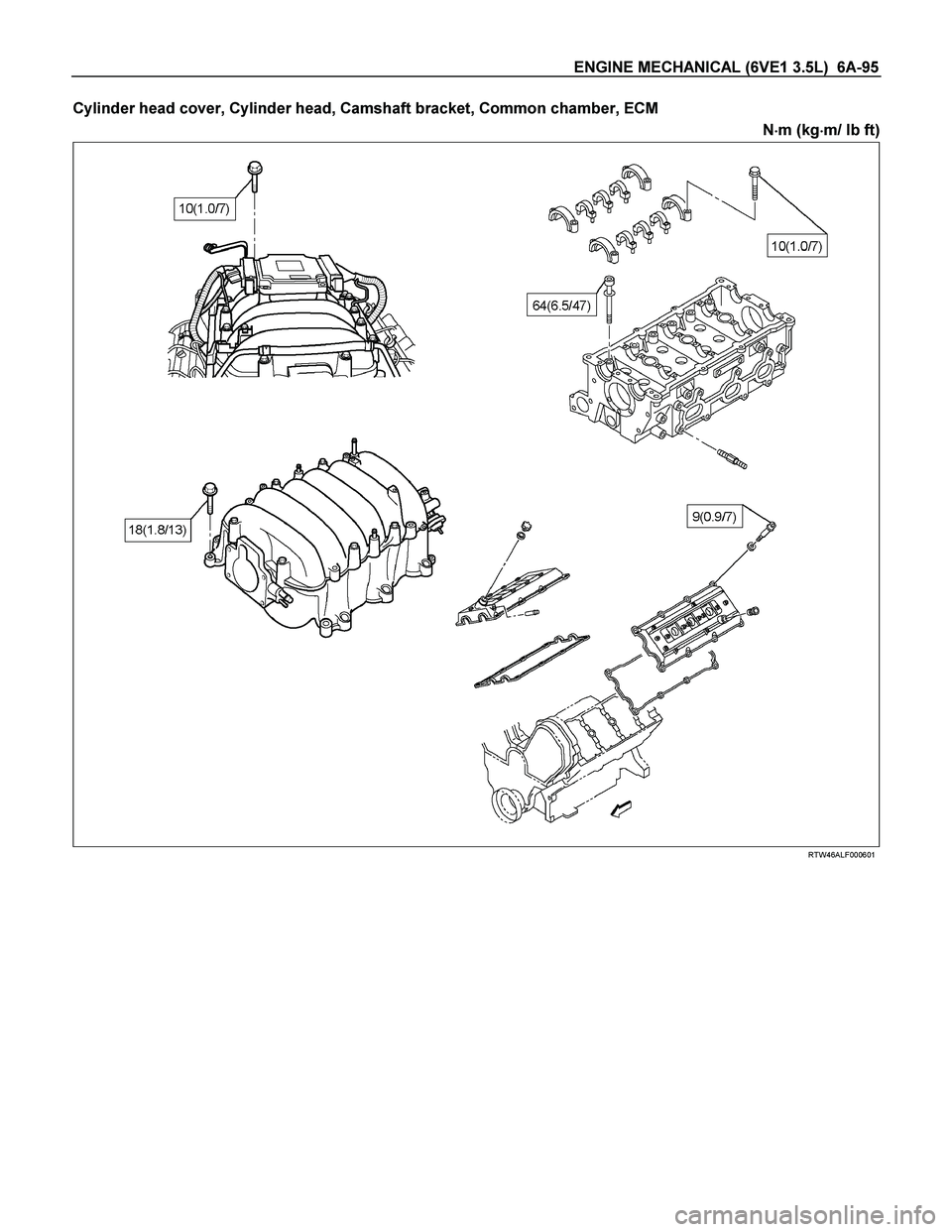

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-95 Cylinder head cover, Cylinder head, Camshaft bracket, Common chamber, ECM N  m (kg  m/ lb ft) RTW46ALF000601

Page 1920 of 4264

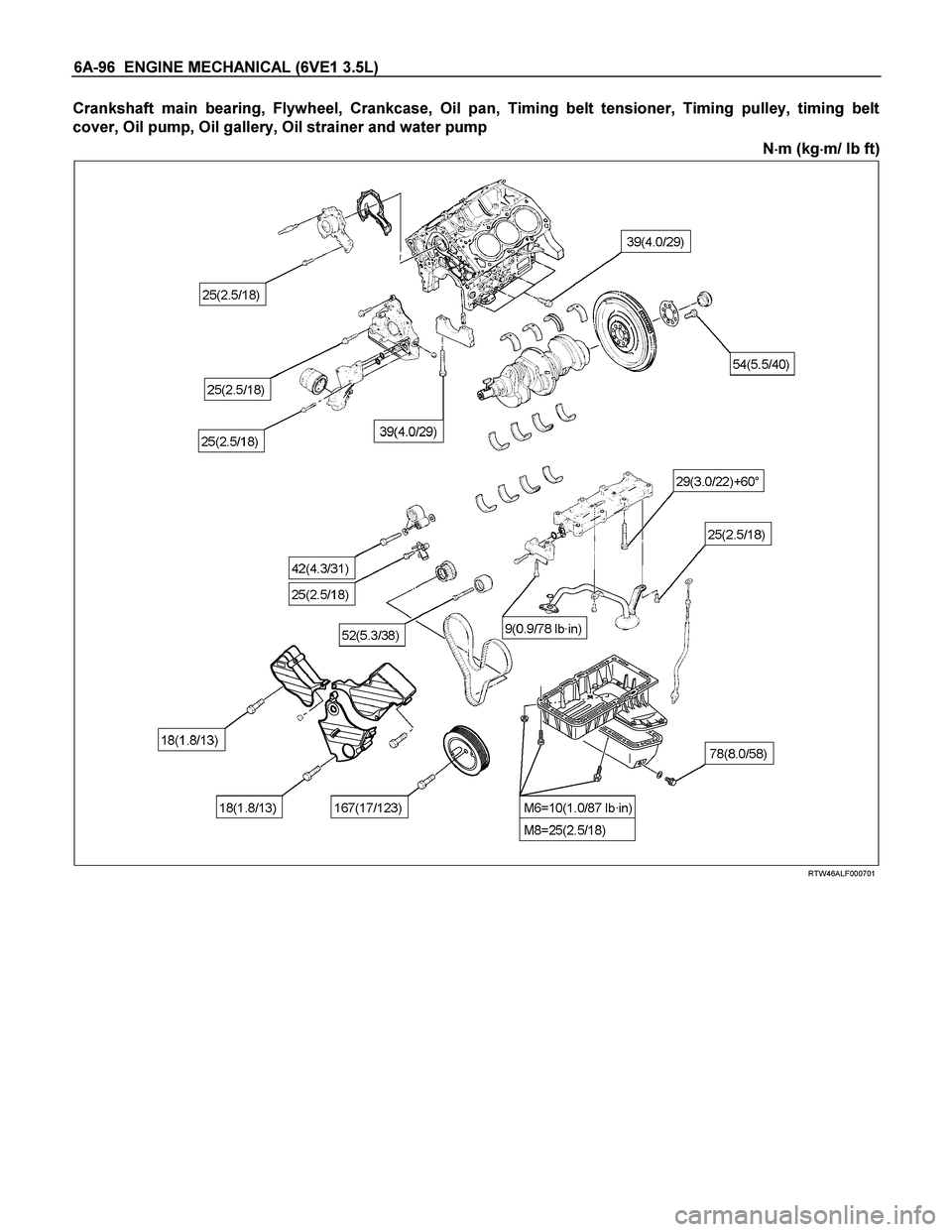

ISUZU TF SERIES 2004 Workshop Manual 6A-96 ENGINE MECHANICAL (6VE1 3.5L) Crankshaft main bearing, Flywheel, Crankcase, Oil pan, Timing belt tensioner, Timing pulley, timing belt cover, Oil pump, Oil gallery, Oil strainer and water pum
