Page 3577 of 4264

ISUZU TF SERIES 2004 Workshop Manual WHEELS AND TIRES 3E-5 TIRE PRESSURE LABEL (LOCATION : DRIVERS DOOR OR FRAME OF DRIVERS DOOR) 4  2 Except HIGH RIDE SUS SEE OWNERS AND DRIVERS MANUAL FOR ADDITIONAL INFORMATION 4  2

Page 3578 of 4264

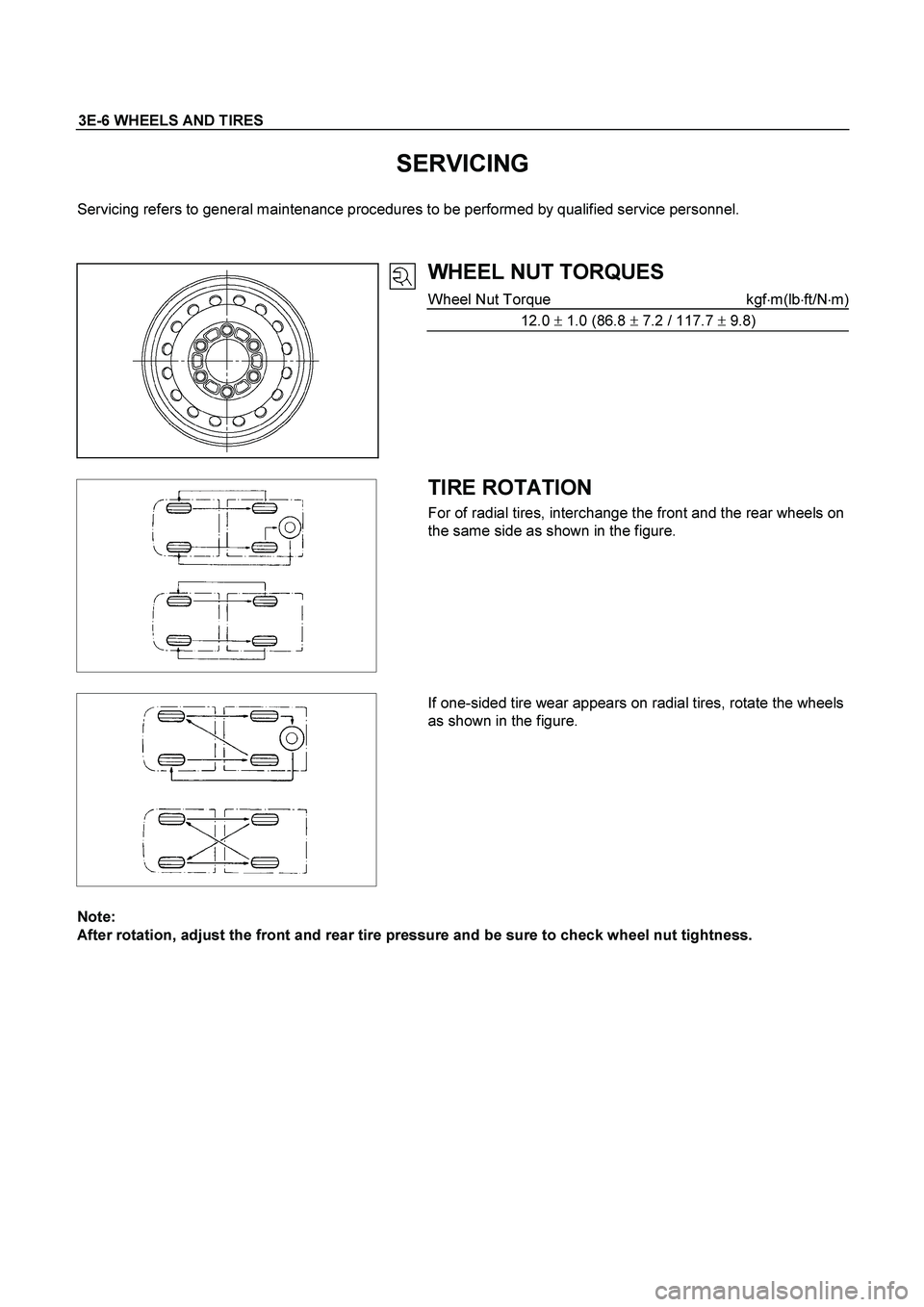

ISUZU TF SERIES 2004 Workshop Manual 3E-6 WHEELS AND TIRES SERVICING Servicing refers to general maintenance procedures to be performed by qualified service personnel. WHEEL NUT TORQUES Wheel Nut Torque kgfm(lbft/Nm)

Page 3579 of 4264

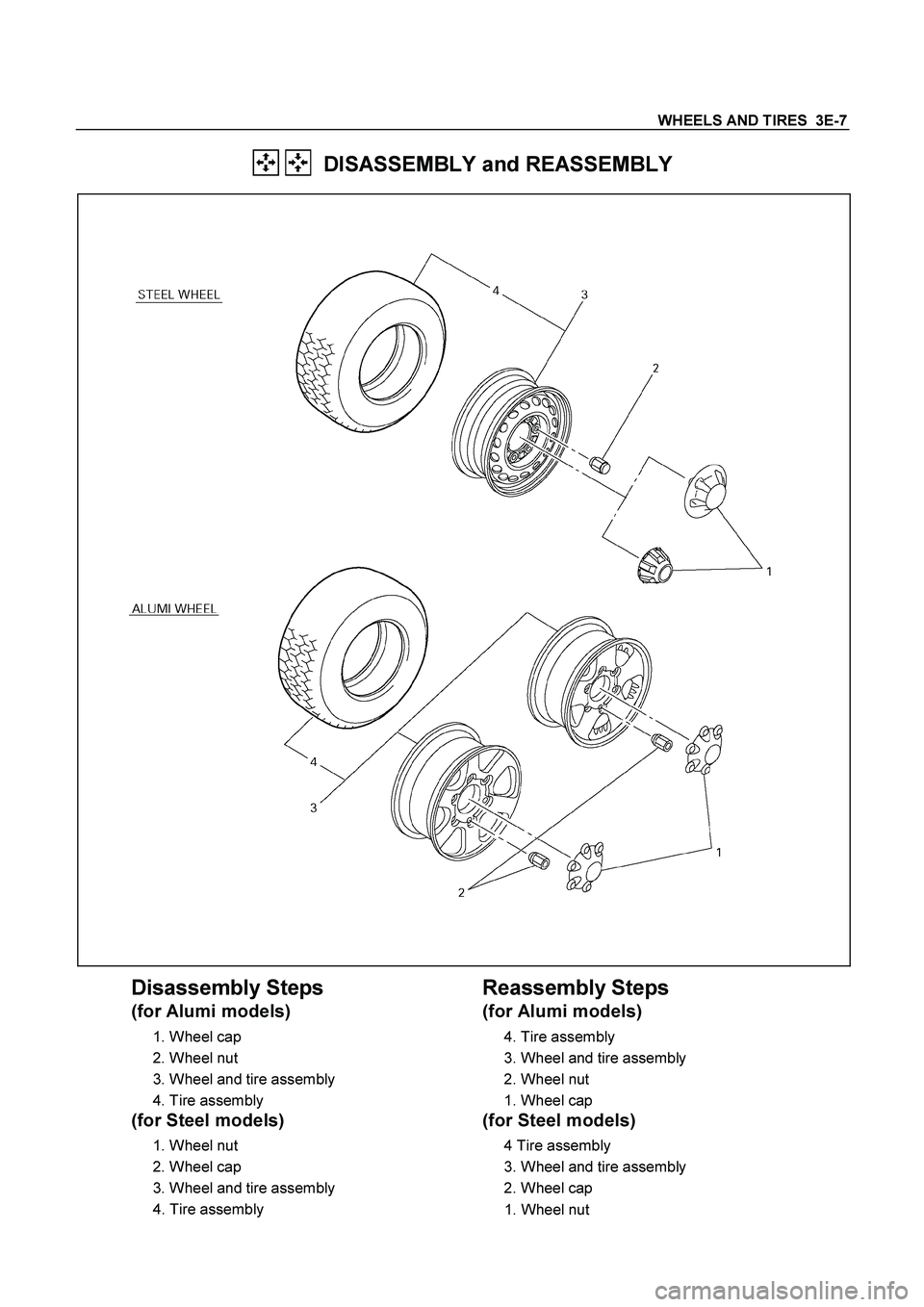

ISUZU TF SERIES 2004 Workshop Manual WHEELS AND TIRES 3E-7 DISASSEMBLY and REASSEMBLY Disassembly Steps (for Alumi models) 1. Wheel cap 2. Wheel nut 3. Wheel and tire assembly 4. Tire assembly (for Steel models) 1. Whee

Page 3580 of 4264

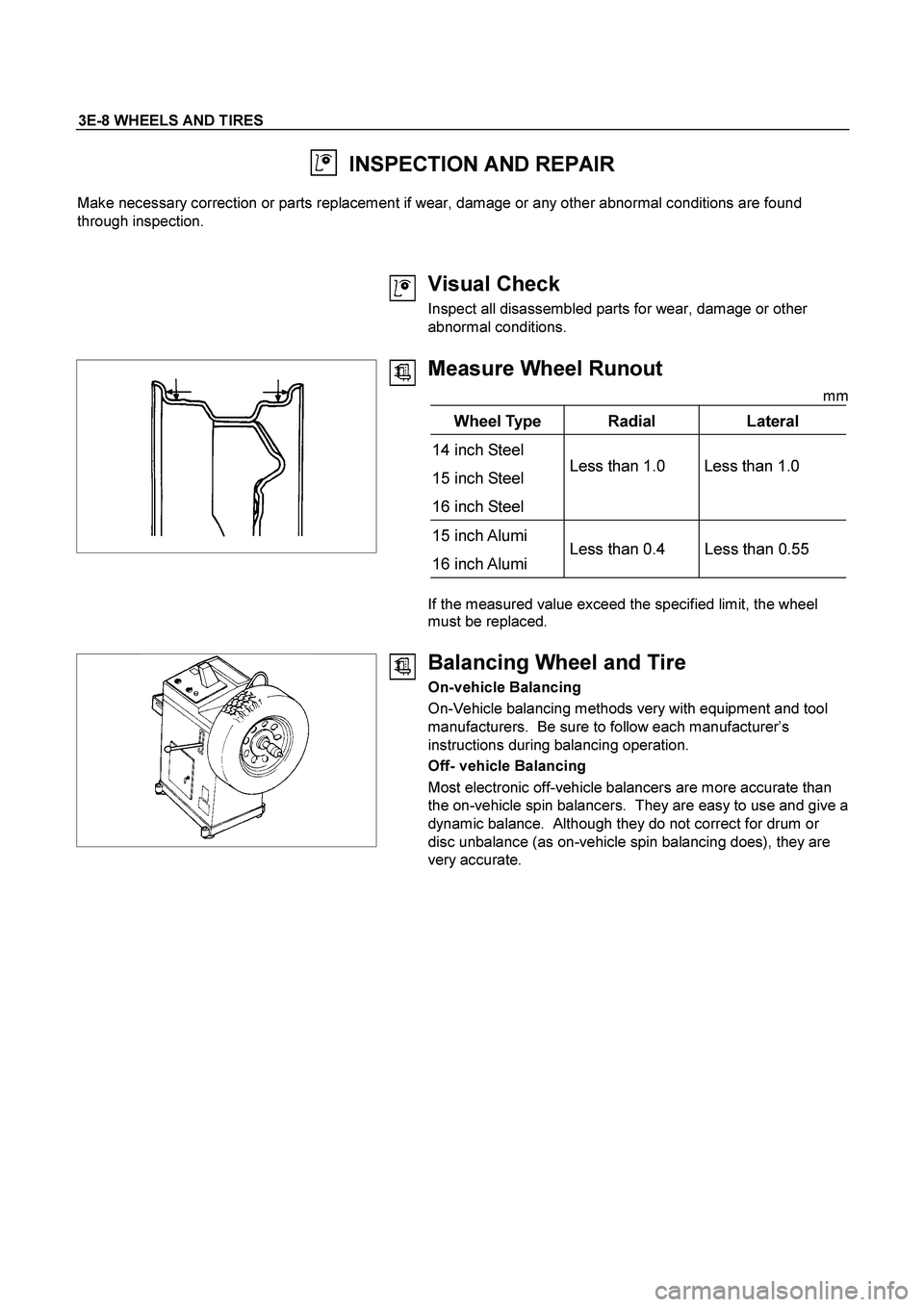

ISUZU TF SERIES 2004 Workshop Manual 3E-8 WHEELS AND TIRES INSPECTION AND REPAIR Make necessary correction or parts replacement if wear, damage or any other abnormal conditions are found through inspection. Visual Check

Page 3581 of 4264

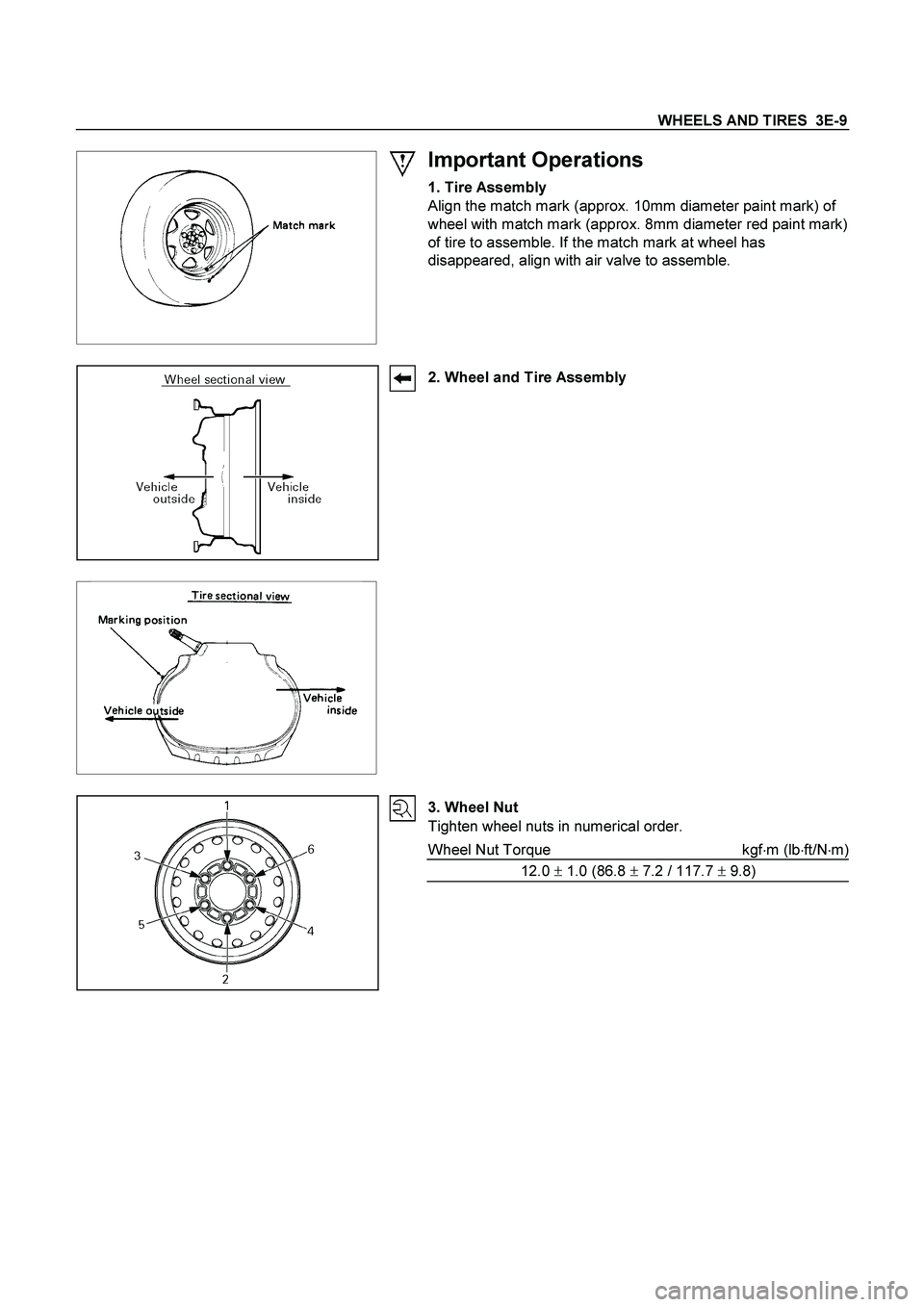

ISUZU TF SERIES 2004 Workshop Manual WHEELS AND TIRES 3E-9 Important Operations 1. Tire Assembly Align the match mark (approx. 10mm diameter paint mark) of wheel with match mark (approx. 8mm diameter red paint mark) of tire to a

Page 3582 of 4264

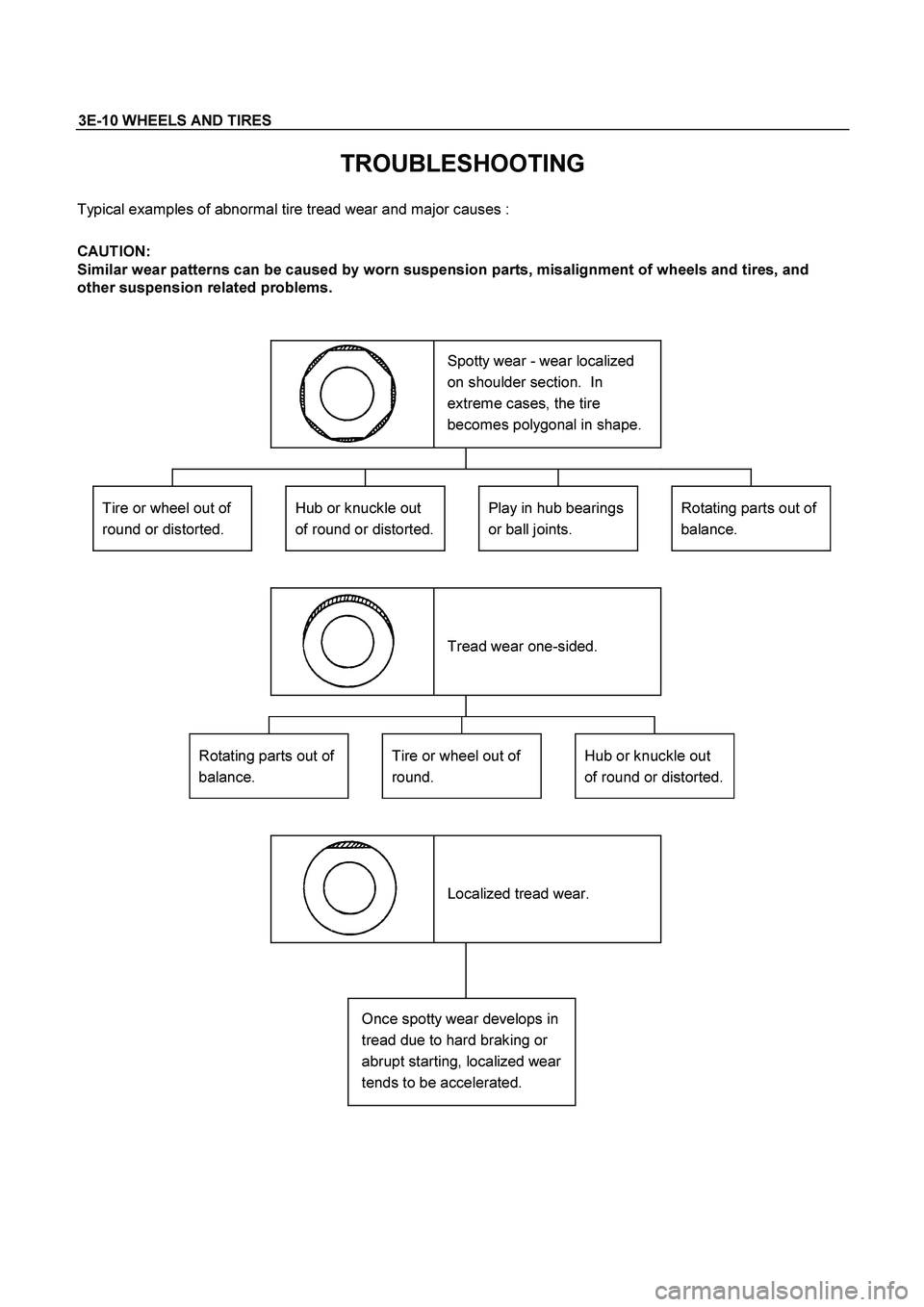

ISUZU TF SERIES 2004 Workshop Manual 3E-10 WHEELS AND TIRES TROUBLESHOOTING Typical examples of abnormal tire tread wear and major causes : CAUTION: Similar wear patterns can be caused by worn suspension parts, misalignment of wh

Page 3583 of 4264

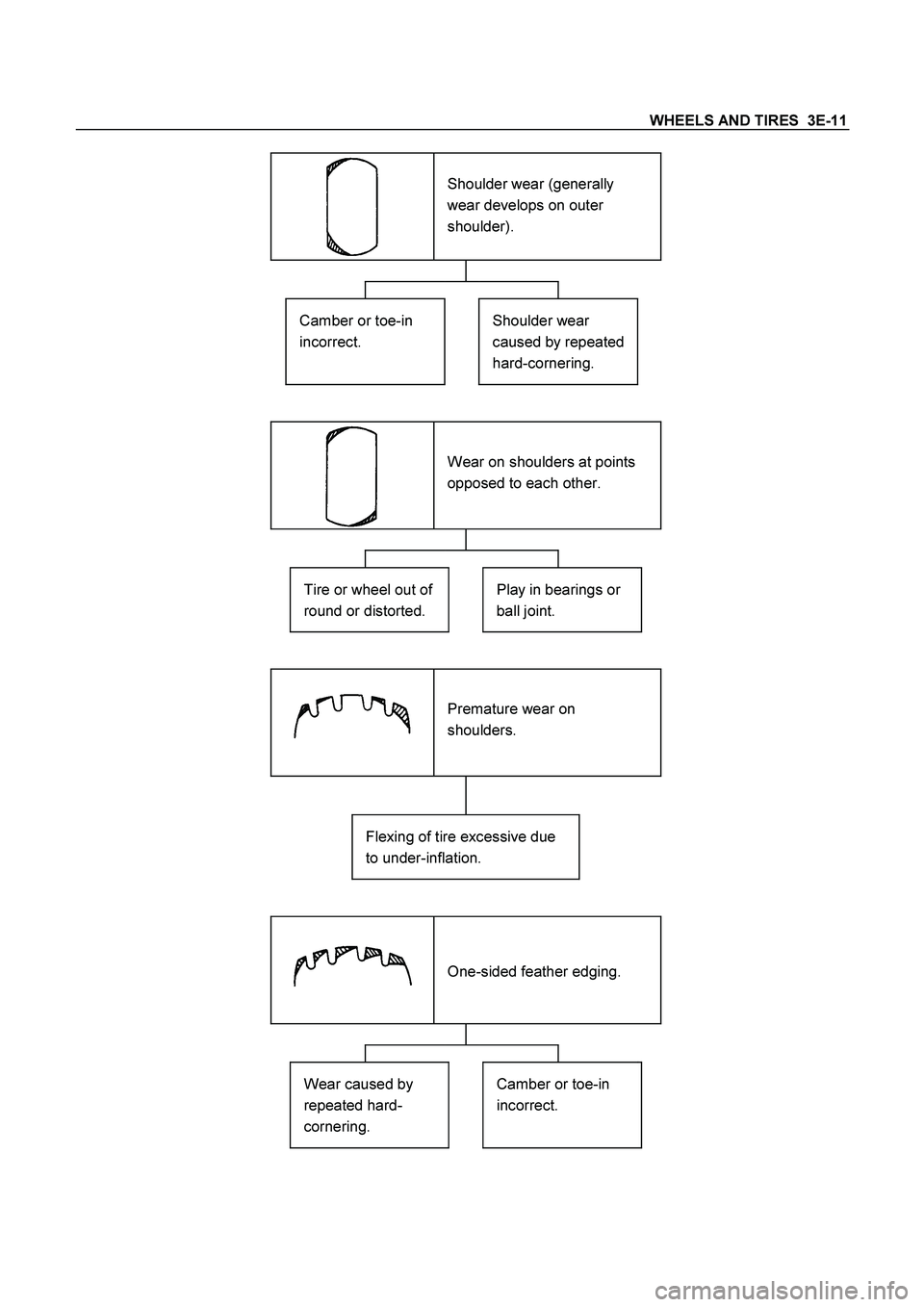

ISUZU TF SERIES 2004 Workshop Manual WHEELS AND TIRES 3E-11 Shoulder wear (generally wear develops on outer shoulder). Camber or toe-in incorrect.Shoulder wear caused by repeated hard-cornering. Wear on shoulders at points opposed to

Page 3584 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3E-12 WHEELS AND TIRES MEMO
