Page 3217 of 4264

ISUZU TF SERIES 2004 Workshop Manual MANUAL TRANSMISSION 7B1-53 Torque Specifications (Contd) RTW47BLF000601

Page 3218 of 4264

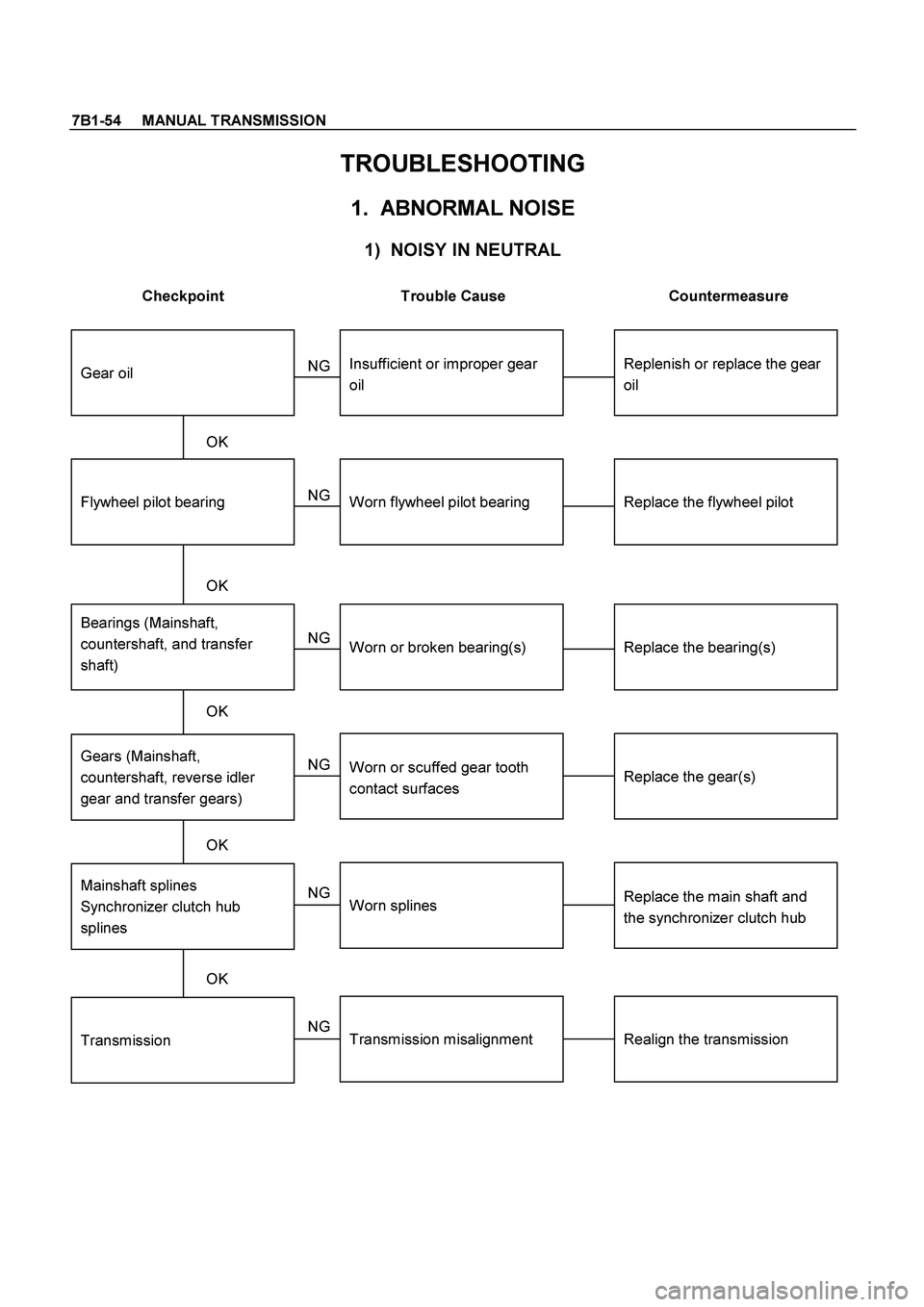

ISUZU TF SERIES 2004 Workshop Manual 7B1-54 MANUAL TRANSMISSION TROUBLESHOOTING 1. ABNORMAL NOISE 1) NOISY IN NEUTRAL Checkpoint Trouble Cause Countermeasure Replenish or replace the gear oilInsufficient or improper g

Page 3219 of 4264

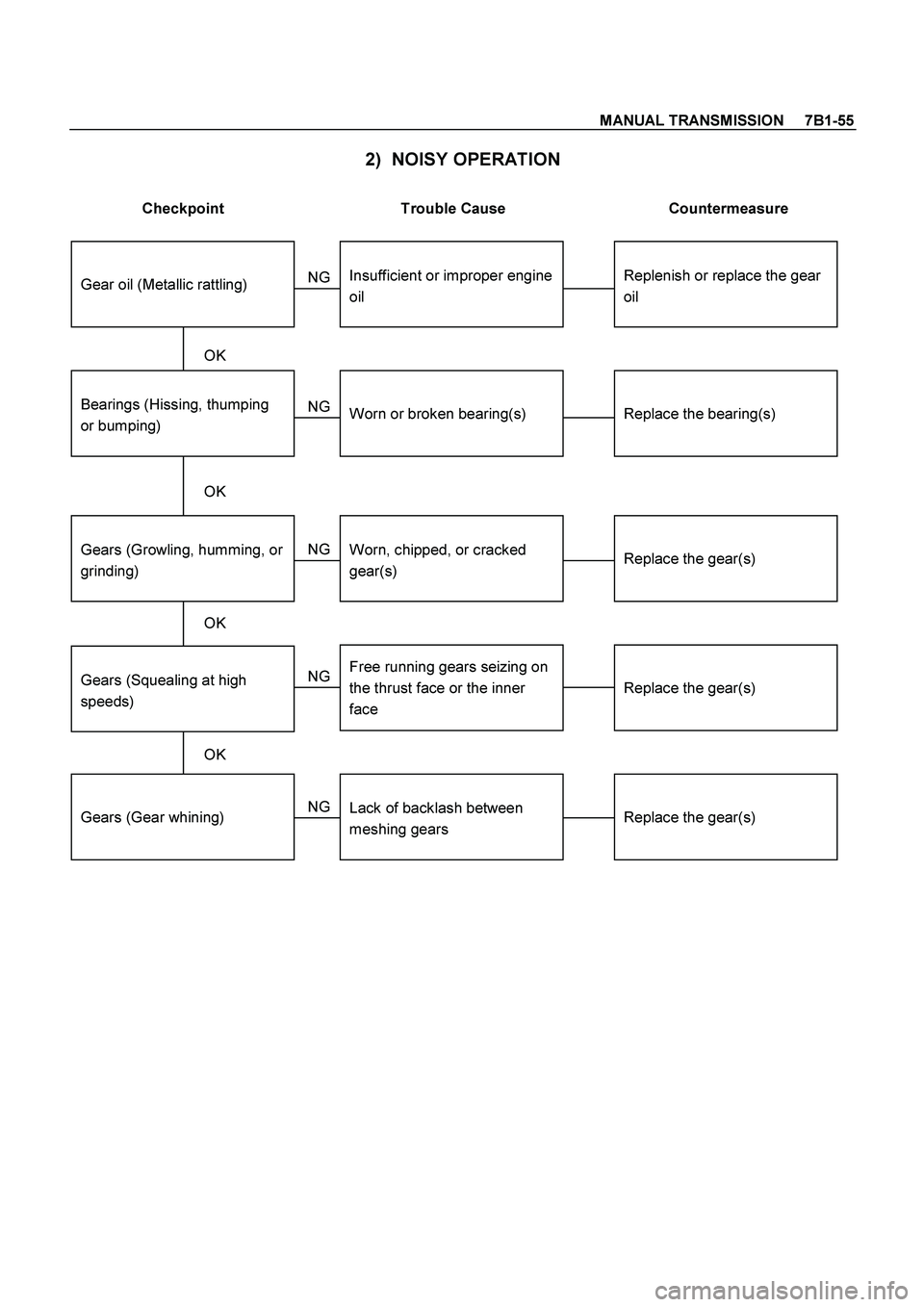

ISUZU TF SERIES 2004 Workshop Manual MANUAL TRANSMISSION 7B1-55 2) NOISY OPERATION Checkpoint Trouble Cause Countermeasure Replenish or replace the gear oilInsufficient or improper engine oil NG Replace the gear(s) Replace

Page 3220 of 4264

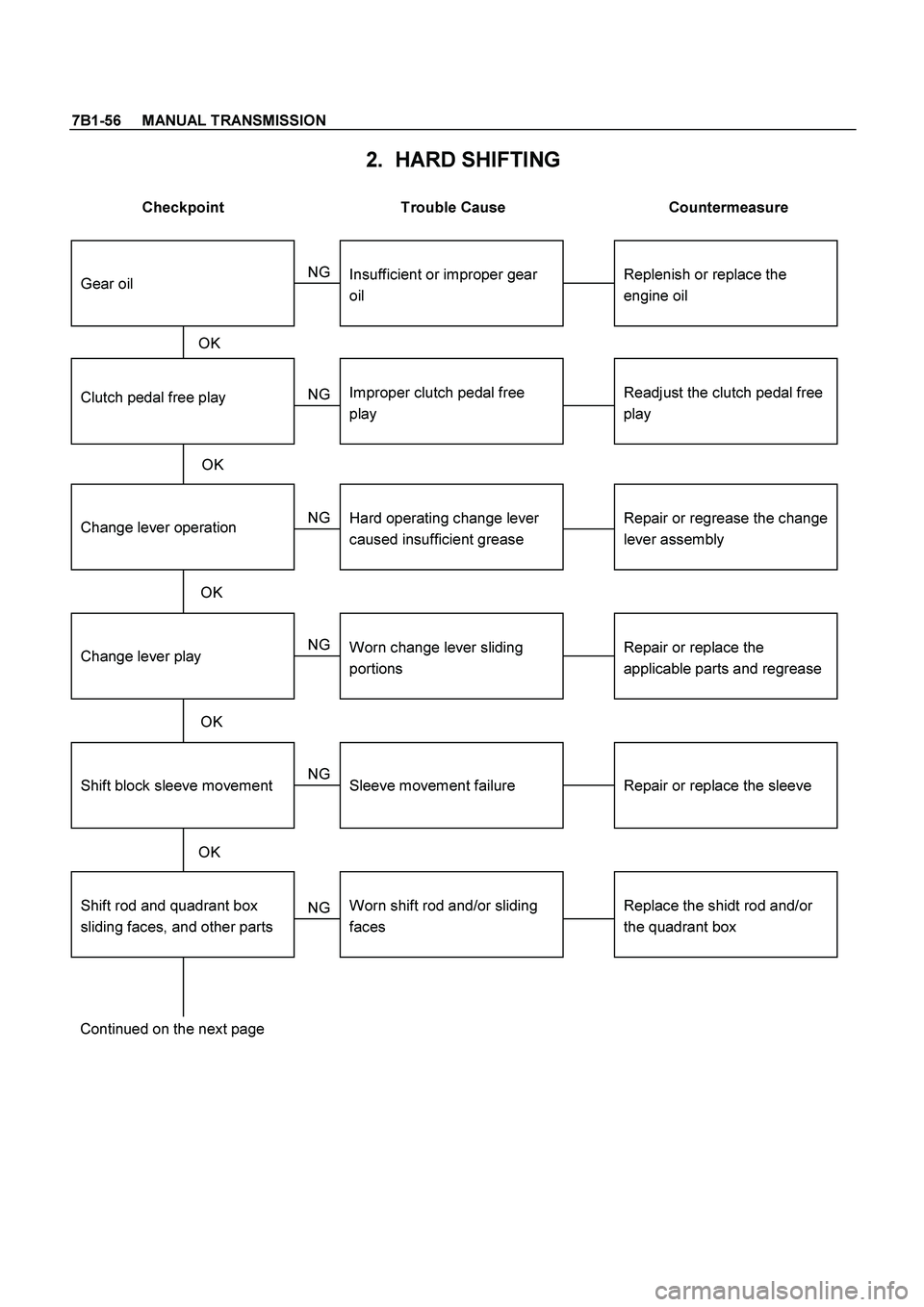

ISUZU TF SERIES 2004 Workshop Manual 7B1-56 MANUAL TRANSMISSION 2. HARD SHIFTING Checkpoint Trouble Cause Countermeasure Change lever play Clutch pedal free play Repair or replace the applicable parts and regrease Readjust

Page 3221 of 4264

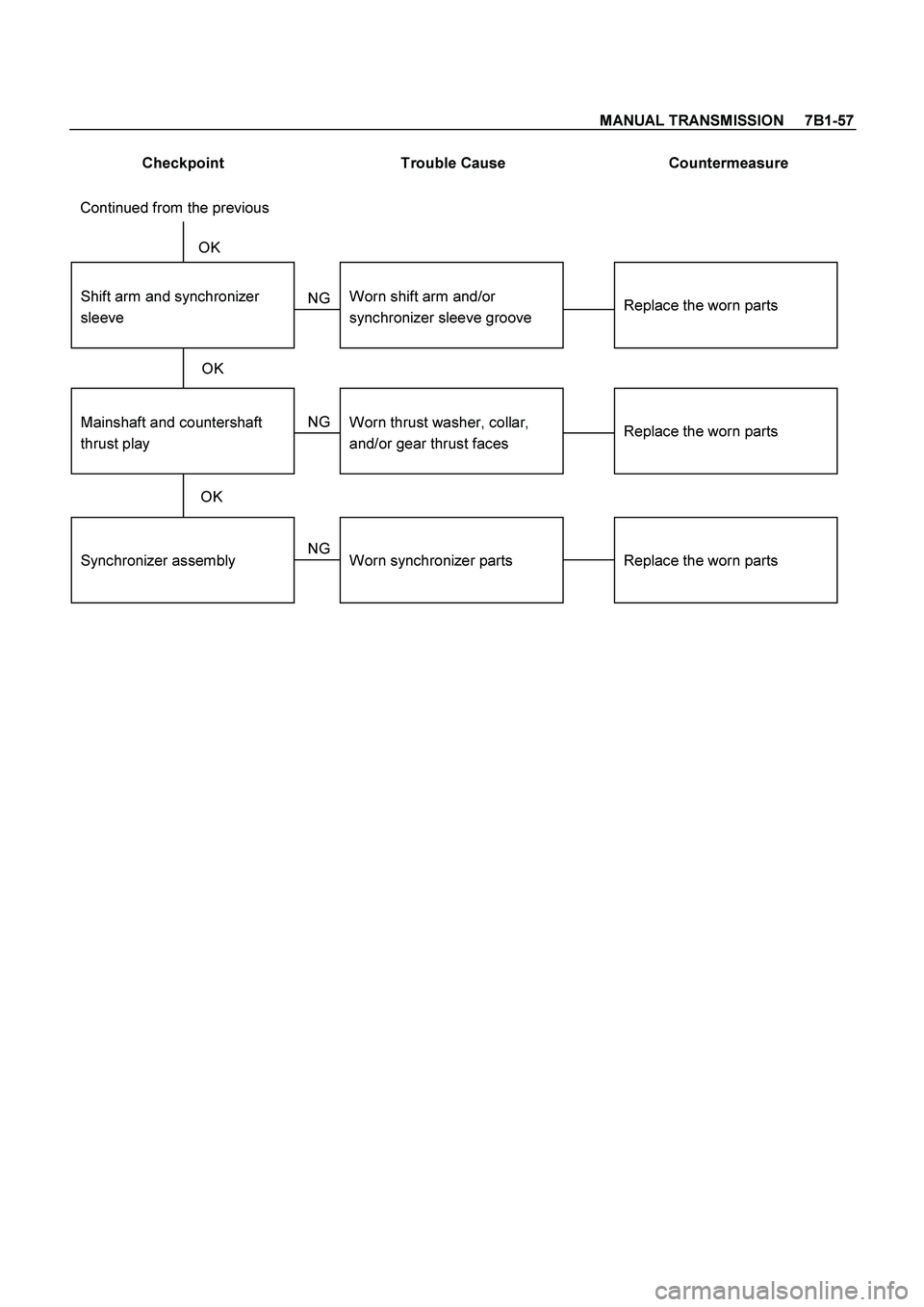

ISUZU TF SERIES 2004 Workshop Manual MANUAL TRANSMISSION 7B1-57 Checkpoint Trouble Cause Countermeasure Synchronizer assembly Shift arm and synchronizer sleeve Replace the worn parts Replace the worn parts Worn synchronizer pa

Page 3222 of 4264

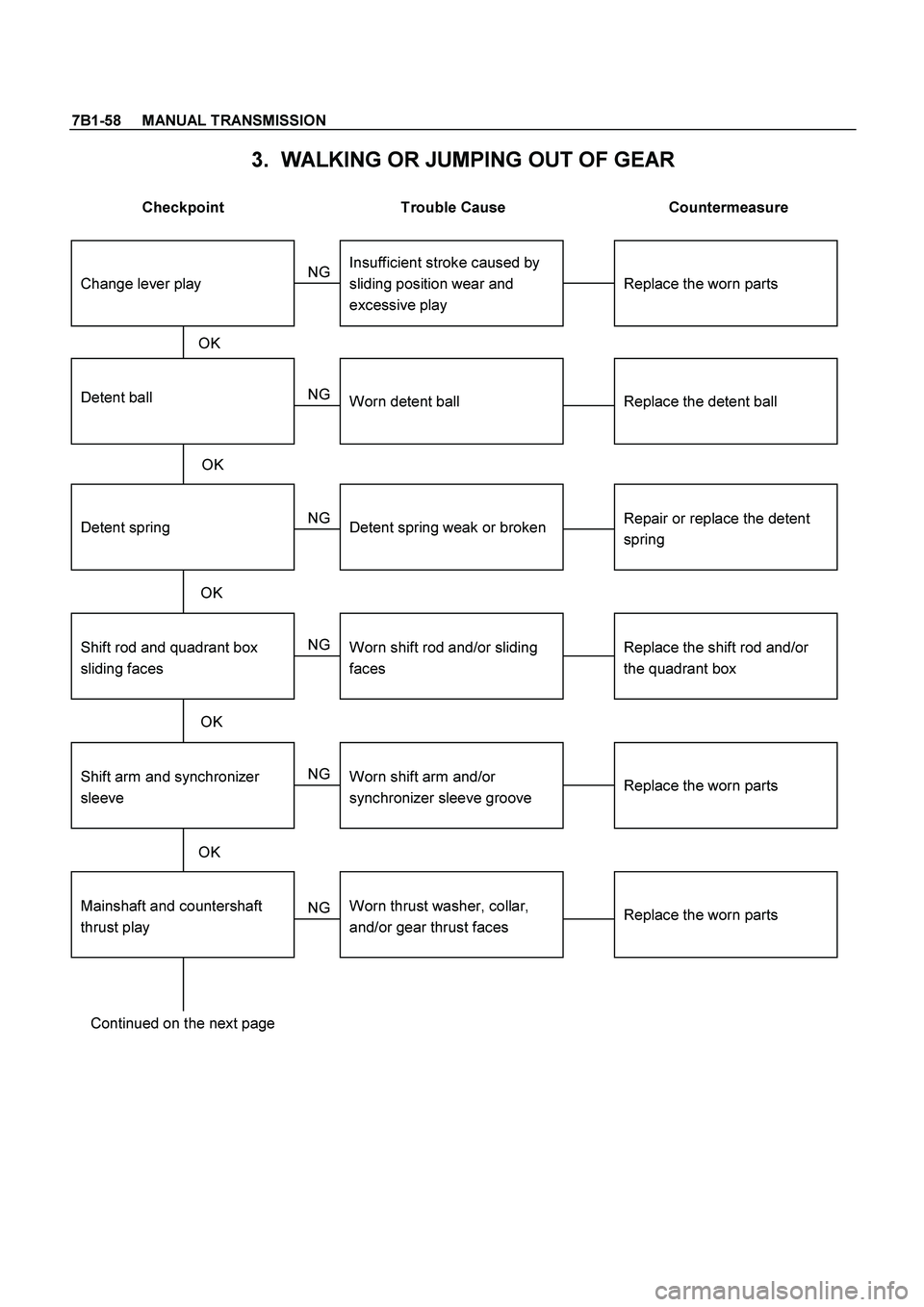

ISUZU TF SERIES 2004 Workshop Manual 7B1-58 MANUAL TRANSMISSION 3. WALKING OR JUMPING OUT OF GEAR Checkpoint Trouble Cause Countermeasure Shift rod and quadrant box sliding faces Detent ball Replace the shift rod and/or th

Page 3223 of 4264

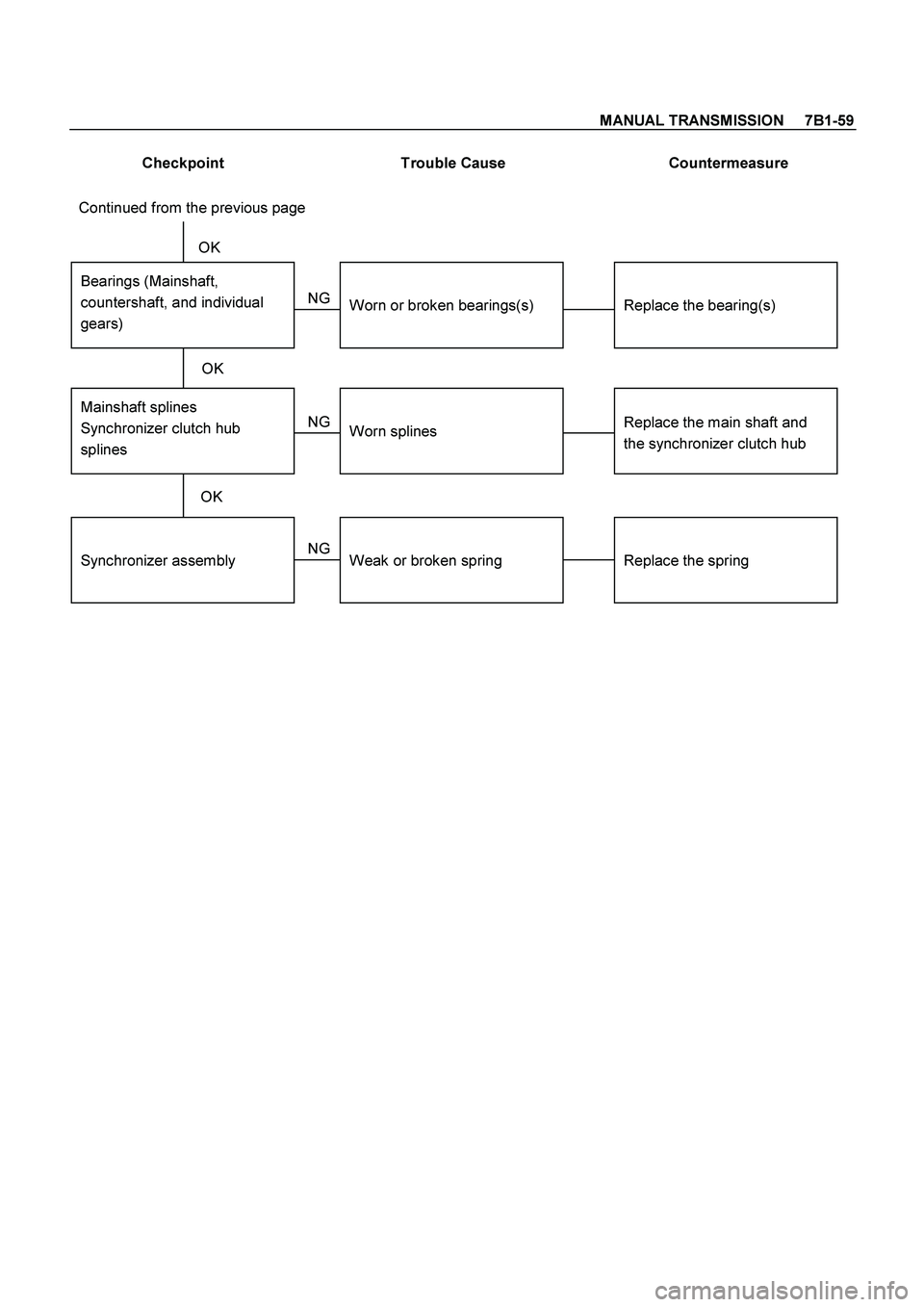

ISUZU TF SERIES 2004 Workshop Manual MANUAL TRANSMISSION 7B1-59 Checkpoint Trouble Cause Countermeasure Synchronizer assembly Bearings (Mainshaft, countershaft, and individual gears) Replace the spring Replace the bearing(s) W

Page 3224 of 4264

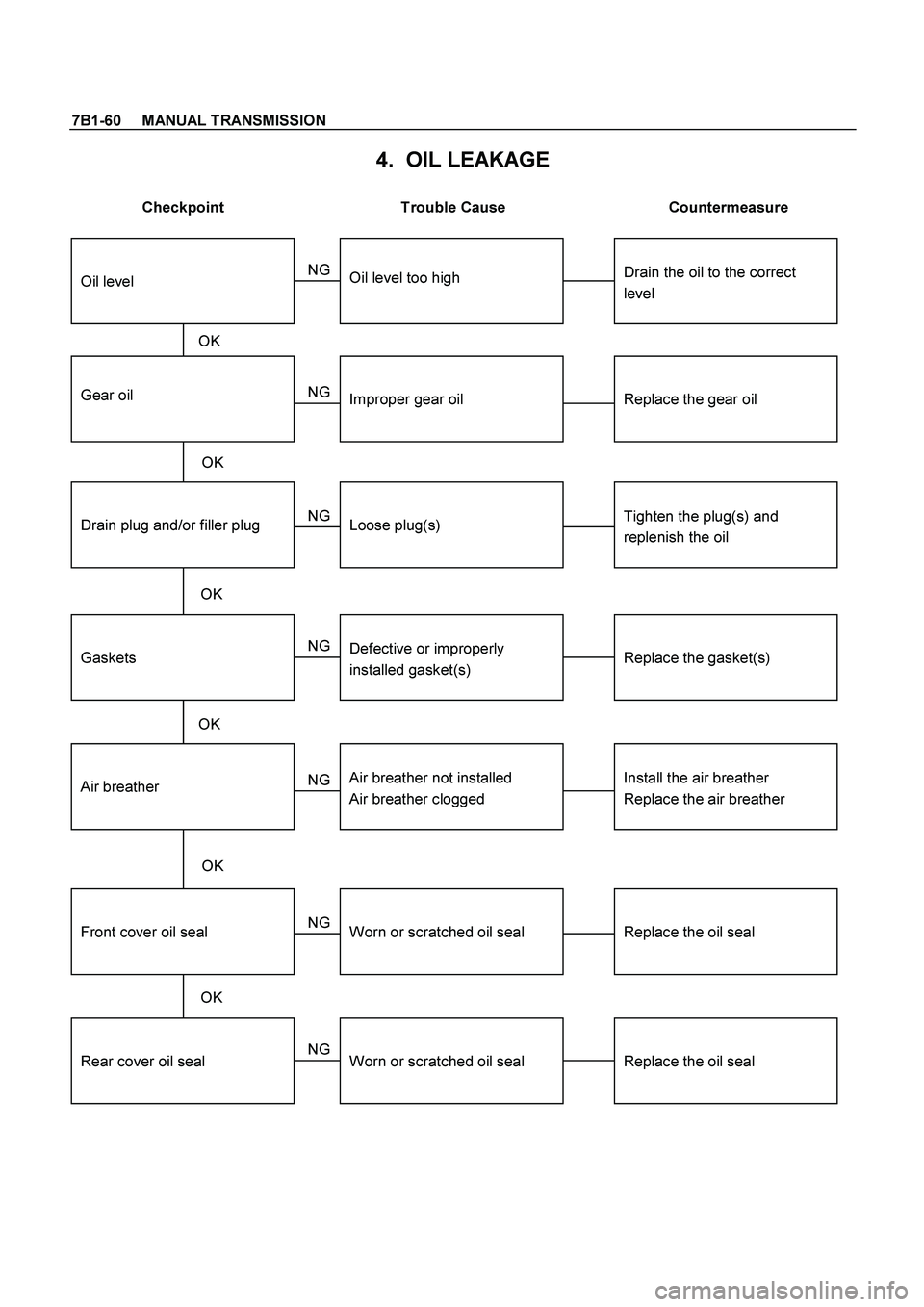

ISUZU TF SERIES 2004 Workshop Manual 7B1-60 MANUAL TRANSMISSION 4. OIL LEAKAGE Checkpoint Trouble Cause Countermeasure Gear oilReplace the gear oilImproper gear oil Drain plug and/or filler plugTighten the plug(s) and repl
