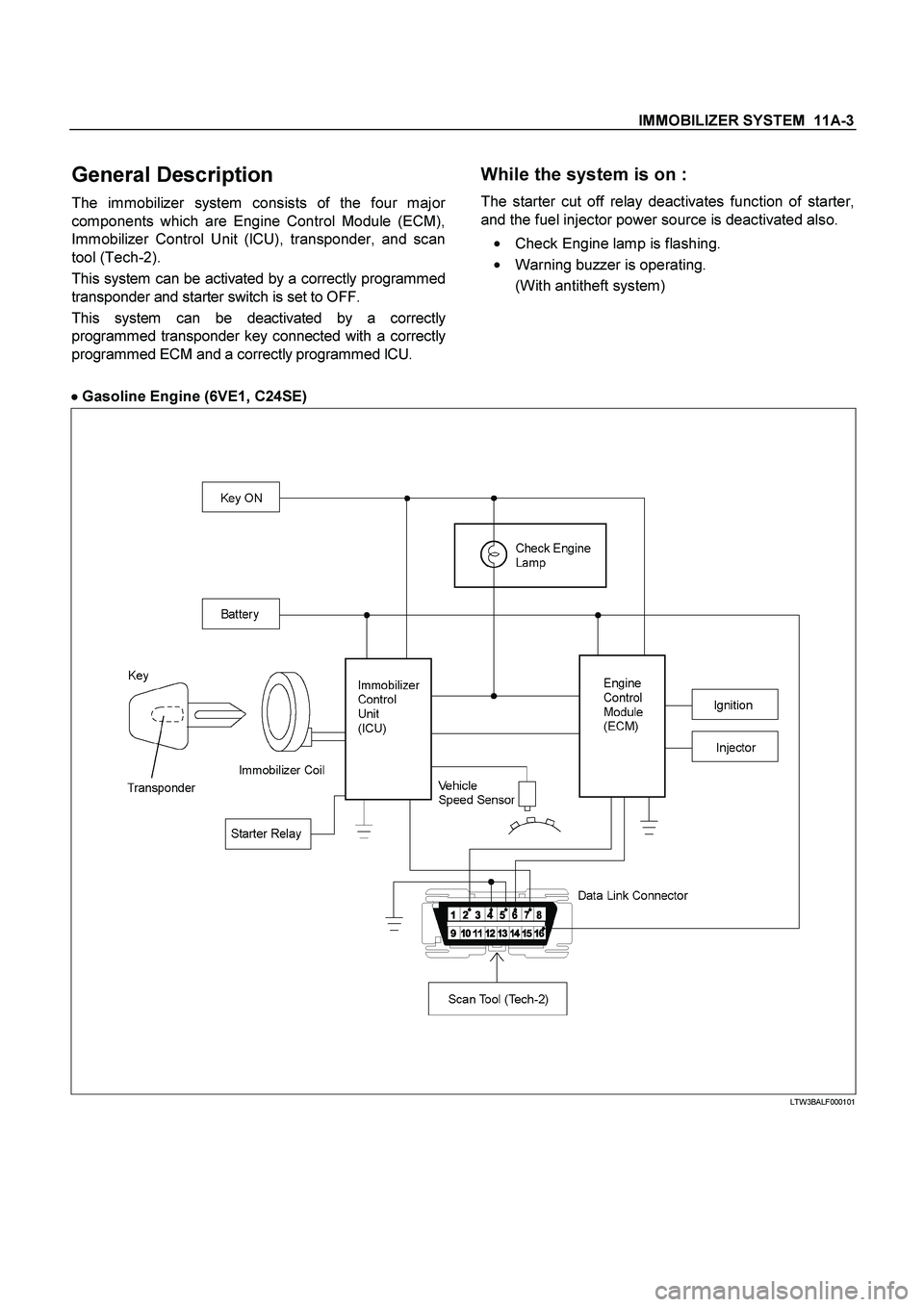

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-3

General Description
The immobilizer system consists of the four major
components which are Engine Control Module (ECM),
Immobilizer Control Unit (lCU), transponder, and s

Page 3290 of 4264

ISUZU TF SERIES 2004 Workshop Manual 11A-4 IMMOBILIZER SYSTEM

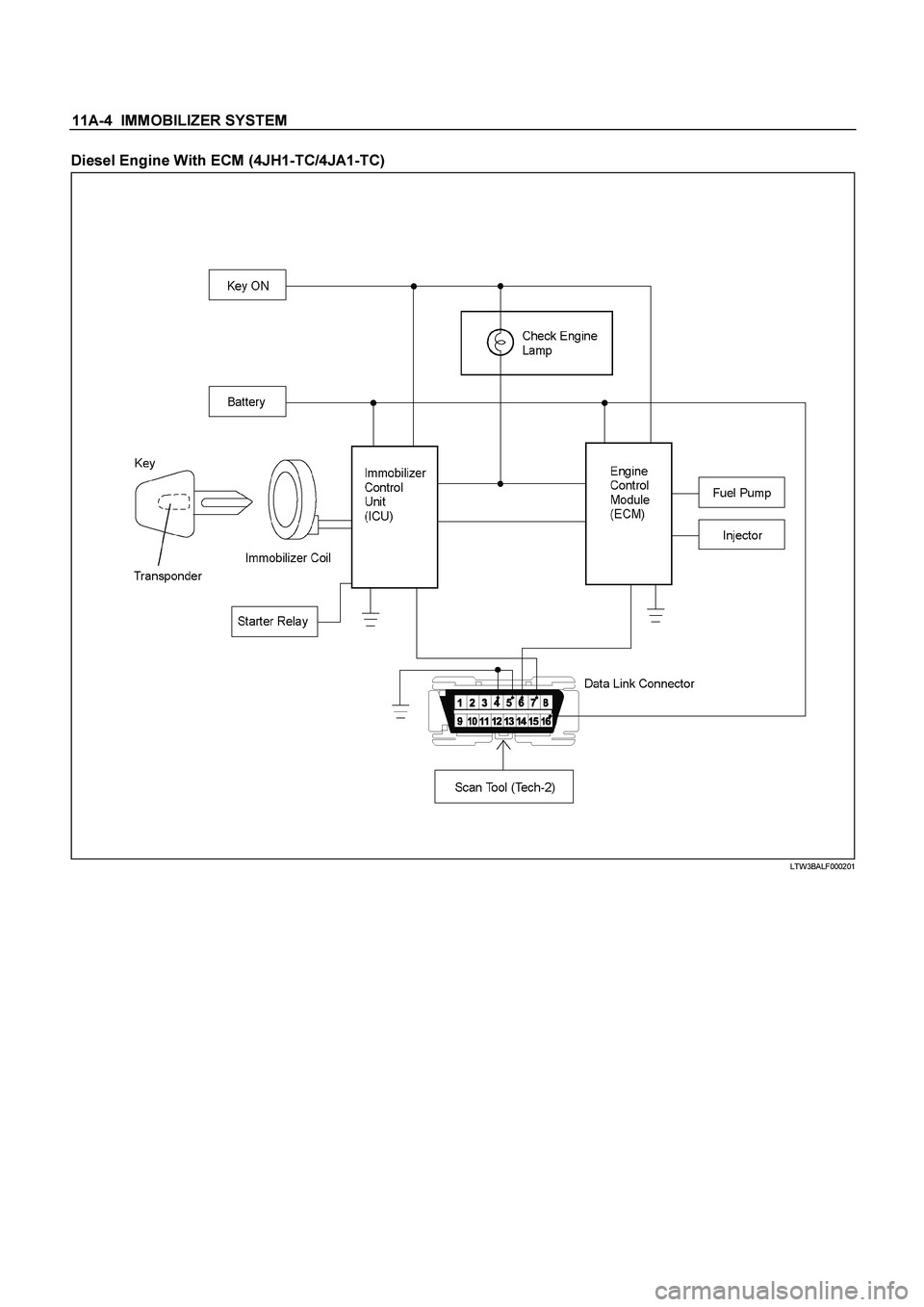

Diesel Engine With ECM (4JH1-TC/4JA1-TC)

LTW3BALF000201

Page 3291 of 4264

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-5

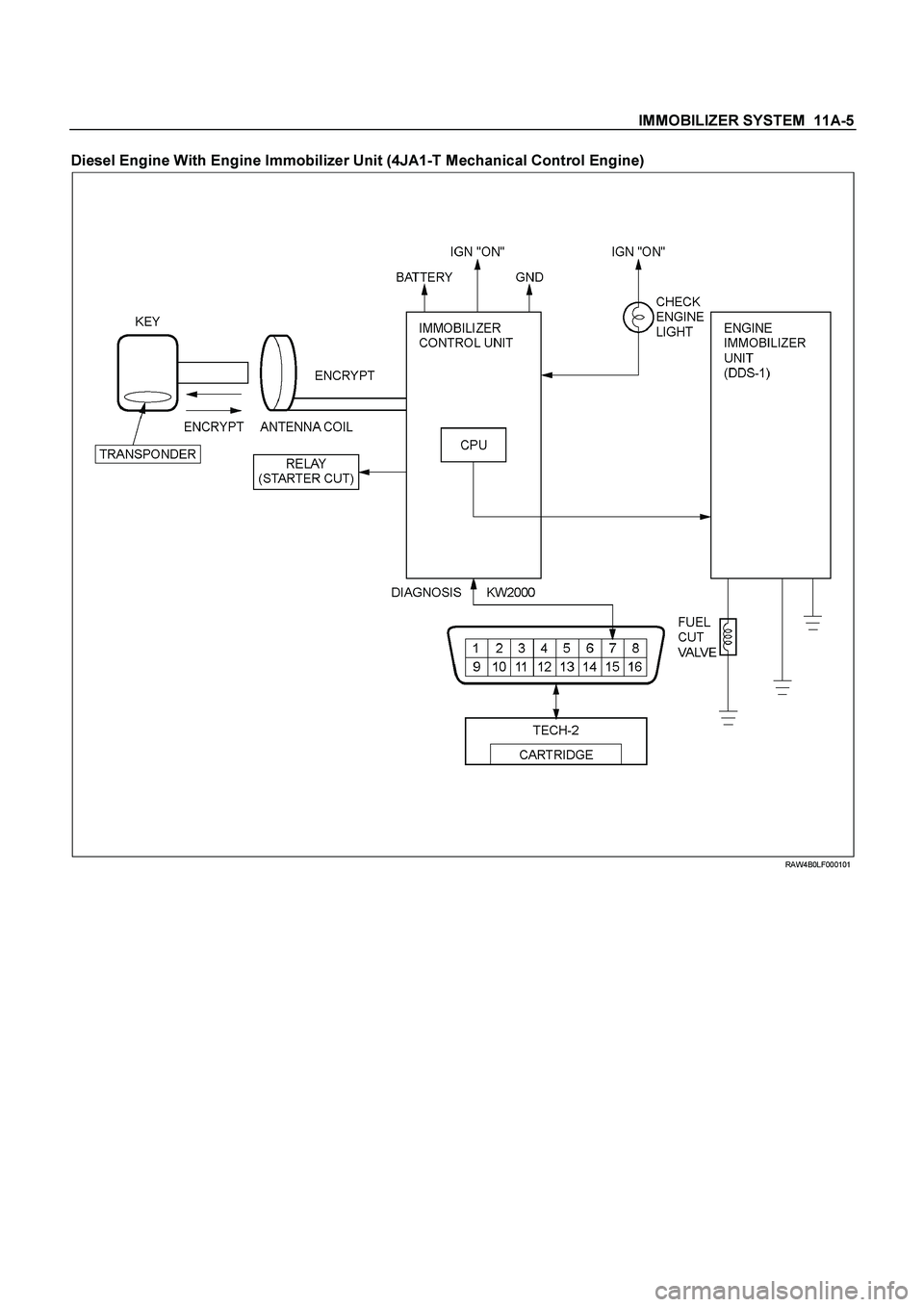

Diesel Engine With Engine Immobilizer Unit (4JA1-T Mechanical Control Engine)

RAW4B0LF000101

Page 3292 of 4264

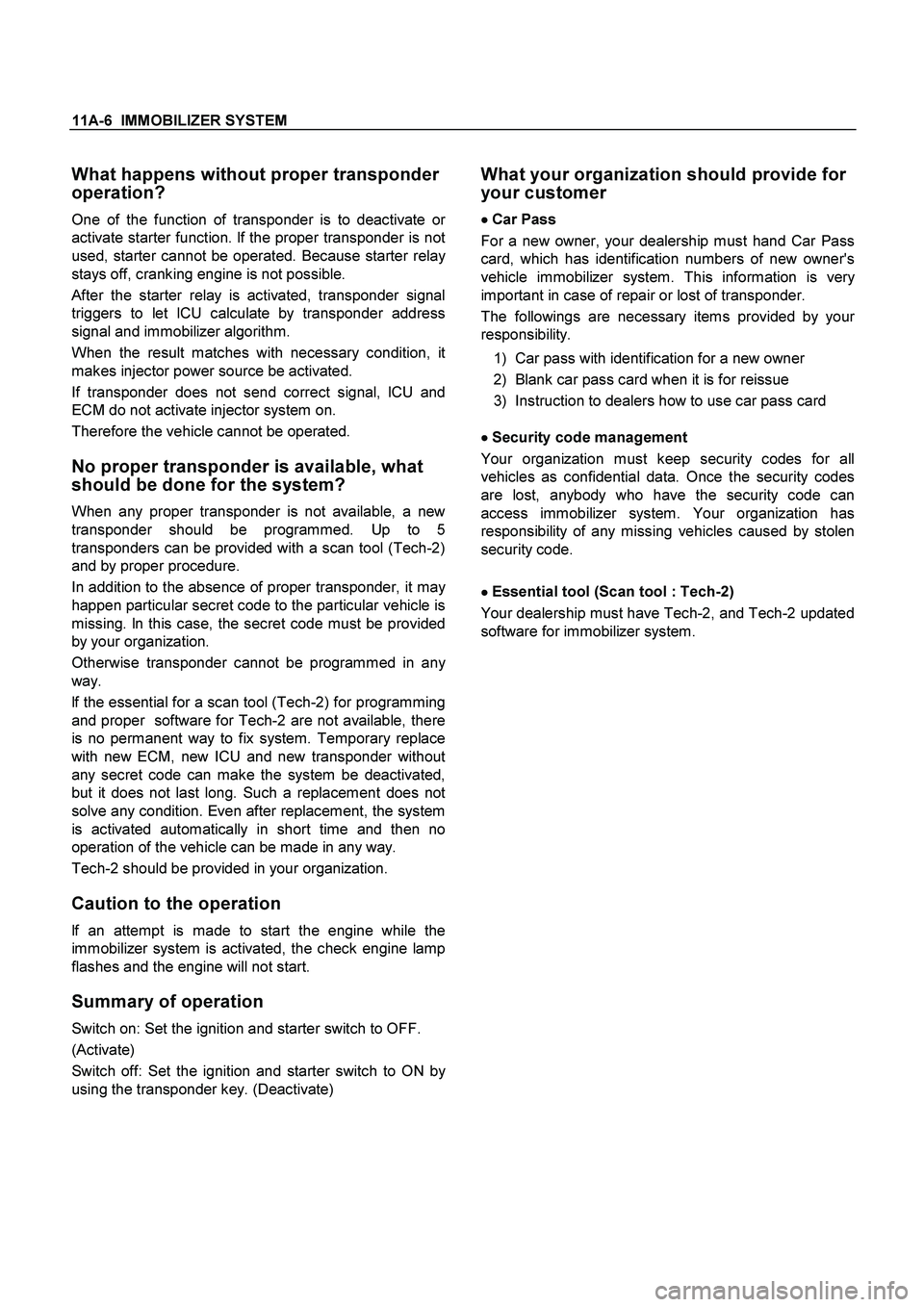

ISUZU TF SERIES 2004 Workshop Manual 11A-6 IMMOBILIZER SYSTEM

What happens without proper transponder
operation?
One of the function of transponder is to deactivate or
activate starter function. lf the proper transponder is not
used

11A-6 IMMOBILIZER SYSTEM

What happens without proper transponder
operation?
One of the function of transponder is to deactivate or
activate starter function. lf the proper transponder is not
used, starter cannot be operated. Because starter rela
y
stays off, cranking engine is not possible.
After the starter relay is activated, transponder signal
triggers to let lCU calculate by transponder address
signal and immobilizer algorithm.
When the result matches with necessary condition, it
makes injector power source be activated.
If transponder does not send correct signal, lCU and
ECM do not activate injector system on.
Therefore the vehicle cannot be operated.
No proper transponder is available, what
should be done for the system?
When any proper transponder is not available, a new
transponder should be programmed. Up to 5
transponders can be provided with a scan tool (Tech-2)
and by proper procedure.
In addition to the absence of proper transponder, it ma
y
happen particular secret code to the particular vehicle is
missing. ln this case, the secret code must be provided
by your organization.
Otherwise transponder cannot be programmed in an
y
way.
lf the essential for a scan tool (Tech-2) for programming
and proper software for Tech-2 are not available, there
is no permanent way to fix system. Temporary replace
with new ECM, new ICU and new transponder without
any secret code can make the system be deactivated,
but it does not last long. Such a replacement does not
solve any condition. Even after replacement, the system
is activated automatically in short time and then no
operation of the vehicle can be made in any way.
Tech-2 should be provided in your organization.
Caution to the operation
lf an attempt is made to start the engine while the
immobilizer system is activated, the check engine lamp
flashes and the engine will not start.
Summary of operation
Switch on: Set the ignition and starter switch to OFF.
(Activate)
Switch off: Set the ignition and starter switch to ON b
y
using the transponder key. (Deactivate)

What your organization should provide for
your customer

Car Pass

For a new owner, your dealership must hand Car Pass
card, which has identification numbers of new owner's
vehicle immobilizer system. This information is ver
y
important in case of repair or lost of transponder.
The followings are necessary items provided by you
r
responsibility.
1)
Car pass with identification for a new owner
2)
Blank car pass card when it is for reissue
3)
Instruction to dealers how to use car pass card

Security code management

Your organization must keep security codes for all
vehicles as confidential data. Once the security codes
are lost, anybody who have the security code can
access immobilizer system. Your organization has
responsibility of any missing vehicles caused by stolen
security code.

Essential tool (Scan tool : Tech-2)

Your dealership must have Tech-2, and Tech-2 updated
software for immobilizer system.

Page 3293 of 4264

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-7

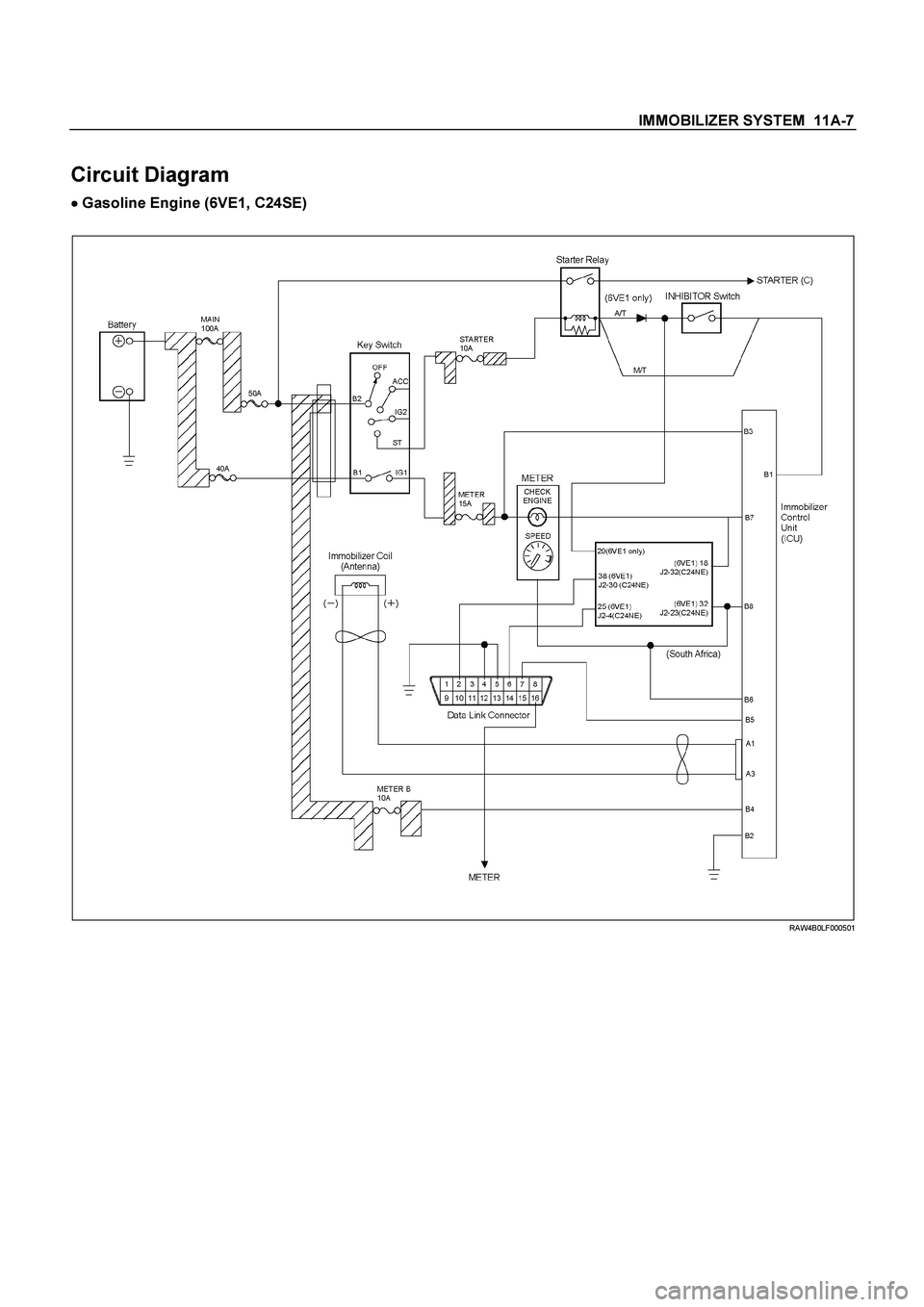

Circuit Diagram

Gasoline Engine (6VE1, C24SE)

RAW4B0LF000501

Page 3294 of 4264

ISUZU TF SERIES 2004 Workshop Manual 11A-8 IMMOBILIZER SYSTEM

Diesel Engine With ECM (4JH1-TC/4JA1-TC)

RTW4B0LF000101

Page 3295 of 4264

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-9

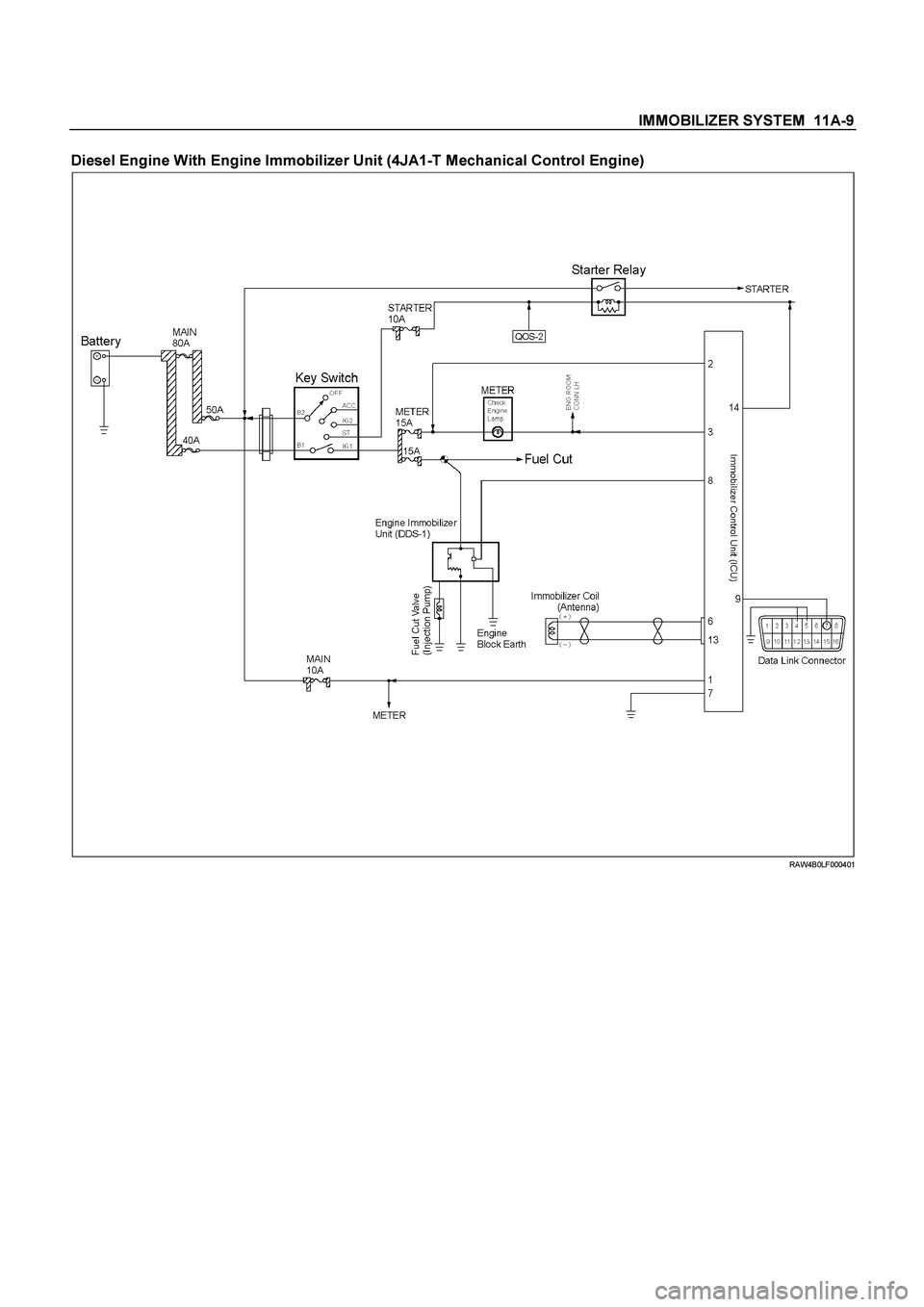

Diesel Engine With Engine Immobilizer Unit (4JA1-T Mechanical Control Engine)

RAW4B0LF000401

Page 3296 of 4264

ISUZU TF SERIES 2004 Workshop Manual 11A-10 IMMOBILIZER SYSTEM

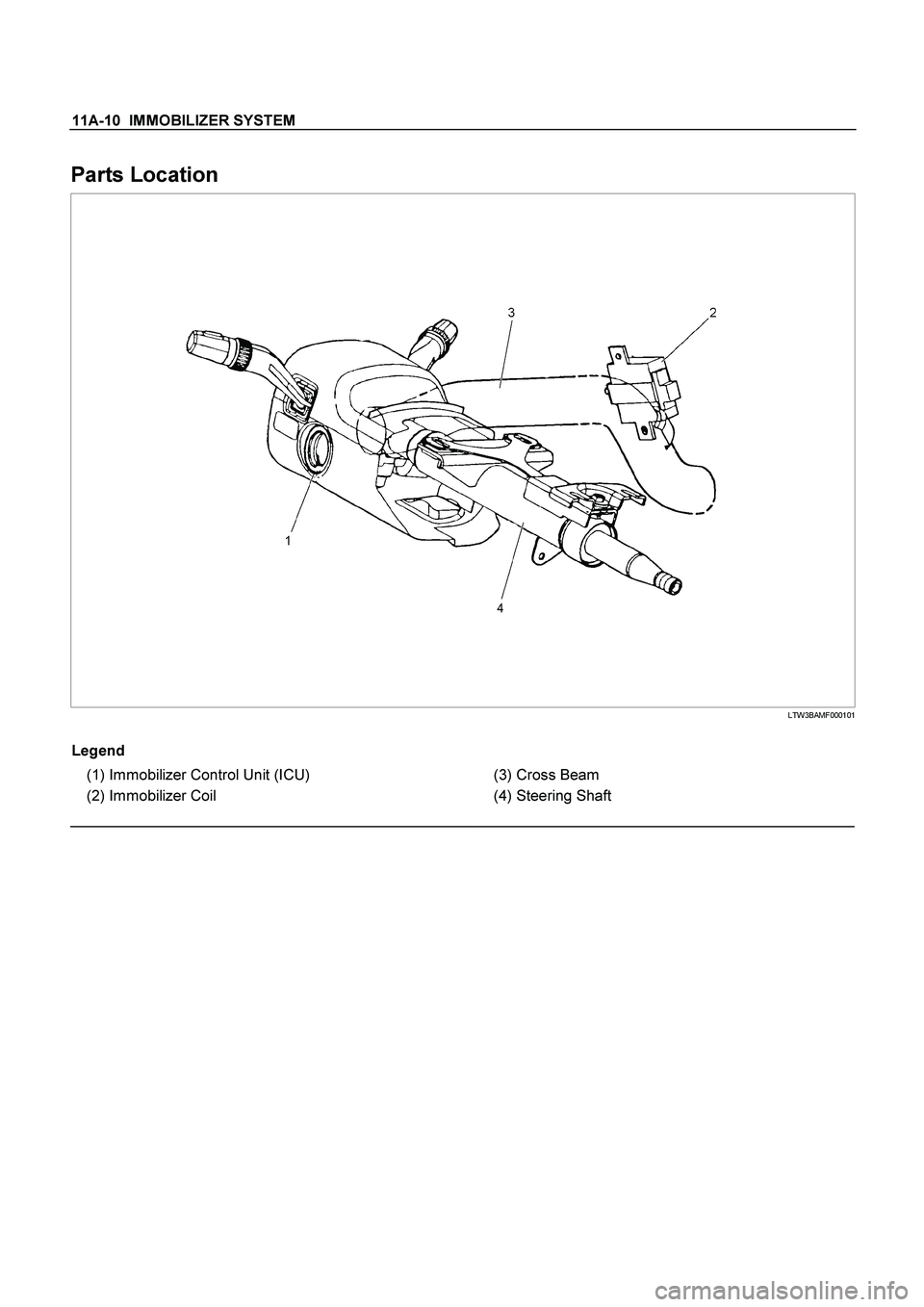

Parts Location
LTW3BAMF000101

Legend

(1)
Immobilizer Control Unit (ICU)

(2)
Immobilizer Coil

(3)
Cross Beam

(4)
Steering Shaft
