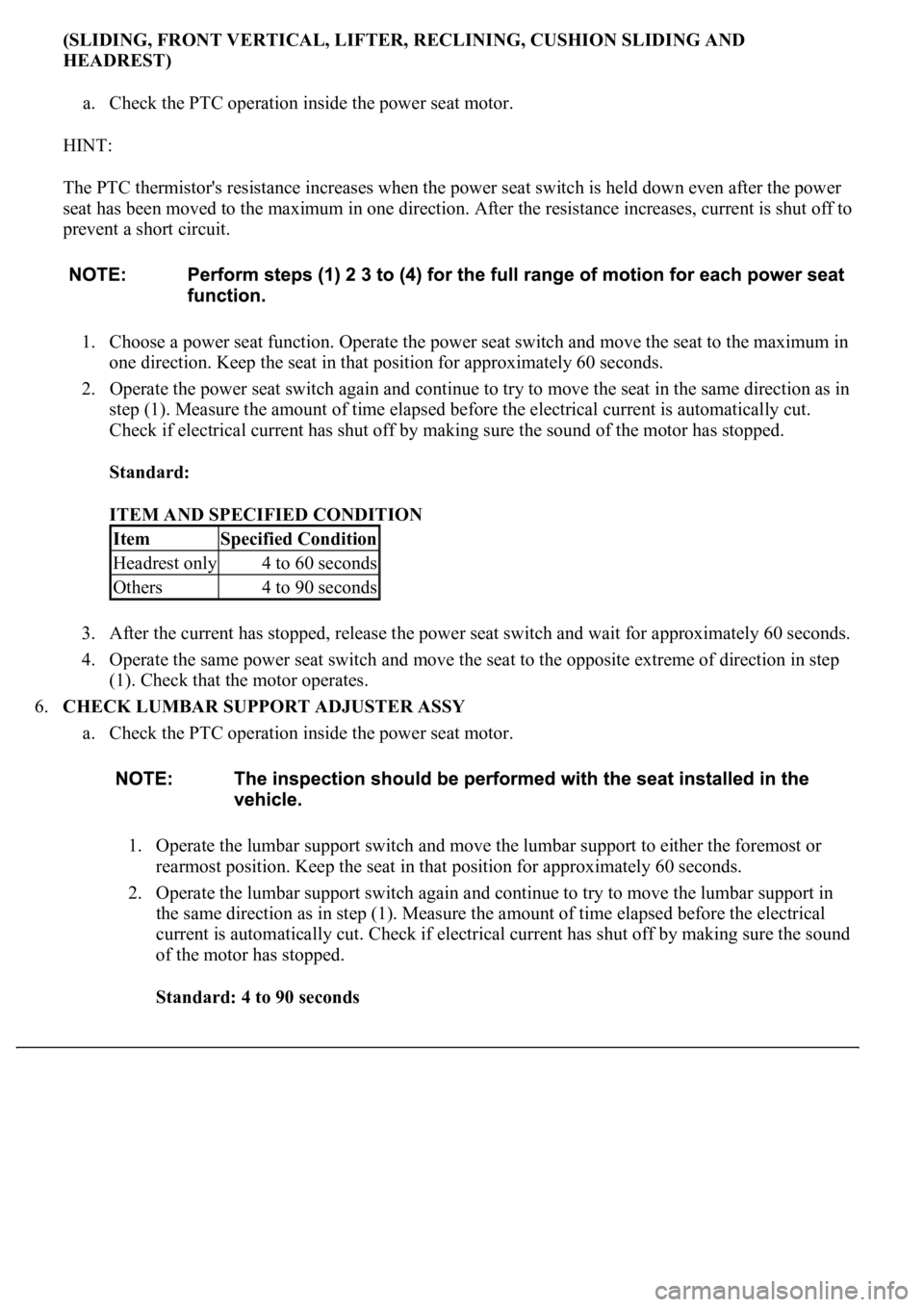

Page 3969 of 4500

(SLIDING, FRONT VERTICAL, LIFTER, RECLINING, CUSHION SLIDING AND
HEADREST)
a. Check the PTC operation inside the power seat motor.
HINT:
The PTC thermistor's resistance increases when the power seat switch is held down even after the power
seat has been moved to the maximum in one direction. After the resistance increases, current is shut off to
prevent a short circuit.
1. Choose a power seat function. Operate the power seat switch and move the seat to the maximum in
one direction. Keep the seat in that position for approximately 60 seconds.
2. Operate the power seat switch again and continue to try to move the seat in the same direction as in
step (1). Measure the amount of time elapsed before the electrical current is automatically cut.
Check if electrical current has shut off by making sure the sound of the motor has stopped.
Standard:
ITEM AND SPECIFIED CONDITION
3. After the current has stopped, release the power seat switch and wait for approximately 60 seconds.
4. Operate the same power seat switch and move the seat to the opposite extreme of direction in step
(1). Check that the motor operates.
6.CHECK LUMBAR SUPPORT ADJUSTER ASSY
a. Check the PTC operation inside the power seat motor.
1. Operate the lumbar support switch and move the lumbar support to either the foremost or
rearmost position. Keep the seat in that position for approximately 60 seconds.
2. Operate the lumbar support switch again and continue to try to move the lumbar support in
the same direction as in step (1). Measure the amount of time elapsed before the electrical
current is automatically cut. Check if electrical current has shut off by making sure the sound
of the motor has stopped.
Standard: 4 to 90 seconds
ItemSpecified Condition
Headrest only4 to 60 seconds
Others4 to 90 seconds
Page 3970 of 4500

3. After the current has stopped, release the lumbar support switch and wait for approximately
60 seconds.
4. Operate the lumbar support switch and move the seat to the opposite extreme of direction in
step (1). Check that the motor operates.
7.CHECK MEMORY AND REACTIVATION FUNCTION
a. Turn the ignition switch ON and move the shift lever into the P position.
b. Check the M1 switch.
1. Using the seat switches, fully slide the seat forward, fully recline the seatback forward, and
fully raise the seat cushion and headrest.
2. Press and hold down switches M1 and SET. Check that the buzzer sounds for 0.5 seconds,
signaling that the seat position has been recorded.
3. Change the position of the seat and then press the M1 switch. Check that the buzzer sounds
for 0.1 seconds and the seat automatically moves to the position in step (b)-(1).
<0029004c004a001100030016001b001d0003002c0047004800510057004c0049005c004c0051004a000300270055004c0059004c0051004a0003003300520056004c0057004c00520051000300300048005000520055005c00030036005a004c0057004600
4b[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Check the M2 switch.
1. Using the seat switches, move the seat (slide), seatback, seat cushion and headrest to
positions other than the ones in step (b). Any new seat position is fine.
2. Press and hold down switches M2 and SET. Check that the buzzer sounds for 0.5 seconds,
Page 3971 of 4500

signaling that the seat position has been recorded.
3. Change the position of the seat and then press the M2 switch. Check that the buzzer sounds
for 0.1 seconds and the seat automatically moves to the position in step (c)-(1).
d. Check the M3 switch.
1. Using the seat switches, fully slide the seat rearward, fully recline the seatback rearward and
fully lower the seat cushion and headrest.
2. Press and hold down switches M3 and SET. Check that the buzzer sounds for 0.5 seconds,
signaling that the seat position has been recorded.
3. Change the position of the seat and then press the M3 switch. Check that the buzzer sounds
for 0.1 seconds and the seat automatically moves to the position in step (d)-(1).
e. Check that the switches M1, M2 and M3 cause the seat to move to the recorded seat positions
under these conditions: turn the ignition switch to the LOCK position, remove the key from the key
cylinder, open the driver side door and press M1, M2 or M3 within 30 seconds.
f. Check that the following procedures will erase the recorded seat positions of switches M1, M2 and
M3: press and hold the power seat slide switch, disconnect the battery's negative terminal cable,
and wait for at least 1 minute.
g. Restore the seat's memory.
1. Using the seat switches, fully slide the seat forward, fully recline the seatback forward, and
fully raise the seat cushion and headrest.
2. Using the seat switches, fully slide the seat rearward, fully recline the seatback rearward and
fully lower the seat cushion and headrest.
HINT:
This will restore the seat's memory of the seat's maximum positions. However, it will not restore
any recorded seat positions to switches M1, M2 or M3.
h. Attempt to record a seat position by pressing and holding the SET switch and two other switches
<000b0044005000520051004a000300300014000f0003003000150003004400510047000300300016000c0011000300310052000300560048004400570003005300520056004c0057004c0052005100030056004b00520058004f0047000300450048000300
550048004600520055004700480047001100030026004b0048[ck this by pressing M1, M2 or
M3 and making sure that the seat does not move.
HINT:
This step will only be true if step (f) was performed properly, whereby all previously recorded set
positions were erased.
1.Passenger's seat:
INSPECT POWER SEAT SWITCH
a. Measure the resistance between the terminals when each switch is operated.
Standard:
Page 3972 of 4500

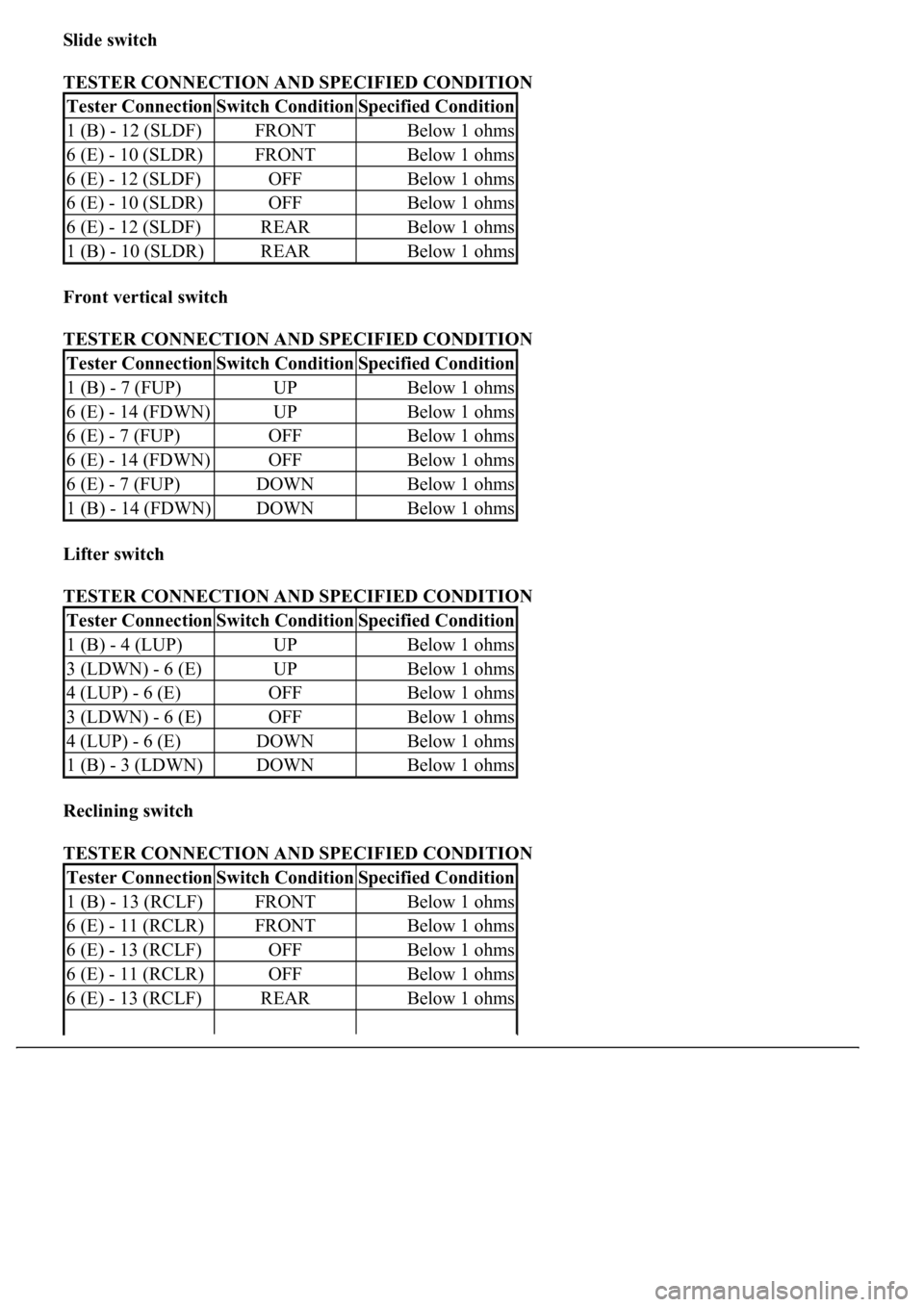

Slide switch
TESTER CONNECTION AND SPECIFIED CONDITION
Front vertical switch
TESTER CONNECTION AND SPECIFIED CONDITION
Lifter switch
TESTER CONNECTION AND SPECIFIED CONDITION
Reclining switch
TESTER CONNECTION AND SPECIFIED CONDITION
Tester ConnectionSwitch ConditionSpecified Condition
1 (B) - 12 (SLDF)FRONTBelow 1 ohms
6 (E) - 10 (SLDR)FRONTBelow 1 ohms
6 (E) - 12 (SLDF)OFFBelow 1 ohms
6 (E) - 10 (SLDR)OFFBelow 1 ohms
6 (E) - 12 (SLDF)REARBelow 1 ohms
1 (B) - 10 (SLDR)REARBelow 1 ohms
Tester ConnectionSwitch ConditionSpecified Condition
1 (B) - 7 (FUP)UPBelow 1 ohms
6 (E) - 14 (FDWN)UPBelow 1 ohms
6 (E) - 7 (FUP)OFFBelow 1 ohms
6 (E) - 14 (FDWN)OFFBelow 1 ohms
6 (E) - 7 (FUP)DOWNBelow 1 ohms
1 (B) - 14 (FDWN)DOWNBelow 1 ohms
Tester ConnectionSwitch ConditionSpecified Condition
1 (B) - 4 (LUP)UPBelow 1 ohms
3 (LDWN) - 6 (E)UPBelow 1 ohms
4 (LUP) - 6 (E)OFFBelow 1 ohms
3 (LDWN) - 6 (E)OFFBelow 1 ohms
4 (LUP) - 6 (E)DOWNBelow 1 ohms
1 (B) - 3 (LDWN)DOWNBelow 1 ohms
Tester ConnectionSwitch ConditionSpecified Condition
1 (B) - 13 (RCLF)FRONTBelow 1 ohms
6 (E) - 11 (RCLR)FRONTBelow 1 ohms
6 (E) - 13 (RCLF)OFFBelow 1 ohms
6 (E) - 11 (RCLR)OFFBelow 1 ohms
6 (E) - 13 (RCLF)REARBelow 1 ohms
Page 3973 of 4500
1 (B) - 11 (RCLR)REARBelow 1 ohms
Page 3974 of 4500
Page 3975 of 4500
Fig. 39: Inspecting Power Seat Switch
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Headrest switch
TESTER CONNECTION AND SPECIFIED CONDITION
If the result is not as specified, replace the switch.
2.INSPECT DRIVING POSITION MEMORY SWITCH
a. Measure the resistance between the terminals when the switch is operated.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITION
If the result is not as specified, replace the switch.
Tester ConnectionSwitch ConditionSpecified Condition
1 (B) - 8 (HUP)UPBelow 1 ohms
6 (E) - 9 (HDWN)UPBelow 1 ohms
6 (E) - 8 (HUP)OFFBelow 1 ohms
6 (E) - 9 (HDWN)OFFBelow 1 ohms
6 (E) - 8 (HUP)DOWNBelow 1 ohms
1 (B) - 9 (HDWN)DOWNBelow 1 ohms
Tester ConnectionSwitch ConditionSpecified Condition
2 (MMR) -6 (E)SET switch ONBelow 1 ohms
3 (1) -6 (E)1 switch ONBelow 1 ohms
4 (2) - 6 (E)2 switch ONBelow 1 ohms
5 (3) - 6 (E)3 switch ONBelow 1 ohms
Page 3976 of 4500
Fig. 40: Identifying Driving Position Memory Switch Connector Terminals
