Page 3137 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 148: Removing Luggage Compartment Door Assist Grip Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.REMOVE REAR LAMP ASSY LH (See OVERHAUL ) 8.REMOVE REAR LAMP ASSY RH 9.REMOVE LICENSE PLATE

Page 3138 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 149: Removing Luggage Electrical Key Switch Cover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 13.REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSY a. Disconnect the connector. b. Remove th

Page 3139 of 4500

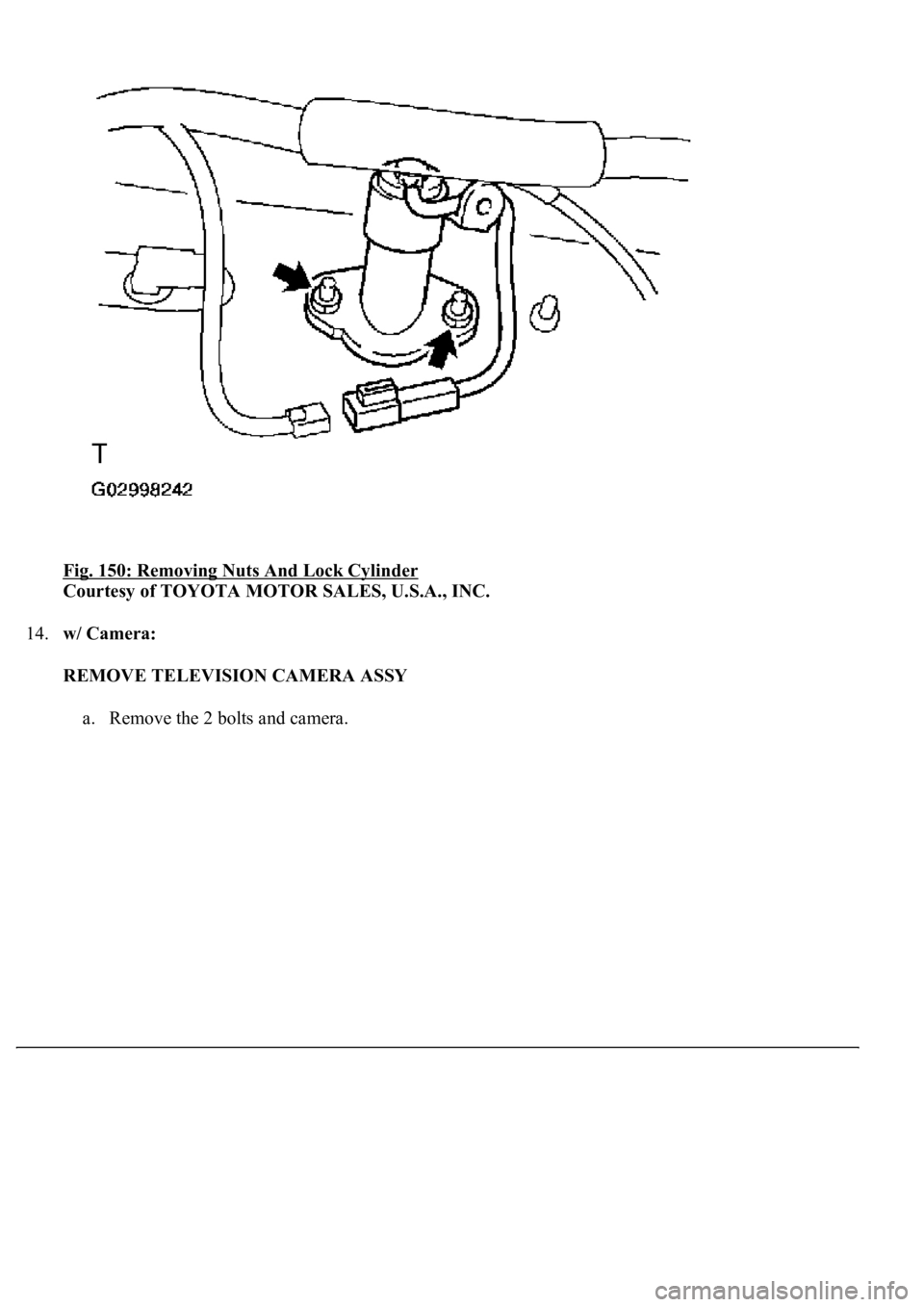

LEXUS LS430 2003 Factory Repair Manual Fig. 150: Removing Nuts And Lock Cylinder Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 14.w/ Camera: REMOVE TELEVISION CAMERA ASSY a. Remove the 2 bolts and camera.

Page 3140 of 4500

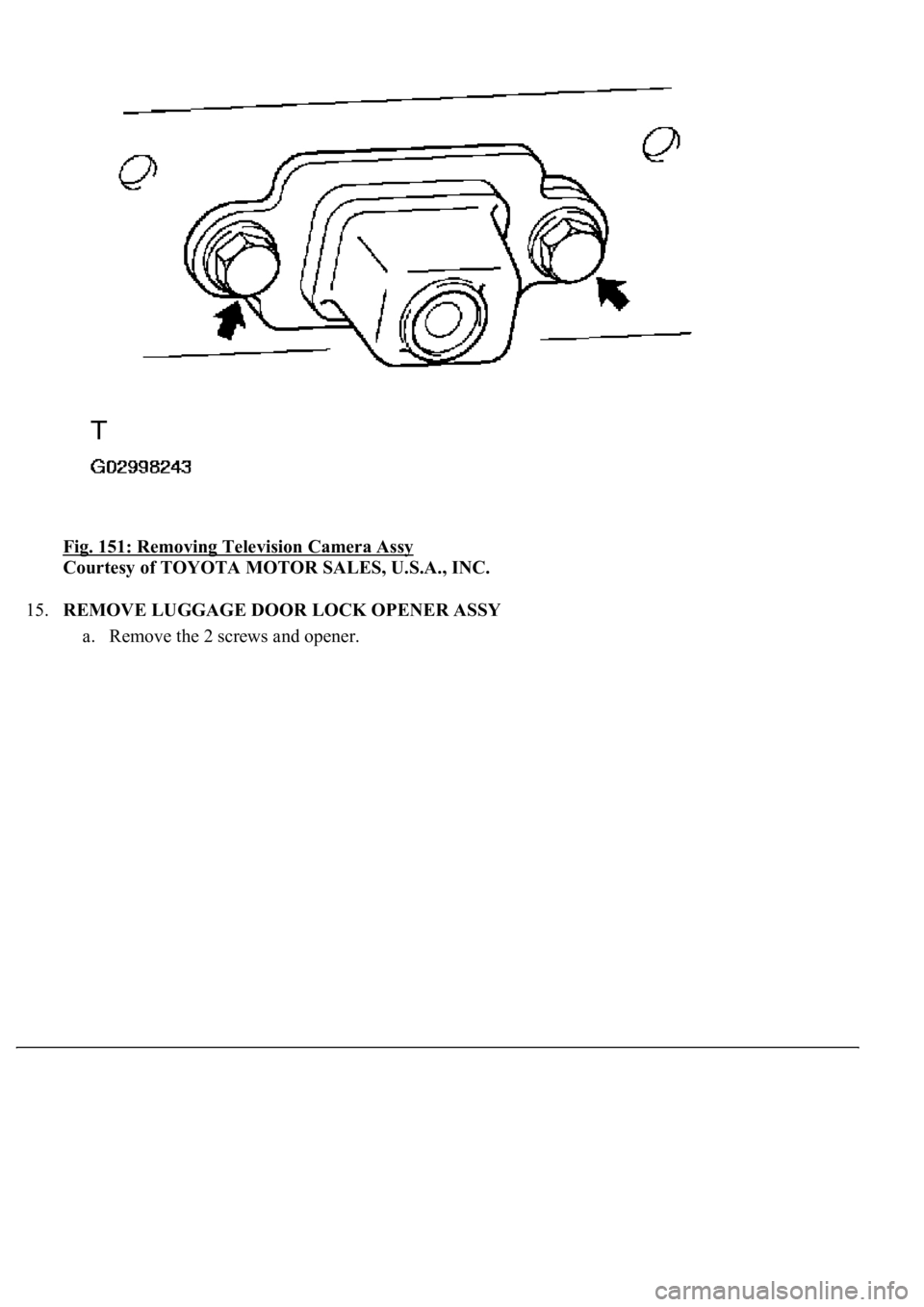

LEXUS LS430 2003 Factory Repair Manual Fig. 151: Removing Television Camera Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 15.REMOVE LUGGAGE DOOR LOCK OPENER ASSY a. Remove the 2 screws and opener.

Page 3141 of 4500

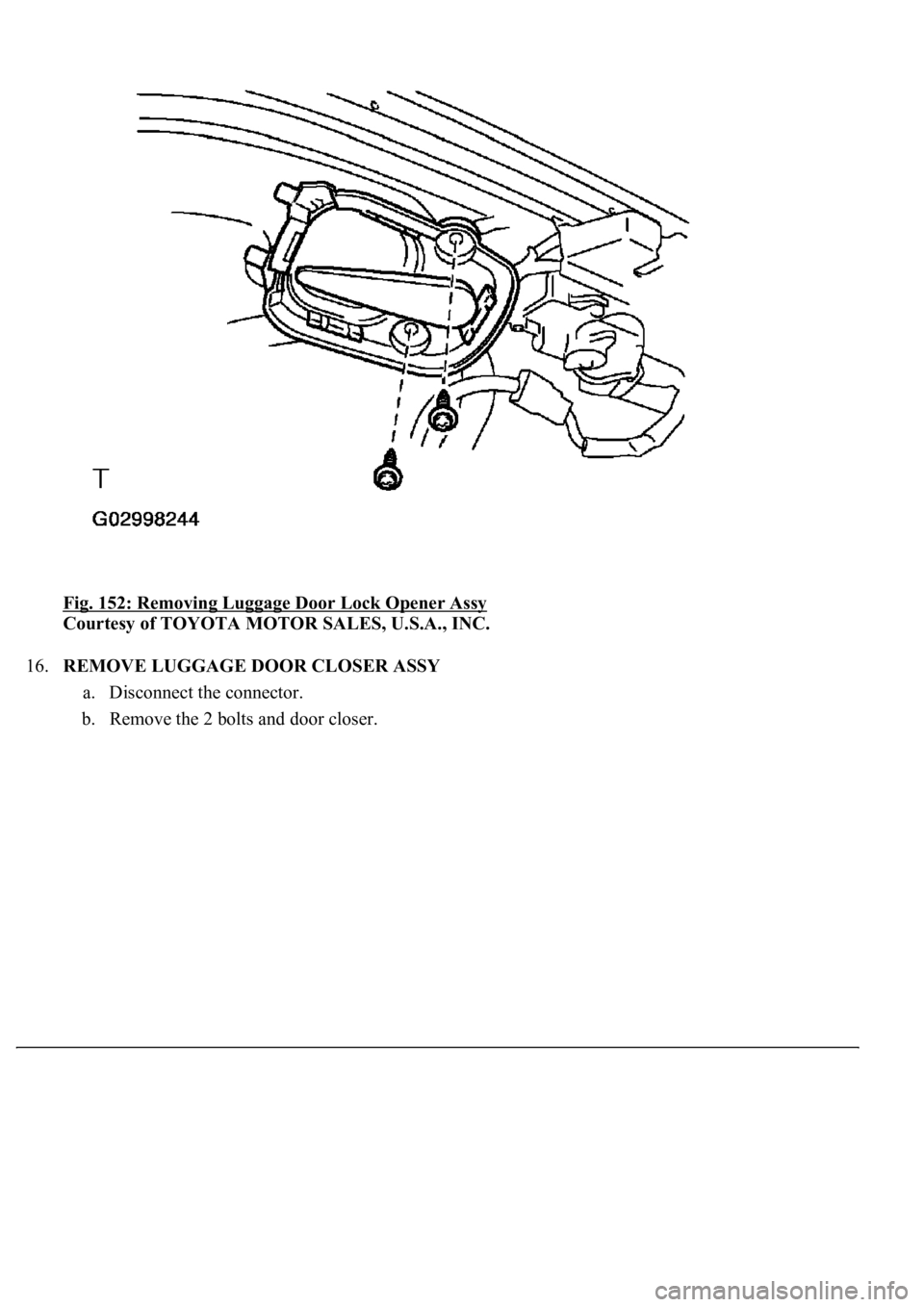

LEXUS LS430 2003 Factory Repair Manual Fig. 152: Removing Luggage Door Lock Opener Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 16.REMOVE LUGGAGE DOOR CLOSER ASSY a. Disconnect the connector. b. Remove the 2 bolts and door closer

Page 3142 of 4500

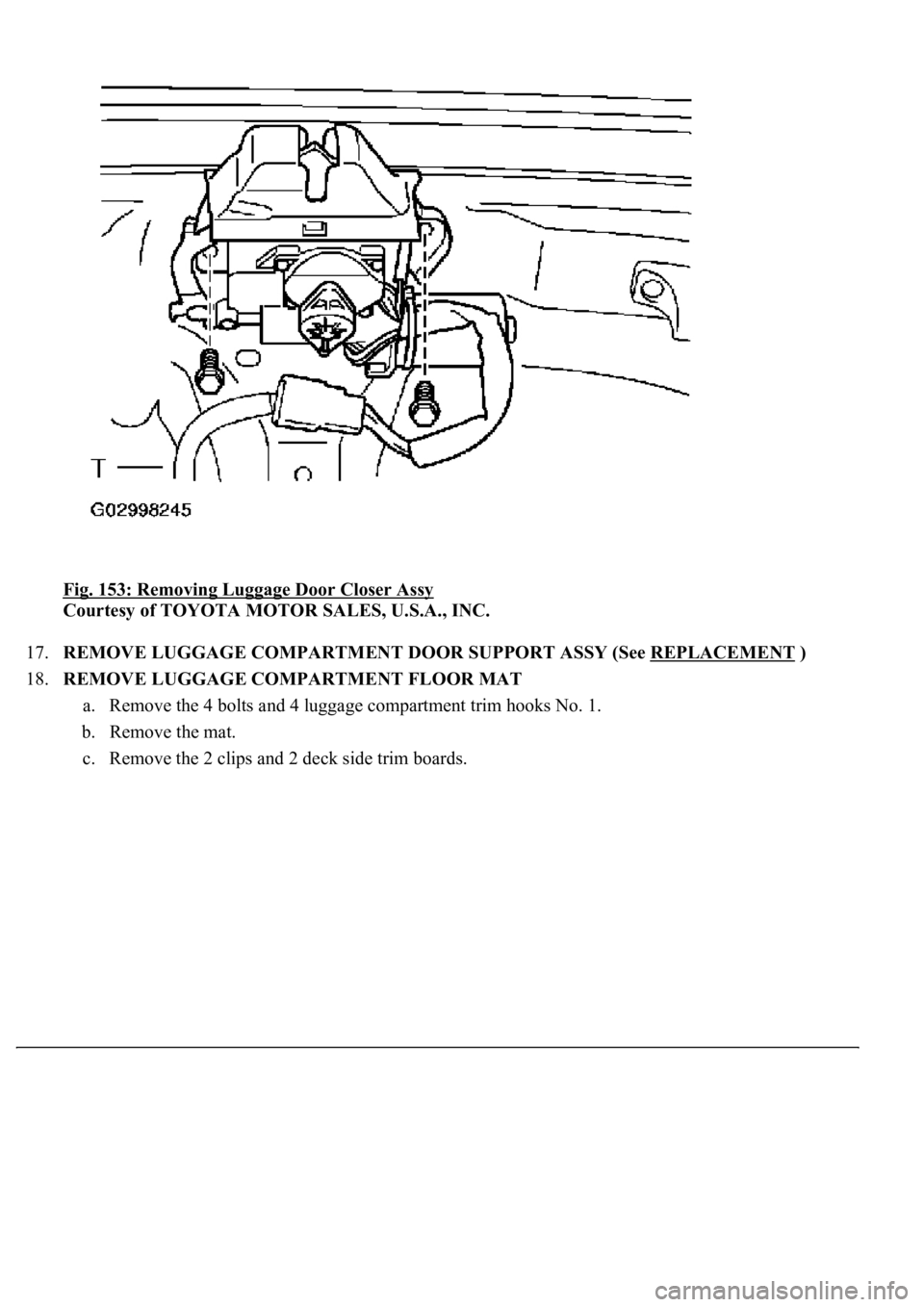

LEXUS LS430 2003 Factory Repair Manual Fig. 153: Removing Luggage Door Closer Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 17.REMOVE LUGGAGE COMPARTMENT DOOR SUPPORT ASSY (See REPLACEMENT ) 18.REMOVE LUGGAGE COMPARTMENT FLOOR MAT

Page 3143 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 154: Removing Luggage Compartment Door Support Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 19.REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT a. w/ Special utility package: Remove the 2 cli

Page 3144 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 155: Removing Luggage Compartment Trim Cover Front Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. w/ Special utility package: Usin g a clip remover, remove the 5 clips.
