Page 1 of 4500

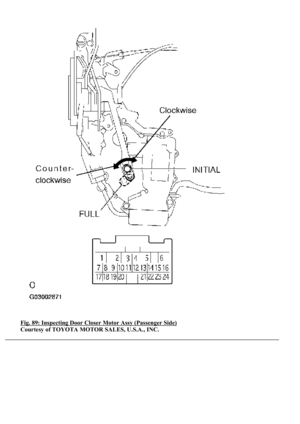

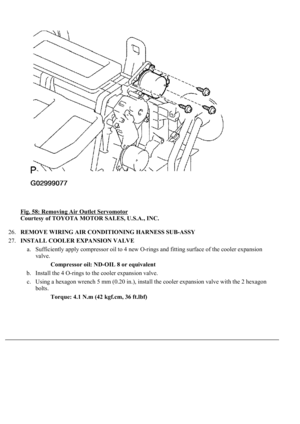

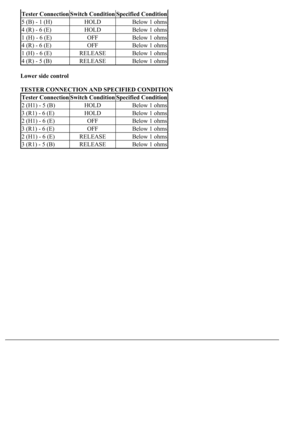

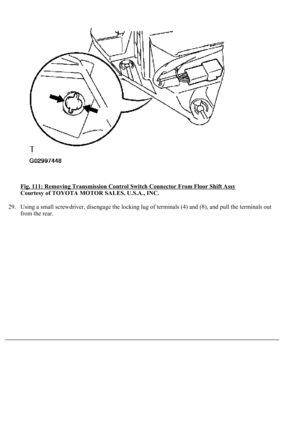

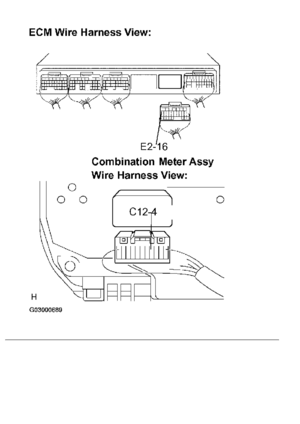

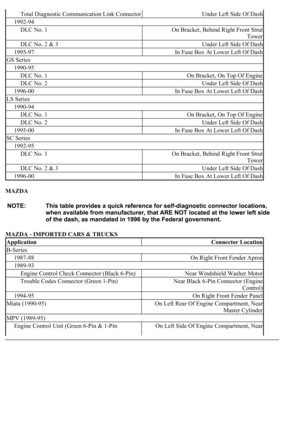

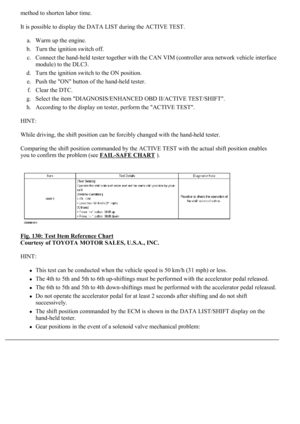

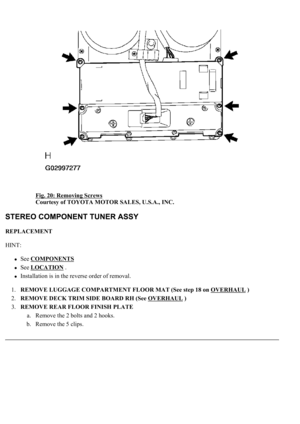

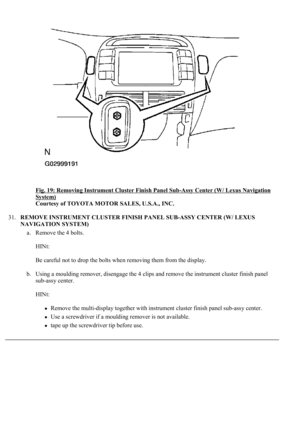

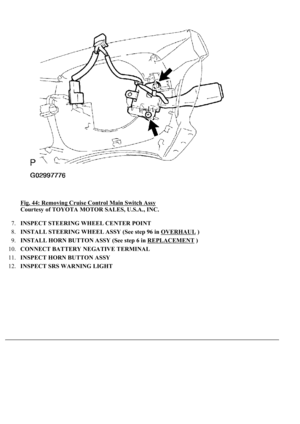

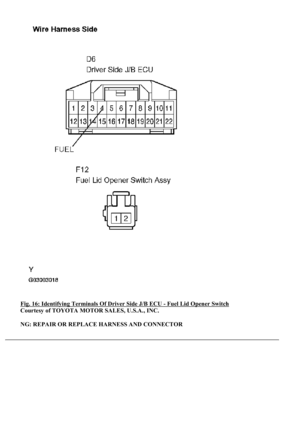

LEXUS LS430 2003 Factory Repair Manual LS430 SPECIFICATIONS INDEX SystemSpecification/Procedure Air Conditioning ServiceSERVICE DATA TorqueTORQUE SPECIFICATION Axle Nut/Hub Nut Front69 N.m (700 kgf.cm, 51 ft.lbf) Rear290 N.m (2,960 kgf.cm

Page 2 of 4500

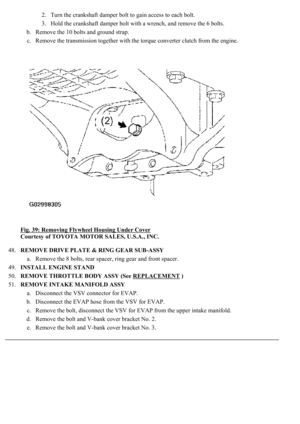

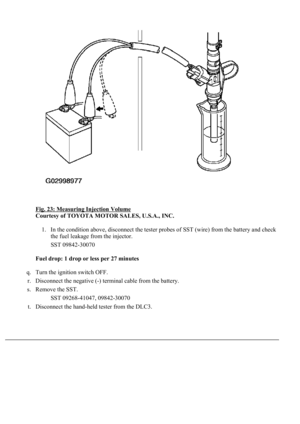

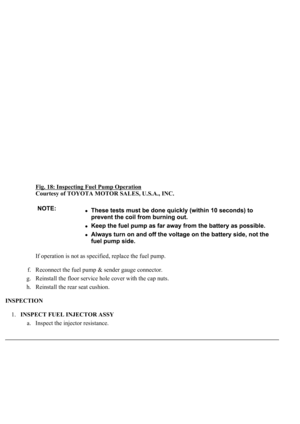

LEXUS LS430 2003 Factory Repair Manual Fluid SpecificationsSee FLUIDS under MAINTENANCE tab. Flywheel/Flex Plate (Drive Plate) TorqueStep1: 49 N.m (500 kgf.cm, 36 ft lbs) Step2: Turn 90° Fuel System Pressure Specification304 to 343 kPa

Page 3 of 4500

LEXUS LS430 2003 Factory Repair Manual When there is a malfunction in the contact point of the terminals or installation problems with parts, removal and installation of the suspected problem parts may return the system to the normal cond

Page 4 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 1: Identifying ABS With EBD & BA & TRAC & VSC System Components Location Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 5 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 2: ABS With EBD & BA & TRAC & VSC System Diagram (1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 6 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 3: ABS With EBD & BA & TRAC & VSC System Diagram (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. TRANSMITTING ECU RECEIVING ECU SIGNALS COMMUNICATION METHOD Transmitting ECU (transmitte

Page 7 of 4500

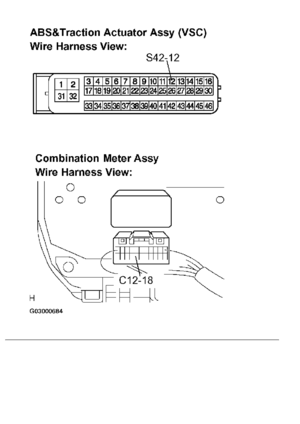

LEXUS LS430 2003 Factory Repair Manual 1.SYSTEM DESCRIPTION HINT: The skid control ECU is a single unit with ABS & TRACTION ACTUATOR. The skid control ECU also works as a TPMS (Tire Pressure Monitor System) ECU. The yaw rate sensor a

Page 8 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 4: ABS & TRACTION Actuator System Description Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Operation description The skid control ECU detects wheel lock condition by receiving vehicle speed s
