Page 3505 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 221: Mounting Hexagon Wrench Head Portion Of Camshaft In A Vise Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Using SST, turn the sub gear clockwise and remove the service bolt. SST 09960-10

Page 3506 of 4500

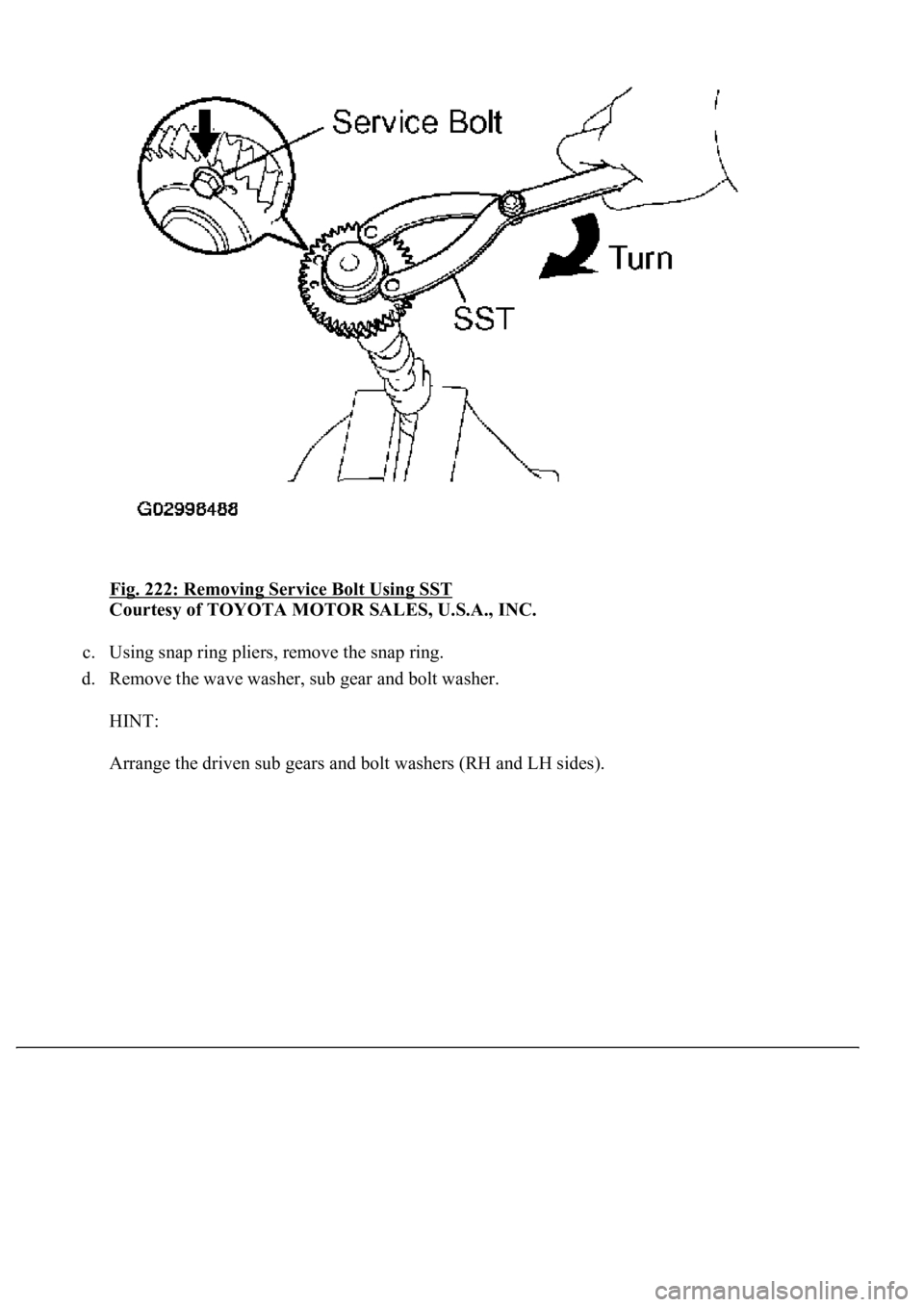

LEXUS LS430 2003 Factory Repair Manual Fig. 222: Removing Service Bolt Using SST Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Using snap ring pliers, remove the snap ring. d. Remove the wave washer, sub gear and bolt washer. HINT:

Page 3507 of 4500

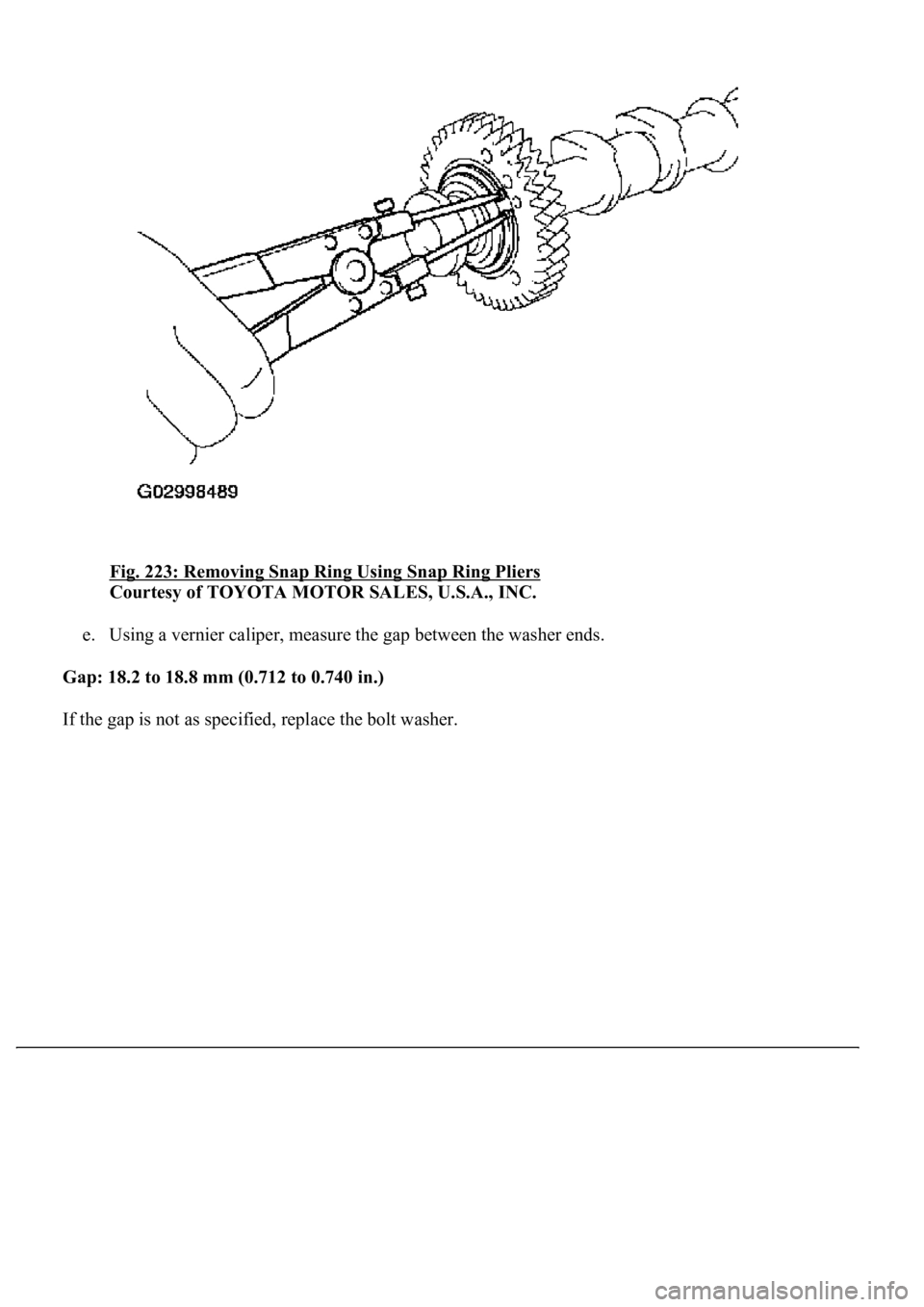

LEXUS LS430 2003 Factory Repair Manual Fig. 223: Removing Snap Ring Using Snap Ring Pliers Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Using a vernier caliper, measure the gap between the washer ends. Gap: 18.2 to 18.8 mm (0.712 to

Page 3508 of 4500

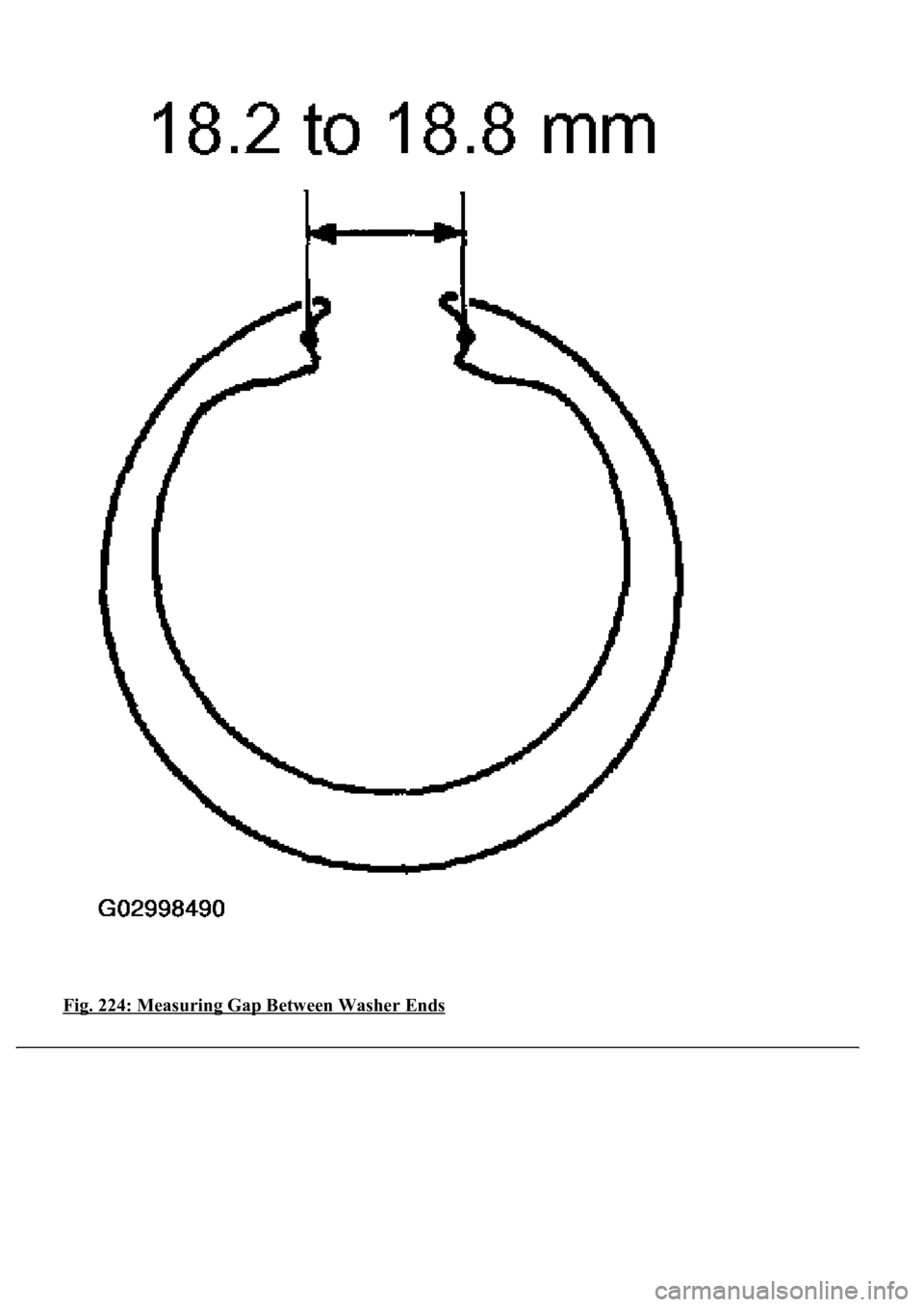

LEXUS LS430 2003 Factory Repair Manual Fig. 224: Measuring Gap Between Washer Ends

Page 3509 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.INSTALL CAMSHAFT SUB GEAR a. Install the bolt washer (1), sub gear (2) and wave washer (3). HINT: Attach the pins on the gears to the gear bolt washer

Page 3510 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a00110003001500150019001d0003002c0047004800510057004c0049005c004c0051004a0003003600510044005300030035004c0051004a000300380056004c0051004a0003003600510044005300030035004c0051004a00030033004

Page 3511 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 227: Mounting Hexagon Wrench Head Portion Of Camshaft In A Vise Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Using SST, align the holes of the driven main gear and sub gear by turning the su

Page 3512 of 4500

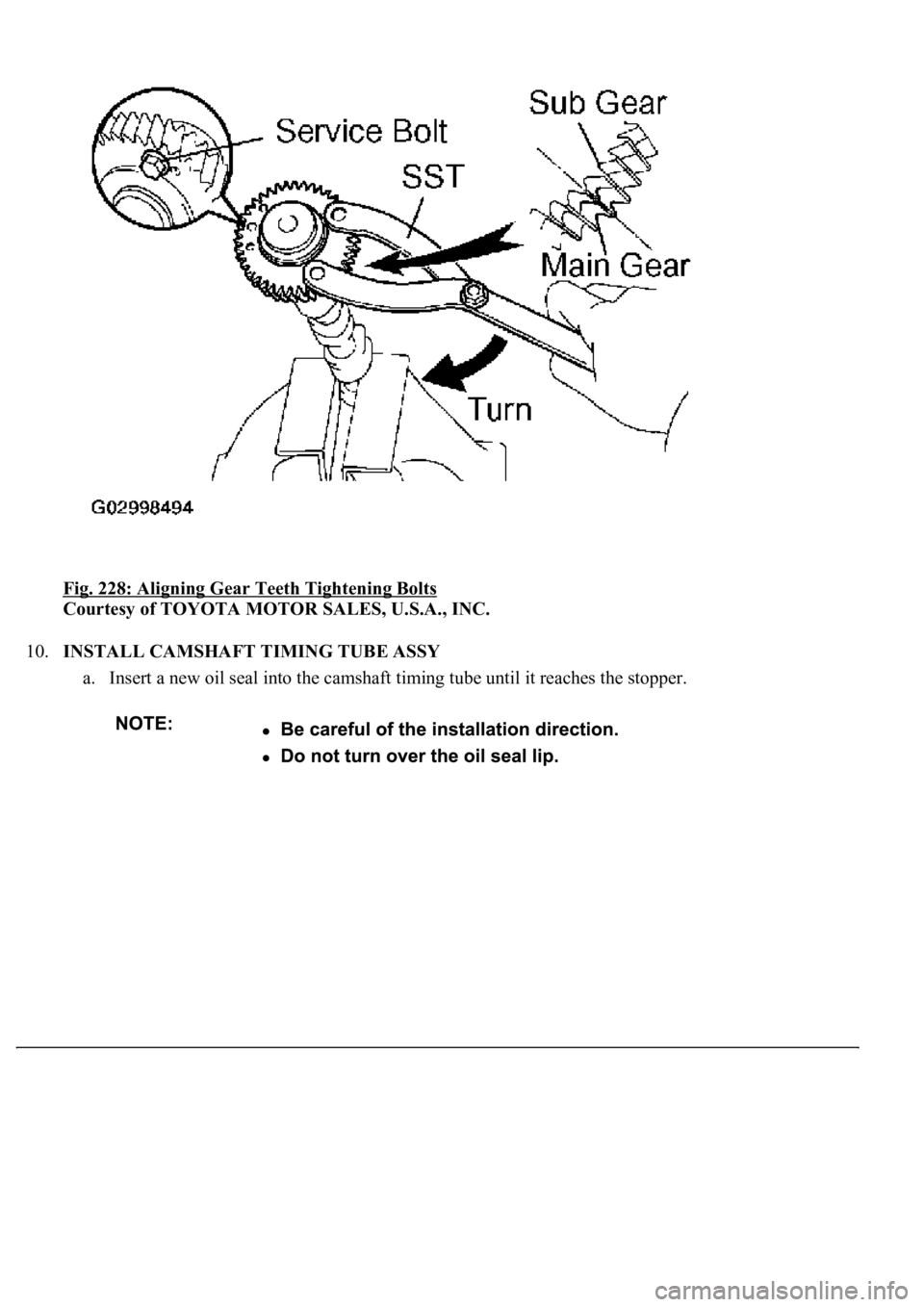

LEXUS LS430 2003 Factory Repair Manual Fig. 228: Aligning Gear Teeth Tightening Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.INSTALL CAMSHAFT TIMING TUBE ASSY a. Insert a new oil seal into the camshaft timing tube until it reac
