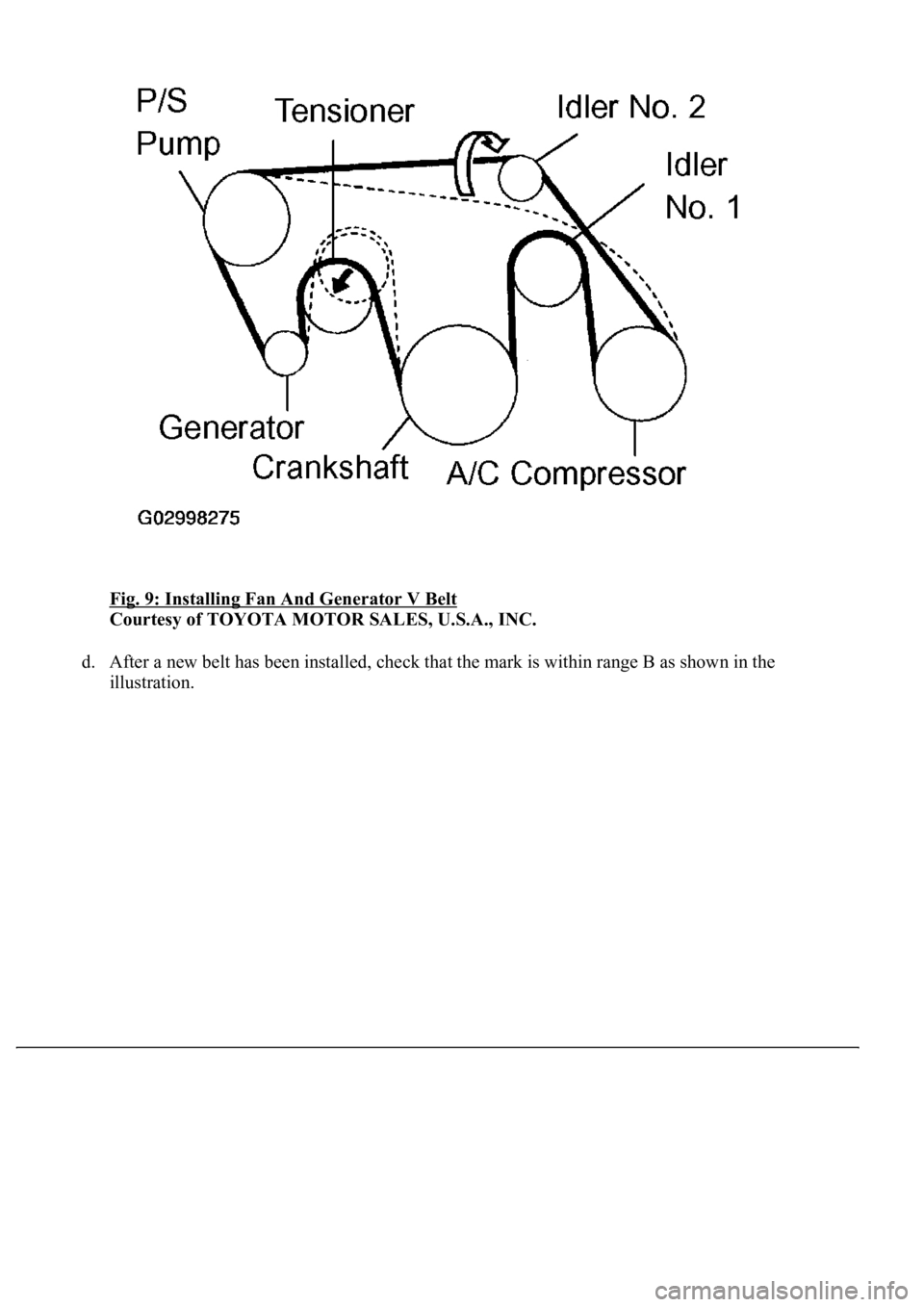

LEXUS LS430 2003 Factory Repair Manual Fig. 9: Installing Fan And Generator V Belt Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. After a new belt has been installed, check that the mark is within range B as shown in the illustration.

Page 3290 of 4500

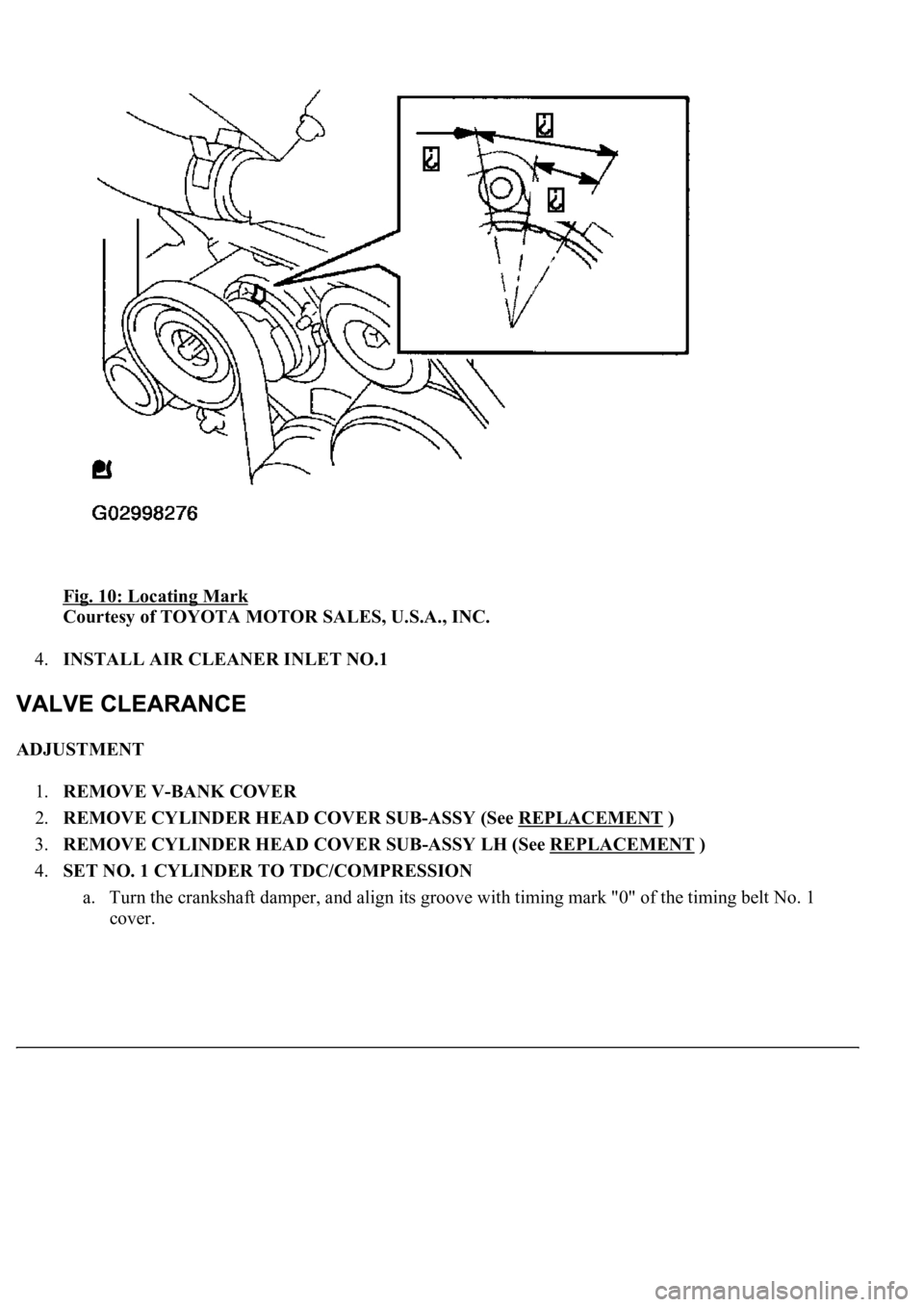

LEXUS LS430 2003 Factory Repair Manual Fig. 10: Locating Mark Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 4.INSTALL AIR CLEANER INLET NO.1 ADJUSTMENT 1.REMOVE V-BANK COVER 2.REMOVE CYLINDER HEAD COVER SUB-ASSY (See REPLACEMENT )

Page 3291 of 4500

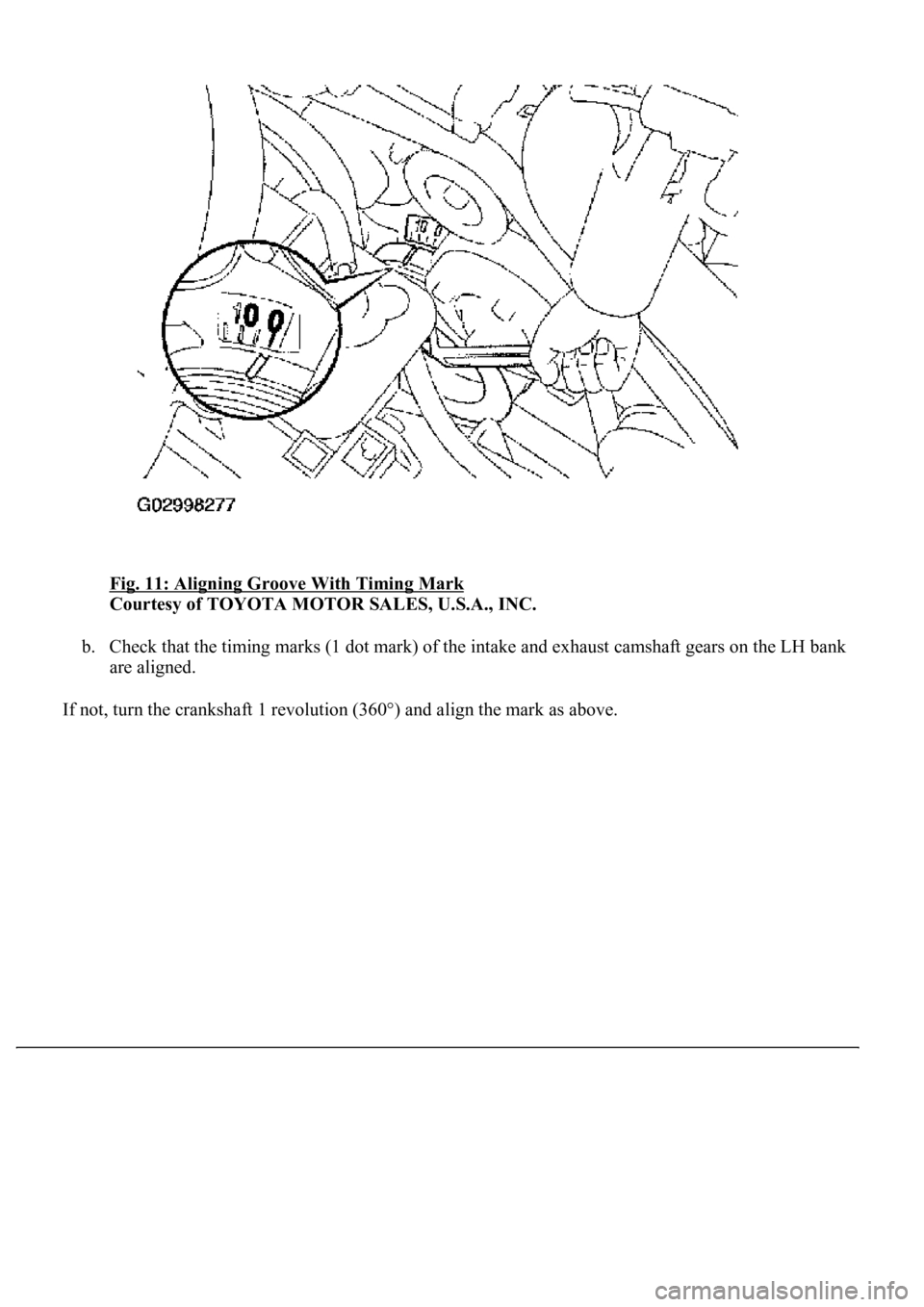

LEXUS LS430 2003 Factory Repair Manual Fig. 11: Aligning Groove With Timing Mark Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Check that the timing marks (1 dot mark) of the intake and exhaust camshaft gears on the LH bank are aligne

Page 3292 of 4500

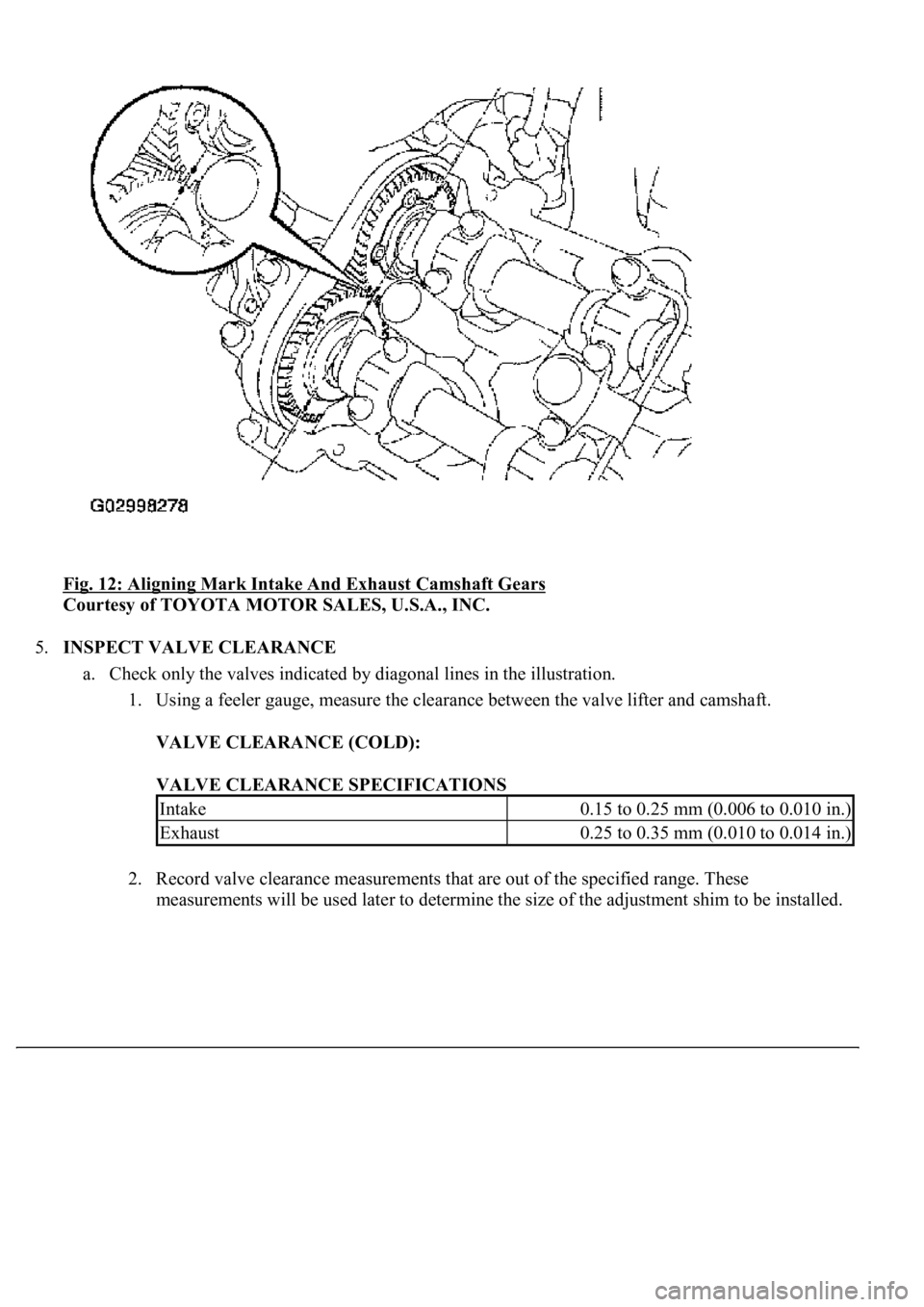

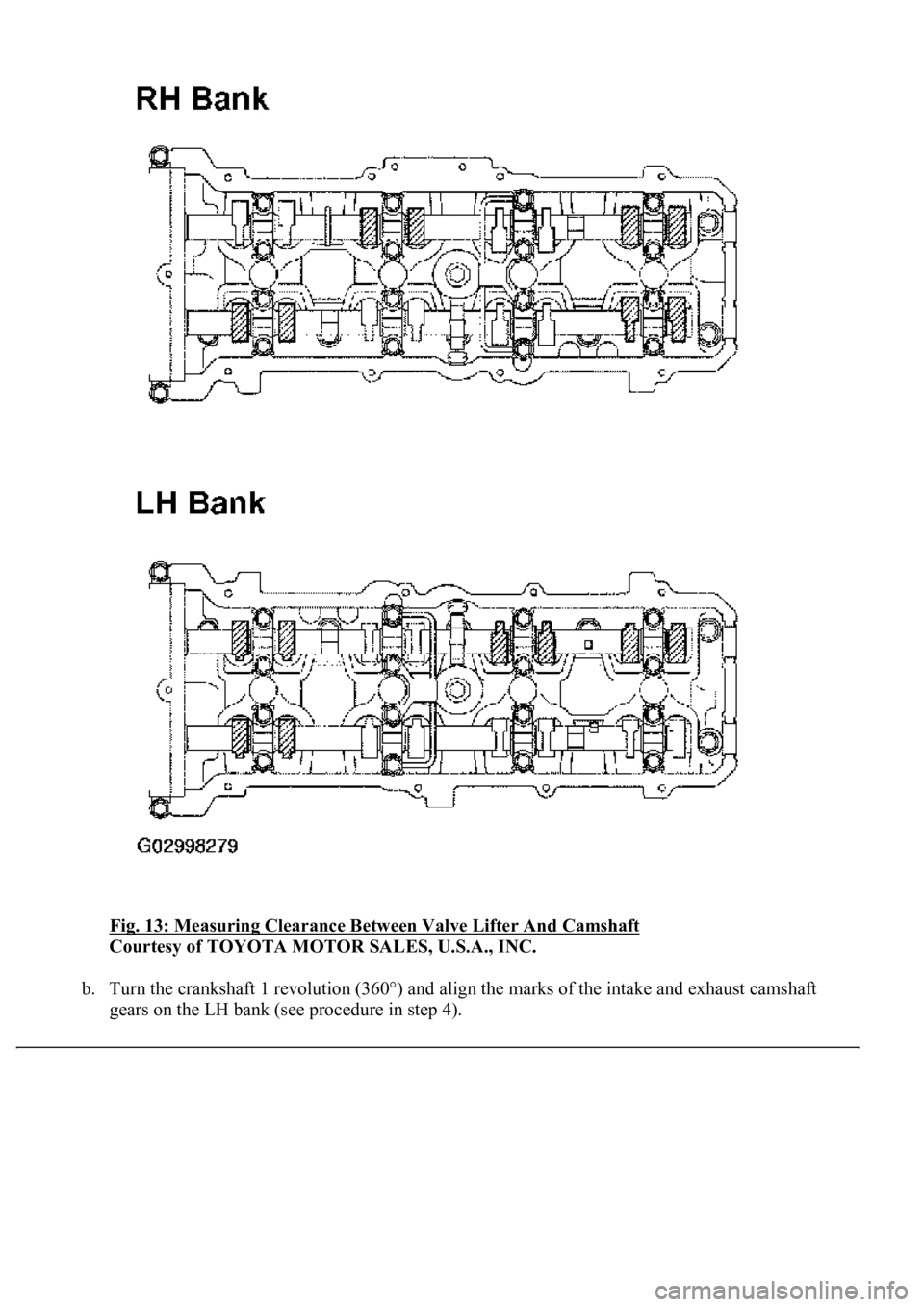

LEXUS LS430 2003 Factory Repair Manual Fig. 12: Aligning Mark Intake And Exhaust Camshaft Gears Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 5.INSPECT VALVE CLEARANCE a. Check only the valves indicated by diagonal lines in the illustrat

Page 3293 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300140016001d0003003000480044005600580055004c0051004a00030026004f00480044005500440051004600480003002500480057005a004800480051000300390044004f005900480003002f004c0049005700480055000

Page 3294 of 4500

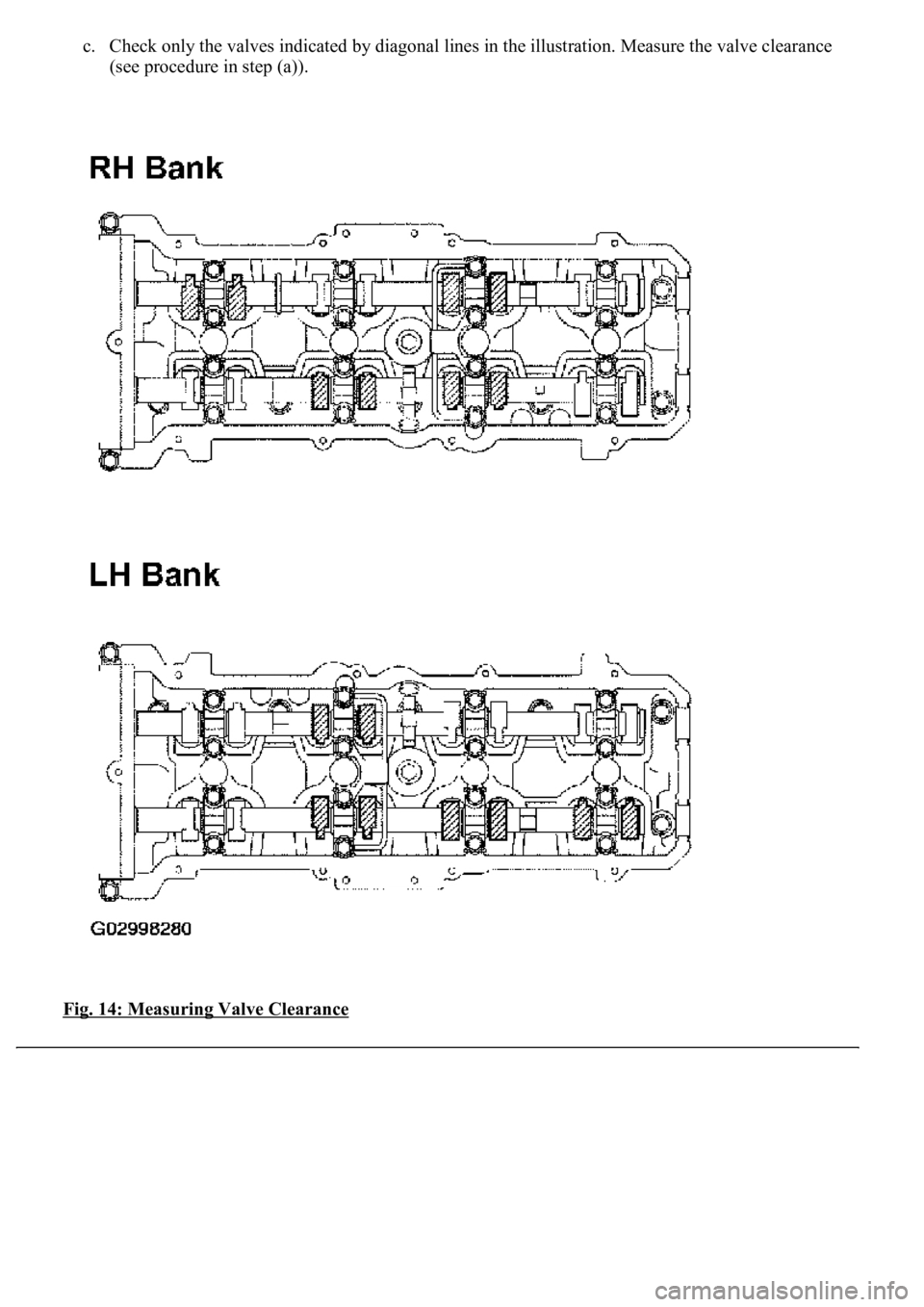

LEXUS LS430 2003 Factory Repair Manual c. Check only the valves indicated by diagonal lines in the illustration. Measure the valve clearance (see procedure in step (a)). Fig. 14: Measuring Valve Clearance

Page 3295 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.REMOVE CAMSHAFT (See REPLACEMENT ) 7.REMOVE NO.3 CAMSHAFT SUB-ASSY (See REPLACEMENT ) 8.ADJUST VALVE CLEARANCE a. Using a powerful magnet, remove

Page 3296 of 4500

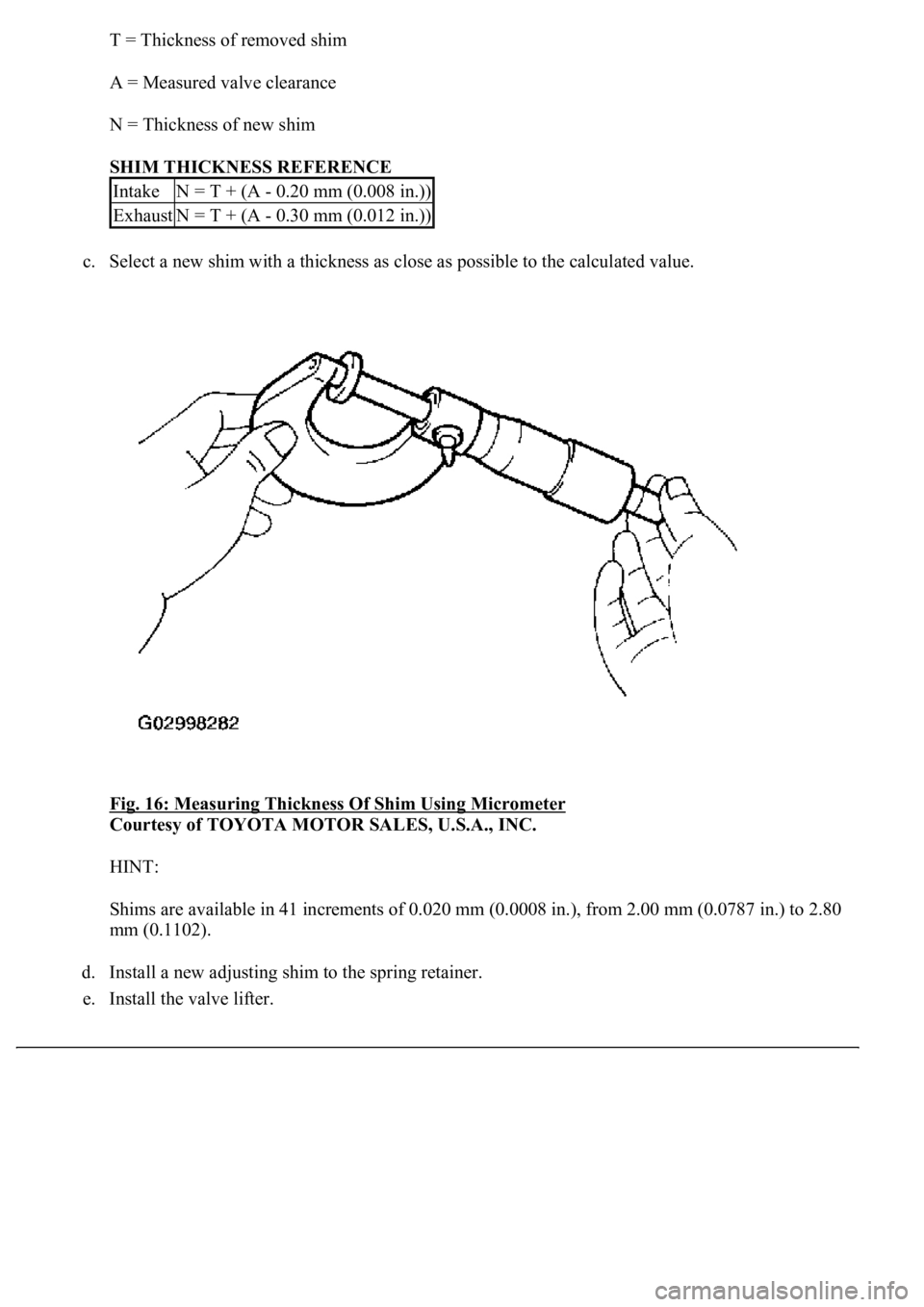

LEXUS LS430 2003 Factory Repair Manual T = Thickness of removed shim A = Measured valve clearance N = Thickness of new shim SHIM THICKNESS REFERENCE c. Select a new shim with a thickness as close as possible to the calculated value. Fi
