Page 897 of 4500

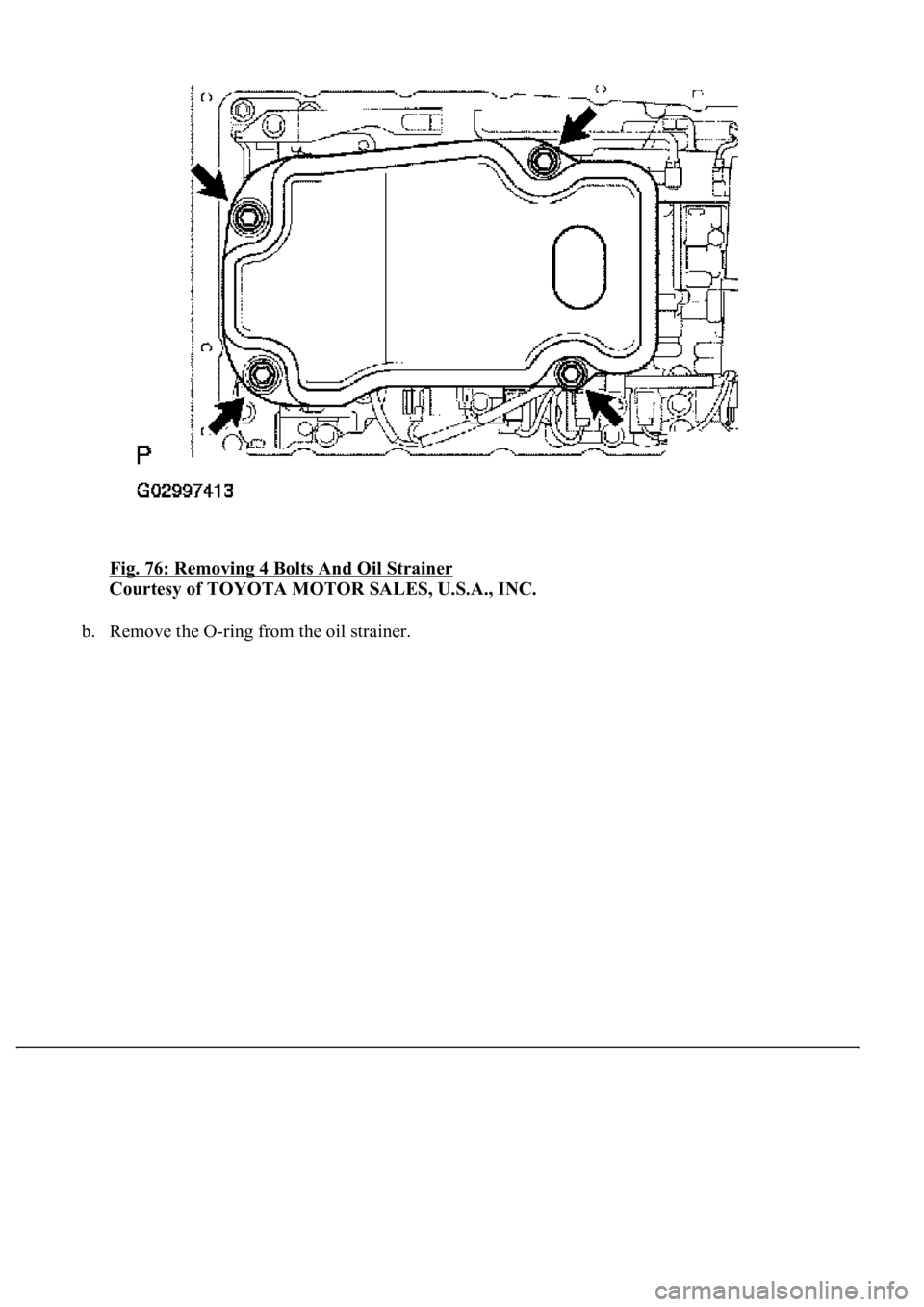

LEXUS LS430 2003 Factory Repair Manual Fig. 76: Removing 4 Bolts And Oil Strainer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Remove the O-ring from the oil strainer.

Page 898 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 77: Removing O-Ring From Oil Strainer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 5.DISCONNECT TRANSMISSION WIRE a. Remove the bolt and lock plate, and separate the ATF temperature sensor.

Page 899 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 78: Removing Bolt And Lock Plate, And Separating ATF Temperature Sensor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.REMOVE TRANSMISSION VALVE BODY ASSY a. Remove the 20 bolts and valve bod

Page 900 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 79: Removing 20 Bolts And Valve Body Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Remove the check ball body and spring.

Page 901 of 4500

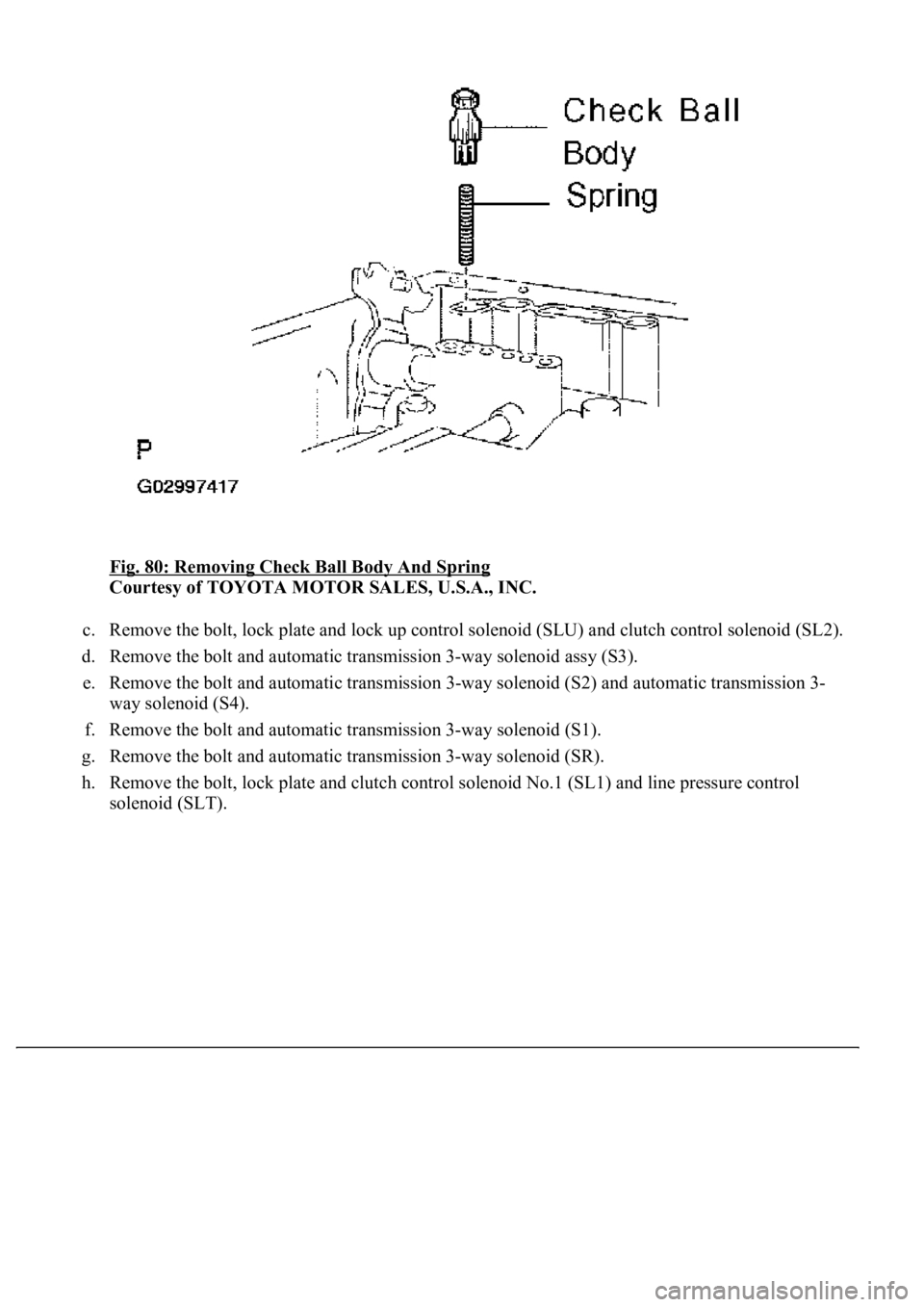

LEXUS LS430 2003 Factory Repair Manual Fig. 80: Removing Check Ball Body And Spring Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Remove the bolt, lock plate and lock up control solenoid (SLU) and clutch control solenoid (SL2). d. Re

Page 902 of 4500

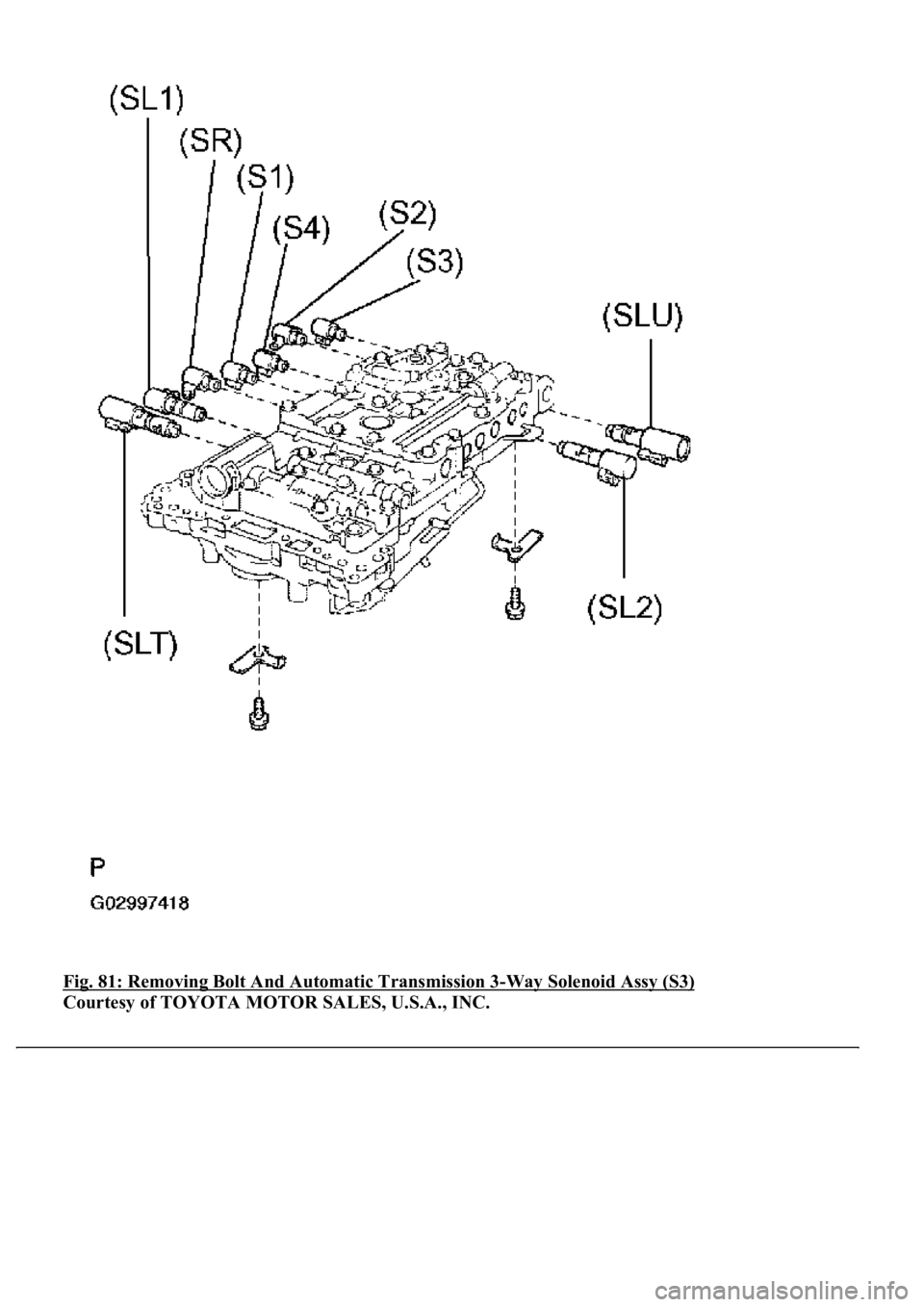

LEXUS LS430 2003 Factory Repair Manual Fig. 81: Removing Bolt And Automatic Transmission 3-Way Solenoid Assy (S3) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 903 of 4500

LEXUS LS430 2003 Factory Repair Manual 7.INSTALL TRANSMISSION VALVE BODY ASSY a. Install the clutch control solenoid No.1 (SL1) and line pressure control solenoid (SLT) with the lock plate and bolt. Torque: 6.4 N.m (65 kgf.cm, 56 in..lb

Page 904 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 82: Installing Automatic Transmission 3-Way Solenoid (S3) With Bolt Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
