LOCK according to the chart above.
NG: Go to step 2
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS
TABLE
2.CHECK WIRE HARNESS (DRIVER SEAT ECU - POWER SEAT SENSOR AND BODY
GROUND)
a. Disconnect the D27 and D28 ECU connectors.
b. Disconnect the P40, P41, P42, P43, P44 and P45 sensor connectors.
c. Measure the resistance of the wire harness side connectors.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITION
Tester connectionSpecified condition
D27-12 (H+) - P40-1 (UP)Below 1 ohms
D27-3 (H-) - P40-5 (DOWN)Below 1 ohms
D28-7(SSRH) - P40-4(O/P)Below 1 ohms
D28-16 (PVCC) - P40-2 (VCC)Below 1 ohms
D28-16 (PVCC) - P44-3 (VCC)Below 1 ohms
D28-13 (SSRR) - P44-1 (O/P)Below 1 ohms
D28-16 (PVCC) - P43-3 (VCC)Below 1 ohms
D28-6 (SSRV) - P43-1 (O/P)Below 1 ohms
D28-16 (PVCC) - P45-3 (VCC)Below 1 ohms
D28-5 (SSRS) -P45-1 (O/P)Below 1 ohms
D28-16 (PVCC) - P41-3 (VCC)Below 1 ohms
D28-15 (SSRC) - P41-1 (O/P)Below 1 ohms
D28-16 (PVCC) - P42-3 (VCC)Below 1 ohms
D28-14 (SSFV) - P42-1 (O/P)Below 1 ohms
D28-1 (SGND) - Body groundBelow 1 ohms
P40-3 (GND) - Body groundBelow 1 ohms
P44-2 (GND) - Body groundBelow 1 ohms
P43-2 (GND) - Body groundBelow 1 ohms
P45-2 (GND) - Body groundBelow 1 ohms
P41-2 (GND) - Body groundBelow 1 ohms
P42-2 (GND) - Body groundBelow 1 ohms
Page 3946 of 4500
Fig. 25: Identifying D27, D28 Driver Seat ECU Connector Terminals And Power Seat Sensor
Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
Page 3947 of 4500
OK: GO TO NEXT STEP
3.CHECK DRIVER SEAT ECU (SENSOR POWER SOURCE VOLTAGE)
a. Turn the ignition switch ON.
b. Measure the voltage of the ECU connector.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITION
Fig. 26: Identifying D28 Driver Seat ECU Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPLACE DRIVER SEAT ECU
OK: GO TO NEXT STEP
Tester connectionSpecified condition
D28-16 (PVCC) - Body ground8V
Page 3948 of 4500
4.CHECK POWER SEAT POSITION SENSOR
a. Turn the ignition switch ON.
b. Measure the voltage of the ECU connector.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITION
HINT:
Check the power seat position sensors that are malfunctioning.
Run the motors and check that the voltage readings vary within the "specified condition" shown in the
chart above.
*: If the result is not as specified proceed to steps indicated in this column.
Tester ConnectionSpecified ConditionWhen NG, proceed to*
D28-7 (SSRH) - D28-1 (GND)Varies between 0 to 8 VA
D28-13 (SSRR) - D28-1 (GND)Varies between 0 to 8 VB
D28-6 (SSRV) - D28-1 (GND)Varies between 0 to 8 VB
D28-5 (SSRS) - D28-1 (GND)Varies between 0 to 8 VB
D28-15 (SSRC) - D28-1 (GND)Varies between 0 to 8 VB
D28-14 (SSFV) - D28-1 (GND)Varies between 0 to 8 VB
Page 3949 of 4500
Fig. 27: Identifying D28 Driver Seat ECU Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
A: REPLACE FRONT SEAT HEADREST ADJUSTER
B: REPLACE FRONT POWER SEAT ADJUSTER
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS
TABLE
CIRCUIT DESCRIPTION
Pressing the lumbar switch activates the lumbar support motor.
Because the lumbar support switch is not connected to the driver seat ECU, pressing this switch does not
operate ECU operations such as the memory function.
WIRING DIAGRAM
Page 3950 of 4500
Fig. 28: Lumbar Support Switch Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.INSPECT LUMBAR SUPPORT SWITCH
a. Remove the lumbar support switch.
b. Measure the resistance.
Standard:
Upper side control
TESTER CONNECTION AND SPECIFIED CONDITION
Page 3951 of 4500
Lower side control
TESTER CONNECTION AND SPECIFIED CONDITION
Tester ConnectionSwitch ConditionSpecified Condition
5 (B) - 1 (H)HOLDBelow 1 ohms
4 (R) - 6 (E)HOLDBelow 1 ohms
1 (H) - 6 (E)OFFBelow 1 ohms
4 (R) - 6 (E)OFFBelow 1 ohms
1 (H) - 6 (E)RELEASEBelow 1 ohms
4 (R) - 5 (B)RELEASEBelow 1 ohms

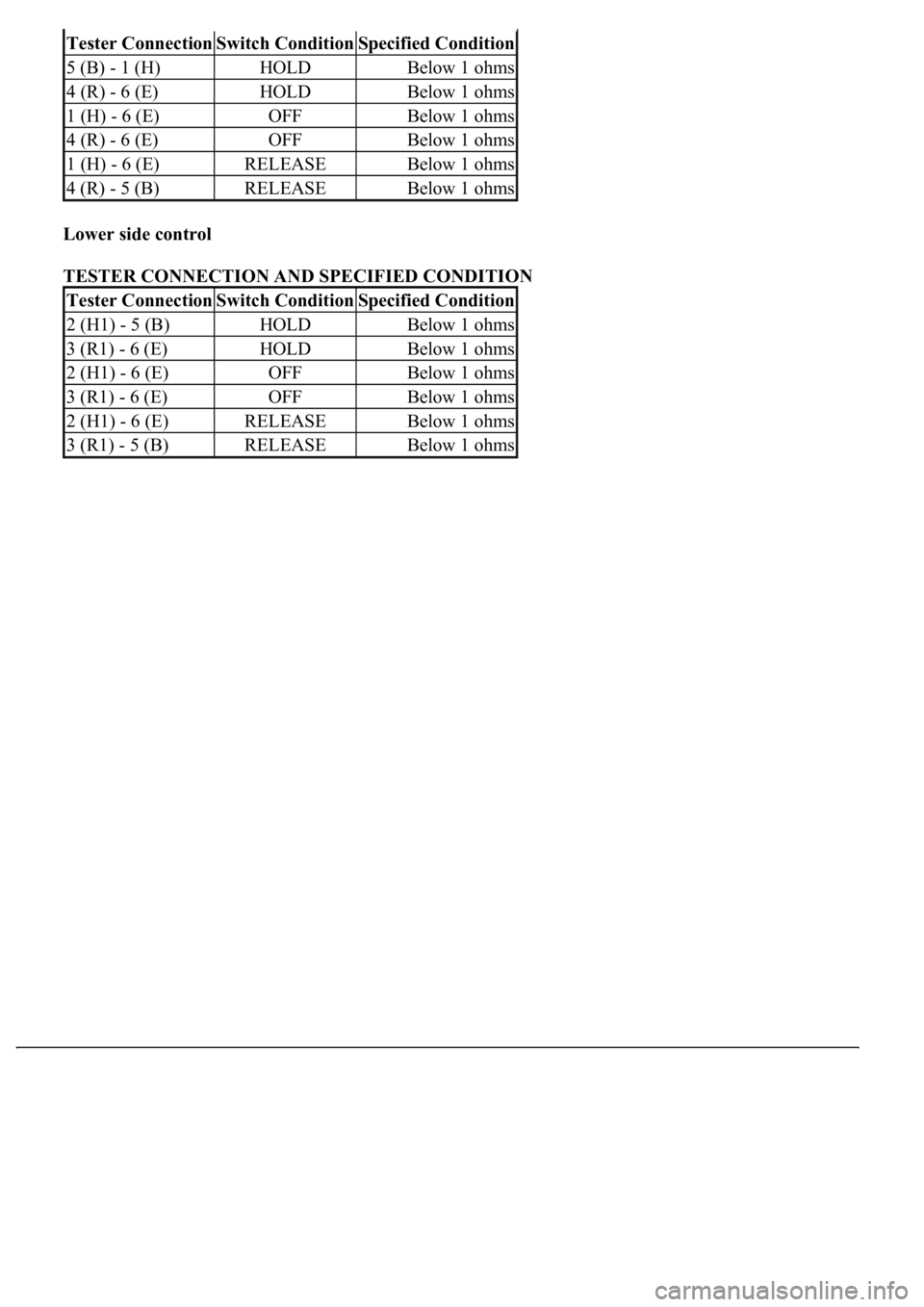

Tester ConnectionSwitch ConditionSpecified Condition
2 (H1) - 5 (B)HOLDBelow 1 ohms
3 (R1) - 6 (E)HOLDBelow 1 ohms
2 (H1) - 6 (E)OFFBelow 1 ohms
3 (R1) - 6 (E)OFFBelow 1 ohms
2 (H1) - 6 (E)RELEASEBelow 1 ohms
3 (R1) - 5 (B)RELEASEBelow 1 ohms
Page 3952 of 4500
