LEXUS LS430 2003 Factory Repair Manual 6.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1 (SEE REPLACEMENT ) 7.REMOVE INSTRUMENT PANEL CUP HOLDER ASSY (SEE REPLACEMENT ) 8.REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (SEE REPLACEMENT )

Page 914 of 4500

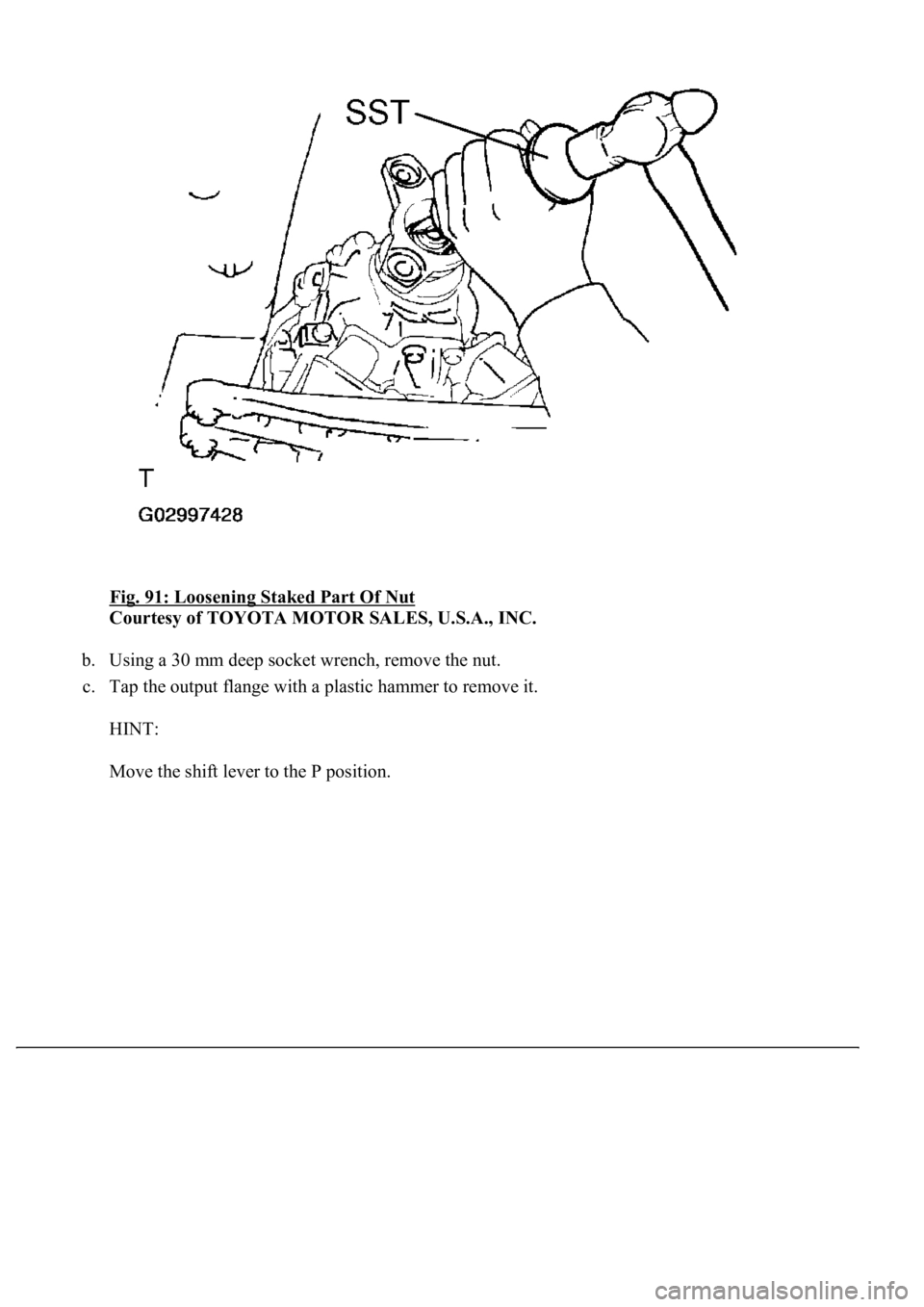

LEXUS LS430 2003 Factory Repair Manual Fig. 91: Loosening Staked Part Of Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Using a 30 mm deep socket wrench, remove the nut. c. Tap the output flange with a plastic hammer to remove it.

Page 915 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 92: Removing Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Usin g a screwdriver, remove the oil seal from the output flange.

Page 916 of 4500

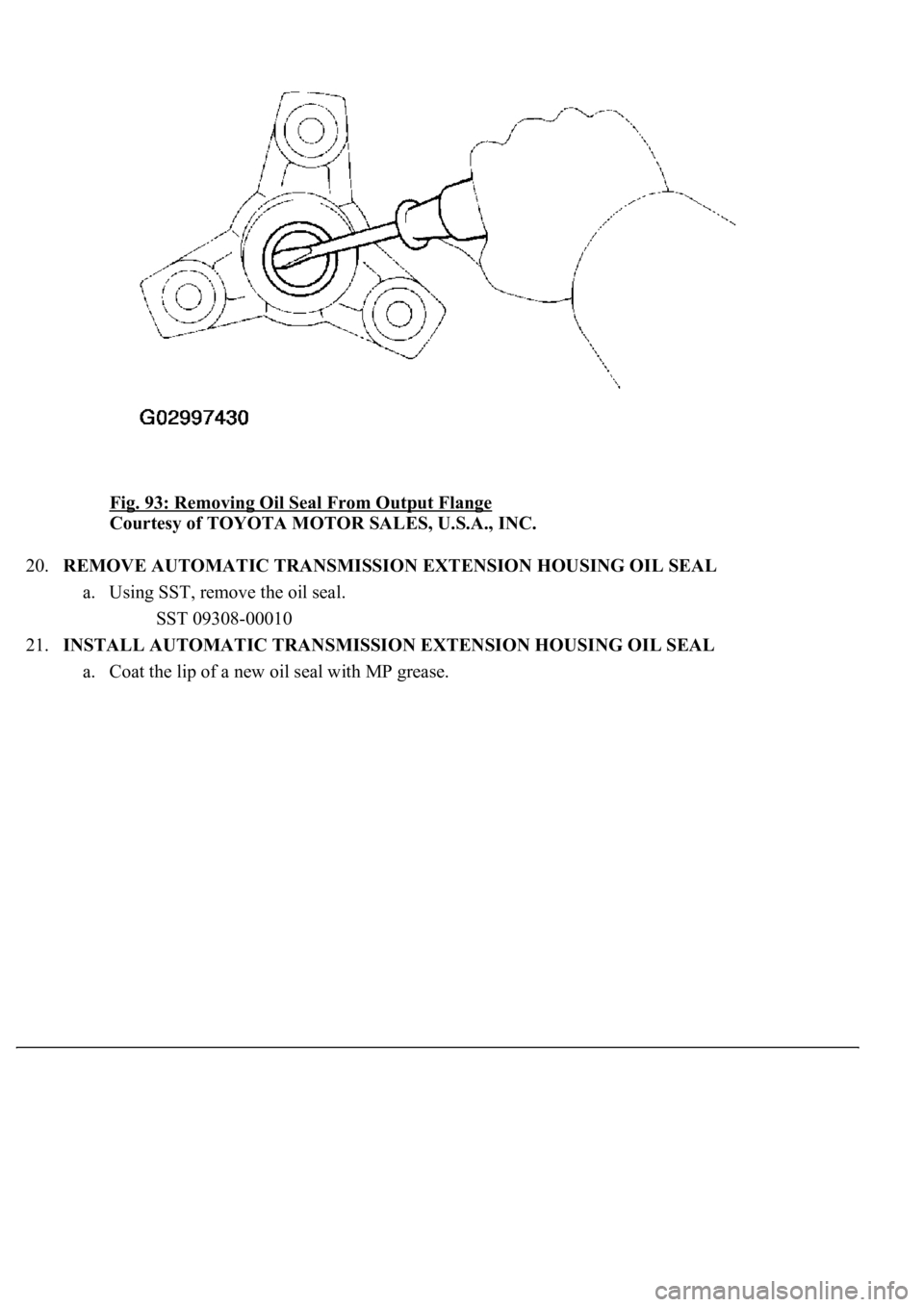

LEXUS LS430 2003 Factory Repair Manual Fig. 93: Removing Oil Seal From Output Flange Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 20.REMOVE AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL a. Using SST, remove the oil seal. SST 09308-

Page 917 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 94: Removing Oil Seal Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Using SST and a hammer, drive in the oil seal with the lip facing downward. SST 09309-37010 Oil seal depth from flat en

Page 918 of 4500

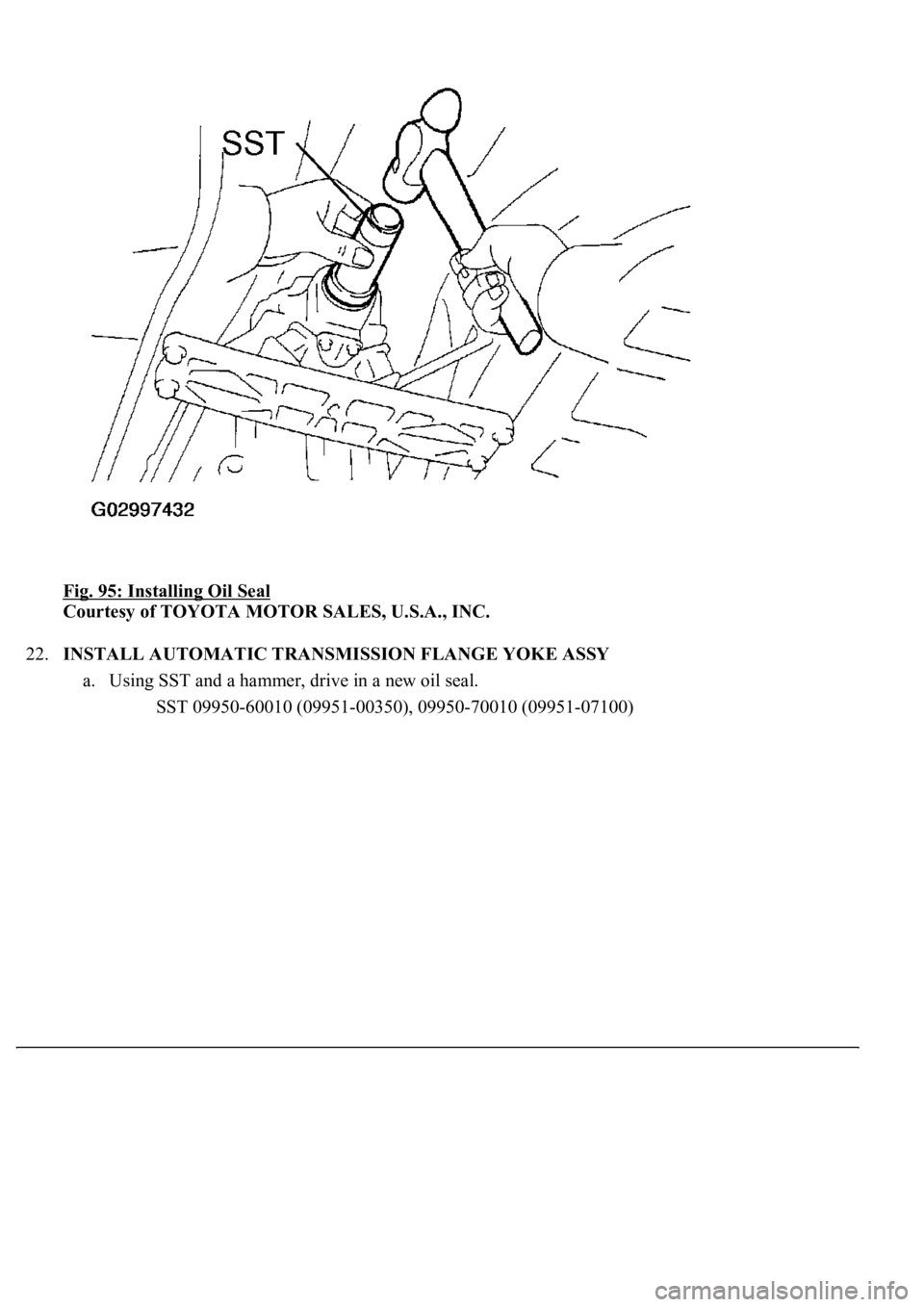

LEXUS LS430 2003 Factory Repair Manual Fig. 95: Installing Oil Seal Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 22.INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSY a. Using SST and a hammer, drive in a new oil seal. <003600360037000300

Page 919 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 96: Installing New Oil Seal Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Install the output flange. c. Using a 30 mm deep socket wrench, install and torque a new nut. Torque: 126 N.m (1,

Page 920 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 97: Installing Torque A New Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 23. Usin g a chisel and hammer, securely stake the nut.
