2003 LEXUS LS430 Factory Repair Manual

steering wheel adjustmenttrunksuspensionalternator belttrunk releaseemergency towing
Popular search:
Lock actuatormaintenance resetautomatic transmission fluidserviceheadrestoxygen sensorseat adjustment
Previous
Next
Load previous 8 pages

Page 3857 of 4500

LEXUS LS430 2003 Factory Repair Manual REPLACEMENT HINT: The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included. Use the same proced

Page 3858 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 4.REMOVE FRONT DOOR WINDOW FRAME MOLDING JOINT COVER FRONT 5.REMOVE FRONT DOOR WEATHERSTRIP UPPER a. Using a clip remover, remove the 3 clips and weathe

Page 3859 of 4500

LEXUS LS430 2003 Factory Repair Manual b. Do not prize the riveter. The riveter will be damaged and the mandrel will bend. c. Usin g a clip remover, remove the clip and molding from the door frame garnish.

Page 3860 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 71: Removing Front Door Window Frame molding Front LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3861 of 4500

LEXUS LS430 2003 Factory Repair Manual 7.INSTALL FRONT DOOR WINDOW FRAME MOLDING FRONT LH a. Using an air riveter or hand riveter with nose piece, strike the 6 rivets into the door window frame garnish to install the molding to the door

Page 3862 of 4500

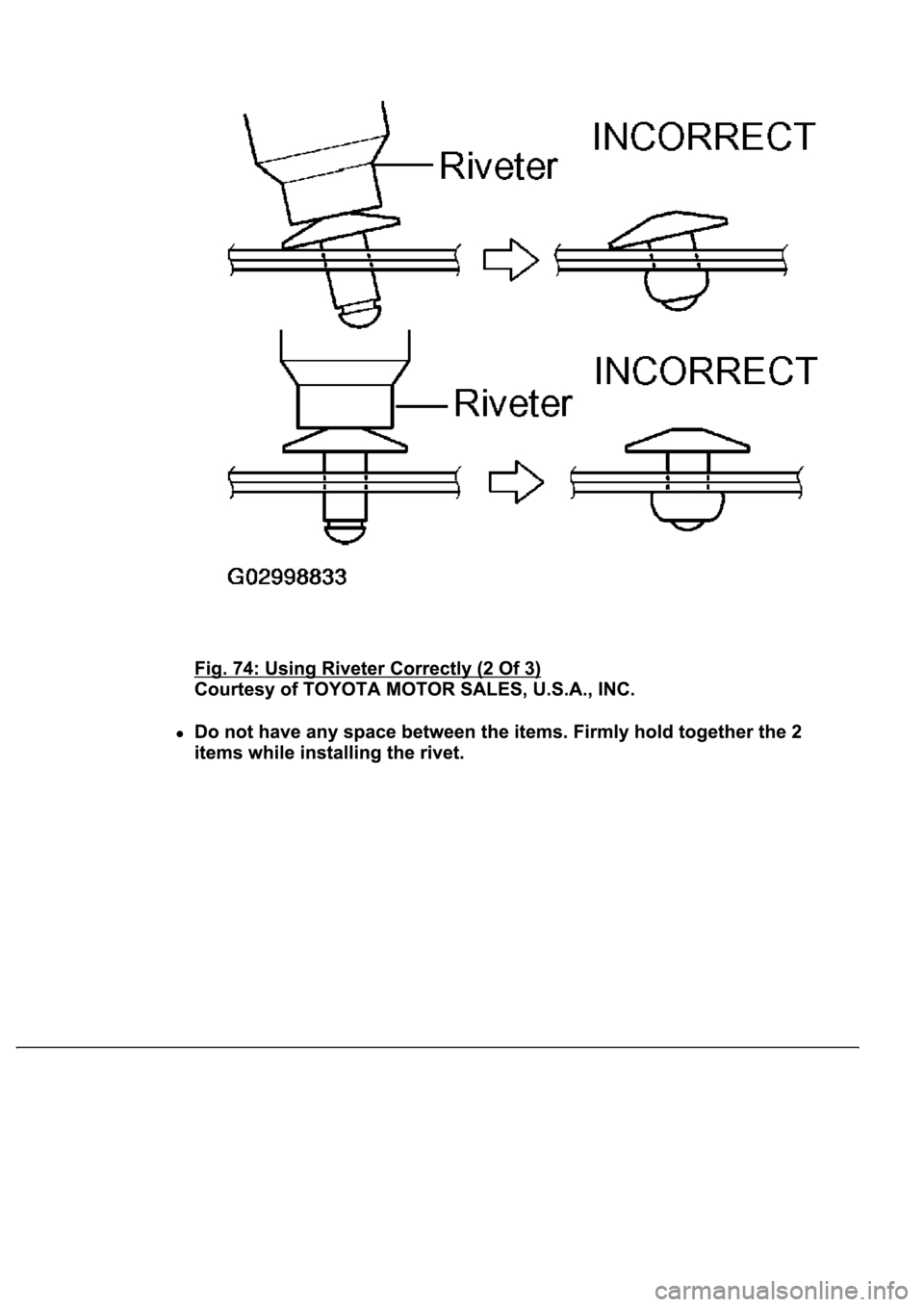

LEXUS LS430 2003 Factory Repair Manual

Page 3863 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 3864 of 4500

LEXUS LS430 2003 Factory Repair Manual REPLACEMENT HINT: The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included. Use the same proced
Load next 8 pages
Page:   < prev 1-10 ... 3825-3832 3833-3840 3841-3848 3849-3856 3857-3864 3865-3872 3873-3880 3881-3888 3889-3896 ... 4504 next >
keychild lockcenter consolenight visionoil levelbulb
Popular search:
low beamwiring diagrampower steeringgarage door openerradiator capsport modeB2620
