Page 4241 of 4500

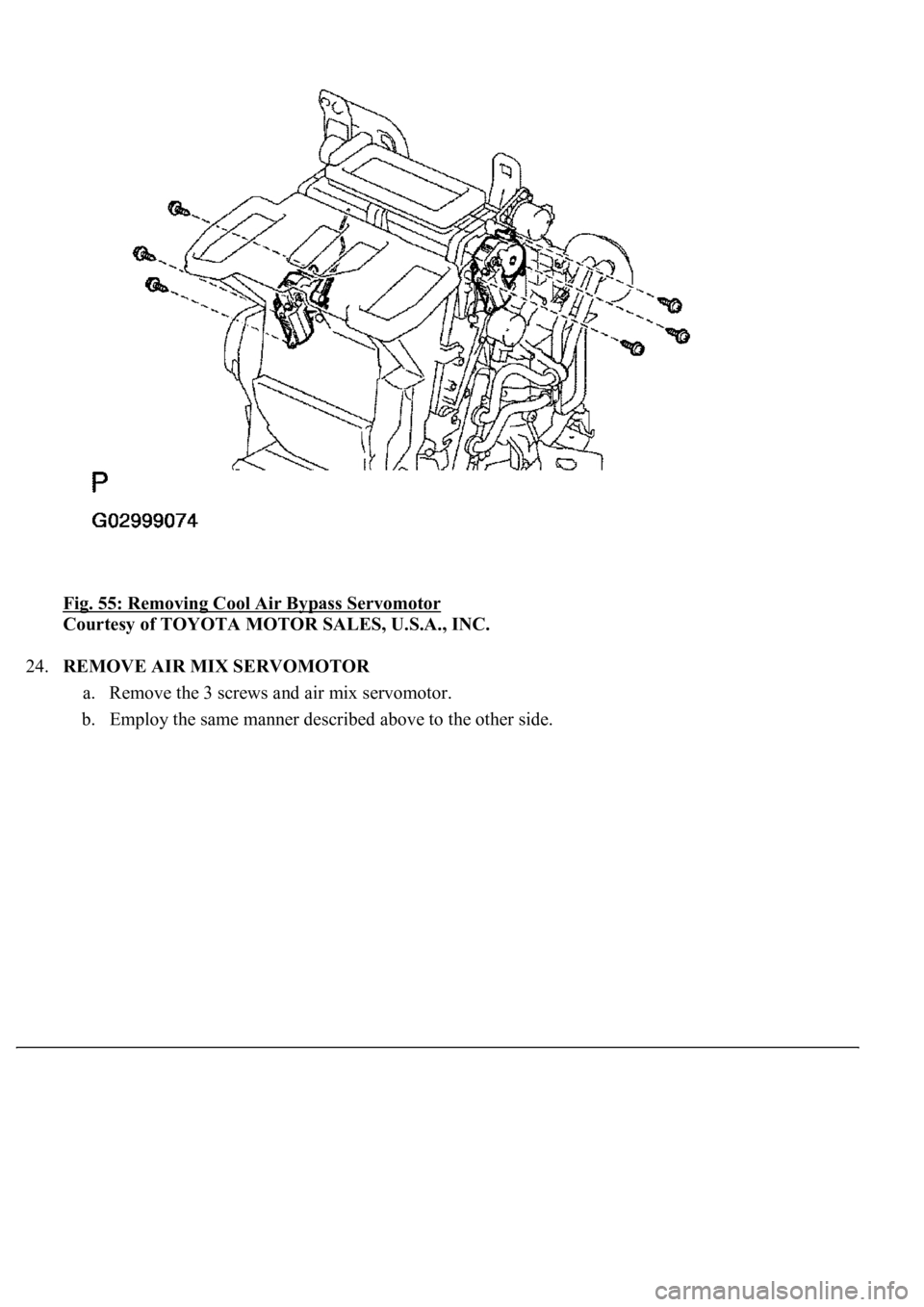

LEXUS LS430 2003 Factory Repair Manual Fig. 55: Removing Cool Air Bypass Servomotor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 24.REMOVE AIR MIX SERVOMOTOR a. Remove the 3 screws and air mix servomotor. b. Employ the same manner des

Page 4242 of 4500

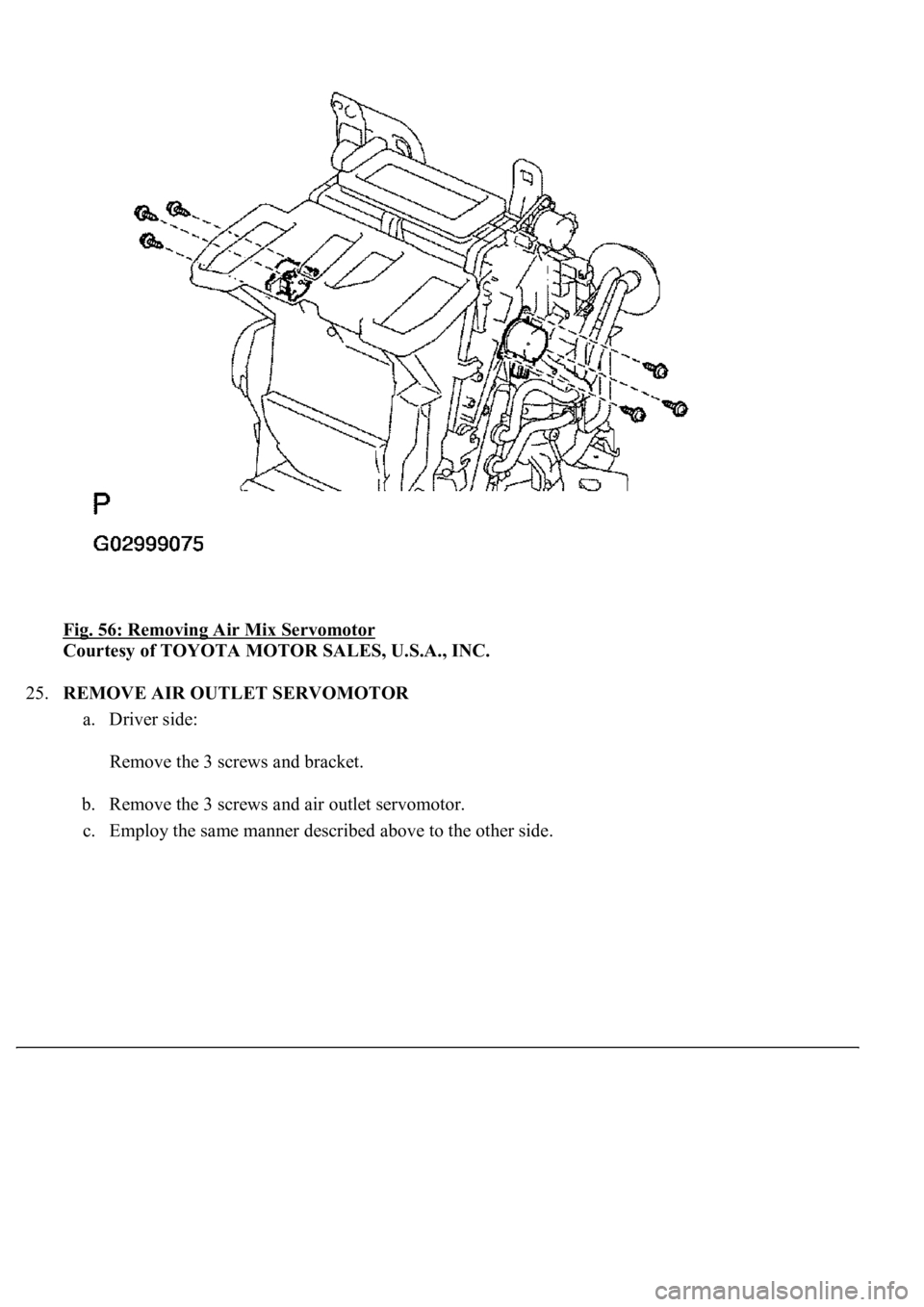

LEXUS LS430 2003 Factory Repair Manual Fig. 56: Removing Air Mix Servomotor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 25.REMOVE AIR OUTLET SERVOMOTOR a. Driver side: Remove the 3 screws and bracket. b. Remove the 3 screws and air o

Page 4243 of 4500

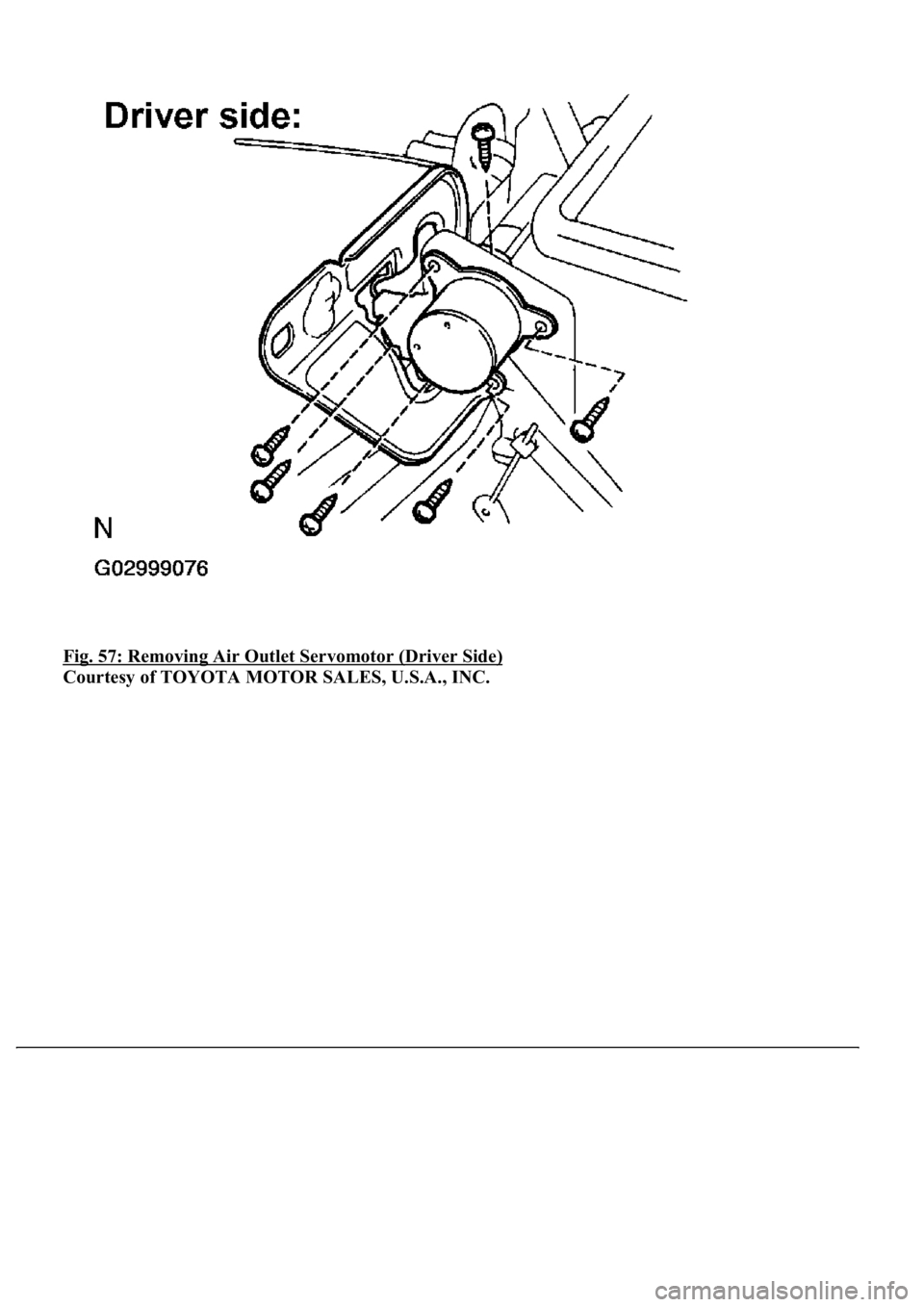

LEXUS LS430 2003 Factory Repair Manual Fig. 57: Removing Air Outlet Servomotor (Driver Side) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 4244 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 58: Removing Air Outlet Servomotor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 26.REMOVE WIRING AIR CONDITIONING HARNESS SUB-ASSY 27.INSTALL COOLER EXPANSION VALVE a. Sufficiently apply com

Page 4245 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 59: Installing Cooler Expansion Valve Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Sufficiently apply compressor oil to 2 new O-rings and fitting surface of the cooler expansion valve. Com

Page 4246 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 60: Installing Hexagon Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 28.INSTALL COOLER EVAPORATOR SUB-ASSY NO. 1 a. Install the cooler evaporator sub-ass y No. 1 with the evaporator cover

Page 4247 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 61: Installing Cooler Evaporator Sub-Assy No. 1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 29.INSTALL HEATER CASE SUB-ASSY a. Install the heater case sub-ass y with the 5 screws.

Page 4248 of 4500

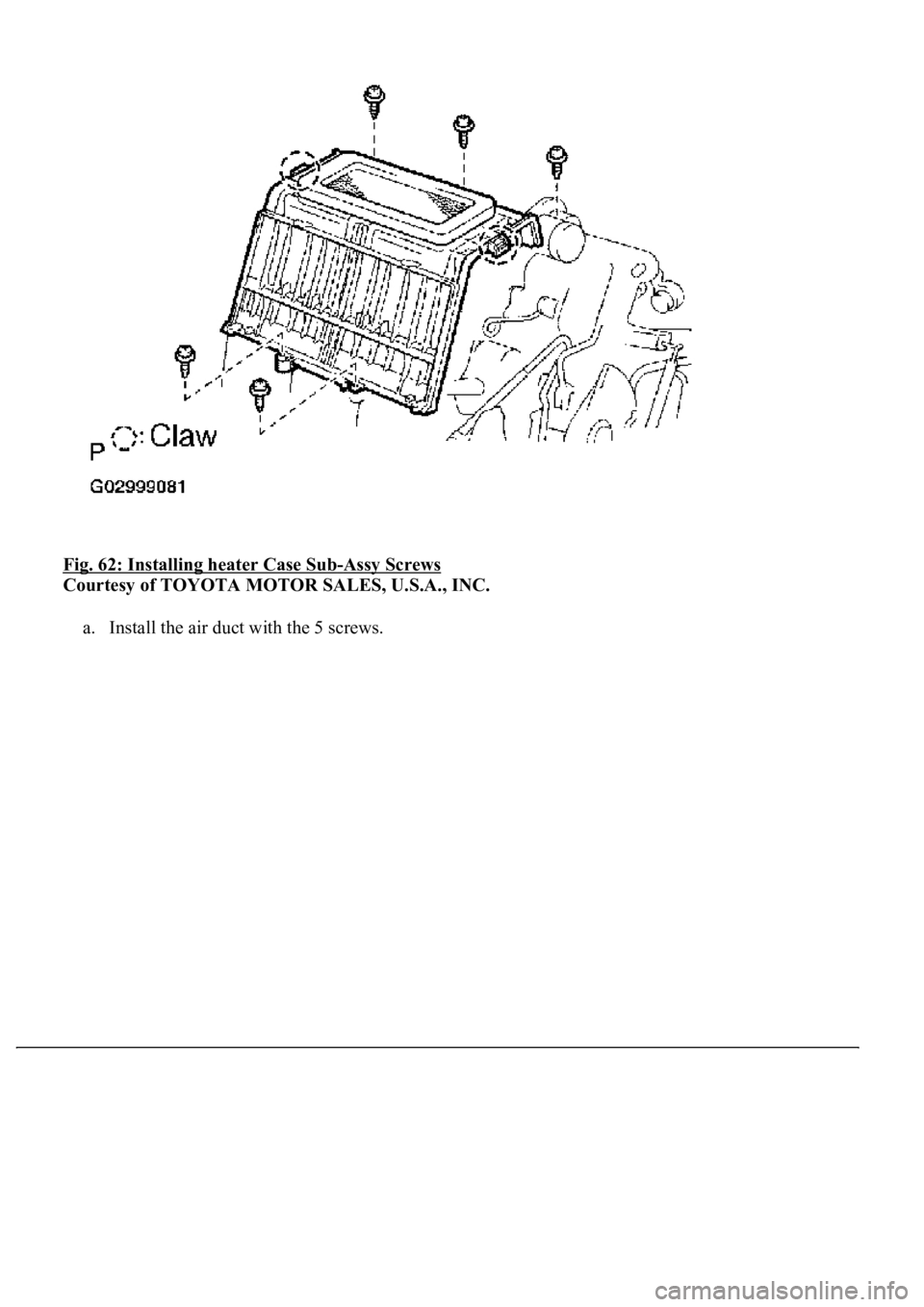

LEXUS LS430 2003 Factory Repair Manual Fig. 62: Installing heater Case Sub-Assy Screws Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. a. Install the air duct with the 5 screws.
