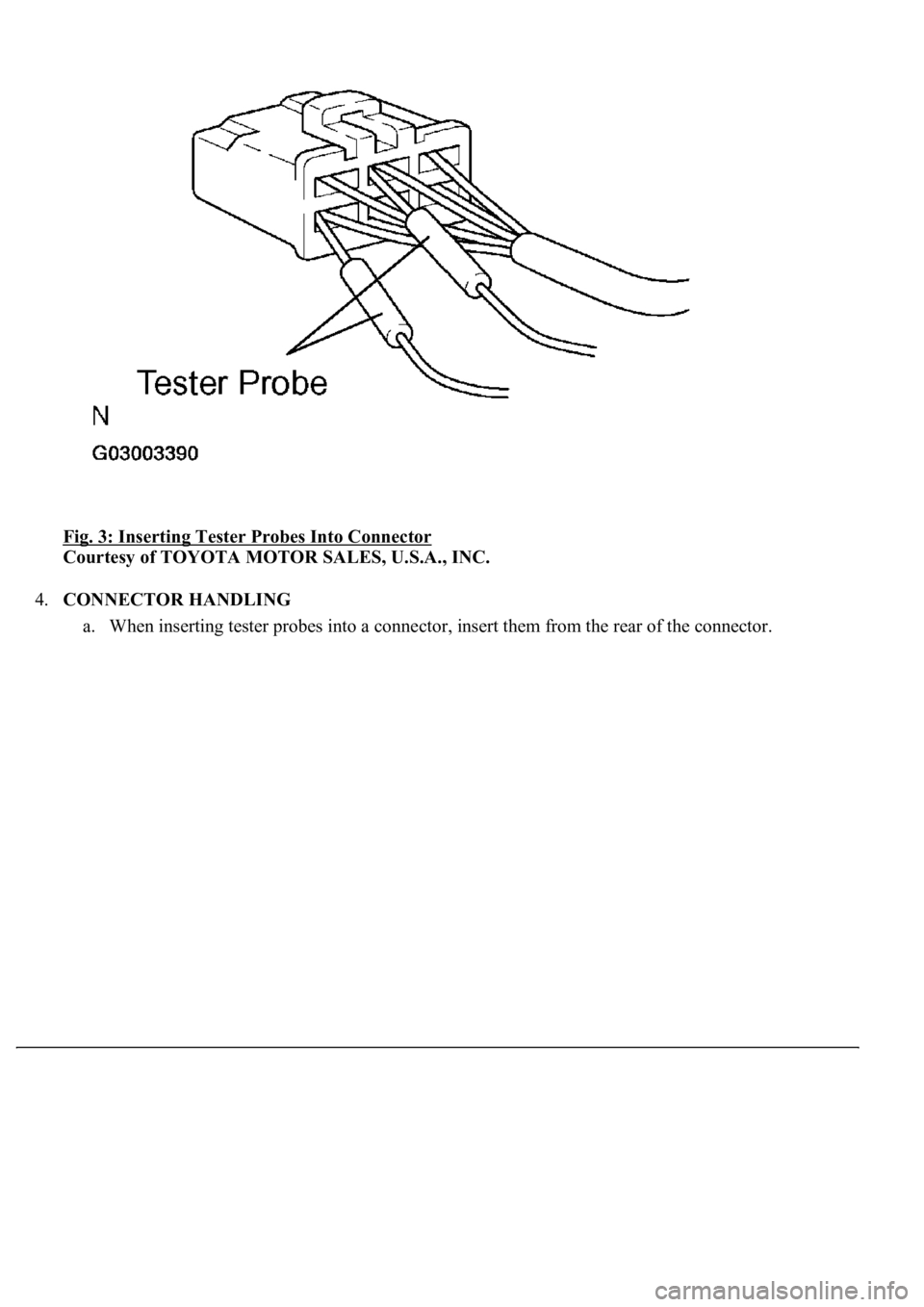

LEXUS LS430 2003  Factory Repair Manual Fig. 3: Inserting Tester Probes Into Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.CONNECTOR HANDLING
a. When insertin
g tester probes into a connector, insert them from the rear of the

Page 1194 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 4: Checking Continuity Between Connectors From Rear Side
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Use a repair wire to check the connector if it is impossible to check continuity from th

Page 1195 of 4500

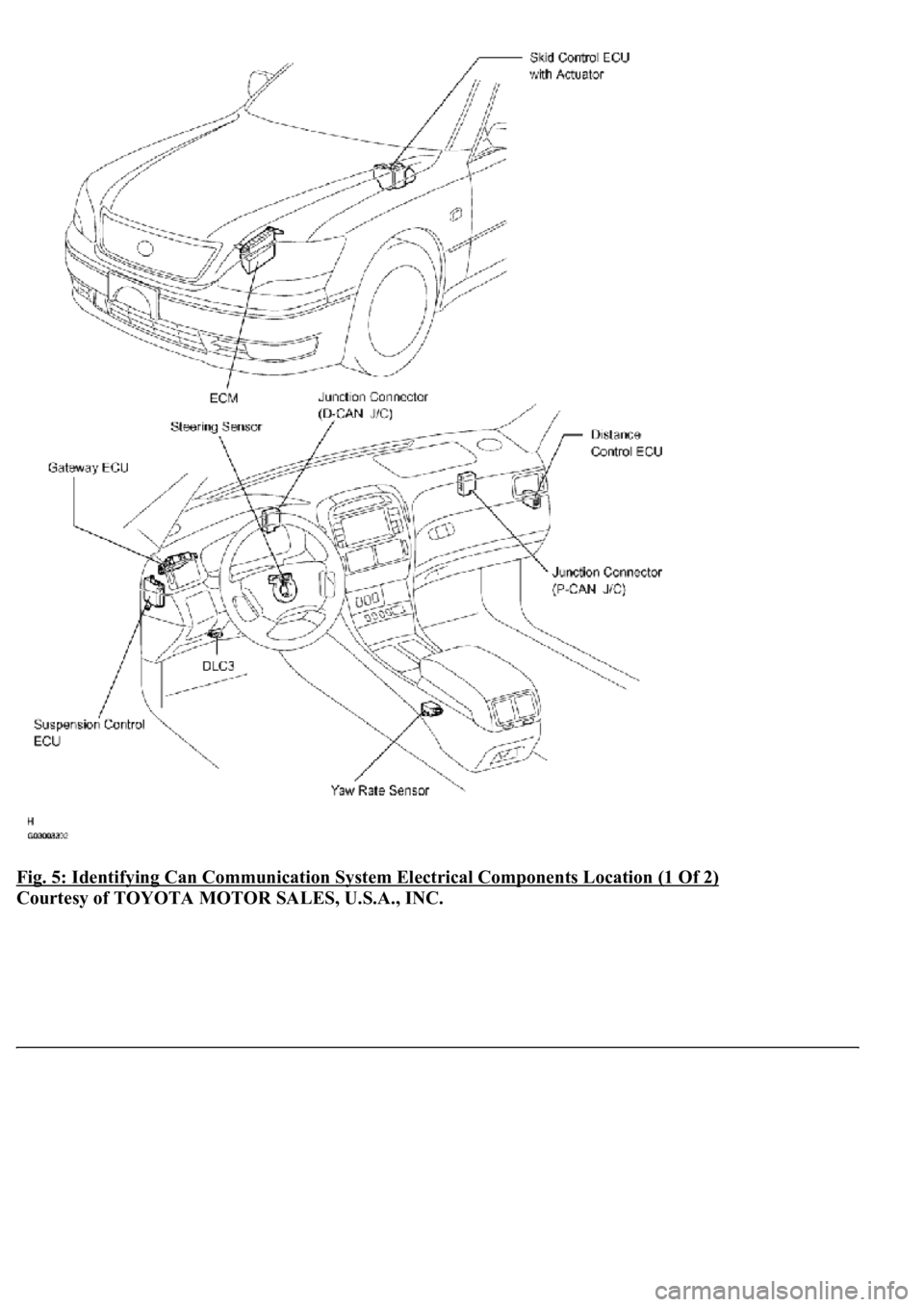

LEXUS LS430 2003  Factory Repair Manual Fig. 5: Identifying Can Communication System Electrical Components Location (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 1196 of 4500

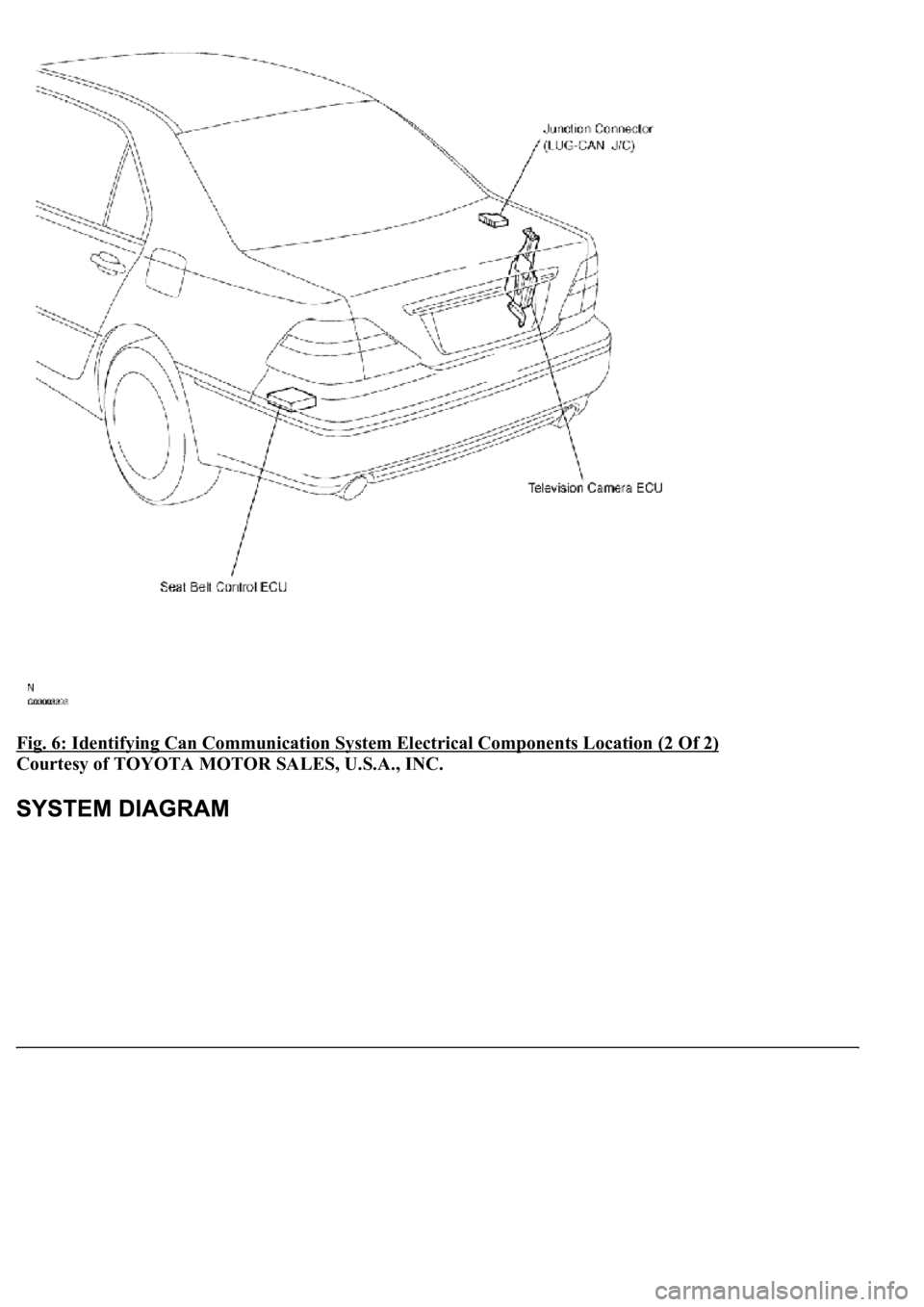

LEXUS LS430 2003  Factory Repair Manual Fig. 6: Identifying Can Communication System Electrical Components Location (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 1197 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 7: Wiring Diagram - Can Communication System (W/LEXUS Navigation System)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 1198 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 8: Wiring Diagram - Can Communication System (W/O LEXUS Navigation System)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
The position of the terminus circuit differs in vehicles with and

Page 1199 of 4500

LEXUS LS430 2003  Factory Repair Manual conventional communication line (SIL).
1.BRIEF DESCRIPTION
a. The CAN (Controller Area Network) is a serial data communication system for real time
application. It is a multiplex communication syst

Page 1200 of 4500

LEXUS LS430 2003  Factory Repair Manual U0073, U0100, U0101, U0122, U0123, U0124, U0126, U0132, U0145, U1101
5.REMARK FOR TROUBLESHOOTING
a. Trouble in the CAN bus (communication line) can be checked from the DLC3 (except when there
is a
