Page 4145 of 4500

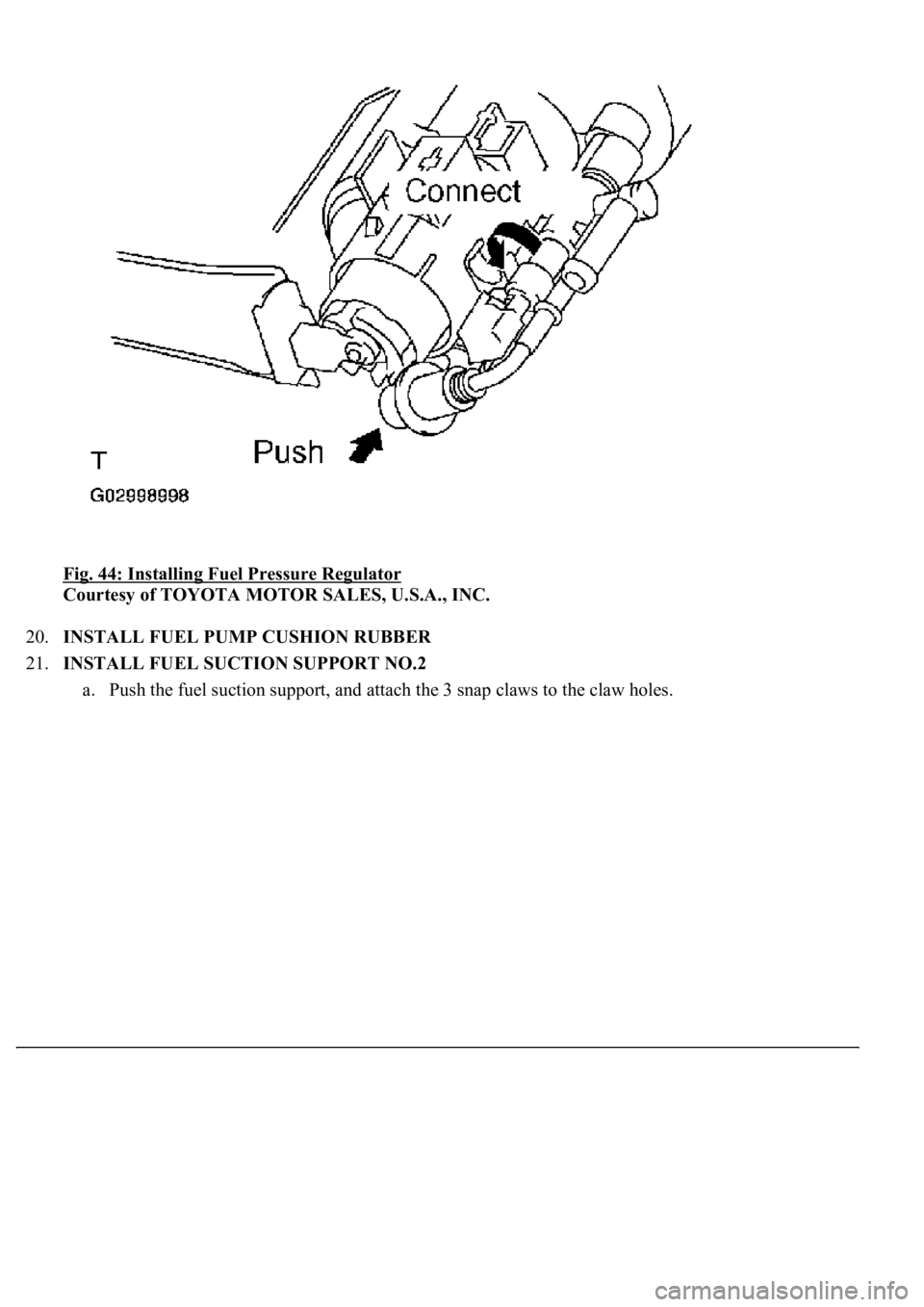

LEXUS LS430 2003 Factory Repair Manual Fig. 44: Installing Fuel Pressure Regulator Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 20.INSTALL FUEL PUMP CUSHION RUBBER 21.INSTALL FUEL SUCTION SUPPORT NO.2 a. Push the fuel suction support,

Page 4146 of 4500

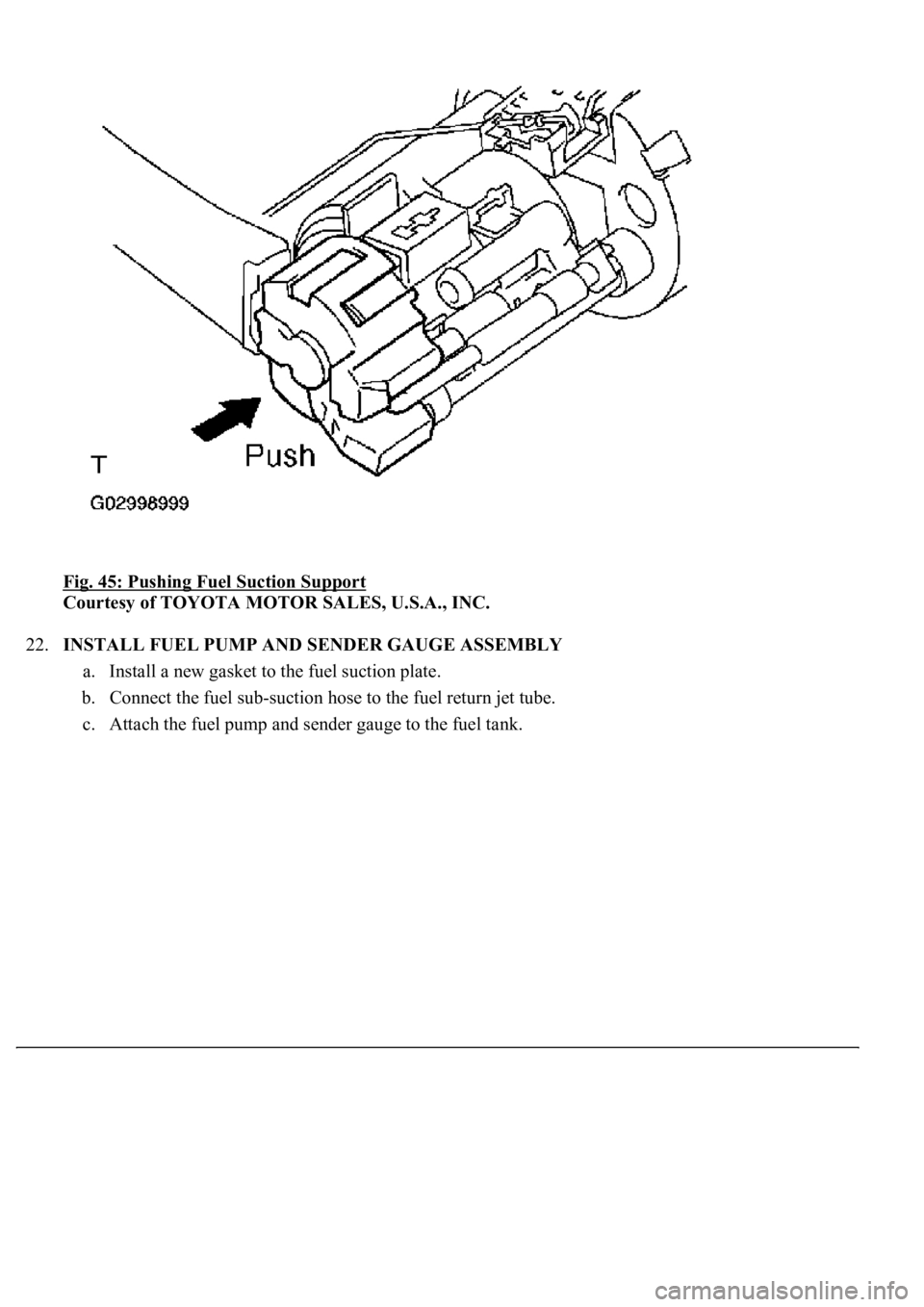

LEXUS LS430 2003 Factory Repair Manual Fig. 45: Pushing Fuel Suction Support Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 22.INSTALL FUEL PUMP AND SENDER GAUGE ASSEMBLY a. Install a new gasket to the fuel suction plate. b. Connect the

Page 4147 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 46: Installing Fuel Sub-Suction Hose Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 23.INSTALL FUEL TANK VENT TUBE SET PLATE a. Install the set plate with the 8 bolts. Torque: 6.0 N.m (61 kgf.

Page 4148 of 4500

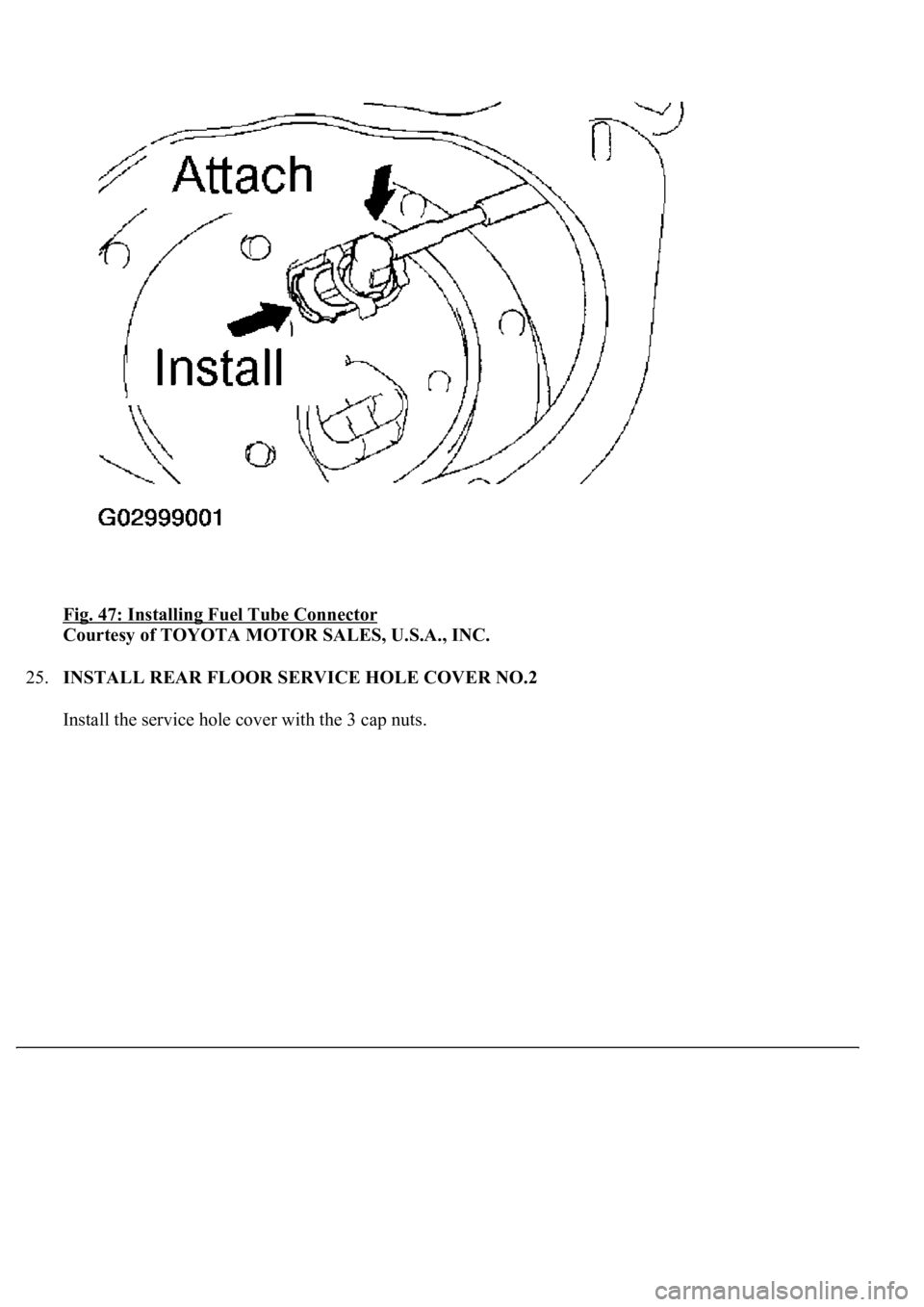

LEXUS LS430 2003 Factory Repair Manual Fig. 47: Installing Fuel Tube Connector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 25.INSTALL REAR FLOOR SERVICE HOLE COVER NO.2 Install the service hole cover with the 3 cap nuts.

Page 4149 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 48: Installing Service Hole Cover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 26.INSTALL BENCH TYPE REAR SEAT CUSHION ASSY (FIXED TYPE REAR SEAT) (See OVERHAUL ) 27.INSTALL SEPARATE TYPE R

Page 4150 of 4500

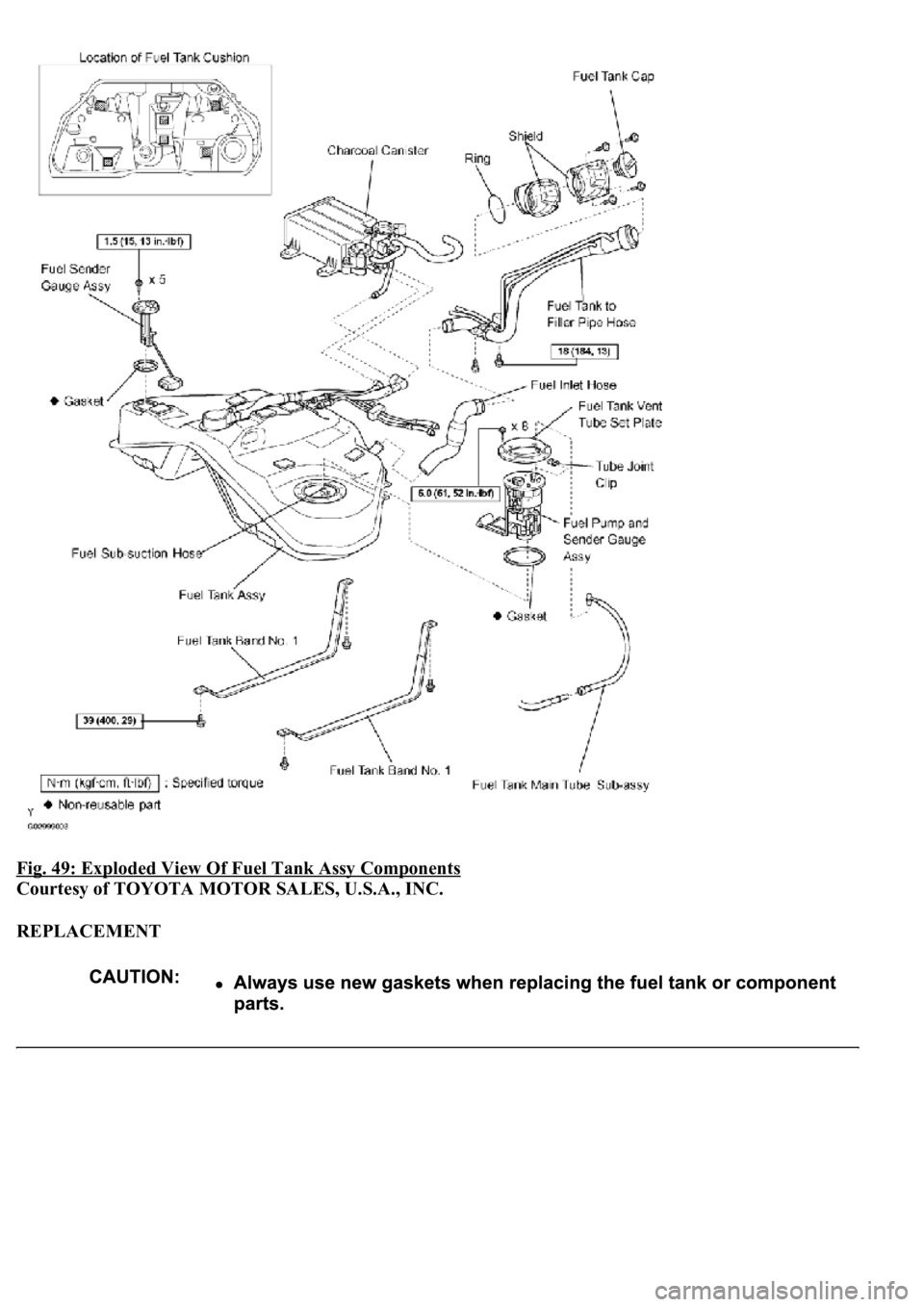

LEXUS LS430 2003 Factory Repair Manual Fig. 49: Exploded View Of Fuel Tank Assy Components Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT

Page 4151 of 4500

LEXUS LS430 2003 Factory Repair Manual 1.WORK FOR PREVENTING GASOLINE FROM SPILLING OUT (See PRECAUTION ) 2.DISCONNECT BATTERY NEGATIVE TERMINAL 3.DRAIN FUEL (See PRECAUTION ) 4.REMOVE SEPARATE TYPE REAR SEAT CUSHION ASSY LH (SEPARA

Page 4152 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 50: Disconnecting Connector In Fuel Tank Side Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Disconnect the connector in the fuel pipe side. 1. Clean the pipe before the operation. 2. Pull
