LEXUS LS430 2003 Factory Repair Manual <0029004c004a00110003001500170018001d00030036004800570057004c0051004a00030037004c0050004c0051004a0003003000440055004e00030032004900030026004400500056004b004400490057000300300044004c00510003002a0048004

Page 3530 of 4500

LEXUS LS430 2003 Factory Repair Manual eliminated by the above operation. Fig. 246: Identifying Bearing Cap Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Set the timing mark (2 dot marks) of the camshaft main gear at an angle of

Page 3531 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 247: Mounting Hexagon Wrench Head Portion Of Intake Camshaft In A Vise Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Uniformly loosen the 22 bearing cap bolts in several passes in the sequenc

Page 3532 of 4500

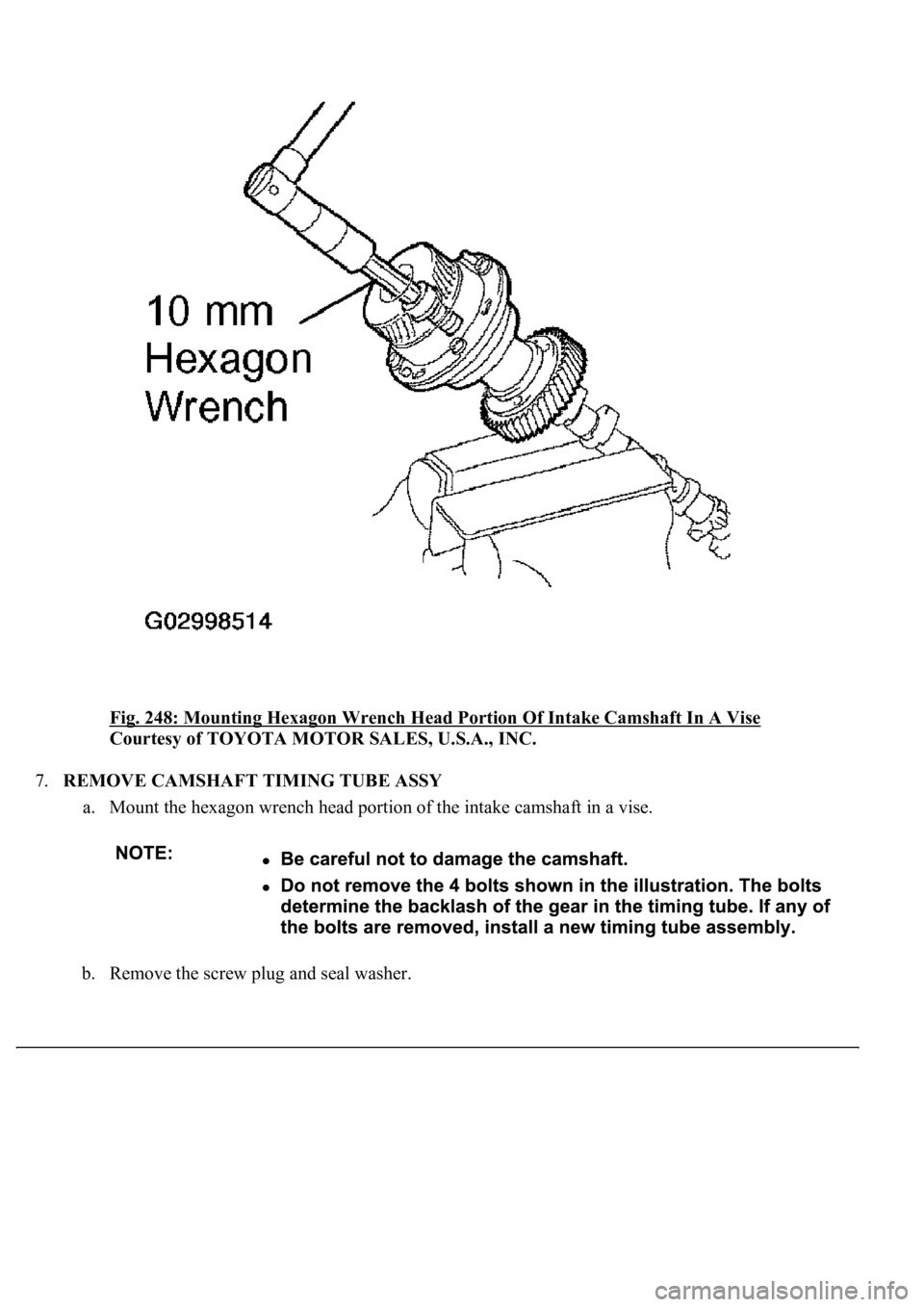

LEXUS LS430 2003 Factory Repair Manual Fig. 248: Mounting Hexagon Wrench Head Portion Of Intake Camshaft In A Vise Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.REMOVE CAMSHAFT TIMING TUBE ASSY a. Mount the hexagon wrench head portion

Page 3533 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 249: Removing Bolts Using SST Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Using a 10 mm hexagon wrench, remove the bolt. d. Pull out the timing tube and drive gear assembly from the camsh

Page 3534 of 4500

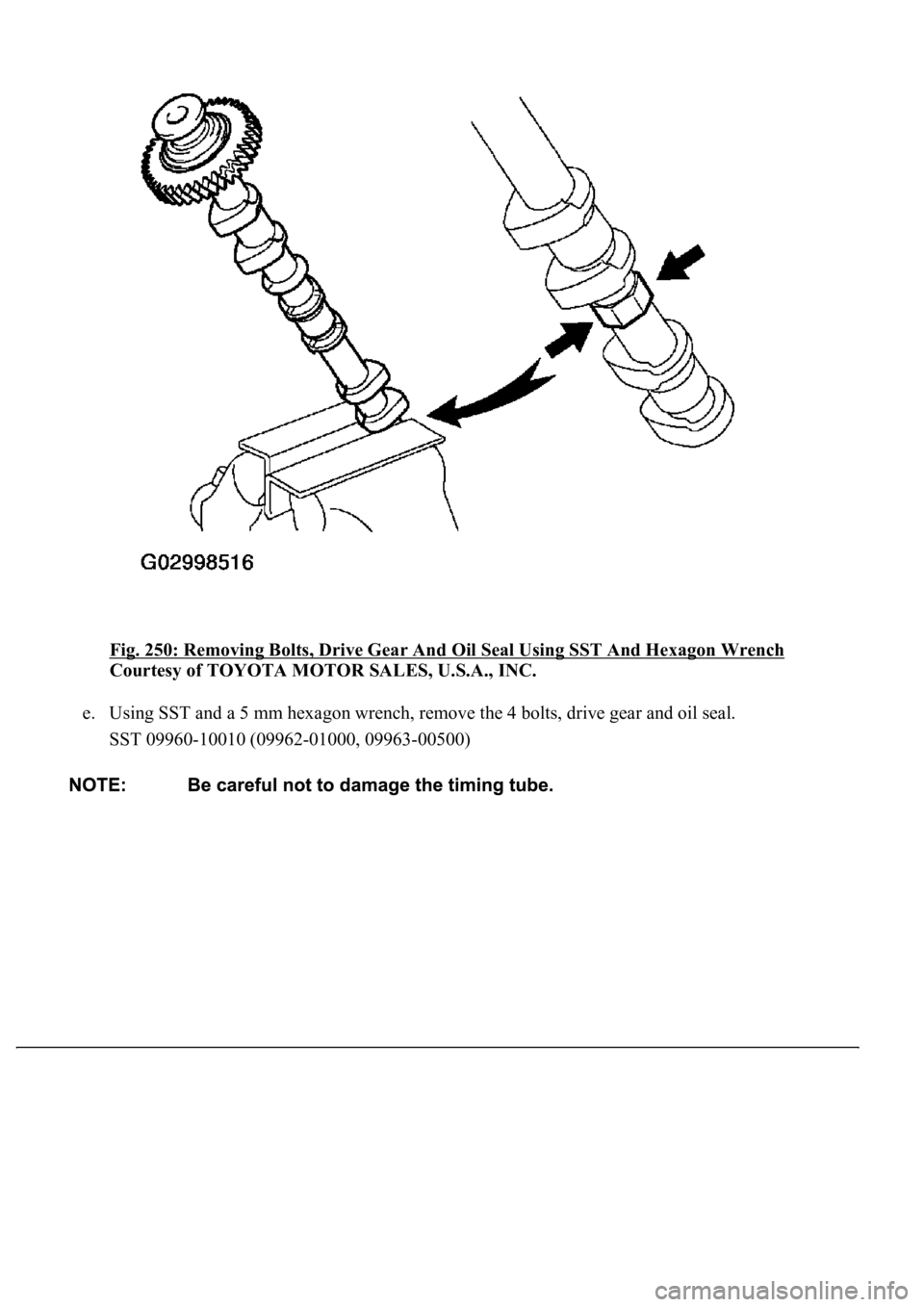

LEXUS LS430 2003 Factory Repair Manual Fig. 250: Removing Bolts, Drive Gear And Oil Seal Using SST And Hexagon Wrench Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Using SST and a 5 mm hexagon wrench, remove the 4 bolts, drive gear and

Page 3535 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 251: Mounting Hexagon Wrench Head Portion Of Camshaft In A Vise Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 8.REMOVE CAMSHAFT SUB GEAR Mount the hexagon wrench head portion of the camshaft in

Page 3536 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 252: Removing Service Bolt Using SST Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Using SST, turn the sub gear clockwise and remove the service bolt. SST 09960-10010 (09962-01000, 09963-00500)
