Page 2129 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 89: Tapping Drive Pinion Side Of Differential Carrier Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. k. Using a plastic hammer, lightly tap the drive pinion side of the differential carrier. l.

Page 2130 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 90: Checking Ring Gear Backlash Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. ADJUST TOTAL PRELOAD a. Using SST and a torque wrench, measure the preload with the teeth of the drive pinion and

Page 2131 of 4500

LEXUS LS430 2003 Factory Repair Manual HINT: When the rear differential side gear shaft snap ring thickness changes by 0.02 mm (0.0008 in.), the total preload will change by approximately 0.1 N.m (1 kgf.cm, 0.9 in..lbf). Fig. 91: Adjus

Page 2132 of 4500

LEXUS LS430 2003 Factory Repair Manual e. Recheck the total preload. Fig. 92: Checking Differential Ring Gear Backlash Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECT TOOTH CONTACT BETWEEN RING GEAR AND DRIVE PINION a. Coat 3 or

Page 2133 of 4500

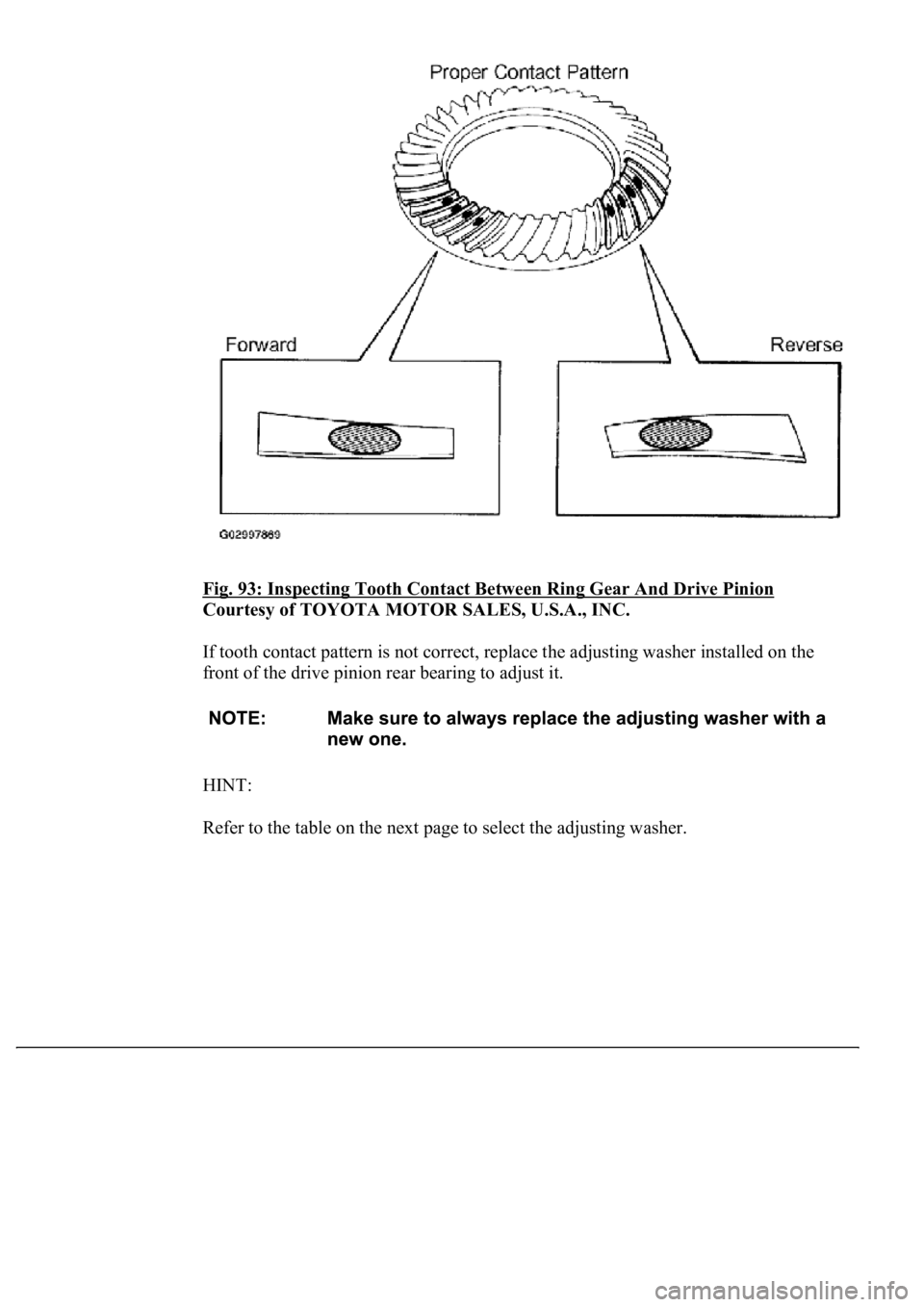

LEXUS LS430 2003 Factory Repair Manual Fig. 93: Inspecting Tooth Contact Between Ring Gear And Drive Pinion Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. If tooth contact pattern is not correct, replace the adjusting washer installed on t

Page 2134 of 4500

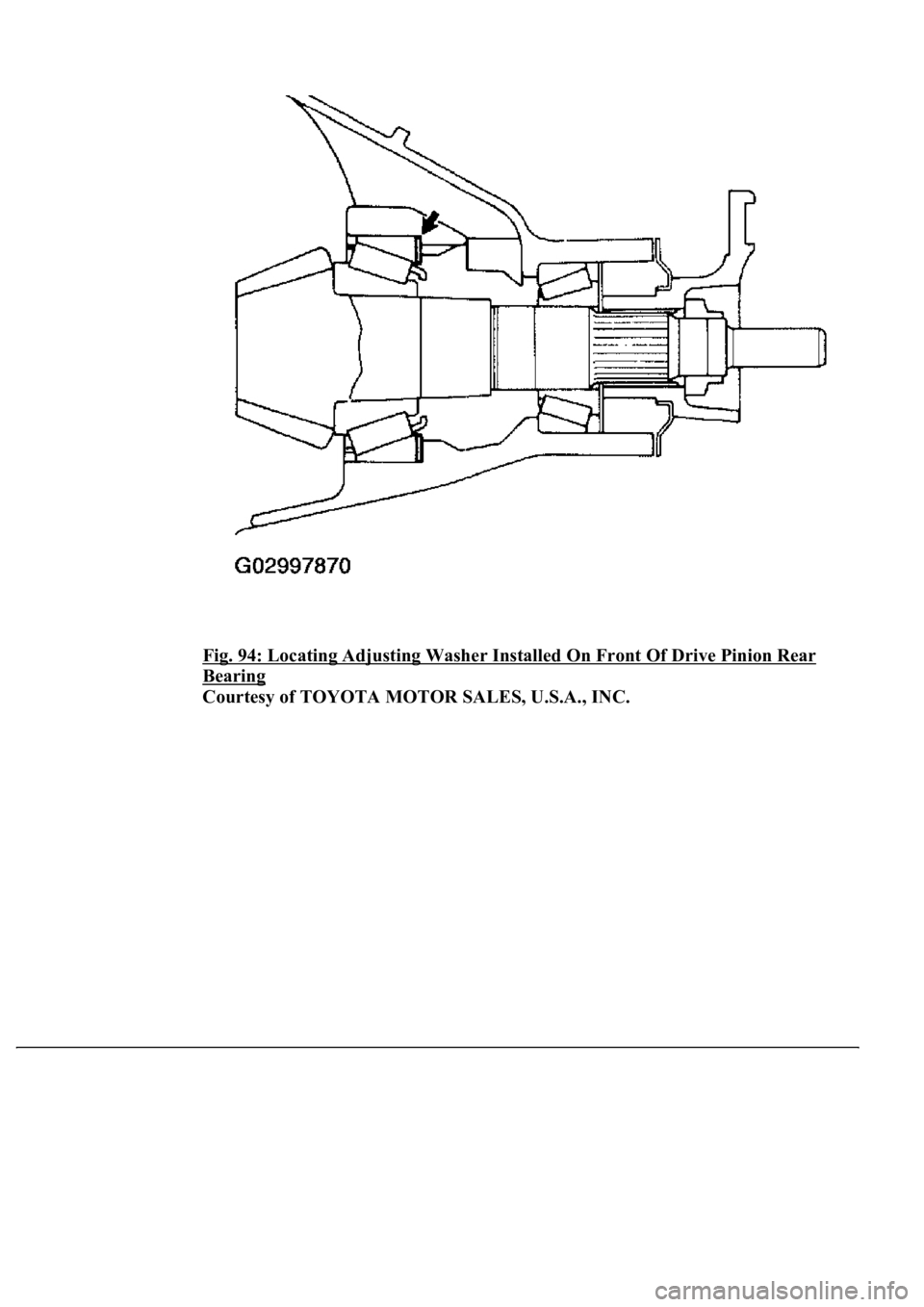

LEXUS LS430 2003 Factory Repair Manual Fig. 94: Locating Adjusting Washer Installed On Front Of Drive Pinion Rear Bearing Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2135 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 95: Tooth Contact Pattern Chart Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. HINT: There are 42 thicknesses of the rear differential drive pinion plate washers available in 0.01 mm (0.04 in.)

Page 2136 of 4500

LEXUS LS430 2003 Factory Repair Manual REMOVE REAR DIFFERENTIAL SIDE GEAR SHAFT SNAP RING a. Install the SST to the rear differential carrier assy. SST 09571-50010 Fig. 96: Installing SST To Rear Differential Carrier Assy Courtesy of
