Page 849 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 30: Removing 4 Nuts And Engine Rear Mounting Member Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 30.DISCONNECT CONNECTOR a. Tilt down the automatic transmission. b. Disconnect the park/neutra

Page 850 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 851 of 4500

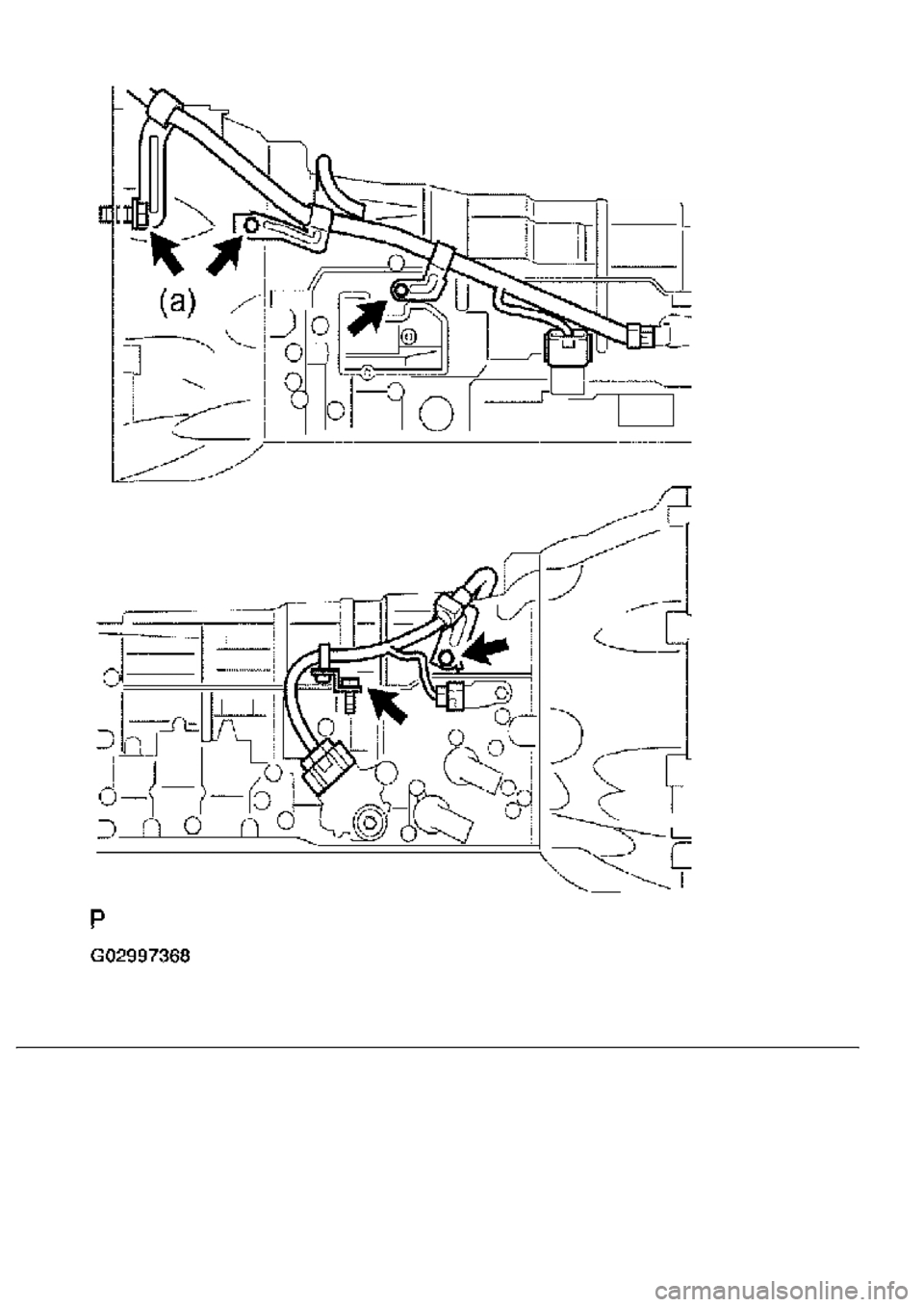

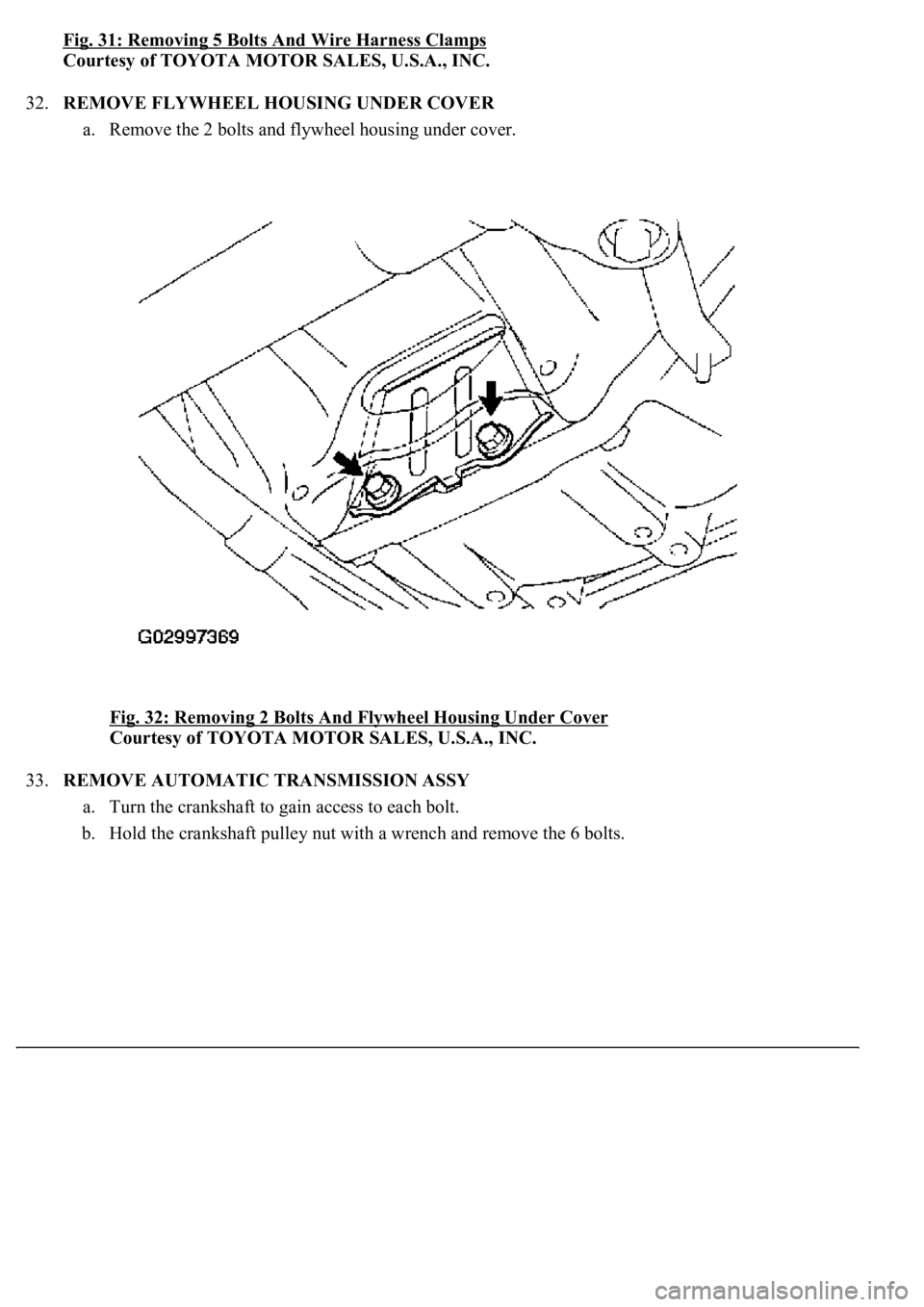

LEXUS LS430 2003 Factory Repair Manual Fig. 31: Removing 5 Bolts And Wire Harness Clamps Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 32.REMOVE FLYWHEEL HOUSING UNDER COVER a. Remove the 2 bolts and flywheel housing under cover. Fig. 32

Page 852 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 33: Locating Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Remove the 9 bolts. d. Separate and remove the automatic transmission assy. HINT: Bolt (a) is tightened to the transmissi

Page 853 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 34: Removing 9 Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 34.REMOVE ENGINE MOUNTING INSULATOR REAR NO.1

Page 854 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 35: Lifting Engine Front Side Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. a. Remove the 4 bolts and engine mounting insulator rear No.1.

Page 855 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 36: Removing 4 Bolts And Engine Mounting Insulator Rear No.1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 35.REMOVE TRANSMISSION CONTROL SHAFT LEVER RH a. Remove the nut and transmission contr

Page 856 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 37: Removing Nut And Transmission Control Shaft Lever RH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 36.REMOVE TORQUE CONVERTER CLUTCH ASSY a. Put matchmarks on the transmission case and torq
