LEXUS LS430 2003 Factory Repair Manual Fig. 49: Removing Outer Rear View Mirror Assy LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 8.REMOVE FRONT DOOR ECU a. Disconnect the connector. b. Remove the 2 screws and ECU. 9.REMOVE FRONT

Page 3034 of 4500

LEXUS LS430 2003 Factory Repair Manual b. Even if the flange is taken off, continue drilling and push out the remaining fragments using the drill. c. Using a vacuum cleaner, remove the drilled rivets and dust from the inside of the door

Page 3035 of 4500

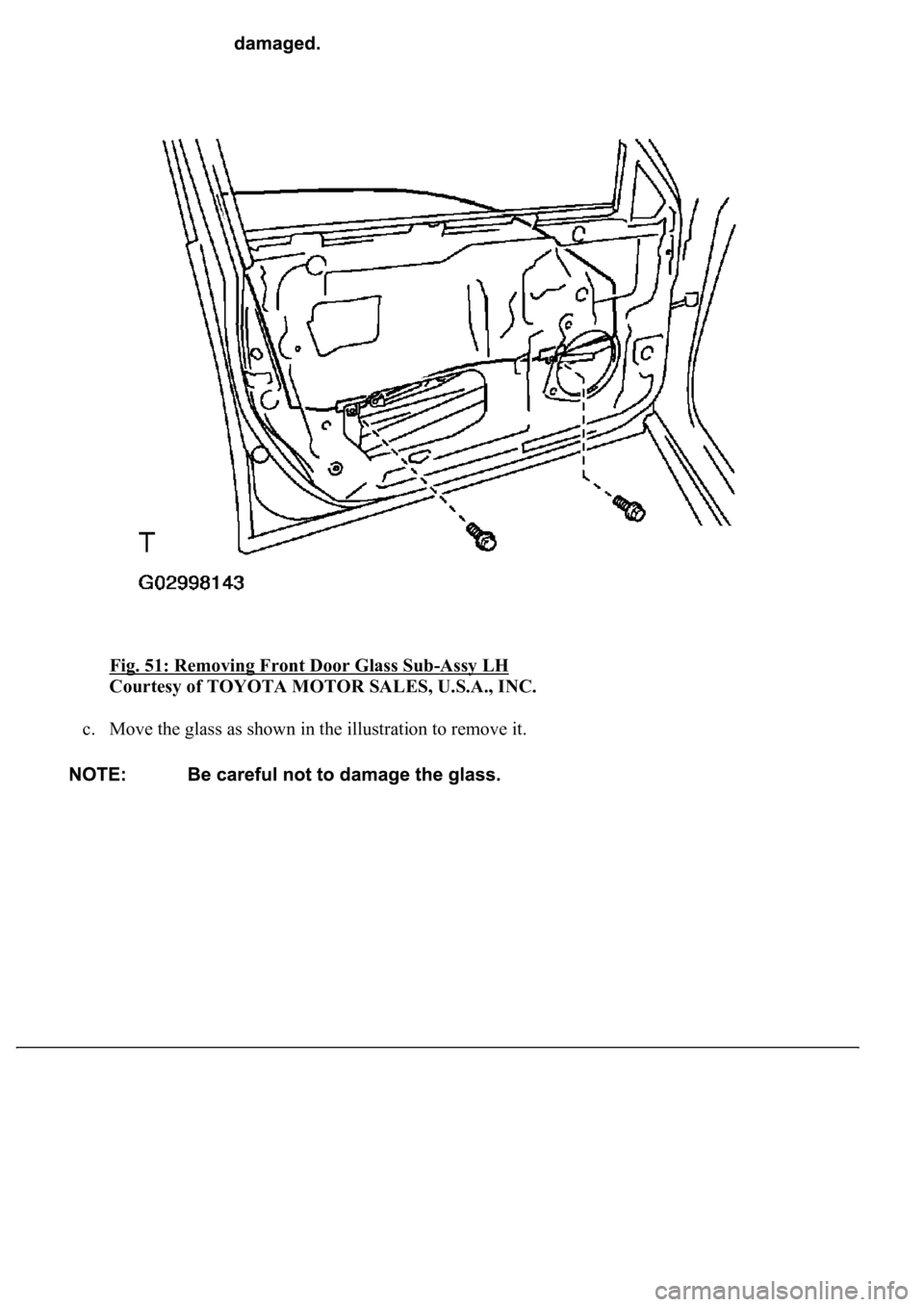

LEXUS LS430 2003 Factory Repair Manual Fig. 51: Removing Front Door Glass Sub-Assy LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Move the glass as shown in the illustration to remove it.

Page 3036 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 52: Moving Glass Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 15.REMOVE FRONT DOOR WINDOW REGULATOR SUB-ASSY LH a. Disconnect the window regulator connector. b. Remove the 6 bolts and window

Page 3037 of 4500

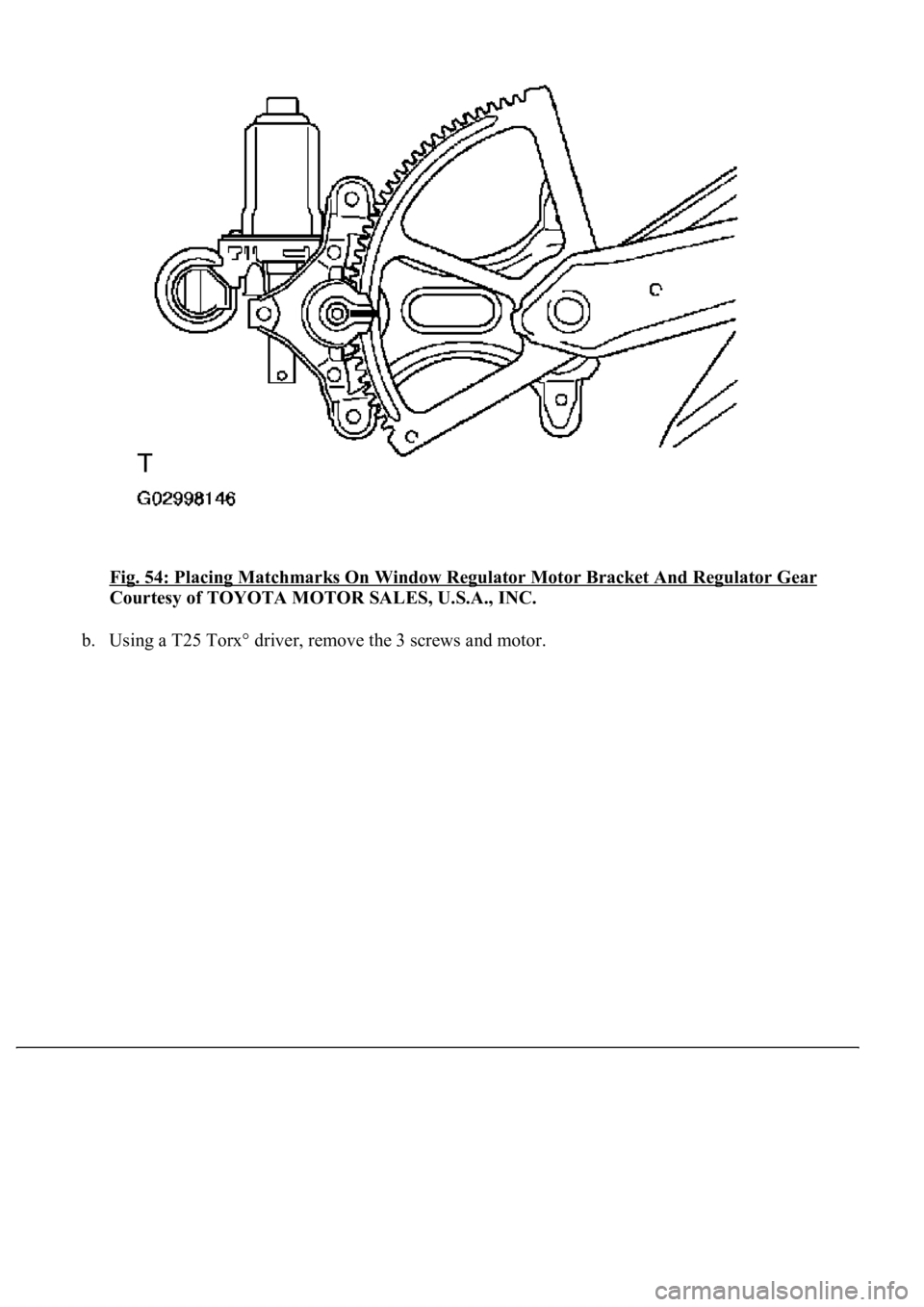

LEXUS LS430 2003 Factory Repair Manual Fig. 53: Removing Front Door Window Regulator Sub-Assy LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 16.REMOVE POWER WINDOW REGULATOR MOTOR ASSY LH FRONT a. Place matchmarks on the window re gula

Page 3038 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300180017001d00030033004f00440046004c0051004a00030030004400570046004b005000440055004e00560003003200510003003a004c005100470052005a000300350048004a0058004f004400570052005500030030005

Page 3039 of 4500

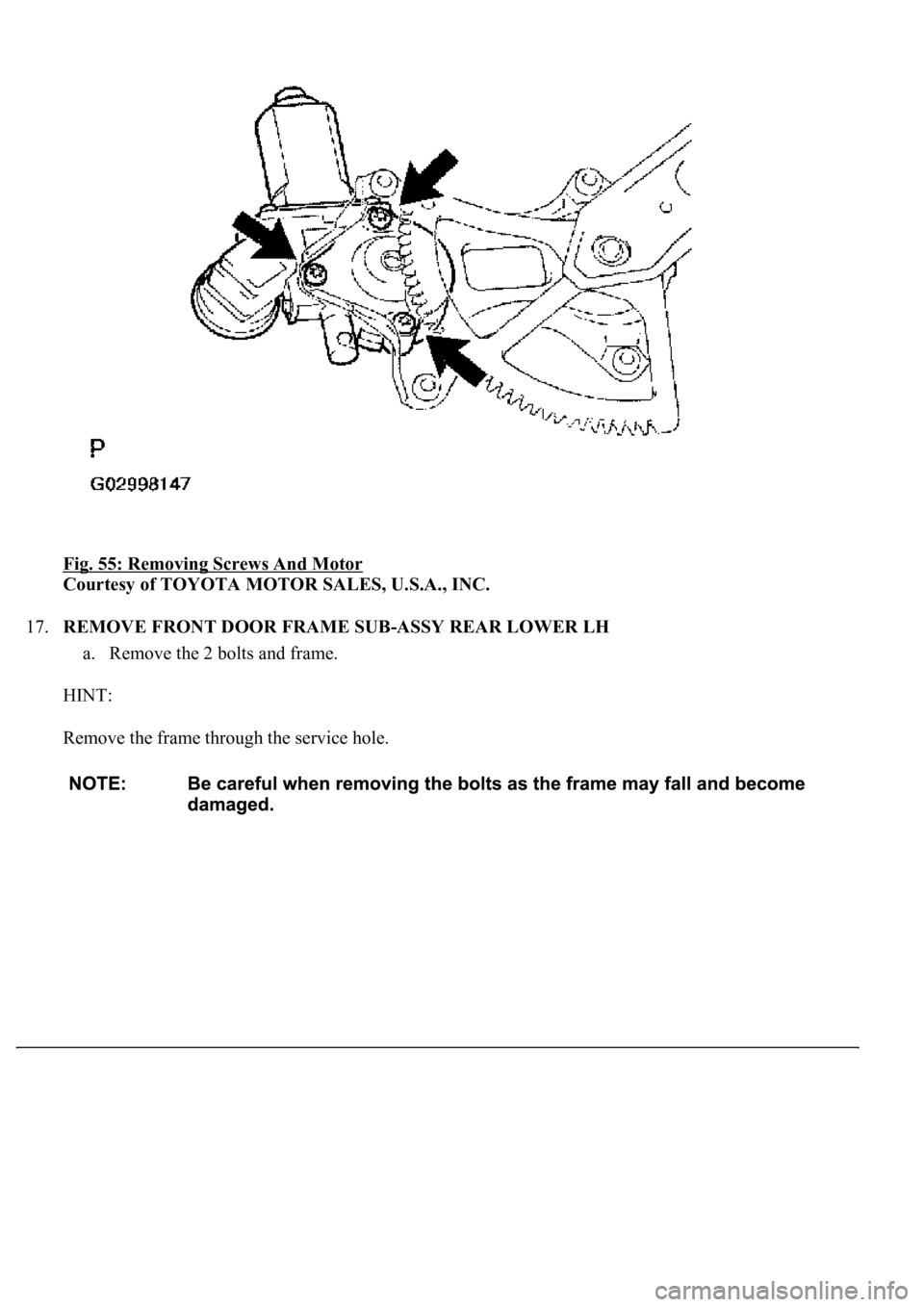

LEXUS LS430 2003 Factory Repair Manual Fig. 55: Removing Screws And Motor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 17.REMOVE FRONT DOOR FRAME SUB-ASSY REAR LOWER LH a. Remove the 2 bolts and frame. HINT: Remove the frame through

Page 3040 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 56: Removing Frame Through Service Hole Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 18.REMOVE FRONT DOOR FRAME SUB-ASSY FRONT LOWER LH a. Remove the 2 bolts and frame. HINT: Remove the fra
