Page 3697 of 4500

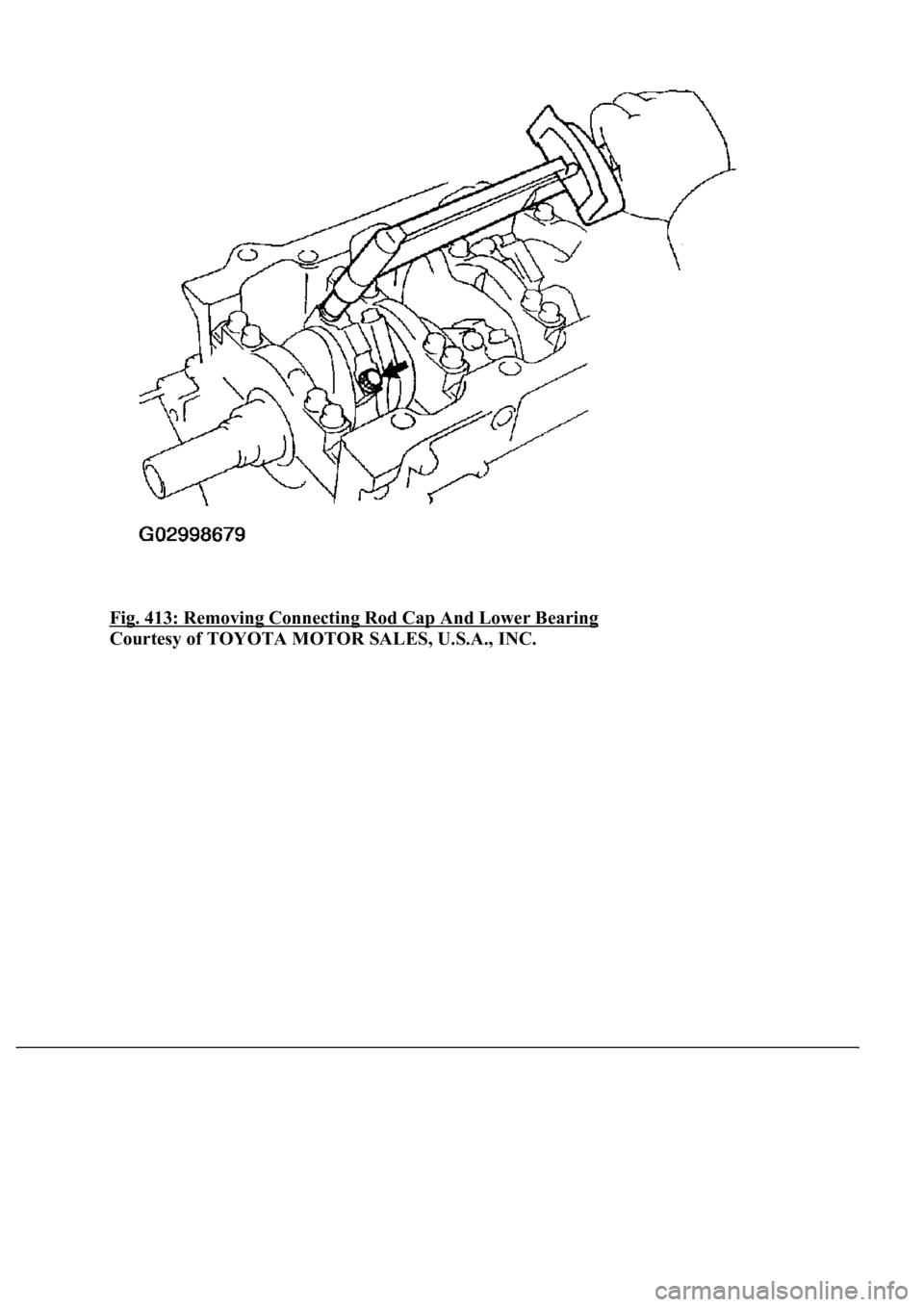

Fig. 413: Removing Connecting Rod Cap And Lower Bearing
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 3698 of 4500

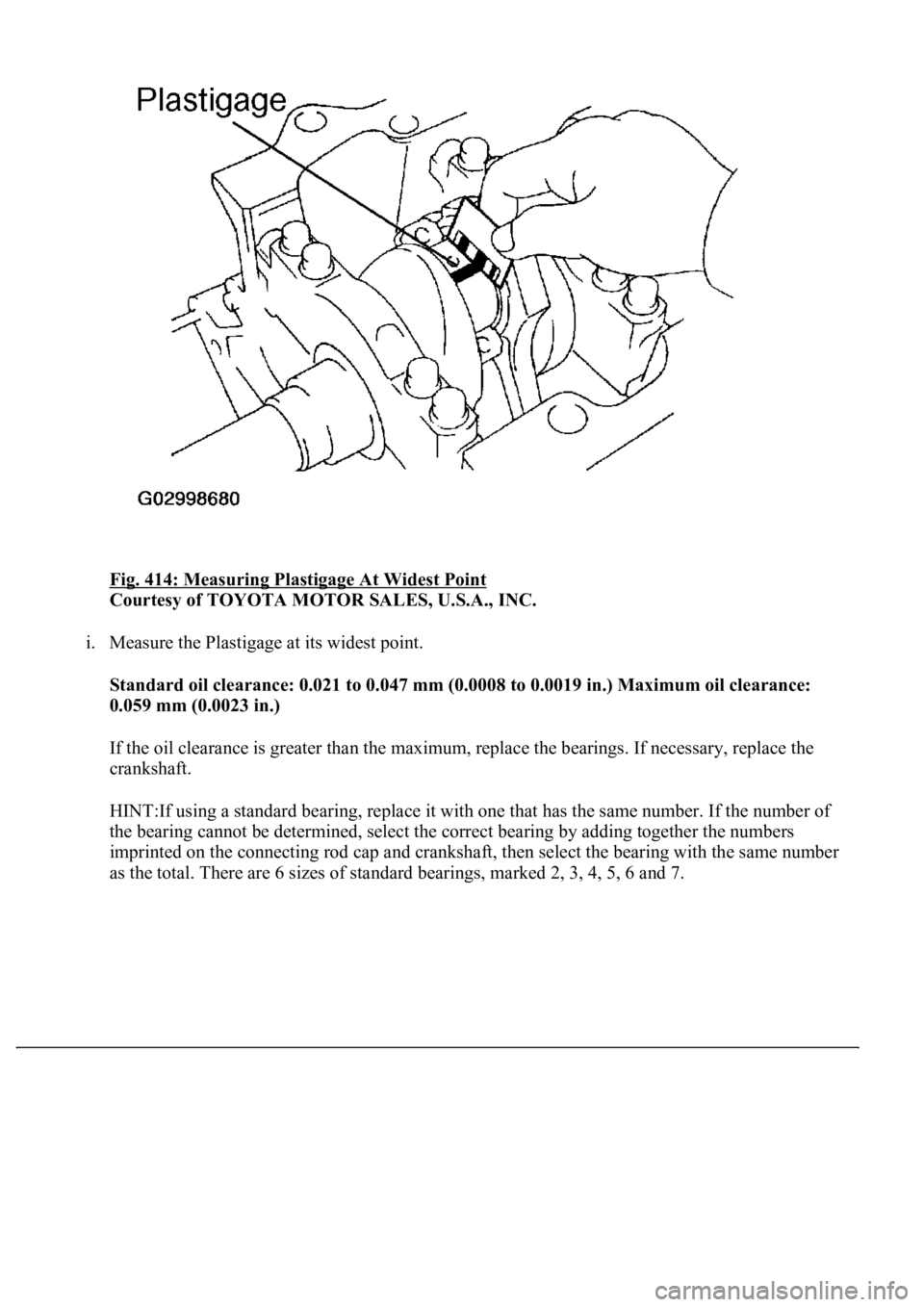

Fig. 414: Measuring Plastigage At Widest Point
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
i. Measure the Plastigage at its widest point.
Standard oil clearance: 0.021 to 0.047 mm (0.0008 to 0.0019 in.) Maximum oil clearance:
0.059 mm (0.0023 in.)
If the oil clearance is greater than the maximum, replace the bearings. If necessary, replace the
crankshaft.
HINT:If using a standard bearing, replace it with one that has the same number. If the number of
the bearing cannot be determined, select the correct bearing by adding together the numbers
imprinted on the connecting rod cap and crankshaft, then select the bearing with the same number
as the total. There are 6 sizes of standard bearin
gs, marked 2, 3, 4, 5, 6 and 7.
Page 3699 of 4500
Fig. 415: Crankshaft Bearing Number Mark Table
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 3700 of 4500
Page 3701 of 4500

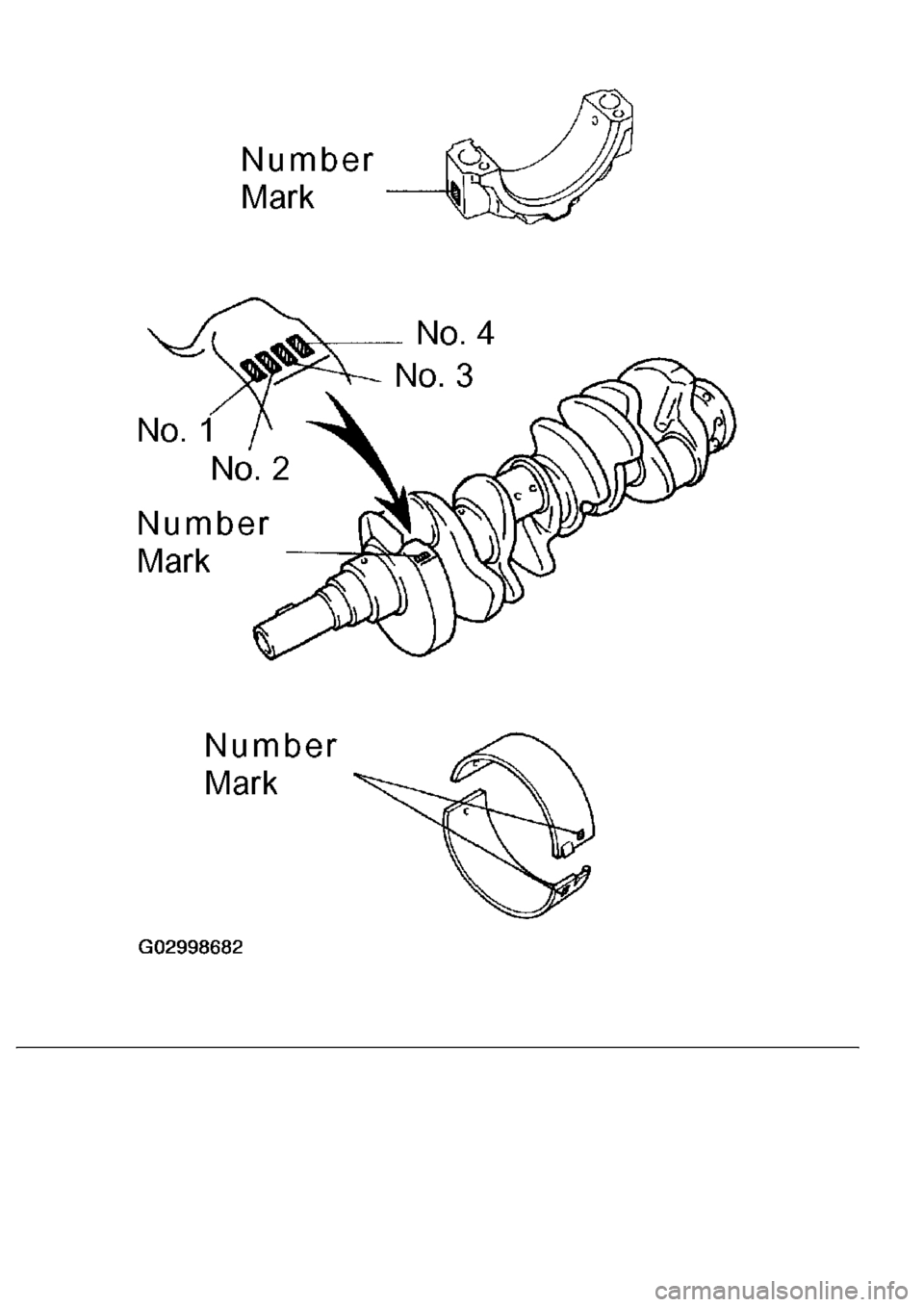

Fig. 416: Identifying Crankshaft Bearing Number Mark
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
EXAMPLE: Connecting rod cap "3" + Crankshaft "1" =
Total number 4 (Use bearing "4")
Reference
CONNECTING ROD BIG END INSIDE DIAMETER:
CONNECTING ROD BIG END INSIDE DIAMETER SPECIFICATIONS
CRANKSHAFT CRANK PIN DIAMETER:
CRANKSHAFT CRANK PIN DIAMETER SPECIFICATIONS
STANDARD SIZED BEARING CENTER WALL THICKNESS:
STANDARD SIZED BEARING CENTER WALL THICKNESS SPECIFICATIONS
j. Completely remove the Plastigage.
4.REMOVE PISTON AND CONNECTING ROD
a. Using a ridge reamer, remove all the carbon from the top of the cylinder.
b. Push the piston, connecting rod assembly and upper bearing through the top of the cylinder block.
HINT:
<002e00480048005300030057004b004800030045004800440055004c0051004a0056000f00030046005200510051004800460057004c0051004a000300550052004700030044005100470003004600440053000300570052004a00480057004b0048005500
1100030003[
Be sure to organize the removed piston and connecting rod assemblies in such a way that they can
be reinstalled exactly as before.
Mark 155.000 to less than 55.006 mm (2.1654 to less than 2.1656 in.)
Mark 255.006 to less than 55.012 mm (2.1656 to less than 2.1658 in.)
Mark 355.012 to less than 55.018 mm (2.1658 to less than 2.1661 in.)
Mark 455.018 to less than 55.024 mm (2.1661 to less than 2.1663 in.)
Mark 151.994 to less than 52.000 mm (2.0470 to less than 2.0472 in.)
Mark 251.988 to less than 51.994 mm (2.0468 to less than 2.0470 in.)
Mark 351.982 to less than 51.988 mm (2.0465 to less than 2.0468 in.)
Mark 21.484 to less than 1.487 mm (0.0584 to less than 0.0585 in.)
Mark 31.487 to less than 1.490 mm (0.0585 to less than 0.0587 in.)
Marl 41.490 to less than 1.493 mm (0.0587 to less than 0.0588 in.)
Mark 51.493 to less than 1.496 mm (0.0588 to less than 0.0589 in.)
Mark 61.496 to less than 1.499 mm (0.0589 to less than 0.0590 in.)
Mark 71.499 to less than 1.502 mm (0.0590 to less than 0.0591 in.)
Page 3702 of 4500
5.REMOVE W/PIN PISTON SUB-ASSY
a. Check the fit between the piston and piston pin.
1. Try to move the piston back and forth on the piston pin.
If any movement is felt, replace the piston and pin with a new piston and pin set.

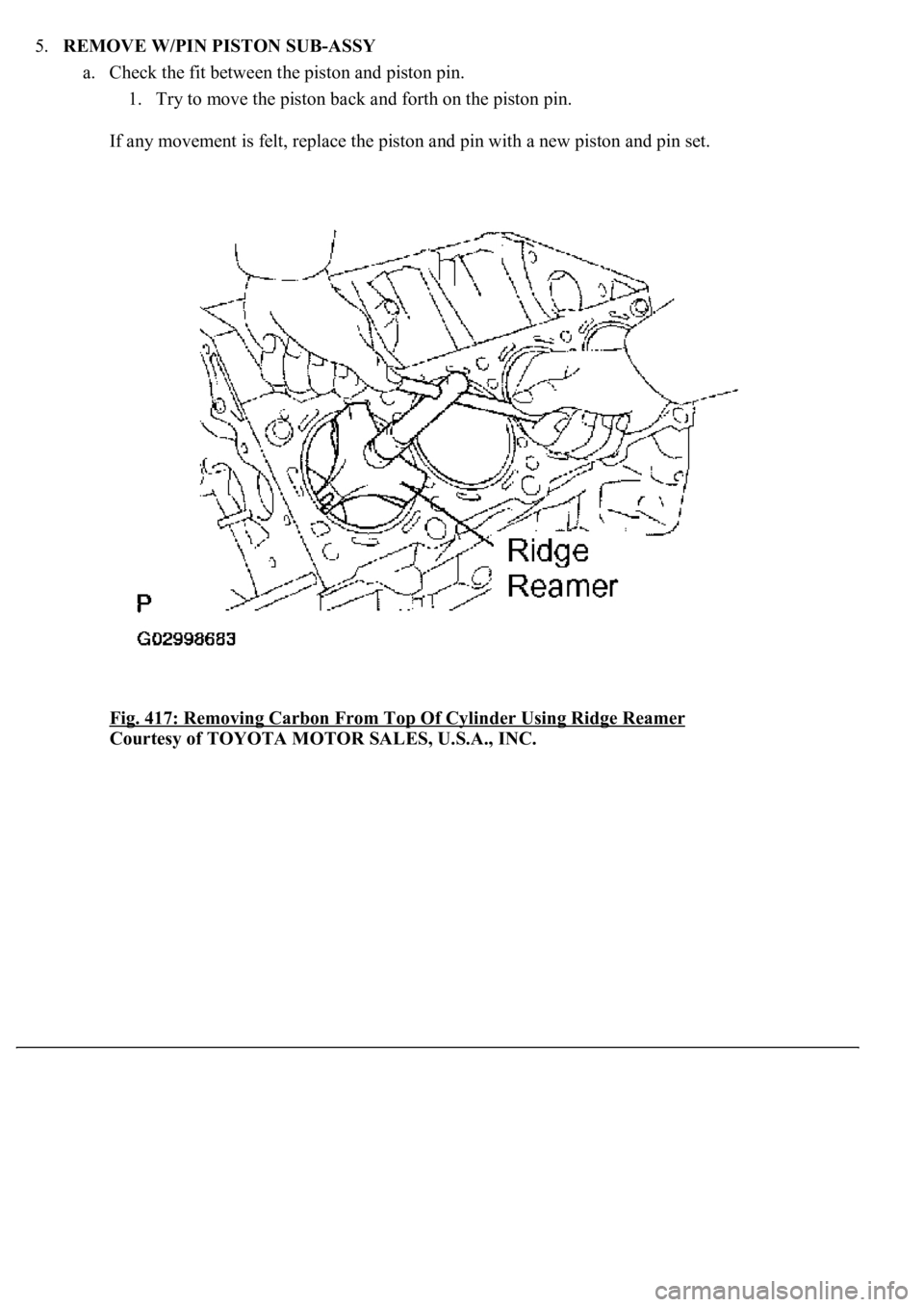

Fig. 417: Removing Carbon From Top Of Cylinder Using Ridge Reamer
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 3703 of 4500

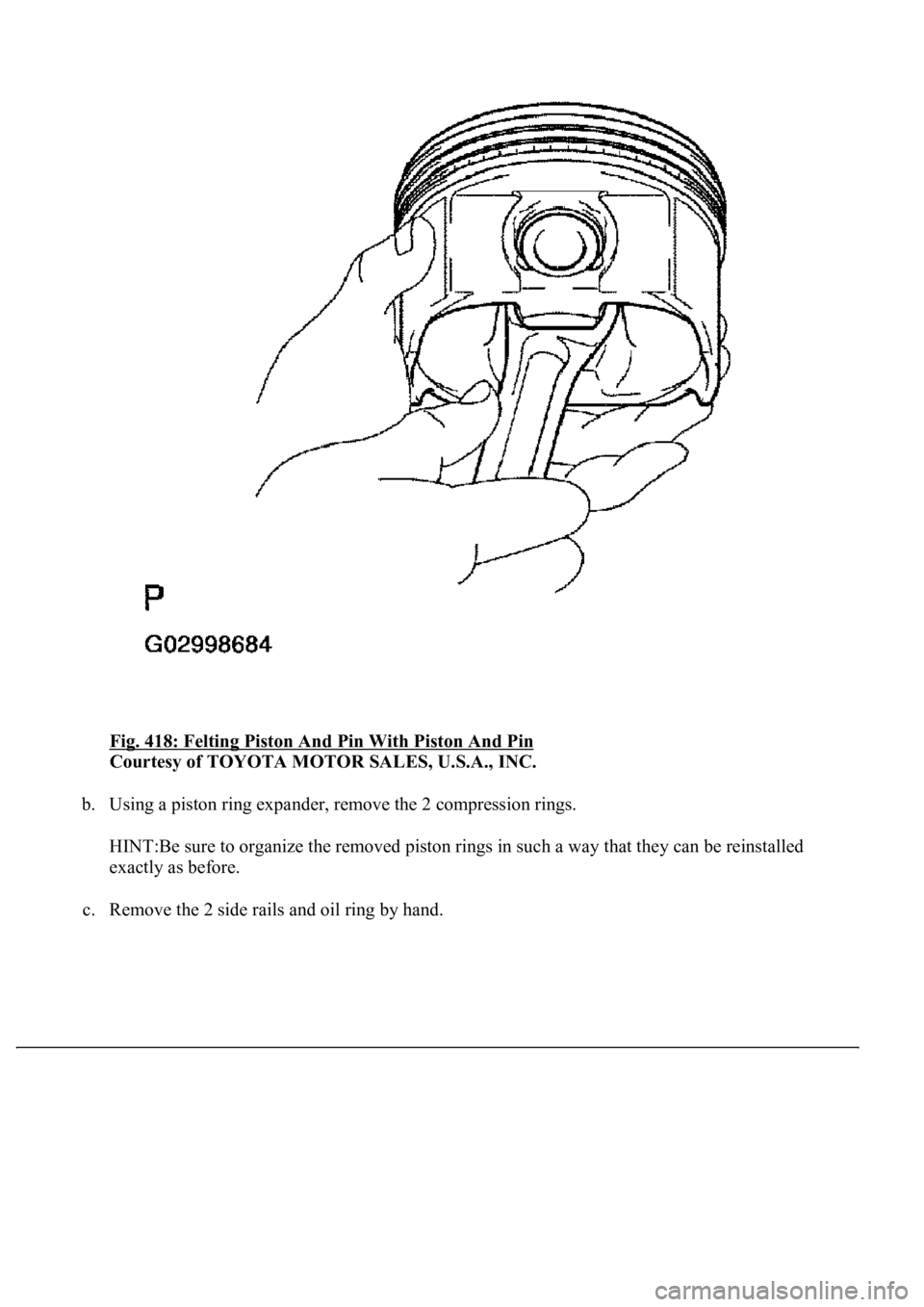

<0029004c004a0011000300170014001b001d000300290048004f0057004c0051004a00030033004c0056005700520051000300240051004700030033004c00510003003a004c0057004b00030033004c005600570052005100030024005100470003003300
4c0051[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Using a piston ring expander, remove the 2 compression rings.
HINT:Be sure to organize the removed piston rings in such a way that they can be reinstalled
exactly as before.
c. Remove the 2 side rails and oil rin
g by hand.
Page 3704 of 4500

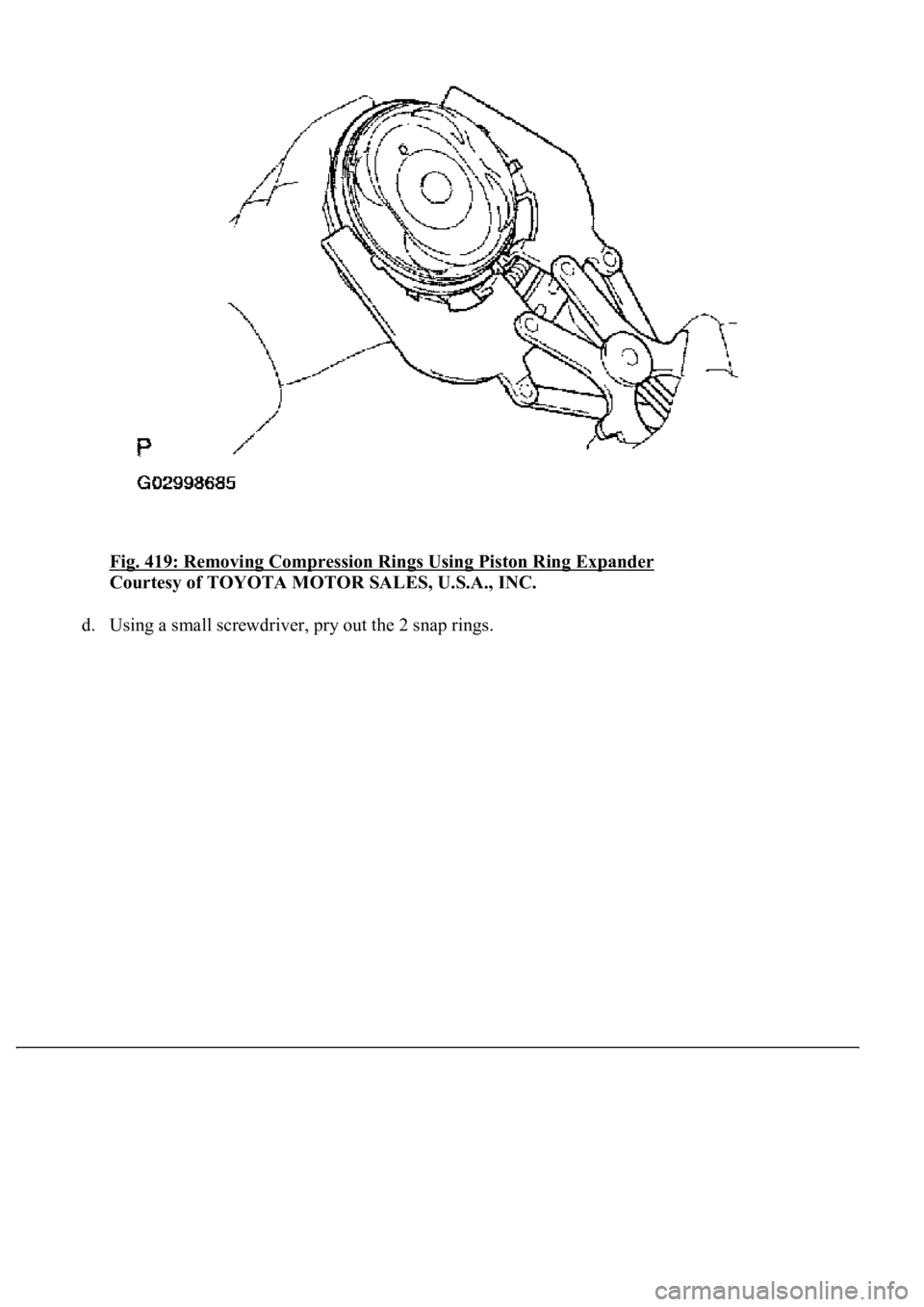

Fig. 419: Removing Compression Rings Using Piston Ring Expander
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Usin
g a small screwdriver, pry out the 2 snap rings.
