Page 3649 of 4500

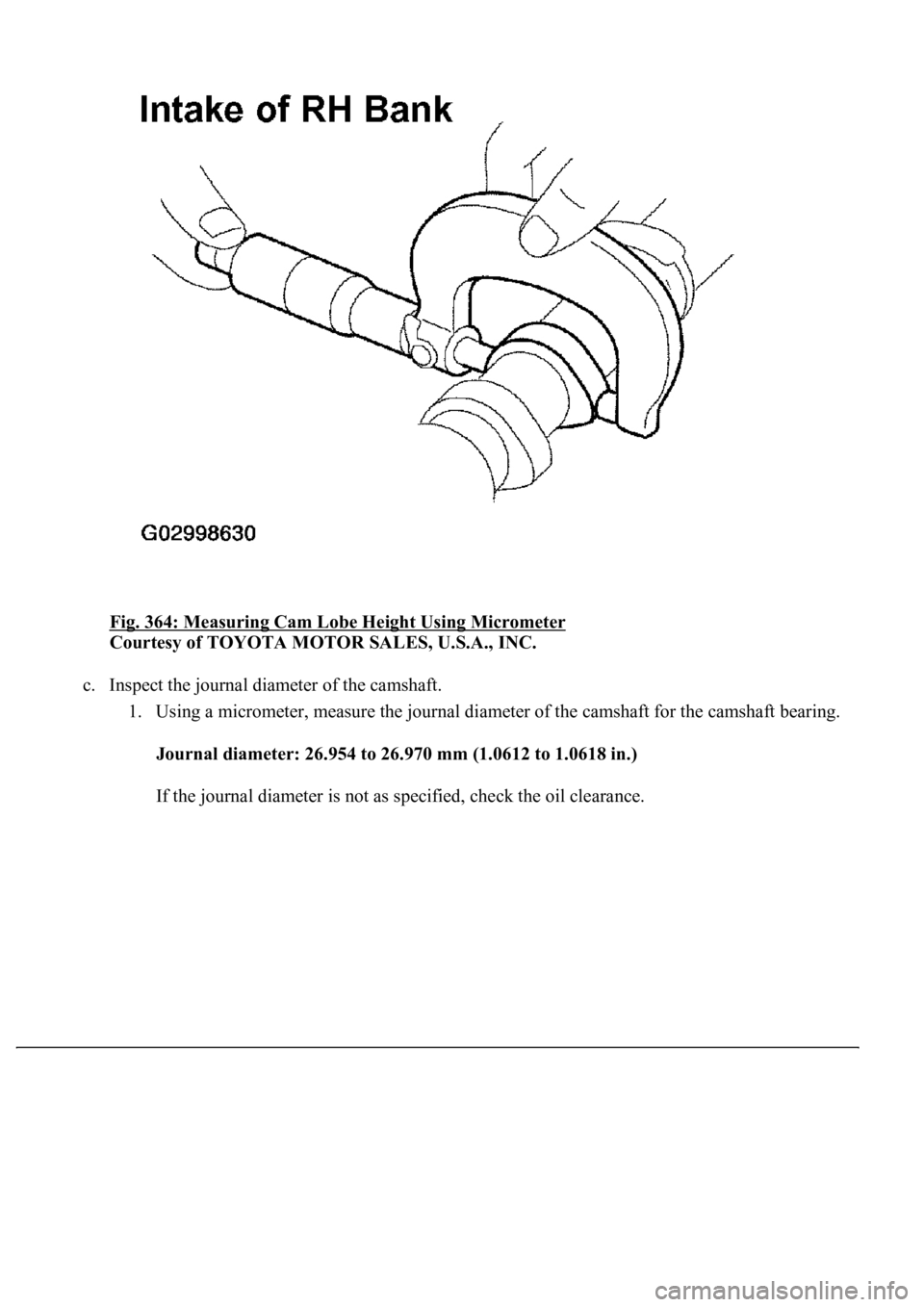

LEXUS LS430 2003 Factory Repair Manual Fig. 364: Measuring Cam Lobe Height Using Micrometer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Inspect the journal diameter of the camshaft. 1. Using a micrometer, measure the journal diamete

Page 3650 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 365: Measuring Journal Diameter Of Camshaft Using Micrometer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 2. Using a micrometer, measure the journal diameter for the camshaft timing tube. <00

Page 3651 of 4500

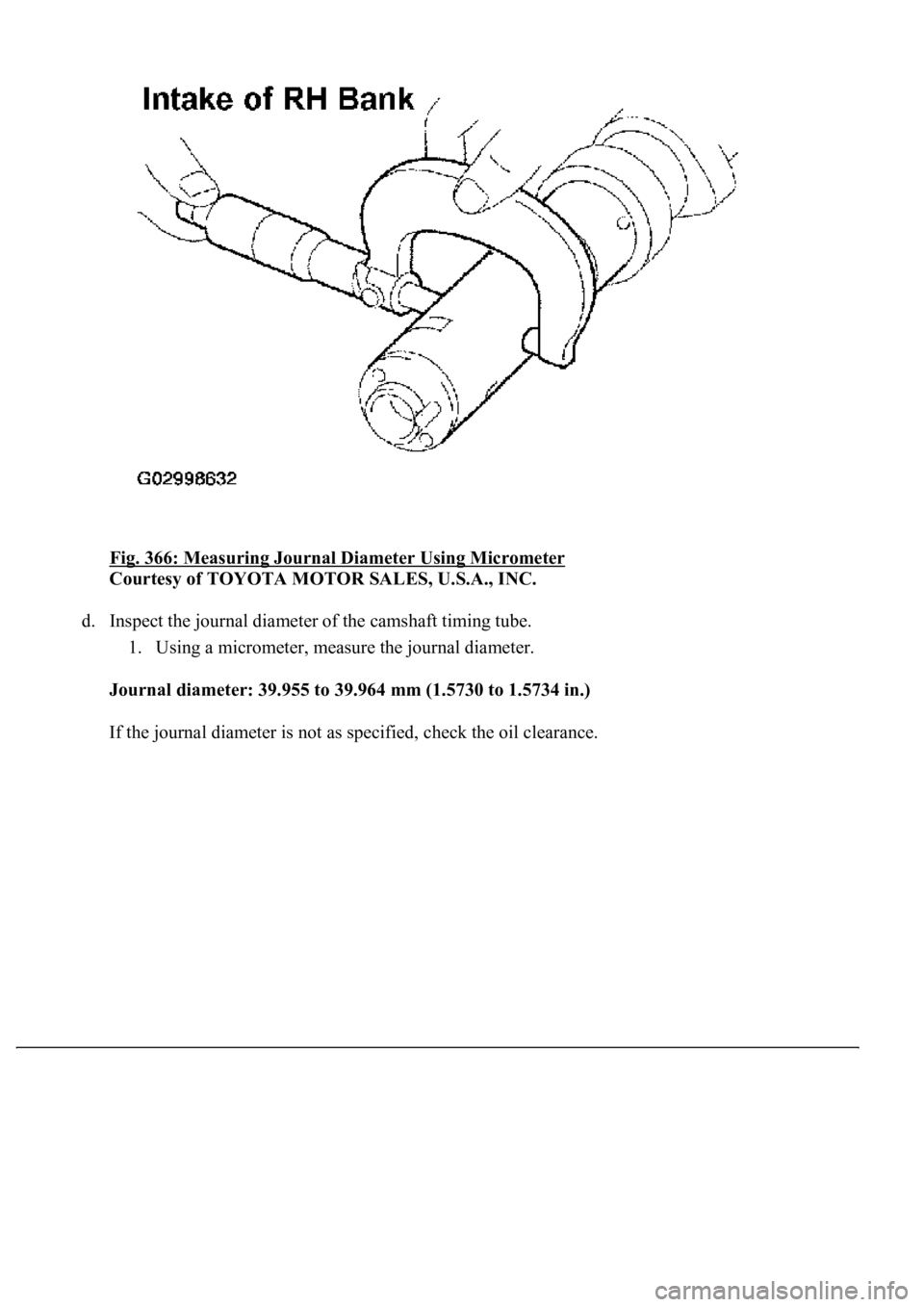

LEXUS LS430 2003 Factory Repair Manual Fig. 366: Measuring Journal Diameter Using Micrometer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Inspect the journal diameter of the camshaft timing tube. 1. Using a micrometer, measure the jo

Page 3652 of 4500

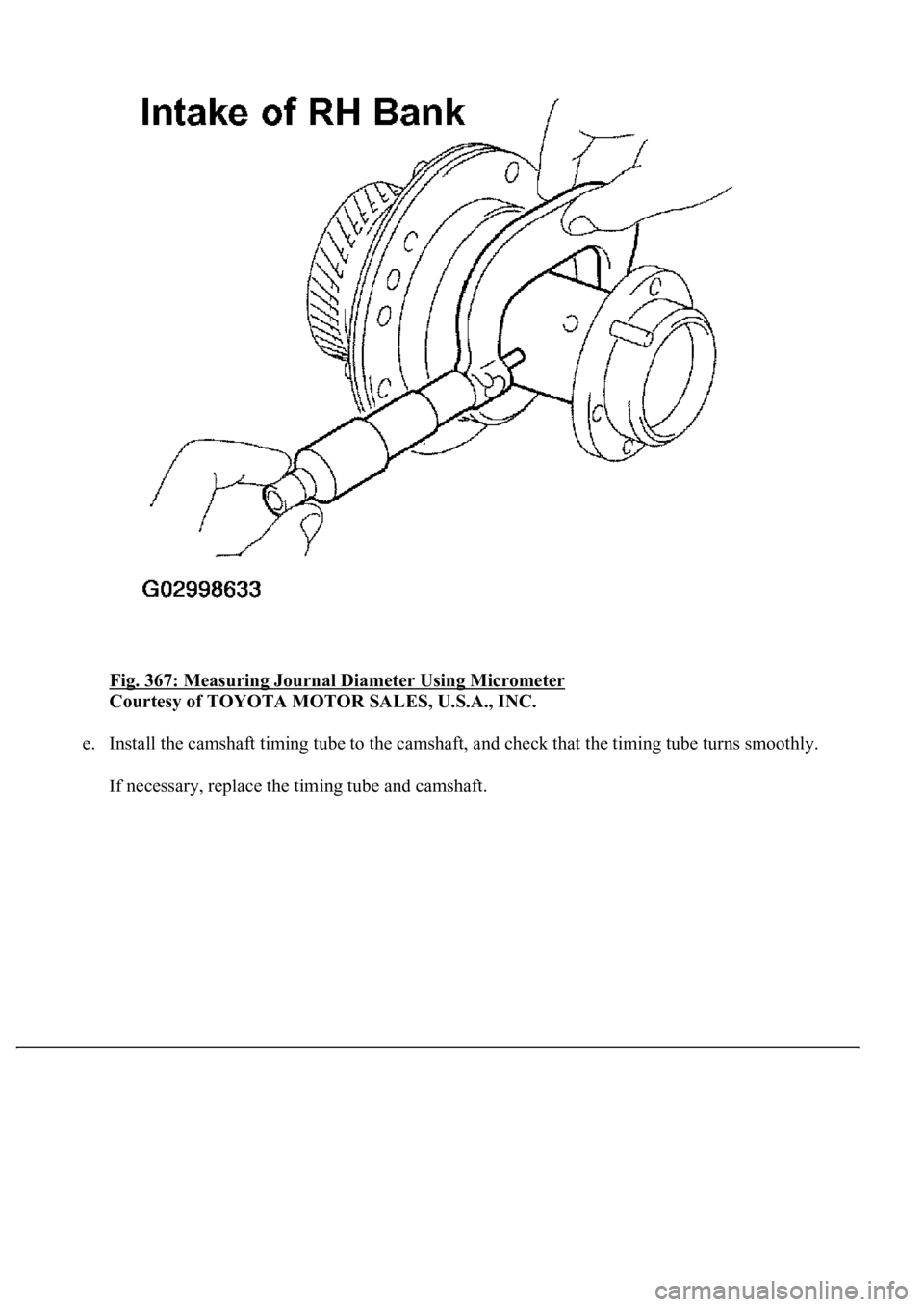

LEXUS LS430 2003 Factory Repair Manual Fig. 367: Measuring Journal Diameter Using Micrometer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Install the camshaft timing tube to the camshaft, and check that the timing tube turns smoothly.

Page 3653 of 4500

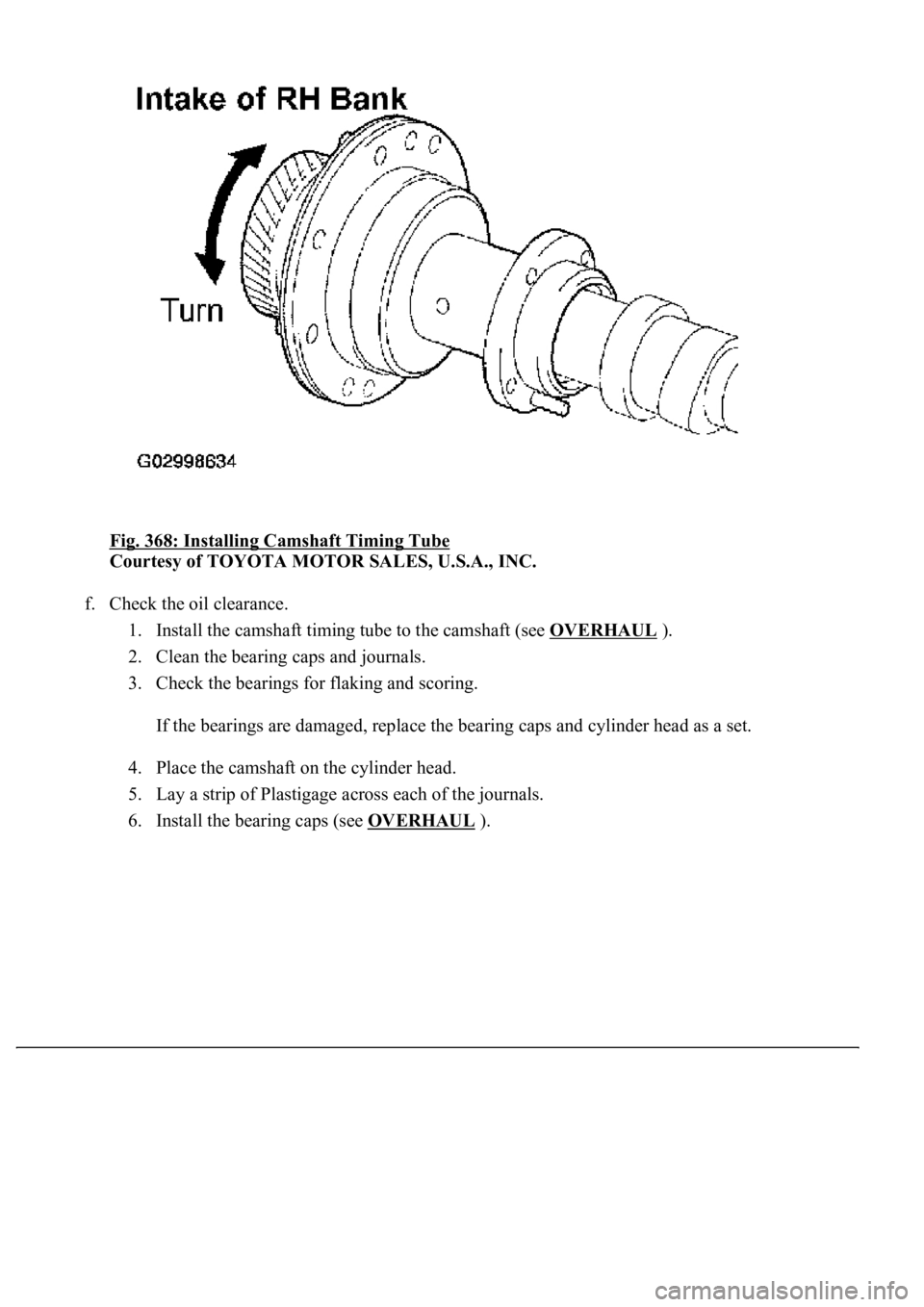

LEXUS LS430 2003 Factory Repair Manual Fig. 368: Installing Camshaft Timing Tube Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. f. Check the oil clearance. 1. Install the camshaft timing tube to the camshaft (see OVERHAUL ). 2. Clean t

Page 3654 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 369: Identifying Plastigage Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7. Remove the bearing caps. 8. Measure the Plastigage at its widest point.

Page 3655 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 370: Measuring Plastigage At Widest Point Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. STANDARD OIL CLEARANCE: OIL CLEARANCE SPECIFICATIONS MAXIMUM OIL CLEARANCE: MAXIMUM OIL CLEARANCE SPE

Page 3656 of 4500

LEXUS LS430 2003 Factory Repair Manual 11. Remove the camshaft timing tube from the camshaft. Fig. 371: Measuring Thrust Clearance Using Dial Indicator Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. g. Check the thrust clearance. 1. Ins
