Page 4017 of 4500

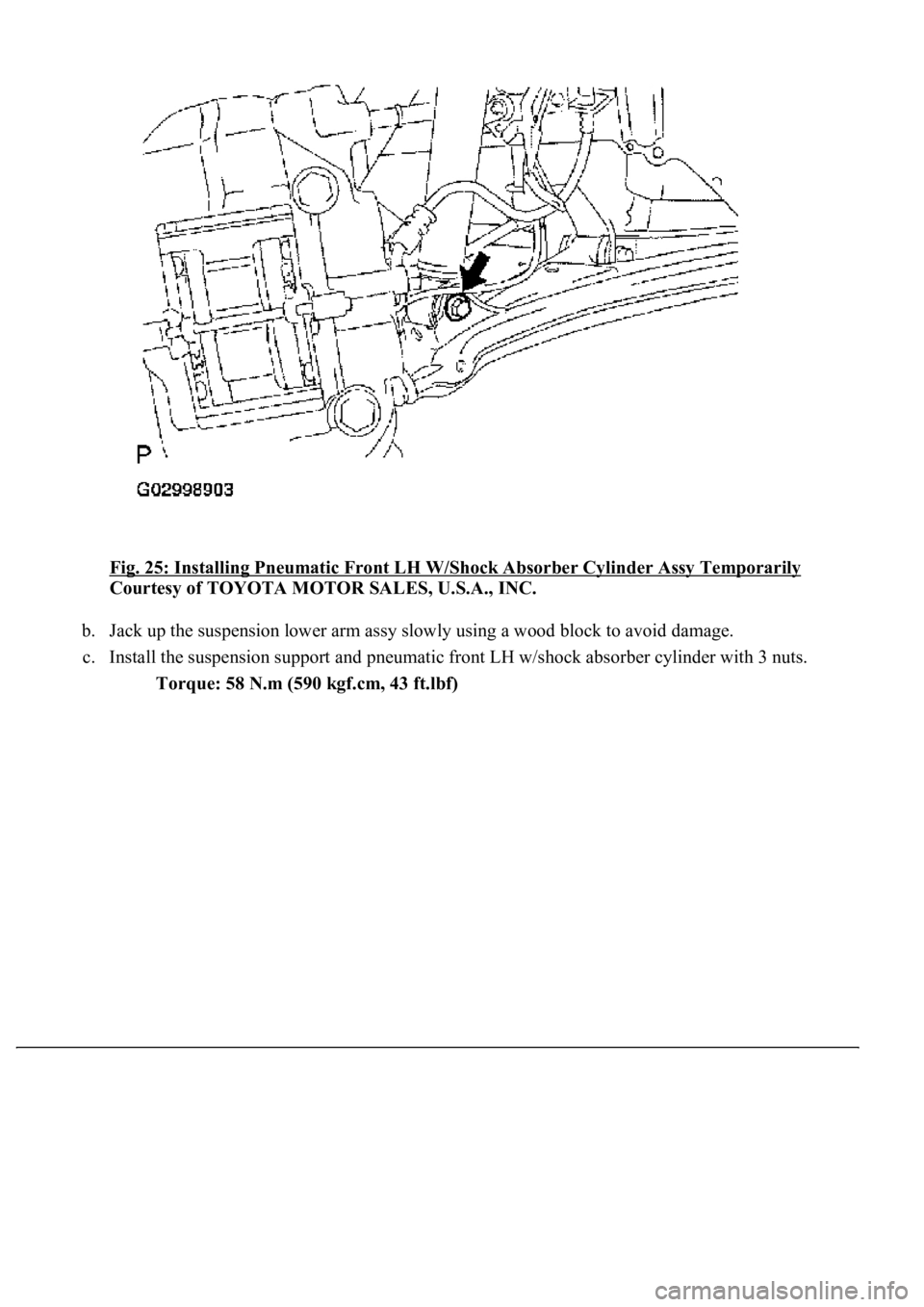

Fig. 25: Installing Pneumatic Front LH W/Shock Absorber Cylinder Assy Temporarily
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Jack up the suspension lower arm assy slowly using a wood block to avoid damage.
c. Install the suspension support and pneumatic front LH w/shock absorber cylinder with 3 nuts.
Torque: 58 N.m (590 kgf.cm, 43 ft.lbf)
Page 4018 of 4500
Fig. 26: Identifying Suspension Support And Pneumatic Front LH W/Shock Absorber
Cylinder
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Connect the air tube to the pneumatic front LH w/shock absorber cylinder assy.
e. Connect the connector No. 1 and install the cover (see PRECAUTION
).
11.INSTALL FRONT STABILIZER LINK ASSY LH
a. Install the front stabilizer link assy LH and washer with a nut.
Torque: 55 N.m (560 kgf.cm, 41 ft.lbf)
Page 4019 of 4500
Fig. 27: Installing Front Stabilizer Link Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
12.INSTALL HEIGHT CONTROL SENSOR SUB-ASSY FRONT LH
13.INSTALL ABSORBER CONTROL ACTUATOR
a. Check that the rod position is as shown.
Page 4020 of 4500
Fig. 28: Checking Rod Position
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install the absorber control actuator to the pneumatic front LH w/shock absorber cylinder assy.
c. Until a response is felt, turn the absorber control actuator clockwise approx. 40°.
d. Connect the connector.
Page 4021 of 4500
Fig. 29: Connecting Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
14.INSTALL FRONT SHOCK ABSORBER CAP LH
a. Install the front shock absorber cap LH with 3 nuts.
Torque: 58 N.m (590 kgf.cm, 43 ft.lbf)
b. Start the engine to fill the pneumatic front LH w/shock absorber cylinder assy with air.
Page 4022 of 4500
Fig. 30: Installing Front Shock Absorber Cap LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
15.STABILIZE SUSPENSION
a. Install the front wheels.
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
b. Jack down the vehicle slowly until all the tires are on the ground.
c. Bounce the vehicle up and down several times to stabilize the suspension.
d. Remove the front wheels.
e. Jack up the suspension lower arm using a wood block to avoid damage.
16.FULLY TIGHTEN PNEUMATIC FRONT LH W/SHOCK ABSORBER CYLINDER ASSY
a. Fully tighten the pneumatic front LH w/shock absorber cylinder assy lower side bolt.
Torque: 157 N.m (1,600 kgf.cm, 116 ft.lbf)
Page 4023 of 4500
Fig. 31: Tightening Pneumatic Front LH W/Shock Absorber Cylinder Assy Fully
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
17.INSTALL FRONT WHEELS
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
18.ADJUST VEHICLE HEIGHT (See ON
-VEHICLE INSPECTION )
19.ADJUST FRONT WHEEL ALIGNMENT (See ADJUSTMENT
)
DISPOSAL
HINT:
Dispose of the RH side by following the same procedures as with the LH side.
1.DISPOSE OF PNEUMATIC FRONT LH W/ SHOCK ABSORBER CYLINDER ASSY
a. Fully extend the shock absorber rod.
1. Using a drill, make a hole in the dimension as shown in Fig. 32
to discharge the gas inside.
Page 4024 of 4500

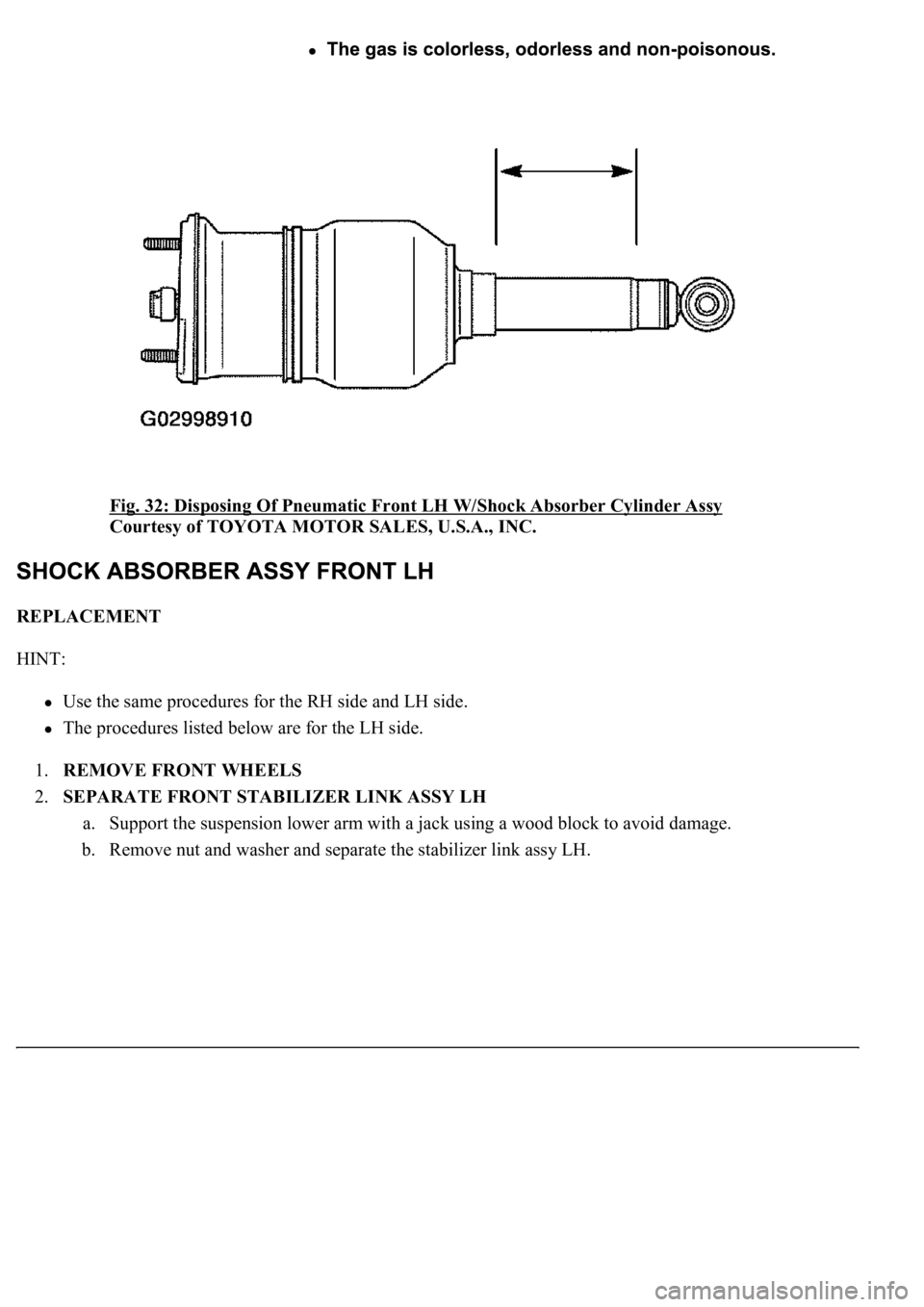

Fig. 32: Disposing Of Pneumatic Front LH W/Shock Absorber Cylinder Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
1.REMOVE FRONT WHEELS
2.SEPARATE FRONT STABILIZER LINK ASSY LH
a. Support the suspension lower arm with a jack using a wood block to avoid damage.
b. Remove nut and washer and separate the stabilizer link assy LH.
