Page 4097 of 4500
Fig. 20: Identifying Terminals Of Luggage Door Opening Switch Assy (Fuel Lid Opener Switch)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.INSPECT FUEL LID OPENER MOTOR ASSY
a. Check operation of the motor.
Page 4098 of 4500
1. Apply battery voltage to the motor and check operation of the motor.
OK:
MEASUREMENT CONDITION
If the result is not as specified, replace the door lock assy.
b. Check the shaft strokes.
Standard: 10.6 mm (0.417 in.) or more

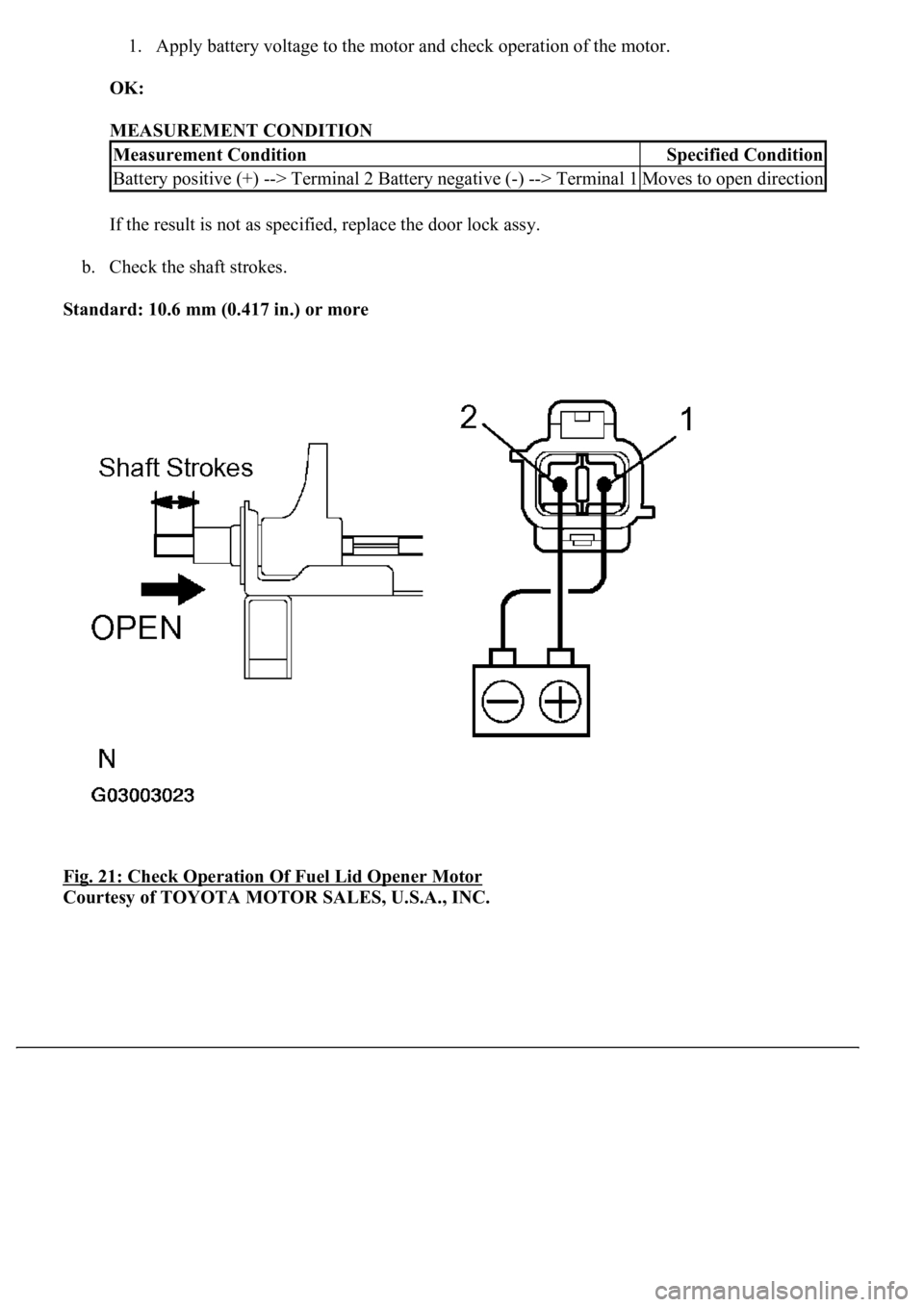

Fig. 21: Check Operation Of Fuel Lid Opener Motor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Measurement ConditionSpecified Condition
Battery positive (+) --> Terminal 2 Battery negative (-) --> Terminal 1Moves to open direction
Page 4099 of 4500
LOCATION
Fig. 1: Identifying Fuel System Component Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
SYSTEM DIAGRAM
Page 4100 of 4500
Fig. 2: Fuel System - System Diagram (1 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fuel s
ystem is determined by the ECM based on signals from various sensors.
Page 4101 of 4500
Fig. 3: Fuel System - System Diagram (2 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 4102 of 4500
Fig. 4: Fuel System - System Diagram (3 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
PRECAUTION
1.BEFORE WORKING ON FUEL SYSTEM, DISCONNECT NEGATIVE (-) TERMINAL CABLE
FROM BATTERY
2.DO NOT SMOKE OR WORK NEAR AN OPEN FLAME WHEN WORKING ON FUEL
Page 4103 of 4500

SYSTEM
3.KEEP GASOLINE AWAY FROM RUBBER AND LEATHER PARTS
4.DISCHARGE FUEL SYSTEM PRESSURE
a. Using the F/PMP relay:
1. Remove the engine room R/B cover upper.
2. Remove the F/PMP relay.
3. Start the engine.
4. After the engine has stopped, turn the ignition switch OFF.
5. Crank the engine. Check that the engine does not start.
6. Remove the fuel tank cap to discharge pressure from the fuel tank.
7. Disconnect the negative (-) battery terminal cable.
8. Reinstall the F/PMP relay.
b. Using the fuel pump connector:
1. Remove the rear seat cushion.
2. Remove the rear floor service hole cover.
3. Disconnect the fuel pump connector.
4. Start the engine.
5. After the engine has stopped, turn the ignition switch OFF.
6. Crank the engine. Check that the engine does not start.
7. Remove the fuel tank cap to discharge pressure from the fuel tank.
8. Disconnect the cable from the negative (-) battery terminal.
9. Reconnect the fuel pump connector.
10. Install the rear floor service hole cover.
11. Install the rear seat.
Page 4104 of 4500
5.FUEL SYSTEM
a. When disconnecting the high fuel pressure line, a large amount of gasoline will spill out. Observe
these procedures:
1. Perform the "DISCHARGE FUEL SYSTEM PRESSURE" procedures above. Put a container
under the connection.
2. Disconnect the fuel tube.
3. Drain the fuel remaining inside the fuel tube.
4. Protect the disconnected fuel tube from damage and foreign material by covering it with a
plastic bag.
b. When connecting the union bolt (fuel pressure pulsation damper) on the high pressure pipe union,
observe these procedures:
1. Always use 2 new gaskets.
2. Tighten the union bolt by hand.
Fig. 5: Tightening Union Bolt By Hand
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3. Using SST, tighten the union bolt to the specified torque.
SST 09612-24014 (09617-24011)
Torque:
