Page 1041 of 4500

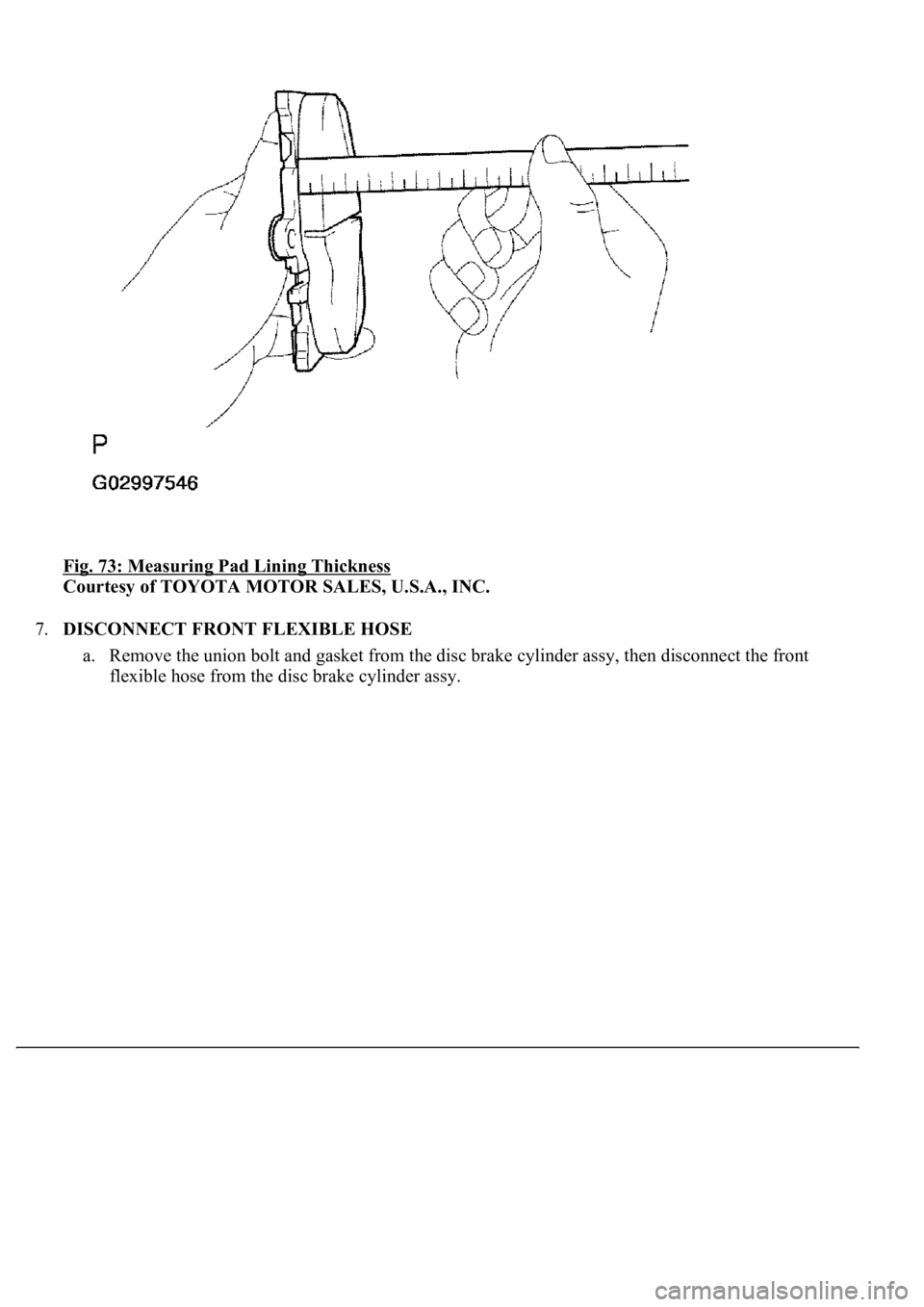

LEXUS LS430 2003 Factory Repair Manual Fig. 73: Measuring Pad Lining Thickness Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.DISCONNECT FRONT FLEXIBLE HOSE a. Remove the union bolt and gasket from the disc brake cylinder assy, then dis

Page 1042 of 4500

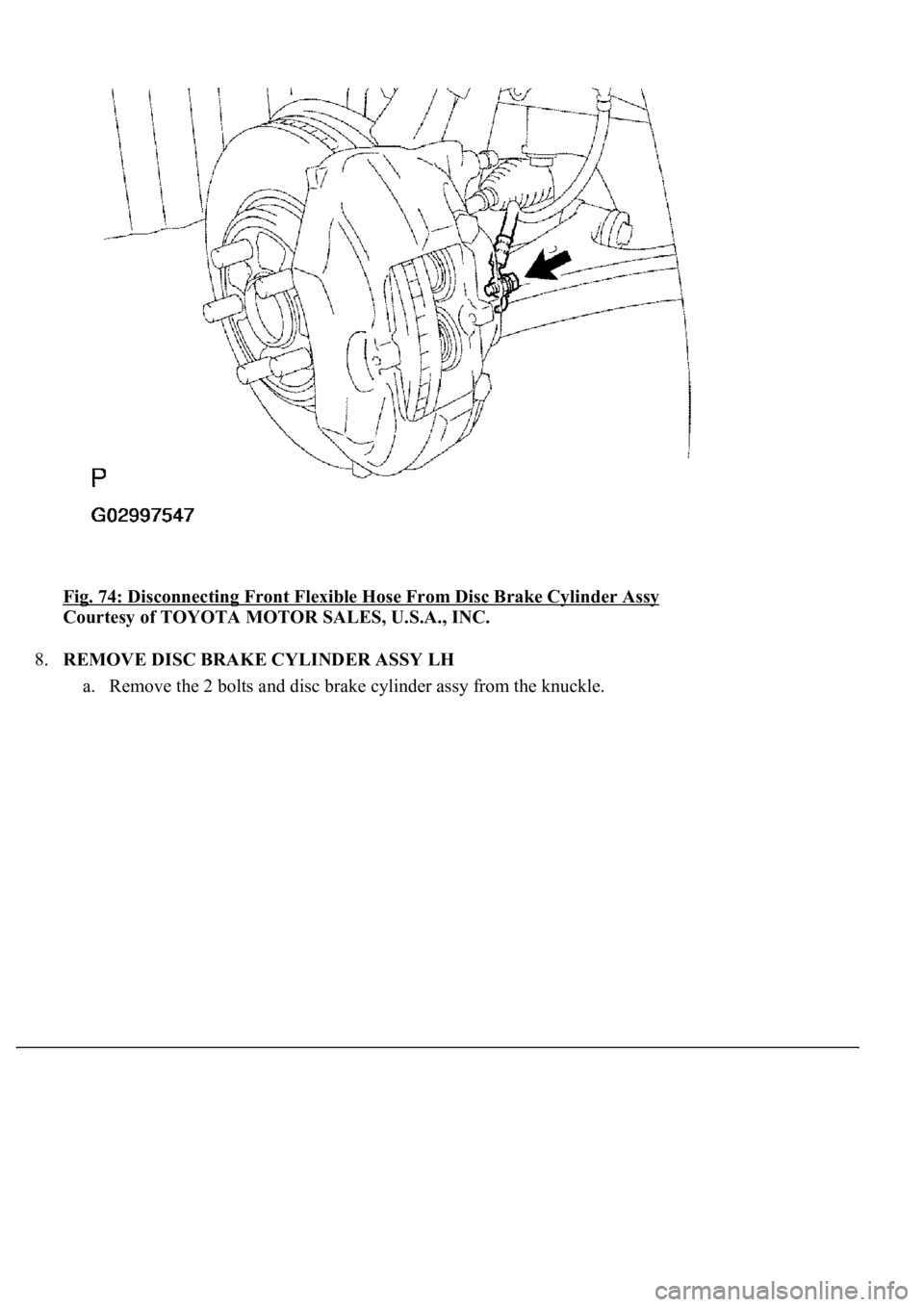

LEXUS LS430 2003 Factory Repair Manual Fig. 74: Disconnecting Front Flexible Hose From Disc Brake Cylinder Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 8.REMOVE DISC BRAKE CYLINDER ASSY LH a. Remove the 2 bolts and disc brake c yli

Page 1043 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 75: Removing Bolts And Disc Brake Cylinder Assy From Knuckle Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.REMOVE CYLINDER BOOT a. Using a screwdriver, remove the cylinder boot from the disc

Page 1044 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 76: Removing Cylinder Boot From Disc Brake Cylinder Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.REMOVE FRONT DISC BRAKE PISTON a. Prepare a wooden plate to hold the pistons.

Page 1045 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 77: Preparing Wooden Plate To Hold Pistons Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Place the plate between the pistons and insert a pad into one side. c. Use compressed air to remove

Page 1046 of 4500

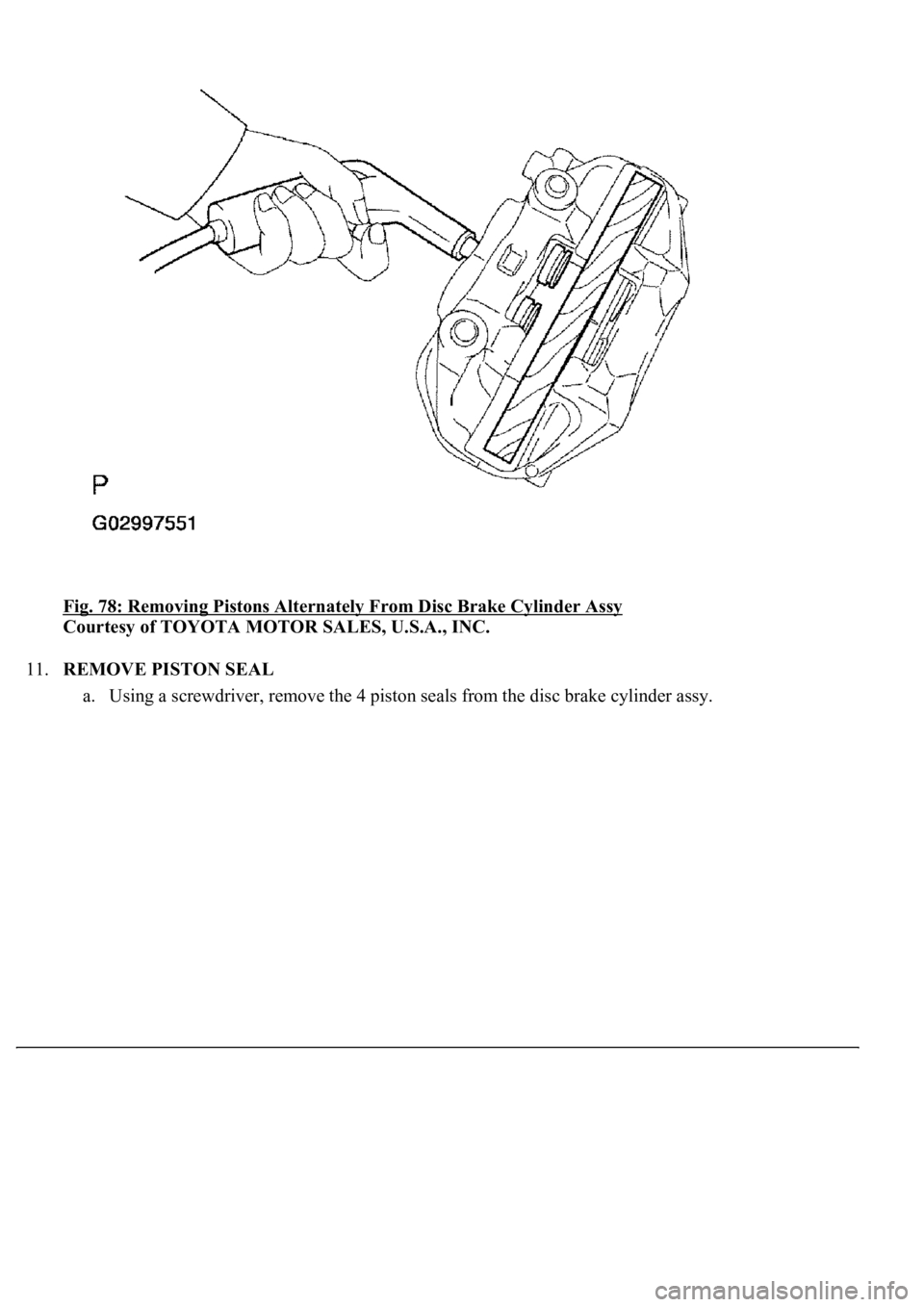

LEXUS LS430 2003 Factory Repair Manual Fig. 78: Removing Pistons Alternately From Disc Brake Cylinder Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 11.REMOVE PISTON SEAL a. Usin g a screwdriver, remove the 4 piston seals from the di

Page 1047 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 79: Removing Piston Seals From Disc Brake Cylinder Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 12.REMOVE FRONT DISC BRAKE BLEEDER PLUG a. Remove the front disc brake bleeder plug from th

Page 1048 of 4500

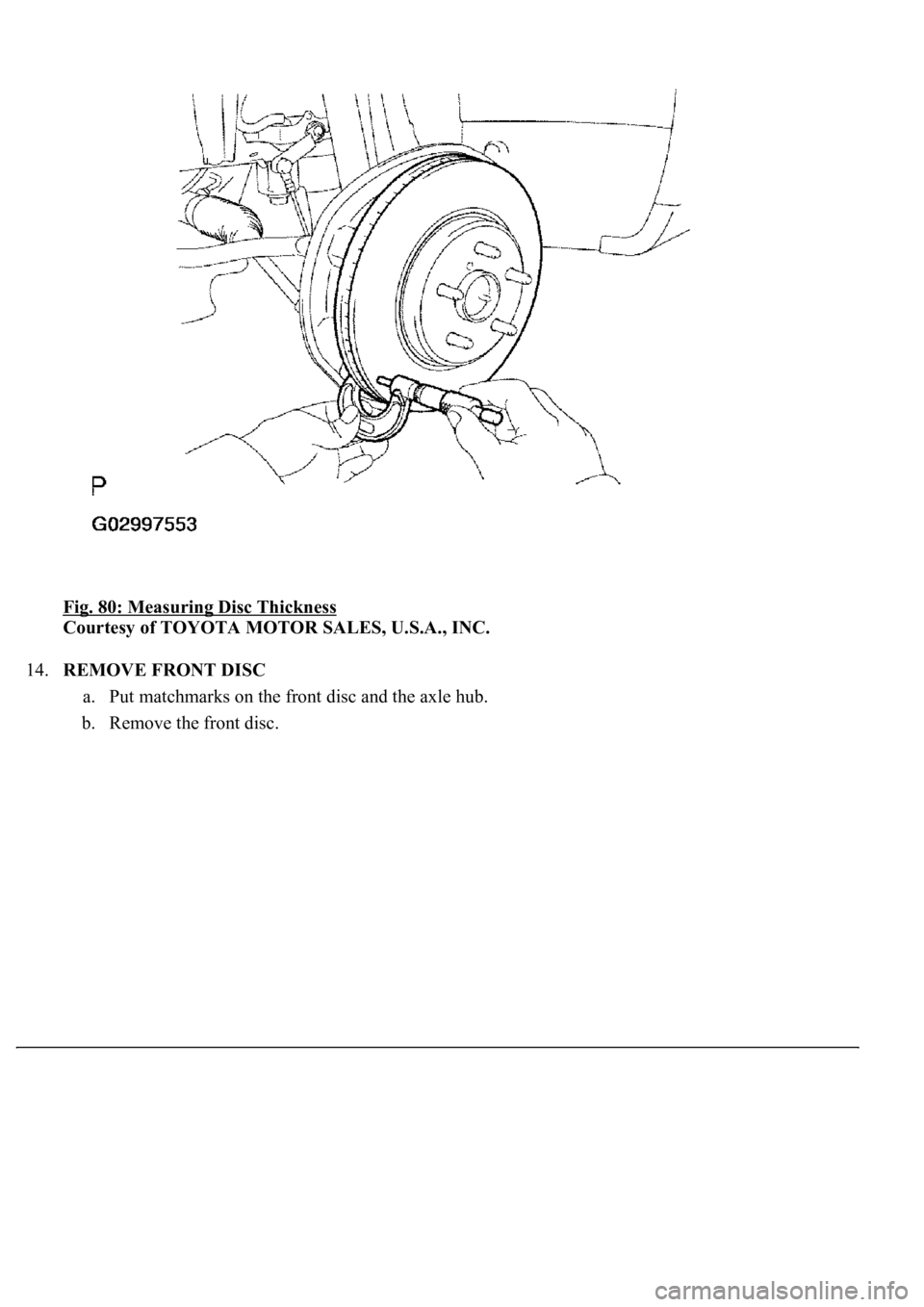

LEXUS LS430 2003 Factory Repair Manual Fig. 80: Measuring Disc Thickness Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 14.REMOVE FRONT DISC a. Put matchmarks on the front disc and the axle hub. b. Remove the front disc.
