Page 2721 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 42: Identifying Electric Malfunction Chart (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2722 of 4500

LEXUS LS430 2003 Factory Repair Manual b. Fail-safe operation for mechanically malfunction: HINT: Fail-safe operation in the event of a mechanical system malfunction. Fail safe function: The ECM controls the gear position as shown in

Page 2723 of 4500

LEXUS LS430 2003 Factory Repair Manual a. Warm up the engine. b. Turn the ignition switch off. c. Connect the hand-held tester together with the CAN VIM (controller area network vehicle interface module) to the DLC3. d. Turn the ign

Page 2724 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 45: Identifying Data List Reference (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 2.ACTIVE TEST HINT: Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actu

Page 2725 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 46: Test Item Reference Chart Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. HINT: The pressure values in ACTIVE TEST and HYDRAULIC TEST are different from each other. DIAGNOSTIC TROUBLE CODE C

Page 2726 of 4500

LEXUS LS430 2003 Factory Repair Manual *1: circle... MIL (Malfunction Indicator Lamp) light up *2: "O" mark means ECM memorizes the malfunction code if the ECM detects the DTC detection condition. This DTC may be output when t

Page 2727 of 4500

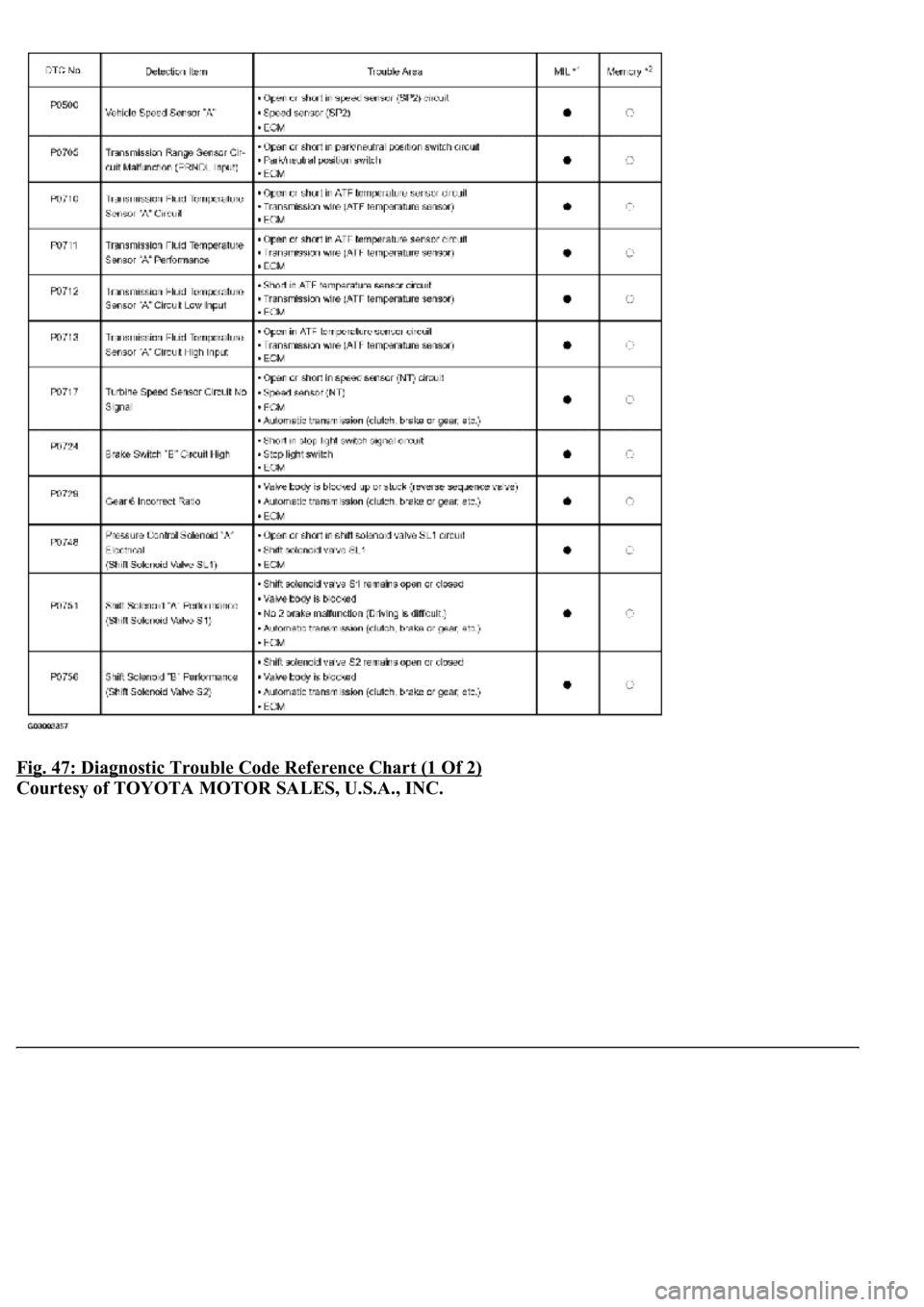

LEXUS LS430 2003 Factory Repair Manual Fig. 47: Diagnostic Trouble Code Reference Chart (1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2728 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 48: Diagnostic Trouble Code Reference Chart (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. DTC P0705, P0850: TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION (PRNDL INPUT), PARK/NEUTRAL SW
