Page 545 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 64: Identifying Suspension Control ECU Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 546 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 65: Identifying Absorber Control Actuator Rear RH Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. TESTER CONNECTION STANDARD SPECIFIED CONDITION STANDARD (REAR LH) Tester Conn

Page 547 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 66: Identifying Suspension Control ECU Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 548 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 67: Identifying Absorber Control Actuator Rear LH Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: REPLACE SUSPENSION CONTROL EC

Page 549 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a001100030019001b001d0003002700370026000300260014001a001600180003002700480057004800460057004c0051004a00030026005200510047004c0057004c005200510003002400510047000300370055005200580045004f004

Page 550 of 4500

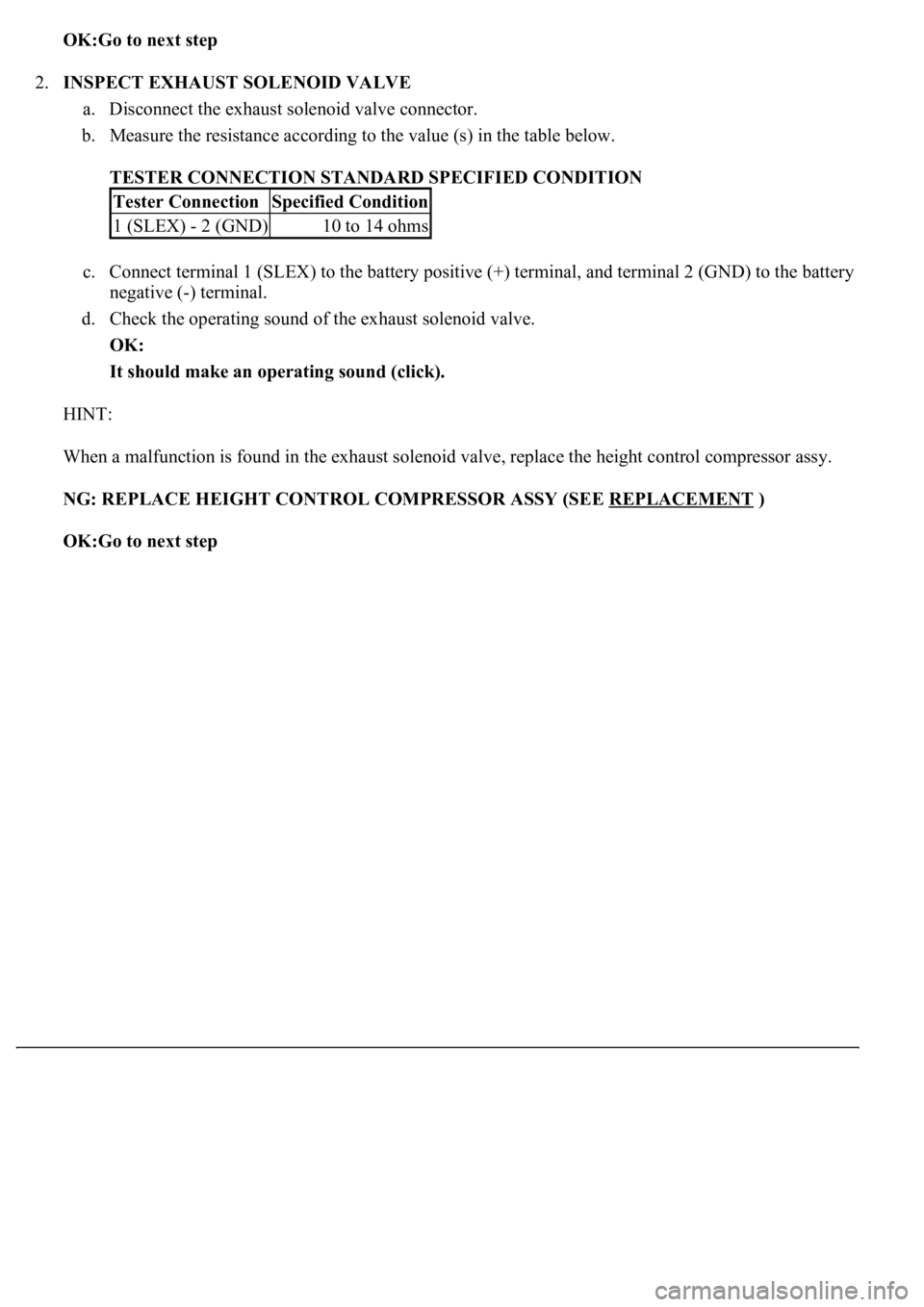

LEXUS LS430 2003 Factory Repair Manual OK:Go to next step 2.INSPECT EXHAUST SOLENOID VALVE a. Disconnect the exhaust solenoid valve connector. b. Measure the resistance according to the value (s) in the table below. TESTER CONNECTION

Page 551 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 70: Identifying Exhaust Solenoid Valve Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 3.CHECK HARNESS AND CONNECTOR (SUSPENSION CONTROL ECU - EXHAUST SOLENOID VALVE) (SEE ELE

Page 552 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 71: Identifying Suspension Control ECU Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
