Page 1617 of 4500

LEXUS LS430 2003 Factory Repair Manual Result: RESULT REFERENCE Fig. 23: Checking Seat Climate Control Controller (Seatback) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. B: REPLACE SEAT CLIMATE CONTROL CONTROLLER (SEATBACK) A: Go t

Page 1618 of 4500

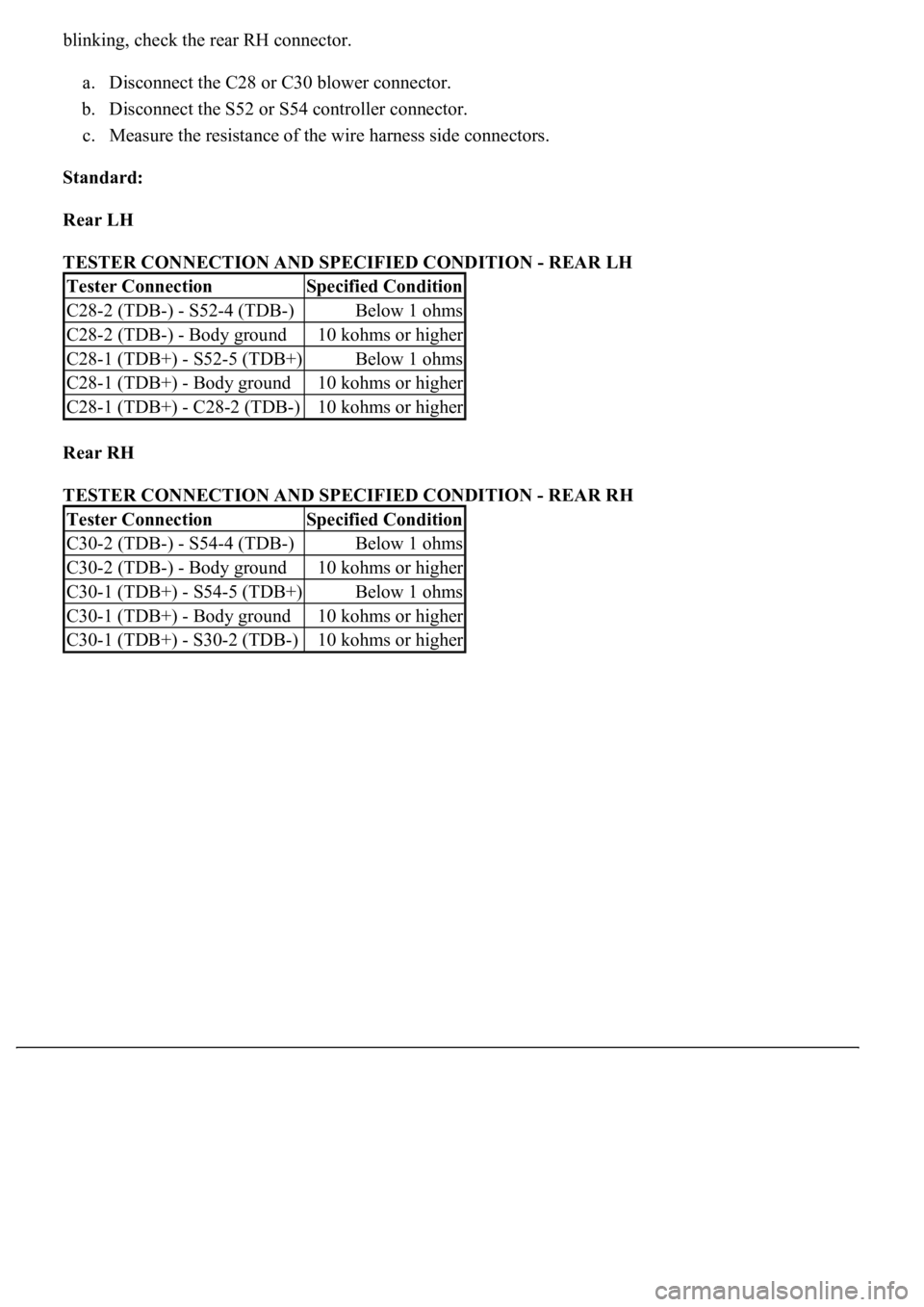

LEXUS LS430 2003 Factory Repair Manual blinking, check the rear RH connector. a. Disconnect the C28 or C30 blower connector. b. Disconnect the S52 or S54 controller connector. c. Measure the resistance of the wire harness side connecto

Page 1619 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 1620 of 4500

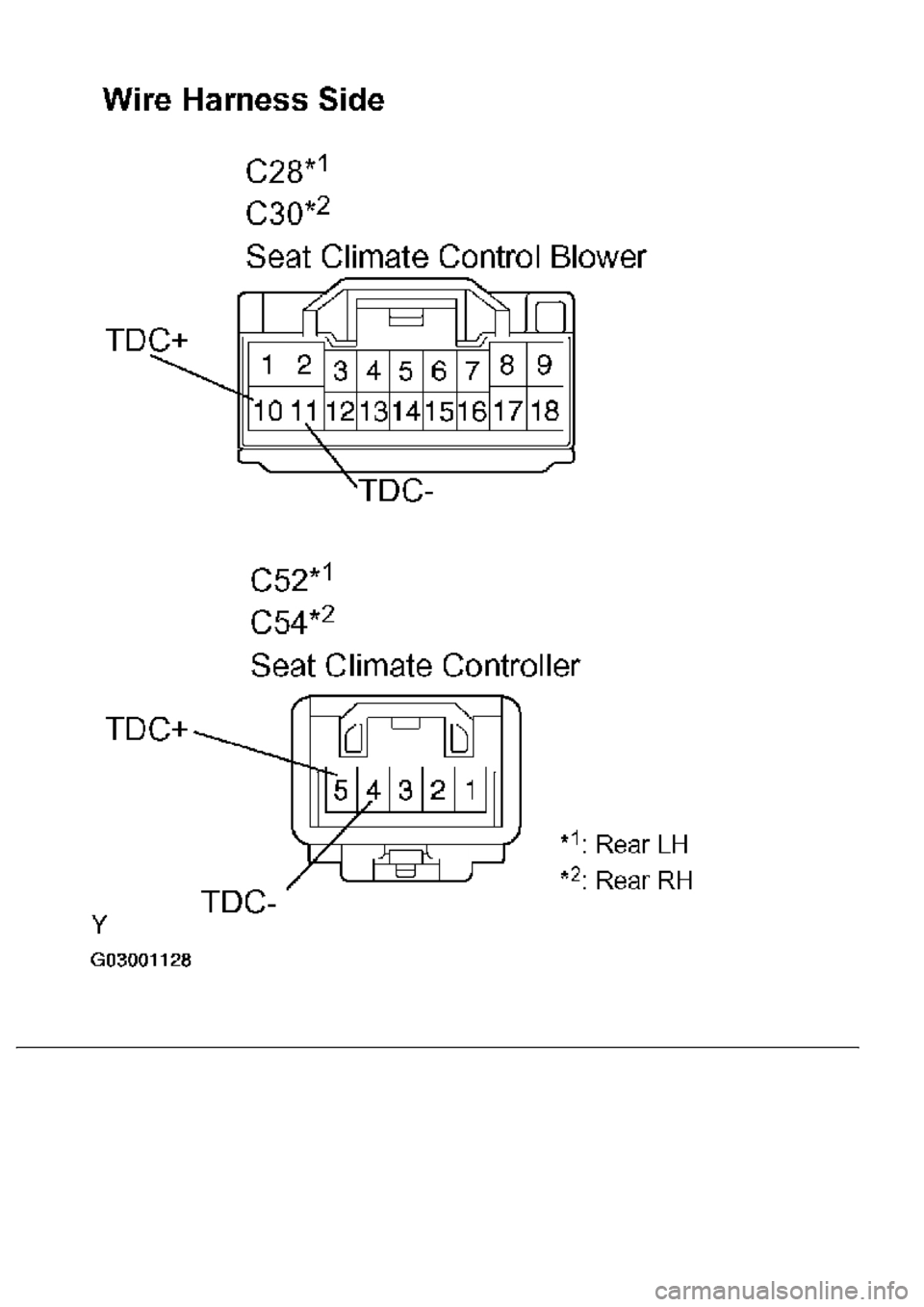

LEXUS LS430 2003 Factory Repair Manual Fig. 24: Identifying Seat Climate Control Blower Connector Terminals And Seat Climate Controller Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS AND C

Page 1621 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300150018001d00030026004b00480046004e004c0051004a0003003600480044005700030026004f004c00500044005700480003002600520051005700550052004f0003002600520051005700550052004f004f00480055000

Page 1622 of 4500

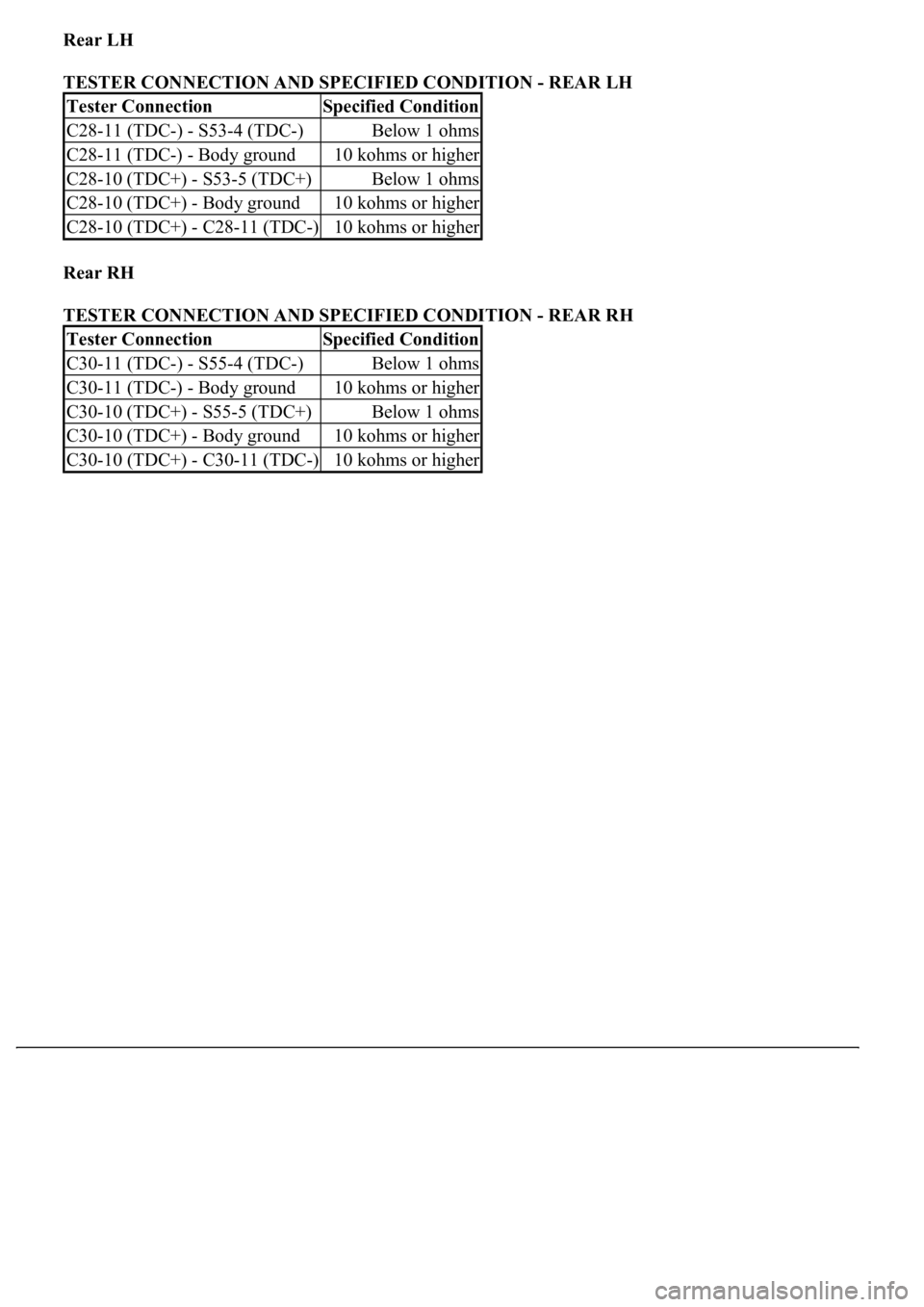

LEXUS LS430 2003 Factory Repair Manual Rear LH TESTER CONNECTION AND SPECIFIED CONDITION - REAR LH Rear RH TESTER CONNECTION AND SPECIFIED CONDITION - REAR RH Tester ConnectionSpecified Condition C28-11 (TDC-) - S53-4 (TDC-)Below 1 o

Page 1623 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 1624 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 26: Identifying Seat Climate Control Blower Connector Terminals And Seat Climate Controller Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS AND C
