Page 2273 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 81: Inspecting Rear Door Lock Assy LH (Door Closer Motor)

Page 2274 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE REAR DOOR LOCK ASSY LH OK: REPLACE REAR DOOR ECU LH CIRCUIT DESCRIPTION The door lock assembly has a built-in door closer motor. The door

Page 2275 of 4500

LEXUS LS430 2003 Factory Repair Manual SPECIFIED CONDITION Measurement ConditionSpecified Condition Battery positive (+) --> Terminal 2 Battery negative (-) --> Terminal 1Moves to LOCK Battery positive (+) --> Terminal 1 Battery negative

Page 2276 of 4500

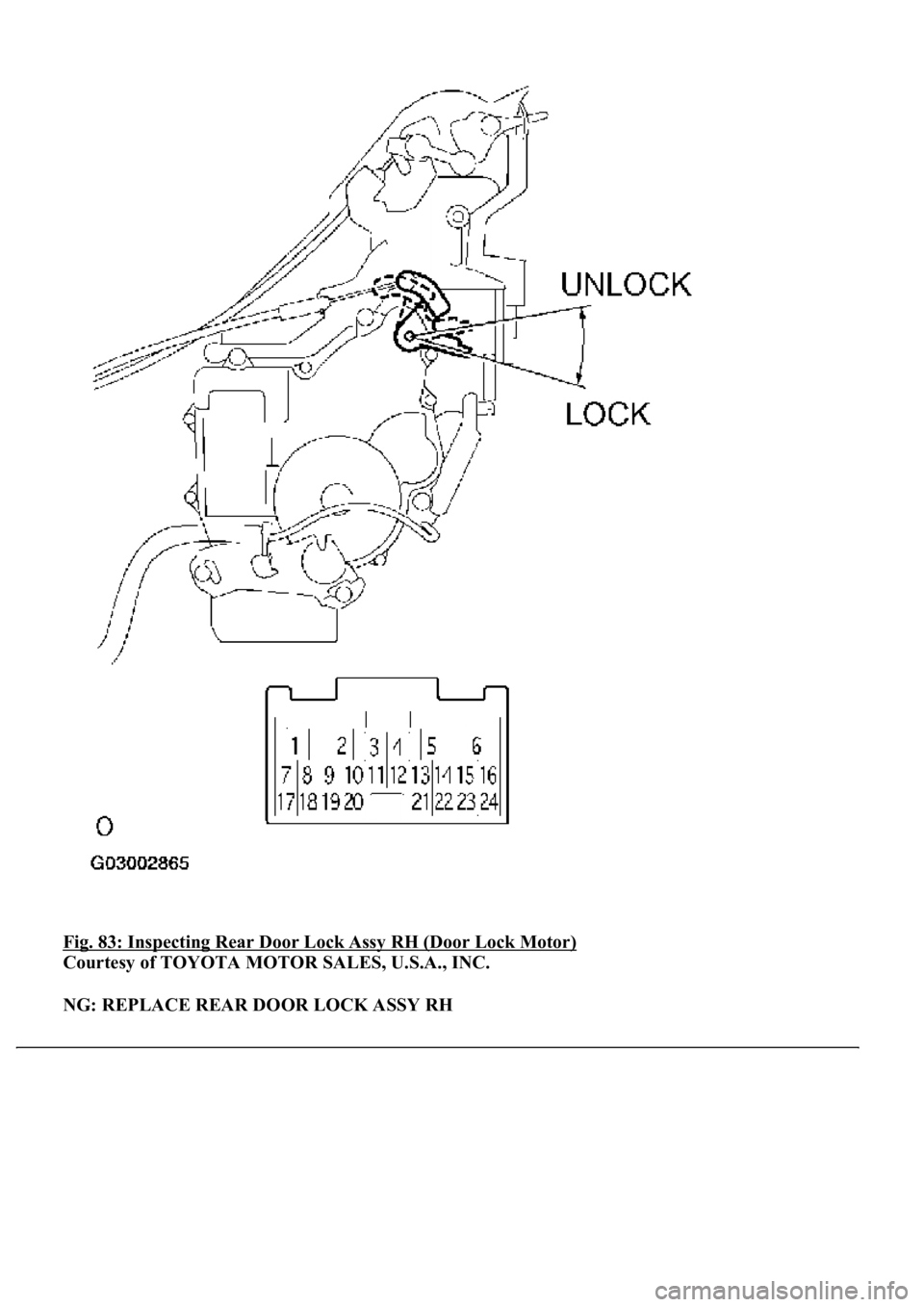

LEXUS LS430 2003 Factory Repair Manual Fig. 83: Inspecting Rear Door Lock Assy RH (Door Lock Motor) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE REAR DOOR LOCK ASSY RH

Page 2277 of 4500

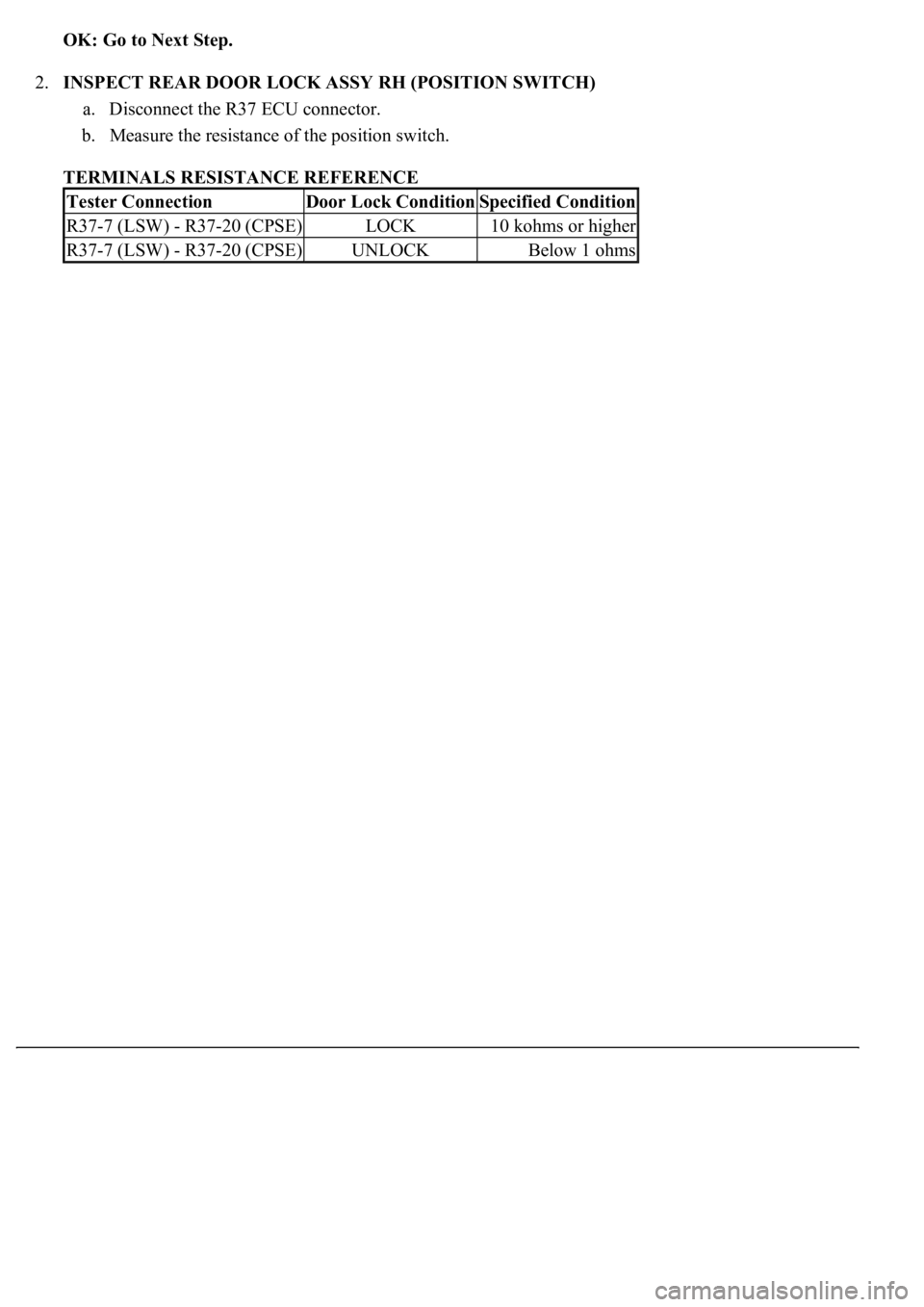

LEXUS LS430 2003 Factory Repair Manual OK: Go to Next Step. 2.INSPECT REAR DOOR LOCK ASSY RH (POSITION SWITCH) a. Disconnect the R37 ECU connector. b. Measure the resistance of the position switch. TERMINALS RESISTANCE REFERENCE Te

Page 2278 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 84: Inspecting Front Door Lock Assy RH (Position Switch) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE REAR DOOR LOCK ASSY RH

Page 2279 of 4500

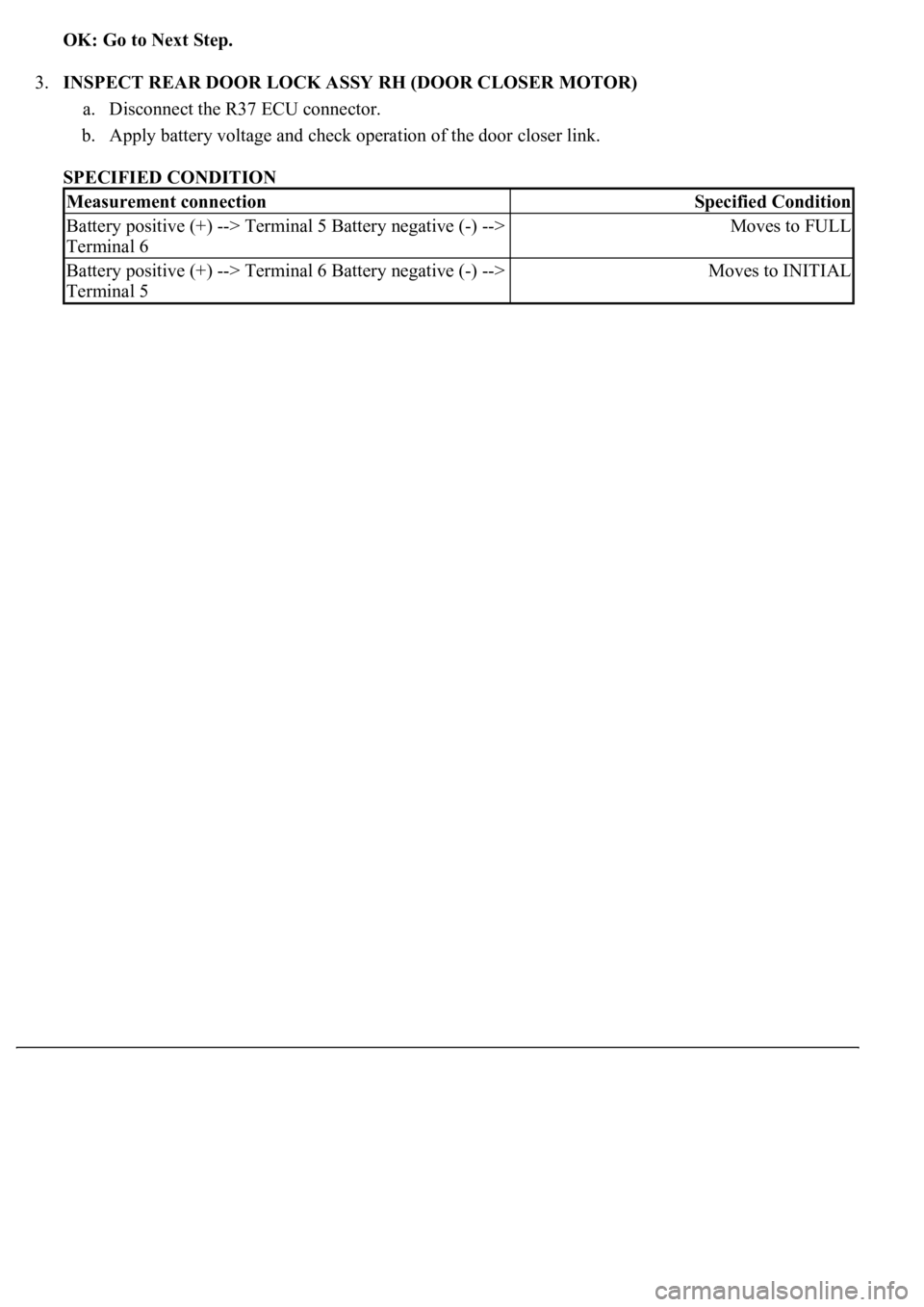

LEXUS LS430 2003 Factory Repair Manual OK: Go to Next Step. 3.INSPECT REAR DOOR LOCK ASSY RH (DOOR CLOSER MOTOR) a. Disconnect the R37 ECU connector. b. Apply battery voltage and check operation of the door closer link. SPECIFIED CO

Page 2280 of 4500

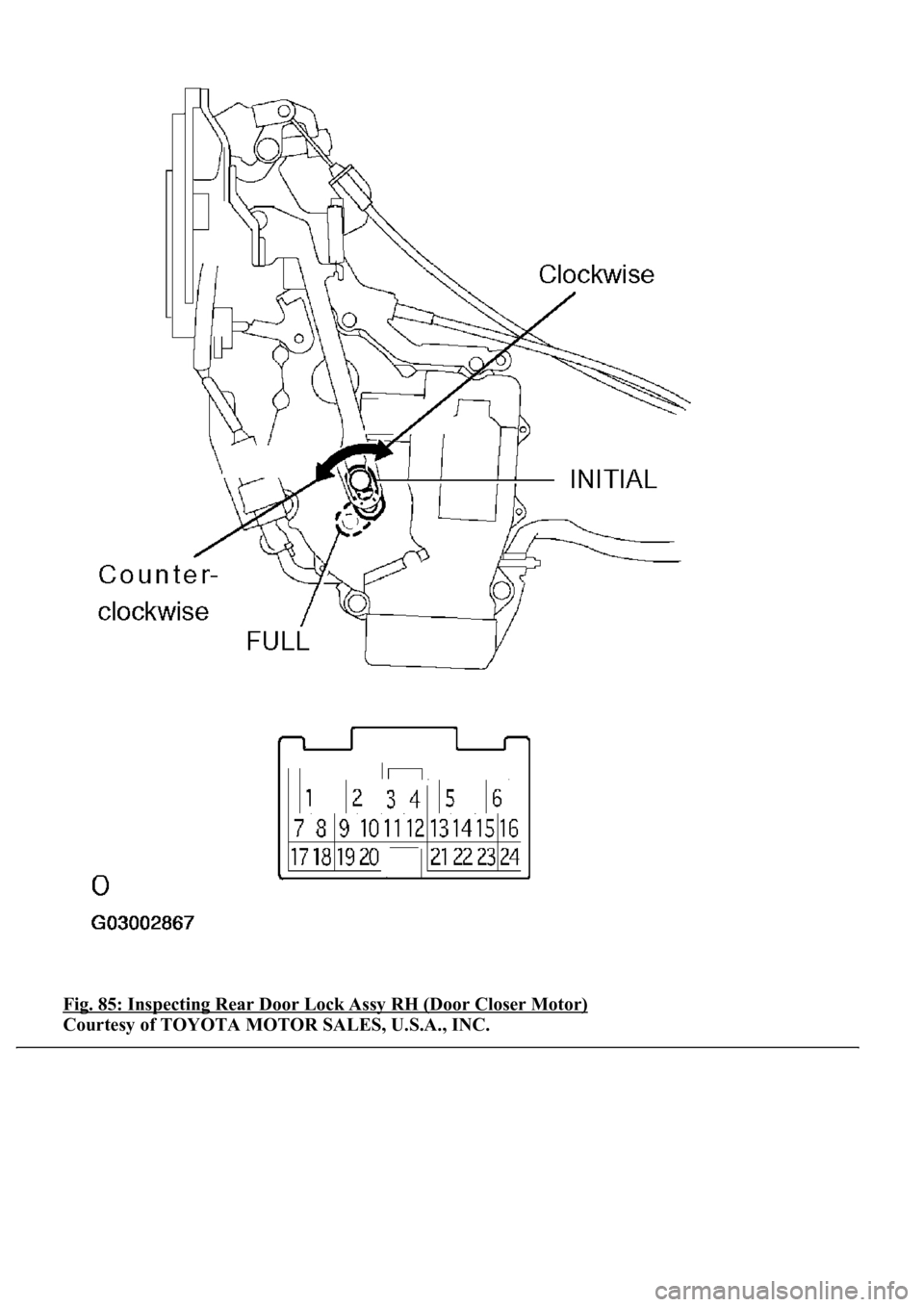

LEXUS LS430 2003 Factory Repair Manual Fig. 85: Inspecting Rear Door Lock Assy RH (Door Closer Motor) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
