Page 4377 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a001100030015001c001d00030027004c005600480051004a0044004a004c0051004a0003002c00510056005700550058005000480051005700030033004400510048004f000300360044004900480057005c00030033004400470003003

Page 4378 of 4500

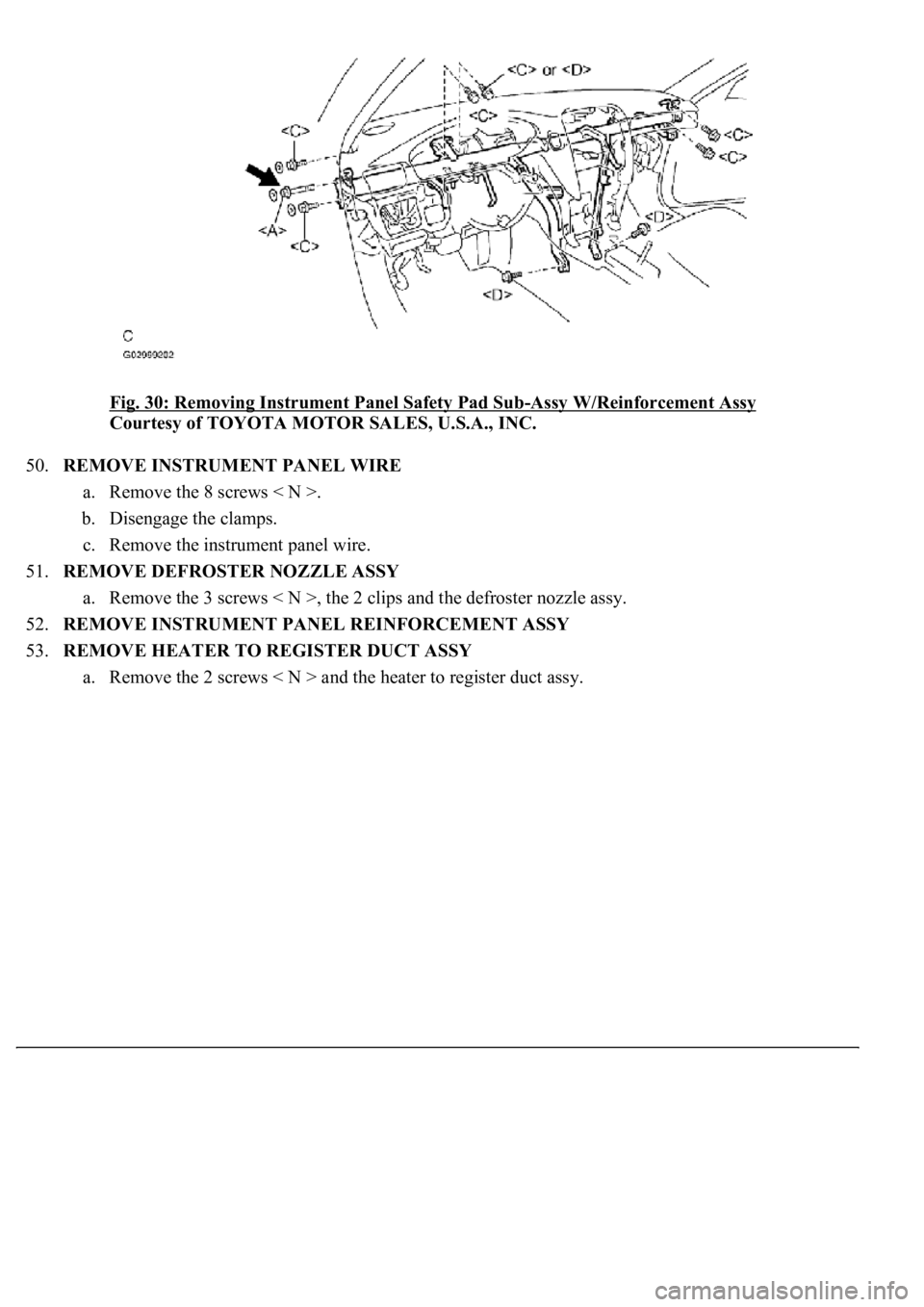

LEXUS LS430 2003 Factory Repair Manual Fig. 30: Removing Instrument Panel Safety Pad Sub-Assy W/Reinforcement Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 50.REMOVE INSTRUMENT PANEL WIRE a. Remove the 8 screws < N >. b. Disengage

Page 4379 of 4500

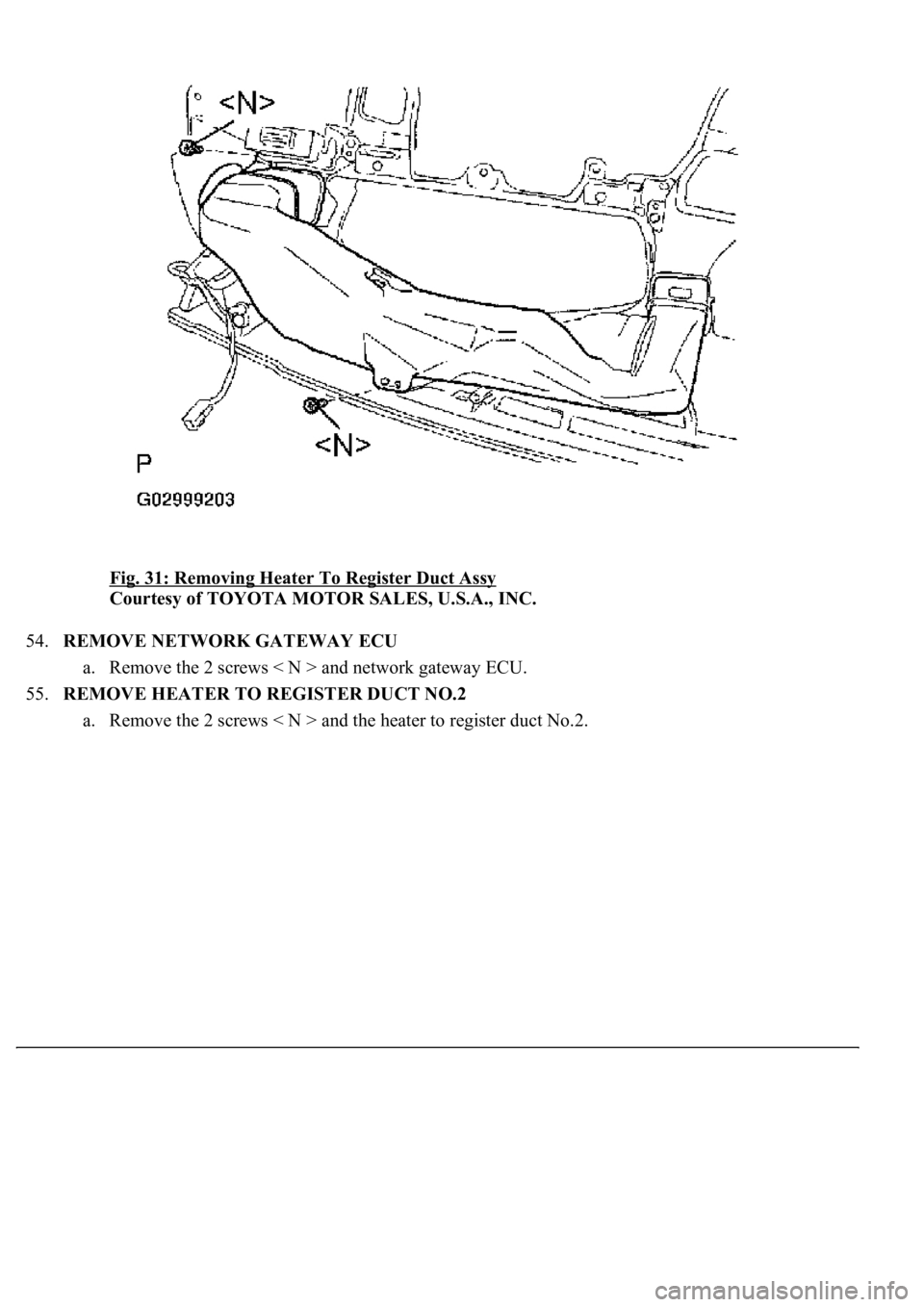

LEXUS LS430 2003 Factory Repair Manual Fig. 31: Removing Heater To Register Duct Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 54.REMOVE NETWORK GATEWAY ECU a. Remove the 2 screws < N > and network gateway ECU. 55.REMOVE HEATER TO

Page 4380 of 4500

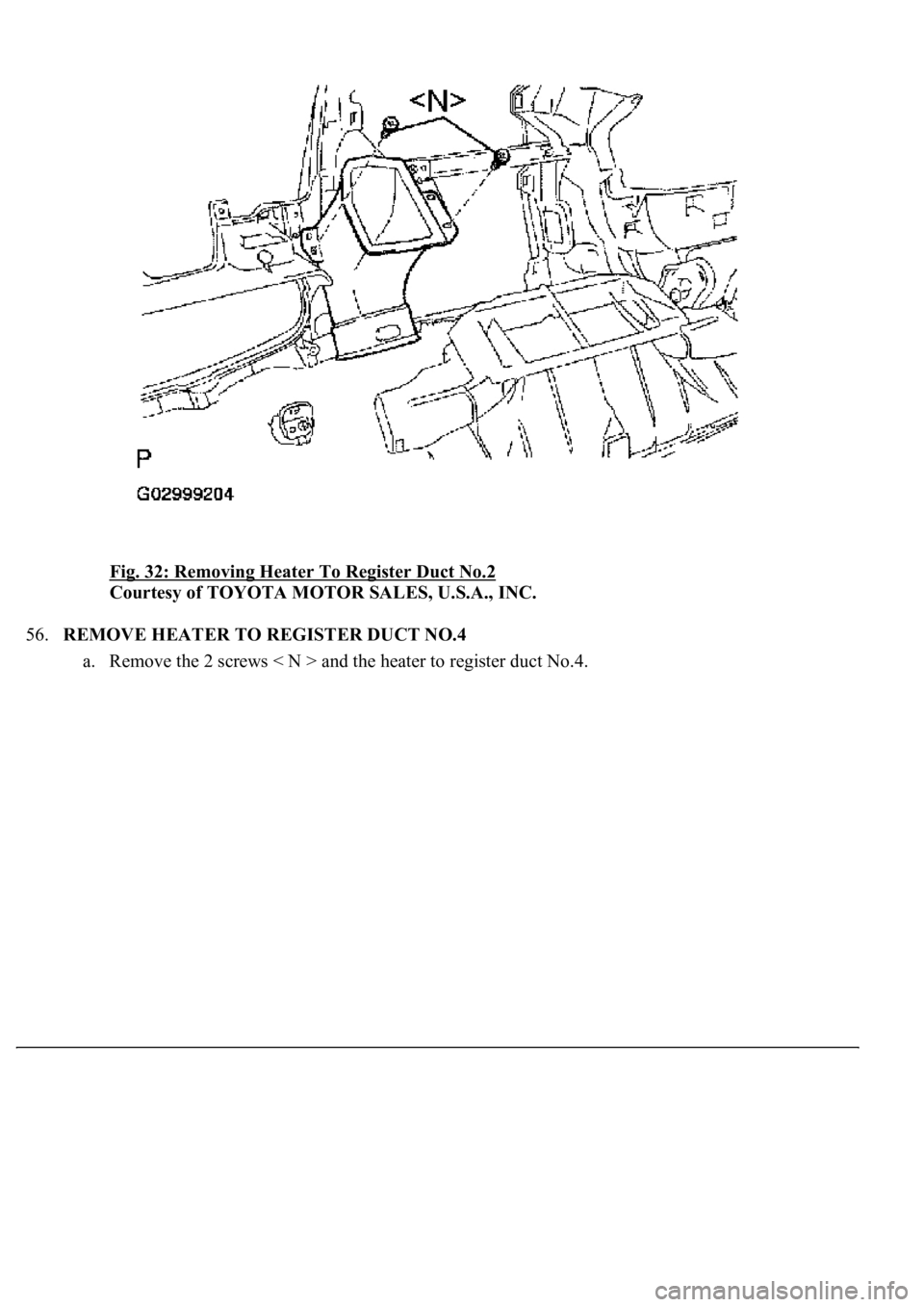

LEXUS LS430 2003 Factory Repair Manual Fig. 32: Removing Heater To Register Duct No.2 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 56.REMOVE HEATER TO REGISTER DUCT NO.4 a. Remove the 2 screws < N > and the heater to register duct No.4.

Page 4381 of 4500

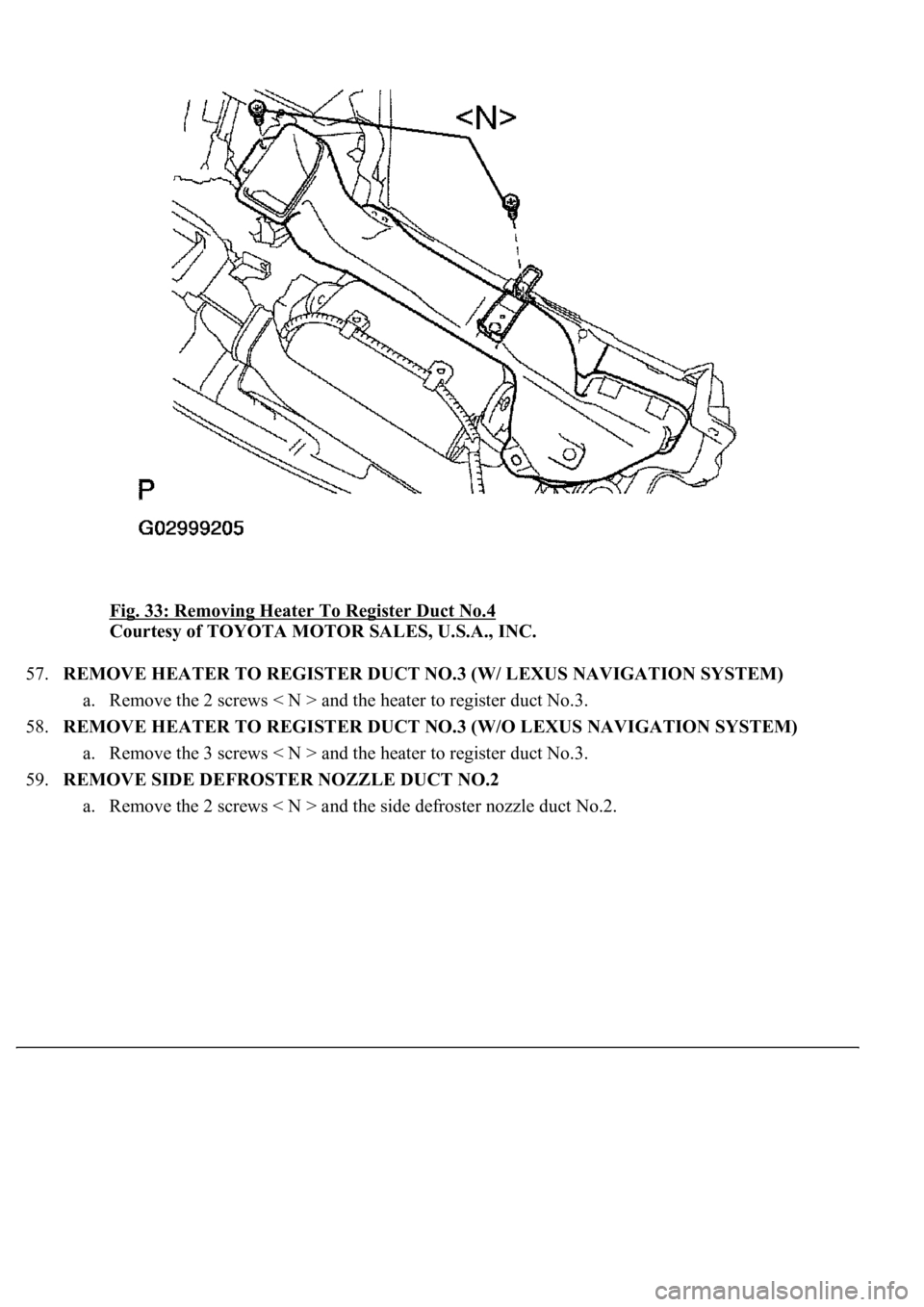

LEXUS LS430 2003 Factory Repair Manual Fig. 33: Removing Heater To Register Duct No.4 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 57.REMOVE HEATER TO REGISTER DUCT NO.3 (W/ LEXUS NAVIGATION SYSTEM) a. Remove the 2 screws < N > and the

Page 4382 of 4500

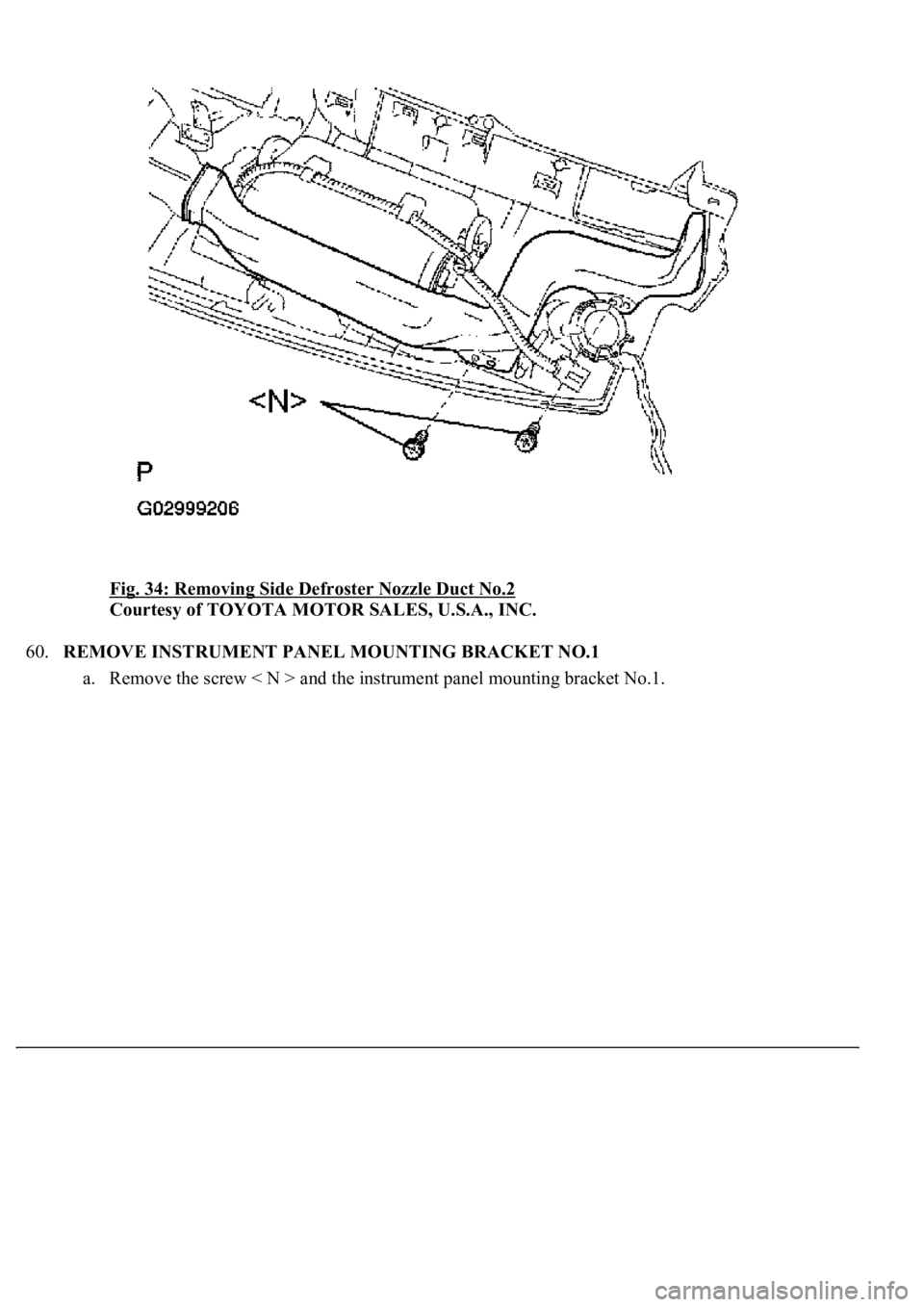

LEXUS LS430 2003 Factory Repair Manual Fig. 34: Removing Side Defroster Nozzle Duct No.2 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 60.REMOVE INSTRUMENT PANEL MOUNTING BRACKET NO.1 a. Remove the screw < N > and the instrument panel mo

Page 4383 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 35: Removing Meter Hood Retainer No.1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 61.REMOVE METER HOOD RETAINER NO.1 a. Remove the screw < N > and the meter hood retainer No.1. 62.REMOVE NA

Page 4384 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 36: Removing Defroster Nozzle Garnish No.1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 65.REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSY NO.1 a. Using a moulding remover, disengage the 2 clip
