Page 3889 of 4500

LEXUS LS430 2003 Factory Repair Manual 1.REMOVE PACKAGE TRAY TRIM PANEL ASSY (See REPLACEMENT ) a. Remove the rear door scuff plate LH and RH. b. Remove the rear door opening trim weatherstrip LH and RH. c. Remove the rear seat side c

Page 3890 of 4500

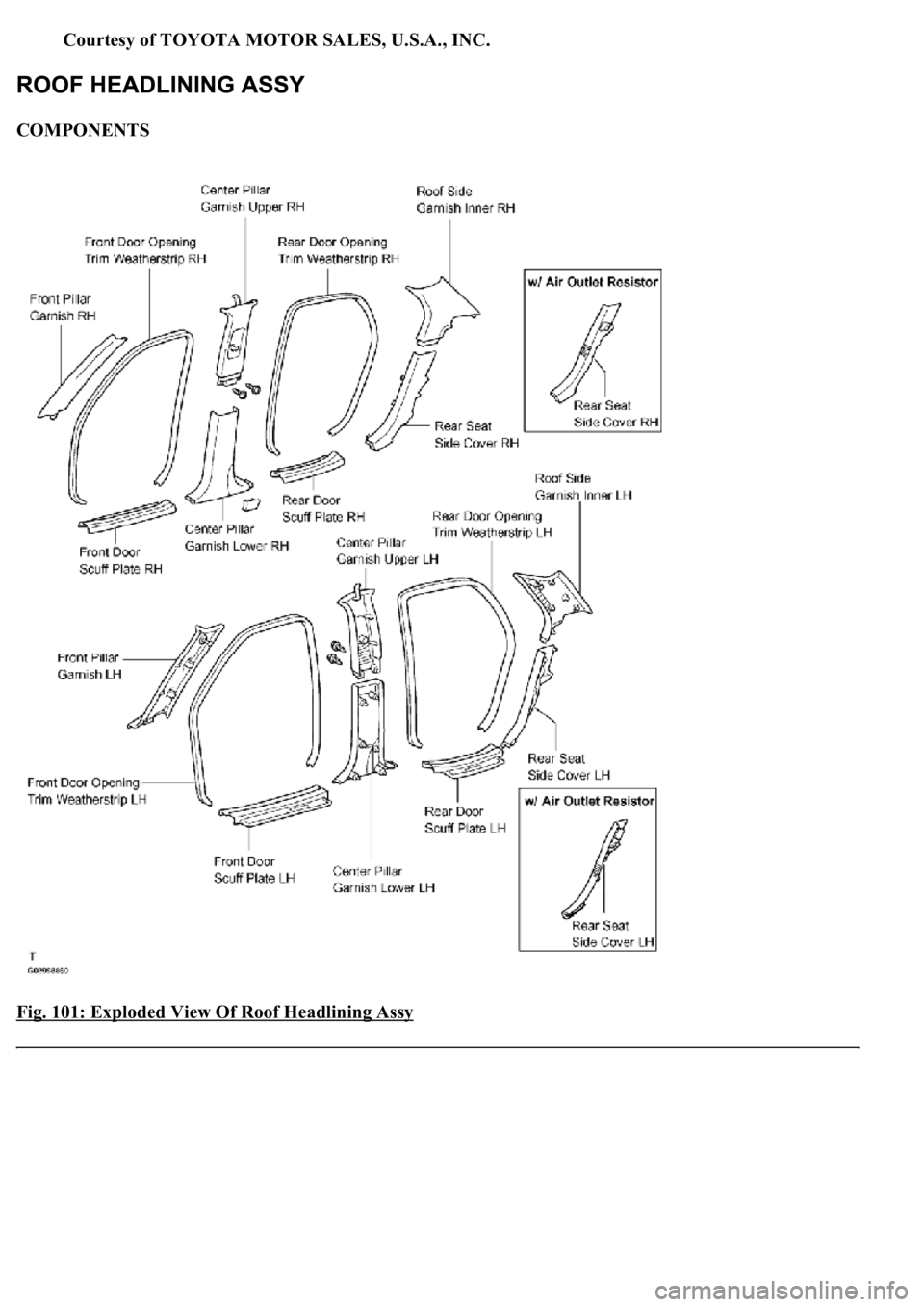

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. COMPONENTS Fig. 101: Exploded View Of Roof Headlining Assy

Page 3891 of 4500

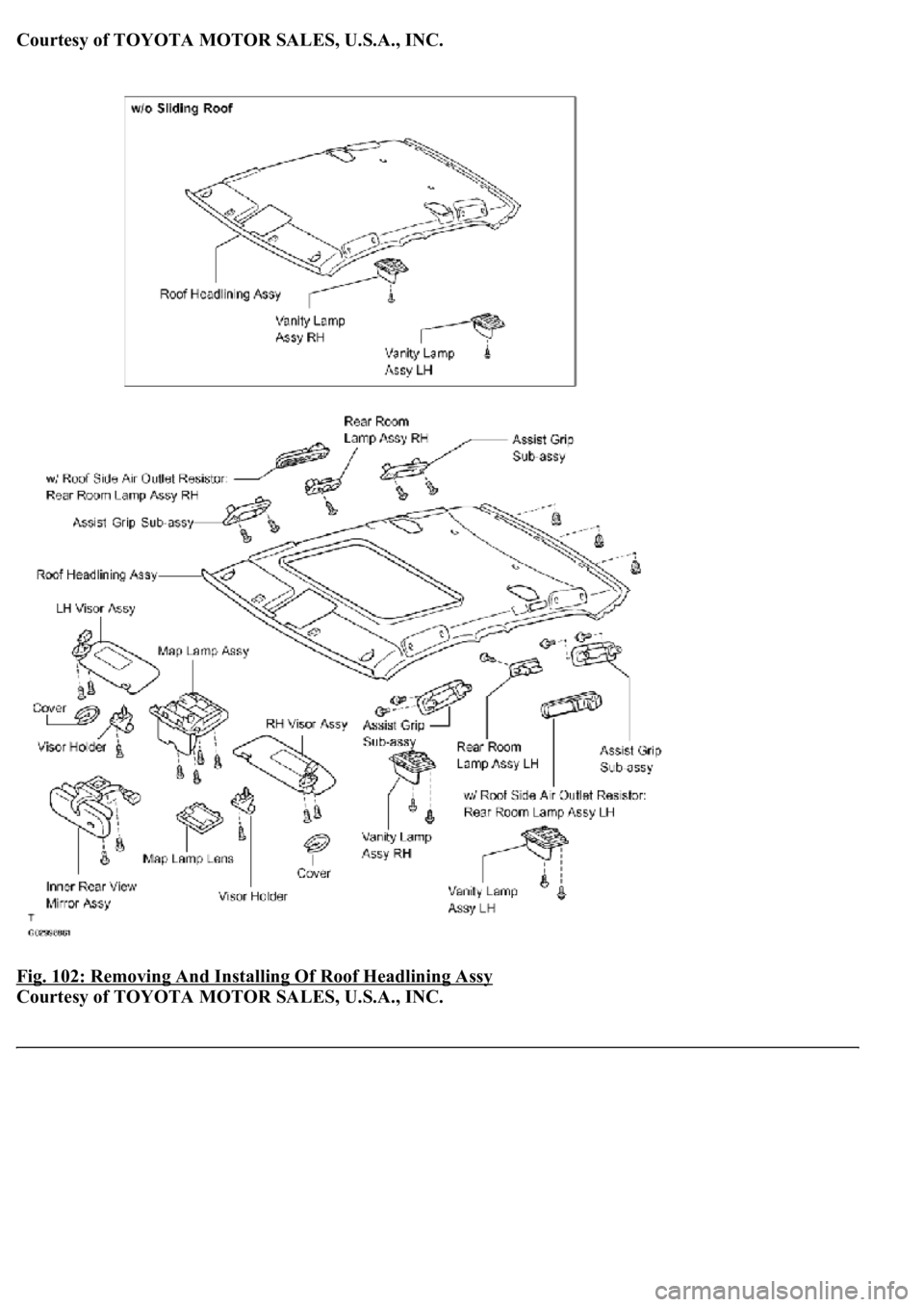

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Fig. 102: Removing And Installing Of Roof Headlining Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3892 of 4500

LEXUS LS430 2003 Factory Repair Manual REPLACEMENT HINT: The installation procedures are the removal procedures in reverse order. A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STAN

Page 3893 of 4500

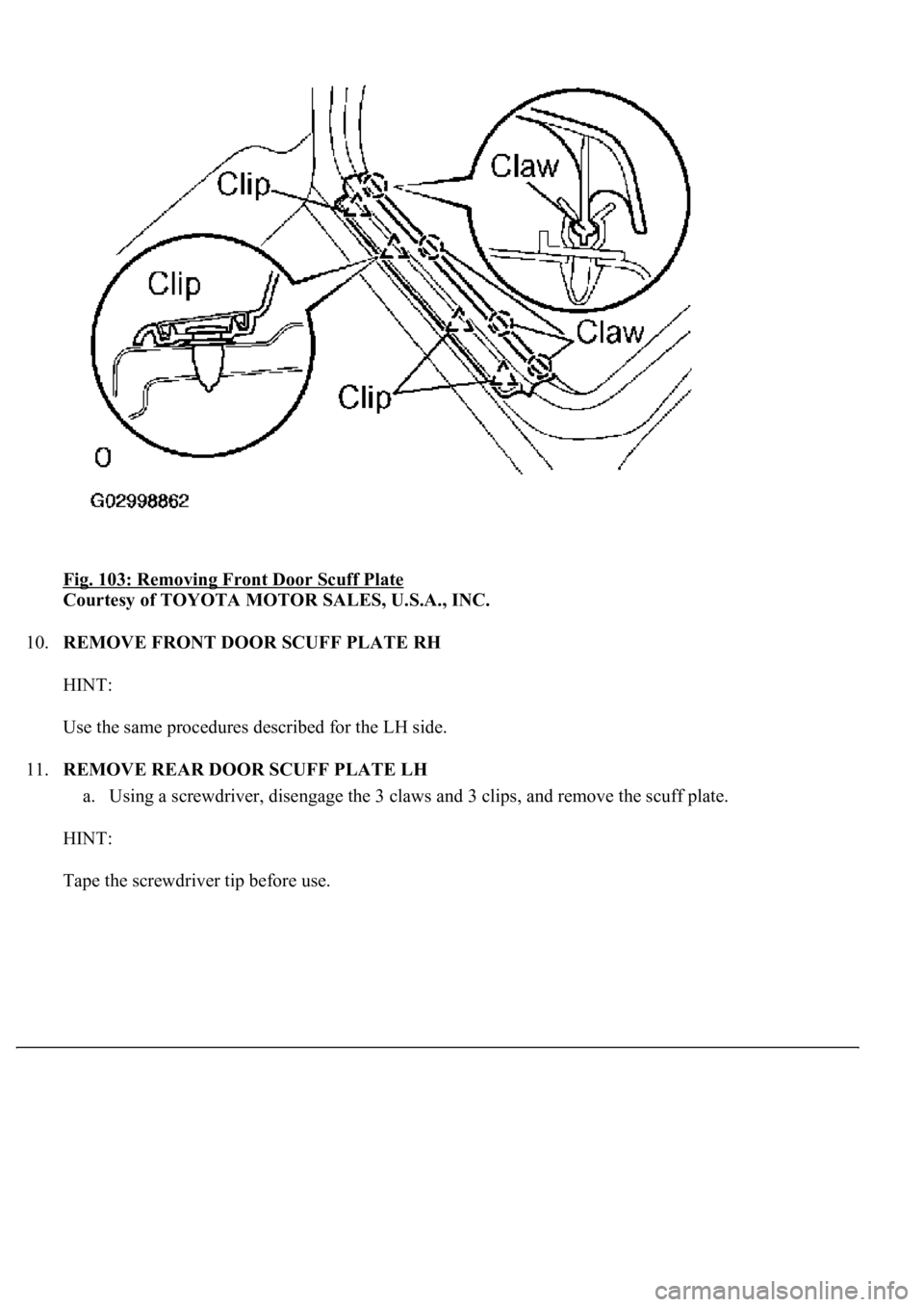

LEXUS LS430 2003 Factory Repair Manual Fig. 103: Removing Front Door Scuff Plate Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.REMOVE FRONT DOOR SCUFF PLATE RH HINT: Use the same procedures described for the LH side. 11.REMOVE REAR

Page 3894 of 4500

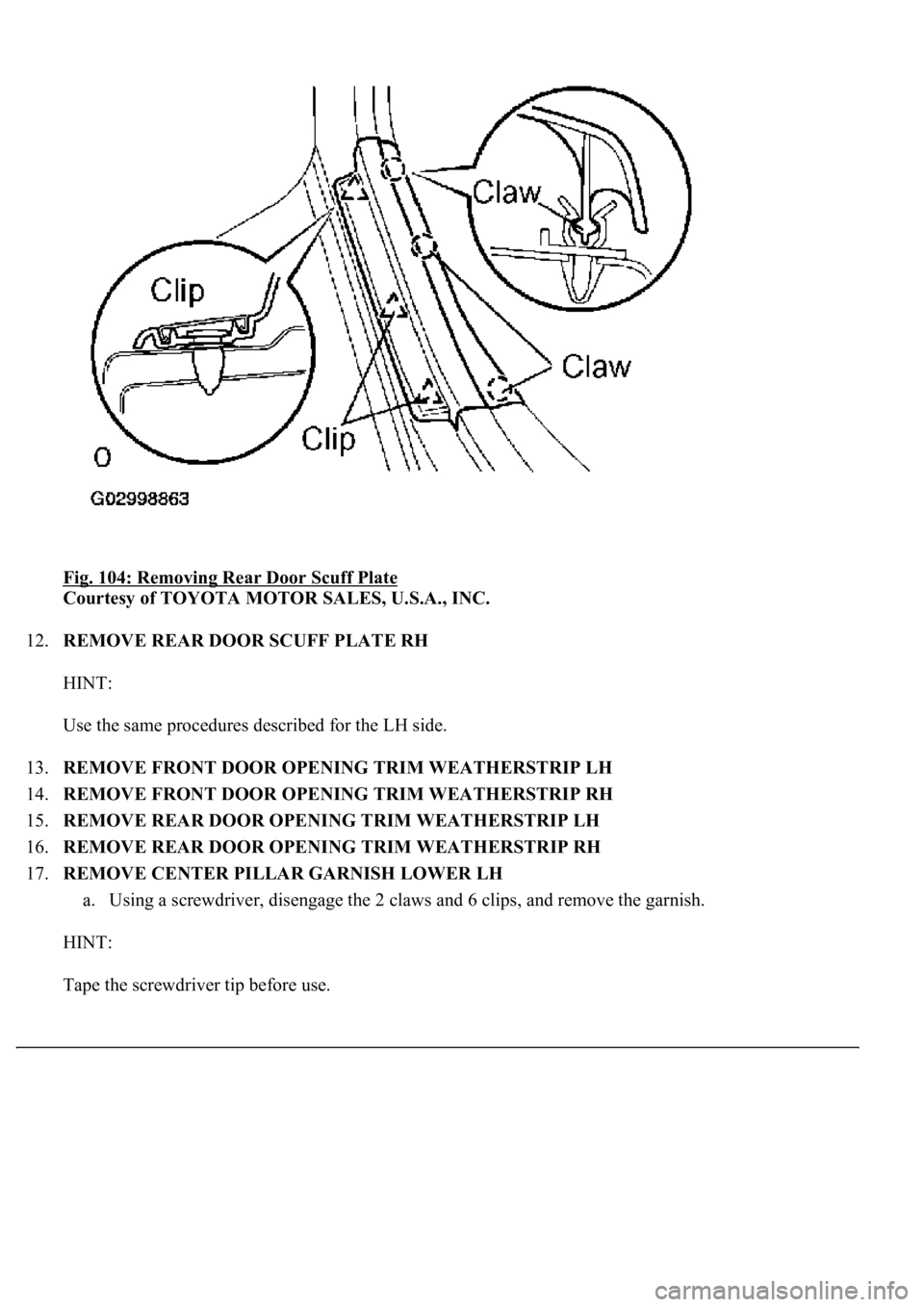

LEXUS LS430 2003 Factory Repair Manual Fig. 104: Removing Rear Door Scuff Plate Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 12.REMOVE REAR DOOR SCUFF PLATE RH HINT: Use the same procedures described for the LH side. 13.REMOVE FRONT D

Page 3895 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 105: Removing Center Pillar Garnish Lower Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 18.REMOVE CENTER PILLAR GARNISH LOWER RH HINT: Use the same procedures described for the LH side. 19.RE

Page 3896 of 4500

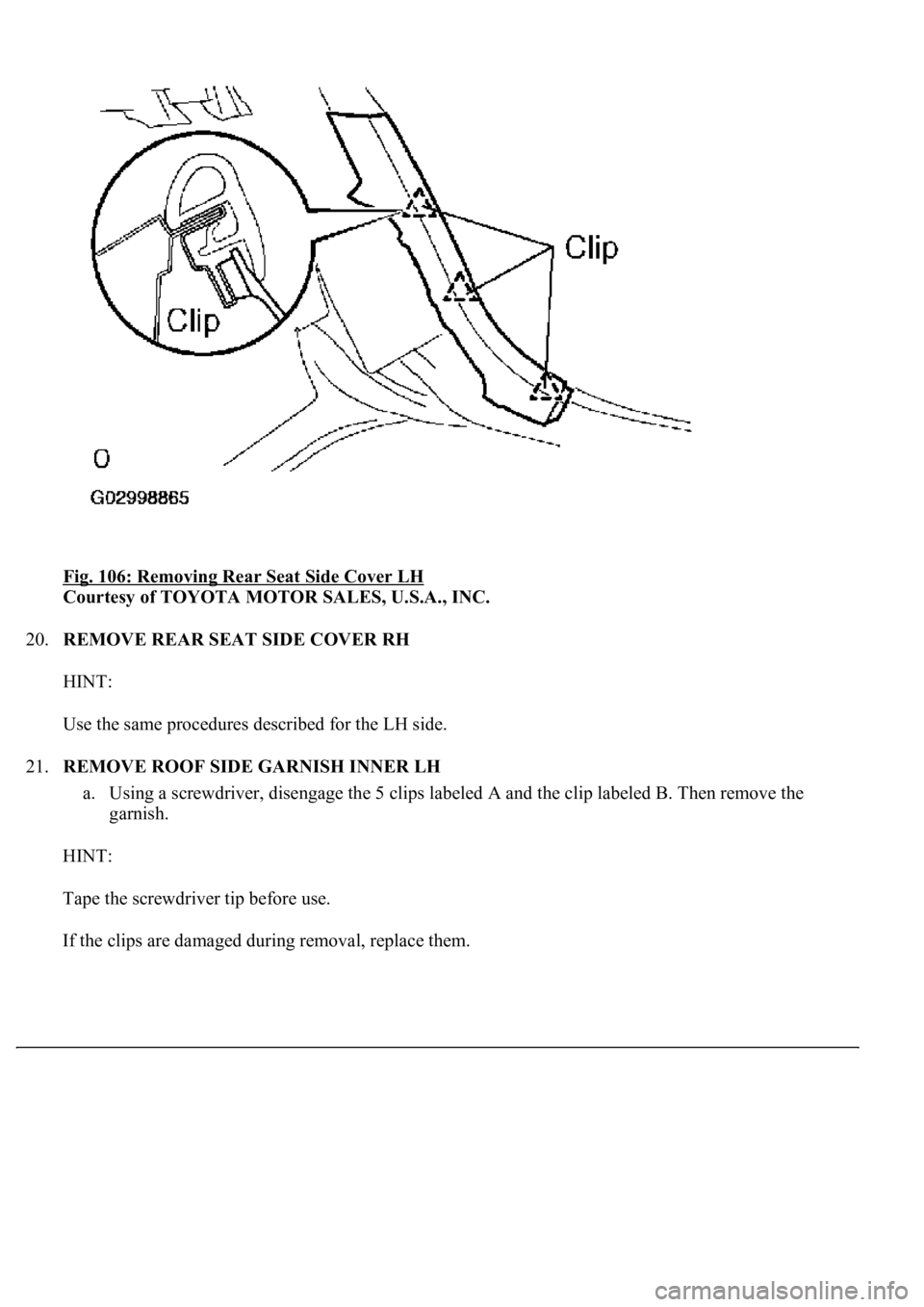

LEXUS LS430 2003 Factory Repair Manual Fig. 106: Removing Rear Seat Side Cover LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 20.REMOVE REAR SEAT SIDE COVER RH HINT: Use the same procedures described for the LH side. 21.REMOVE ROOF S
