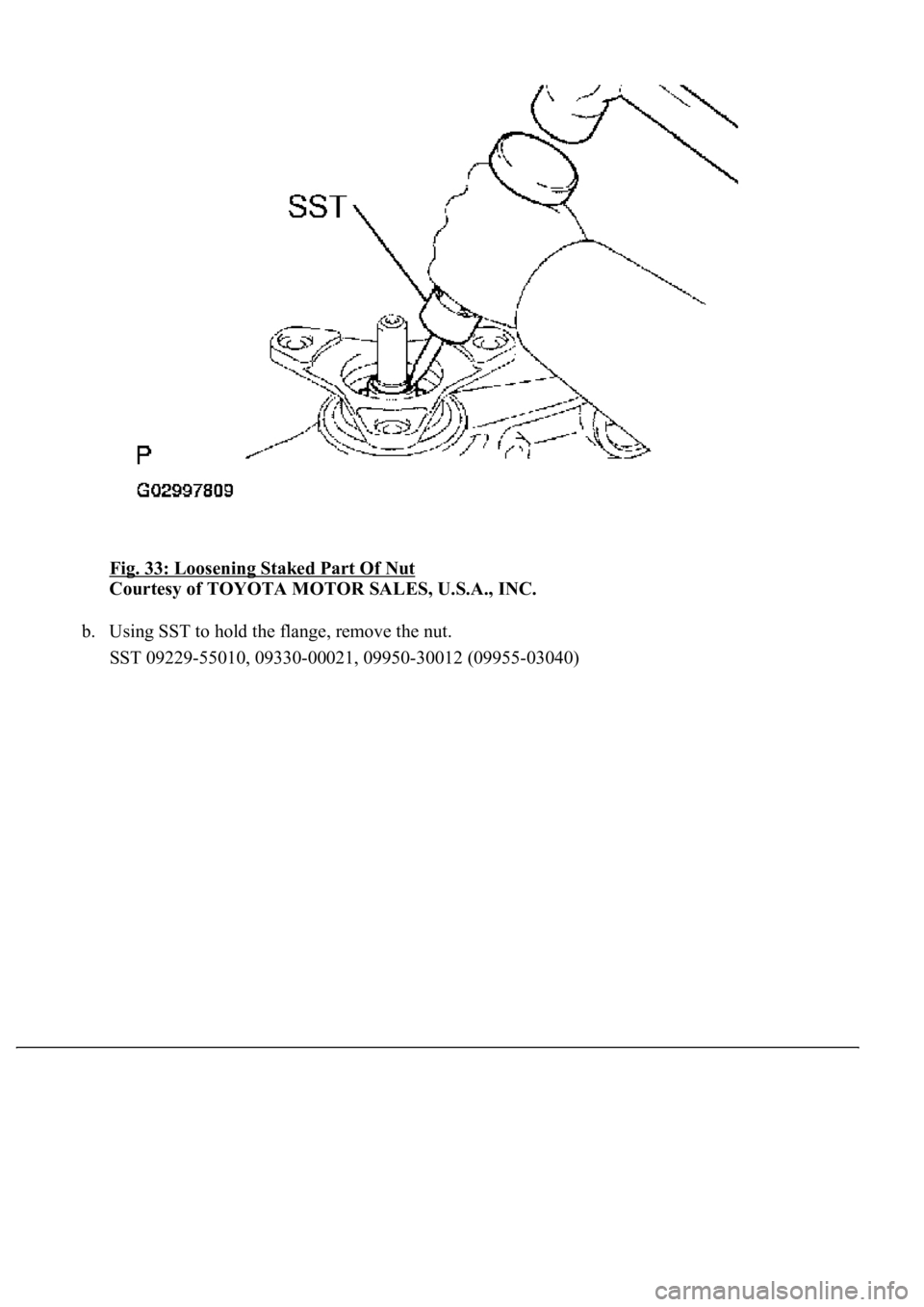

LEXUS LS430 2003 Factory Repair Manual Fig. 33: Loosening Staked Part Of Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Using SST to hold the flange, remove the nut. SST 09229-55010, 09330-00021, 09950-30012 (09955-03040)

Page 2074 of 4500

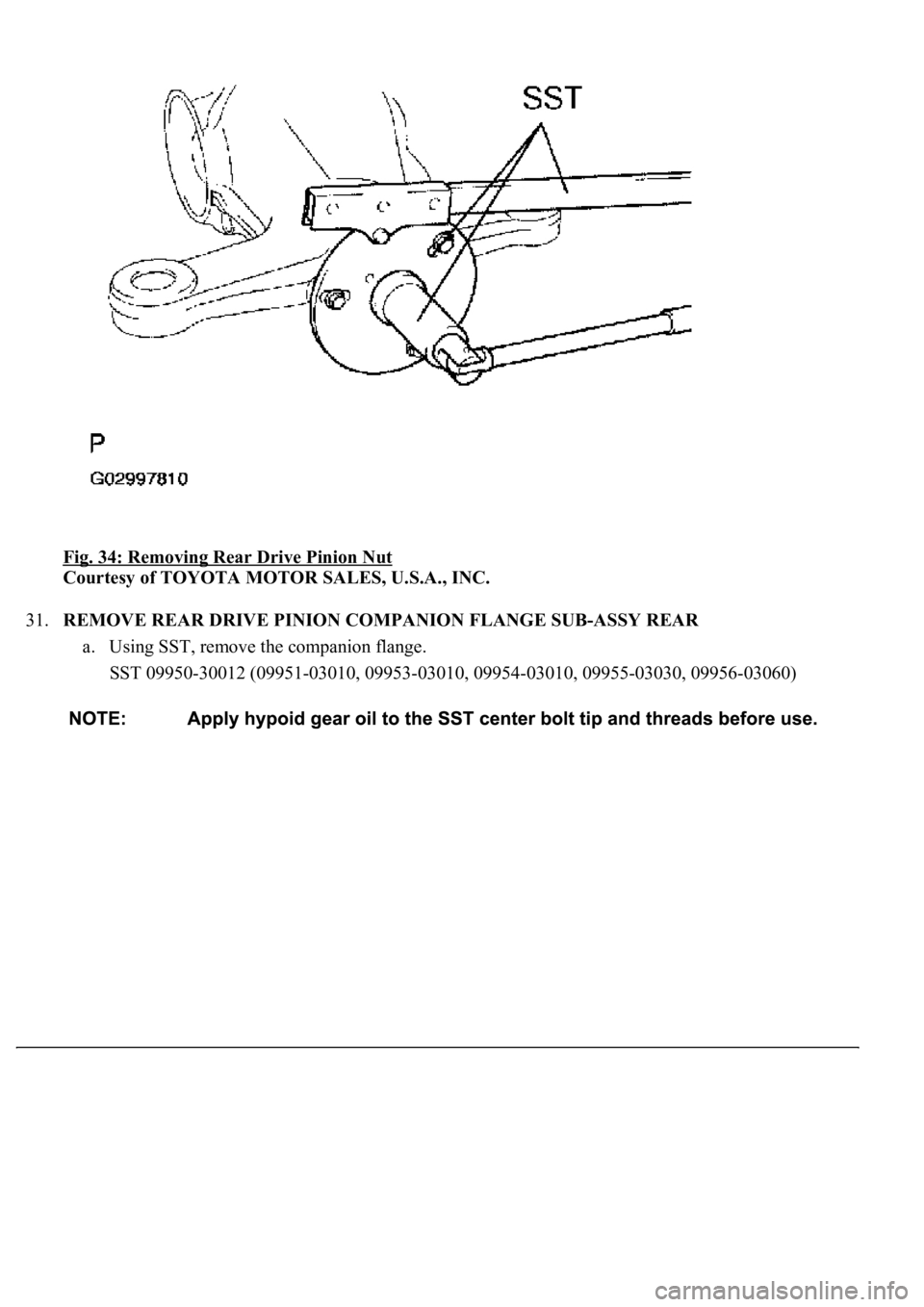

LEXUS LS430 2003 Factory Repair Manual Fig. 34: Removing Rear Drive Pinion Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 31.REMOVE REAR DRIVE PINION COMPANION FLANGE SUB-ASSY REAR a. Using SST, remove the companion flange. SST 0995

Page 2075 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300160018001d000300350048005000520059004c0051004a00030035004800440055000300270055004c0059004800030033004c0051004c005200510003002600520050005300440051004c0052005100030029004f0044005

Page 2076 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 36: Removing Rear Differential Dust Deflector Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 33.REMOVE REAR DIFFERENTIAL CARRIER OIL SEAL a. Using SST, remove the oil seal from the differential

Page 2077 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 37: Removing Rear Differential Carrier Oil Seal Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 34.REMOVE REAR DIFFERENTIAL DRIVE PINION OIL SLINGER a. Using a magnet hand, remove the differentia

Page 2078 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 38: Removing Differential Drive Pinion Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 36.REMOVE REAR DIFFERENTIAL DRIVE PINION BEARING SPACER a. Remove the spacer from the drive pinion.

Page 2079 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 39: Removing Rear Differential Drive Pinion Bearing Spacer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 37.REMOVE REAR DRIVE PINION FRONT TAPERED ROLLER BEARING a. Remove the front bearing fro

Page 2080 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 40: Removing Front Bearing From Differential Carrier Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b.Using a brass bar and a hammer, remove the front bearing outer race.
