Page 337 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 104: Checking Harness And Connector (Cool Air Bypass Servomotor - Air Conditioning Amplifier) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: REPL

Page 338 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 105: TPBPR Terminal Voltage/Damper Opening Angle Graph Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Fig. 106: DTC Detection Item Trouble Area Chart Courtesy of TOYOTA MOTOR SALES, U.S.A., INC

Page 339 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 107: Max Cool Damper Position Sensor Circuit (Passenger Side) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE 1.READ VALUE ON HAND-HELD TESTER a. Connect the hand-held teste

Page 340 of 4500

LEXUS LS430 2003 Factory Repair Manual OK: The display is as specified in the normal condition. Result: AIR CONDITIONER TEST RESULT B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE C: REPLACE AIR CONDITIONING AM

Page 341 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 108: Inspecting Air Conditioning Amplifier (TPBPA - SG (SG-7) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE C: REPLACE AIR C

Page 342 of 4500

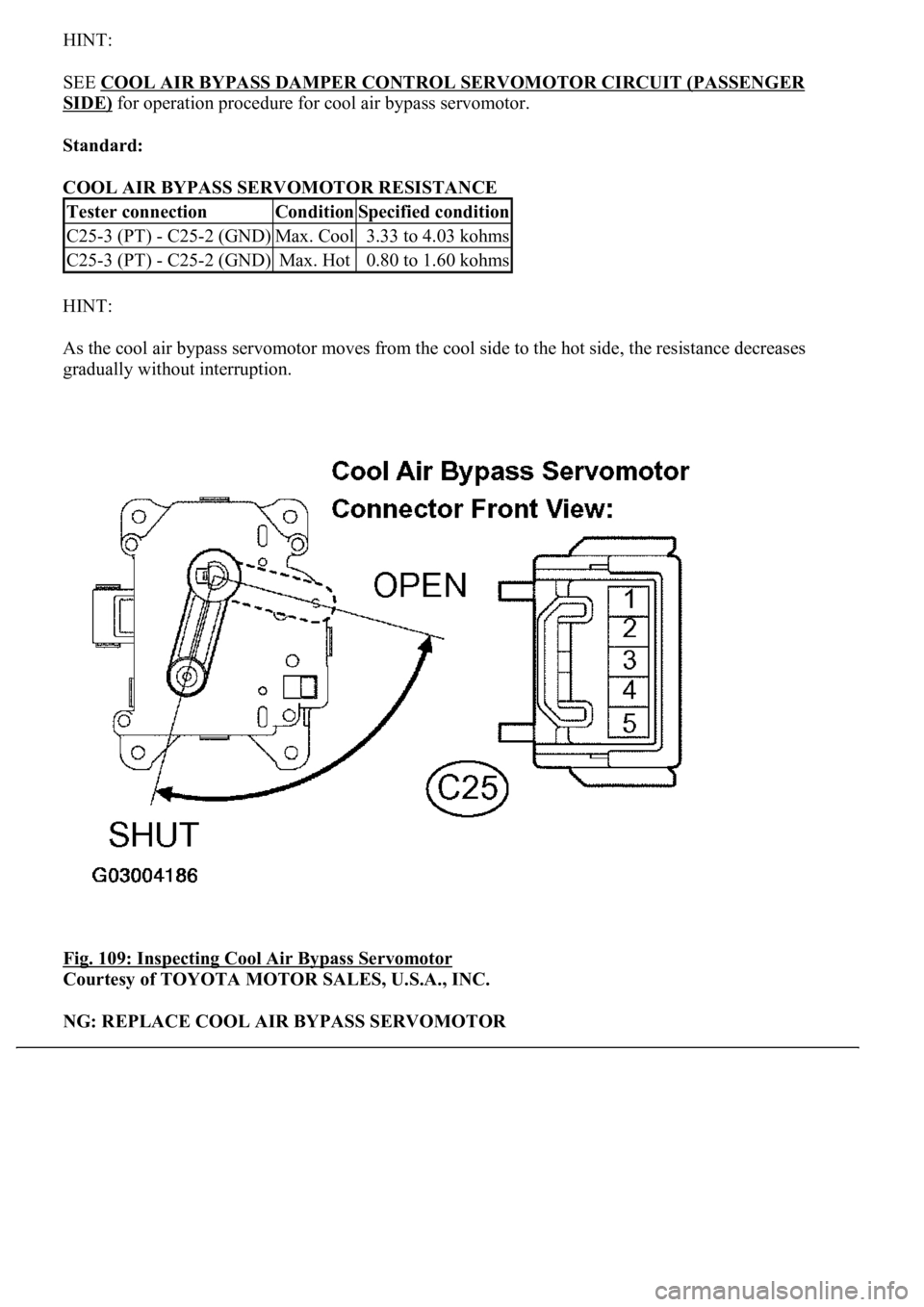

LEXUS LS430 2003 Factory Repair Manual HINT: SEE COOL AIR BYPASS DAMPER CONTROL SERVOMOTOR CIRCUIT (PASSENGER SIDE) for operation procedure for cool air bypass servomotor. Standard: COOL AIR BYPASS SERVOMOTOR RESISTANCE HINT: As the

Page 343 of 4500

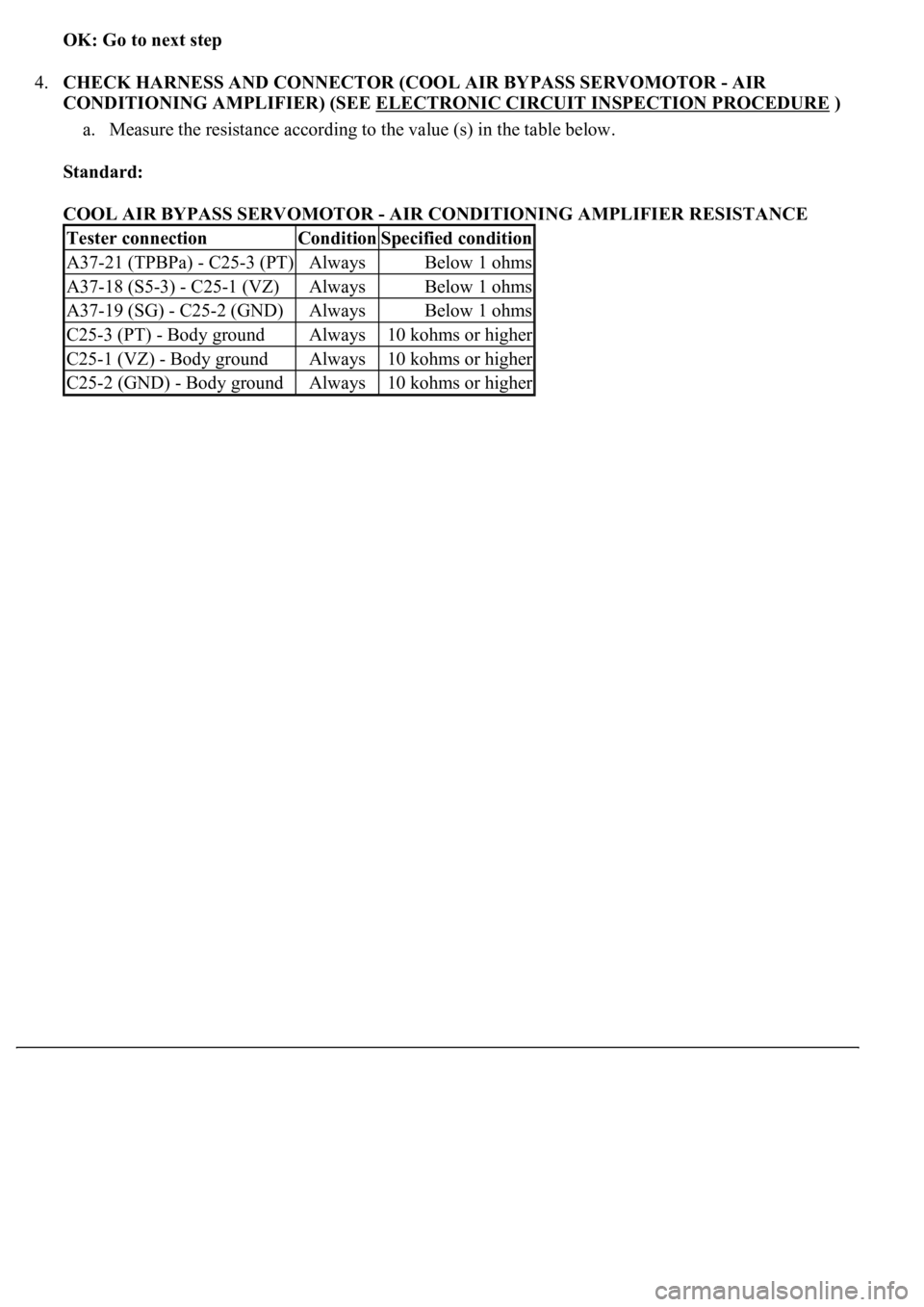

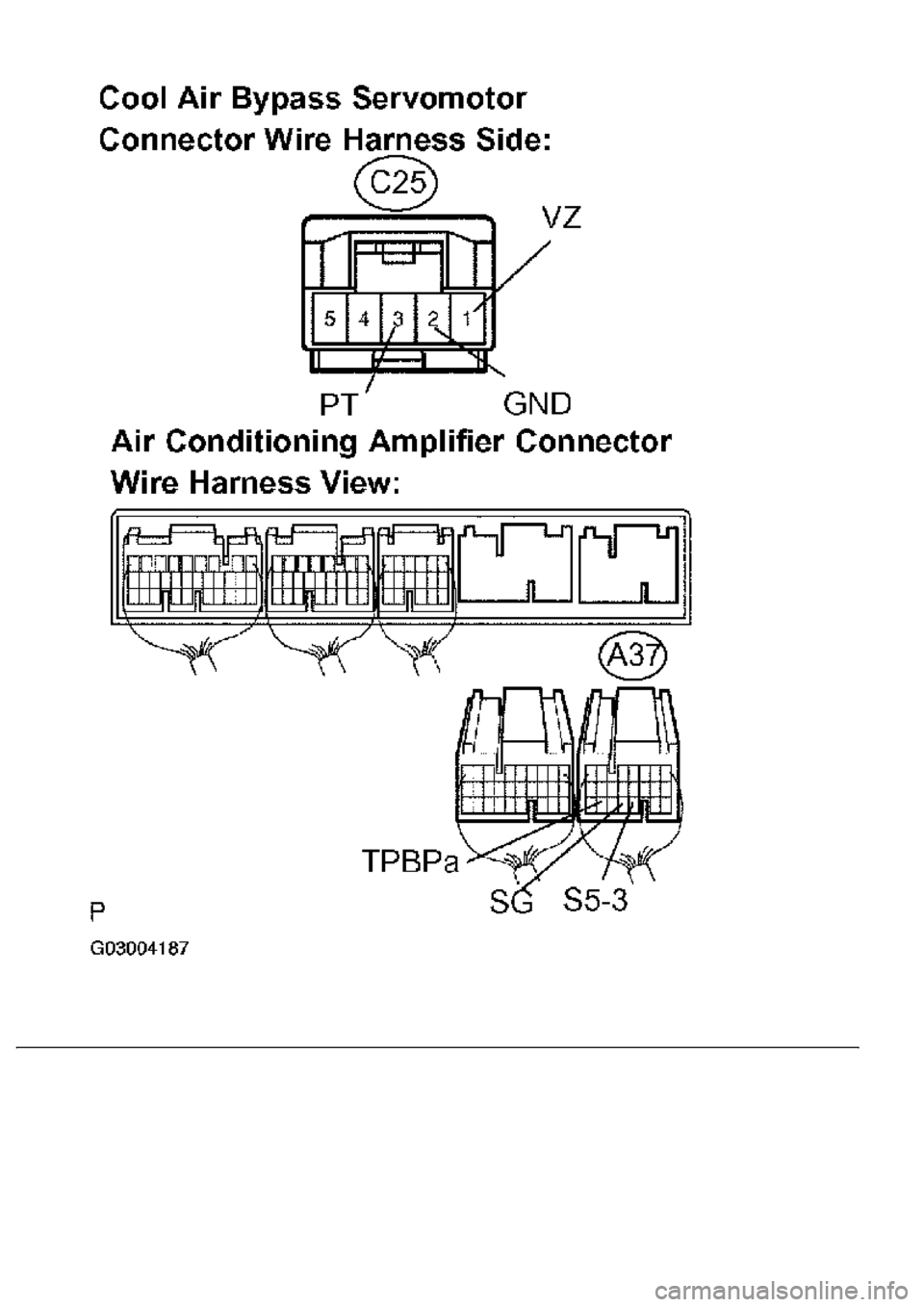

LEXUS LS430 2003 Factory Repair Manual OK: Go to next step 4.CHECK HARNESS AND CONNECTOR (COOL AIR BYPASS SERVOMOTOR - AIR CONDITIONING AMPLIFIER) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE ) a. Measure the resistance according to t

Page 344 of 4500

LEXUS LS430 2003 Factory Repair Manual
